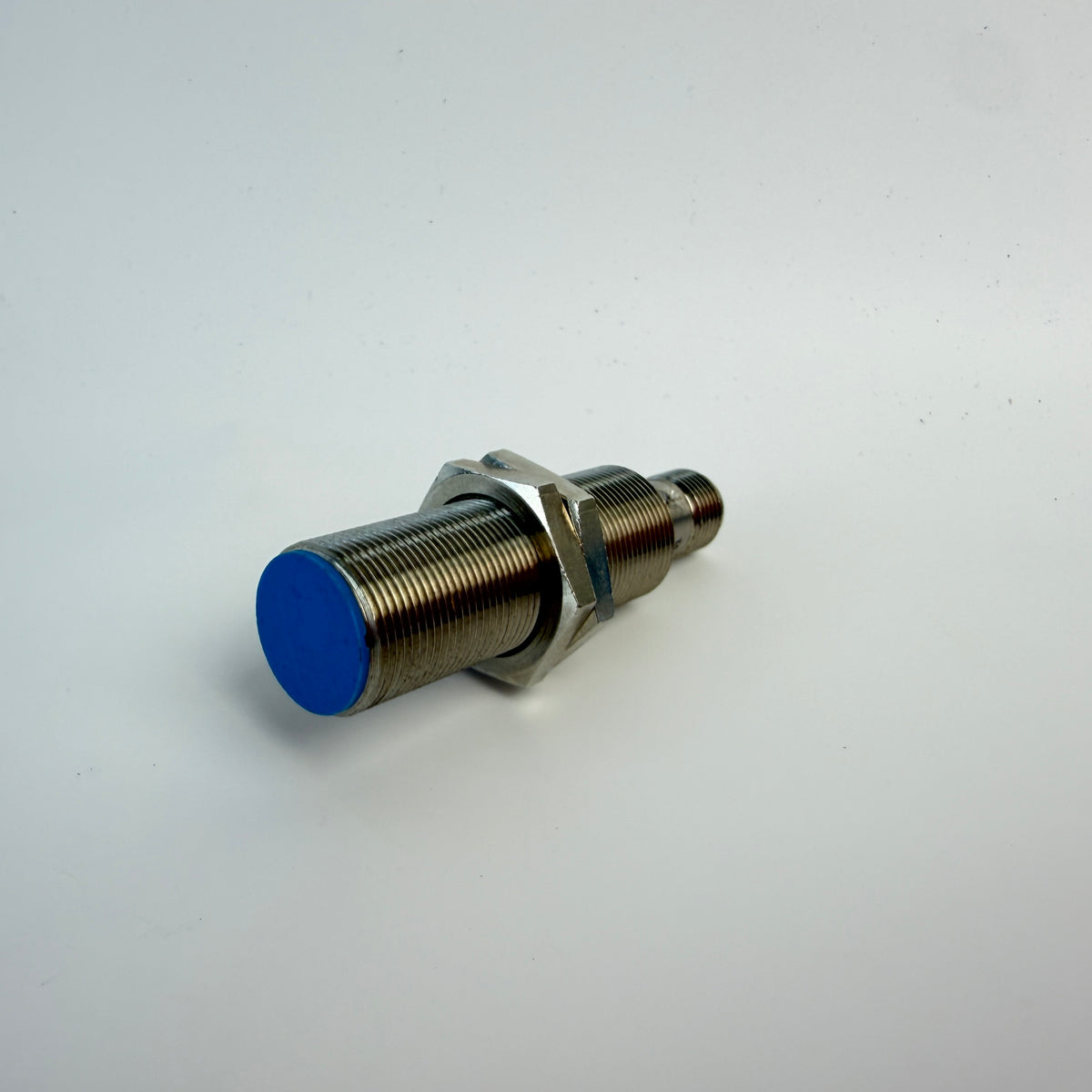

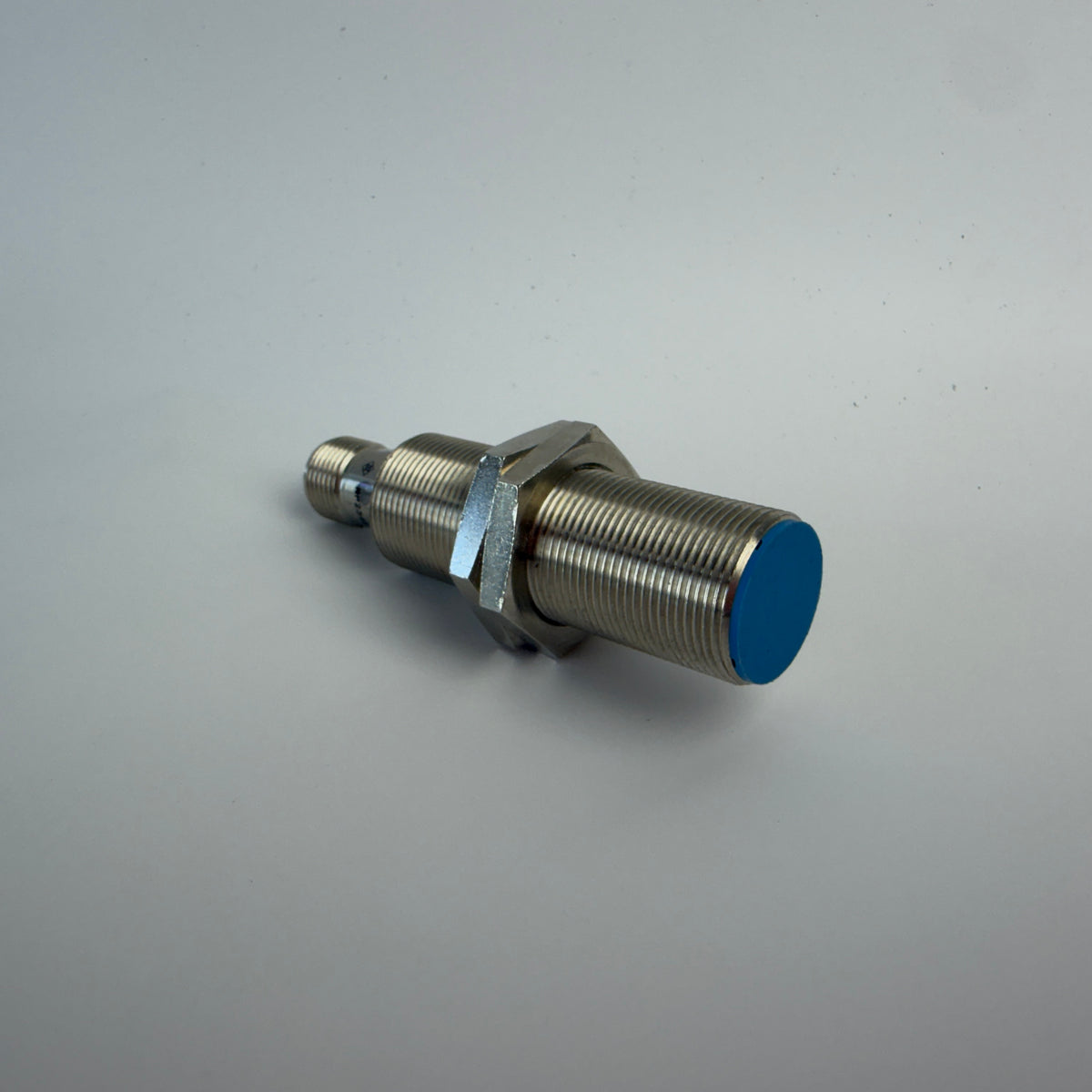

SICK IME18-12BPOZC0S, Part No. 1071261, industrial inductive proximity sensor for non-contact detection of metallic objects in automation and machinery applications.
This IME series sensor features an M18 × 1 cylindrical threaded housing, 12 mm nominal sensing range, and quasi-flush installation. It uses a PNP Normally Closed (NC) switching output with DC 3-wire electrical configuration.
The sensor operates from 10–30 V DC, supports continuous output current up to 200 mA, and provides a switching frequency of 500 Hz.
Connection is via an M12 4-pin male connector. The nickel-plated brass housing and IP67 enclosure rating make it suitable for industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | SICK |
| Series | IME |
| Model / MPN | IME18-12BPOZC0S |

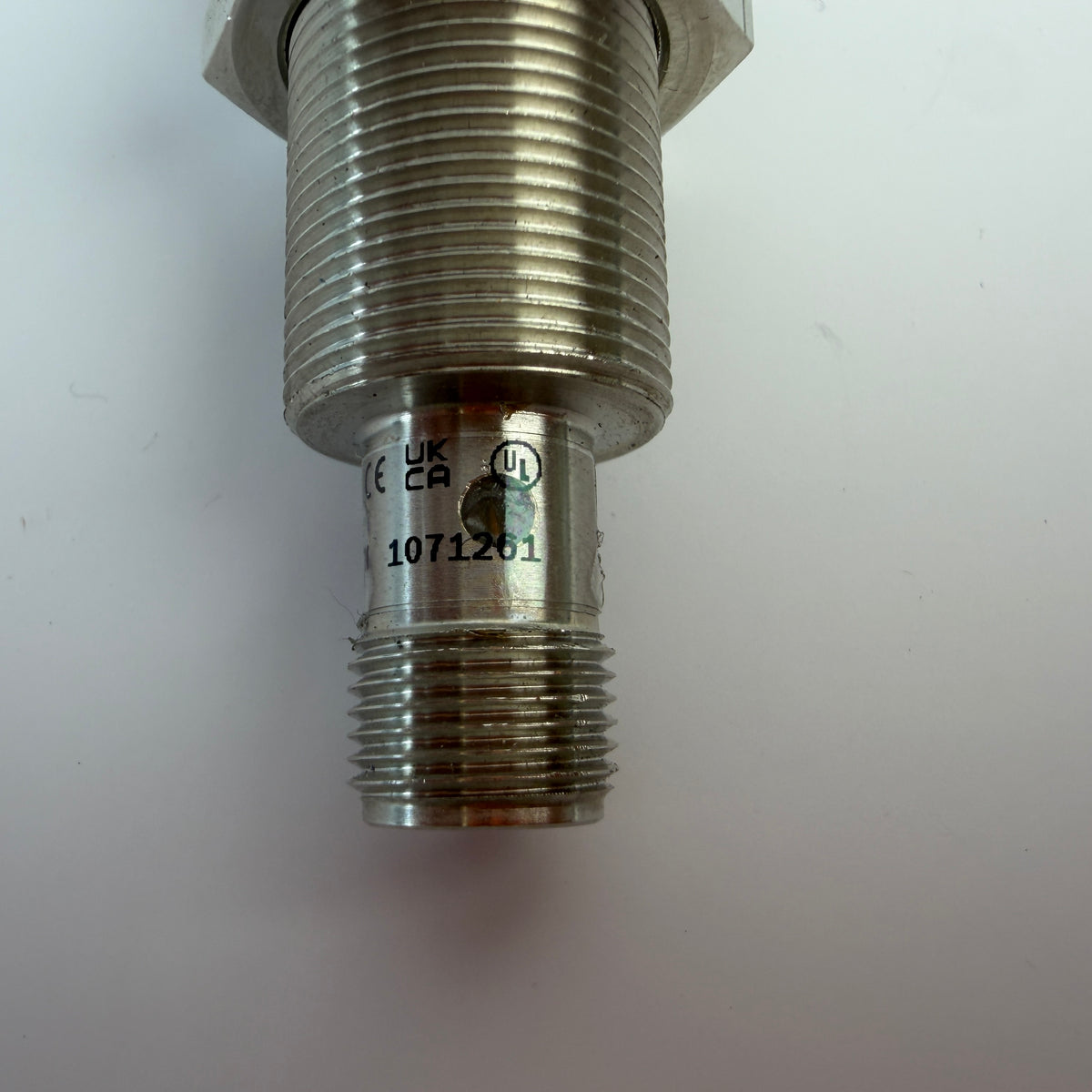

| Part Number | 1071261 |

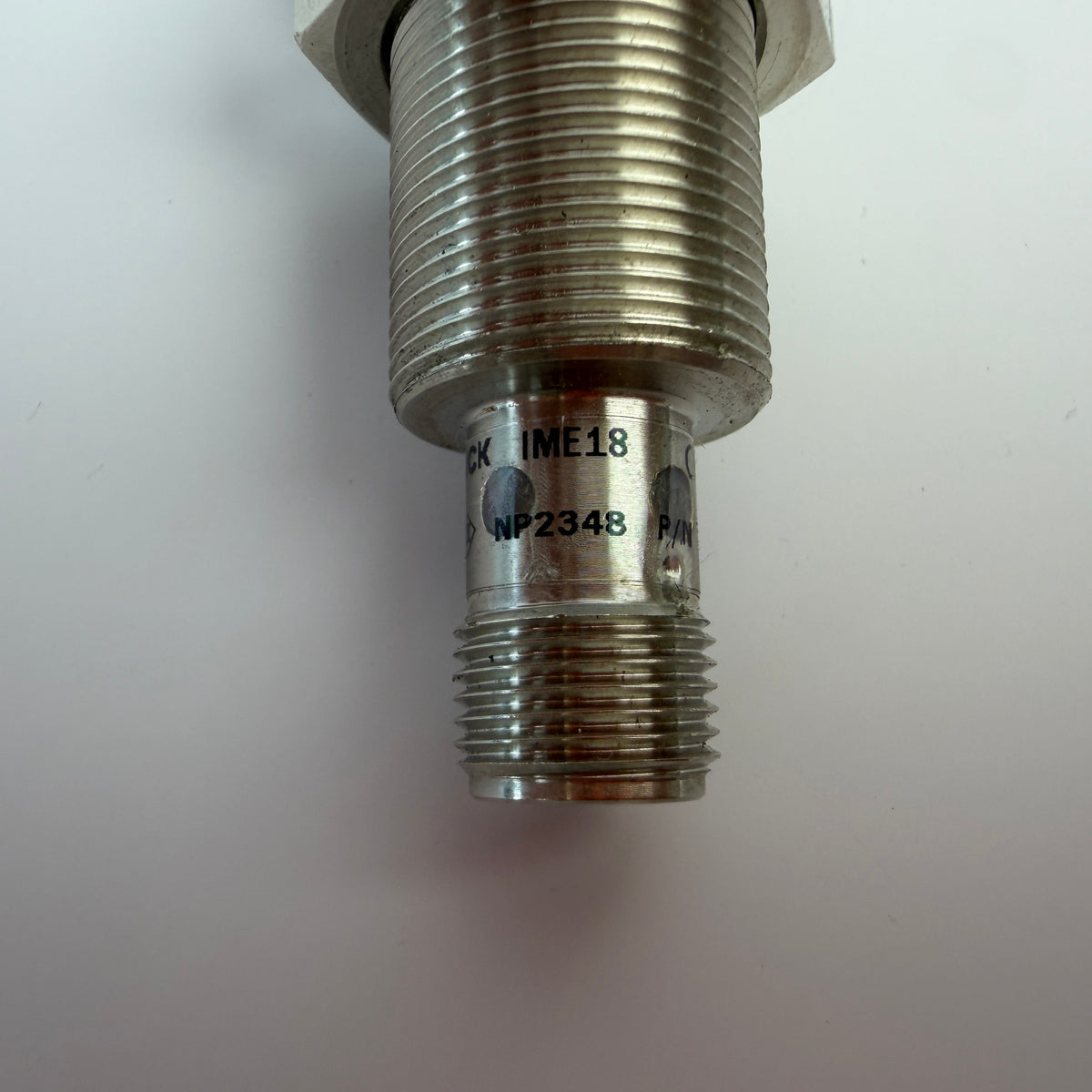

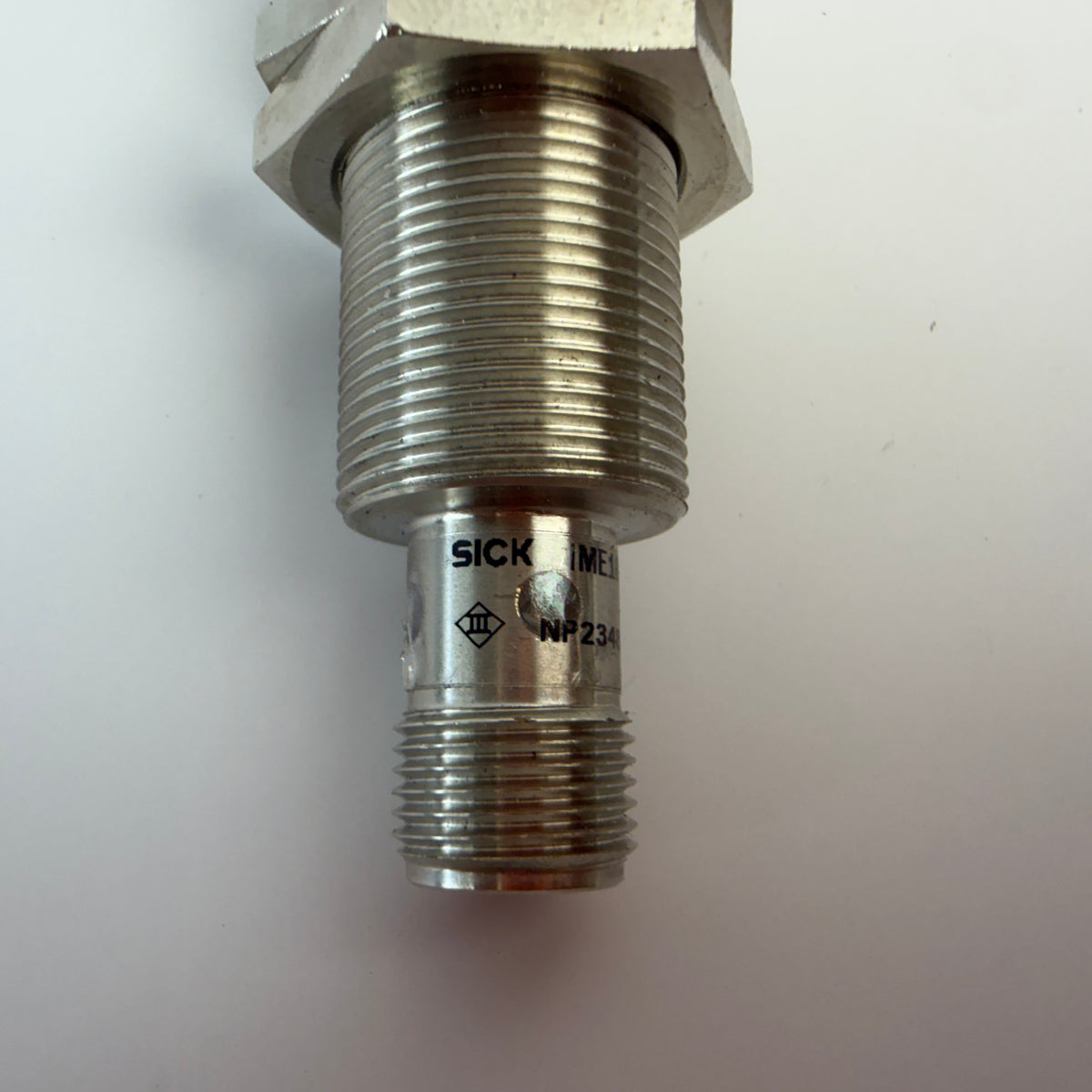

| Visible Marking | IME18 / NP2348 |
| Sensor Type | Inductive proximity sensor |
| Housing | Standard cylindrical |
| Thread | M18 × 1 |
| Diameter | 18 mm |
| Nominal Sensing Range (Sn) | 12 mm |
| Safe Sensing Range (Sa) | 9.72 mm |
| Installation | Quasi-flush |
| Output | PNP |
| Output Function | Normally Closed (NC) |
| Electrical Wiring | DC 3-wire |
| Supply Voltage | 10–30 V DC |
| Continuous Current | ≤200 mA |
| Switching Frequency | 500 Hz |
| Voltage Drop | ≤2 V |

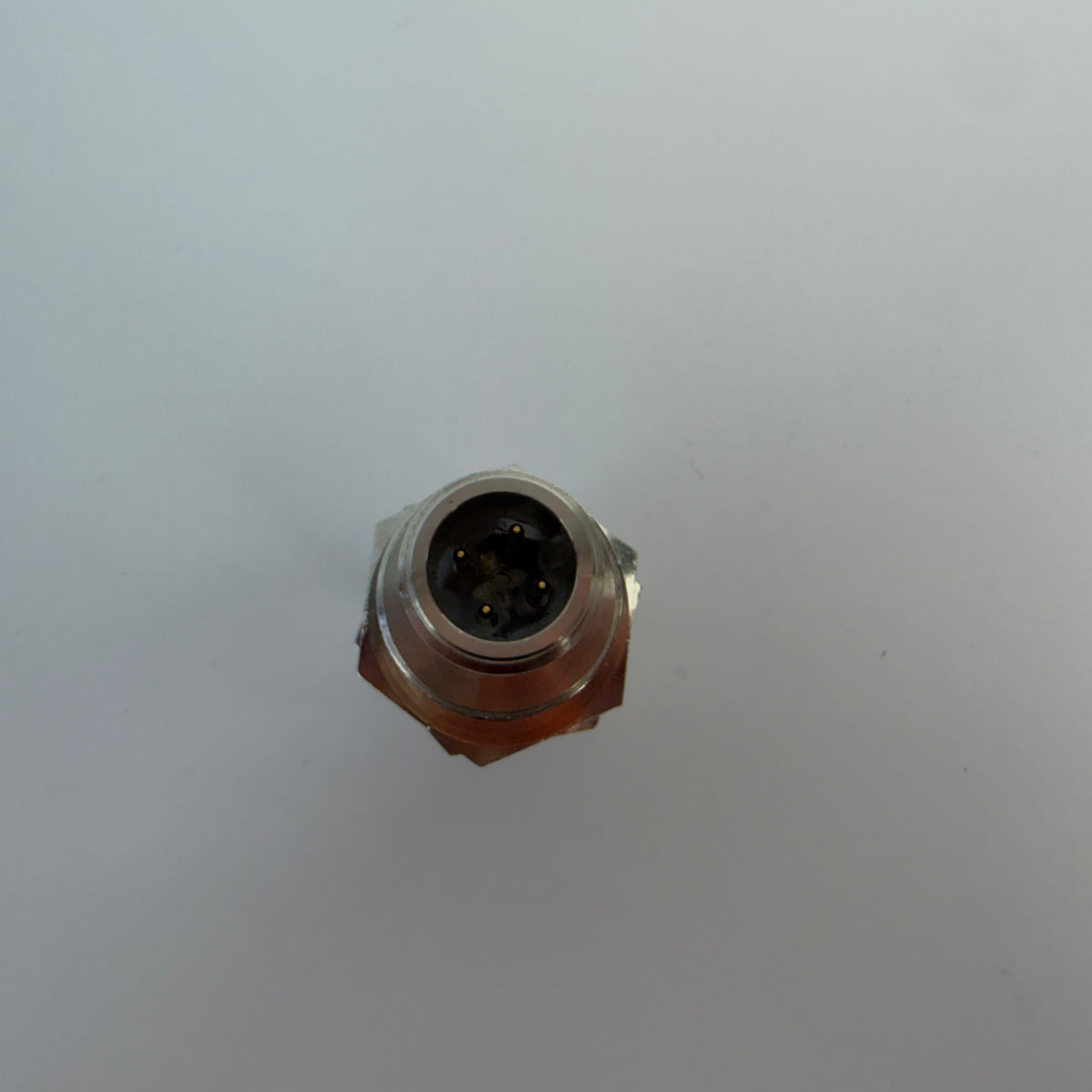

| Connection | M12 male, 4-pin |
| Protection Rating | IP67 |
| Housing Material | Nickel-plated brass |
| Sensing Face | PA 66 plastic |
| Housing Length | 69 mm |
| Operating Temperature | -25°C to +75°C |
| Protection | Short-circuit / power-up pulse protection |
Package Contents
1 × SICK IME18-12BPOZC0S / 1071261 inductive proximity sensor, as pictured.
