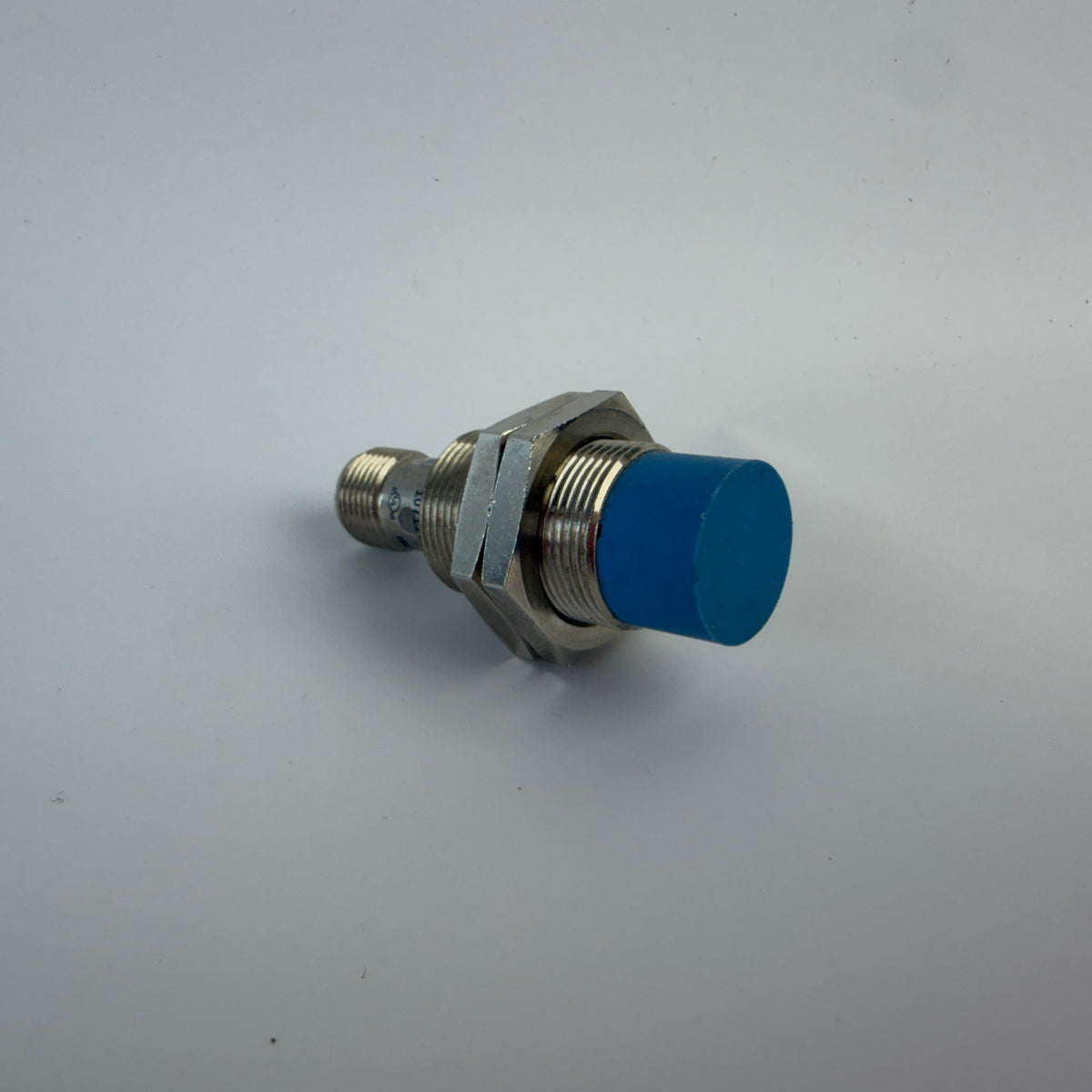

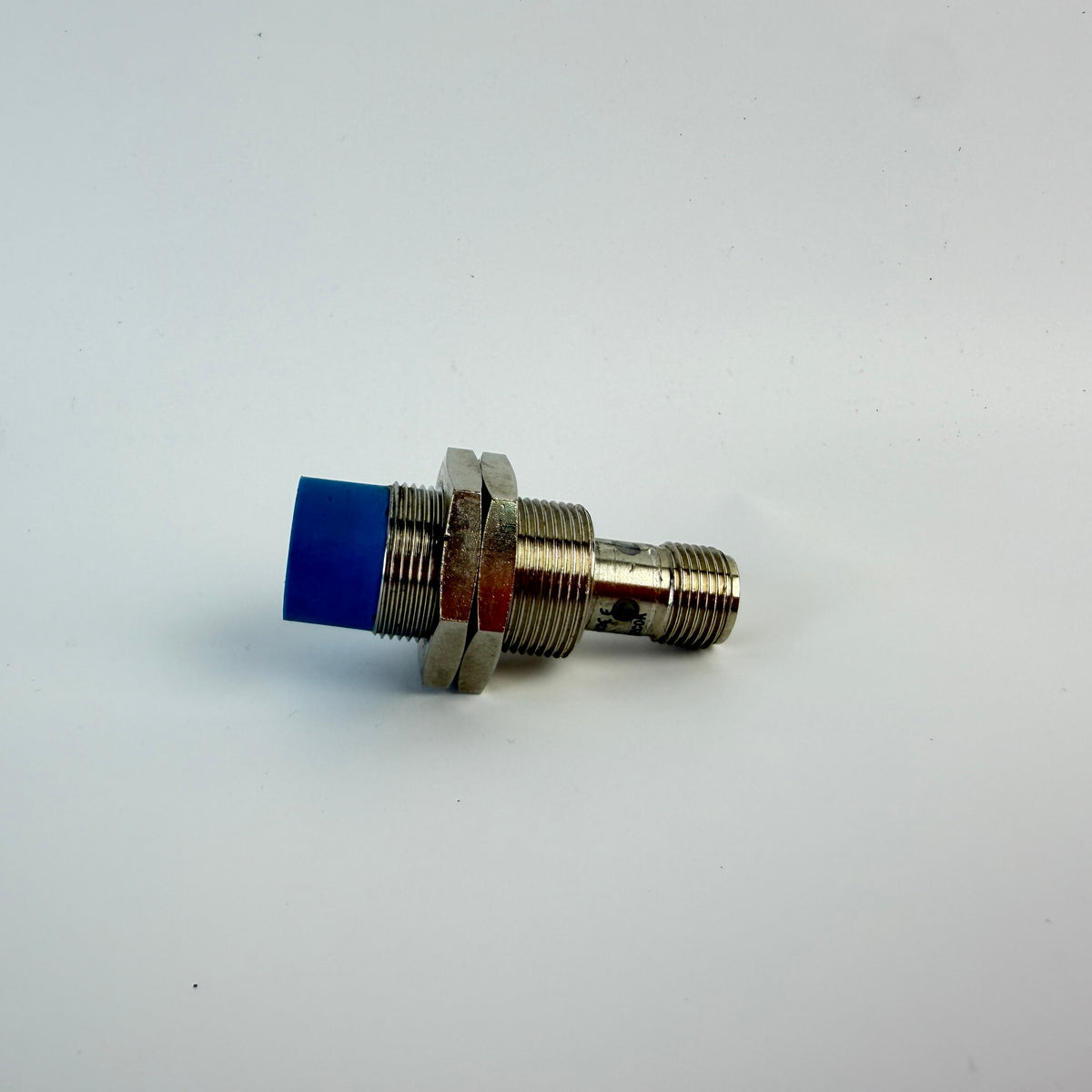

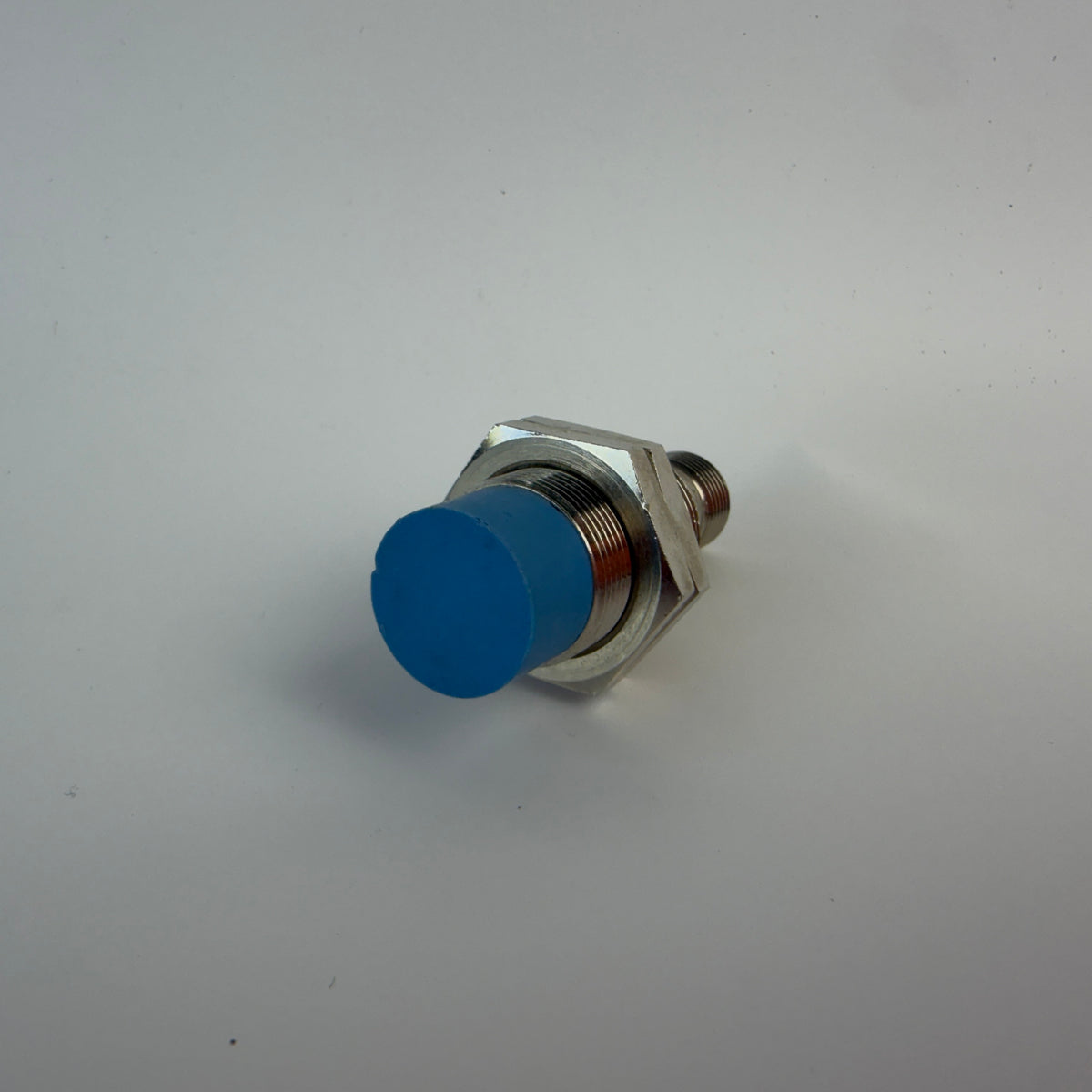

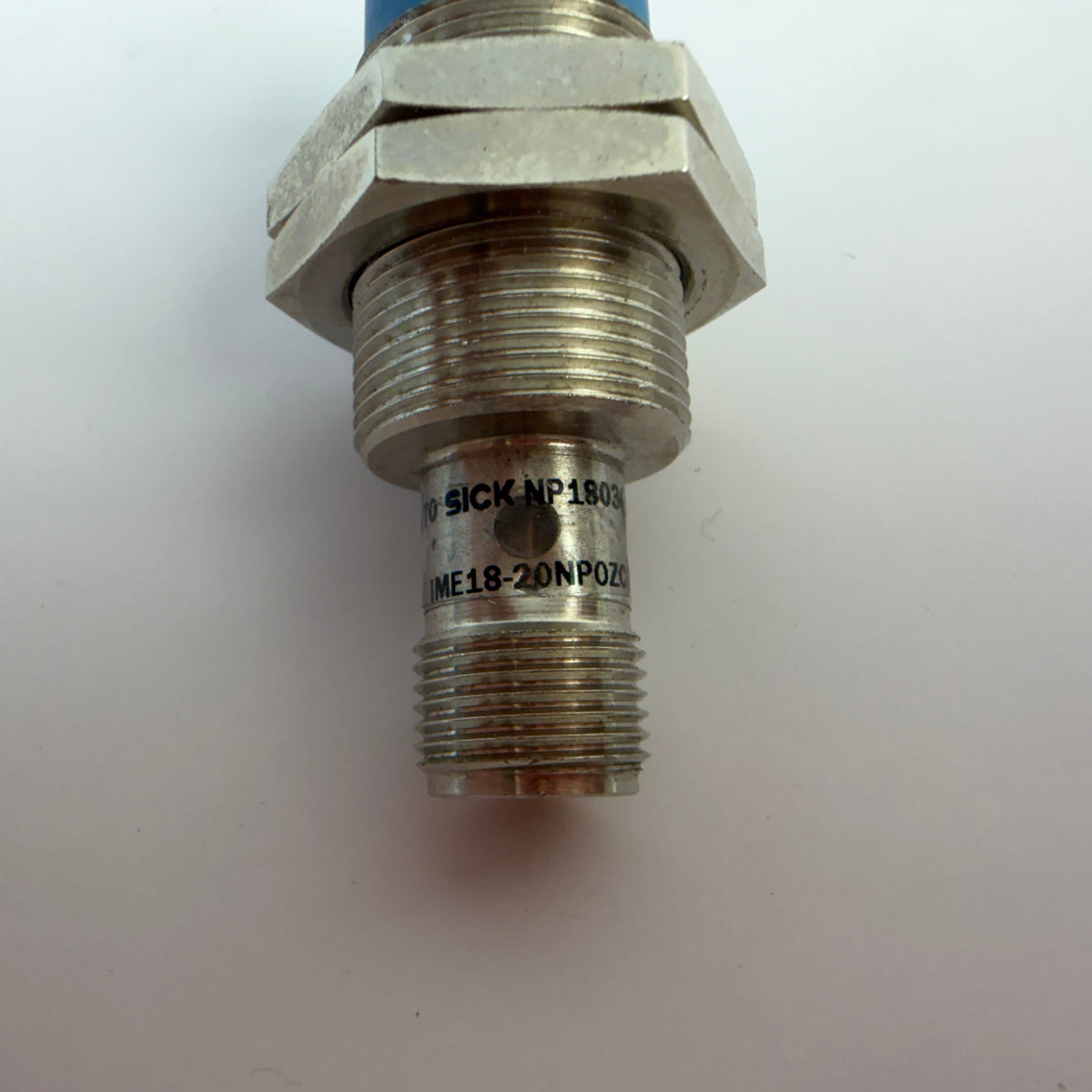

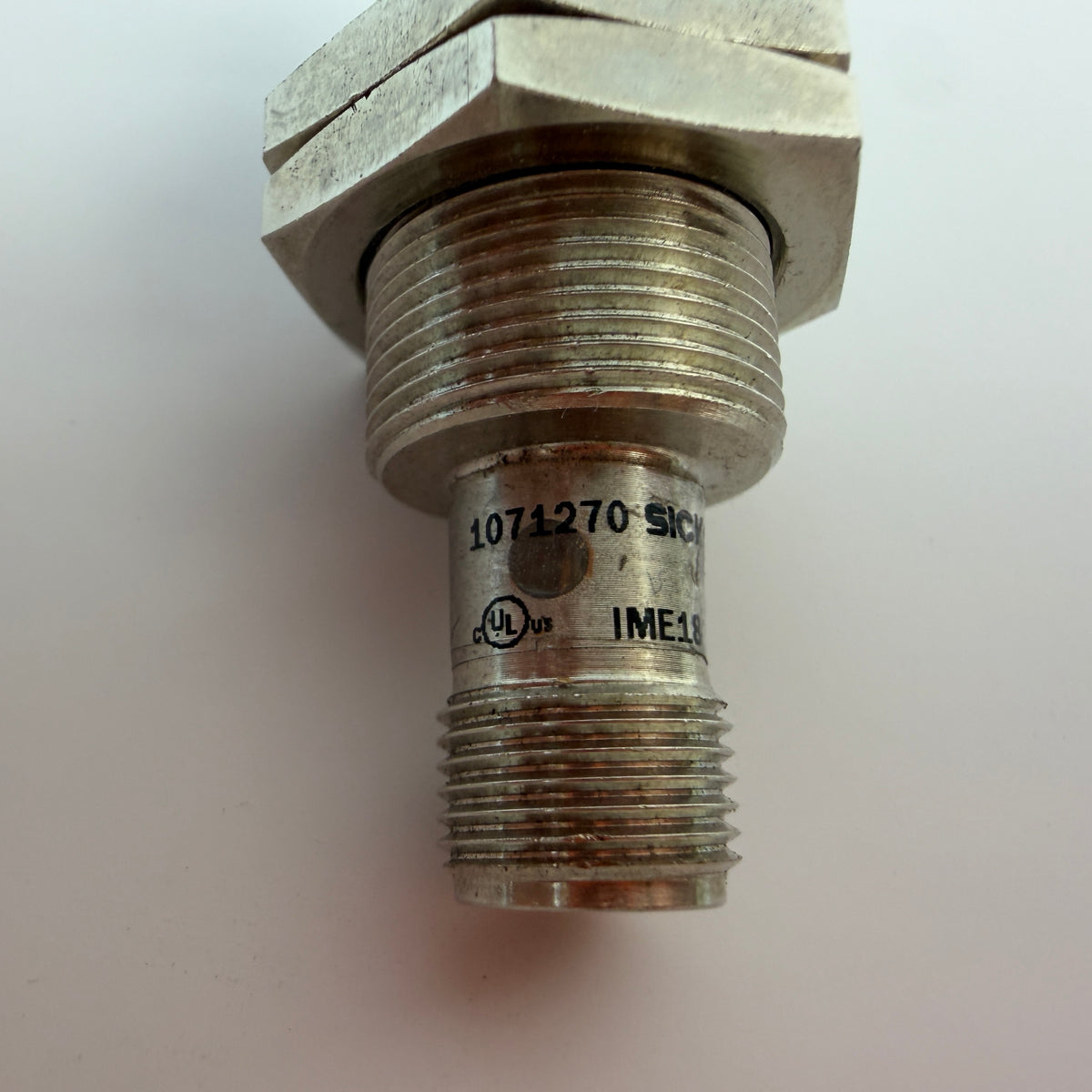

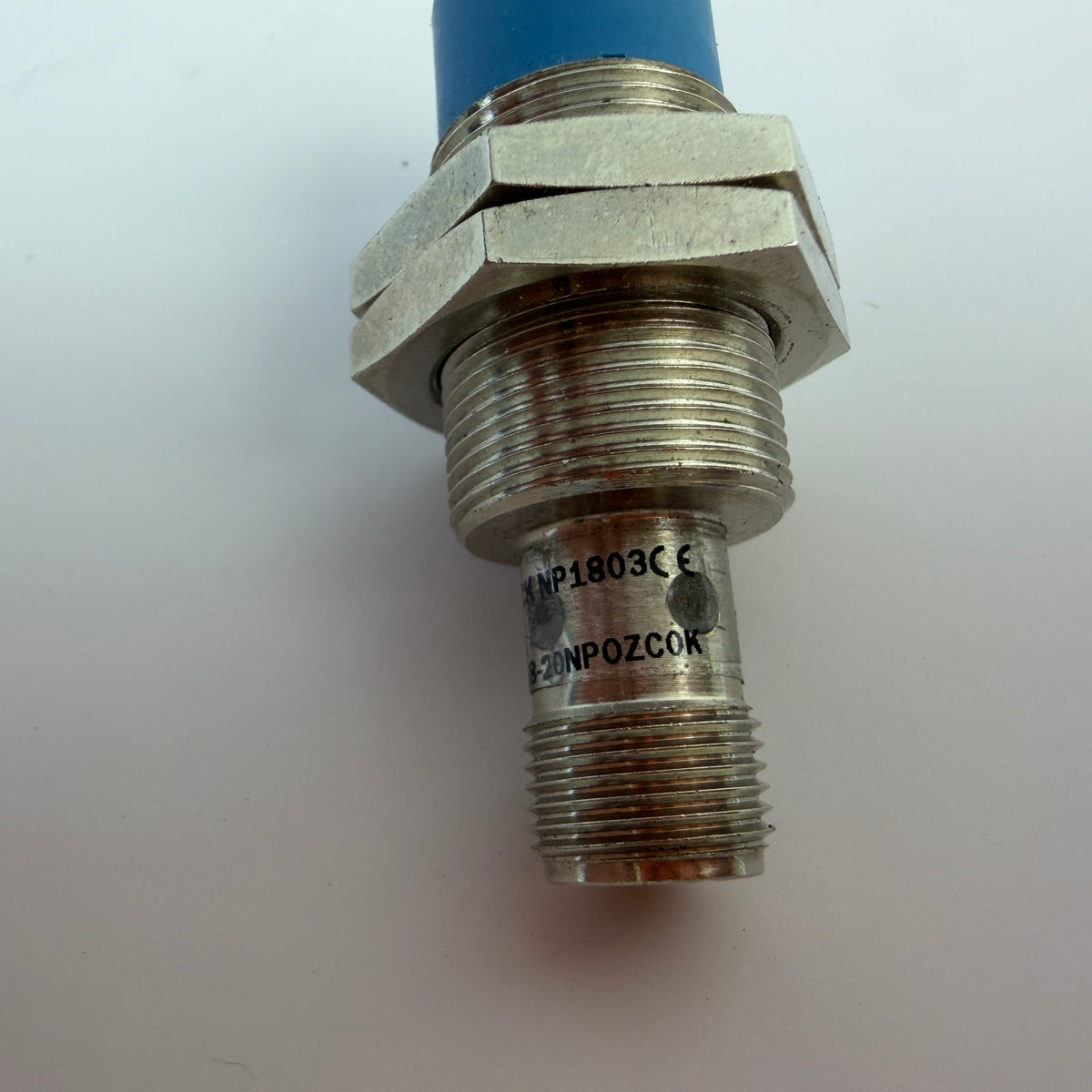

SICK IME18-20NPOZC0K inductive proximity sensor, Part No. 1071270, from the SICK IME series.
This industrial proximity sensor features an M18 × 1 threaded short-body housing and an extended 20 mm nominal sensing range. It is designed for non-flush installation and provides a PNP Normally Closed (NC) switching output.
The sensor operates from 10–30 V DC, supports up to 200 mA continuous output current, and has a switching frequency of 200 Hz. Connection is provided through a 4-pin M12 male connector.
The nickel-plated brass housing and IP67 enclosure rating make it suitable for industrial automation, machine building, positioning and non-contact metal object detection.
Condition: Used, fully functional.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | SICK |
| Series | IME |
| Model | IME18-20NPOZC0K |
| Part Number | 1071270 |
| Sensor Type | Inductive proximity sensor |
| Housing | Short-body, cylindrical |
| Thread Size | M18 × 1 |
| Diameter | 18 mm |
| Nominal Sensing Range (Sn) | 20 mm |
| Safe Sensing Range (Sa) | 16.2 mm |
| Installation | Non-flush |
| Output | PNP |
| Output Function | NC / Normally Closed |
| Electrical Wiring | DC 3-wire |
| Supply Voltage | 10–30 V DC |
| Continuous Current | ≤200 mA |
| No-load Current | ≤10 mA |
| Voltage Drop | ≤2 V |
| Switching Frequency | 200 Hz |
| Connection | M12 male, 4-pin |
| Protection Rating | IP67 |
| Housing Material | Nickel-plated brass |
| Sensing Face | PA 66 plastic |
| Housing Length | 50 mm |
| Thread Length | 23 mm |
| Operating Temperature | -25°C to +75°C |
| Short-circuit Protection | Yes |
| Power-up Pulse Protection | Yes |
Application
Suitable for non-contact detection of metallic objects in industrial automation, machinery, positioning systems, conveyors and manufacturing equipment.
Package Contents
1× SICK IME18-20NPOZC0K sensor with 2 mounting nuts, exactly as pictured.
