SMC ISE20B-T-M5-W Digital Pressure Switch with 3-Screen Display

New, unused.

The SMC ISE20B-T-M5-W is a high-precision digital pressure switch designed for pressure monitoring and control in industrial pneumatic and automation systems.

Part of the SMC ISE20B series, this device features a three-screen digital display, two PNP switching outputs and an analog voltage output.

It allows operators to monitor pressure values and configure switching thresholds directly from the integrated display and control buttons.

Technical Specifications

• Manufacturer: SMC
• Model / MPN: ISE20B-T-M5-W
• Series: ISE20B
• Product Type: Digital Pressure Switch / Pressure Sensor
• Rated Pressure Range: -0.1 to 1.0 MPa
• Operating Pressure Range: -0.1 to 1.0 MPa
• Power Supply: 12–24 V DC, Class 2
• Maximum Current Consumption: 35 mA
• Switching Outputs: 2 × PNP open collector
• Maximum Output Current: 80 mA per output
• Additional Output: Analog voltage output
• Pressure Connection: M5 female thread

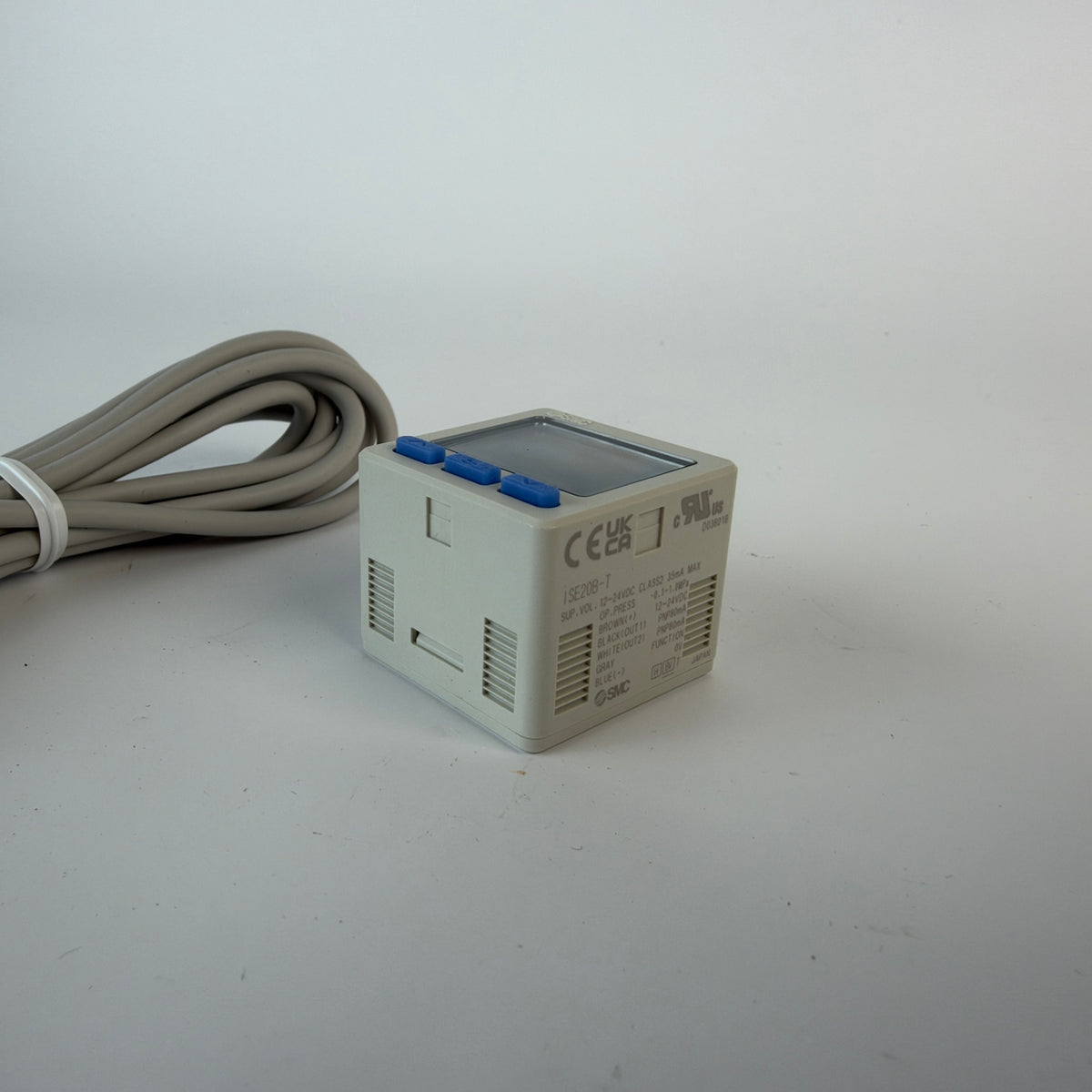

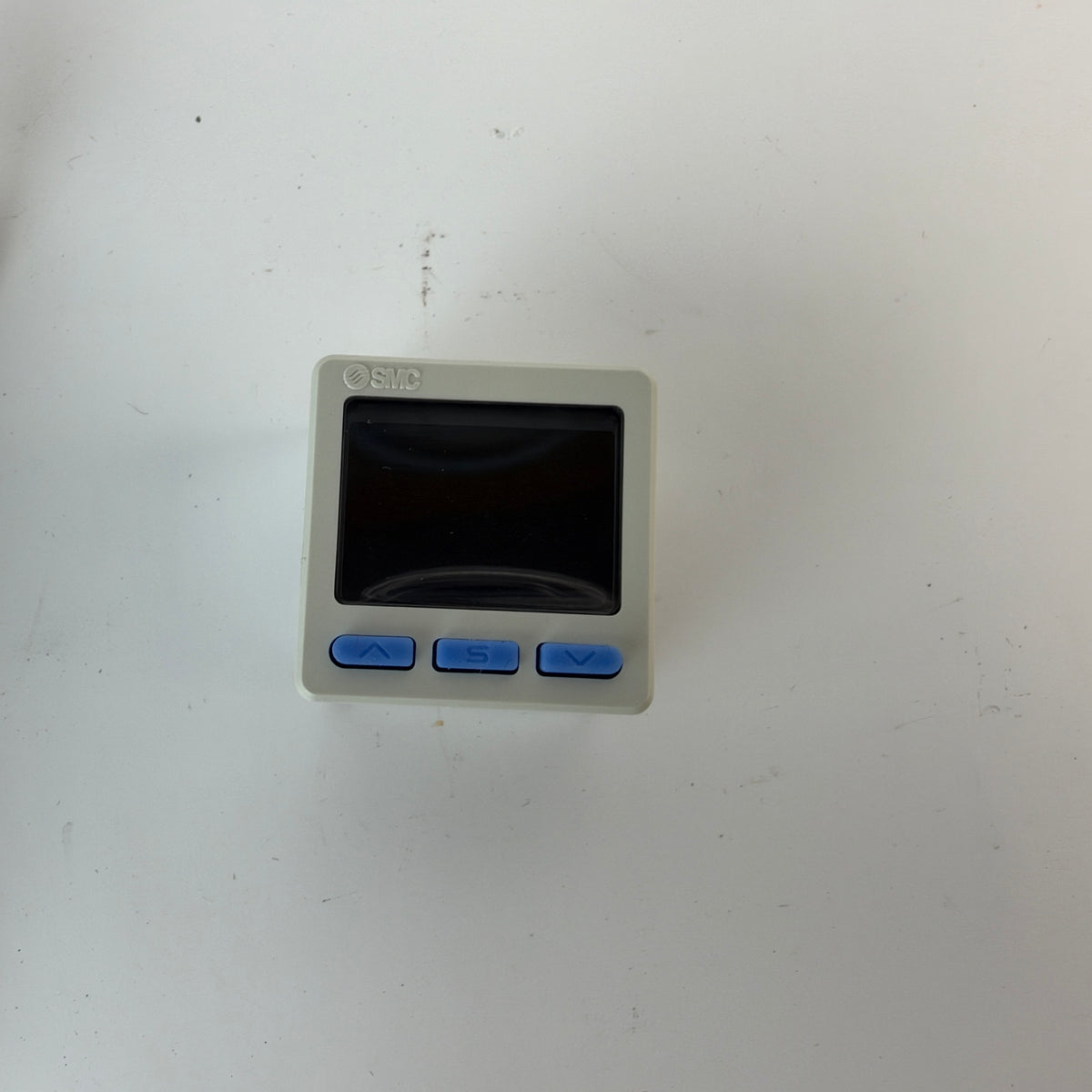

• Display: Three-screen digital display
• Protection Rating: IP65 (series specification)
• Country of Manufacture: Japan

Electrical Connections

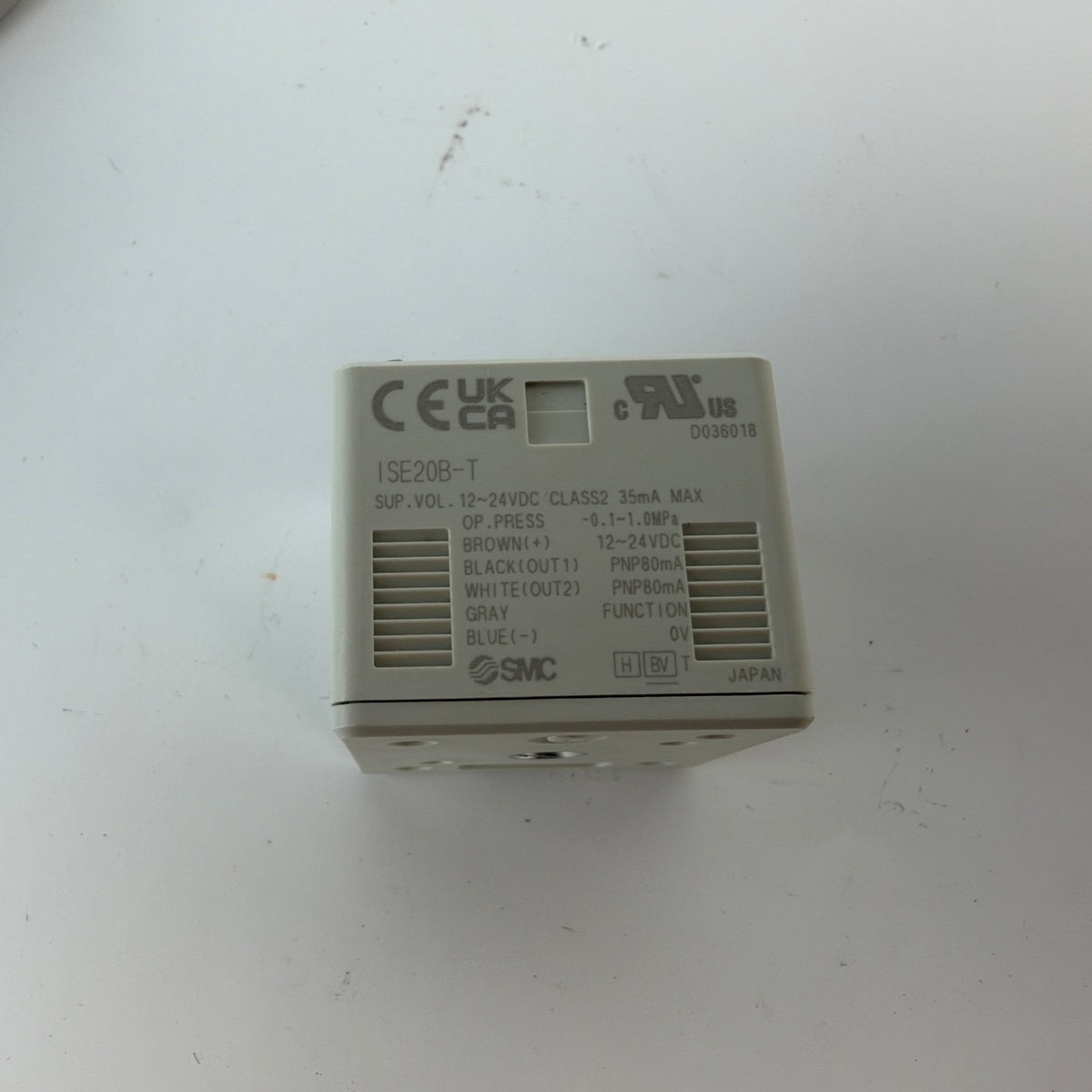

According to the markings on the device:

• Brown: +12–24 V DC
• Blue: 0 V / GND
• Black: PNP Output 1
• White: PNP Output 2
• Gray: Function / Analog Output

Applications

Suitable for industrial pneumatic equipment, compressed-air systems, automated production machinery and pressure monitoring applications.

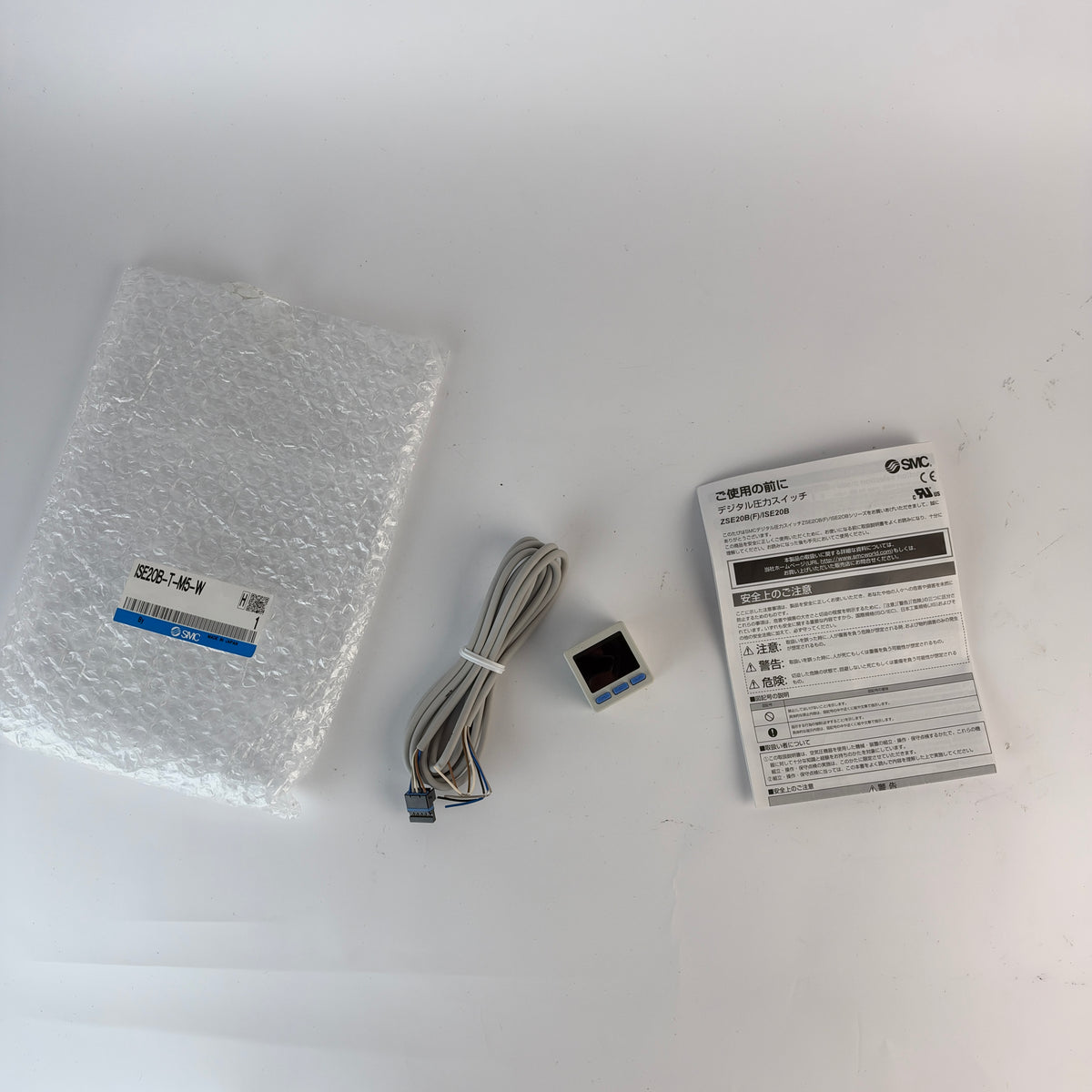

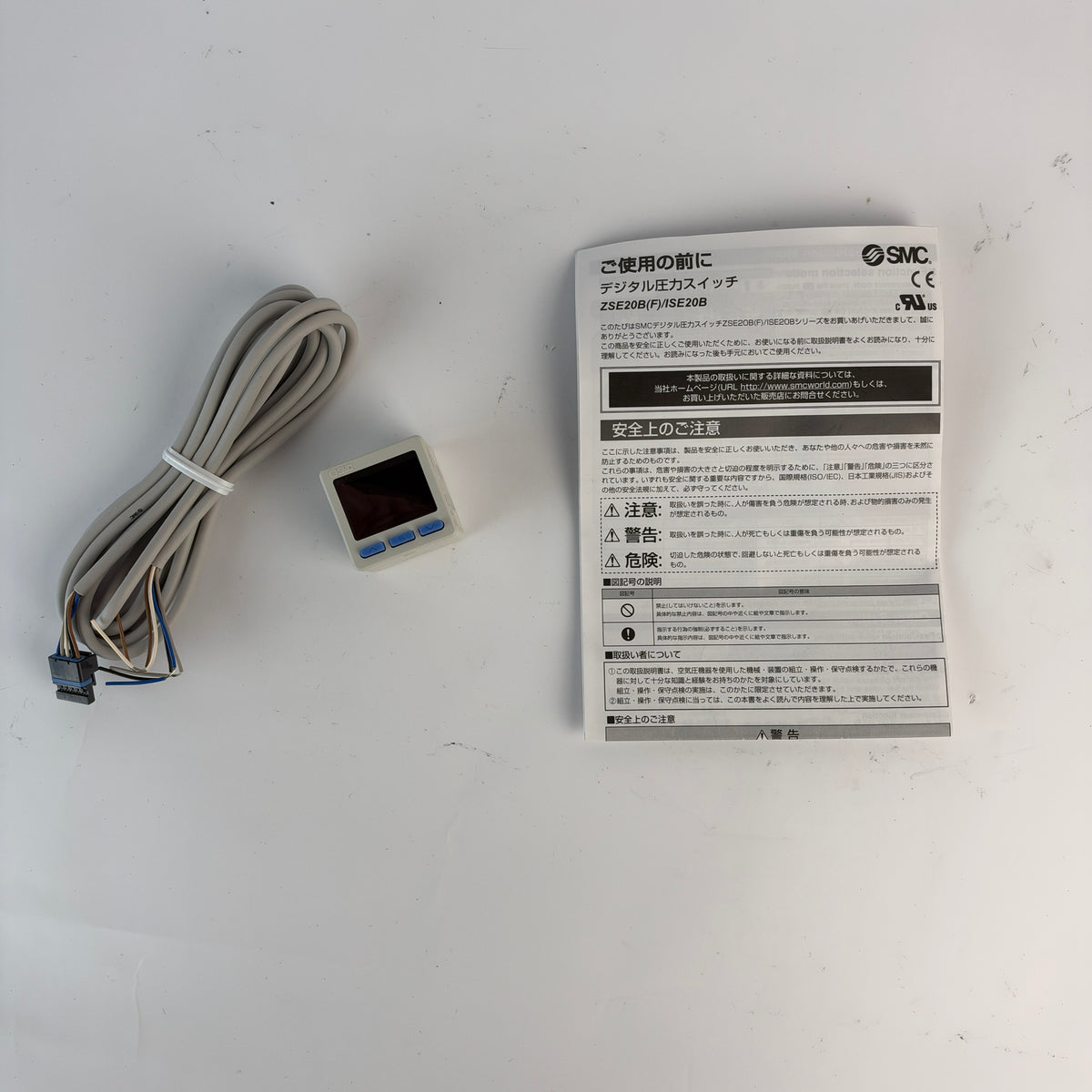

Included in Sale

• 1 × SMC ISE20B-T-M5-W digital pressure switch
• Connection cable with connector
• SMC instruction leaflet

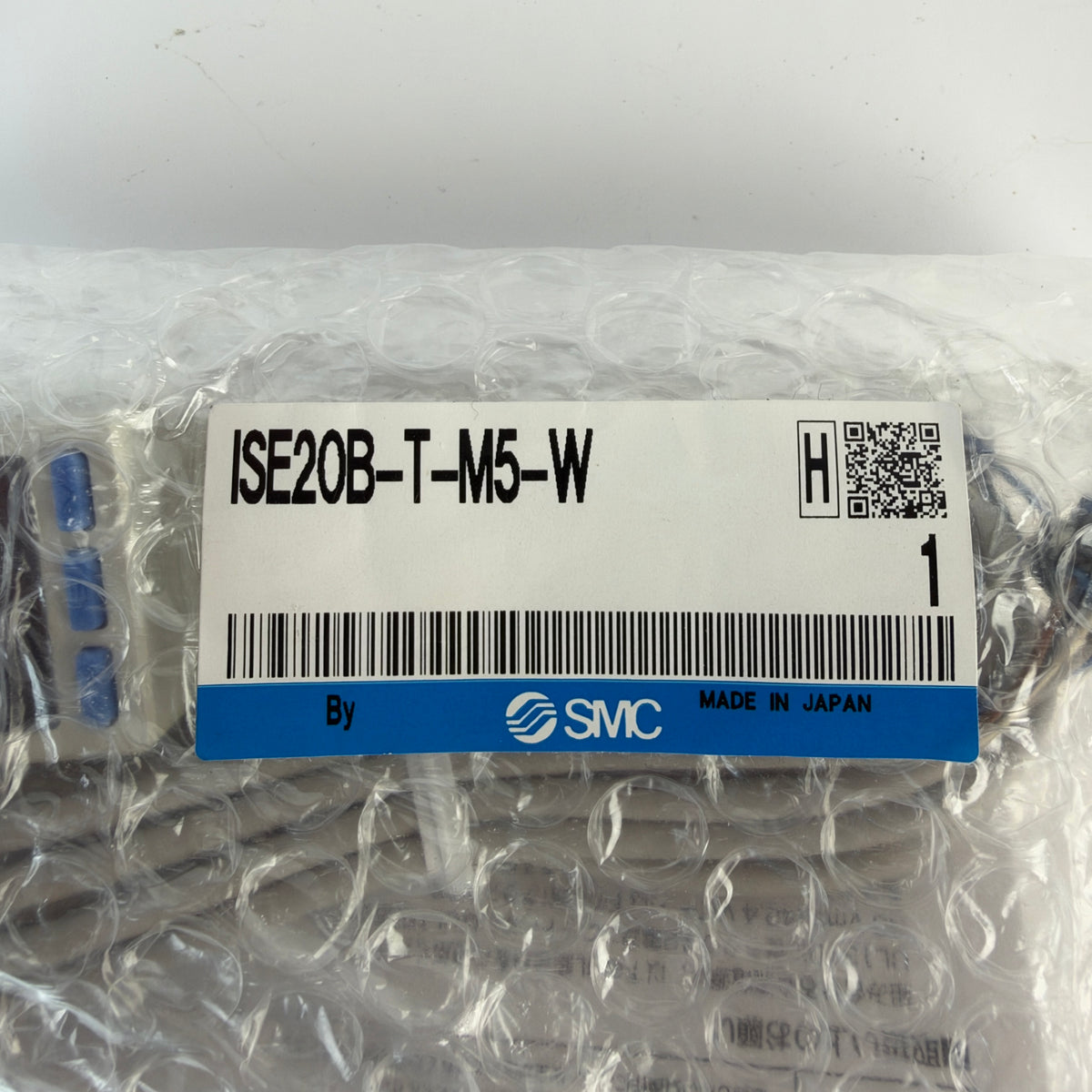

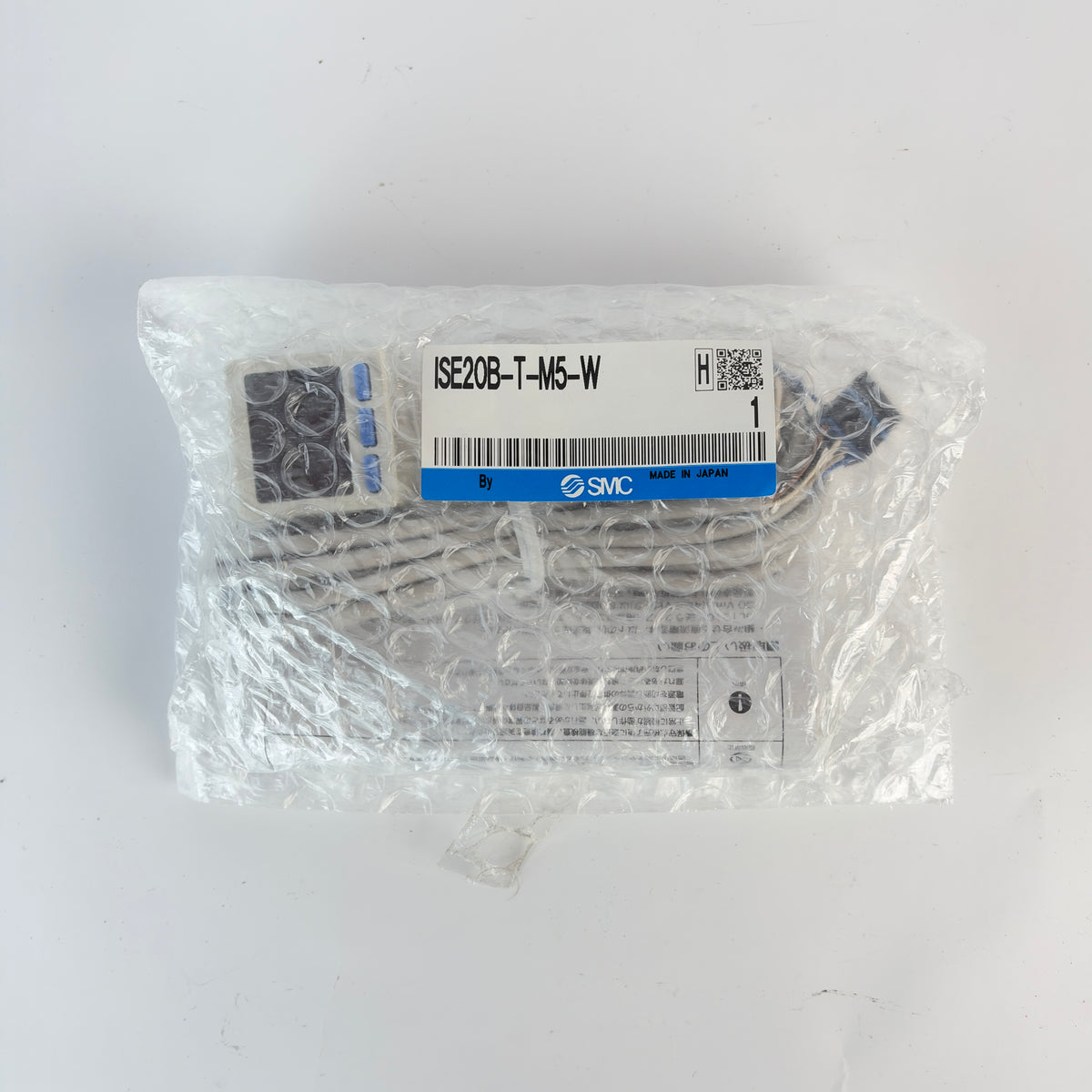

• SMC-labeled protective packaging

Condition: New, unused.

The actual item and included accessories are shown in the photographs.
