Weidmüller IE-M12-ADAP S industrial Ethernet adapter, Order No. 8901620000.

This straight industrial Ethernet adapter provides an interface between an M12 D-coded industrial Ethernet connection and a standard RJ45 Ethernet connection. It features an M12 4-pole socket on one side and an RJ45 socket on the other.

Designed for industrial networking and automation applications, the adapter supports Cat.5 according to ISO/IEC 11801 and features a shielded connection with IP67 protection.

Technical specifications:

• Manufacturer: Weidmüller
• Type: IE-M12-ADAP S
• Order Number / MPN: 8901620000
• Product Type: Industrial Ethernet Adapter
• Version: Straight
• Connection 1: RJ45 socket
• Connection 2: M12 socket
• M12 Coding: D-coded
• Number of Poles: 4
• Ethernet Category: Cat.5 according to ISO/IEC 11801
• Shielding: Yes
• Protection Rating: IP67
• M12 Connection Thread: M12
• Contact Surface: Gold-plated
• Housing Material: PA 66
• Contact Resistance: ≤10 mΩ
• Current-Carrying Capacity at 50°C: 1 A
• Operating Temperature: -25°C to +80°C
• Storage Temperature: -40°C to +80°C
• Net Weight: approximately 32 g
• Connector Standards: IEC 60603-7-5 / IEC 61076-2-101
• Quantity: 1 piece

Used, fully functional.

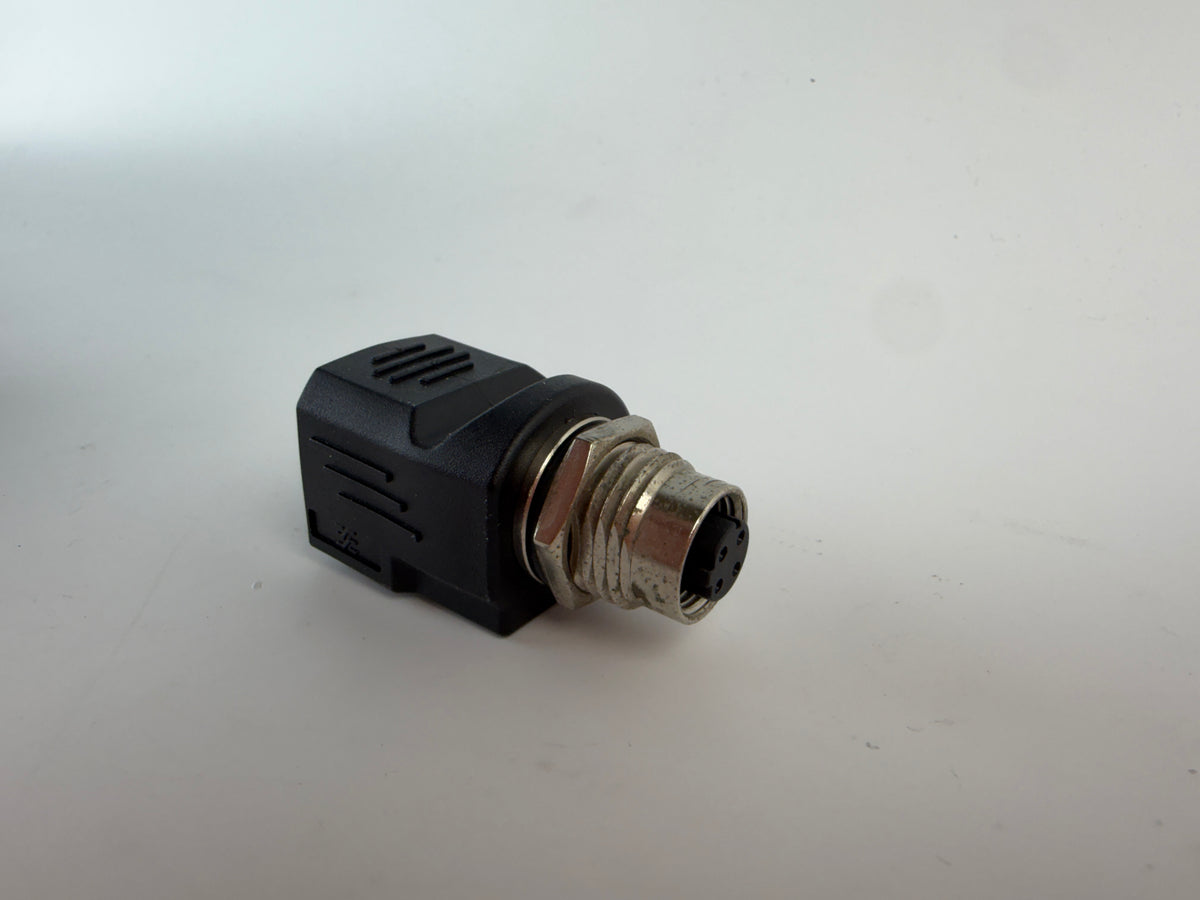

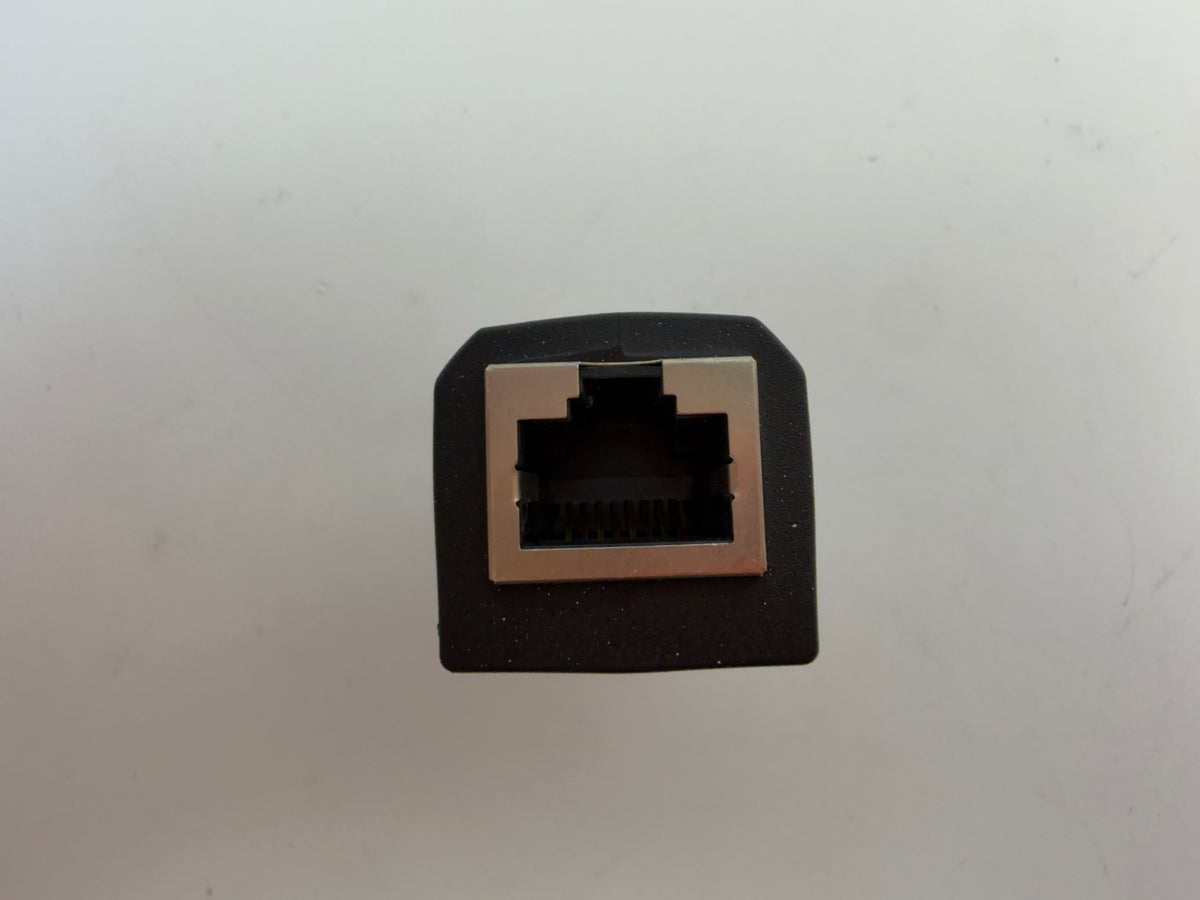

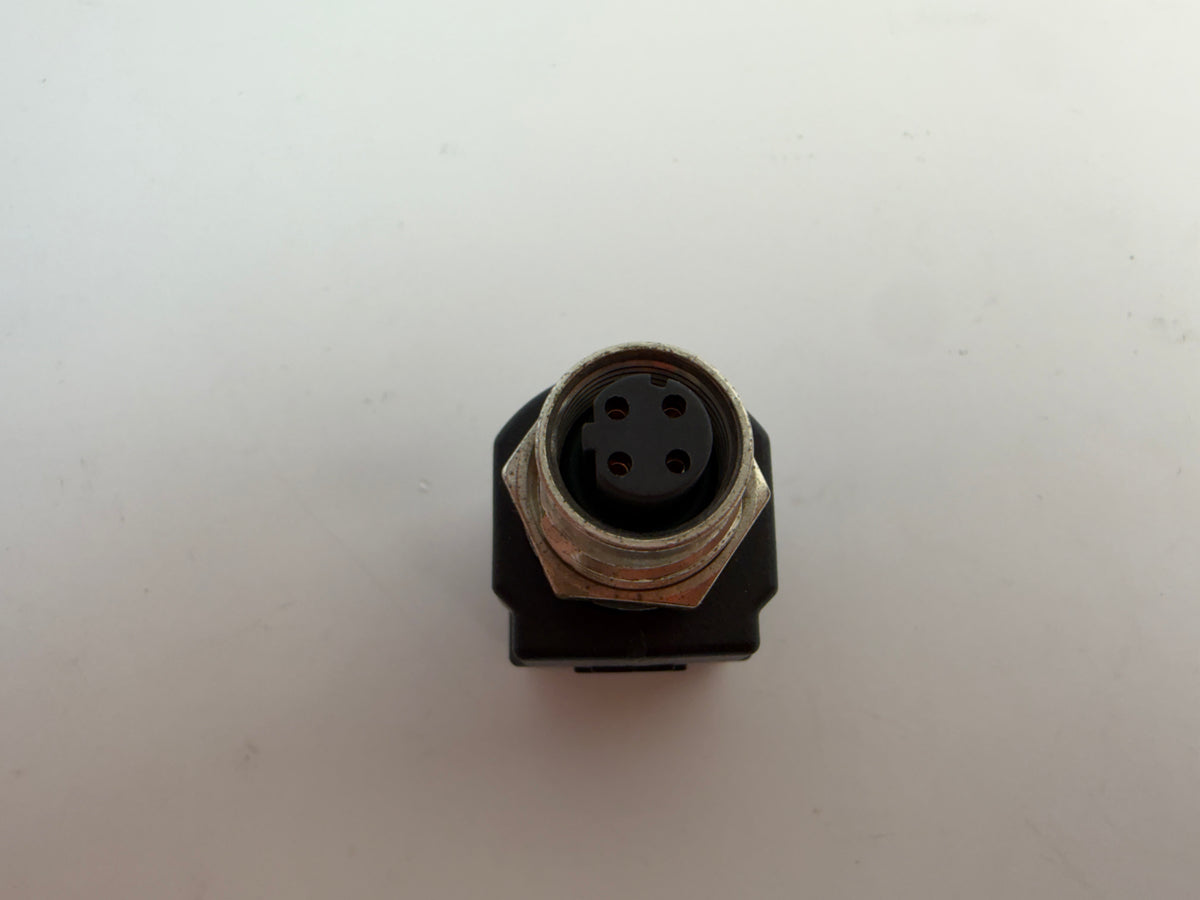

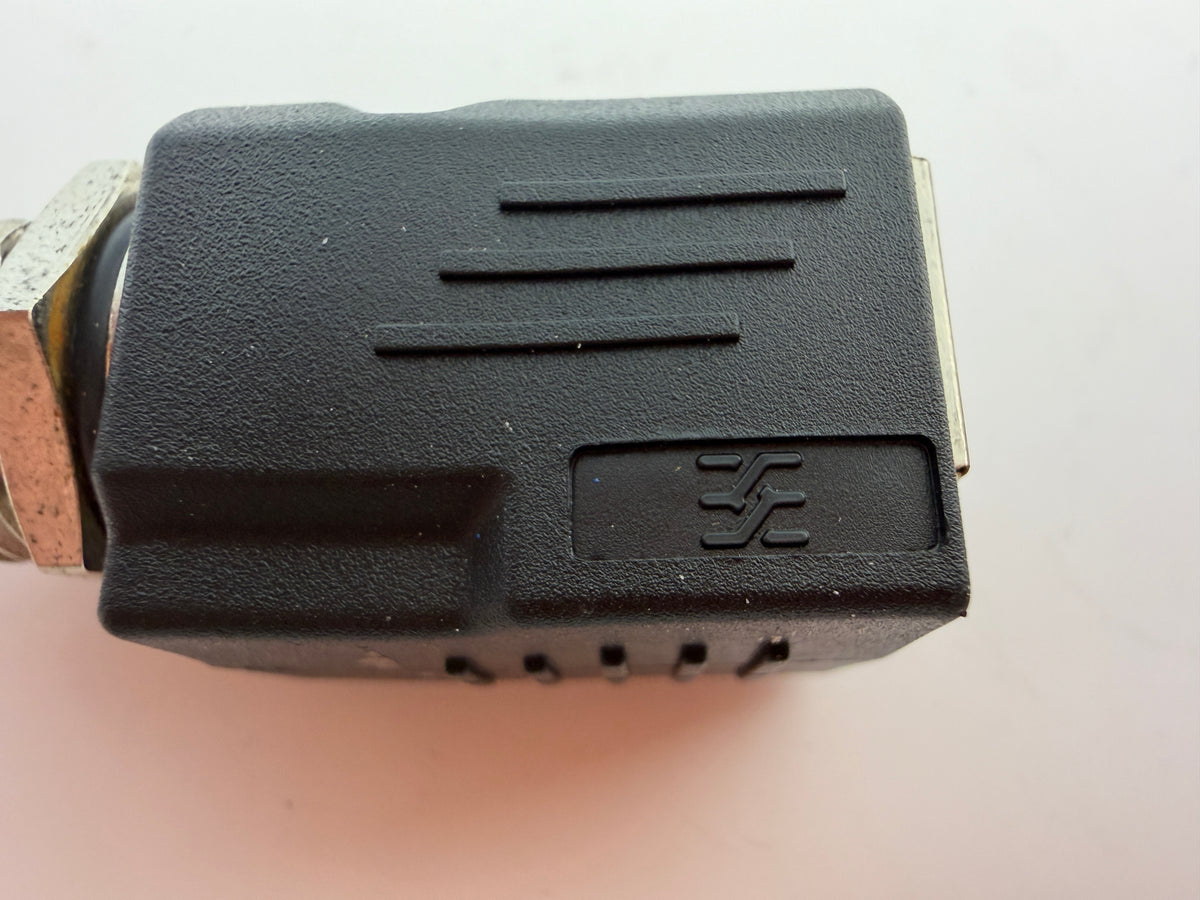

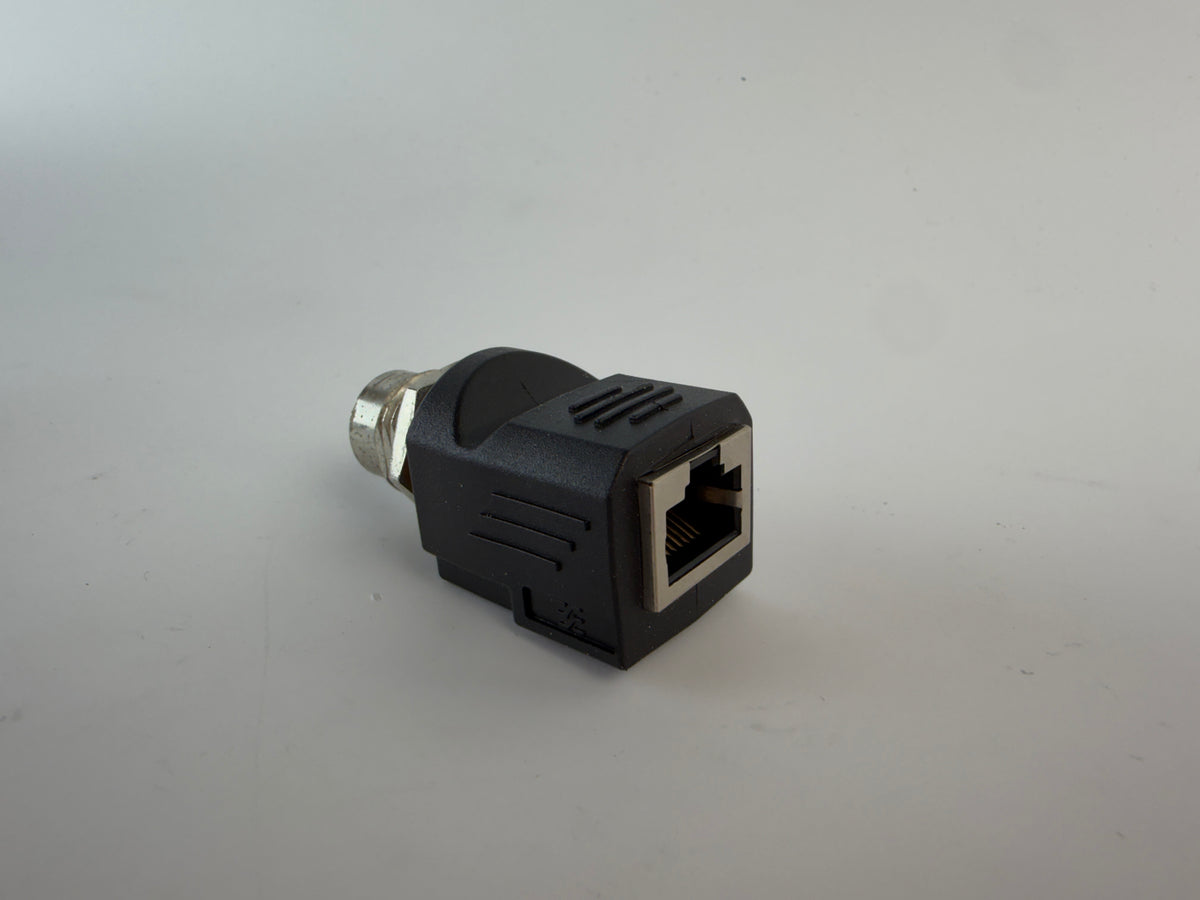

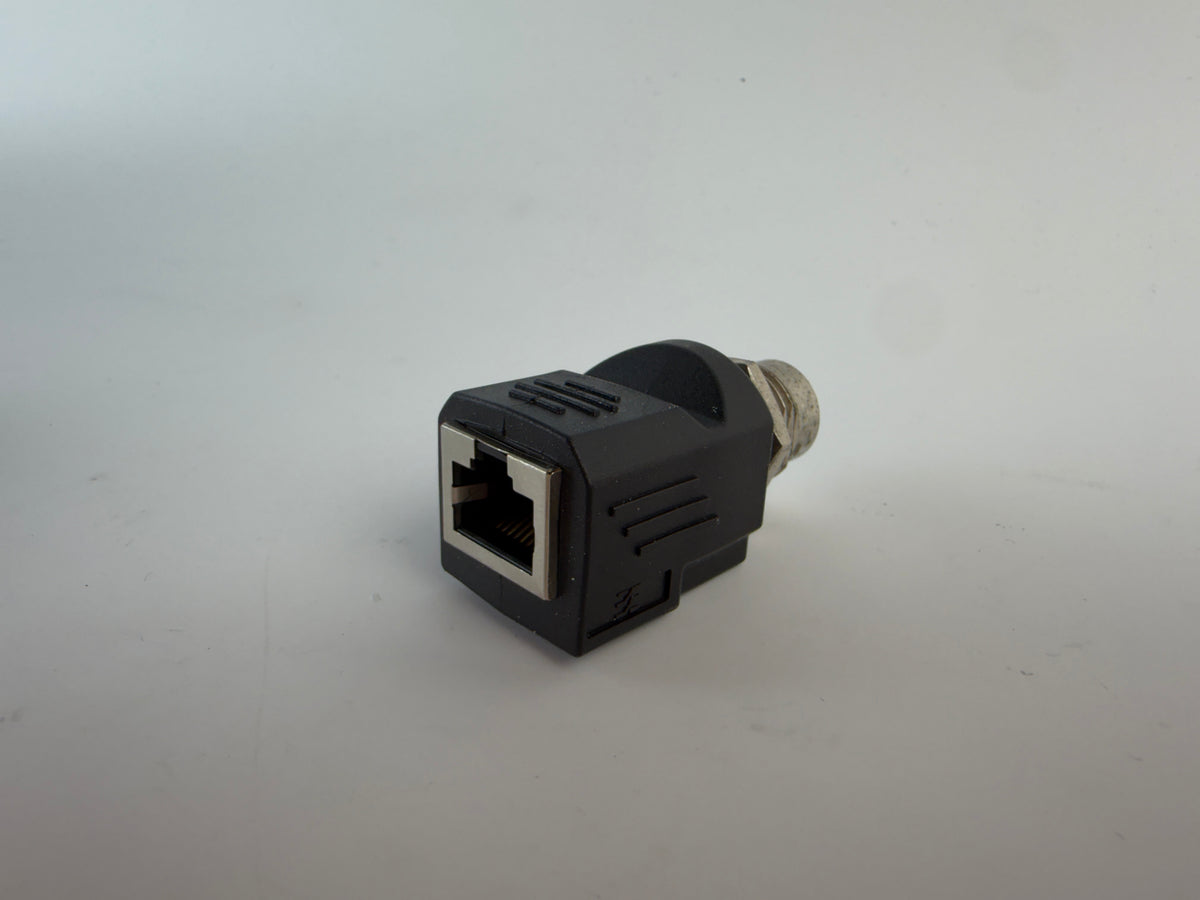

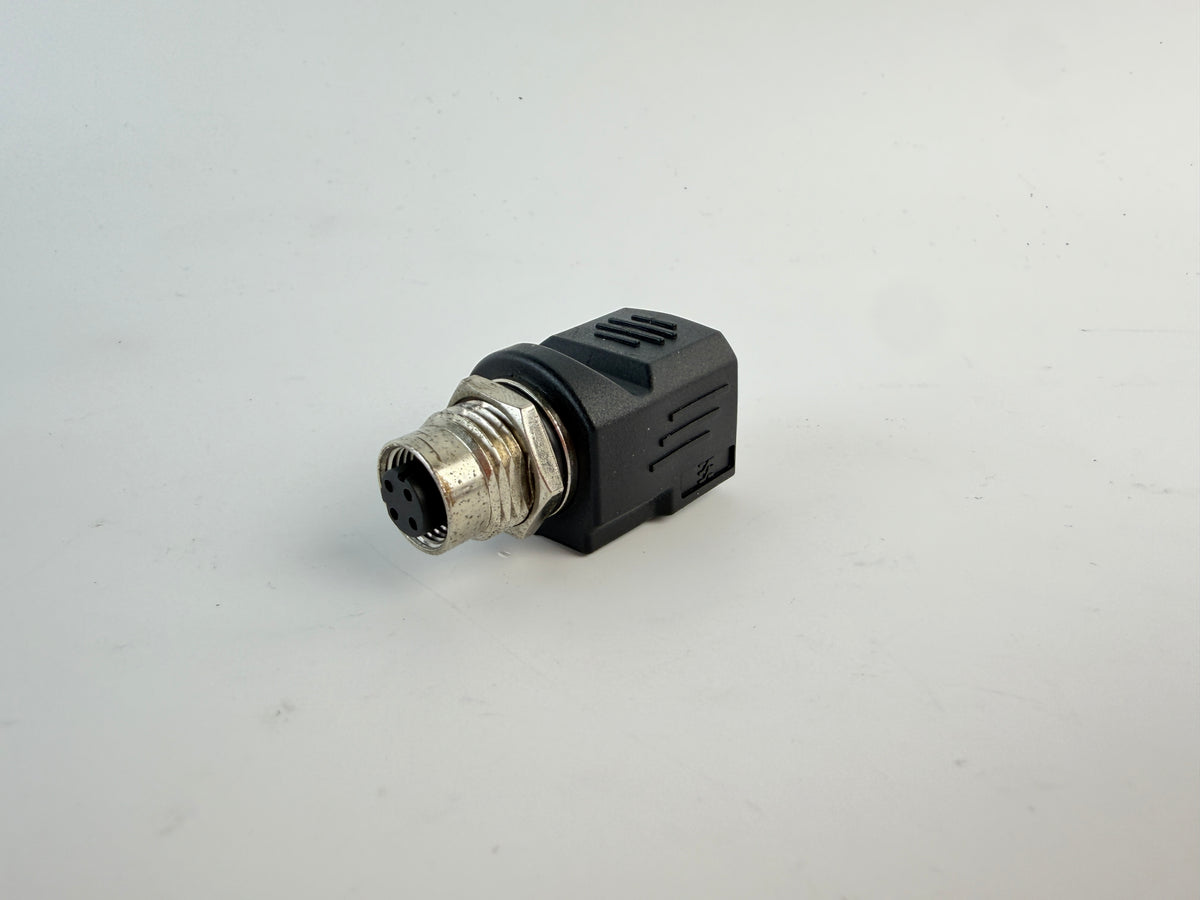

Sale includes one adapter as shown in the individual product photos.
