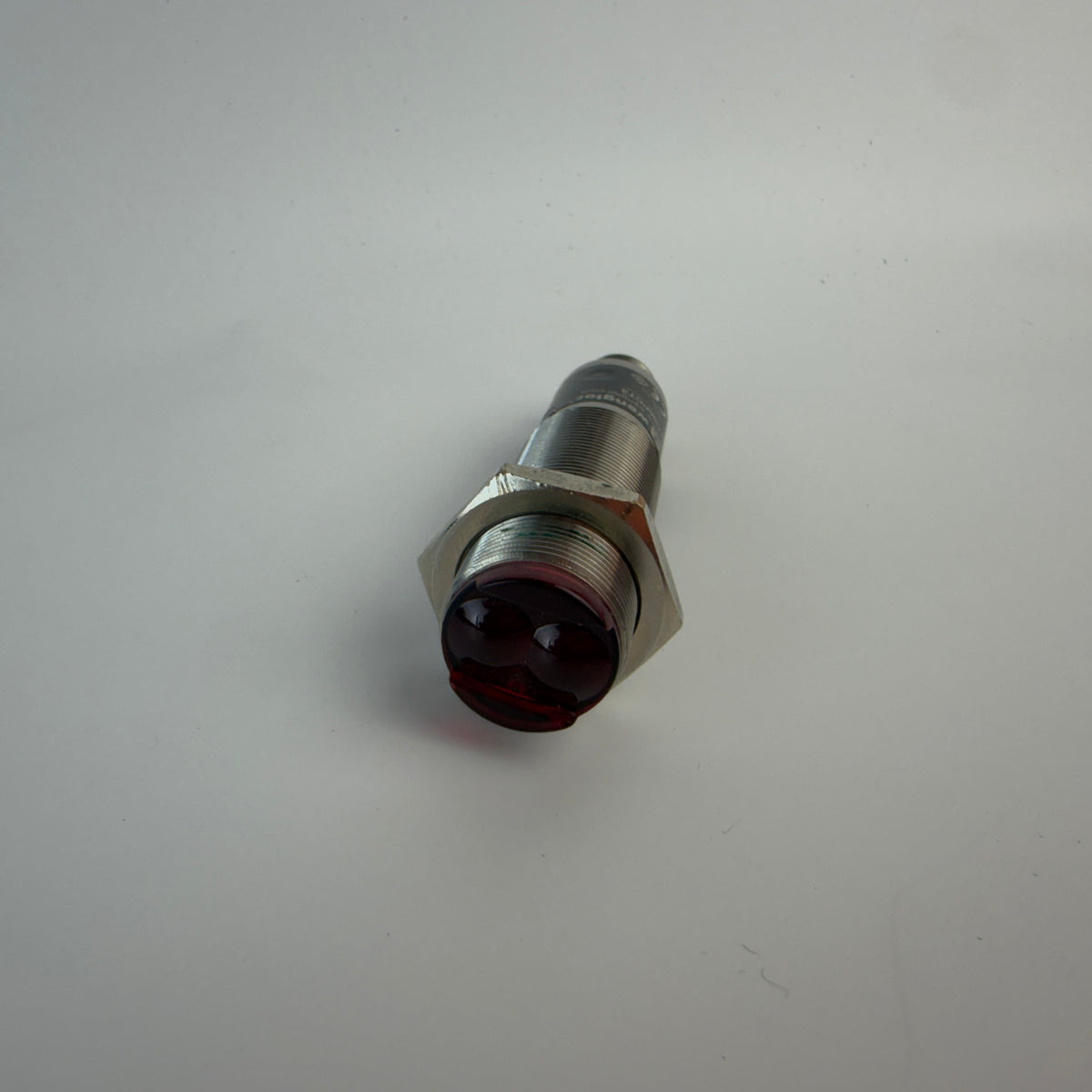

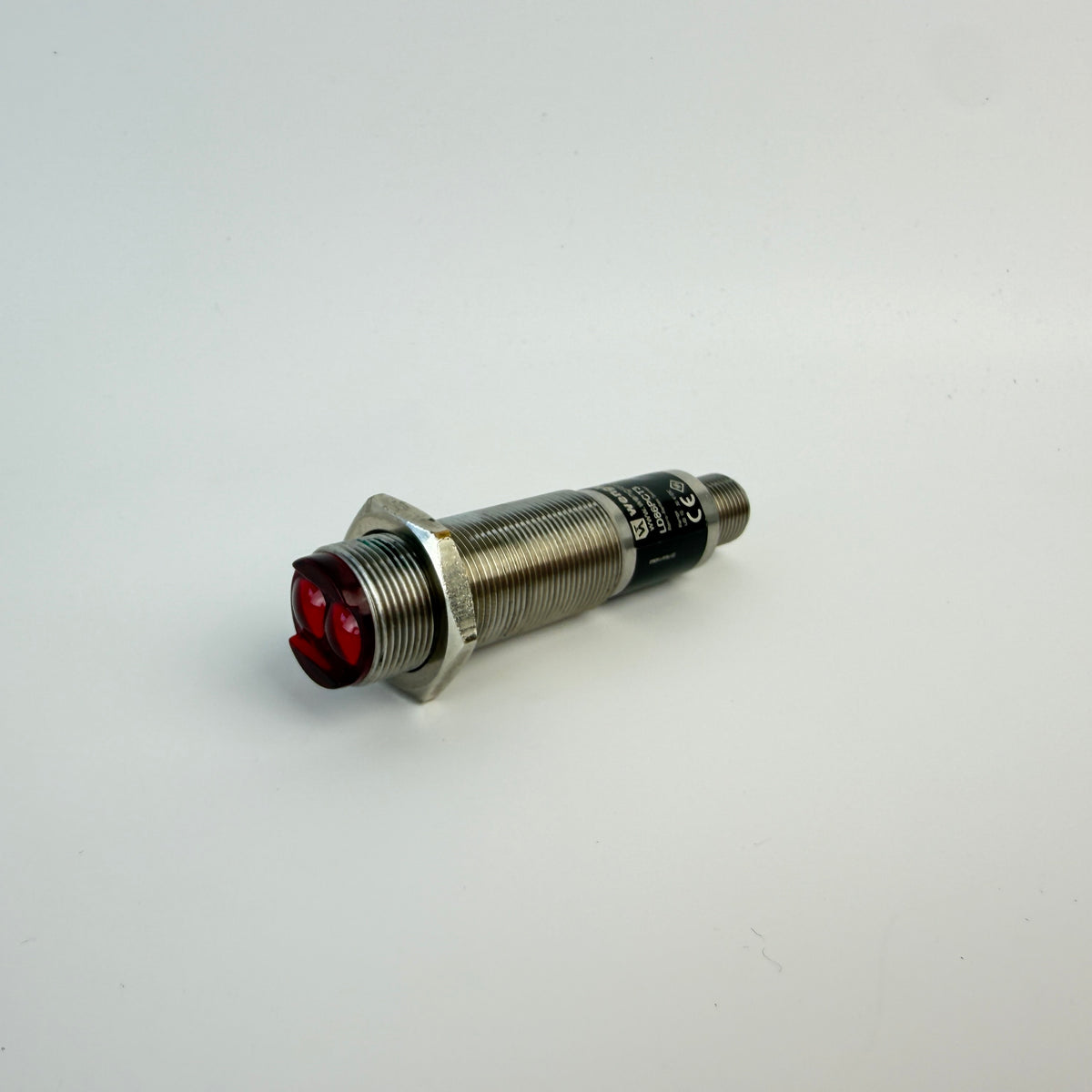

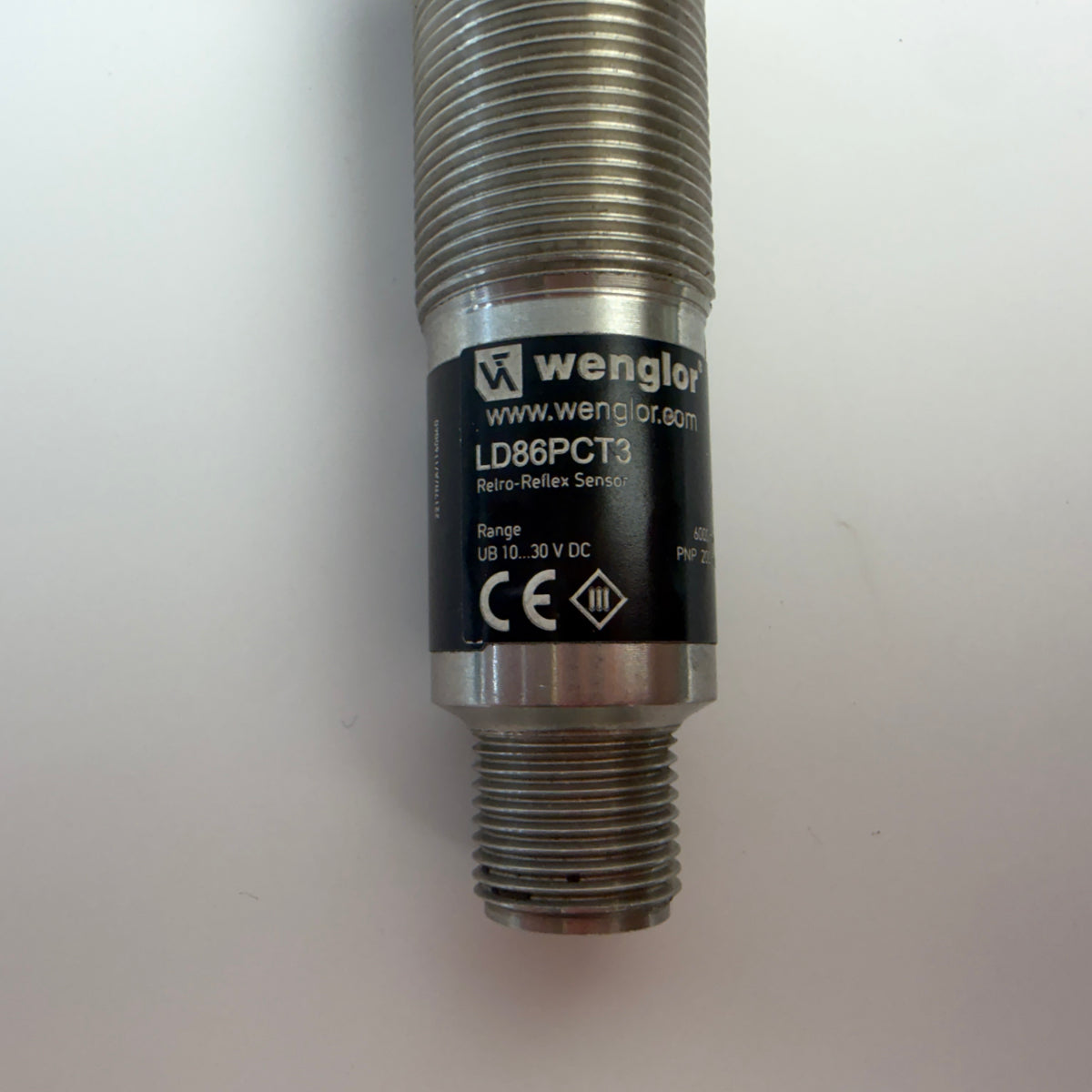

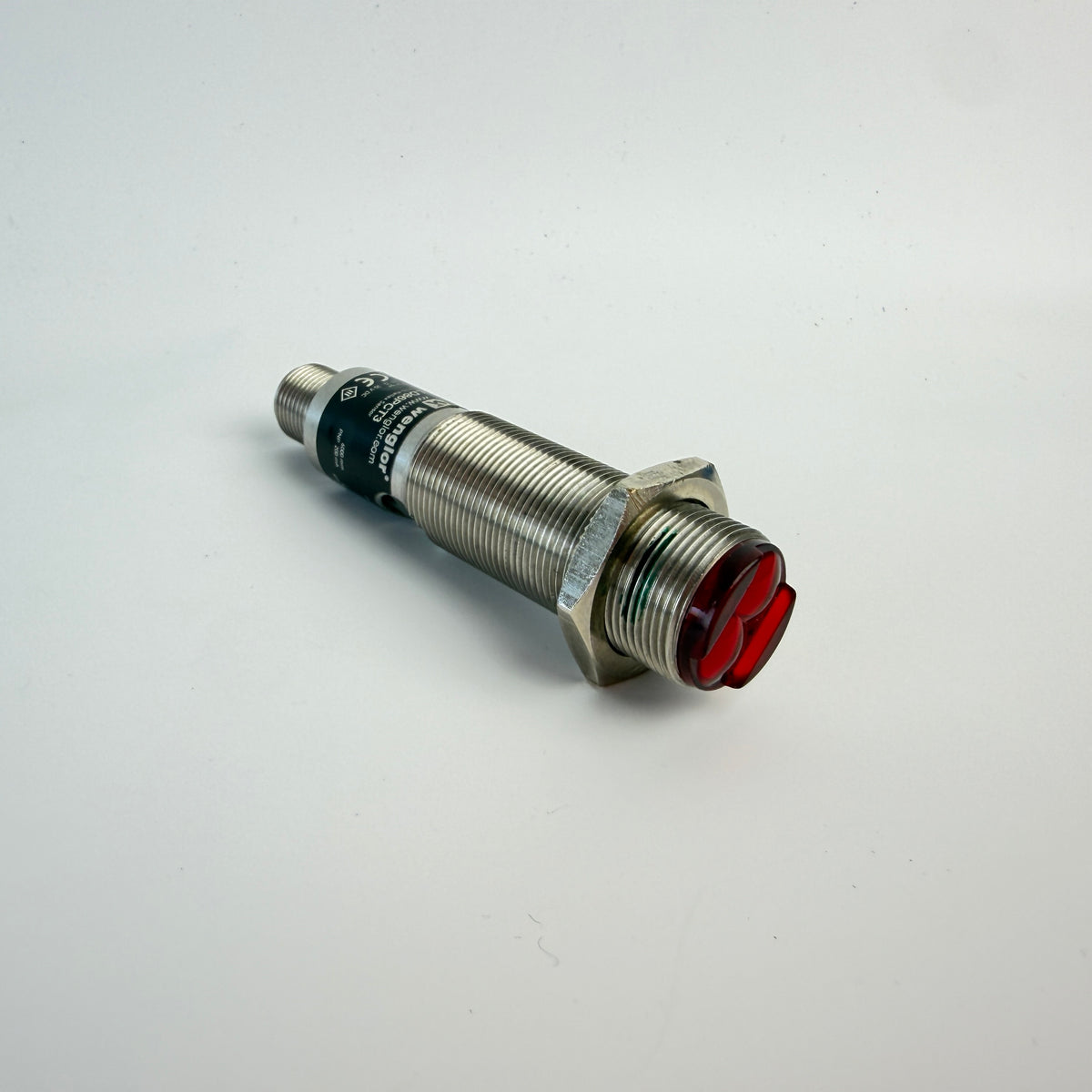

wenglor LD86PCT3 universal retro-reflex photoelectric sensor designed for reliable object detection in industrial automation applications.
The sensor provides a sensing range of up to 6,000 mm when used with the specified reference reflector. It uses red light with a polarization filter, helping reliably detect objects including reflective surfaces.
The LD86PCT3 operates from 10–30 V DC and features a PNP switching output rated up to 200 mA. The switching function is configurable, including NC/NO operation, and sensor adjustment is performed via teach-in.
Its rugged stainless steel V2A housing, full encapsulation and IP67 protection make it suitable for industrial environments. Electrical connection is via an M12 × 1, 4-pin connector.
Note: A suitable reflector is required for operation and is not included.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | wenglor |
| Model / MPN | LD86PCT3 |
| Sensor Type | Retro-reflex photoelectric sensor |
| Detection Principle | Retro-reflective |
| Range | Up to 6,000 mm |
| Reference Reflector | RQ100BA |
| Light Source | Red light |
| Polarization Filter | Yes |
| Optics | Two-lens optic |
| Opening Angle | 5° |
| Switching Hysteresis | <5% |
| Supply Voltage | 10–30 V DC |
| Current Consumption | <40 mA at 24 V |
| Output | PNP |
| Switching Current | 200 mA |
| Switching Function | Configurable NC / NO |
| Switching Frequency | 2 kHz |
| Response Time | 250 µs |
| Setting Method | Teach-in |
| External Teach-in | Yes |

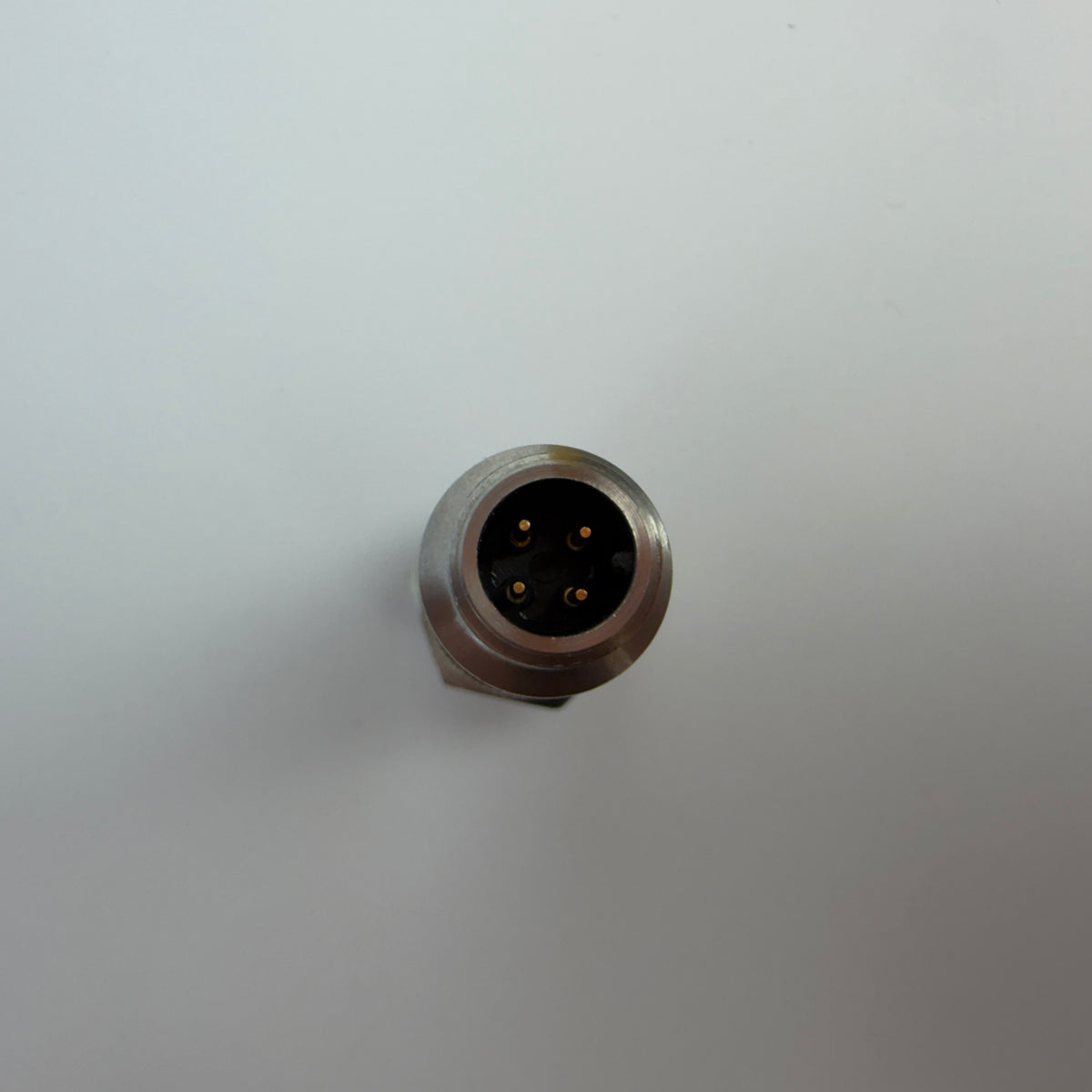

| Connection | M12 × 1, 4-pin |
| Housing Material | Stainless steel V2A (1.4305 / 303) |
| Protection Rating | IP67 |
| Protection Class | III |
| Operating Temperature | -25°C to +60°C |
| Short-Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Overload Protection | Yes |
| Weight | Approx. 37 g |
Package Contents
1 × wenglor LD86PCT3 sensor as pictured. Reflector not included.
