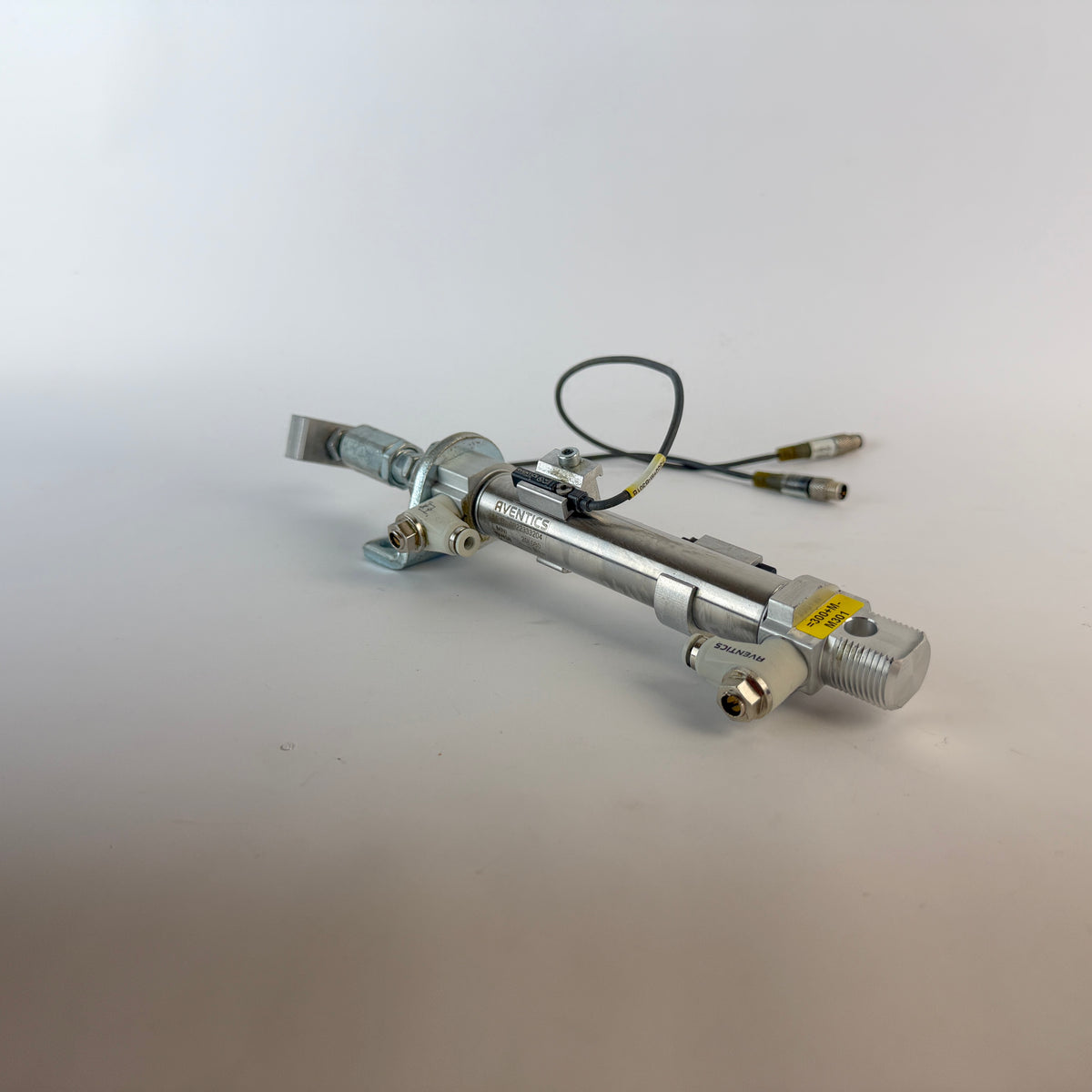

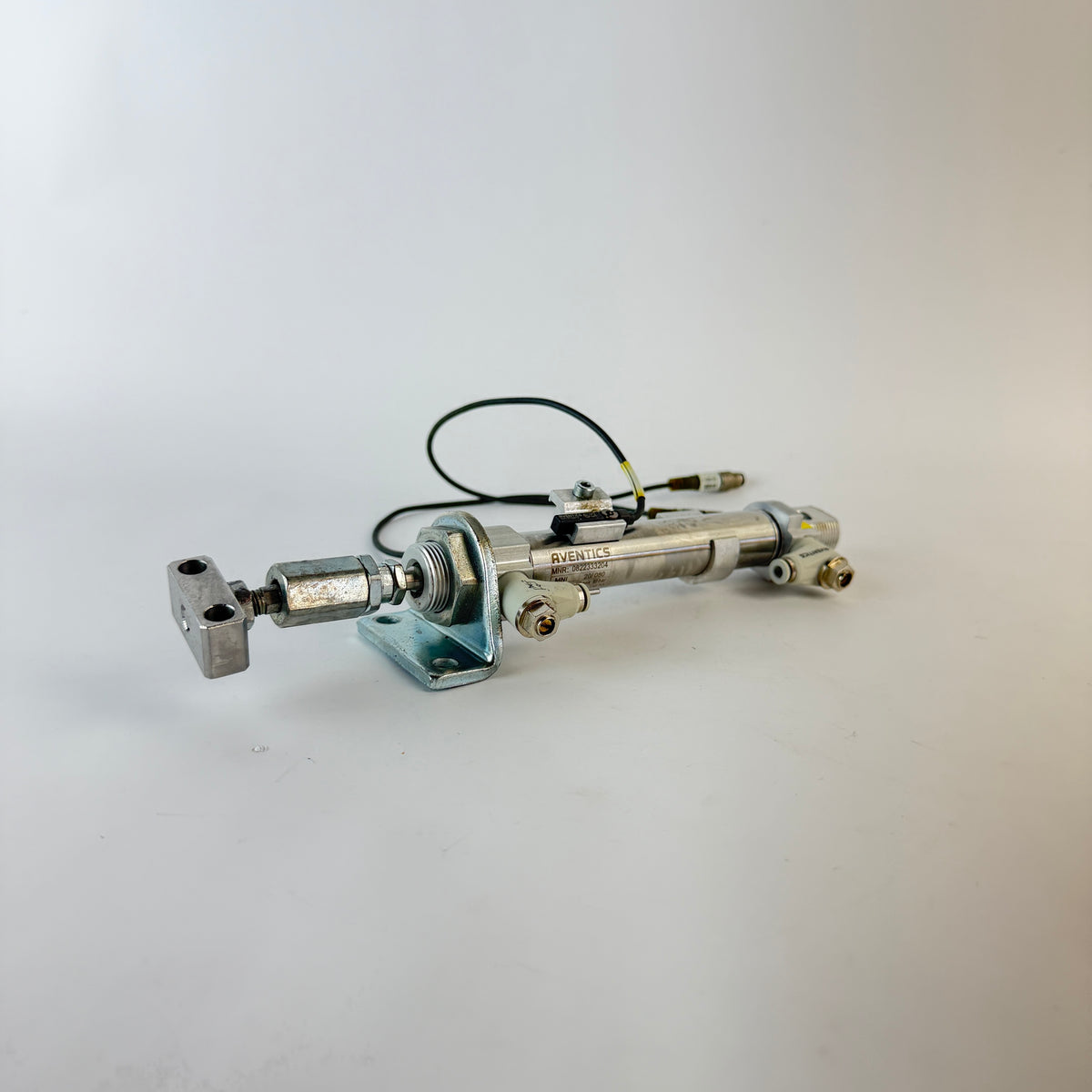

AVENTICS 0822333204 Series MNI pneumatic mini cylinder with two installed position sensors, pneumatic fittings and mounting hardware as pictured.

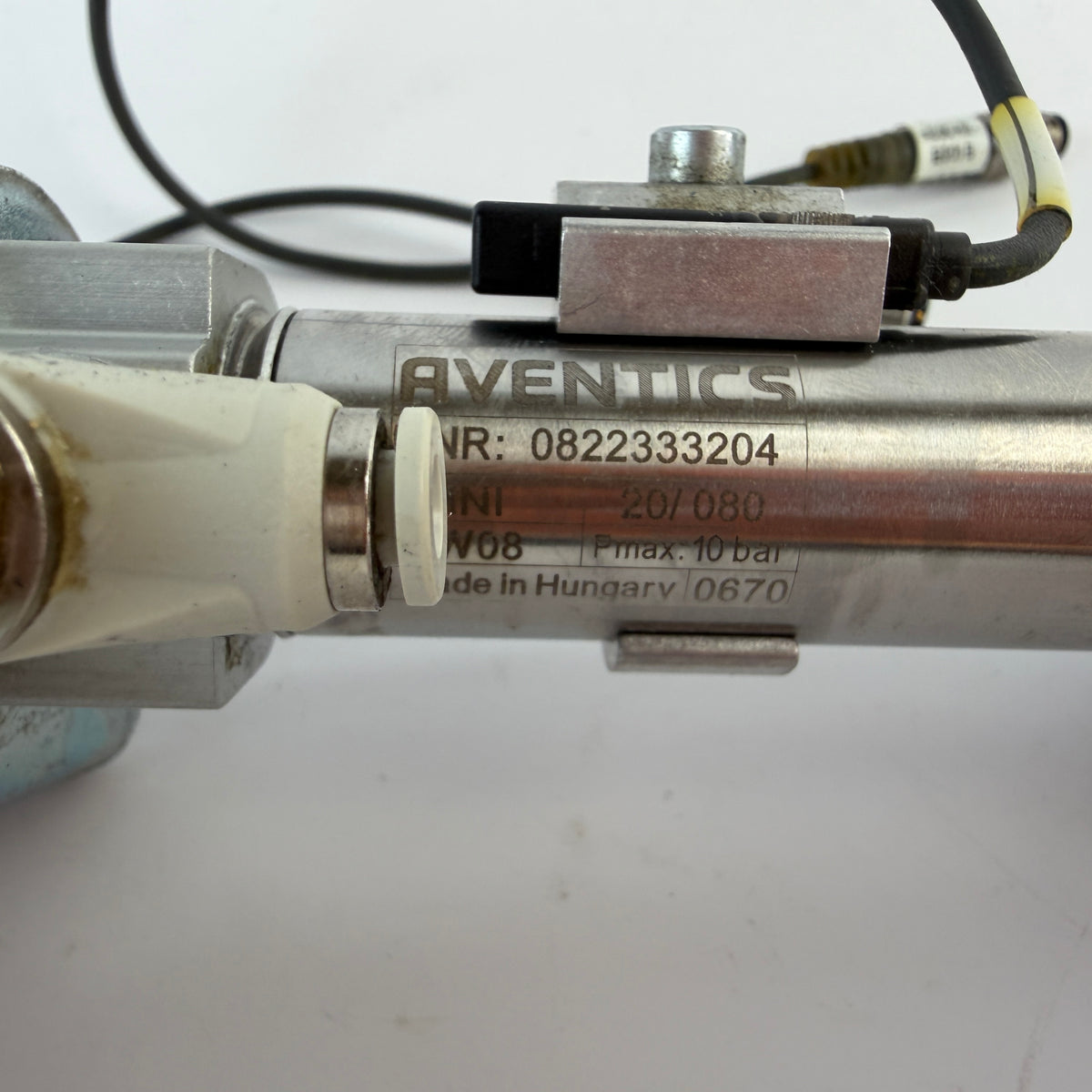

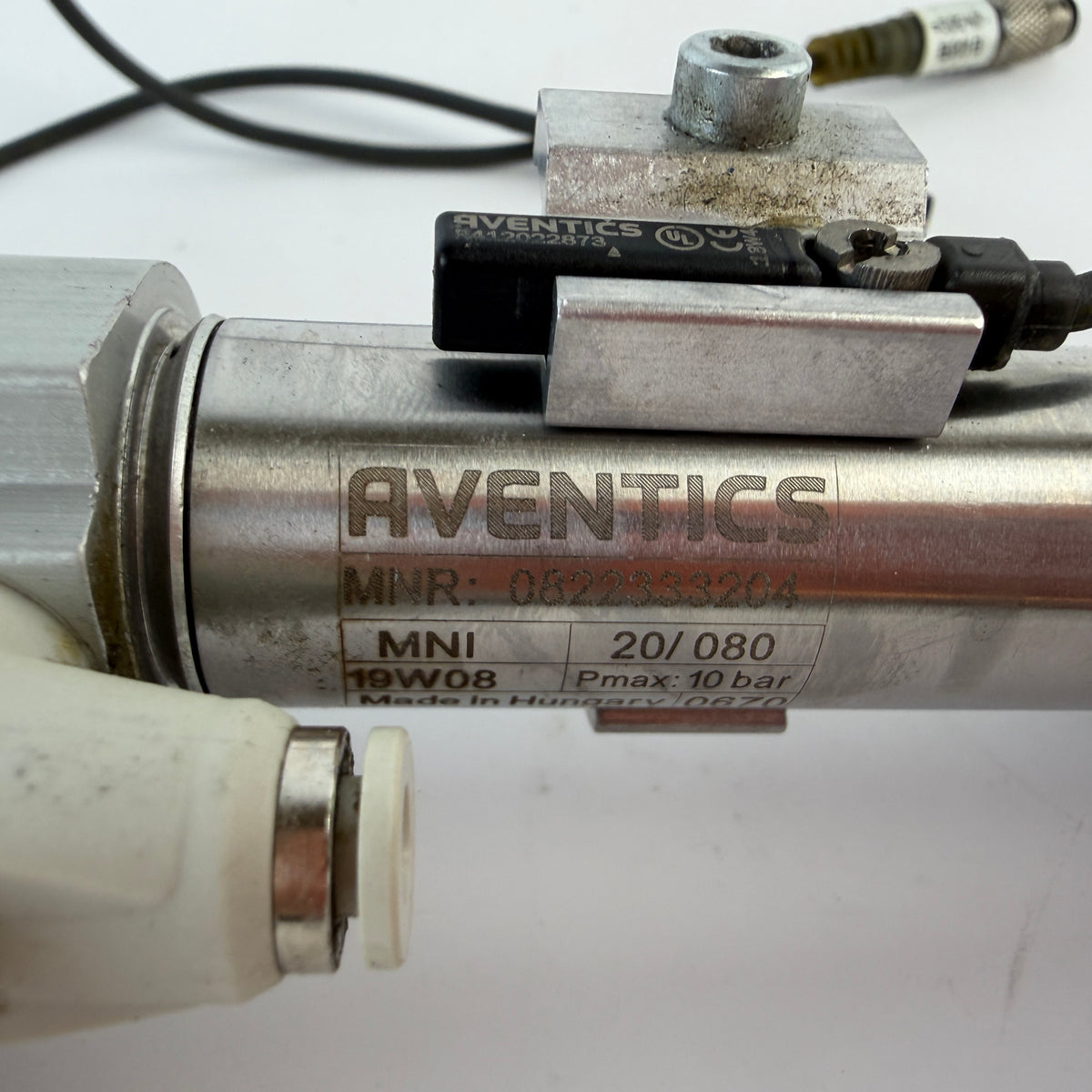

The cylinder is a double-acting industrial pneumatic actuator with a 20 mm bore and 80 mm stroke. The identification marking on the actual unit confirms MNI 20/080, maximum pressure of 10 bar and manufacture in Hungary.

Cylinder specifications:

• Manufacturer: AVENTICS
• MPN: 0822333204
• Series: MNI
• Type: Pneumatic mini cylinder
• Configuration: MNI 20/080
• Acting principle: Double-acting
• Bore: 20 mm
• Stroke: 80 mm
• Working pressure: 1–10 bar
• Maximum pressure: 10 bar
• Pneumatic ports: G1/8
• Piston rod thread: M8
• Magnetic piston: Yes
• Standard: ISO 6432
• Operating temperature: -25°C to +80°C
• Country of Origin: Hungary

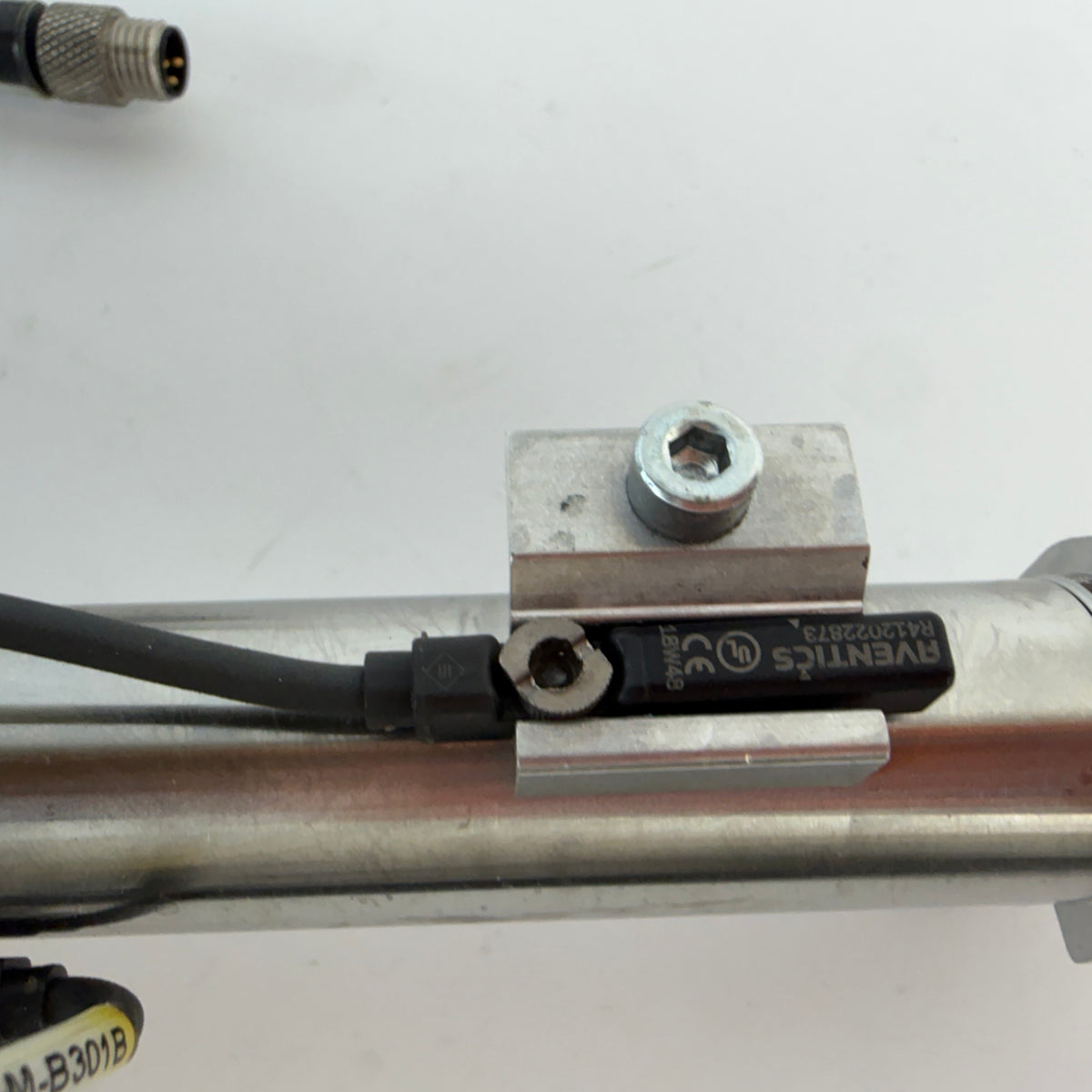

Position sensors:

• Quantity installed: 2

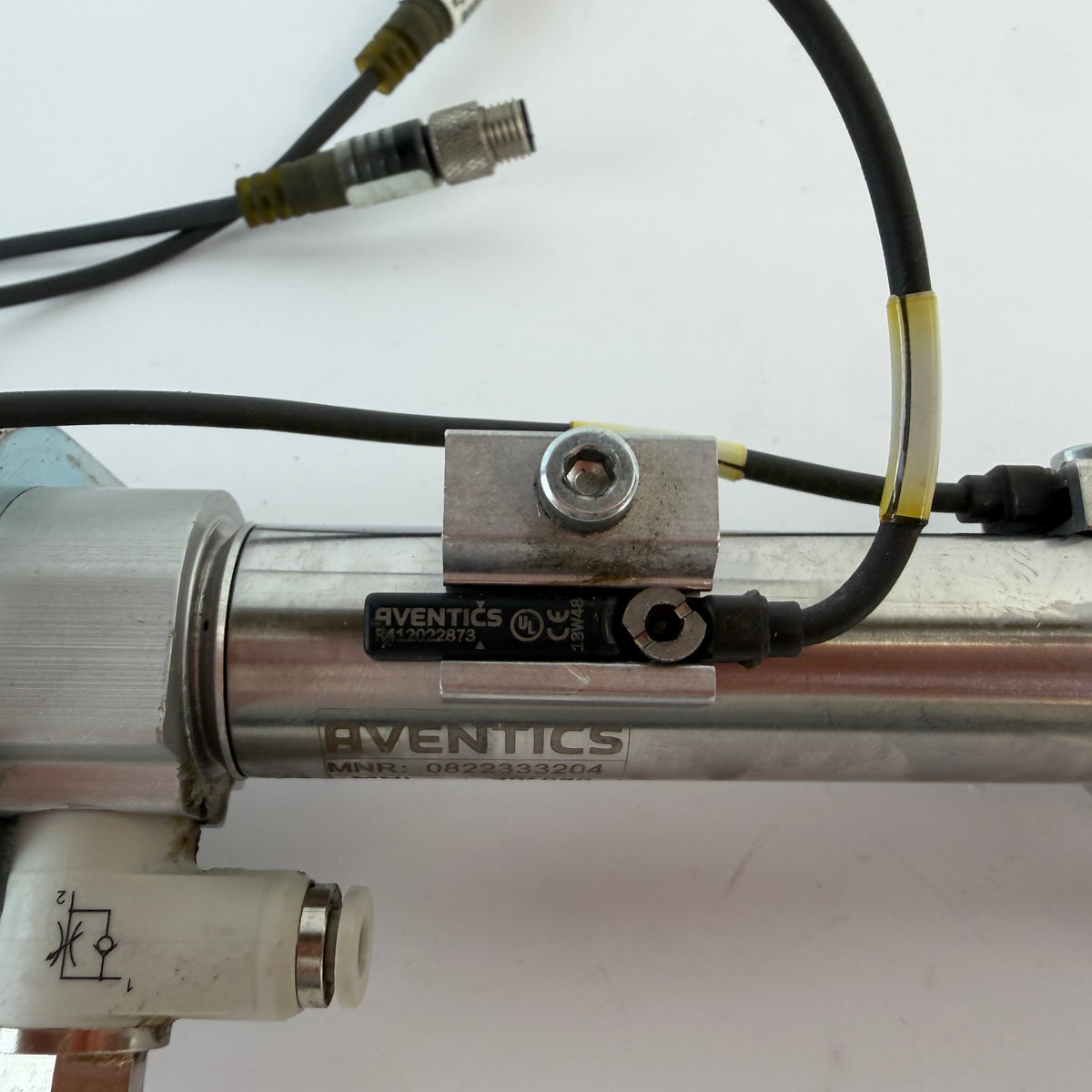

• Confirmed sensor MPN: AVENTICS R412022873
• Series: ST6
• Type: Magnetic reed proximity sensor
• Type code: ST6-R3-M08T-030
• Switching logic: Normally Open (NO)
• Operating voltage: 10–30 V AC/DC
• Maximum DC switching current: 0.3 A
• Maximum AC switching current: 0.5 A
• Maximum switching frequency: 400 Hz

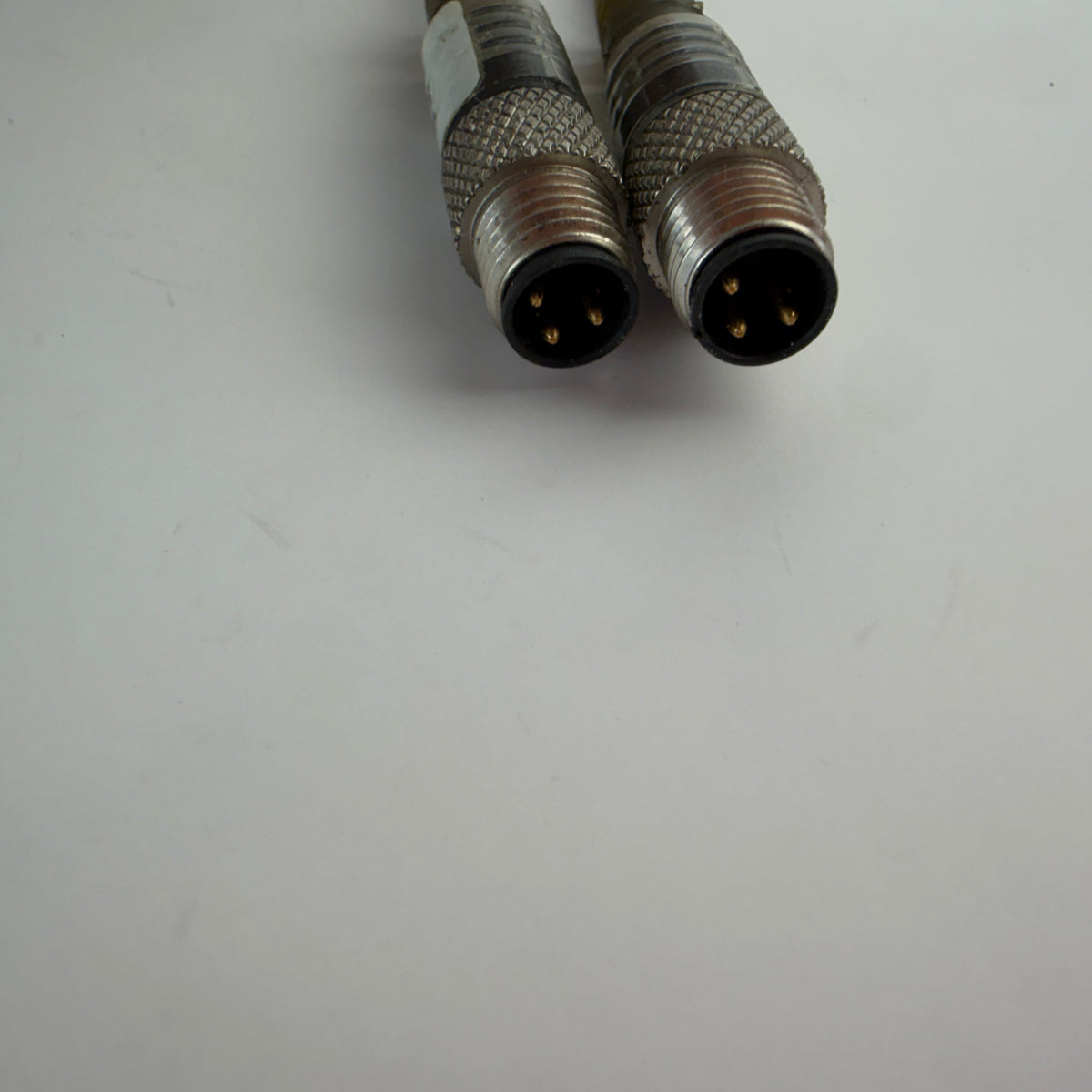

• Connection: M8x1, 3-pin
• Cable length: 0.3 m
• Protection rating: IP65 / IP67
• Operating temperature: -30°C to +80°C

The exact MPN of the second installed sensor is not independently confirmed from the visible marking.

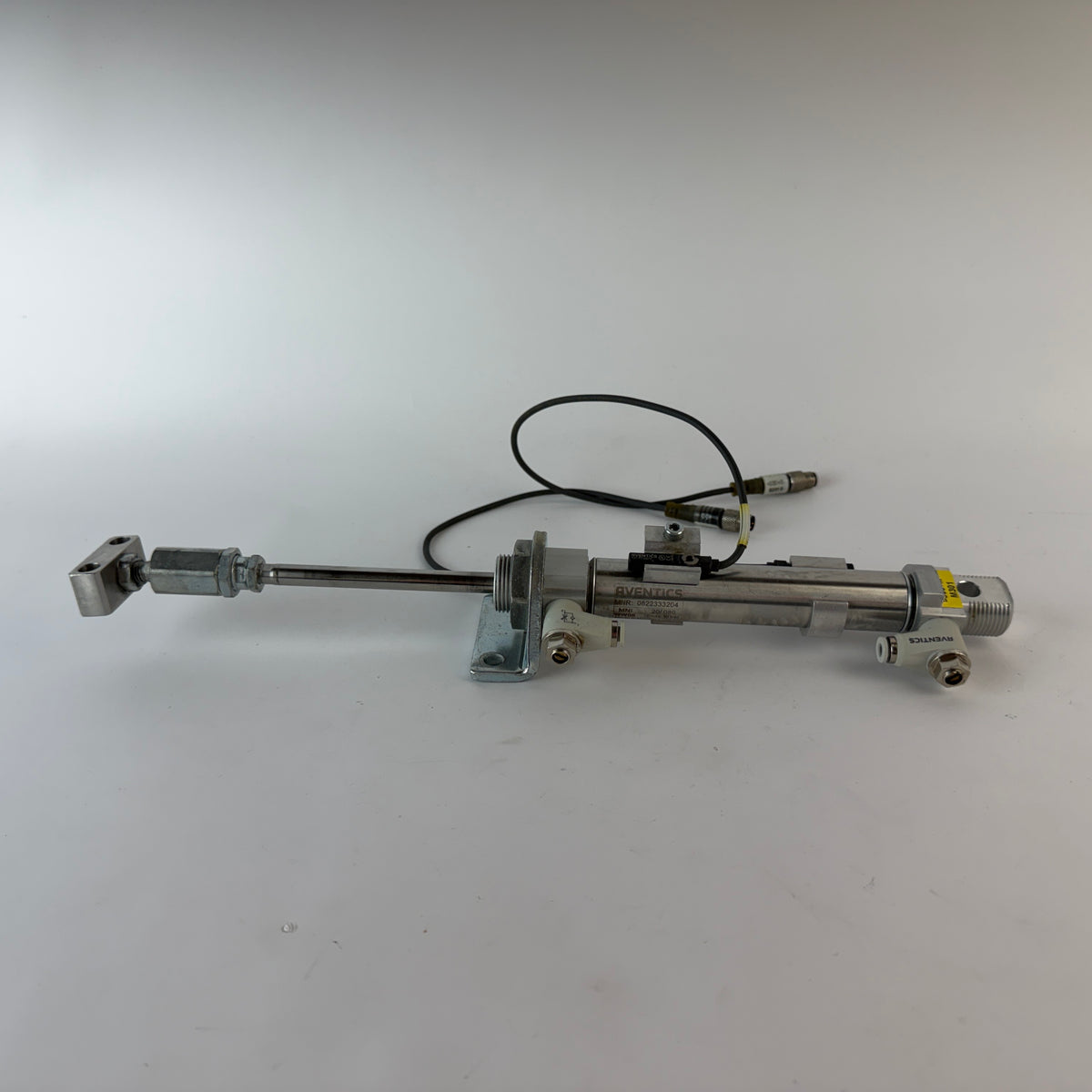

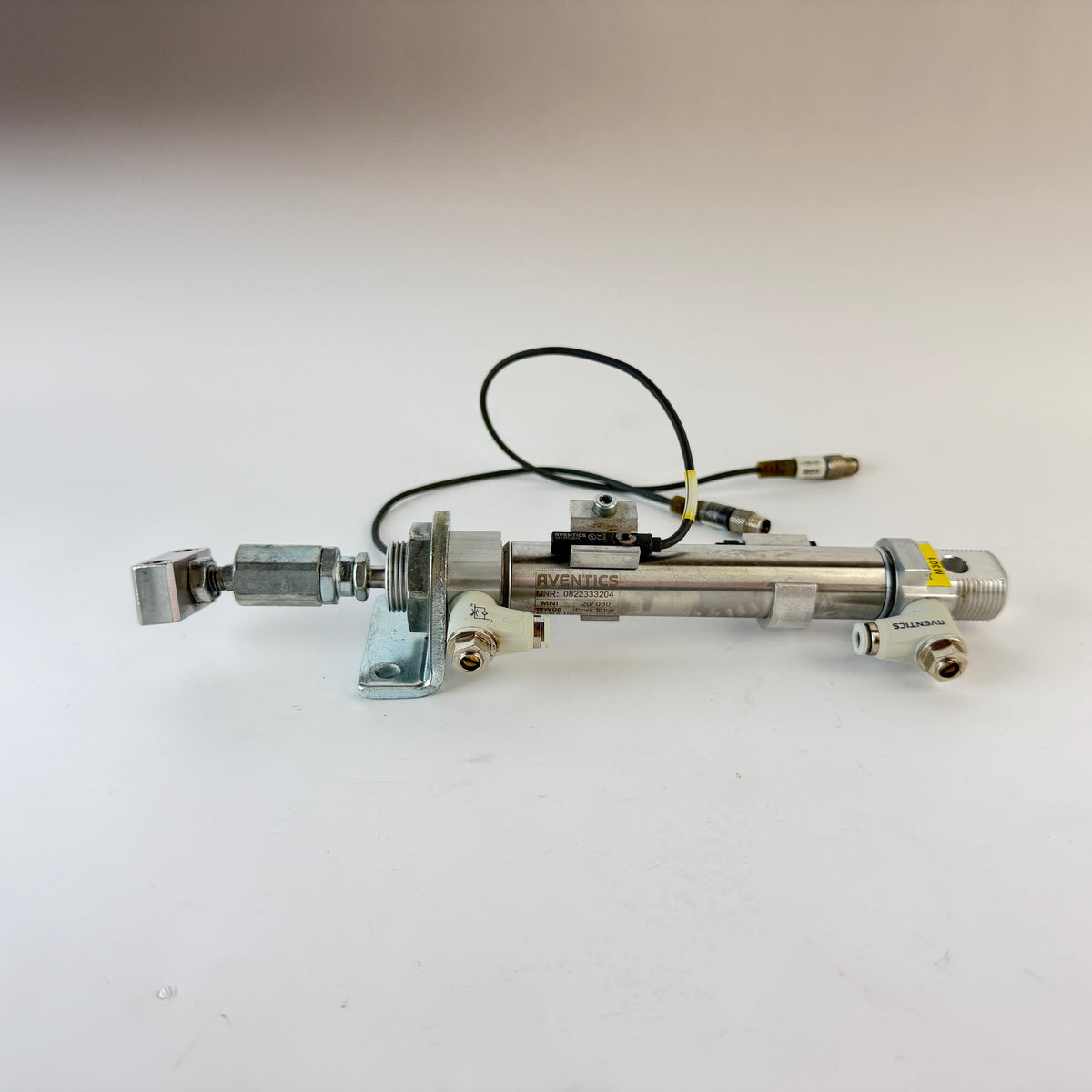

Supplied as the complete assembly shown, including installed sensors, cables/connectors, pneumatic fittings, mounting hardware and piston rod attachment.

Condition: Used, fully functional.
