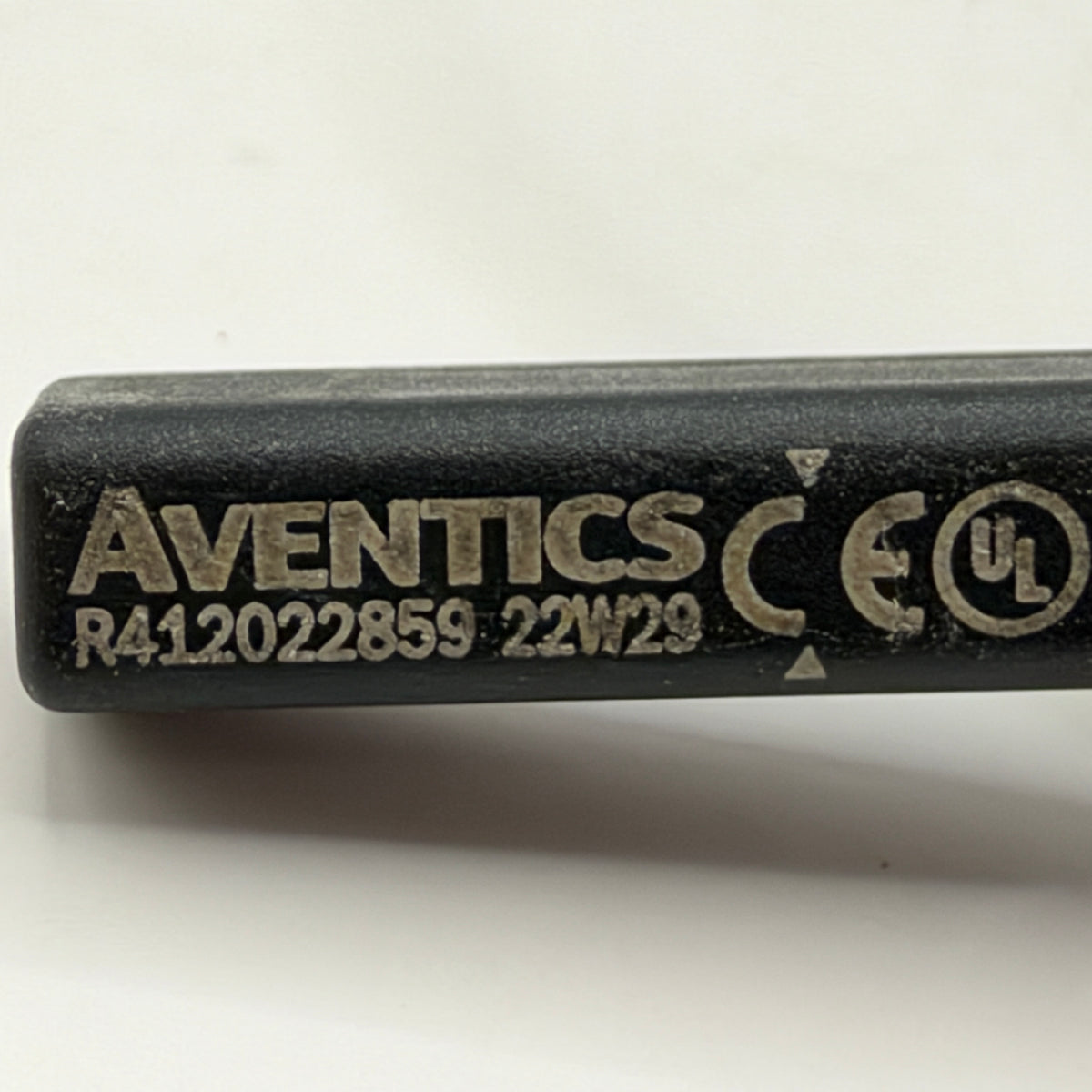

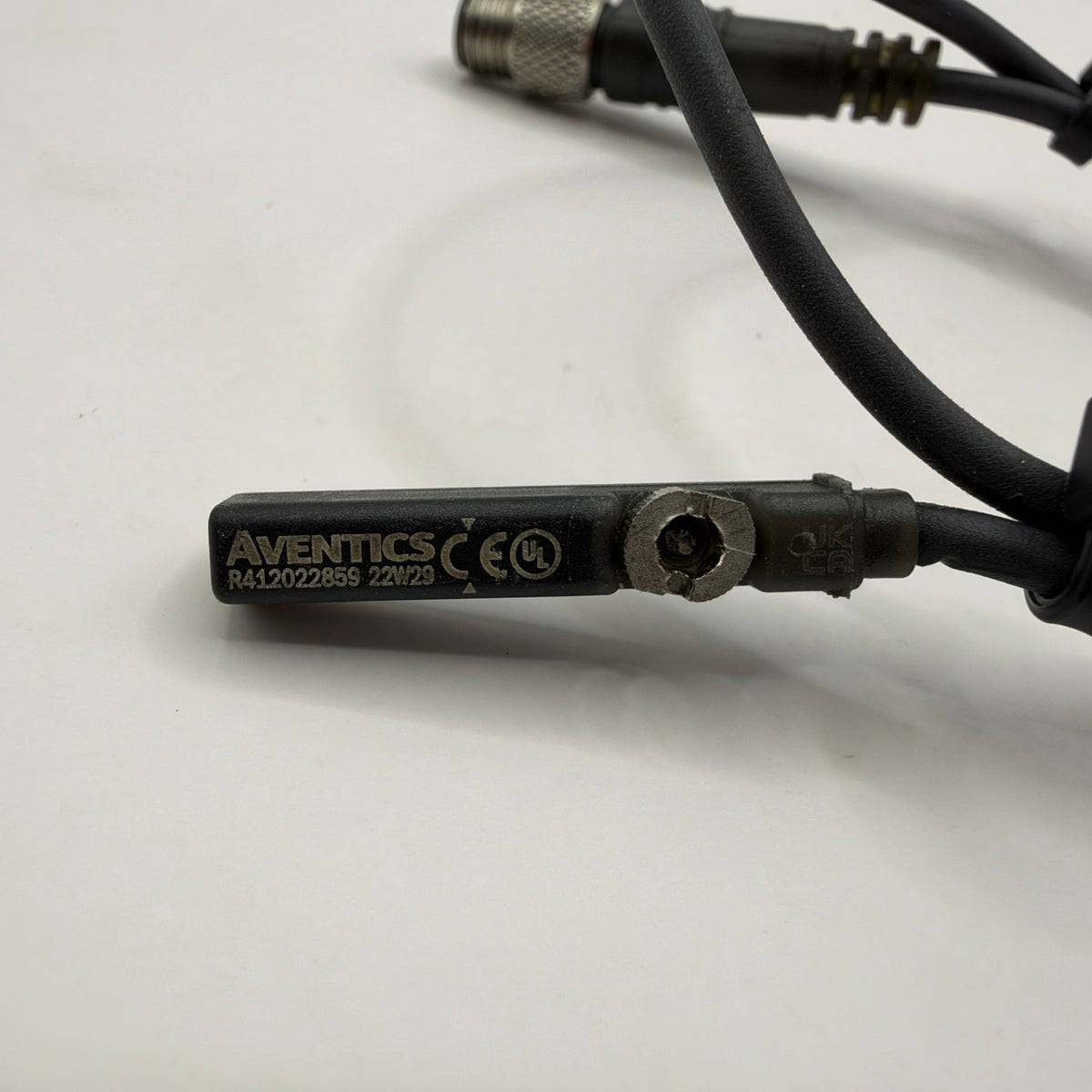

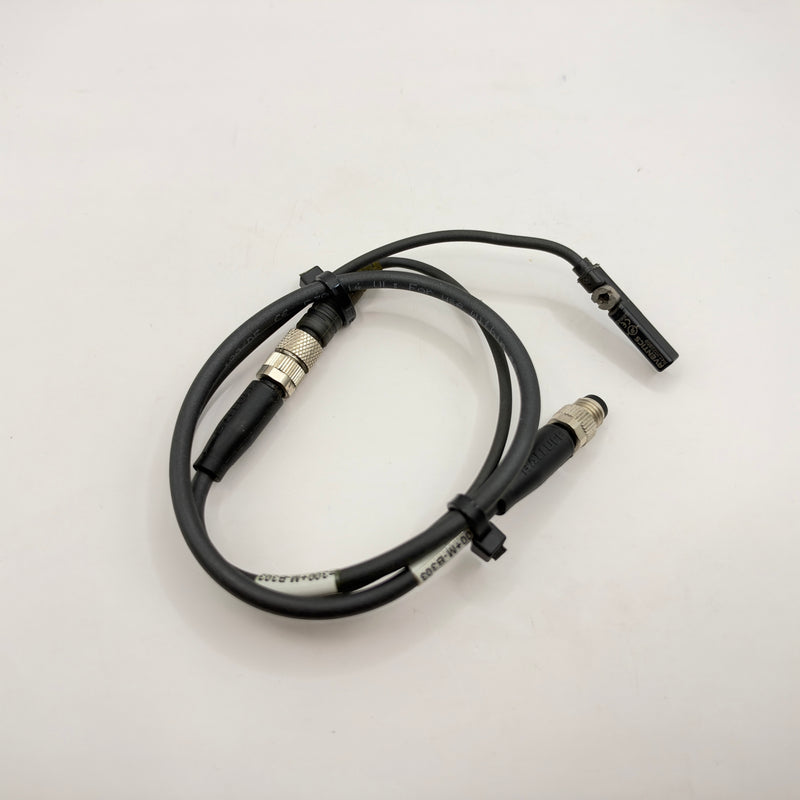

AVENTICS R412022859 Series ST6 electronic magnetic proximity sensor designed for pneumatic cylinder position detection.

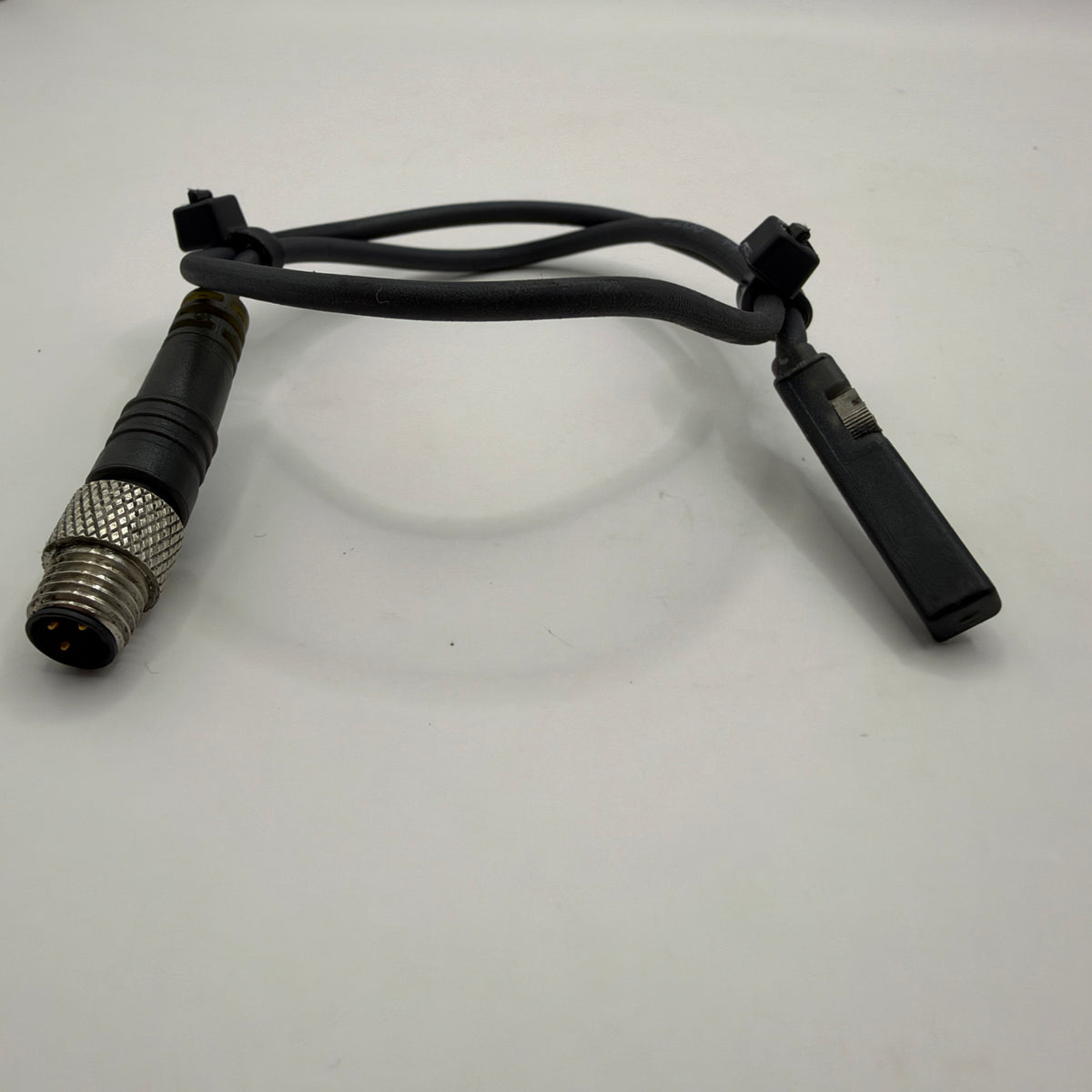

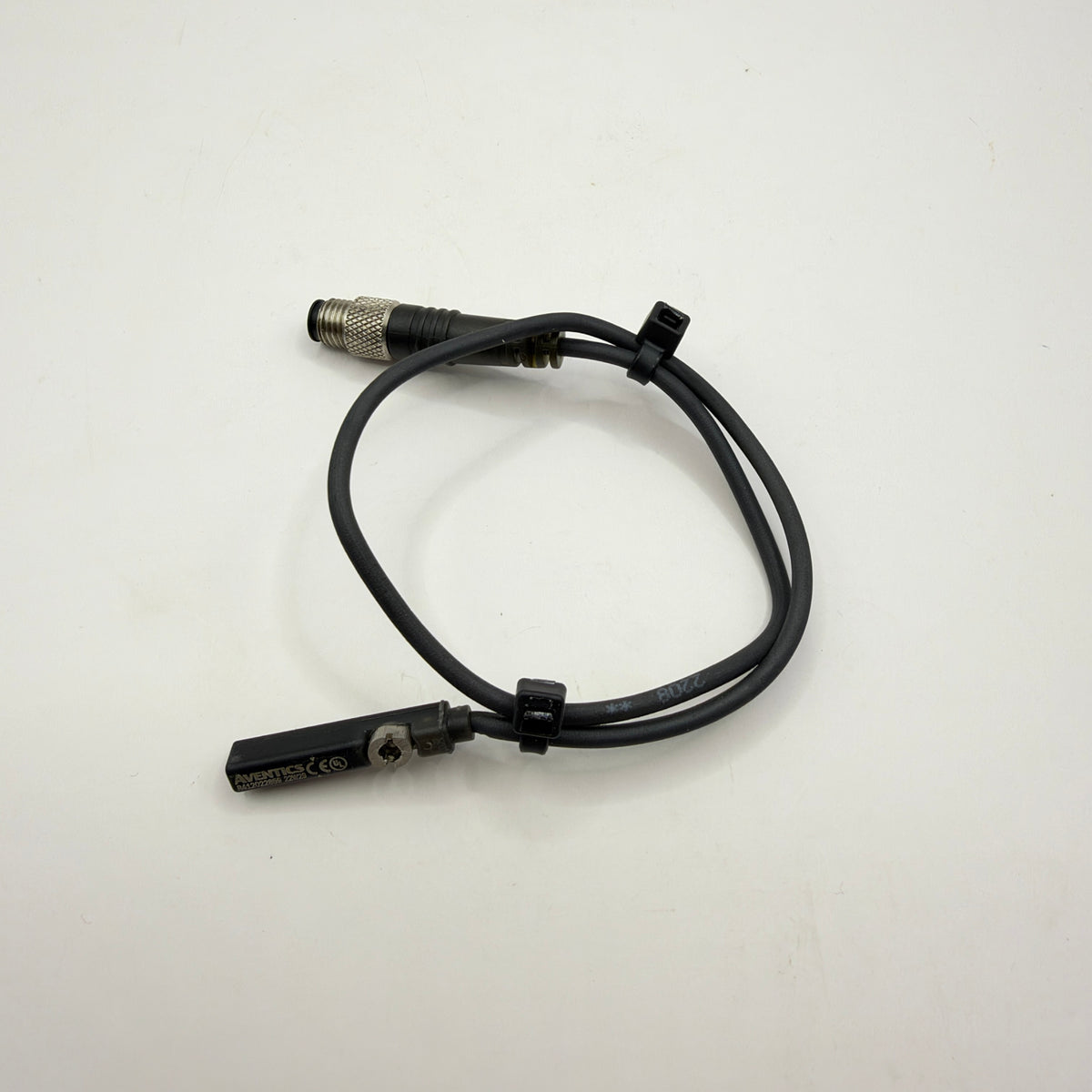

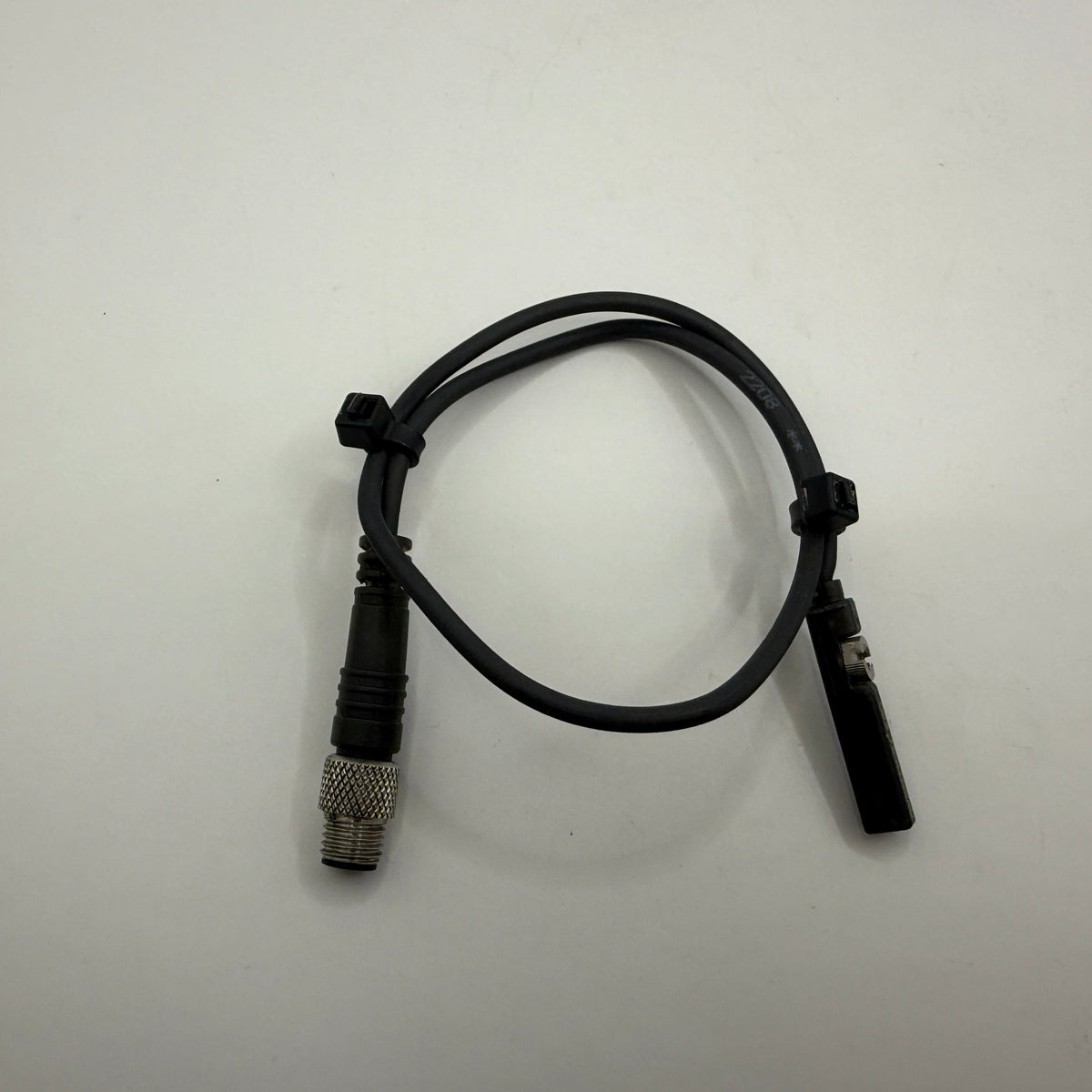

The R412022859 is the ST6-PN-M08T-030 version featuring an electronic PNP output with normally open (NO) switching logic. It is designed for installation in a 6 mm T-slot and is supplied with a 0.3 m polyurethane cable terminating in an M8x1 3-pin male connector.

Specifications:

• Manufacturer: AVENTICS
• Part Number / MPN: R412022859
• Type Code: ST6-PN-M08T-030
• Series: ST6
• Type: Magnetic proximity / pneumatic cylinder sensor
• Output: Electronic PNP
• Switching Logic: Normally Open (NO)
• Slot Width: 6 mm T-slot
• Operating Voltage: 10–30 VDC
• Maximum DC Switching Current: 0.13 A
• Nominal Current, Actuated: <30 mA
• Quiescent Current: <8 mA
• Maximum Switching Frequency: 1000 Hz
• Voltage Drop at Imax: ≤2.5 V
• Switching Point Precision: ±0.1 mT
• Hysteresis: ≥0.2 mT
• Status Indicator: Yellow LED

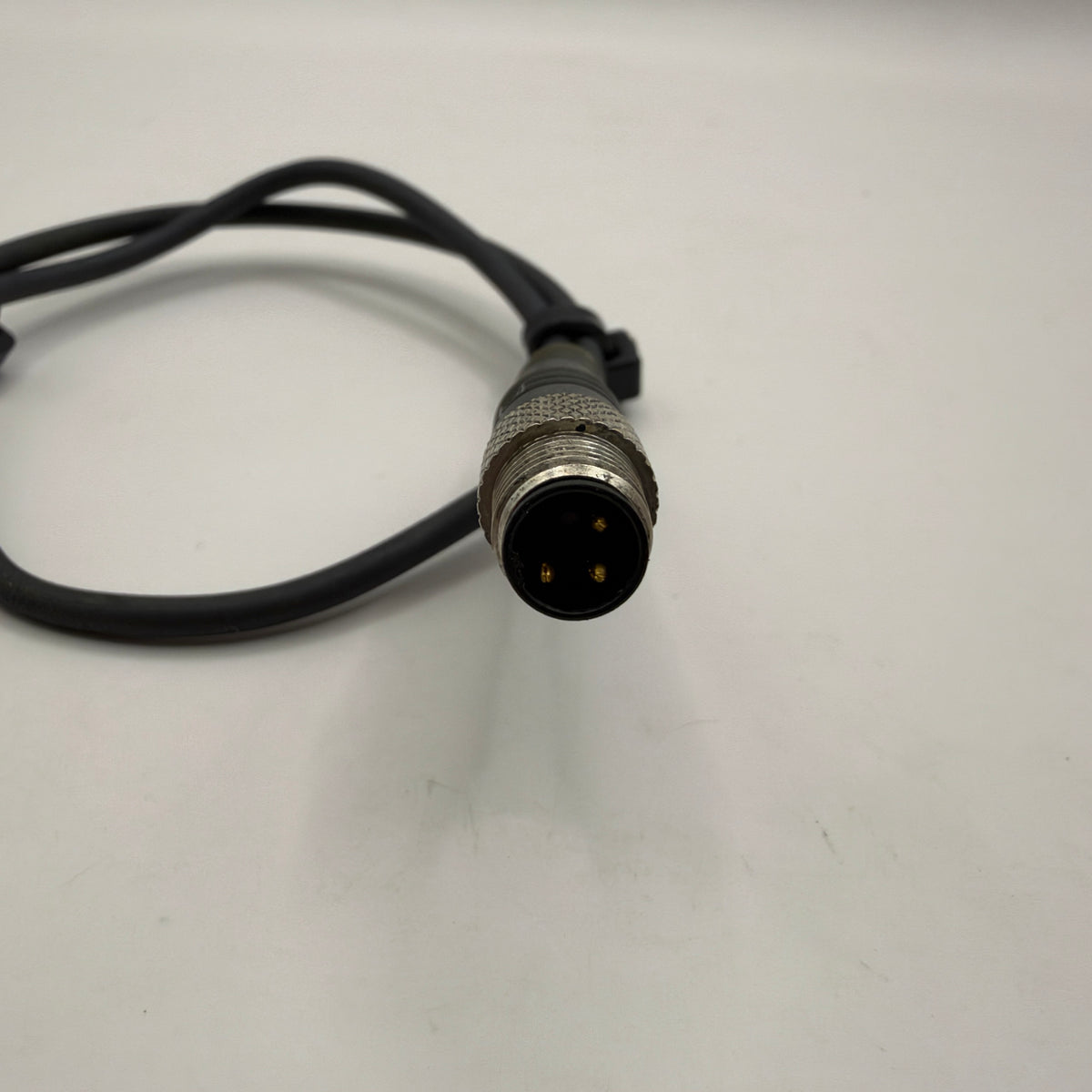

• Connection: M8x1 male, 3-pin
• Cable Length: 0.3 m
• Cable Sheath: Polyurethane
• Protection Rating: IP65 / IP67
• Operating Temperature: -30 to +80 °C
• Housing Material: Polyamide
• Locking Screw: Stainless steel
• Short-circuit resistant
• Reverse-polarity protected
• Certifications: CE, cULus, RoHS, UL

Suitable for industrial pneumatic cylinder position sensing and automation applications.

Used, fully functional.
