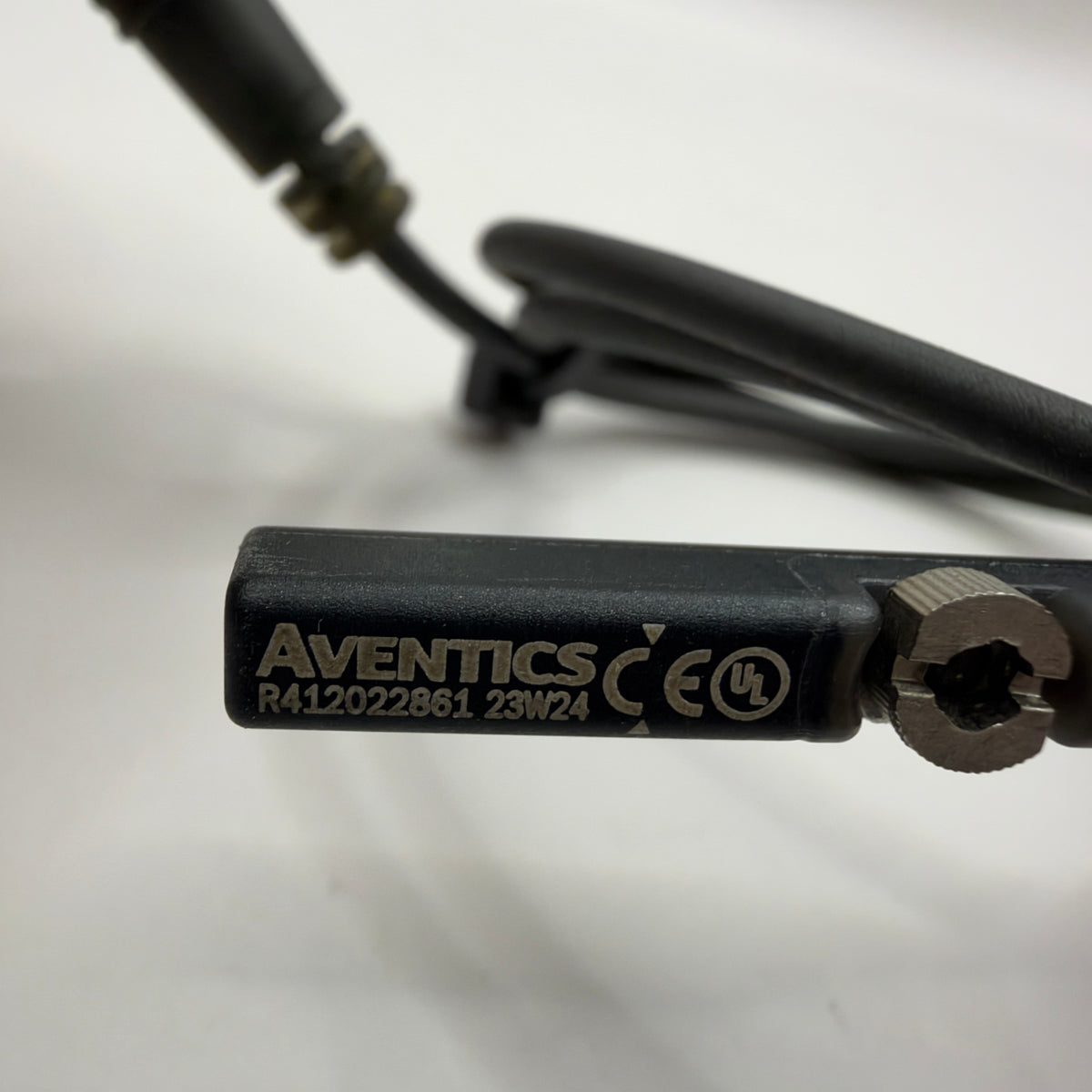

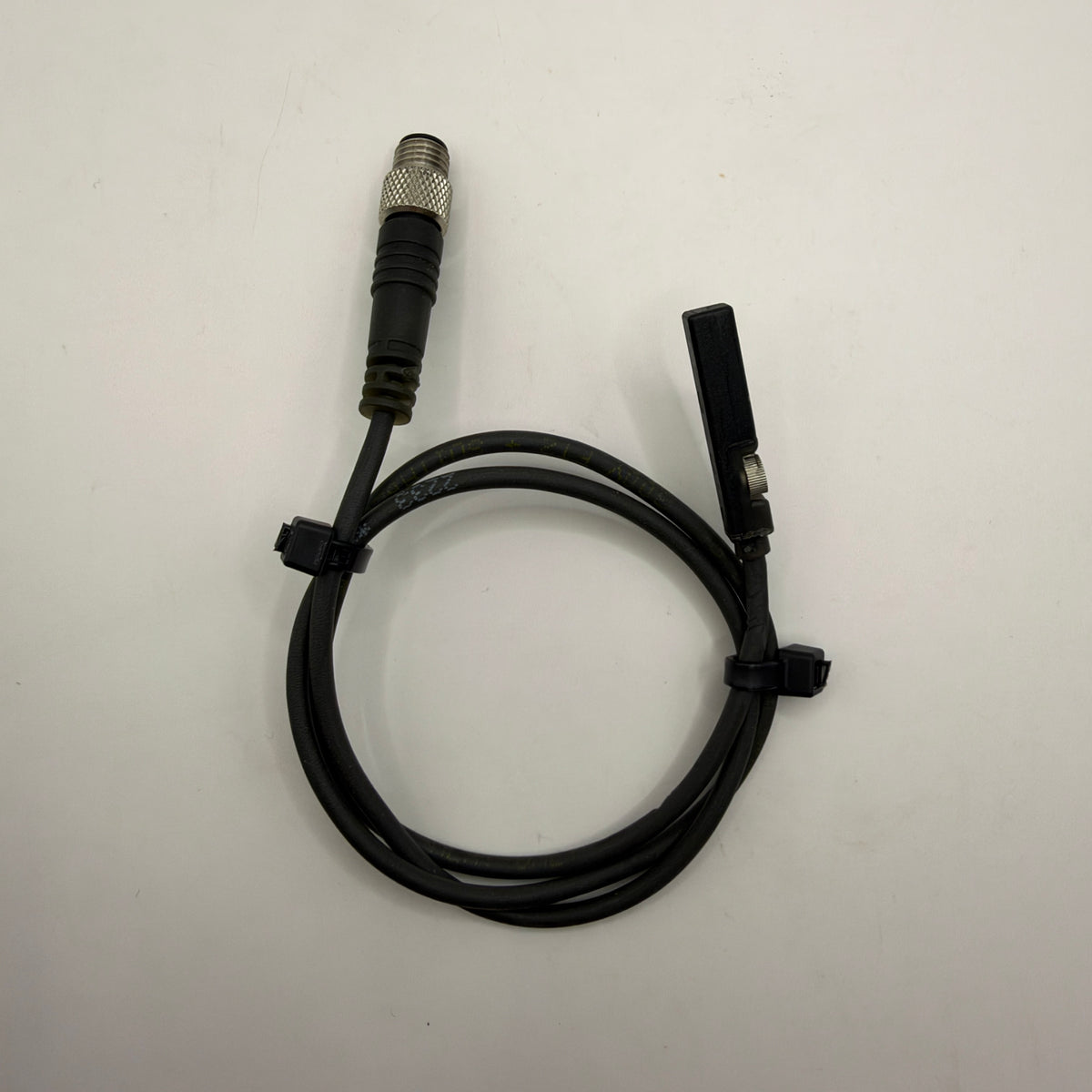

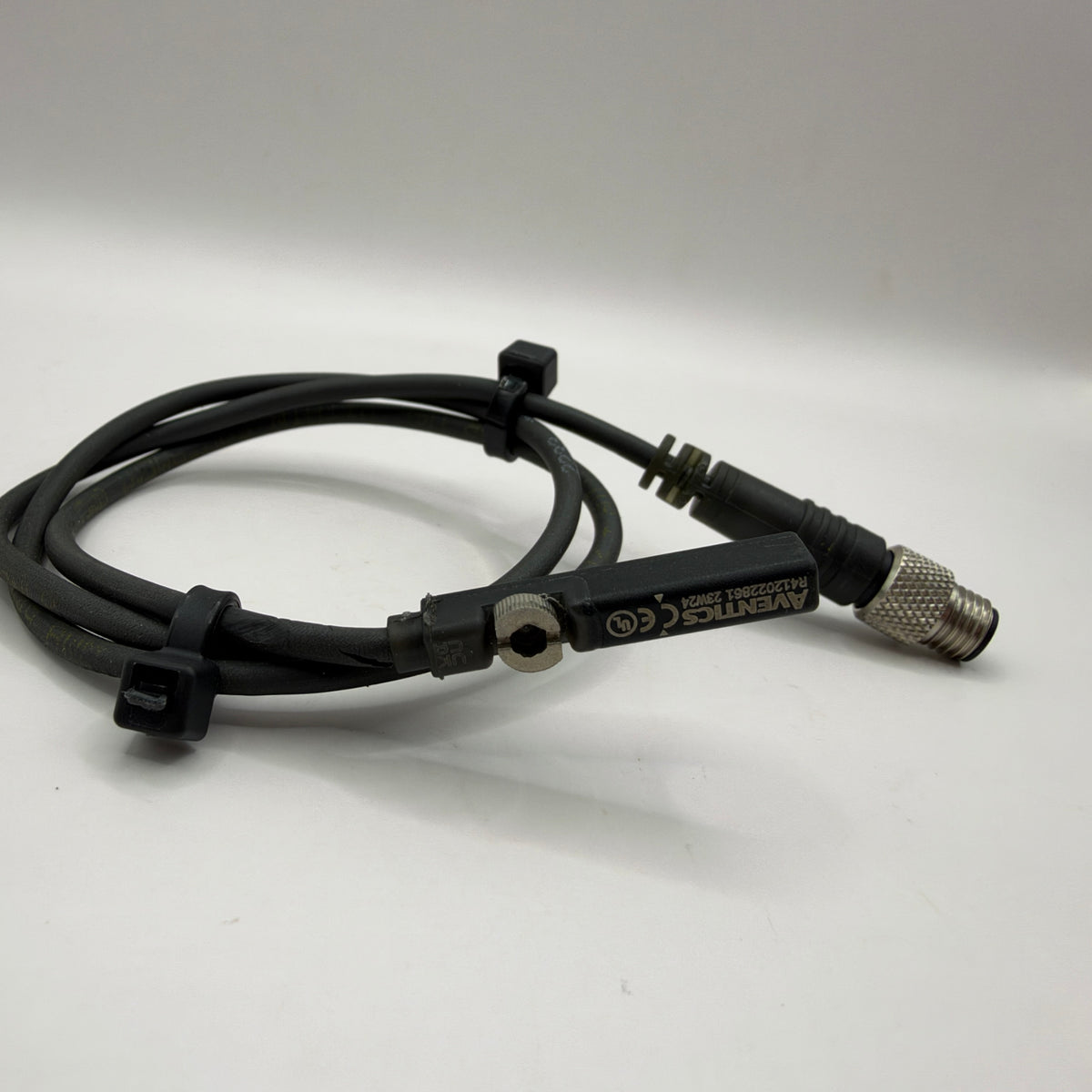

AVENTICS R412022861 Series ST6 electronic magnetic proximity sensor designed for pneumatic cylinder position detection.

The sensor is type ST6-PN-M08U-030 and features an electronic PNP normally open (NO) output. It is designed for installation in a 6 mm T-slot and uses an M8x1 3-pin connection.

Specifications:

• Manufacturer: AVENTICS
• Part Number / MPN: R412022861
• Type Code: ST6-PN-M08U-030
• Series: ST6
• Type: Magnetic proximity / pneumatic cylinder sensor
• Output: Electronic PNP
• Switching Logic: Normally Open (NO)
• Slot Width: 6 mm T-slot
• Operating Voltage: 10–30 VDC
• Maximum DC Switching Current: 0.13 A
• Nominal Current, Actuated: <30 mA
• Quiescent Current: <8 mA
• Maximum Switching Frequency: 1000 Hz
• Voltage Drop at Imax: ≤2.5 V
• Switching Point Precision: ±0.1 mT
• Hysteresis: ≥0.2 mT
• Status Indicator: Yellow LED
• Cable Length: 0.5 m
• Cable Sheath: Polyurethane
• Connection: M8x1, 3-pin plug
• Protection Rating: IP65 / IP67
• Operating Temperature: -30 to +80 °C
• Housing Material: Polyamide
• Locking Screw: Stainless steel
• Short-circuit resistant
• Reverse-polarity protected

Suitable for reliable end-position and intermediate-position detection on compatible pneumatic cylinders and other industrial automation applications.

Used, fully functional.
