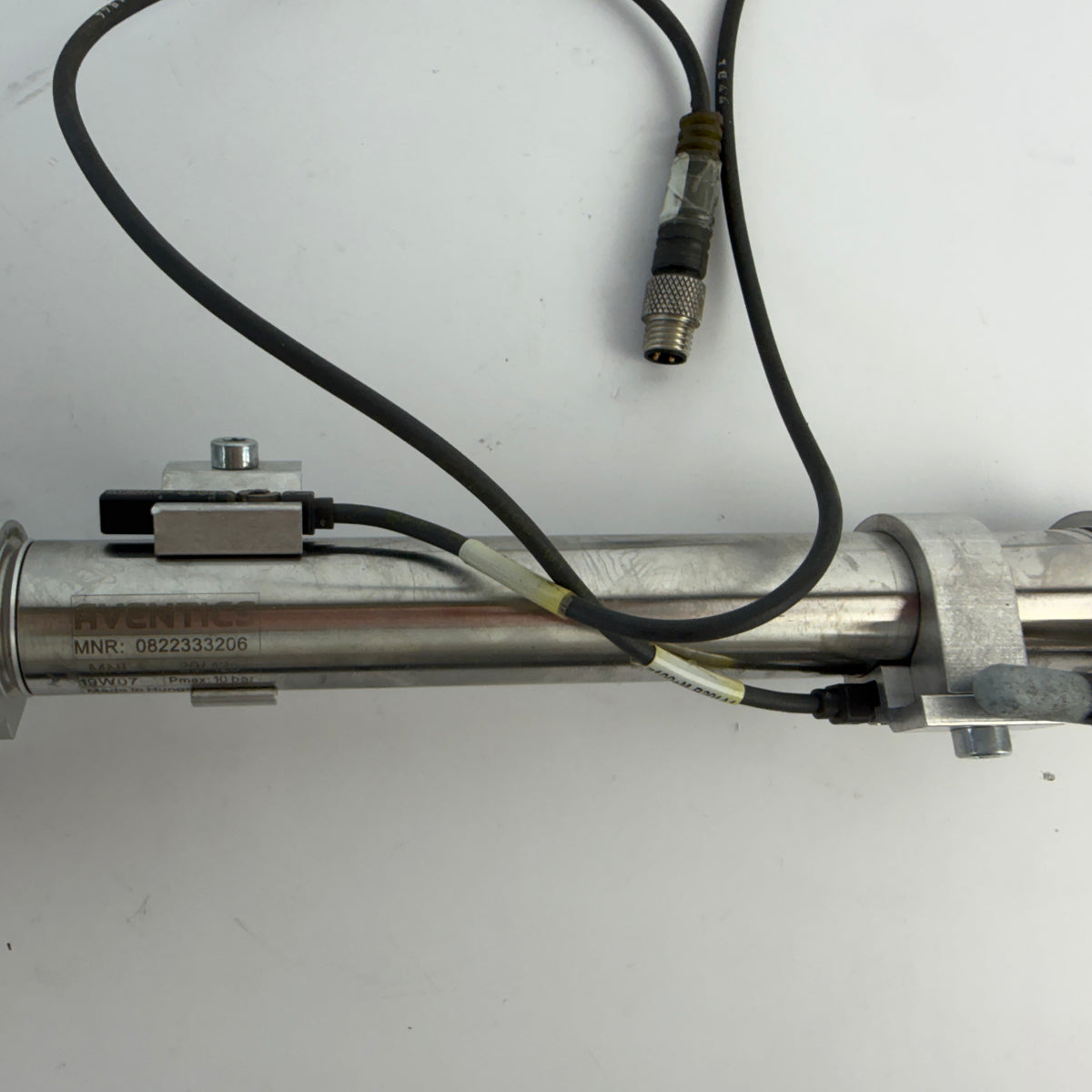

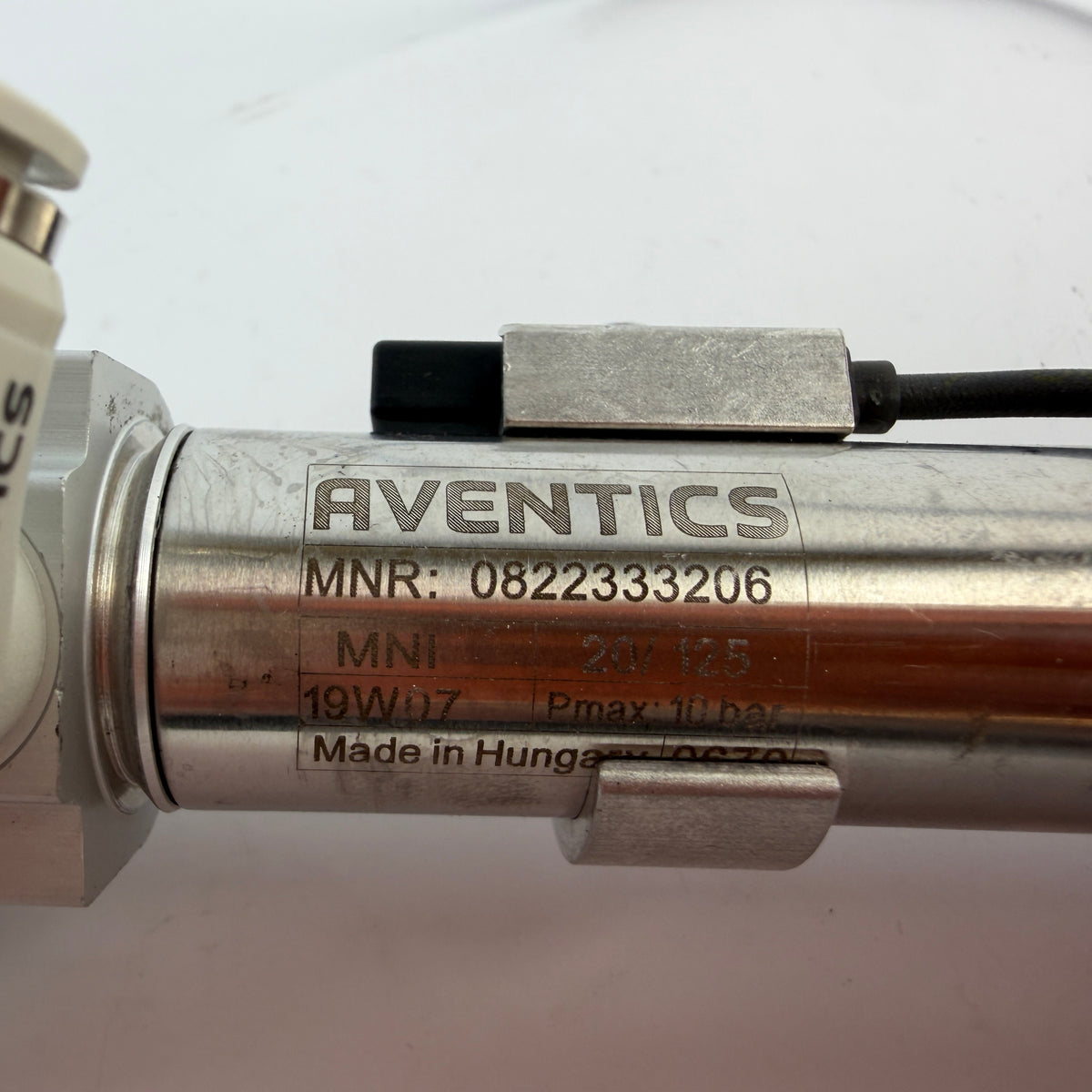

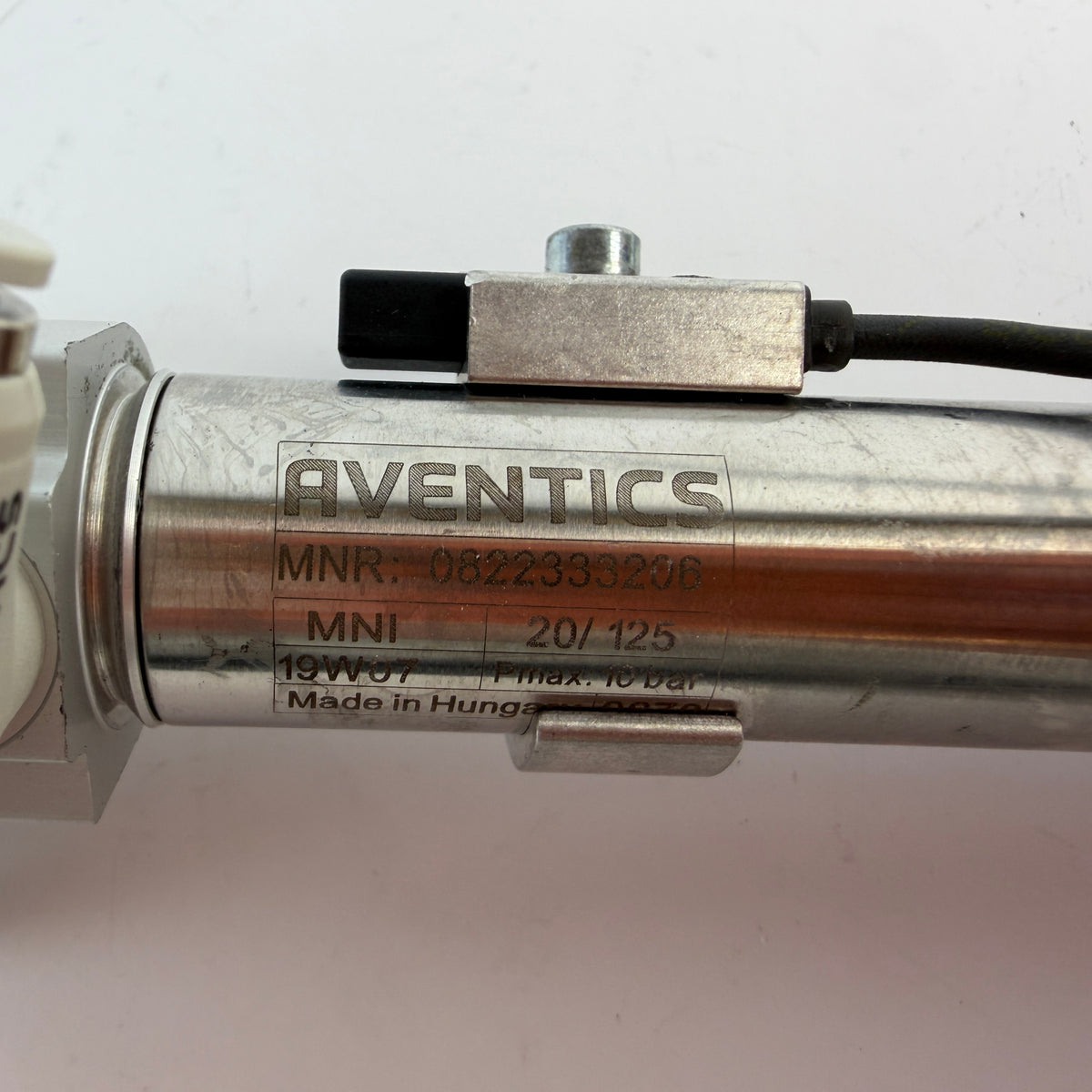

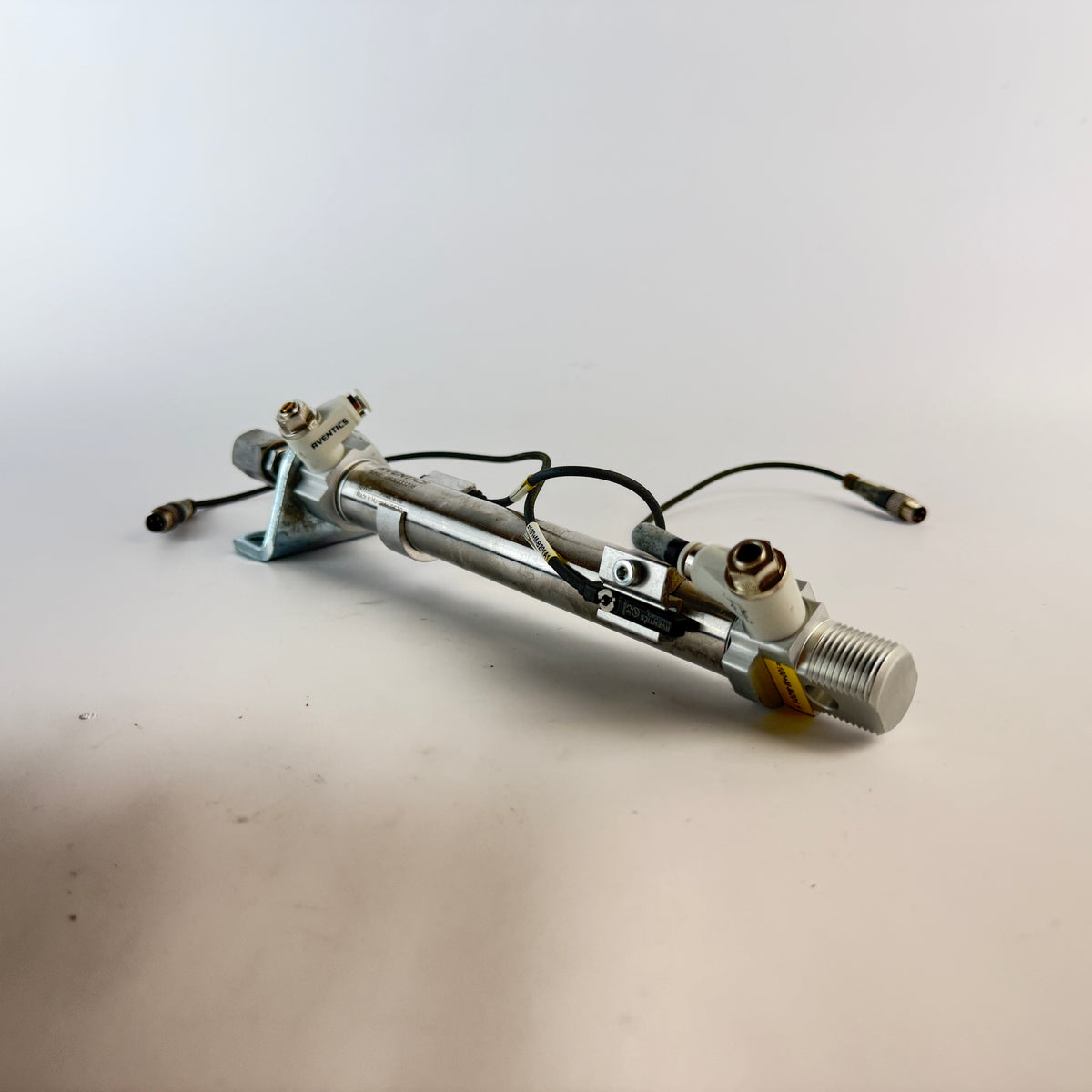

AVENTICS 0822333206 Series MNI pneumatic cylinder with two installed position sensors, pneumatic fittings and mounting hardware as pictured.

This is a double-acting ISO 6432 mini cylinder with a 20 mm bore, 125 mm stroke, magnetic piston and elastic cushioning. The cylinder is designed for industrial pneumatic automation and position monitoring applications.

Cylinder Specifications:

• Manufacturer: AVENTICS
• MPN: 0822333206
• Series: MNI
• Type: Pneumatic cylinder
• Standard: ISO 6432
• Action: Double-acting
• Bore: 20 mm
• Stroke: 125 mm
• Working pressure: 1–10 bar
• Maximum pressure: 10 bar
• Pneumatic ports: G1/8
• Piston rod diameter: 8 mm
• Piston rod thread: M8
• Cylinder outer thread: M22 x 1.5
• Magnetic piston: Yes
• Cushioning: Elastic
• Operating medium: Compressed air
• Operating temperature: -25°C to +80°C
• Country of Origin: Hungary

Installed Sensors:

• Quantity: 2

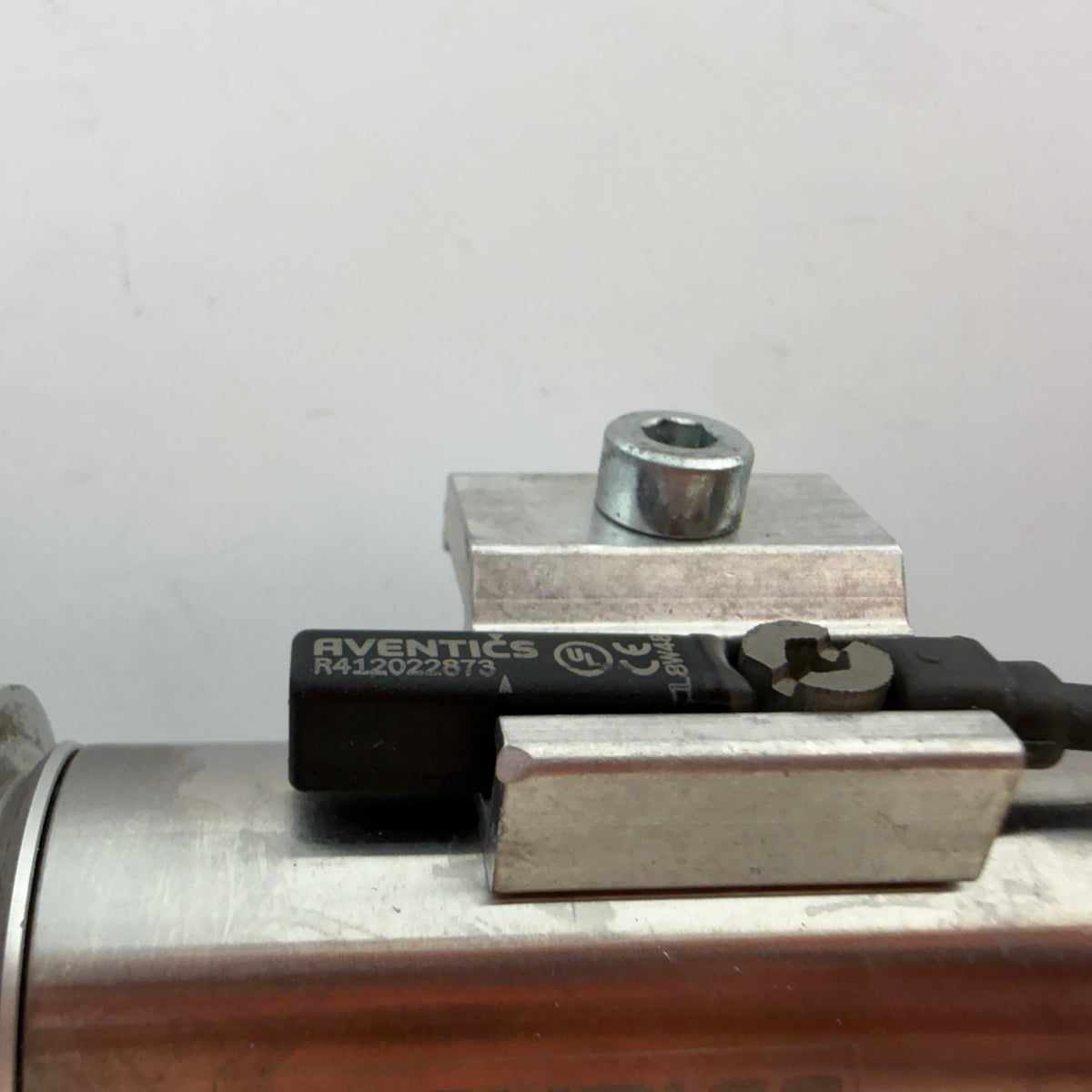

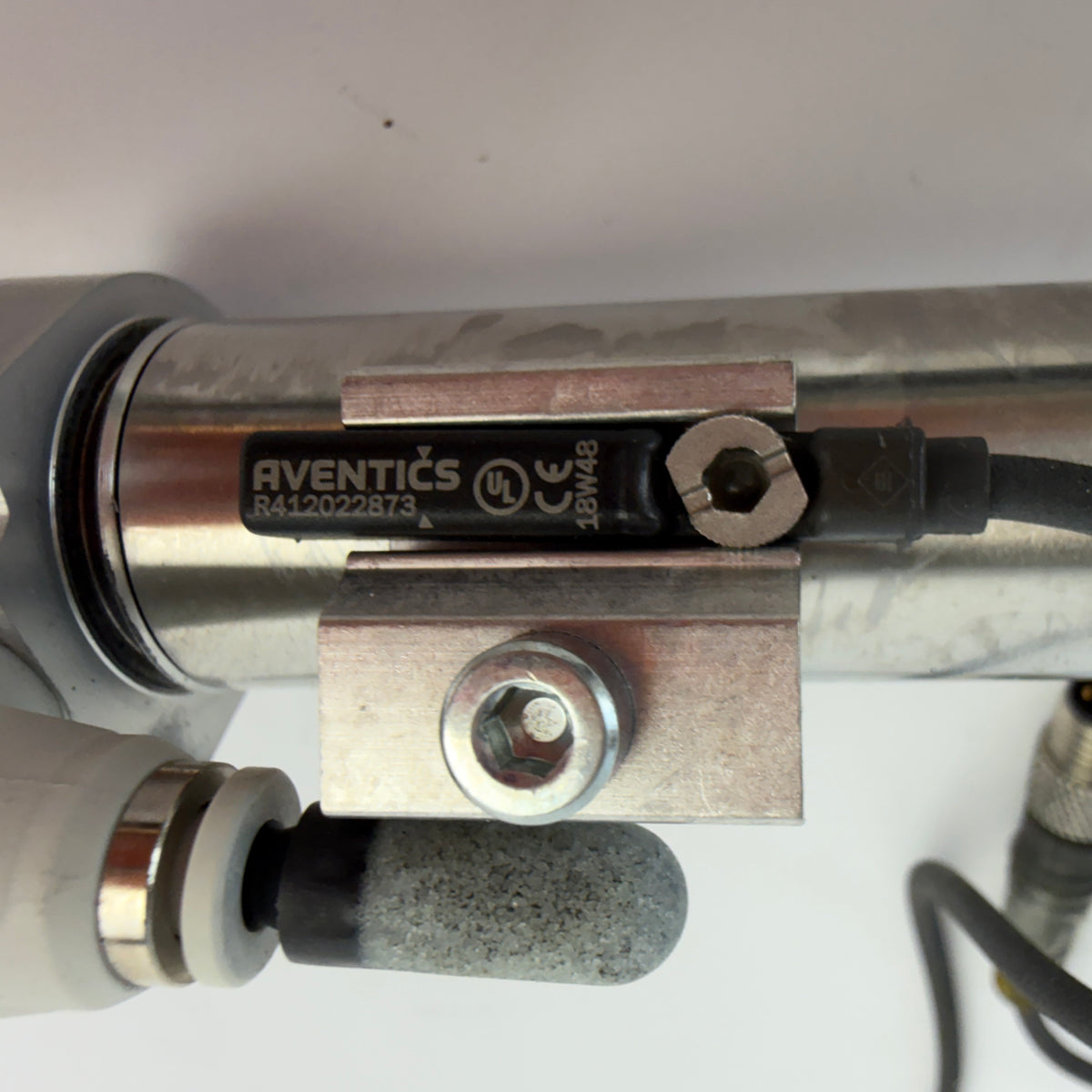

• One sensor positively identified as AVENTICS R412022873
• Series: ST6
• Type code: ST6-R3-M08T-030
• Technology: Reed
• Switching logic: Normally Open (NO)
• Operating voltage: 10–30 V AC/DC
• Maximum DC switching current: 0.3 A
• Maximum AC switching current: 0.5 A
• Switching frequency: Up to 400 Hz

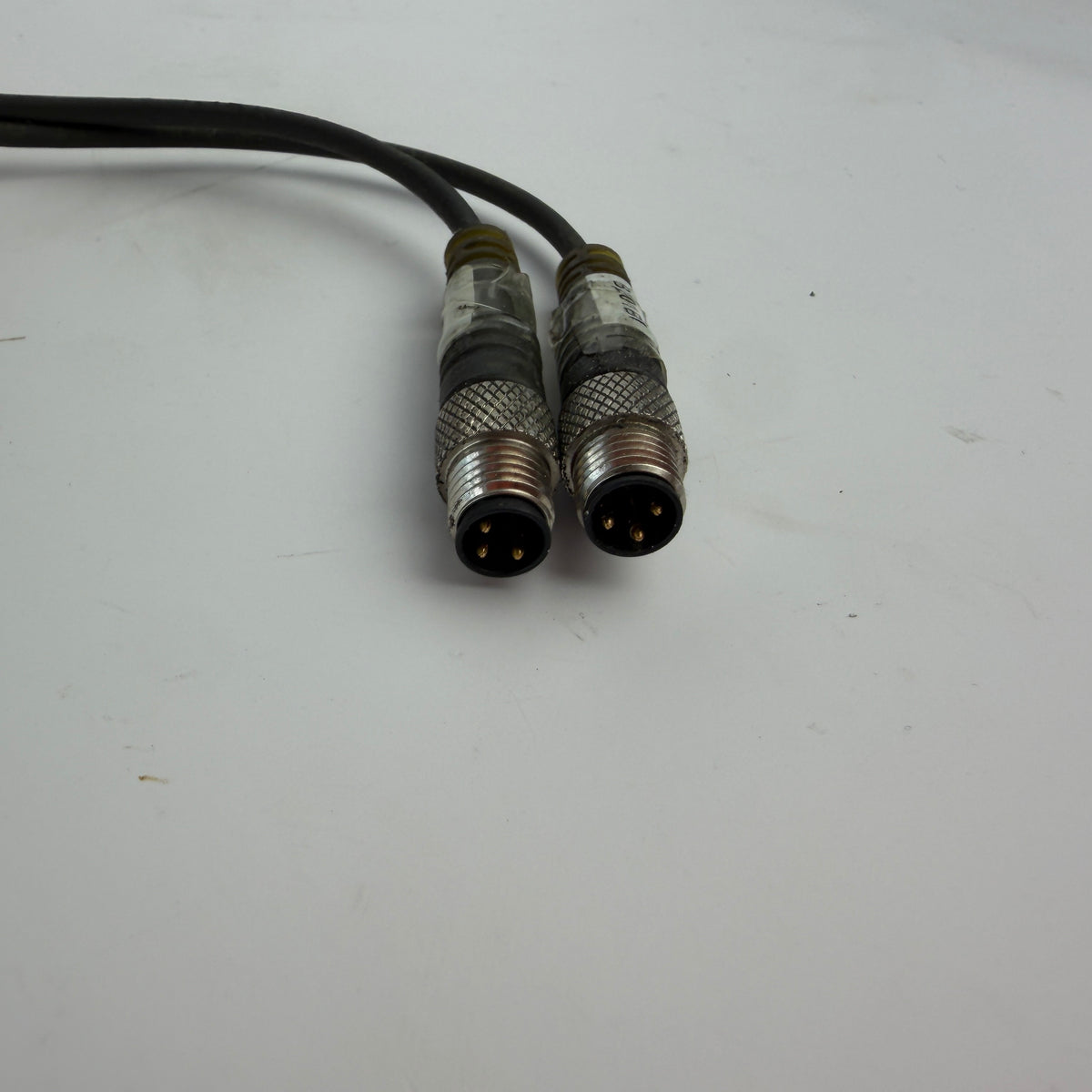

• Electrical connection: M8x1, 3-pin
• Protection rating: IP65 / IP67
• Operating temperature: -30°C to +80°C

The exact part number of the second installed sensor is not readable and therefore is not confirmed.

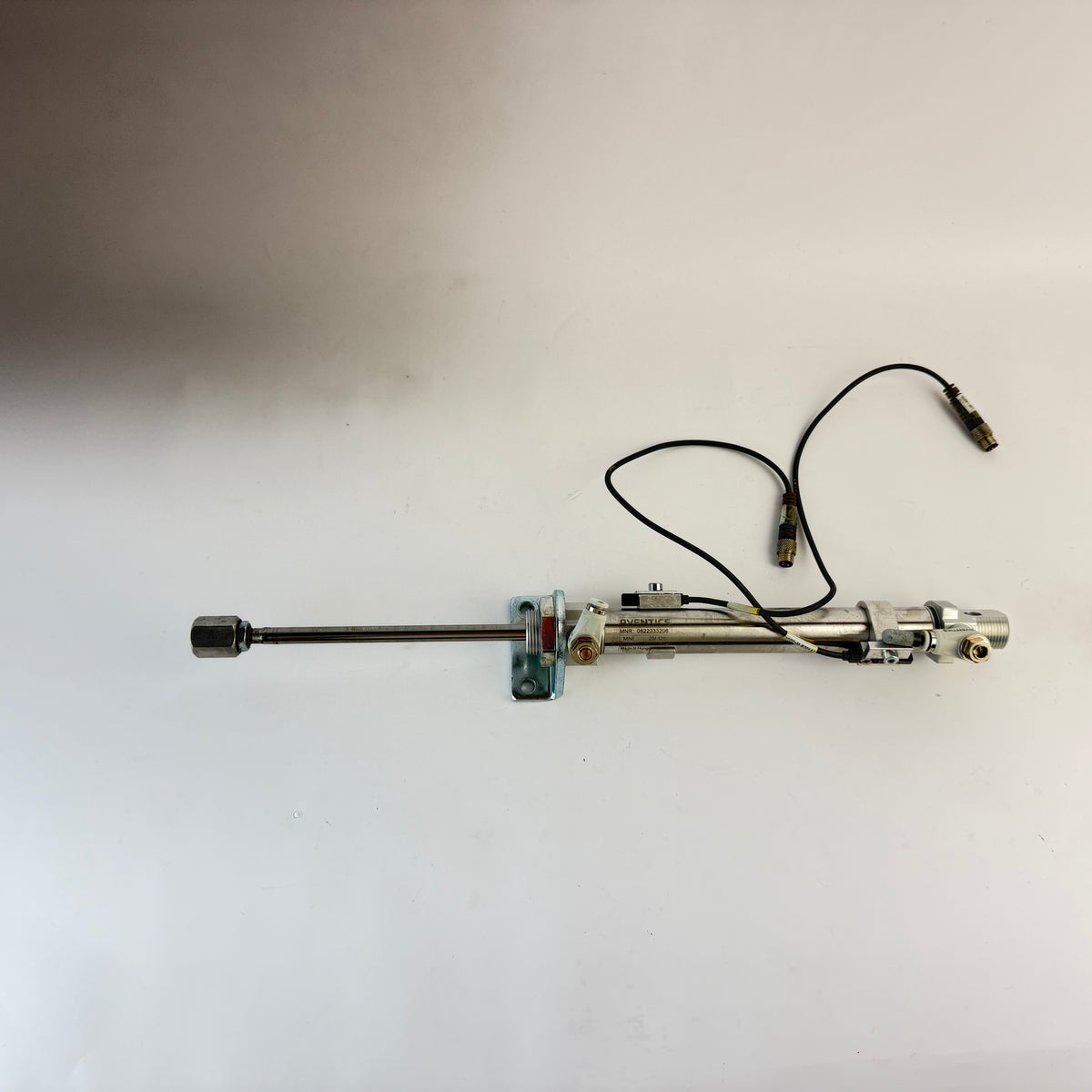

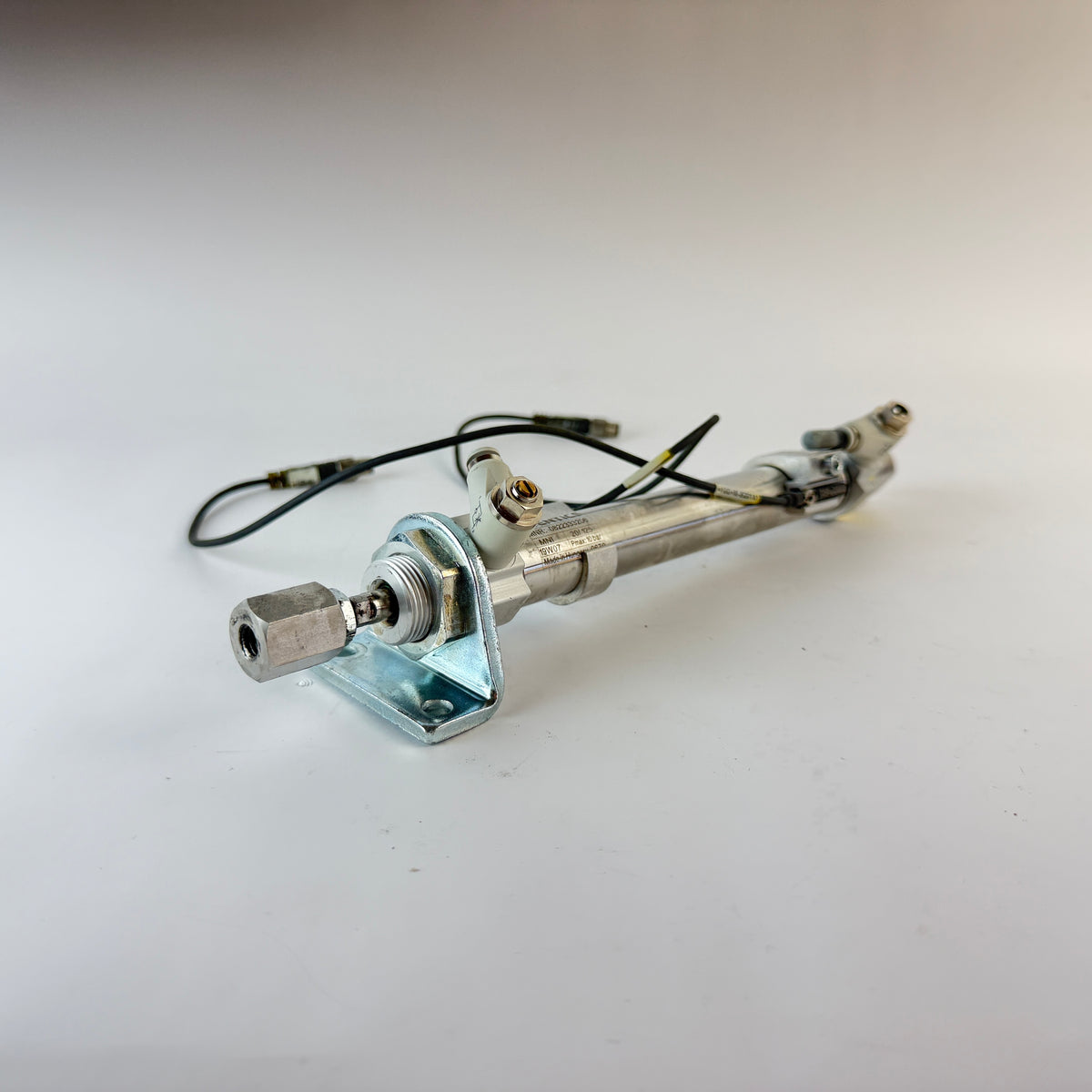

The assembly includes the two installed sensors with cables/connectors, pneumatic fittings, sensor mounting hardware, front mounting bracket and piston rod attachment shown in the photos.

Condition: Used, fully functional.
