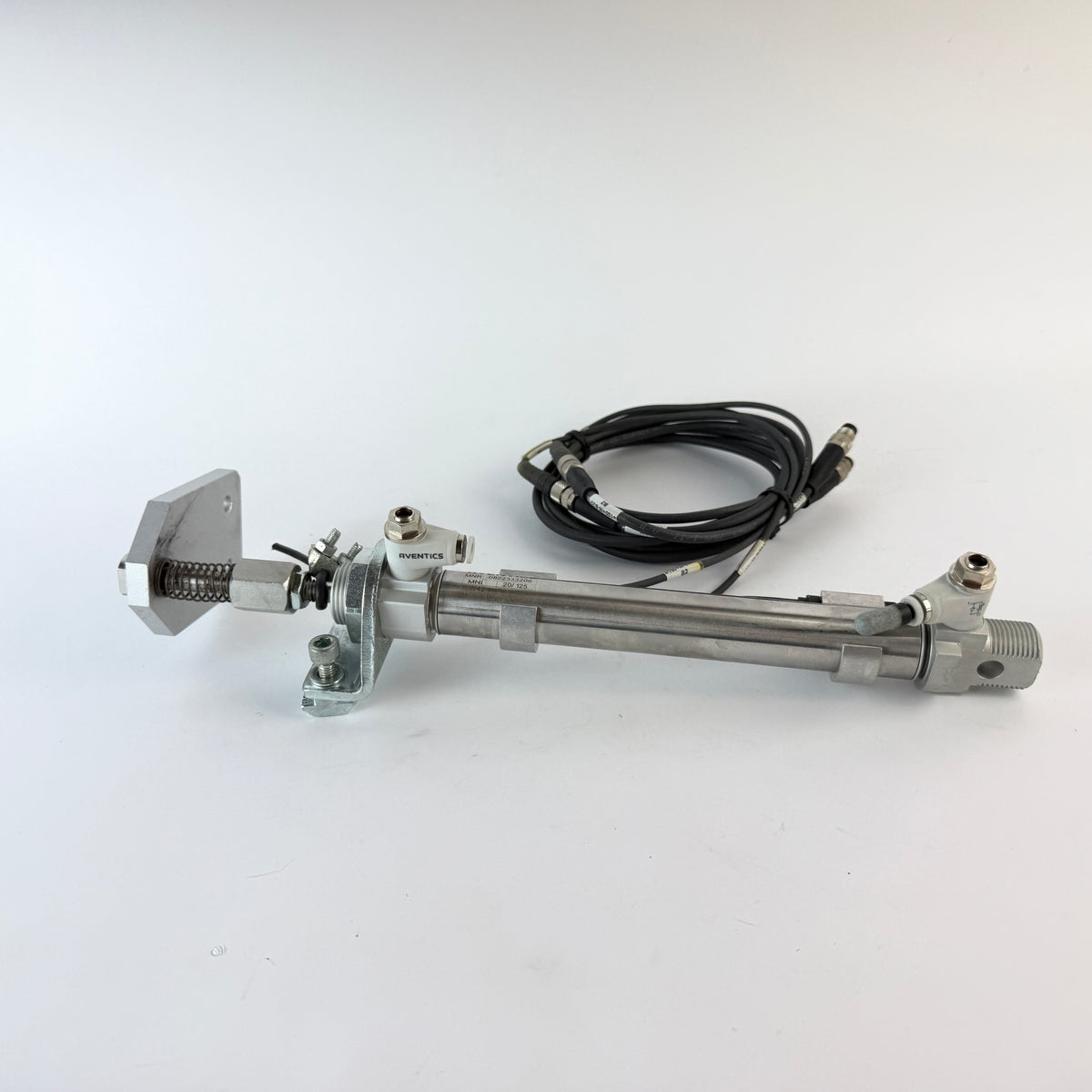

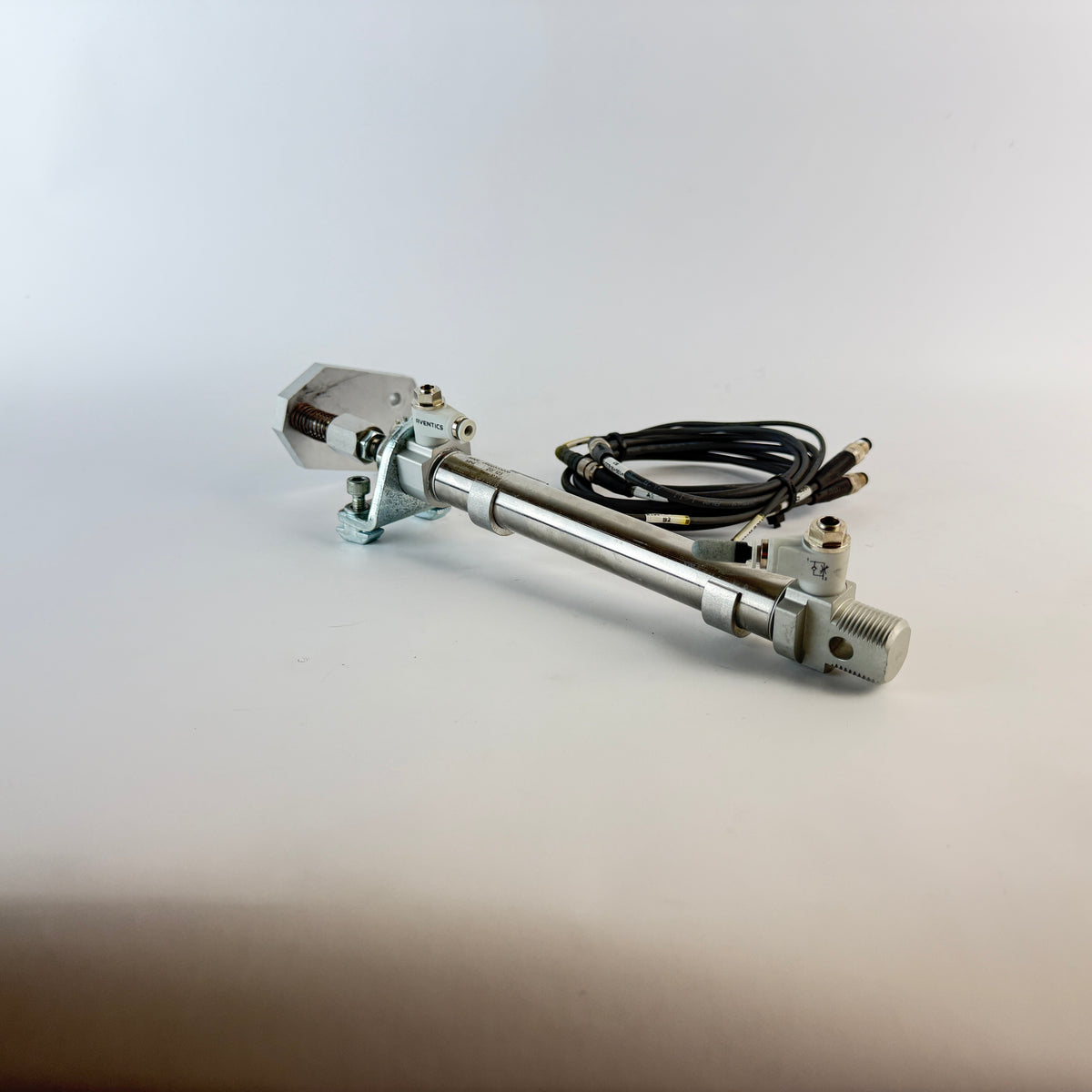

AVENTICS 0822333206 Series MNI pneumatic cylinder supplied as a complete assembly with two AVENTICS R412022873 position sensors, pneumatic fittings, mounting hardware and an additional spring-loaded mechanical end attachment on the piston rod.

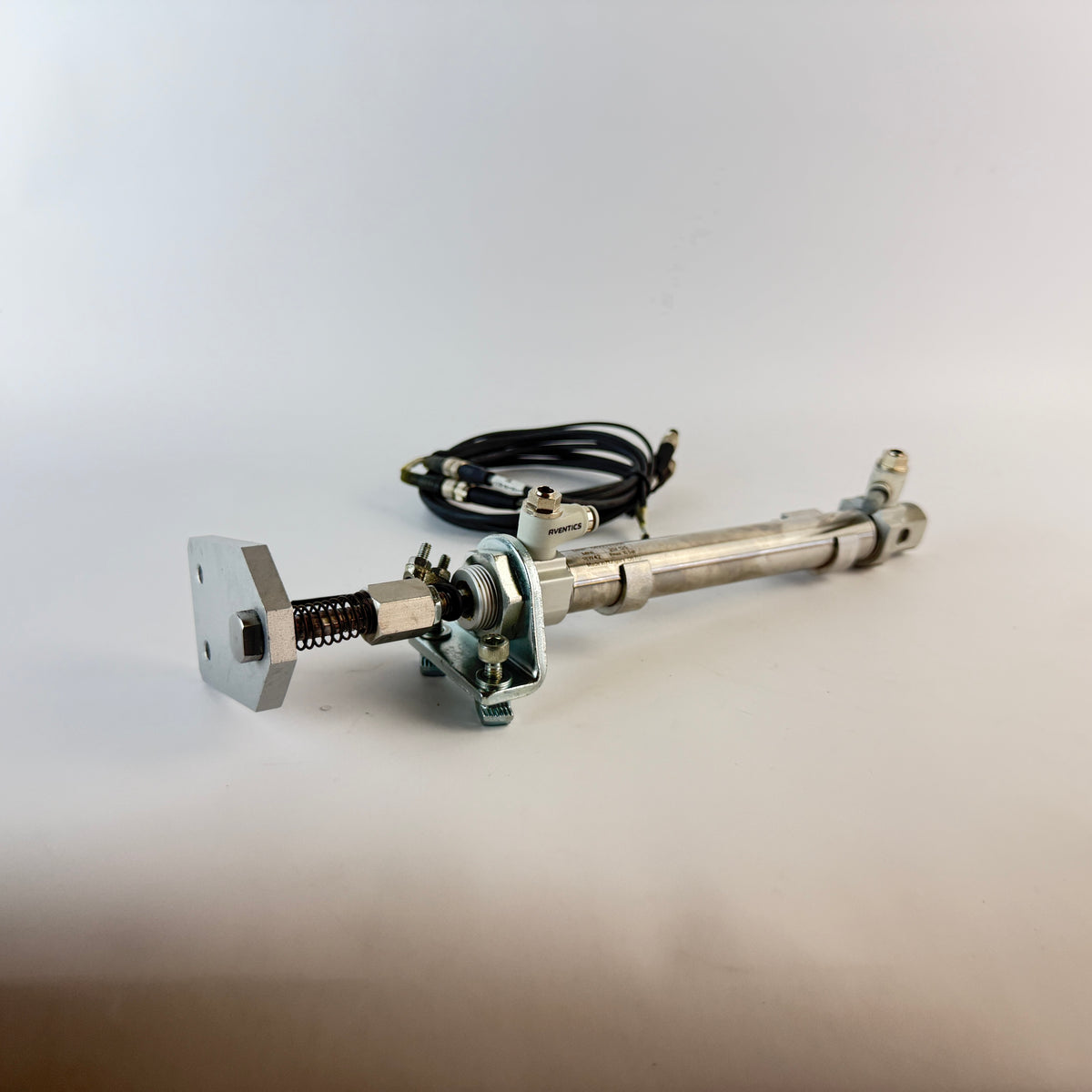

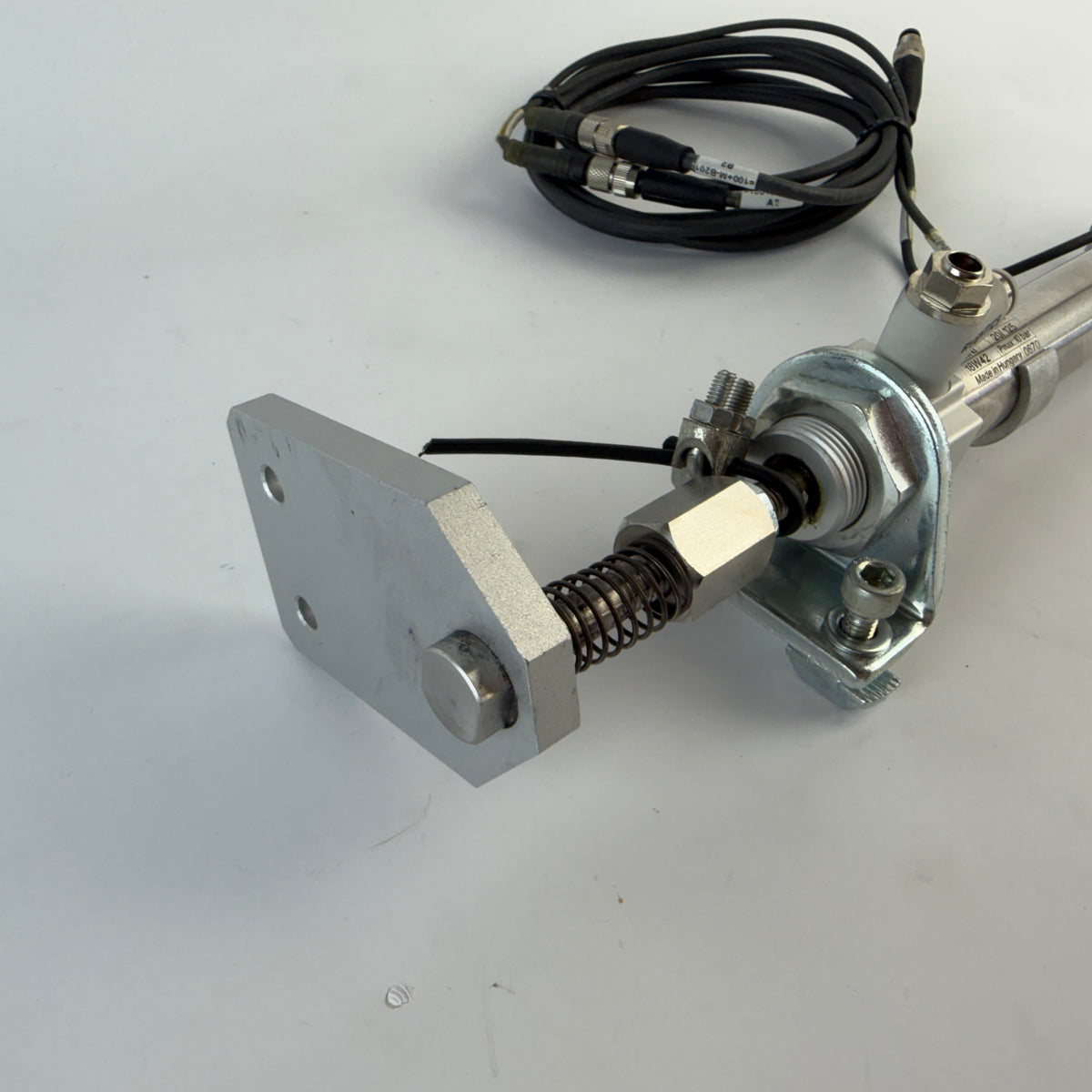

This particular assembly is distinguished by the mechanical attachment fitted to the piston rod. The attachment consists of a spring-loaded section and rectangular metal end plate/bracket as shown in the photos. Its exact manufacturer, part number and machine-specific function are not confirmed.

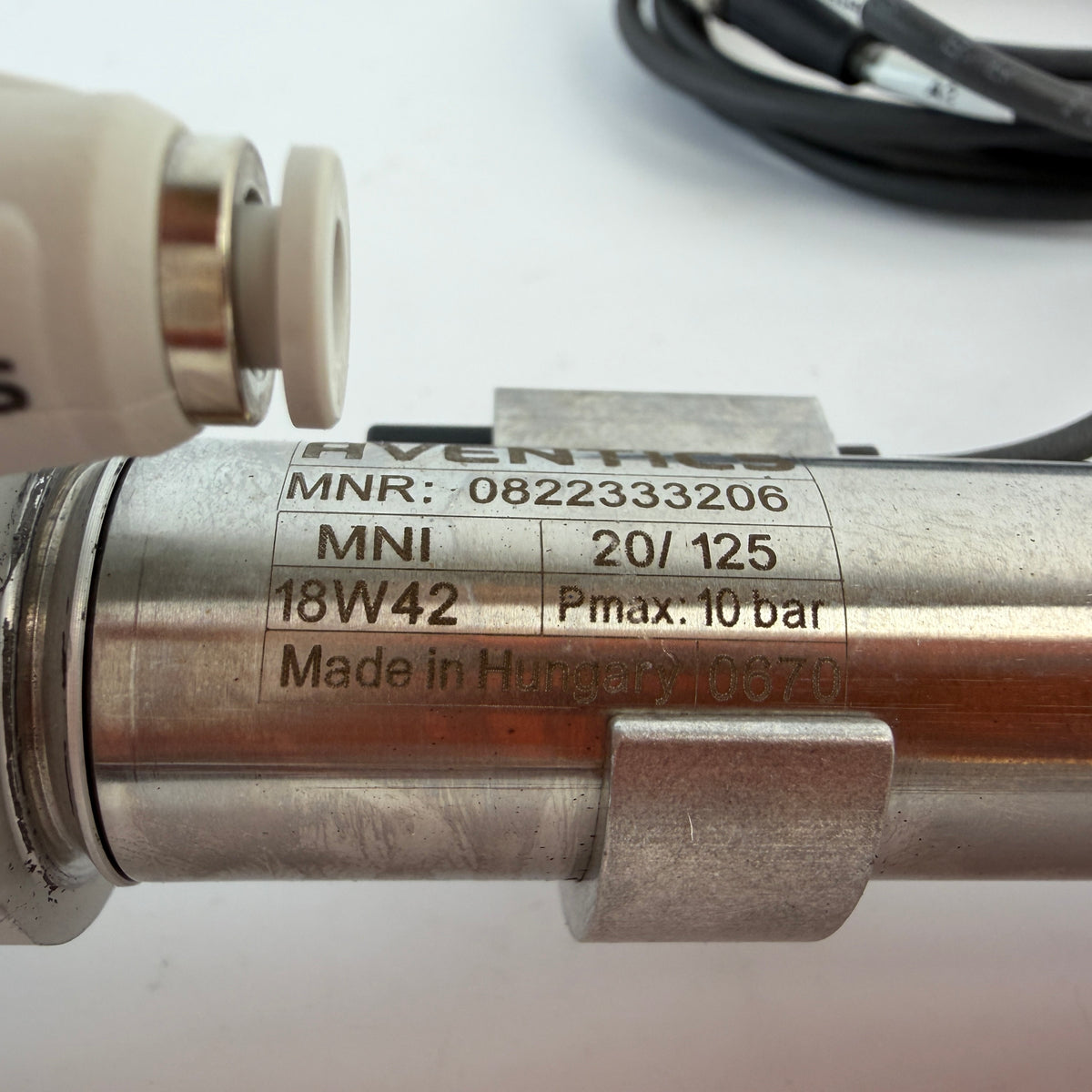

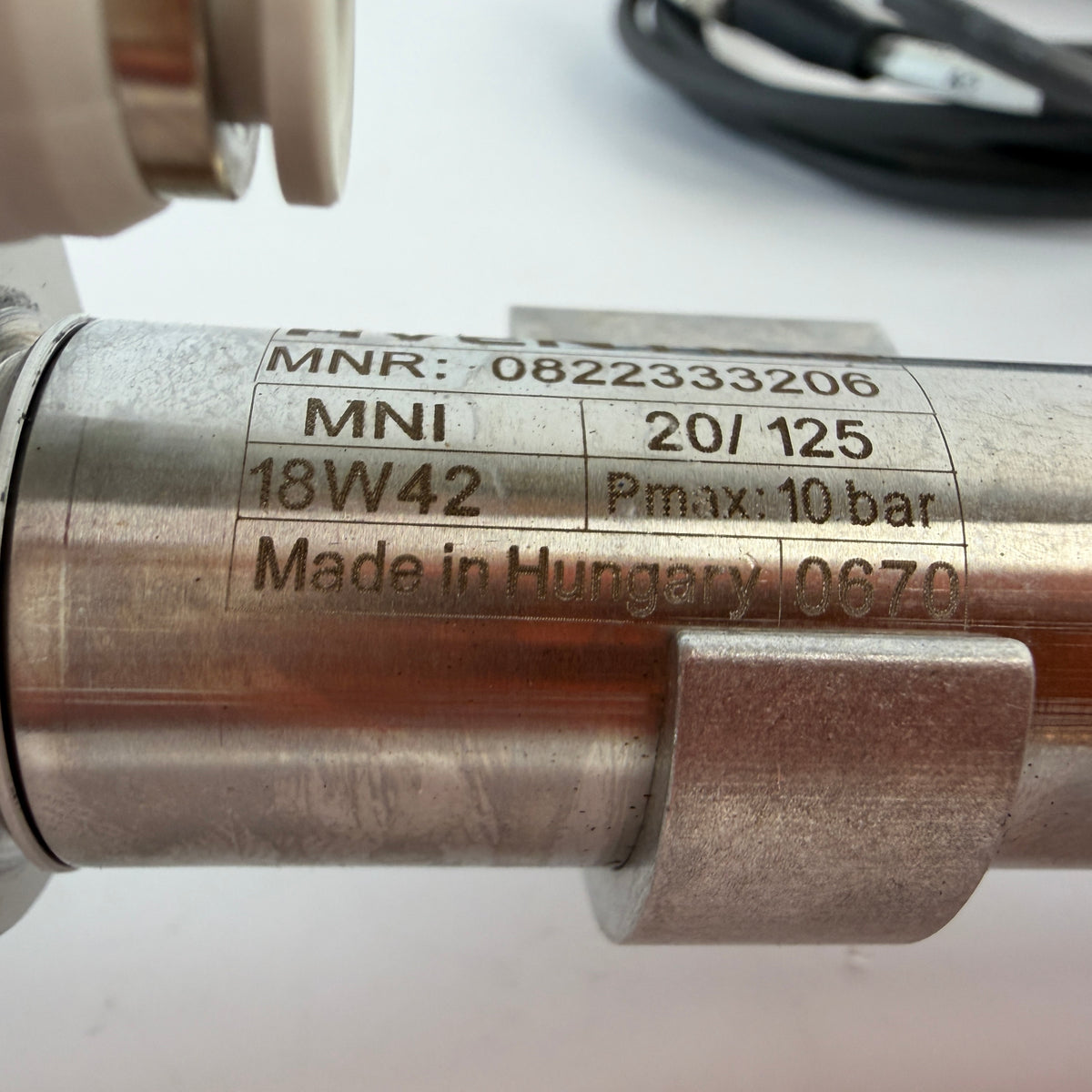

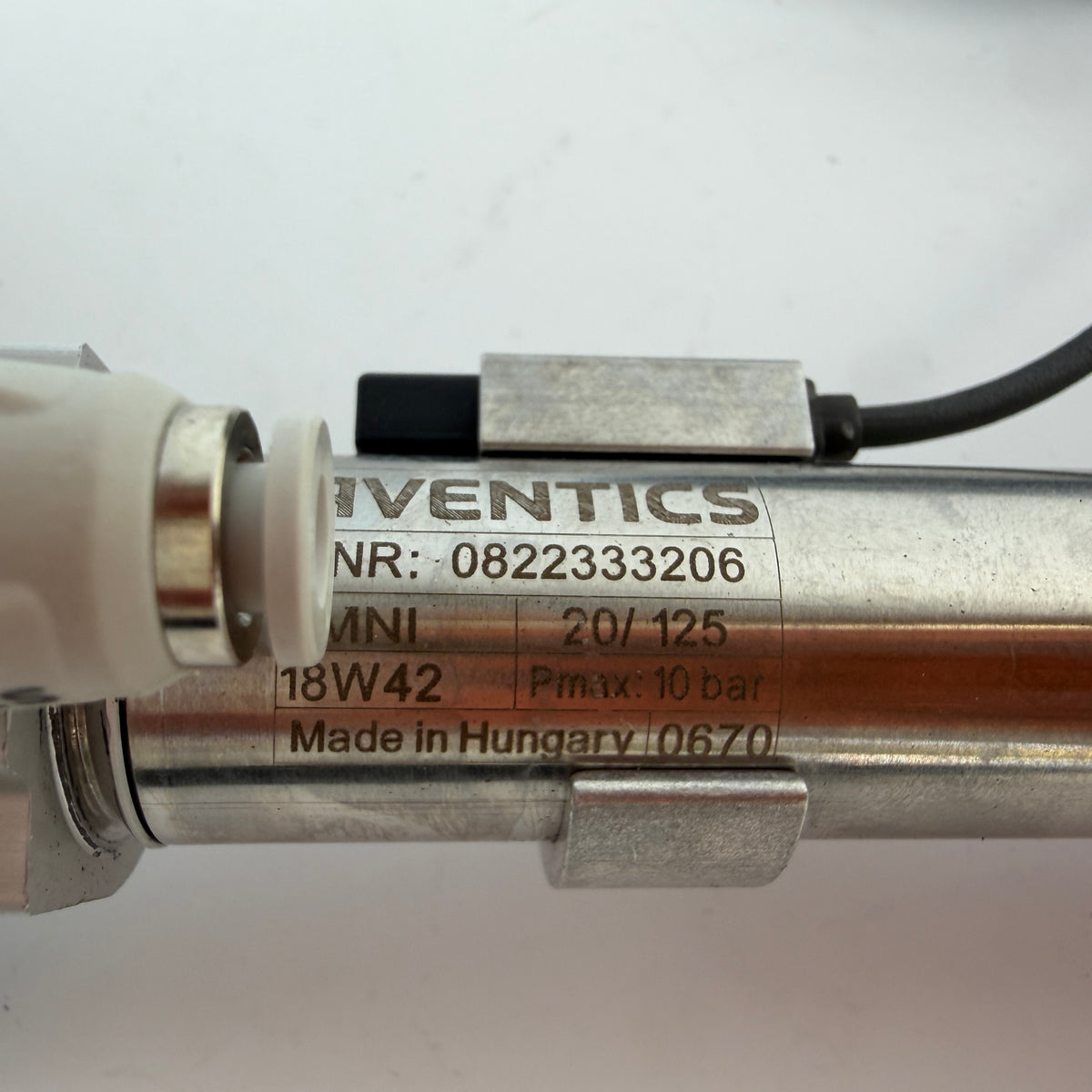

Cylinder Specifications:
- Manufacturer: AVENTICS
- MPN: 0822333206
- Series: MNI
- Model designation: MNI 20/125
- Type: Pneumatic cylinder
- Bore: 20 mm
- Stroke: 125 mm
- Operation: Double-acting
- Working pressure: 1–10 bar
- Maximum pressure: 10 bar

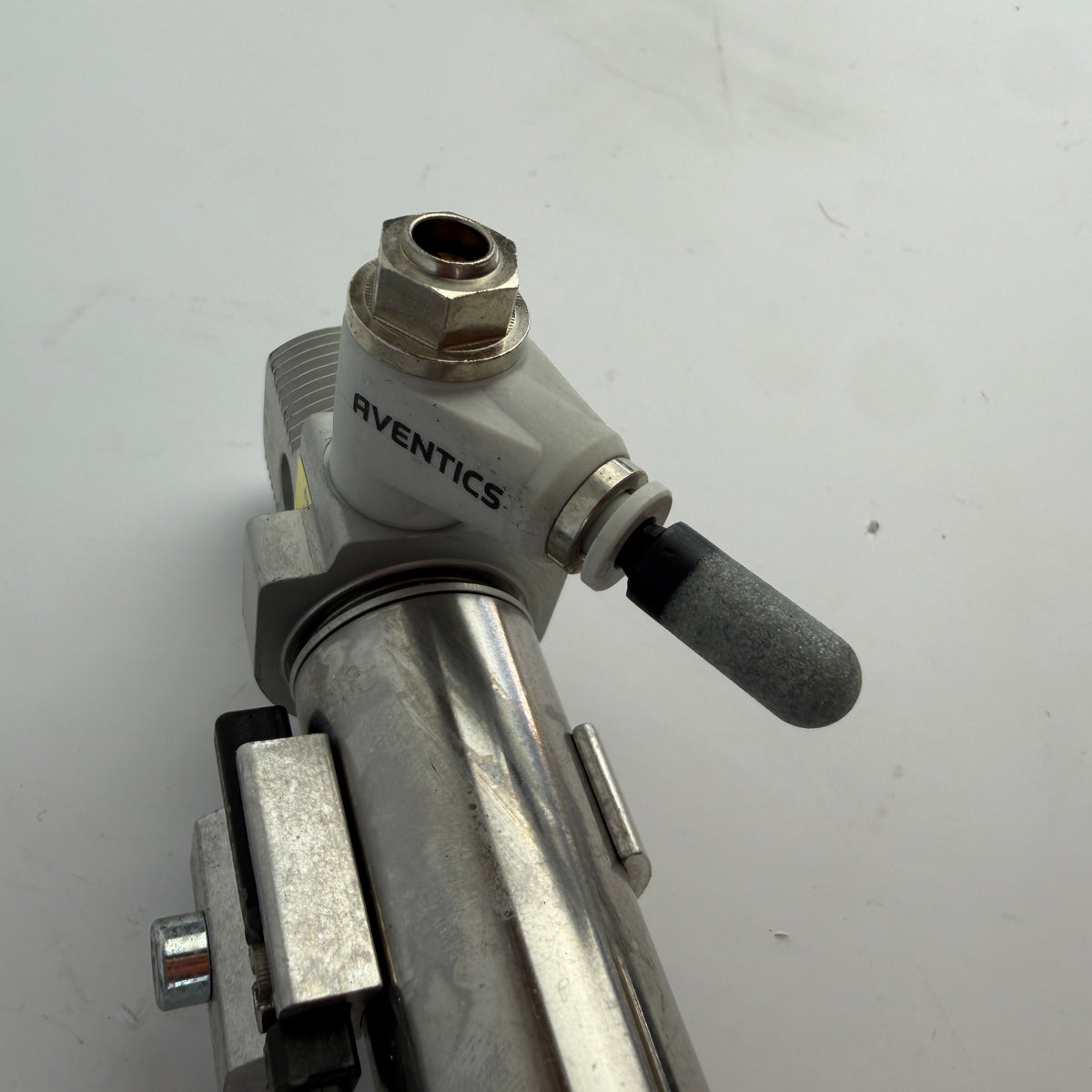

- Pneumatic ports: G1/8
- Piston rod diameter: 8 mm
- Piston rod thread: M8
- Magnetic piston: Yes
- Standard: ISO 6432
- Operating temperature: -25°C to +80°C
- Cylinder Country of Origin: Hungary

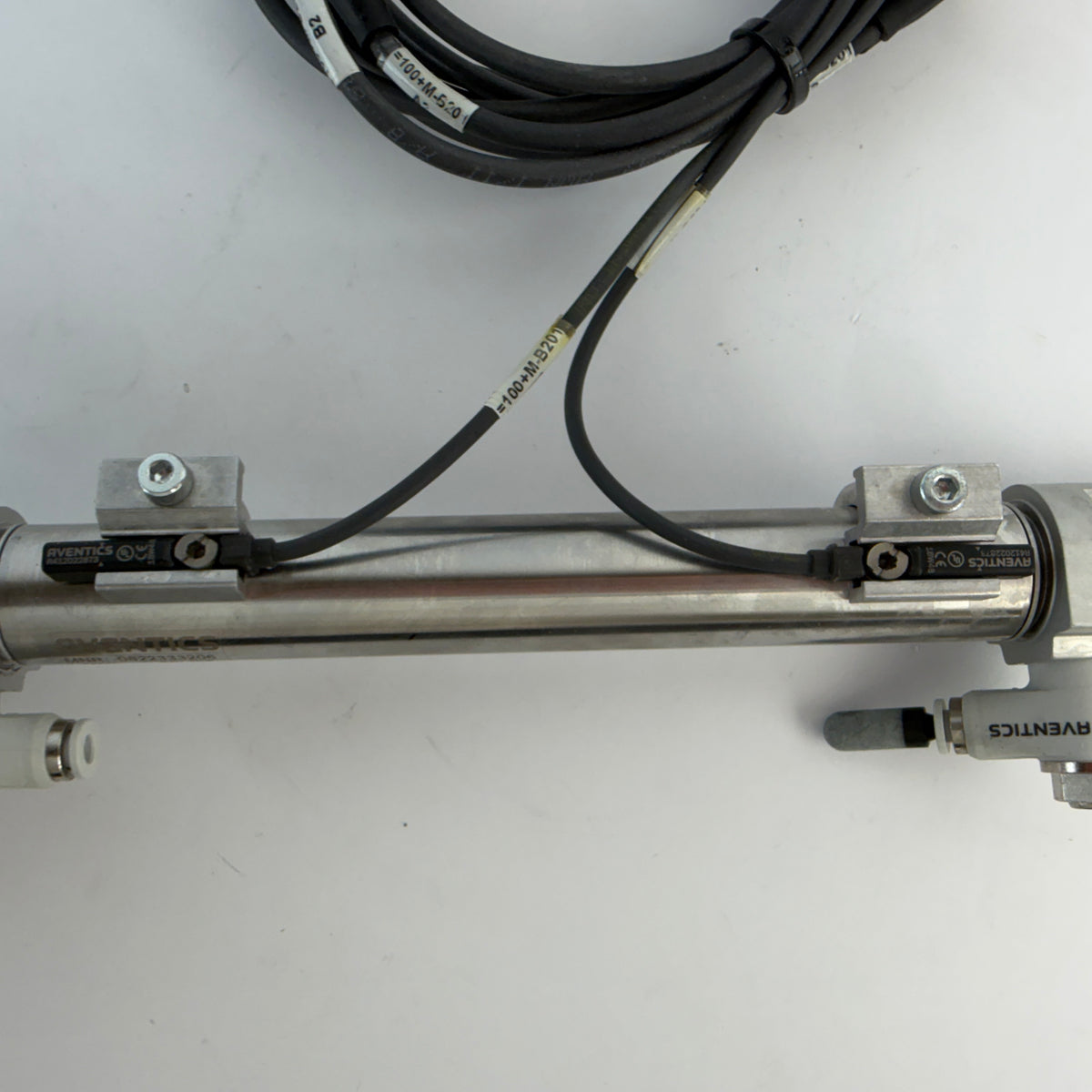

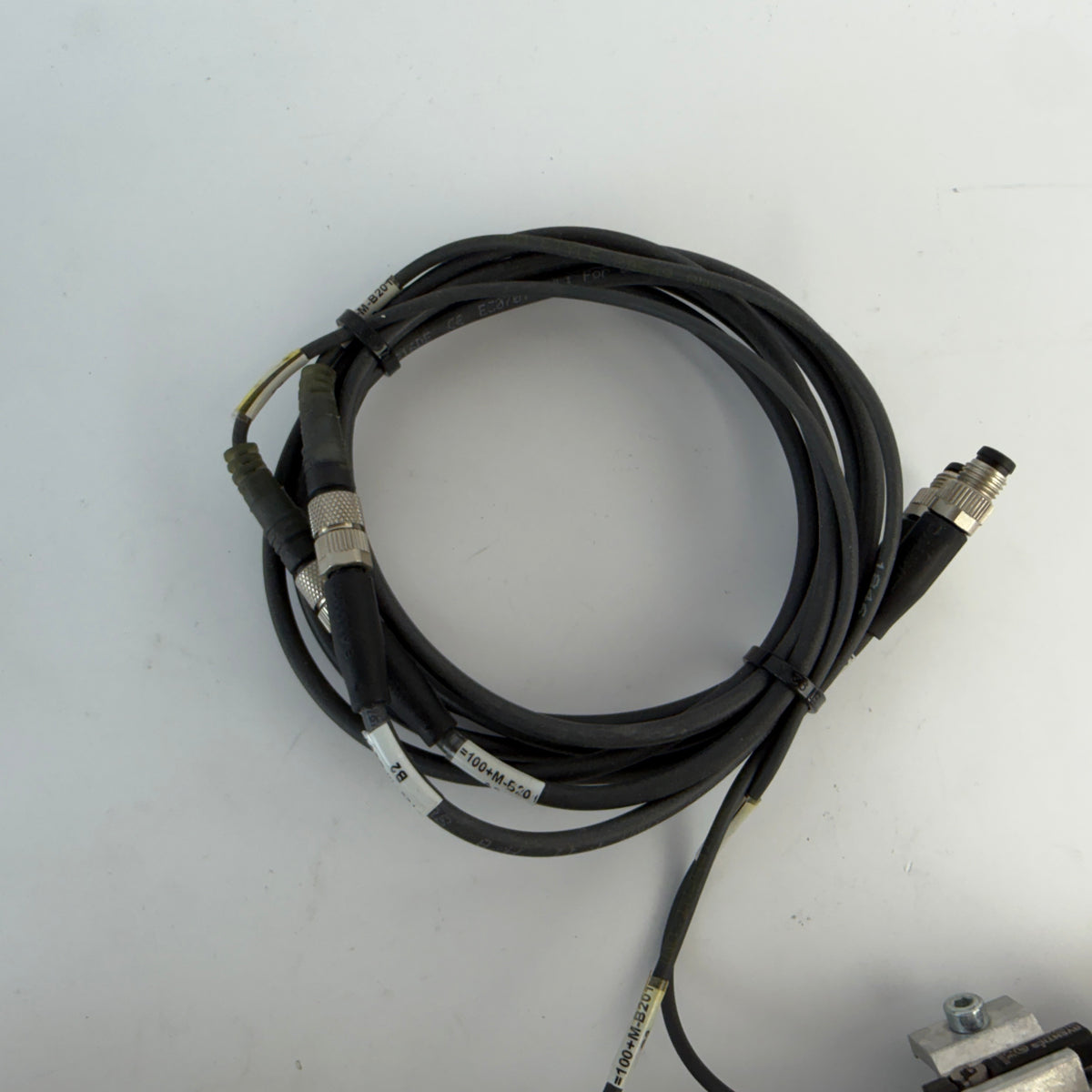

Position Sensors:
- Quantity: 2
- Manufacturer: AVENTICS
- MPN: R412022873
- Series: ST6
- Type: ST6-R3-M08T-030
- Sensor technology: Reed
- Switching function: Normally Open (NO)
- Operating voltage: 10–30 V AC/DC

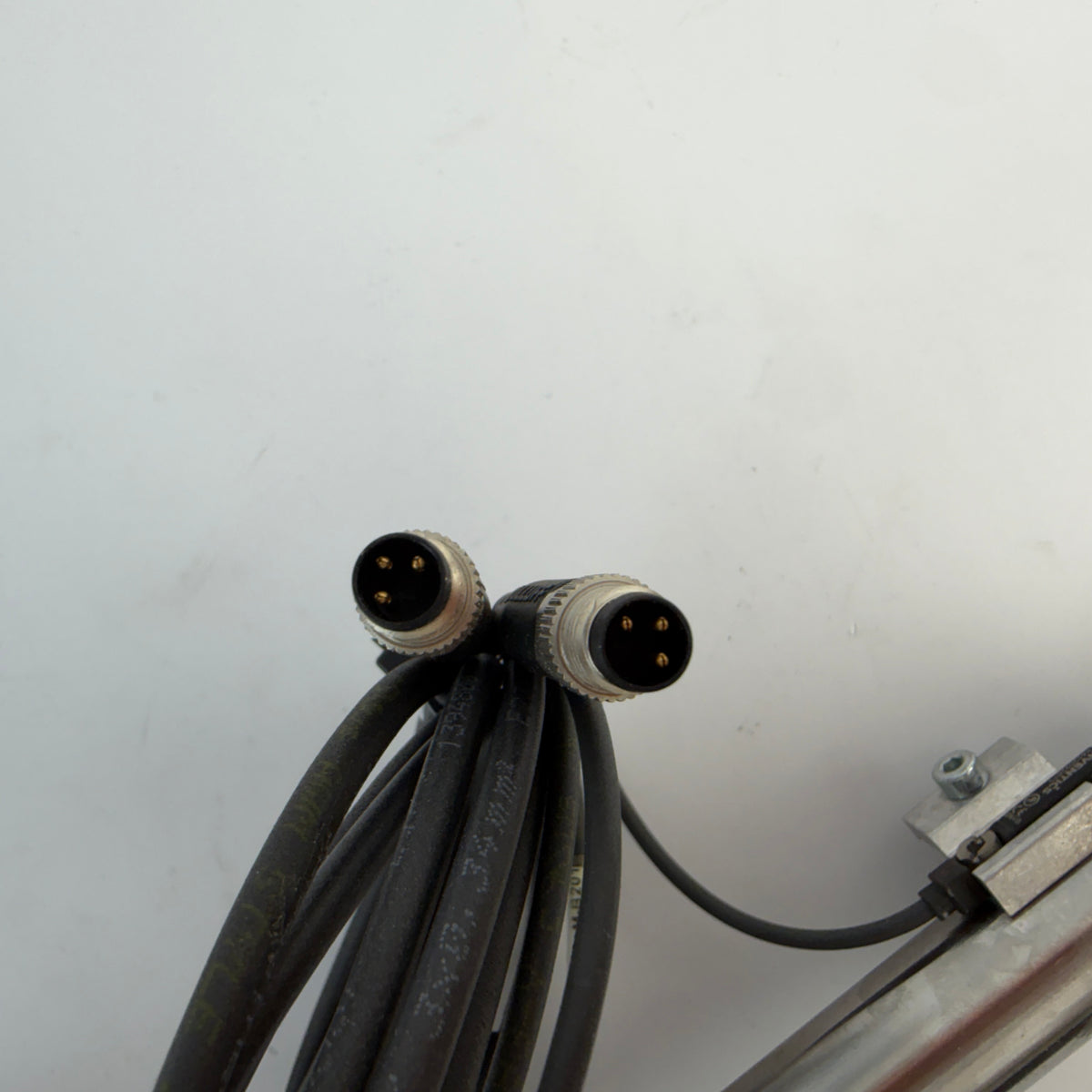

- Connection: M8x1, 3-pin
- Protection rating: IP65 / IP67
Additional Assembly:
- Spring-loaded mechanical attachment fitted to piston rod
- Rectangular metal end plate/bracket
- Exact manufacturer and part number: Not confirmed
- Exact machine-specific application: Not confirmed

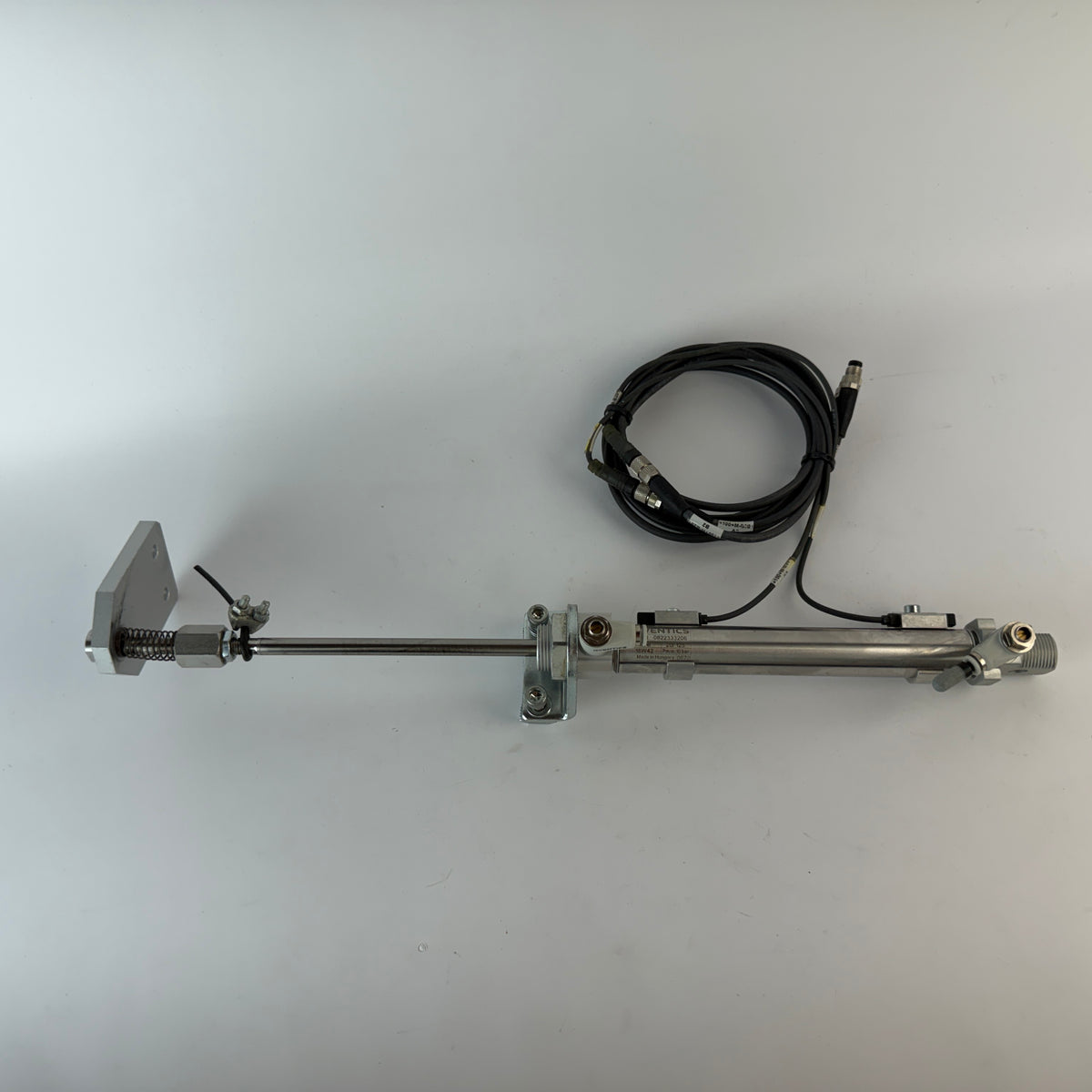

The complete pictured assembly is included, including the cylinder, two sensors with cables/connectors, pneumatic fittings, mounting hardware and spring-loaded piston rod attachment.
Condition: Used, fully functional.
