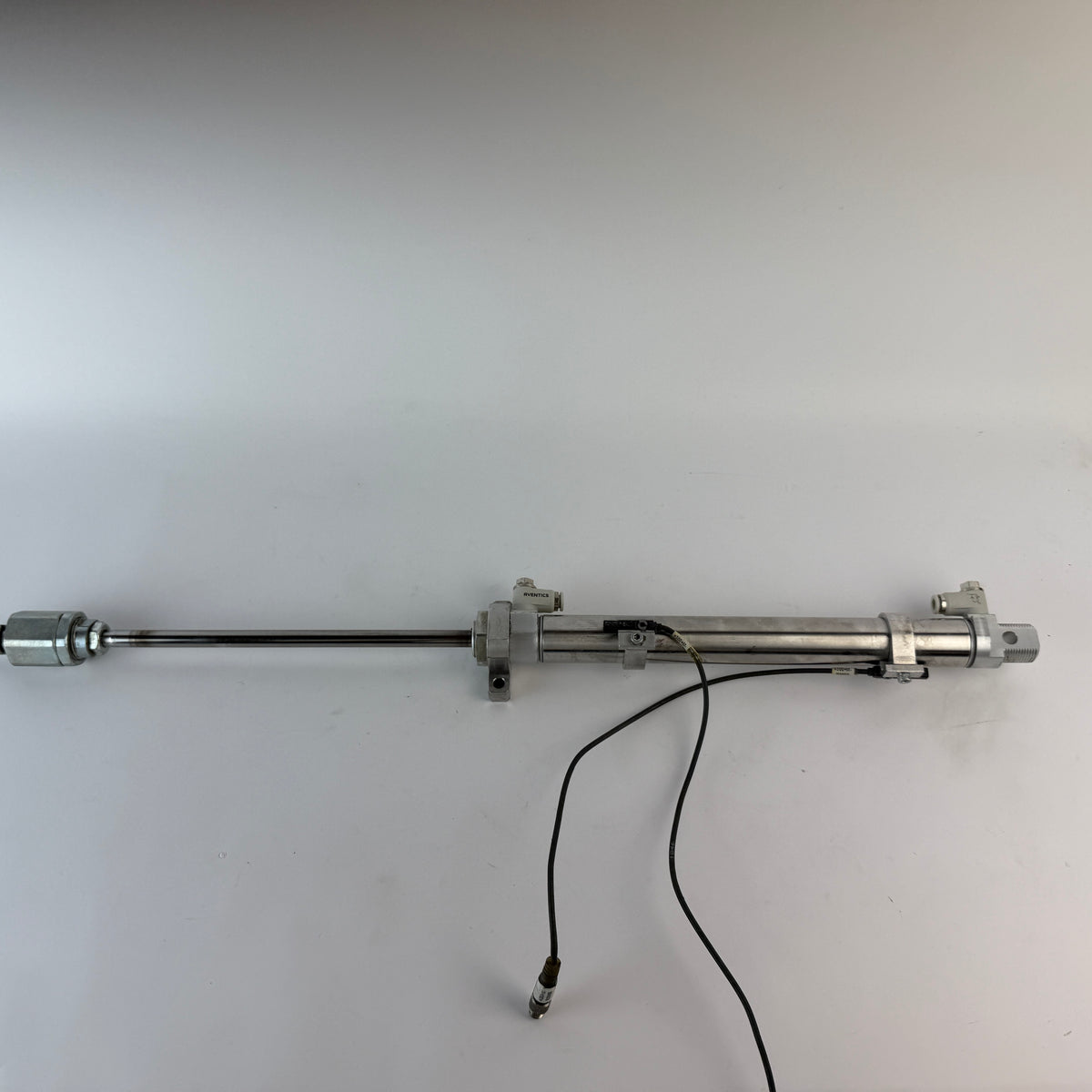

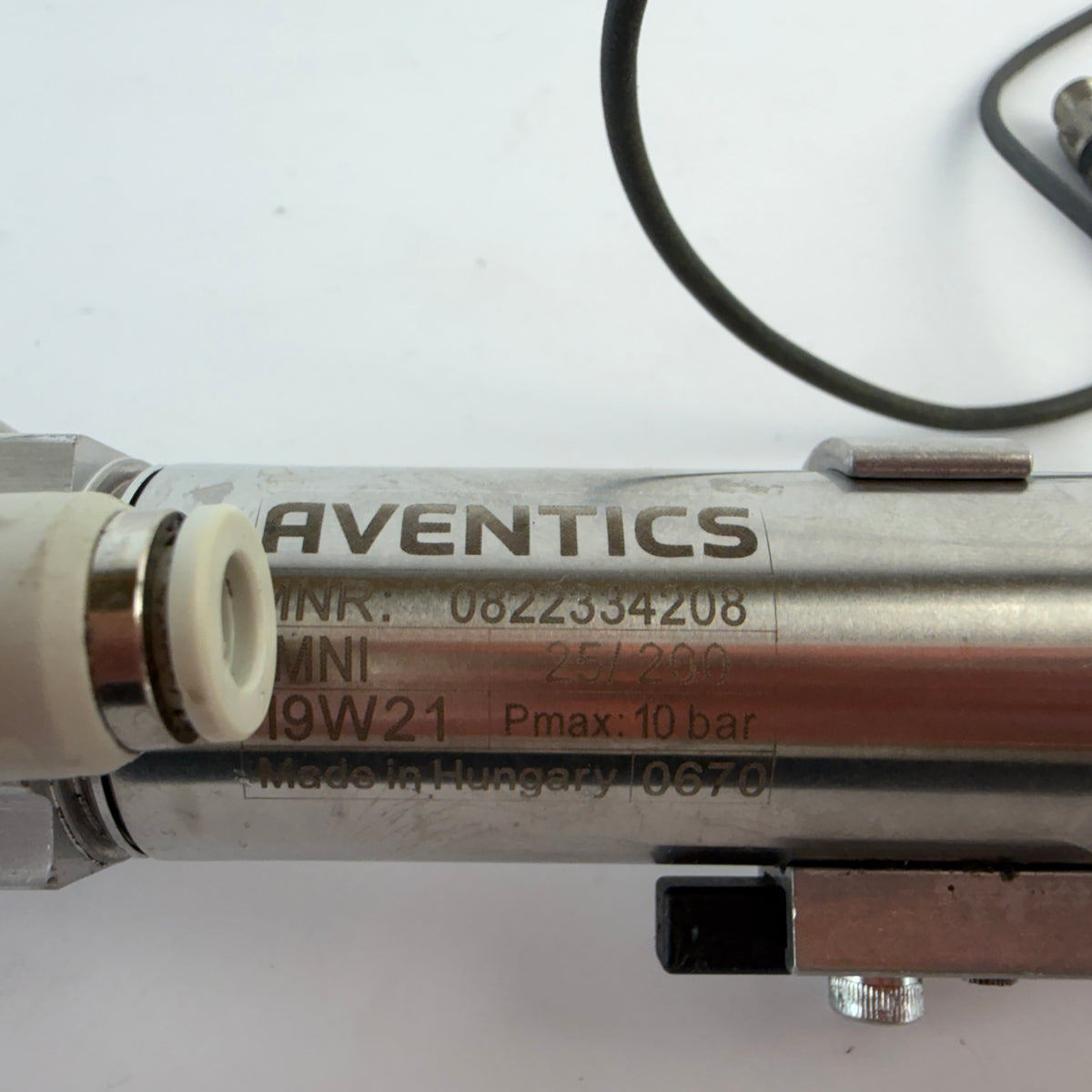

AVENTICS 0822334208 MNI Series double-acting pneumatic cylinder with 25 mm bore and 200 mm stroke, supplied with two AVENTICS R412022873 ST6 magnetic position sensors and the installed pneumatic and mechanical accessories shown in the photos.
Designed as an ISO 6432 round-body pneumatic cylinder for industrial automation and general machine-building applications. The cylinder incorporates a magnetic piston for external position sensing and elastic cushioning.
Technical Specifications:
- Manufacturer: AVENTICS
- MPN: 0822334208
- Series: MNI

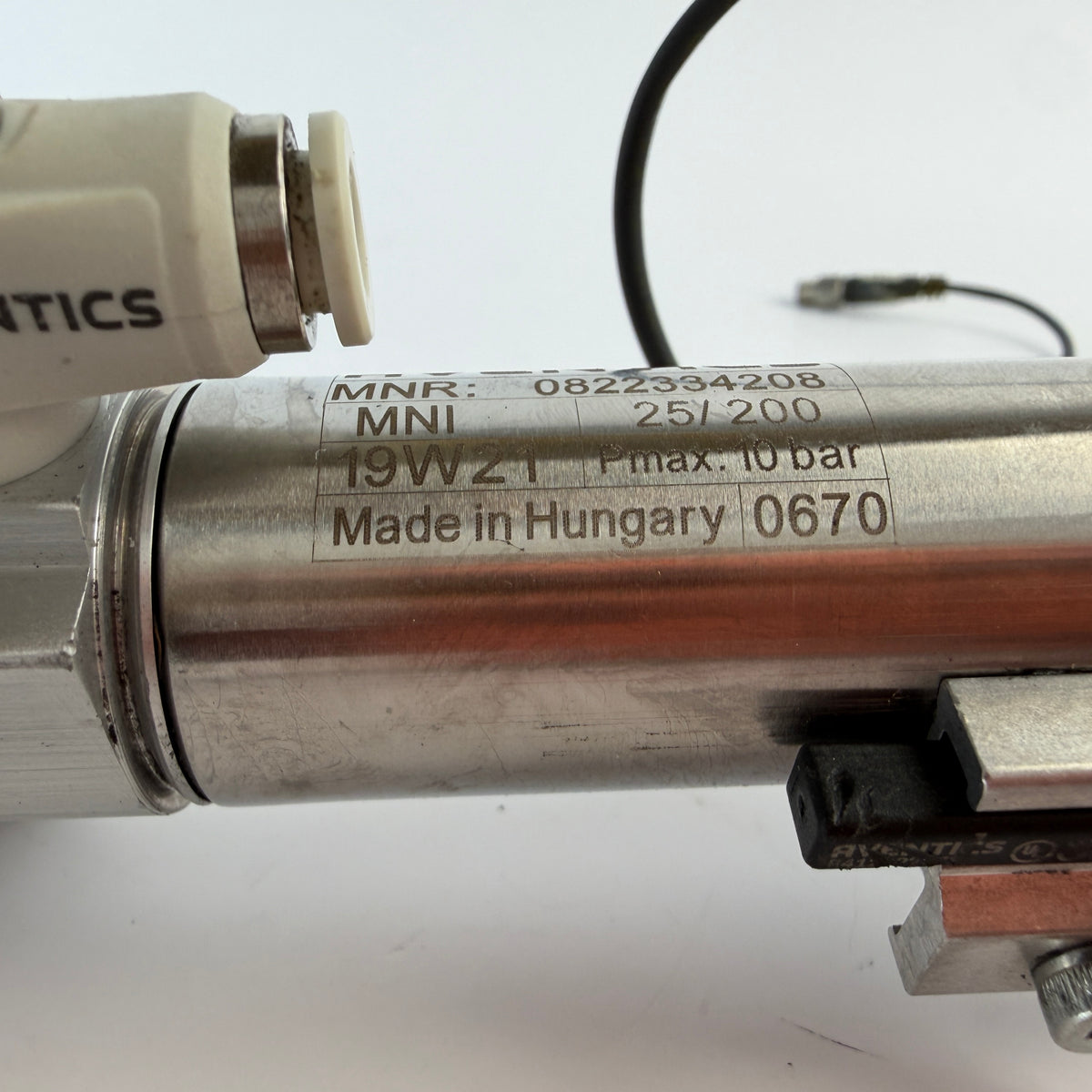

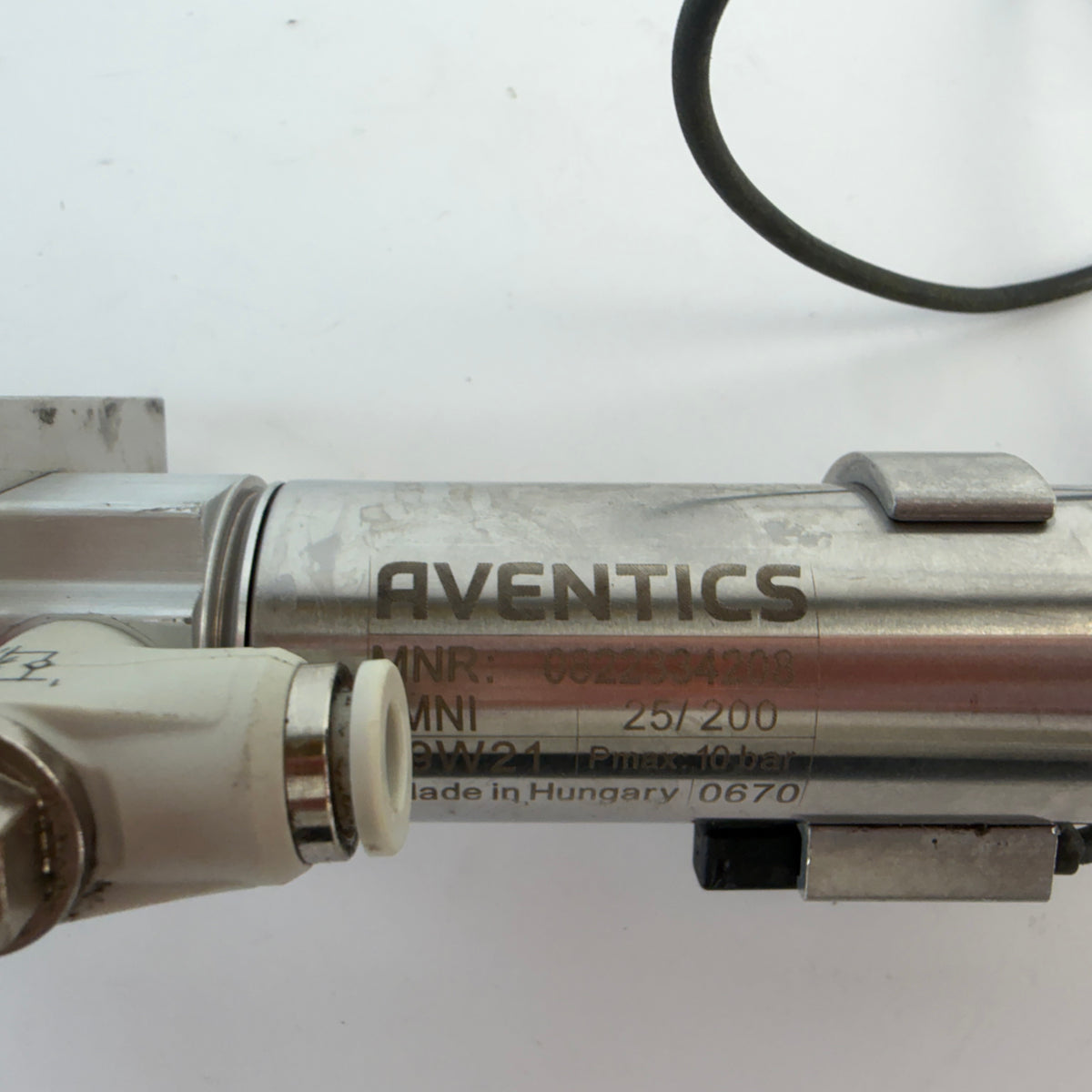

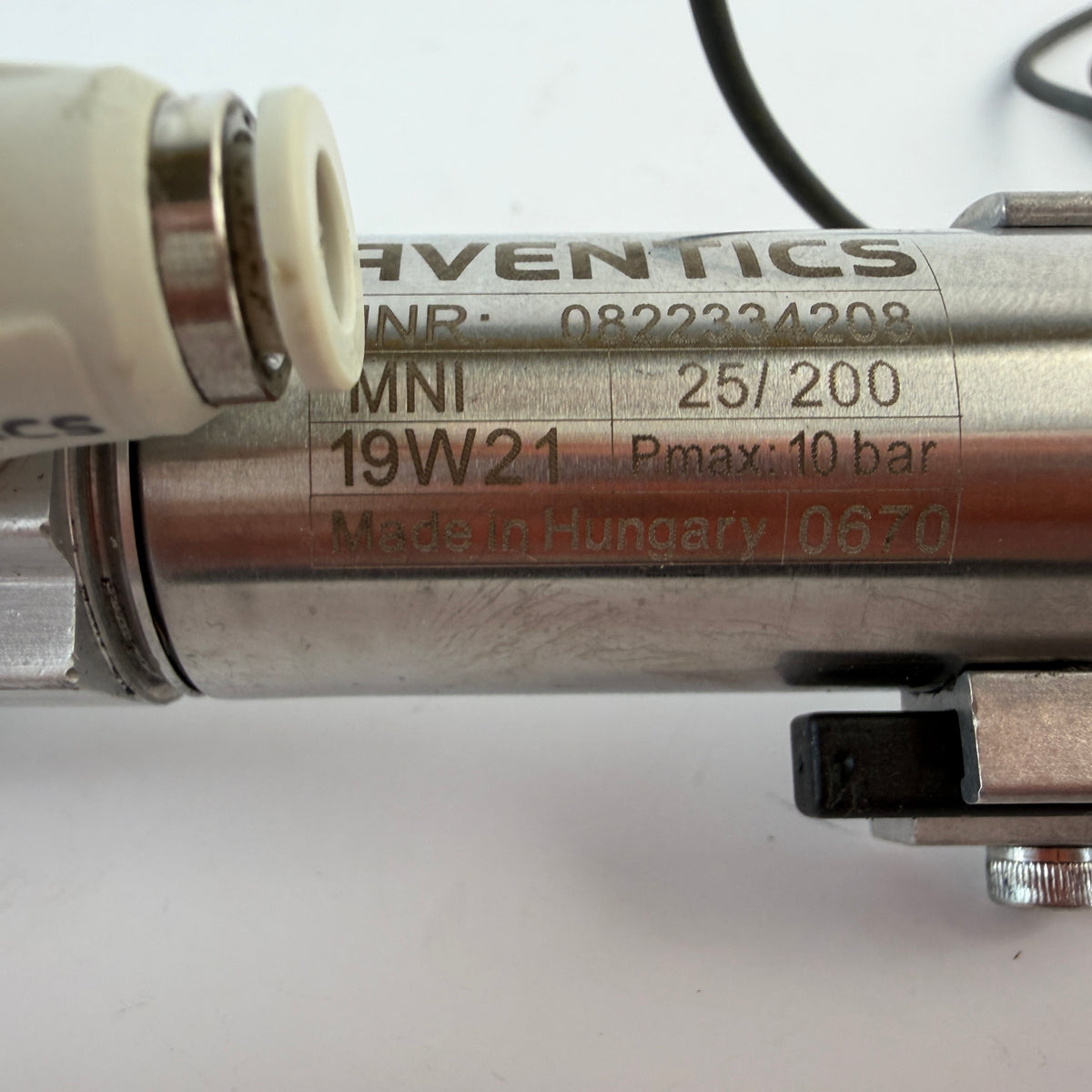

- Designation: MNI 25/200
- Type: Round-body pneumatic cylinder
- Operating principle: Double-acting
- Bore: 25 mm
- Stroke: 200 mm
- Maximum operating pressure: 10 bar
- Cushioning: Elastic
- Magnetic piston: Yes
- Piston rod thread: M10x1.25
- Standard: ISO 6432
- Operating temperature: -25°C to +80°C
- Approx. cylinder weight: 0.509 kg
- Country of Origin: Hungary

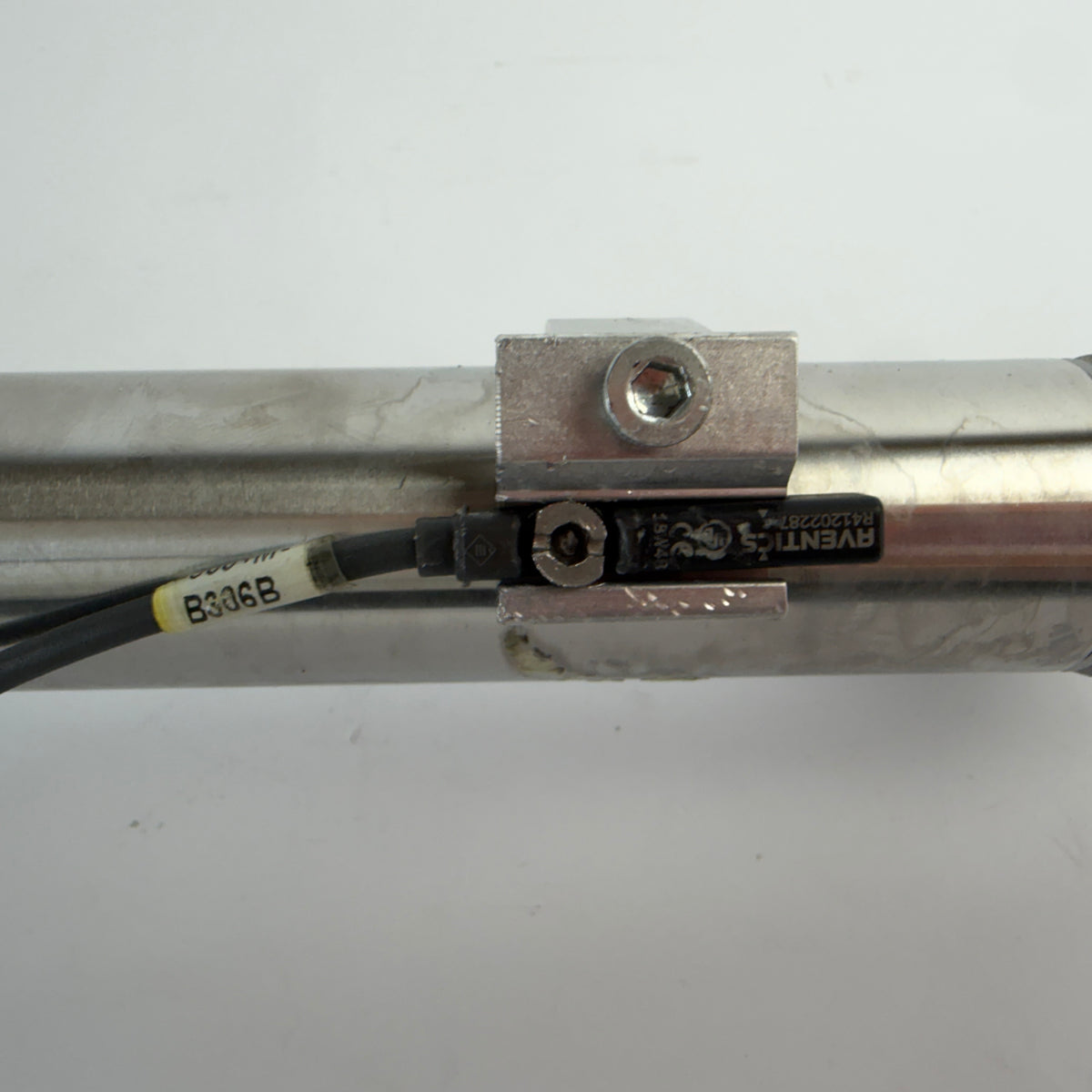

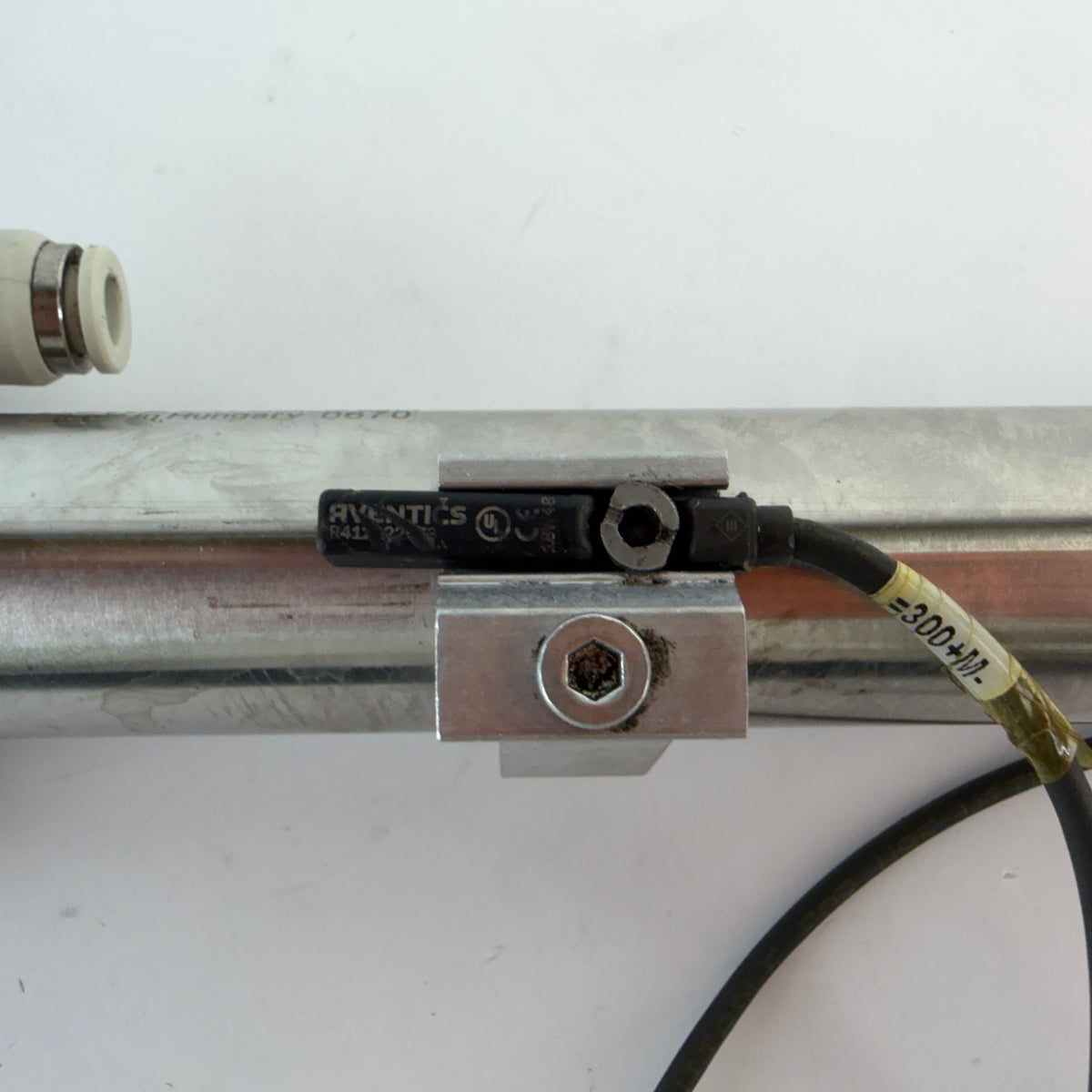

Included Sensors:
- Quantity: 2
- Manufacturer: AVENTICS
- MPN: R412022873
- Type: ST6-R3-M08T-030
- Series: ST6
- Sensor principle: Reed
- Switching logic: Normally Open (NO)
- Operating voltage: 10–30 V AC/DC
- Connection: M8x1, 3-pin plug
- Cable length: 0.3 m per sensor
- Protection rating: IP65 / IP67
- Yellow status LED

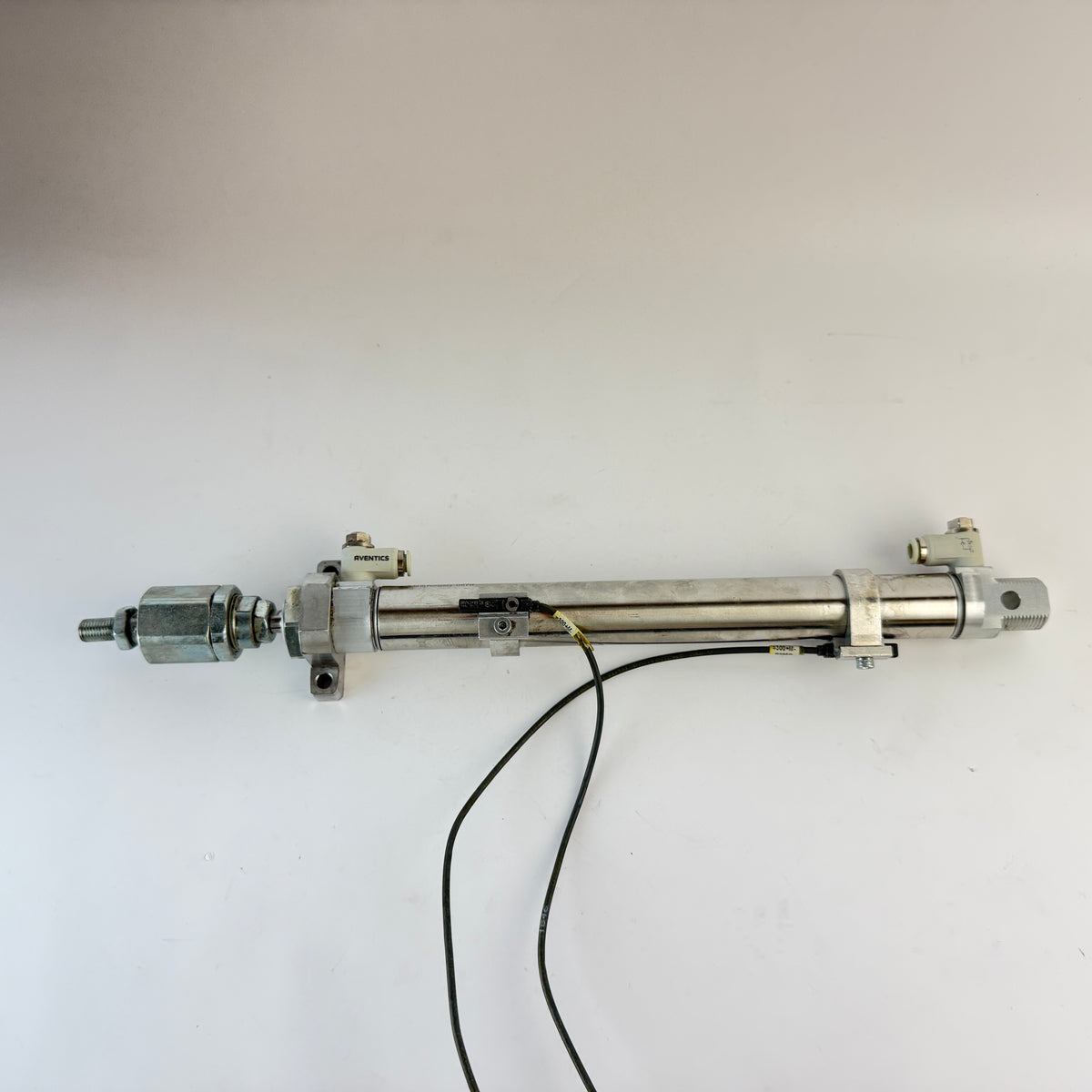

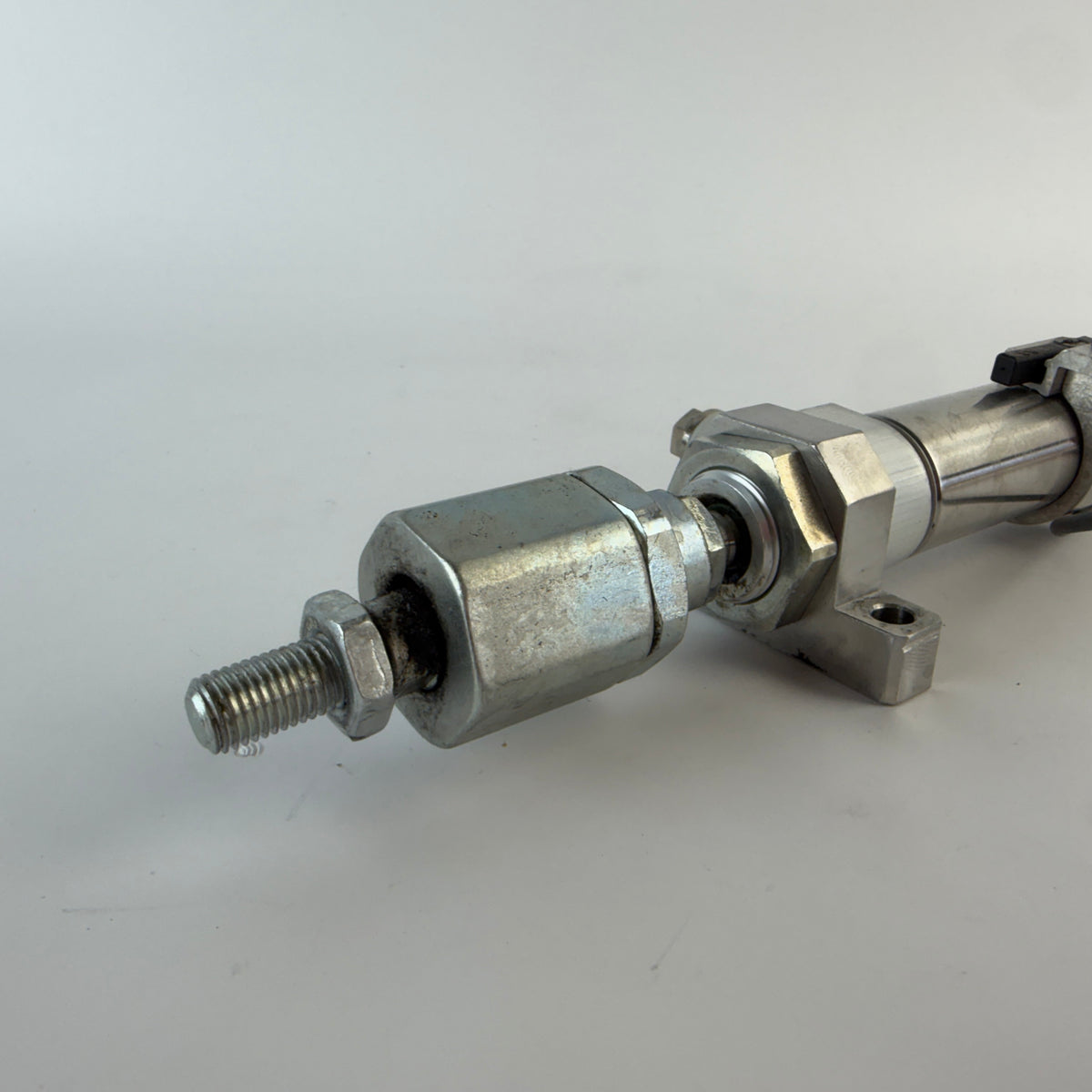

The cylinder is supplied with the two installed sensors, cables/connectors, pneumatic flow-control fittings, mounting hardware and piston rod coupling/attachment visible in the photos. Exact part numbers of these additional accessories are not confirmed.
Condition: Used, fully functional.
