AVENTICS modular pneumatic valve island assembly combining an AES-D-BC-ECAT EtherCAT bus coupler, AES digital input modules and AV03 pneumatic valve modules.
The main communication module is AVENTICS R412018225, model AES-D-BC-ECAT, designed to connect an AVENTICS valve system to an EtherCAT industrial fieldbus network. The assembly also includes three R412018243 AES-D-IO-16DI4M12 digital input modules and a populated AV03 pneumatic valve manifold.
Included identified components:

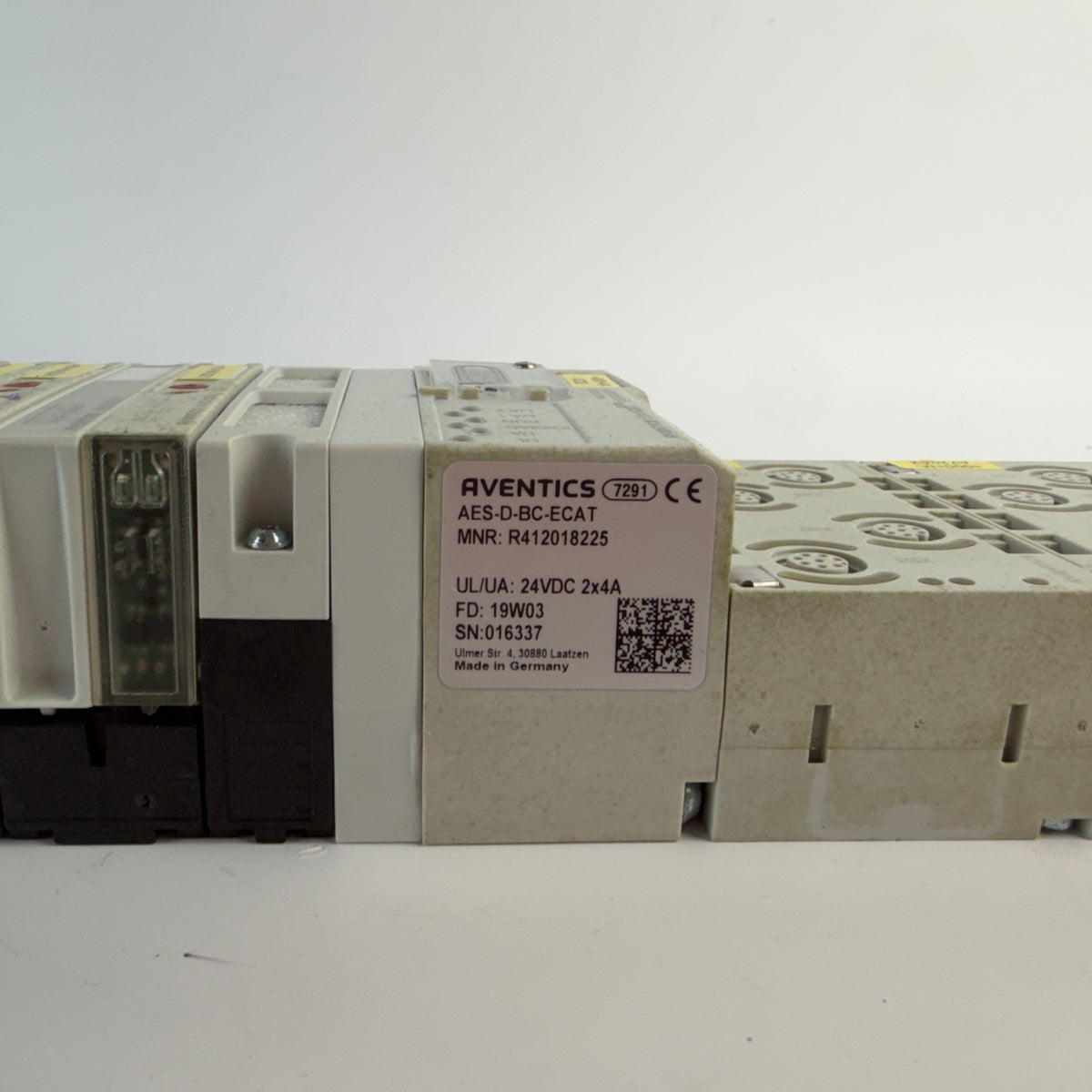

- 1× R412018225 — AES-D-BC-ECAT EtherCAT bus coupler

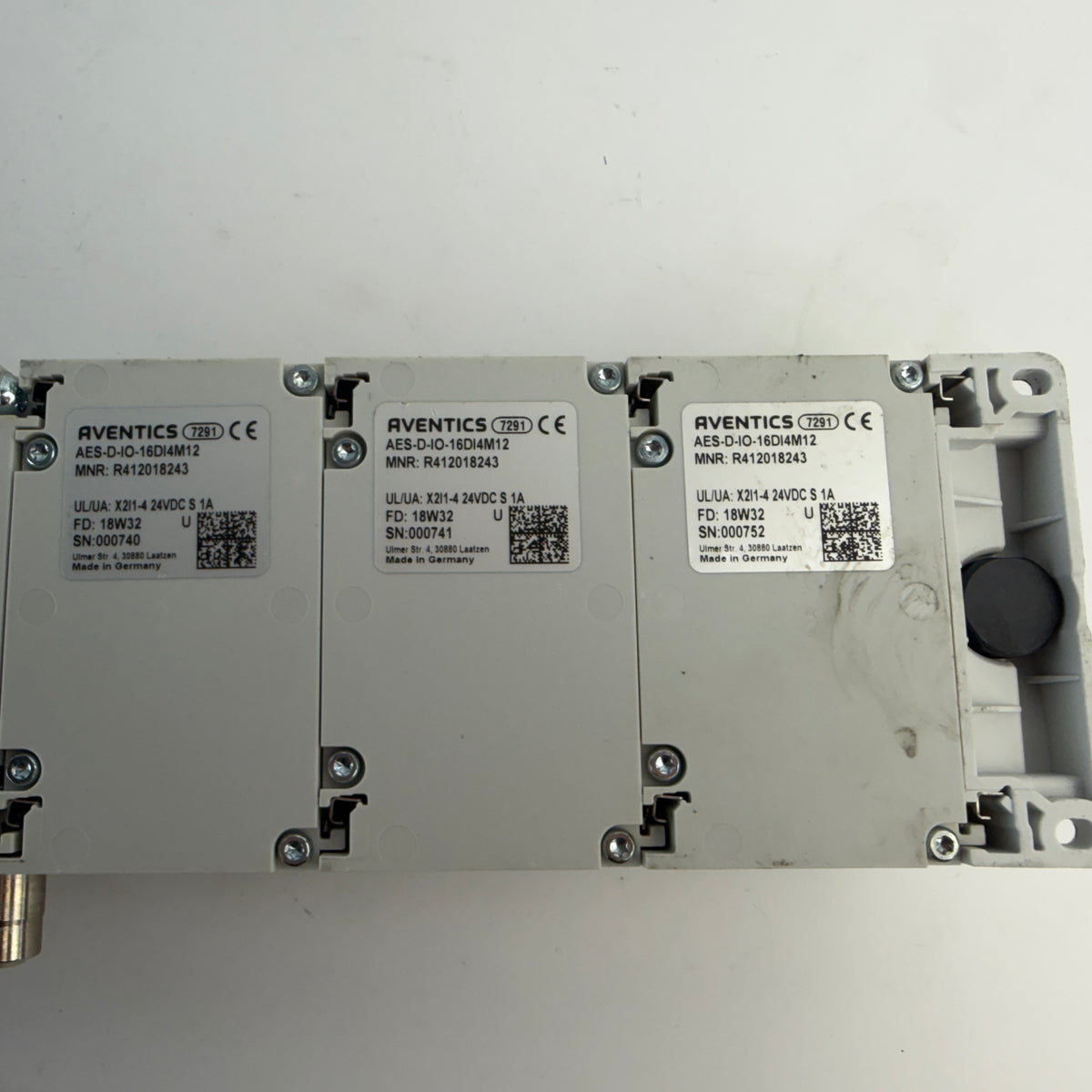

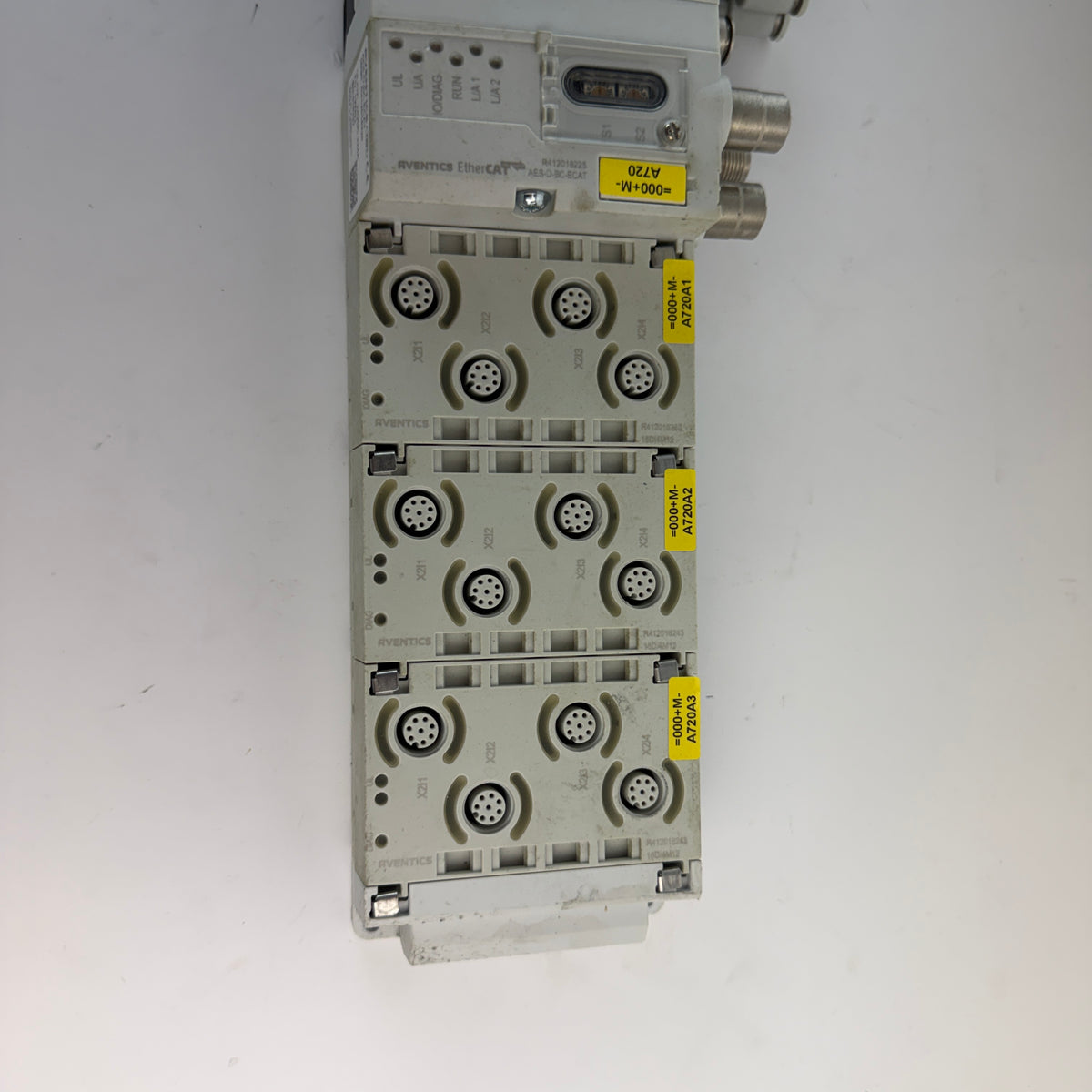

- 3× R412018243 — AES-D-IO-16DI4M12 digital input modules
- 5× R422102462 — AV03 blanking plates
- 2× R422102425 — AV03 5/2 directional valves
- 6× R422102429 — AV03 5/3 directional valves
- 2× R422102435 — AV03 2×3/2 directional valves
- 3× R422102431 — AV03 2×3/2 directional valves

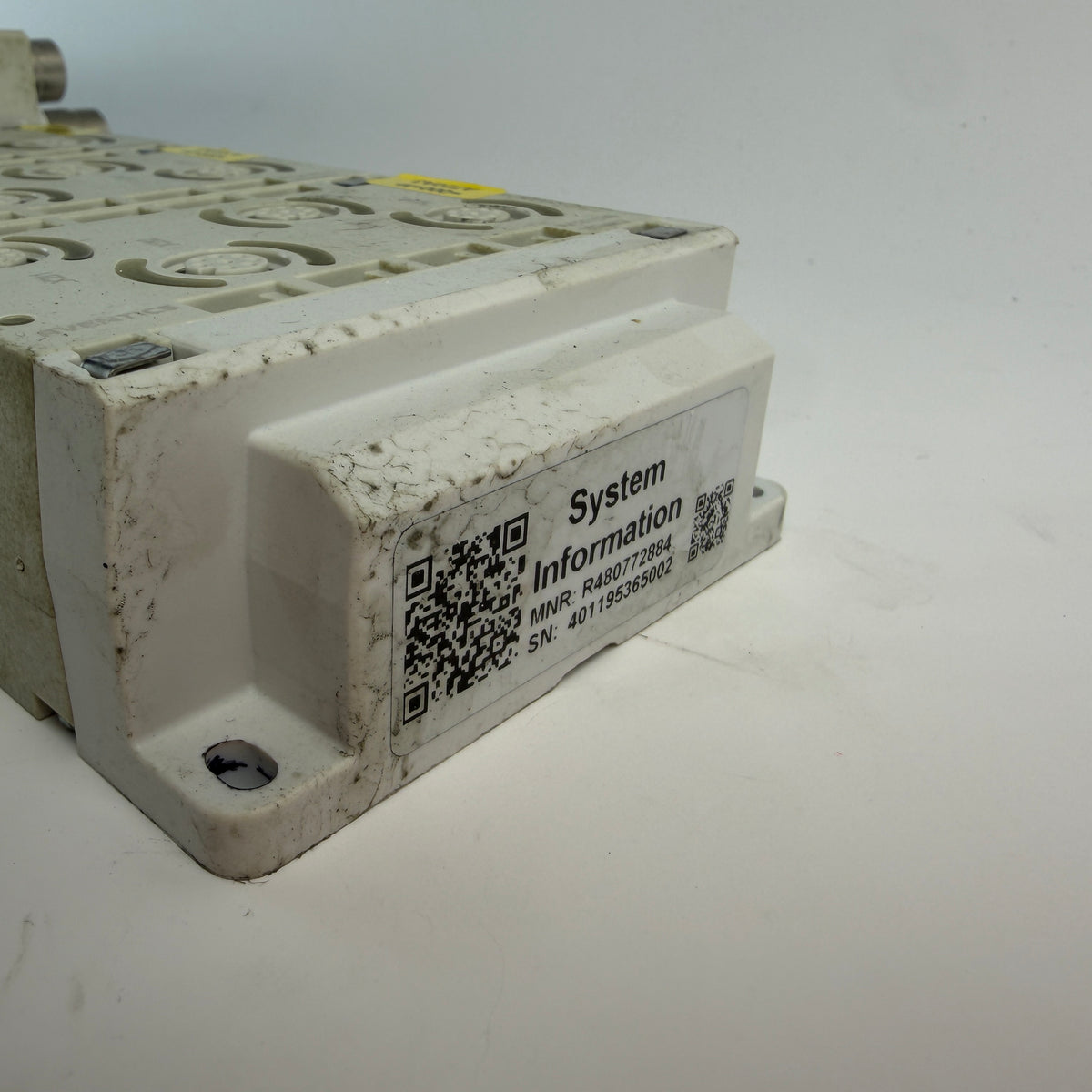

- System assembly identification: R480772884
Main technical details:
- Manufacturer: AVENTICS
- Series: AES / AV03
- Main module: AES-D-BC-ECAT
- Main module MPN: R412018225
- Fieldbus interface: EtherCAT
- Electronics operating voltage: 24 V DC
- Actuator operating voltage: 24 V DC
- R412018225 maximum valve positions: 64
- R412018225 maximum solenoid coils: 128
- R412018225 protection class: IP65
- R412018243 type: 16DI4M12 digital input module
- R412018243: 16 digital inputs
- R412018243 signal connections: M12x1, 8-pin
- AV03 valve nominal flow: up to 300 l/min for the identified valve types

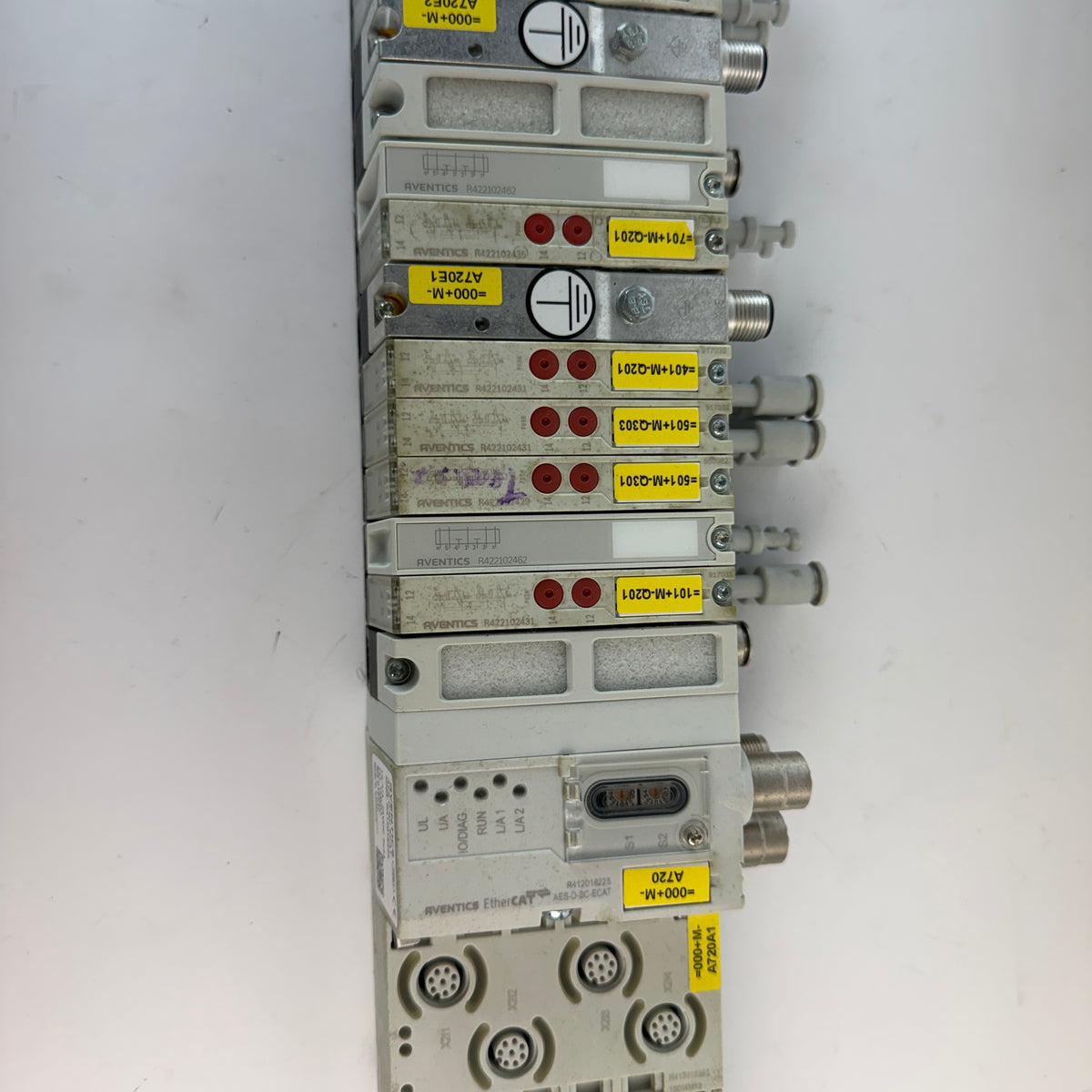

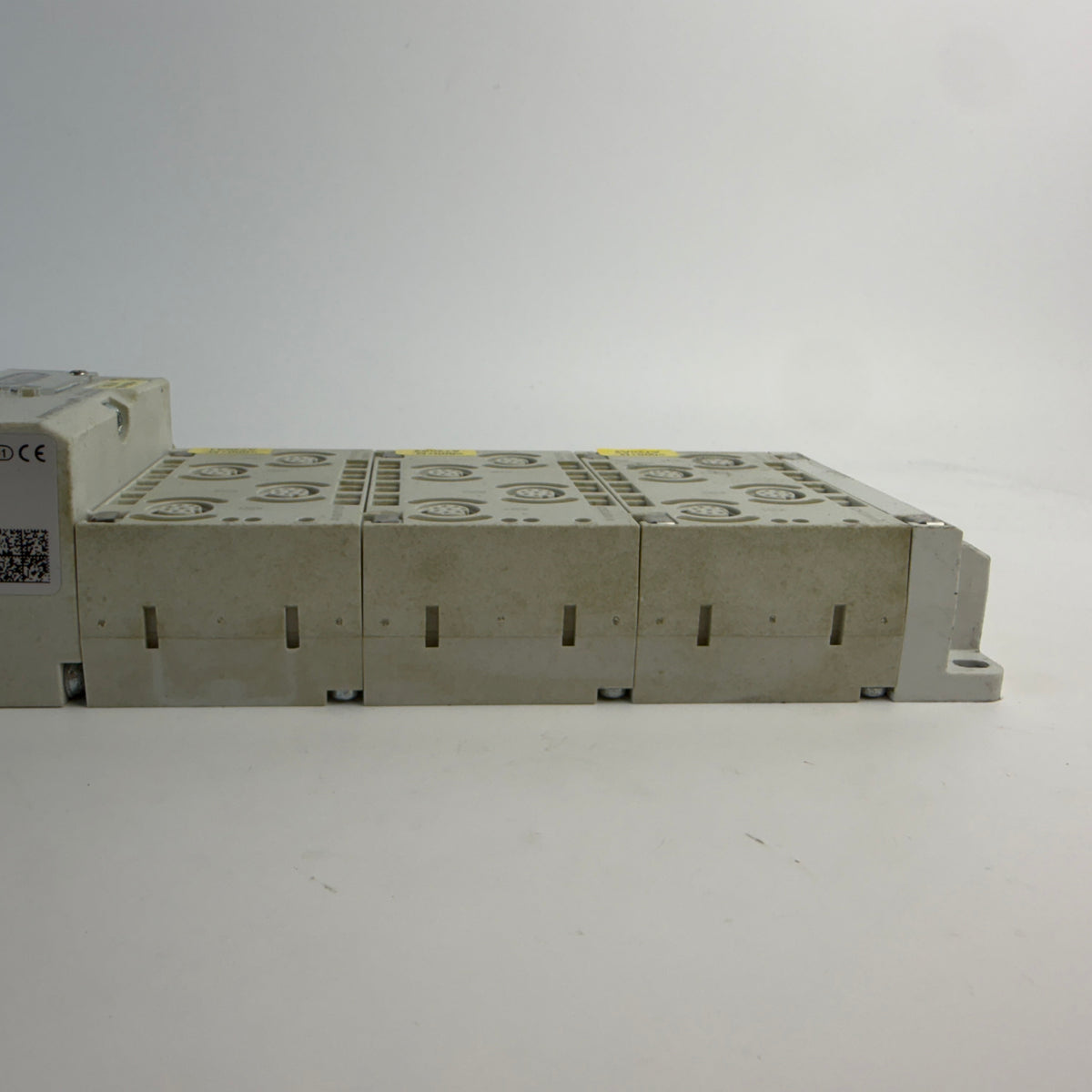

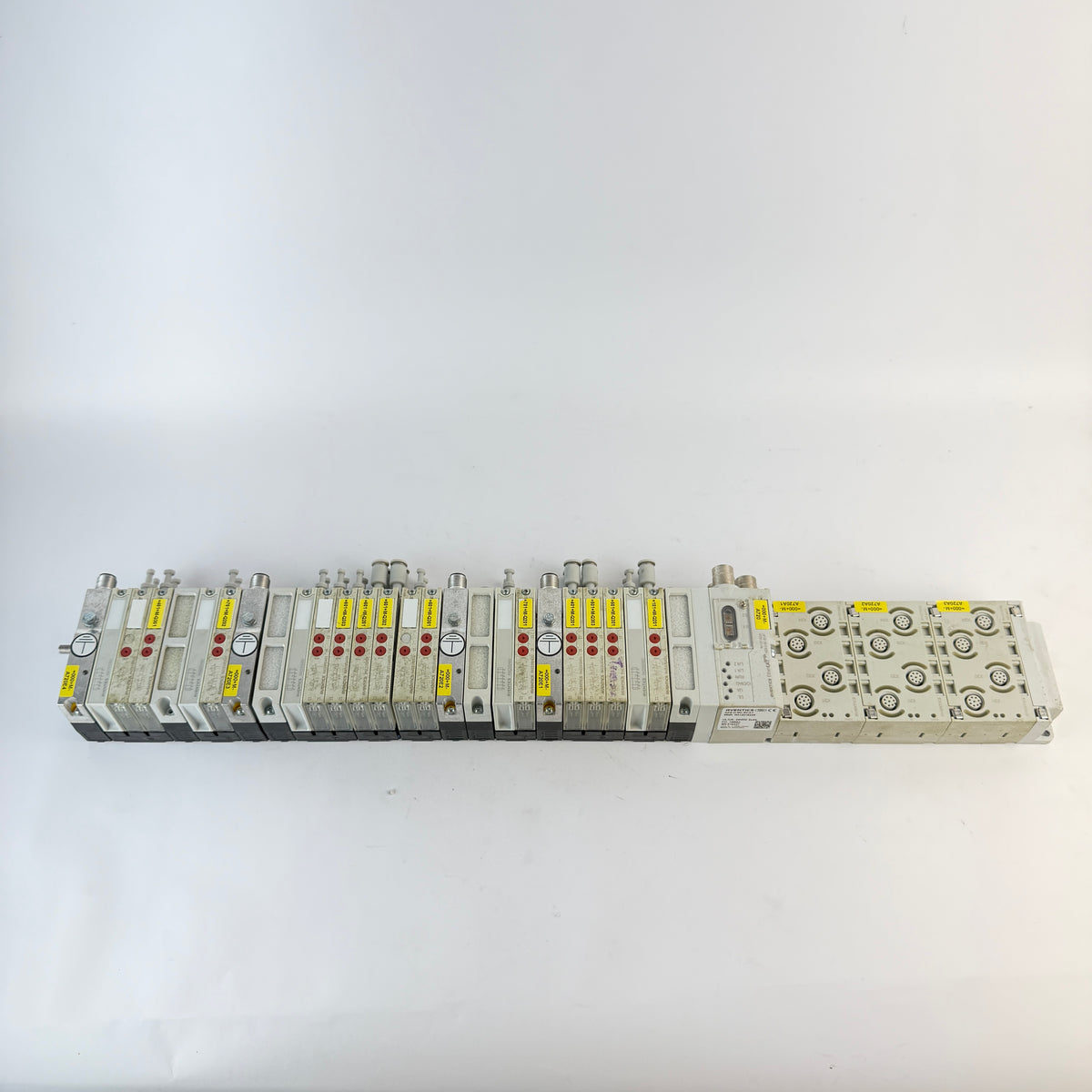

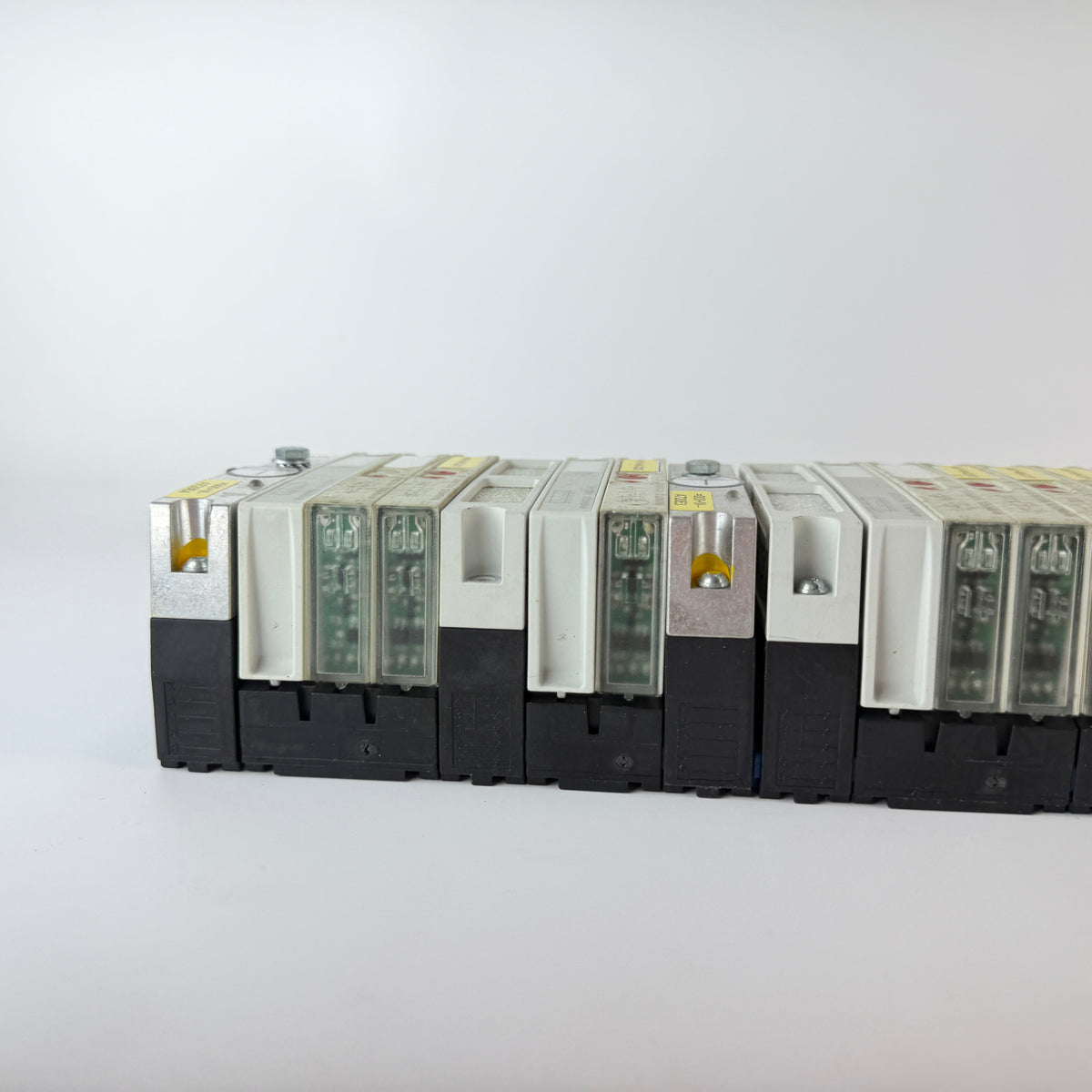

Supplied as the complete assembled valve island shown in the photos, including installed pneumatic fittings and modular components.
Used, fully functional.
Suitable for industrial automation and pneumatic machine-control applications requiring an AVENTICS AV03 valve manifold with AES EtherCAT communication and distributed digital I/O.
