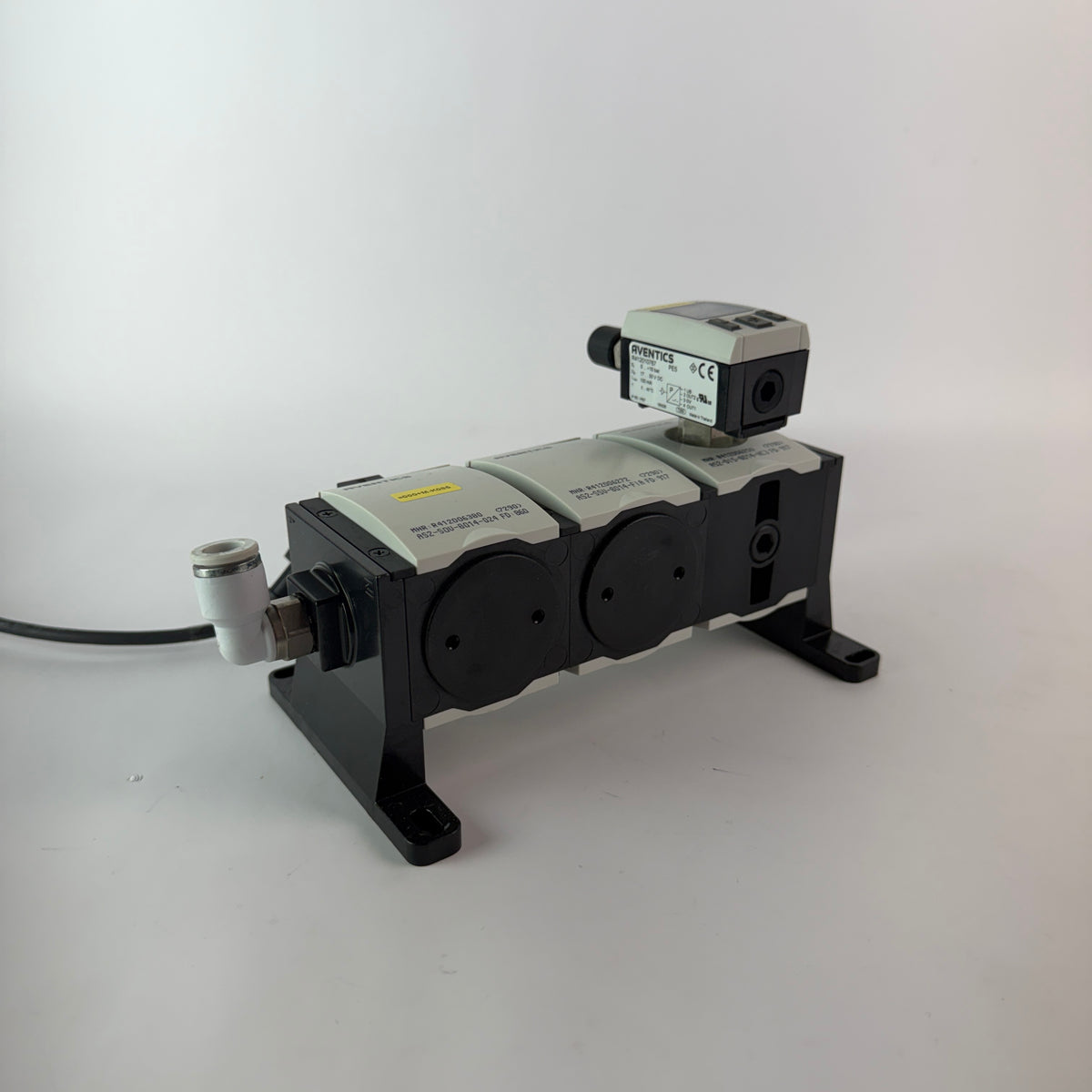

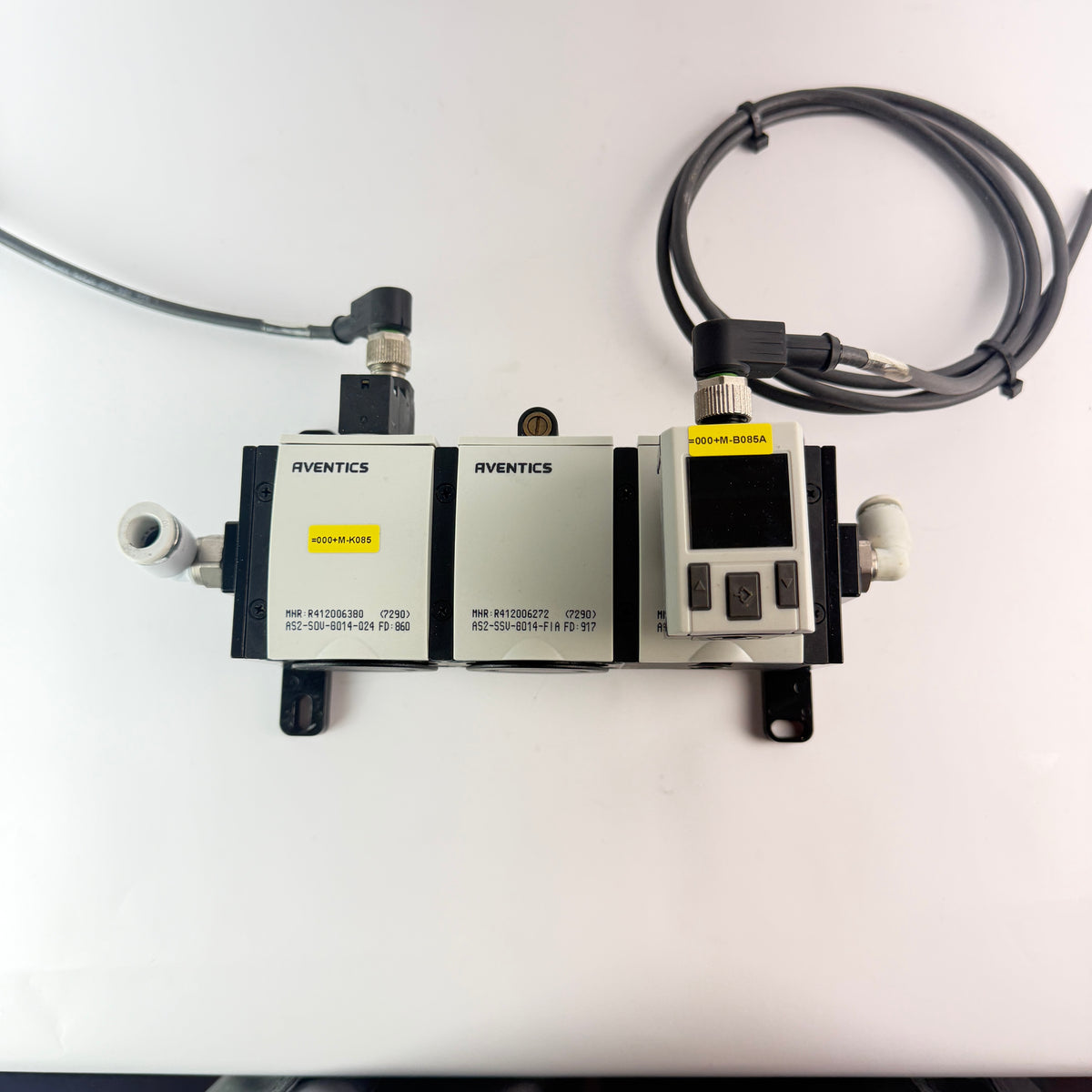

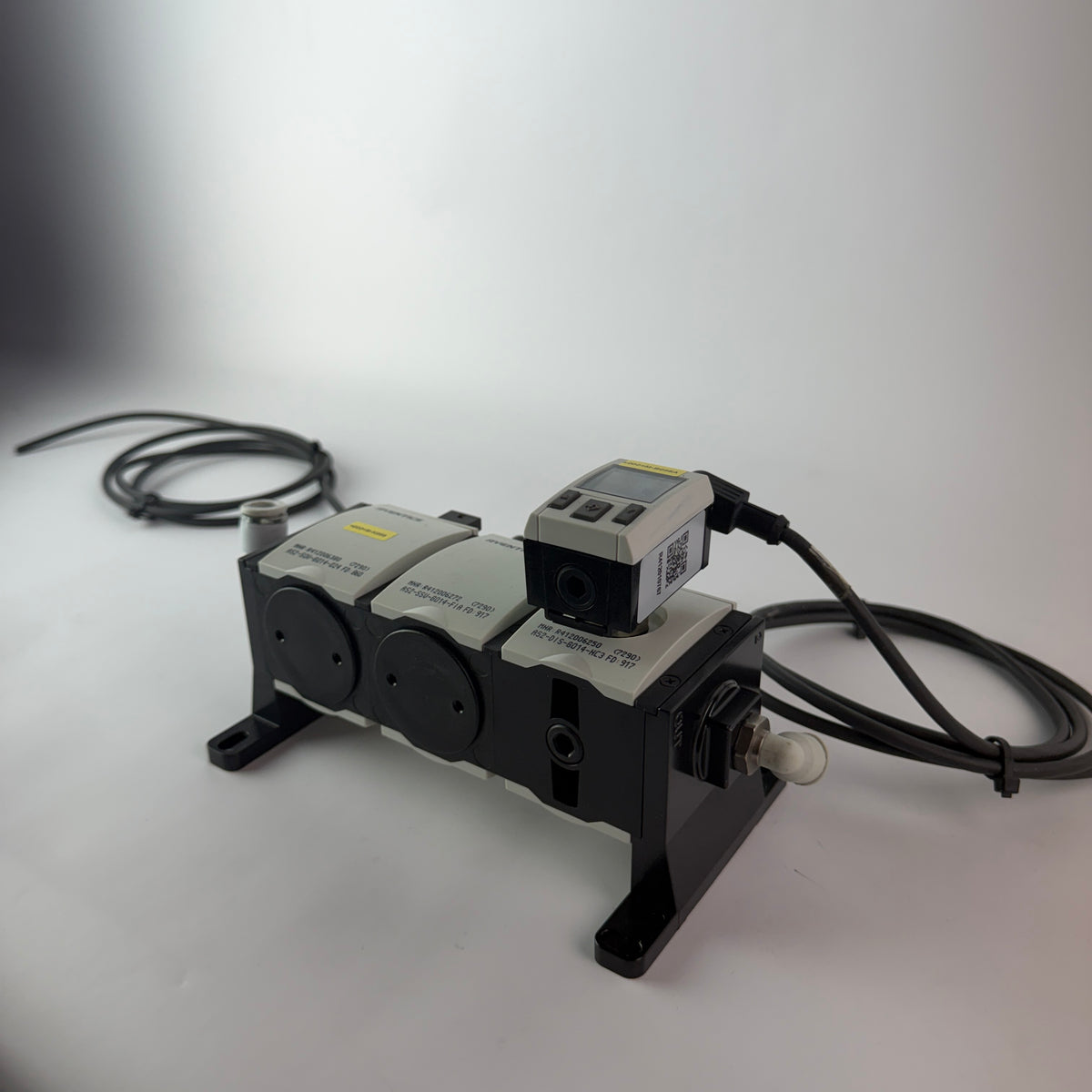

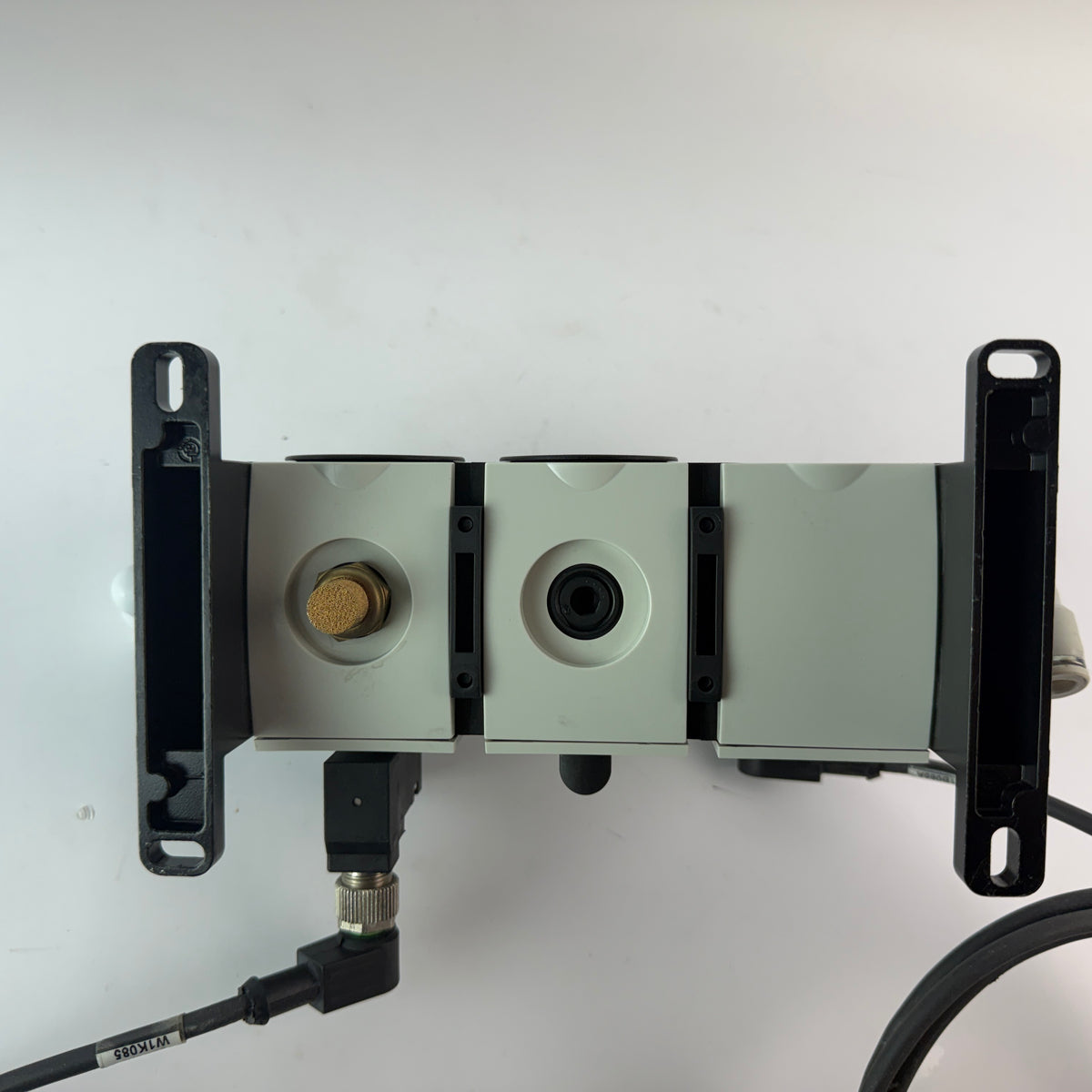

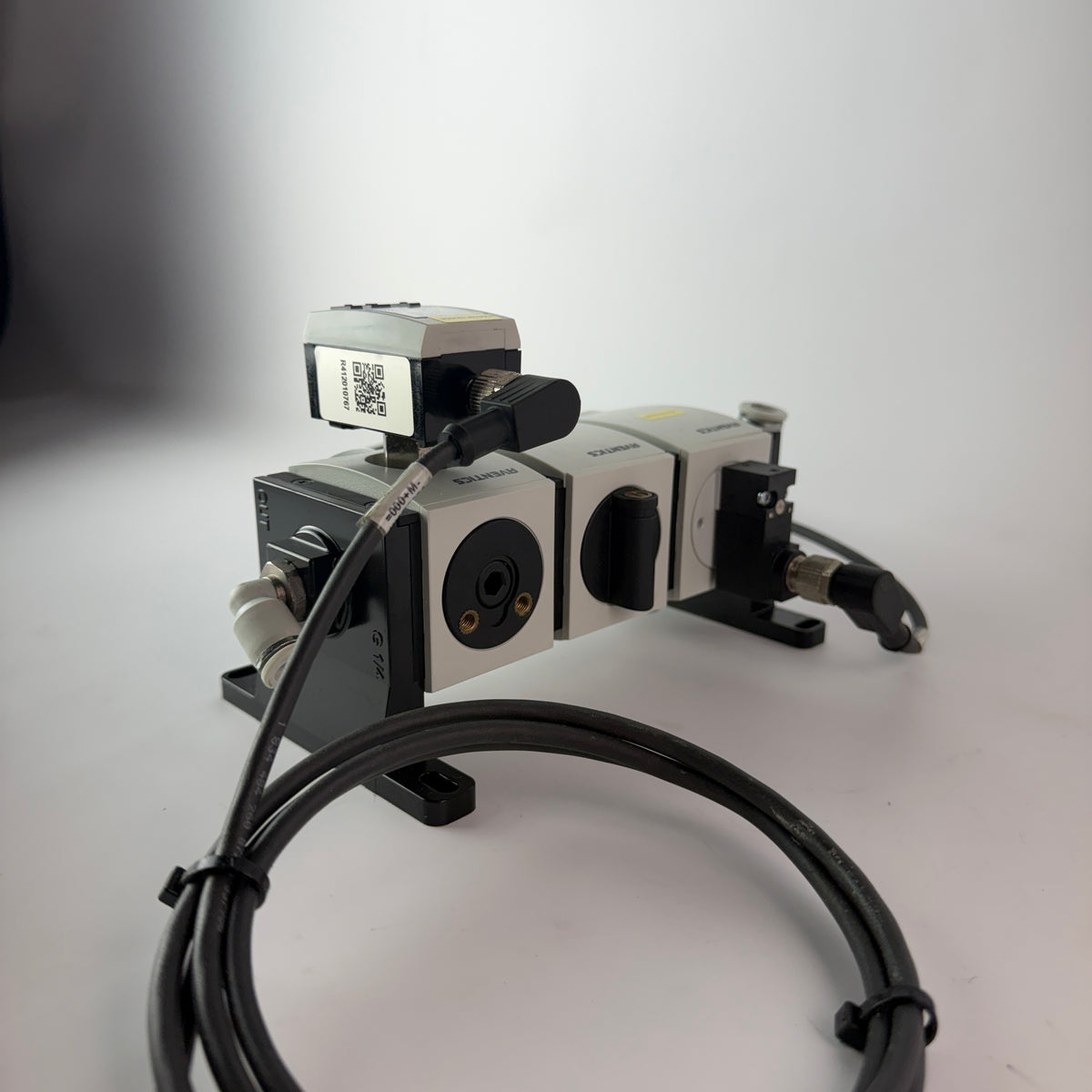

Complete AVENTICS AS2 modular pneumatic control and air preparation assembly incorporating an electrically operated shut-off valve, pneumatic filling valve, multi-port distributor and PE5 electronic pressure sensor.

The assembly is supplied as pictured with installed electrical cables, pneumatic fittings, mounting brackets and associated components.

Main Components:

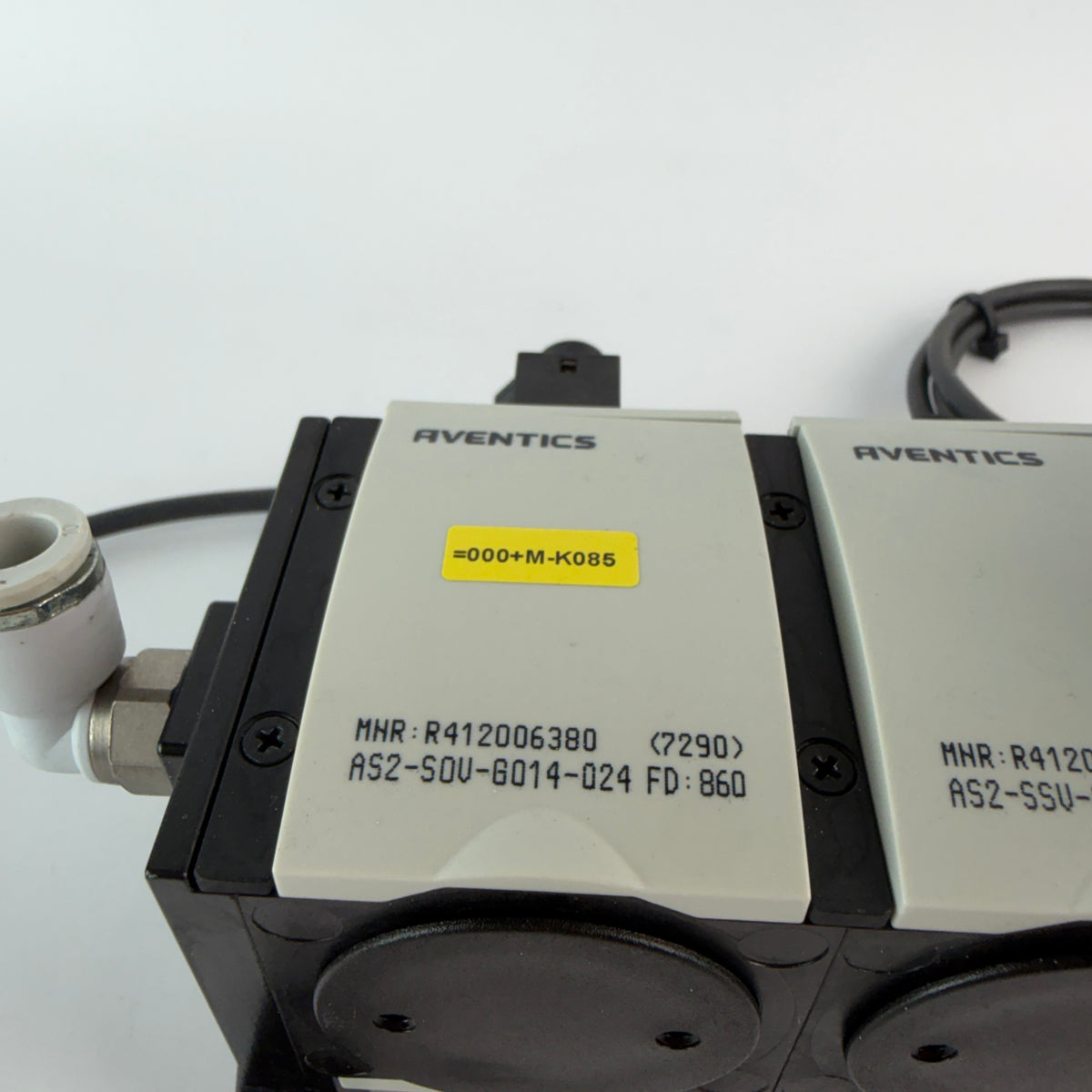

AVENTICS R412006380 – AS2-SOV-G014-024

• Series: AS2-SOV
• Type: Electrically operated 3/2 shut-off valve
• Operating voltage: 24 V DC
• Power consumption: 2 W
• Nominal flow 1 → 2: 2000 l/min
• Nominal flow 2 → 3: 380 l/min
• Exhaust connection: G1/4
• Electrical connection: M12x1
• Protection rating: IP65 with electrical connection installed
• Medium: Compressed air / neutral gases

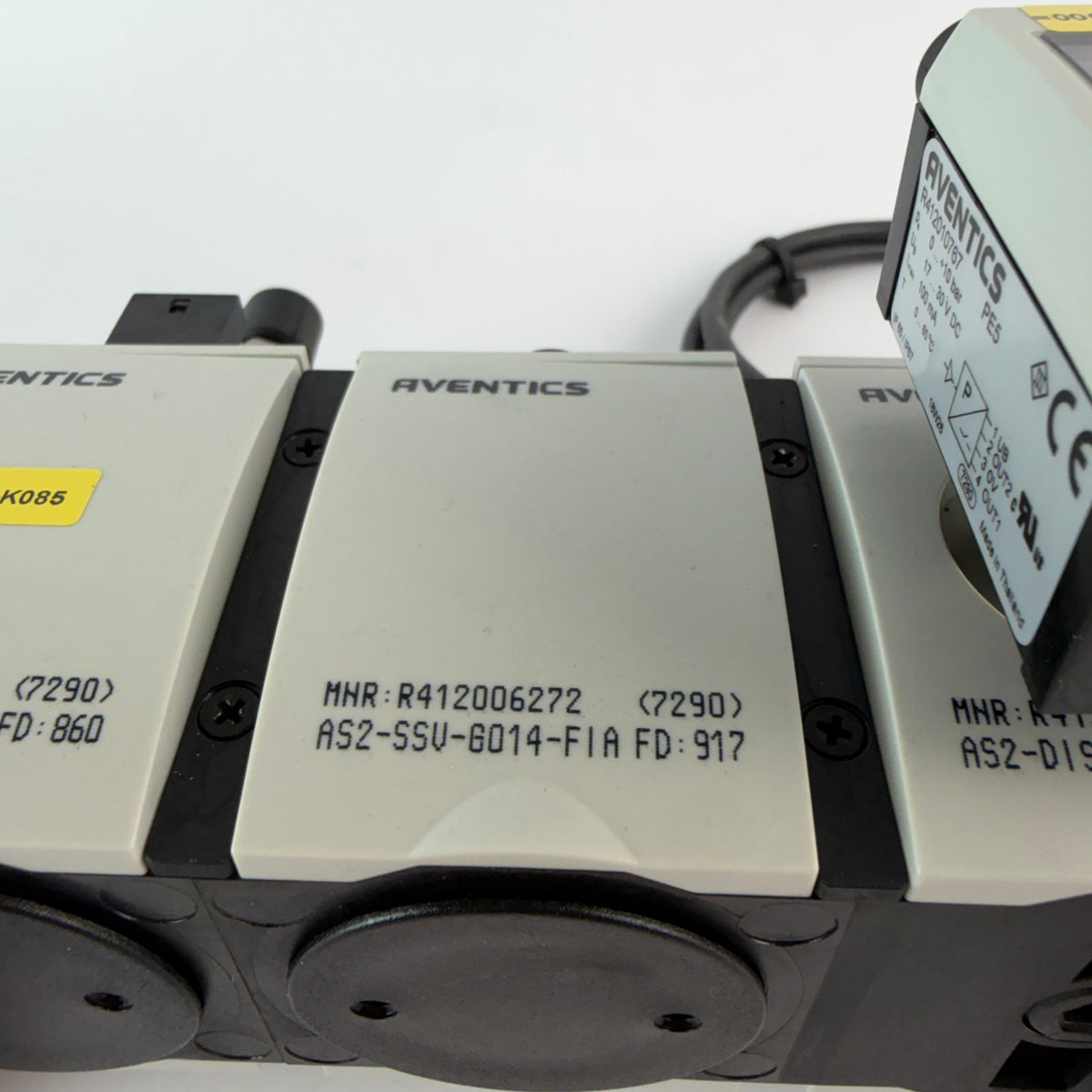

AVENTICS R412006272 – AS2-SSV-G014-FIA

• Series: AS2-SSV
• Type: Pneumatically operated filling / soft-start valve
• Connection: G1/4
• Nominal flow: 2000 l/min
• Working pressure: 2.5–16 bar
• Valve type: Poppet valve
• Medium: Compressed air / neutral gases
• Ambient temperature: -10 to +50 °C

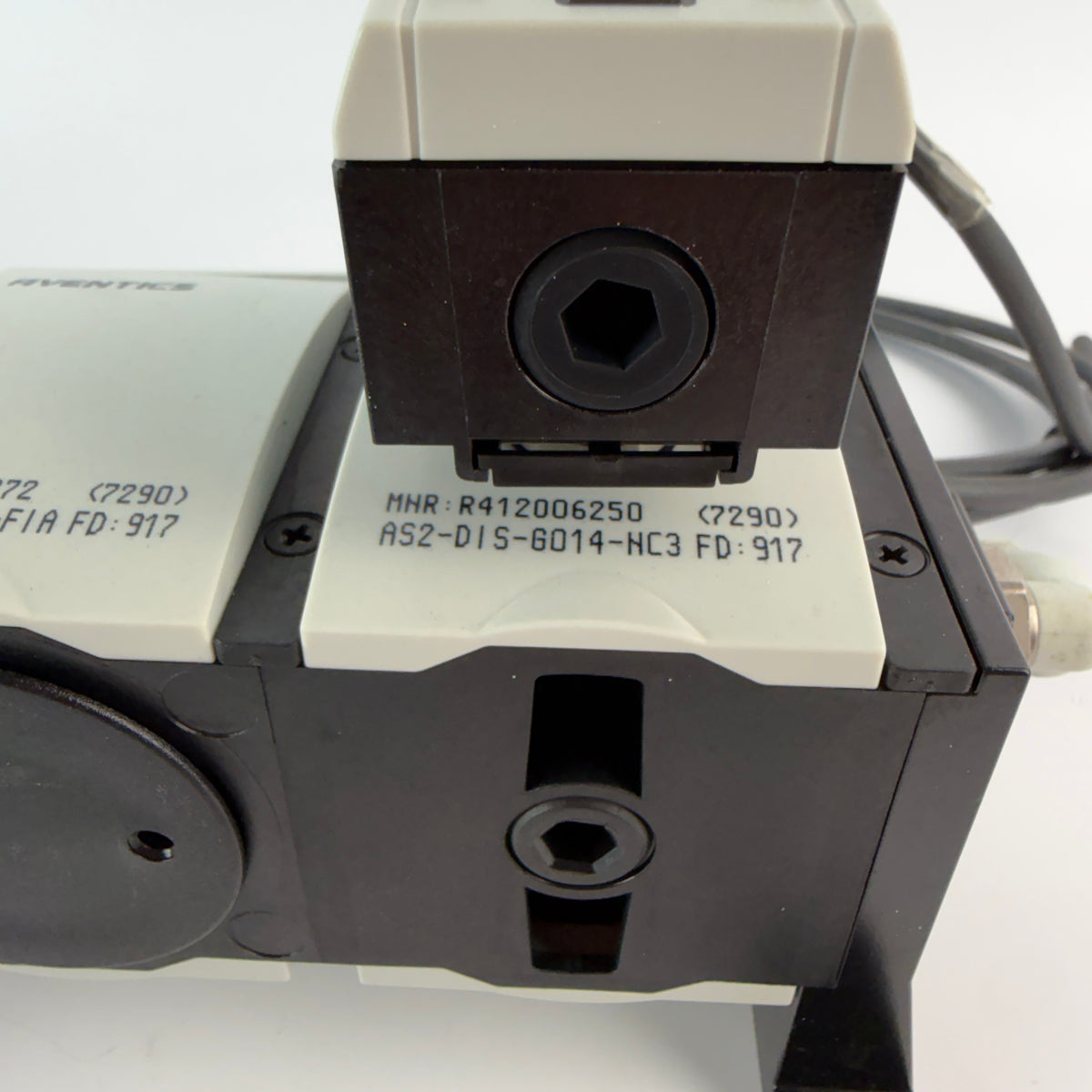

AVENTICS R412006250 – AS2-DIS-G014-NC3

• Series: AS2-DIS
• Type: 3-way pneumatic distributor
• Connection: G1/4
• Working pressure: 0–16 bar
• Nominal flow 1 → 2: 2700 l/min
• Nominal flow 1 → 3: 2000 l/min
• Nominal flow 1 → 4: 900 l/min
• Nominal flow 1 → 5: 2000 l/min
• Medium: Compressed air / neutral gases

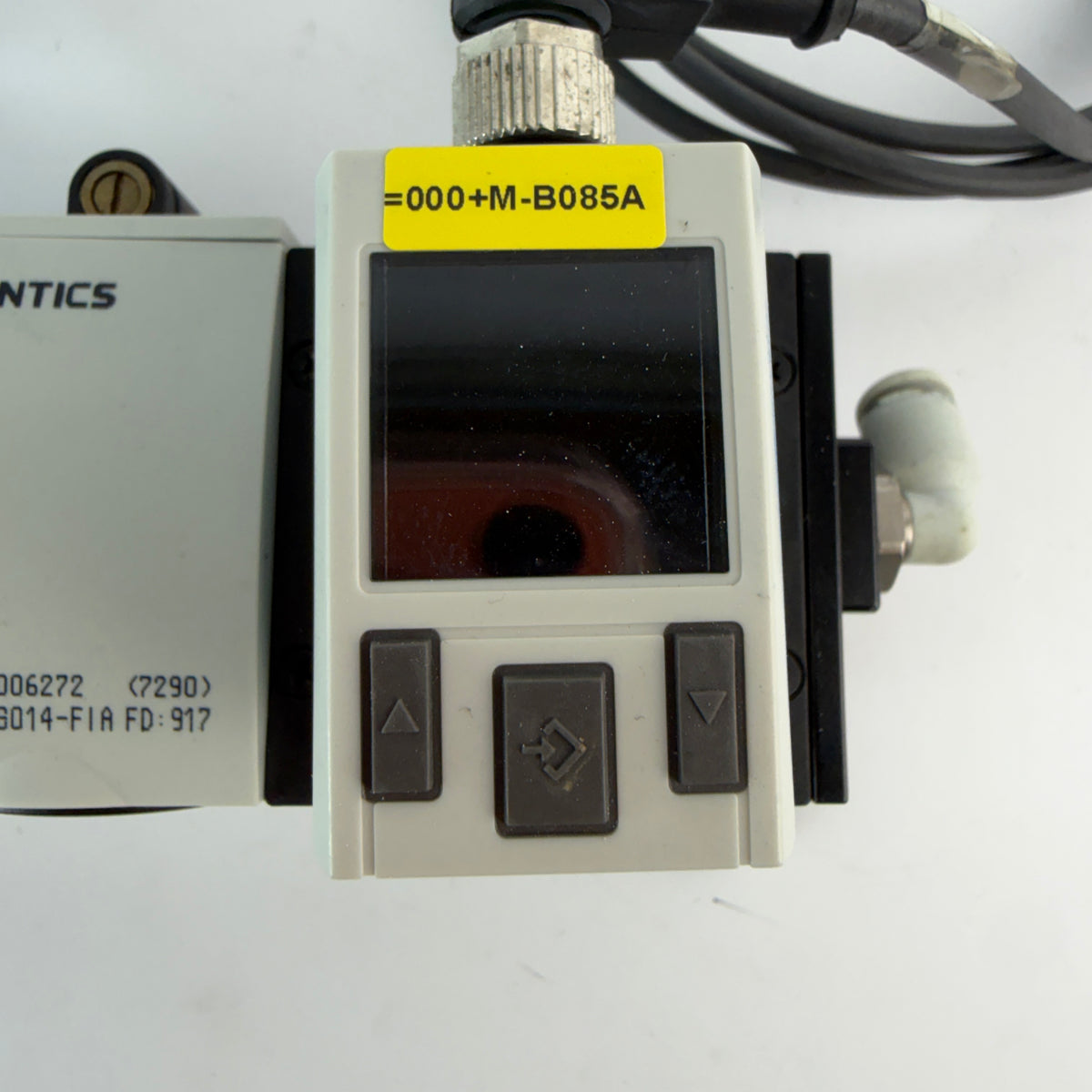

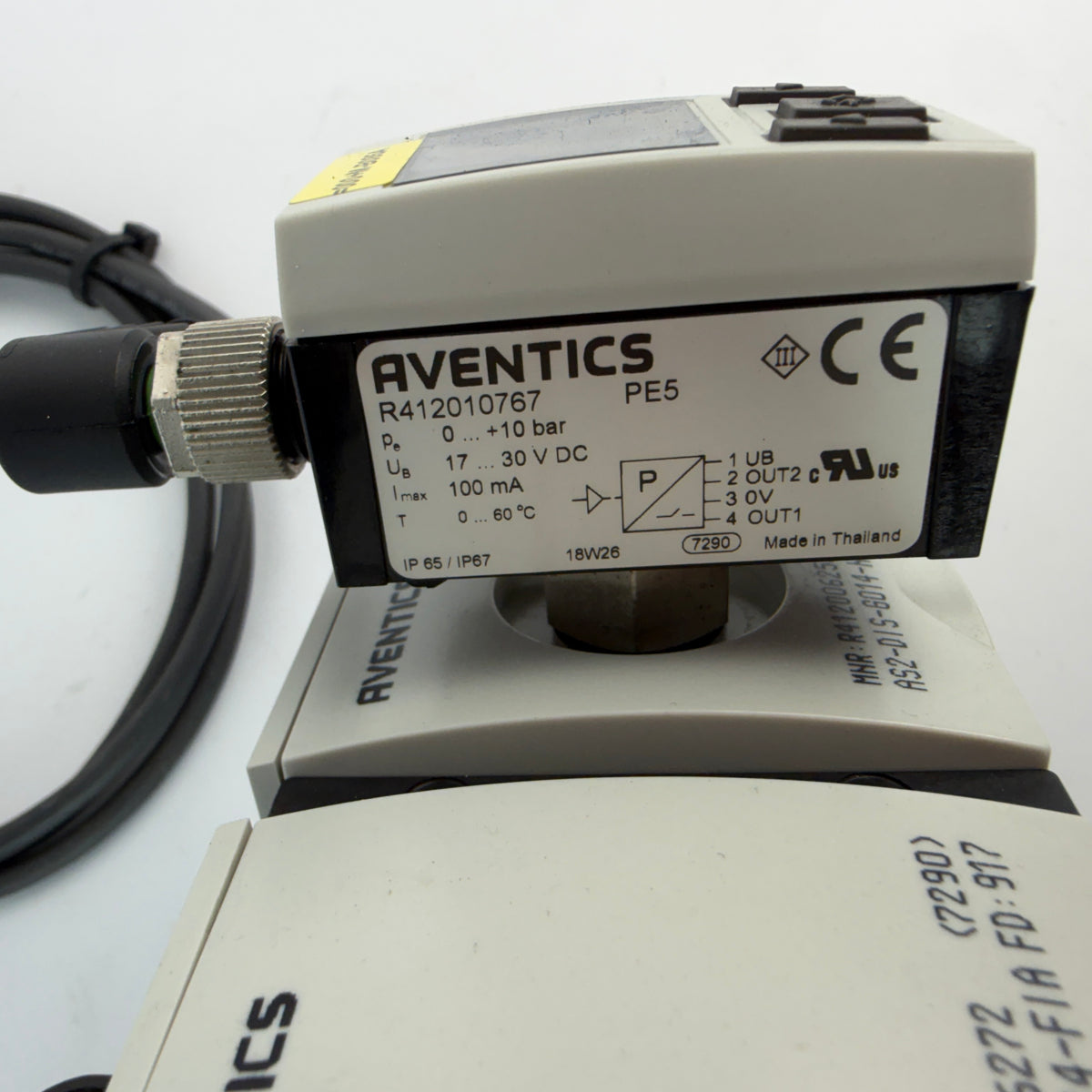

AVENTICS R412010767 – PE5 Pressure Sensor

• Series: PE5
• Type: Electronic relative-pressure sensor
• Pressure range: 0–10 bar
• Supply voltage: 17–30 V DC
• Electrical connection: M12x1, 4-pin
• Pneumatic connection: G1/4
• Digital LCD display
• Adjustable switching points and hysteresis
• Analog output: 0–10 V / 4–20 mA
• Protection rating: IP65 / IP67 with connections assembled
• Country of Origin: Thailand

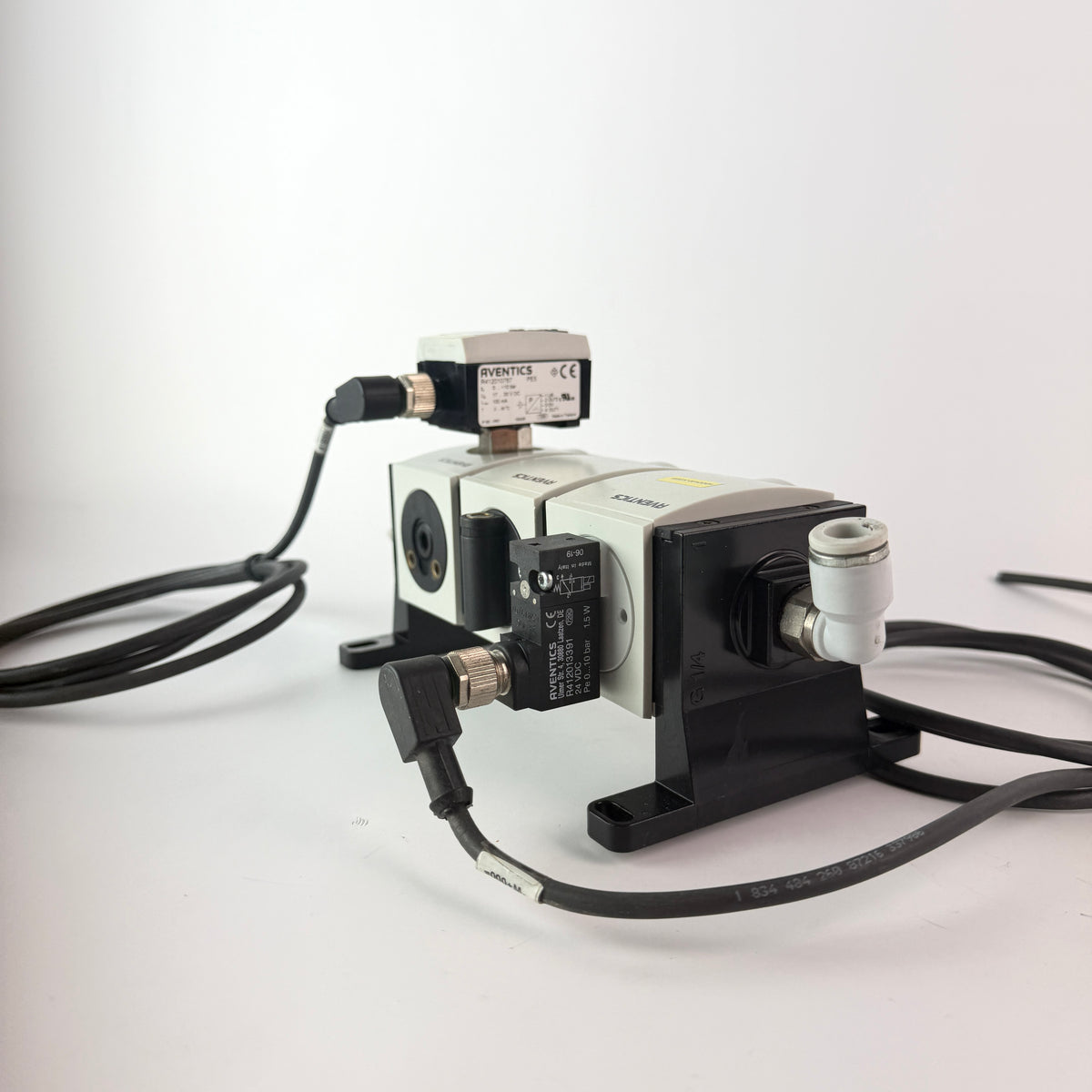

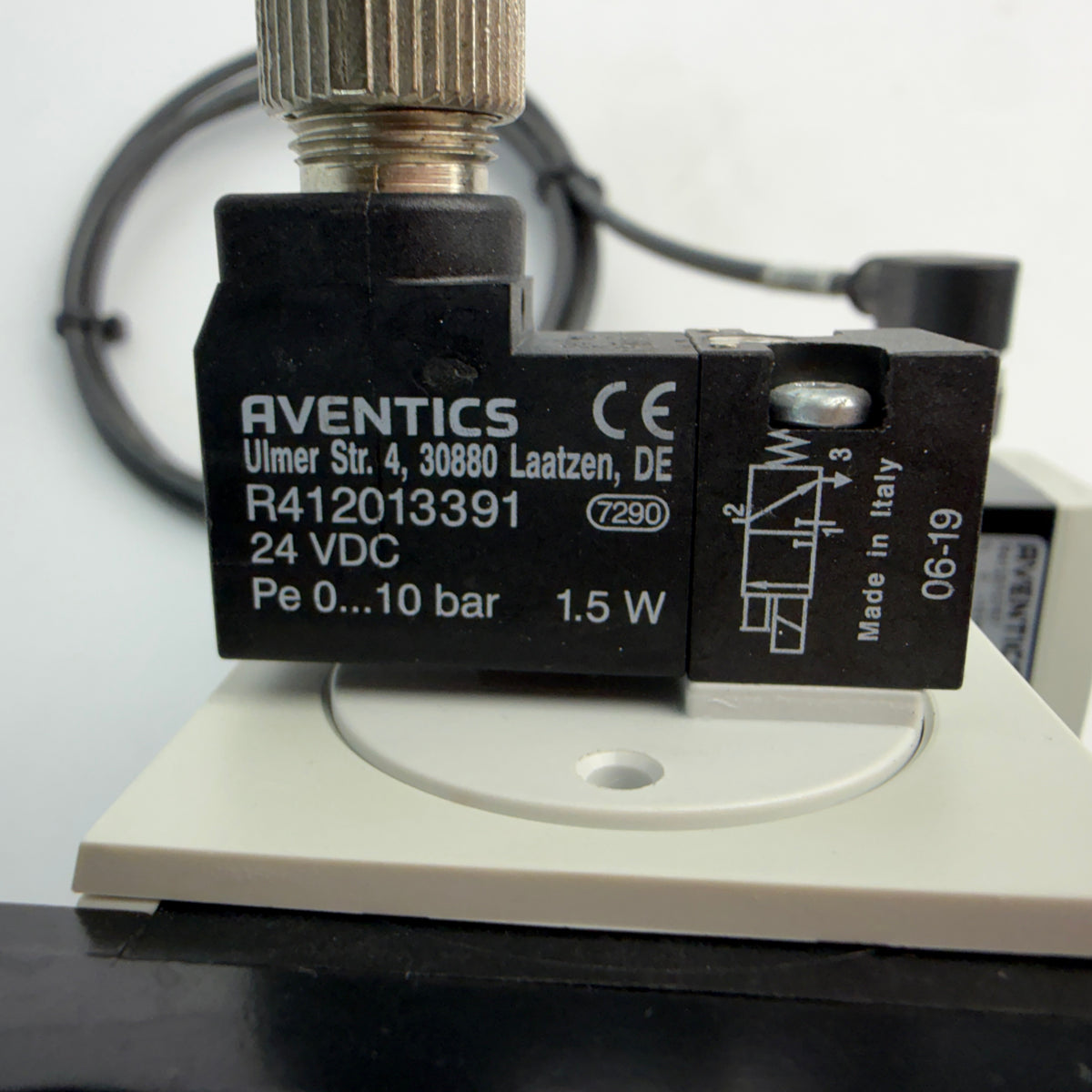

The assembly also includes an AVENTICS R412013391 24 V DC pilot/solenoid valve marked 1.5 W and Made in Italy.

Country of manufacture of the complete assembled unit and the individual AS2 modules other than the specifically marked components is not confirmed.

Condition: Used, fully functional.
