AVENTICS Series LU6 5235996402 Pneumatic Locking and Braking Unit

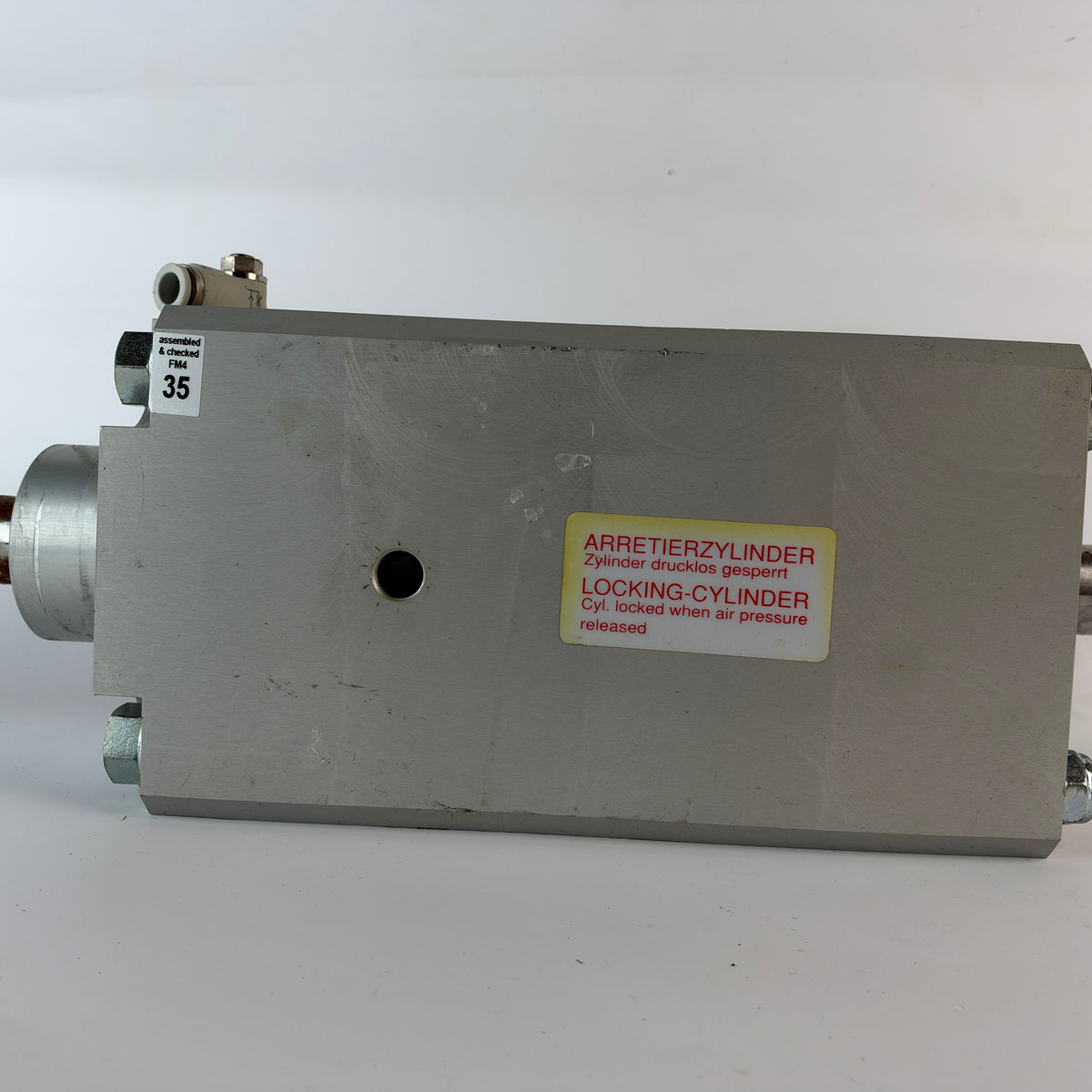

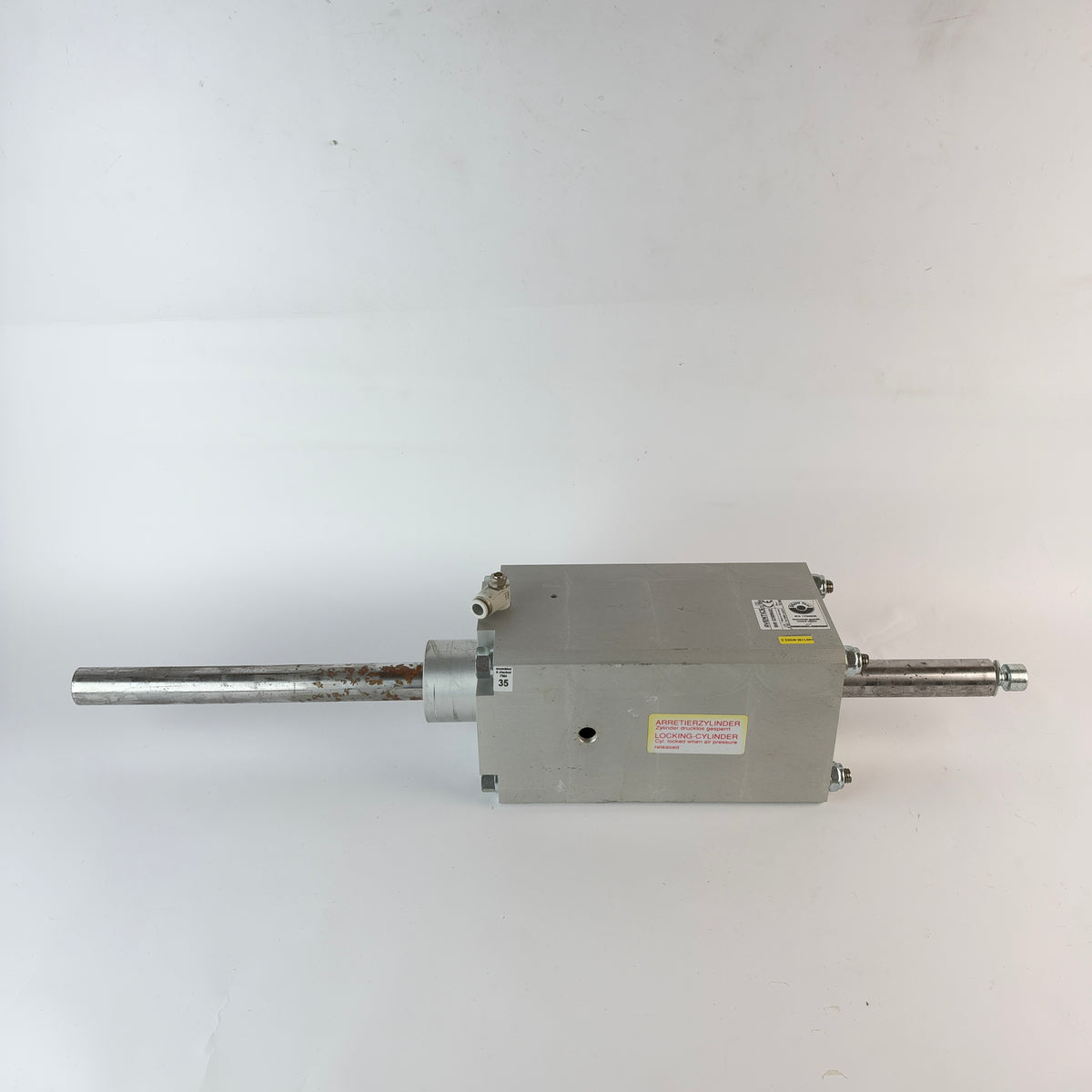

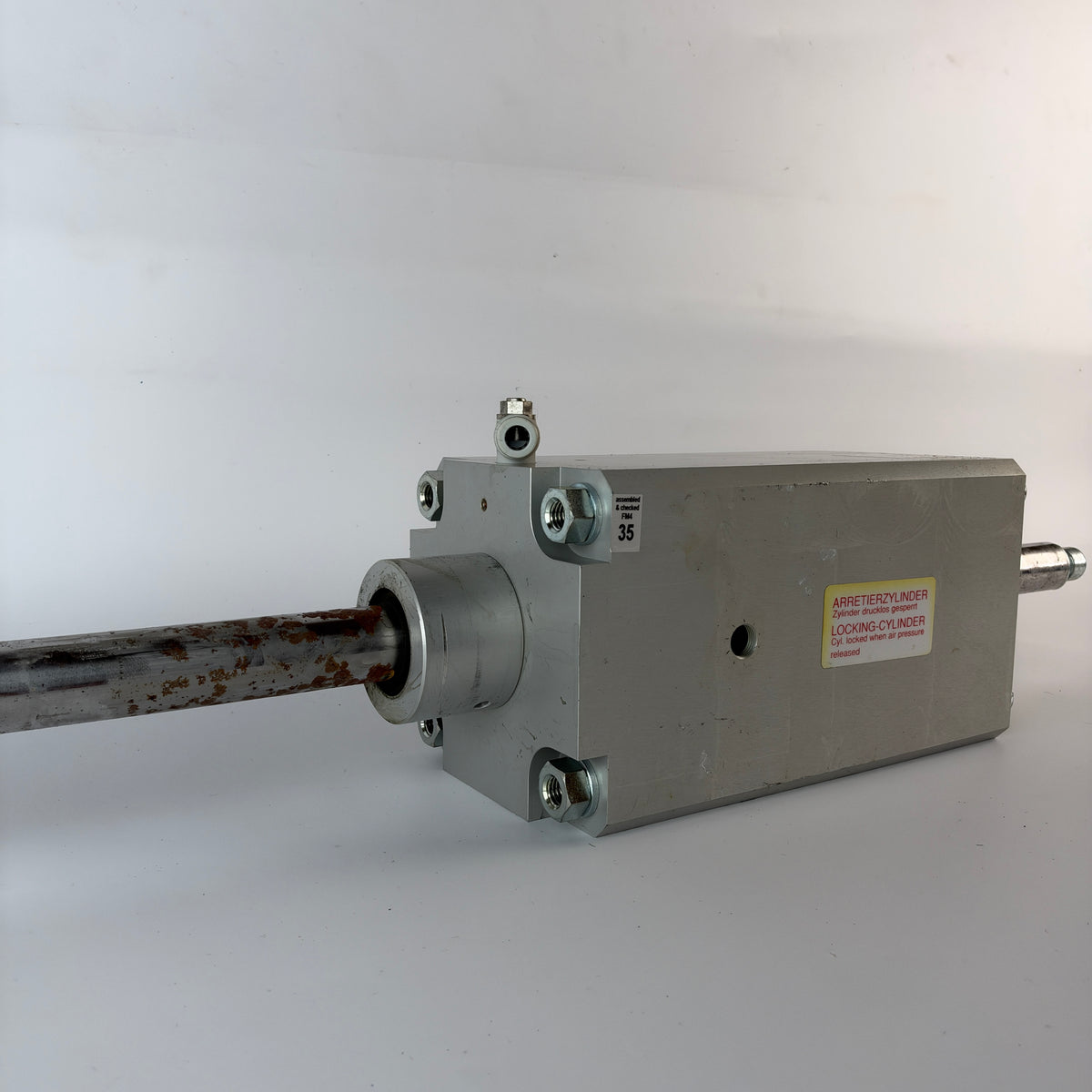

Industrial pneumatic locking unit designed for static holding and dynamic braking of a piston rod. The AVENTICS LU6 uses a non-adjustable spring-operated clamping mechanism for holding and braking, while compressed air is used to release the locking mechanism.

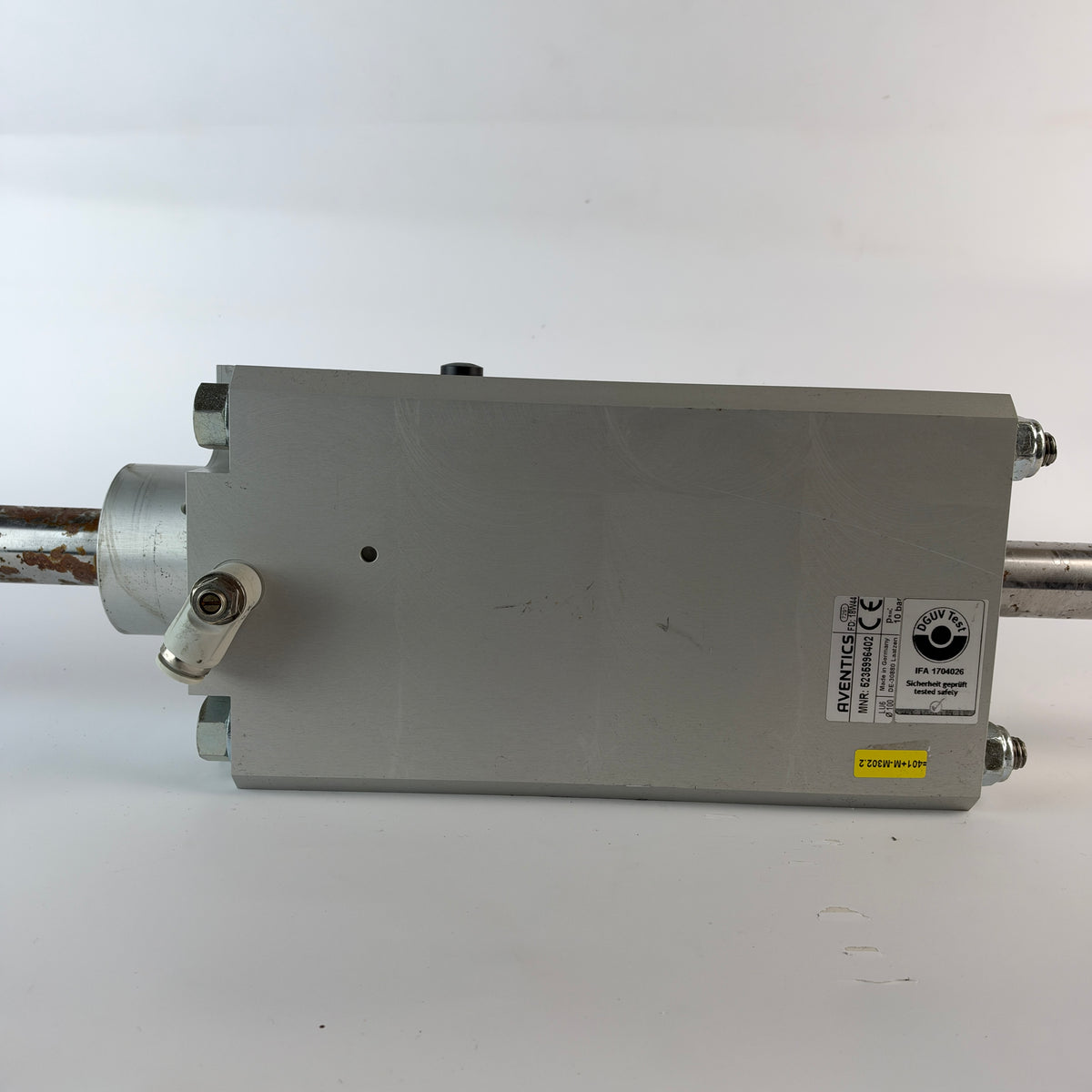

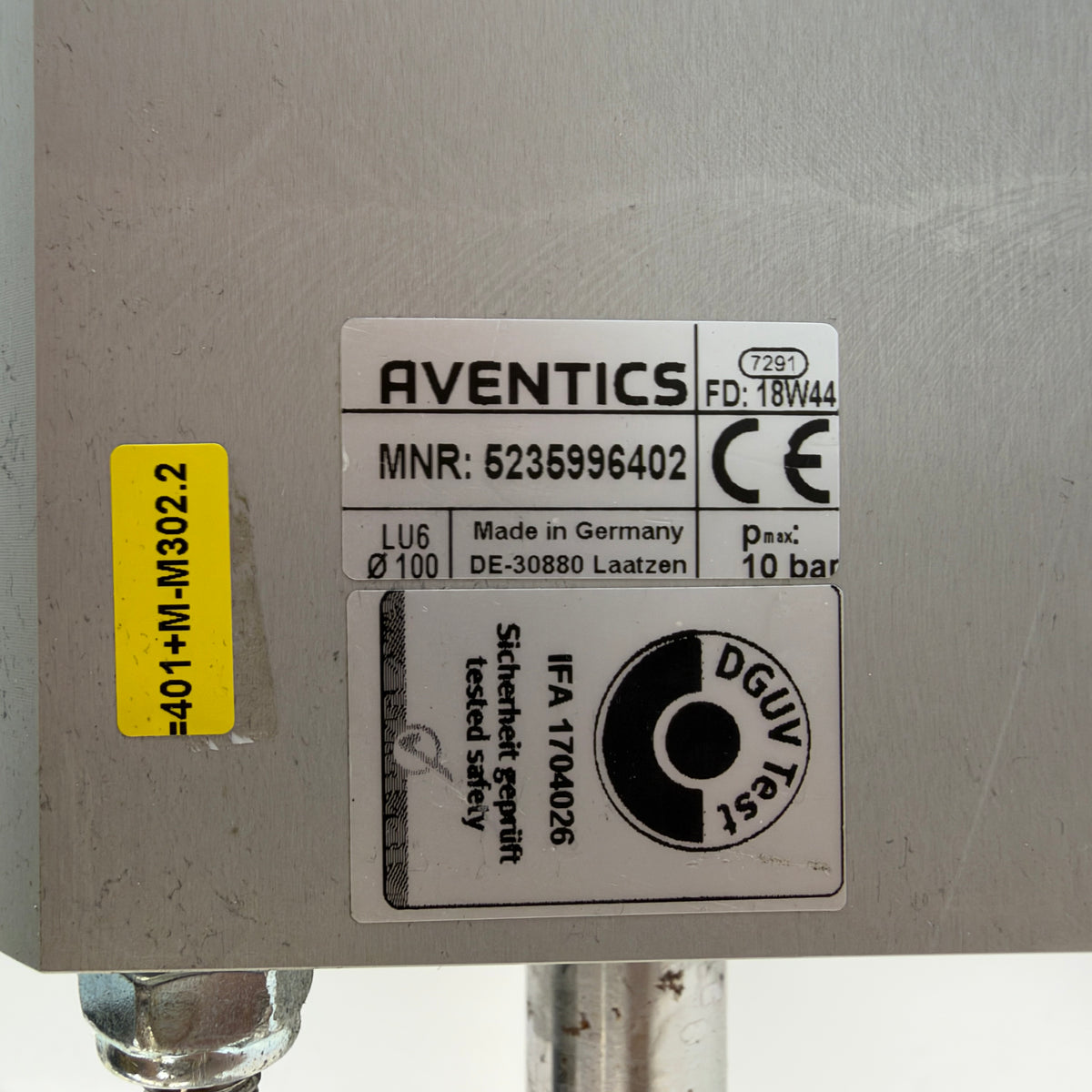

The identification plate on this unit confirms AVENTICS MNR 5235996402, Series LU6, Ø100 mm, maximum pressure of 10 bar and manufacture in Germany.

Technical Specifications:

• Manufacturer: AVENTICS
• Series: LU6
• MNR / Part Number: 5235996402
• Type: Clamping jaw locking unit
• Function: Static holding and dynamic braking
• Holding / Braking: Non-adjustable spring
• Release: Compressed air
• Piston Diameter: 100 mm
• Suitable Piston Rod Diameter: 25 mm
• Piston Rod Extension: 220 mm
• Compressed Air Connection: G 1/8
• Maximum Piston Speed: 1 m/s
• Release Pressure: 4–10 bar
• Maximum Pressure Marked on Unit: 10 bar
• Medium: Compressed air
• Medium Temperature: -25°C to +80°C
• Ambient Temperature: -25°C to +80°C
• Maximum Particle Size: 5 µm
• Minimum Oil Content: 0 mg/m³
• Required Flow Rate Qn: 700 l/min
• Braking Energy per Cycle related to B10d: 29 J
• Maximum Braking Energy per Cycle: 88 J
• Maximum Braking Energy per Hour: 13,200 J
• Maximum Total Braking Energy: 58 MJ
• Maximum External Moving Mass: 815 kg
• Maximum Piston Rod Torsional Moment: 9 Nm
• Country of Manufacture: Germany

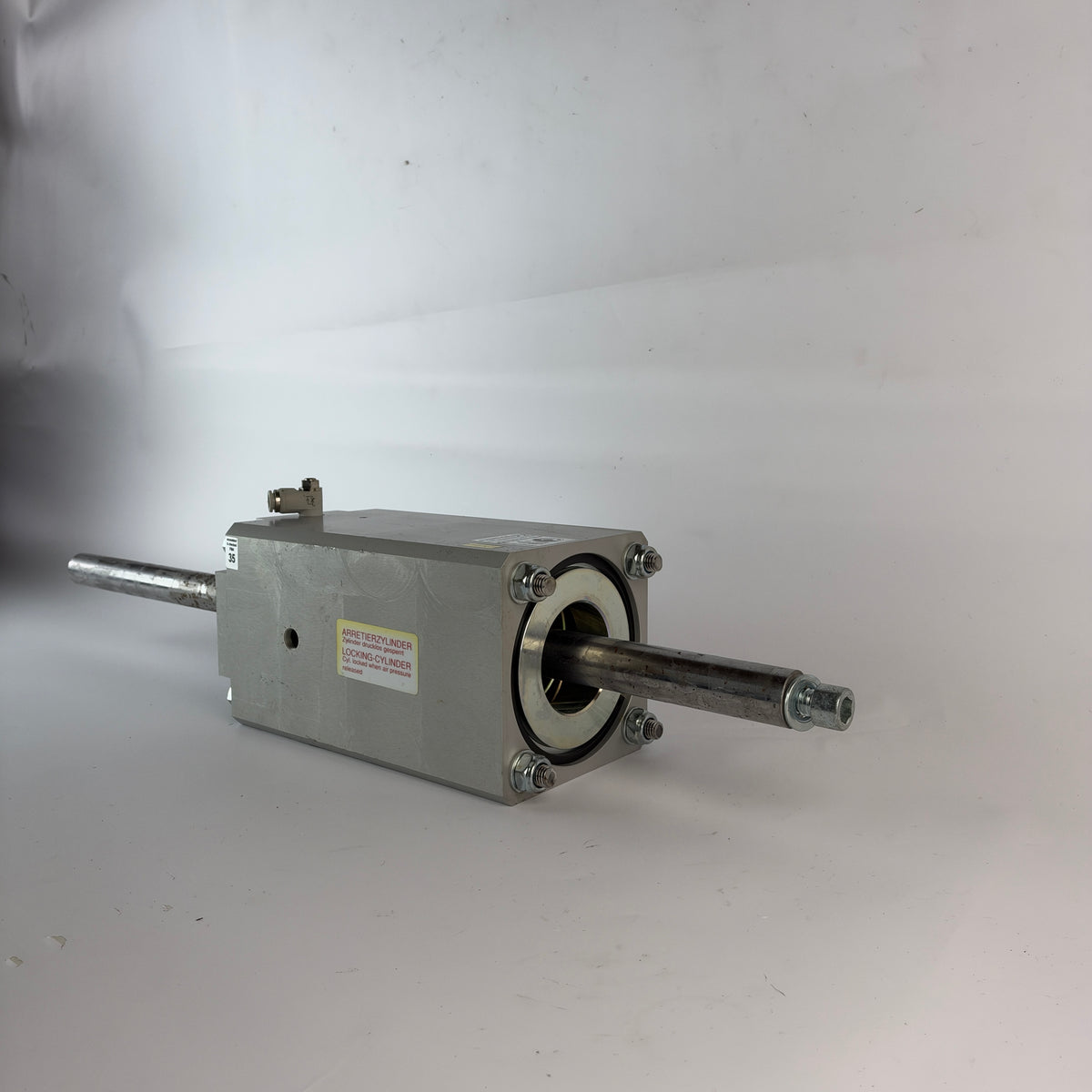

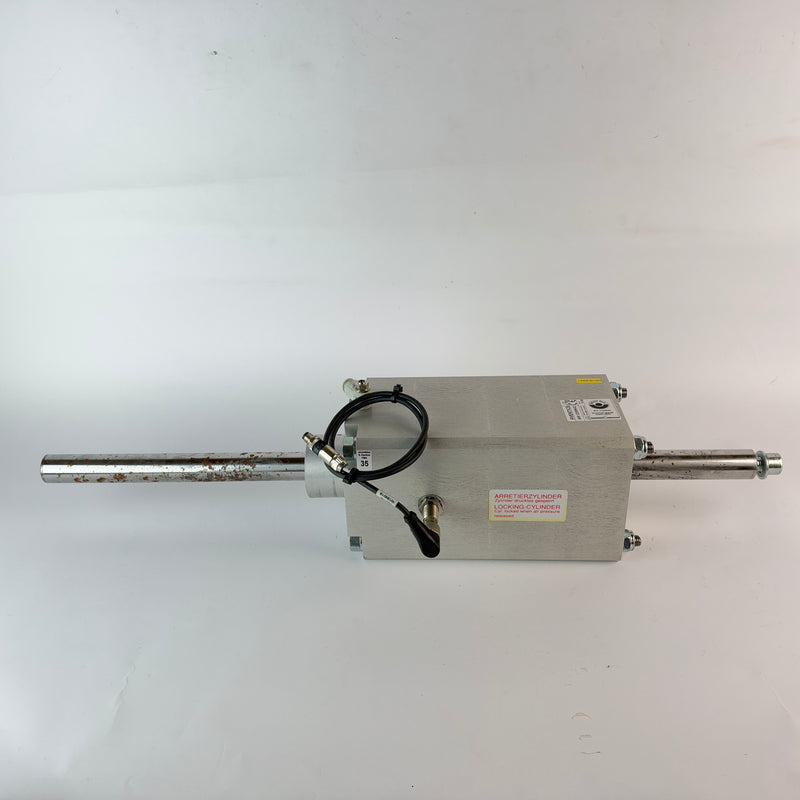

Condition: Used, fully functional.

The unit shows signs of previous industrial use. Surface corrosion is visible on portions of the piston rod, together with normal cosmetic marks on the housing. Supplied exactly as pictured.
