AVENTICS LU6 5235996402 Pneumatic Locking and Braking Unit with Sensor

Industrial AVENTICS Series LU6 locking unit designed for static holding and dynamic braking of a piston rod. The unit uses a spring-operated clamping mechanism and is released by compressed air.

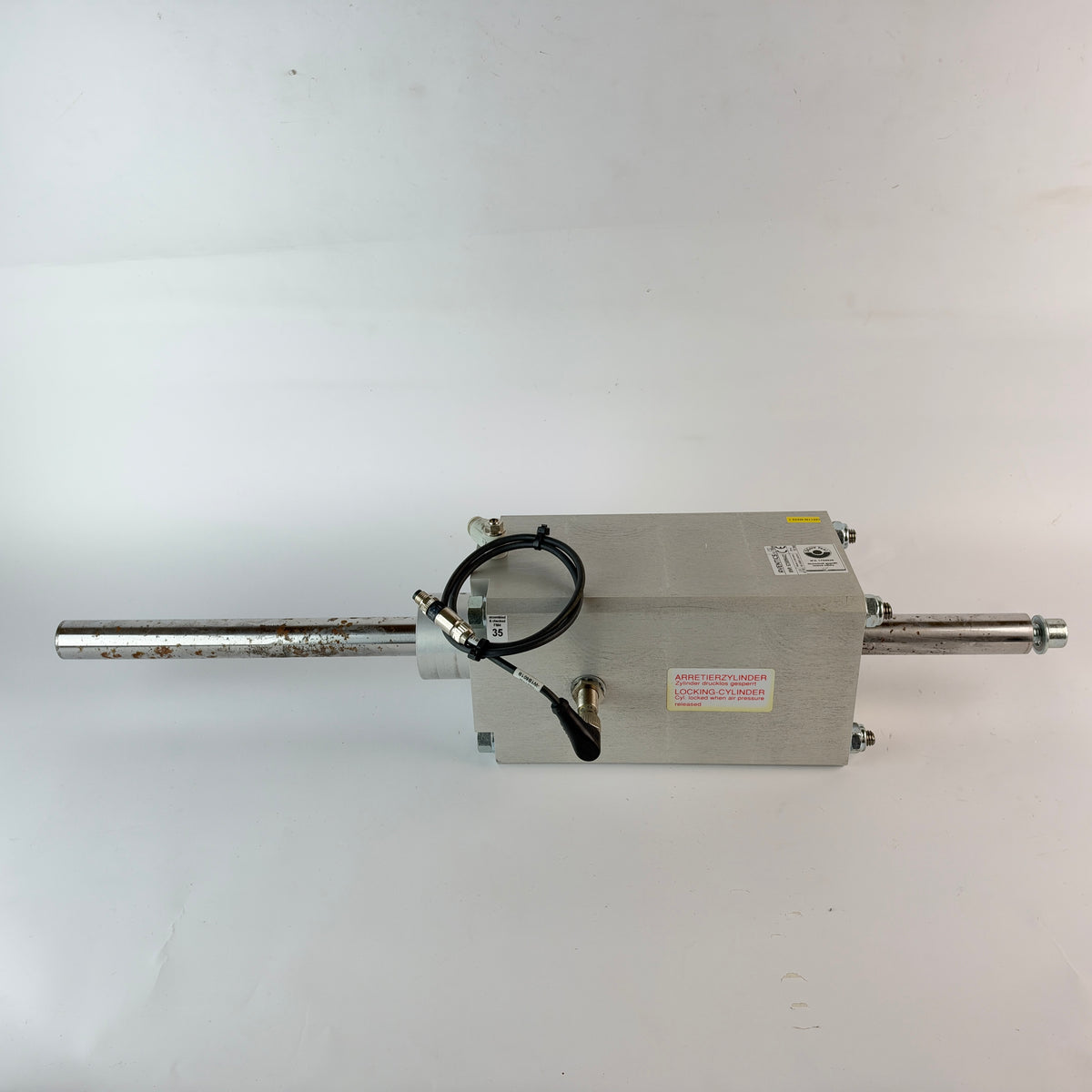

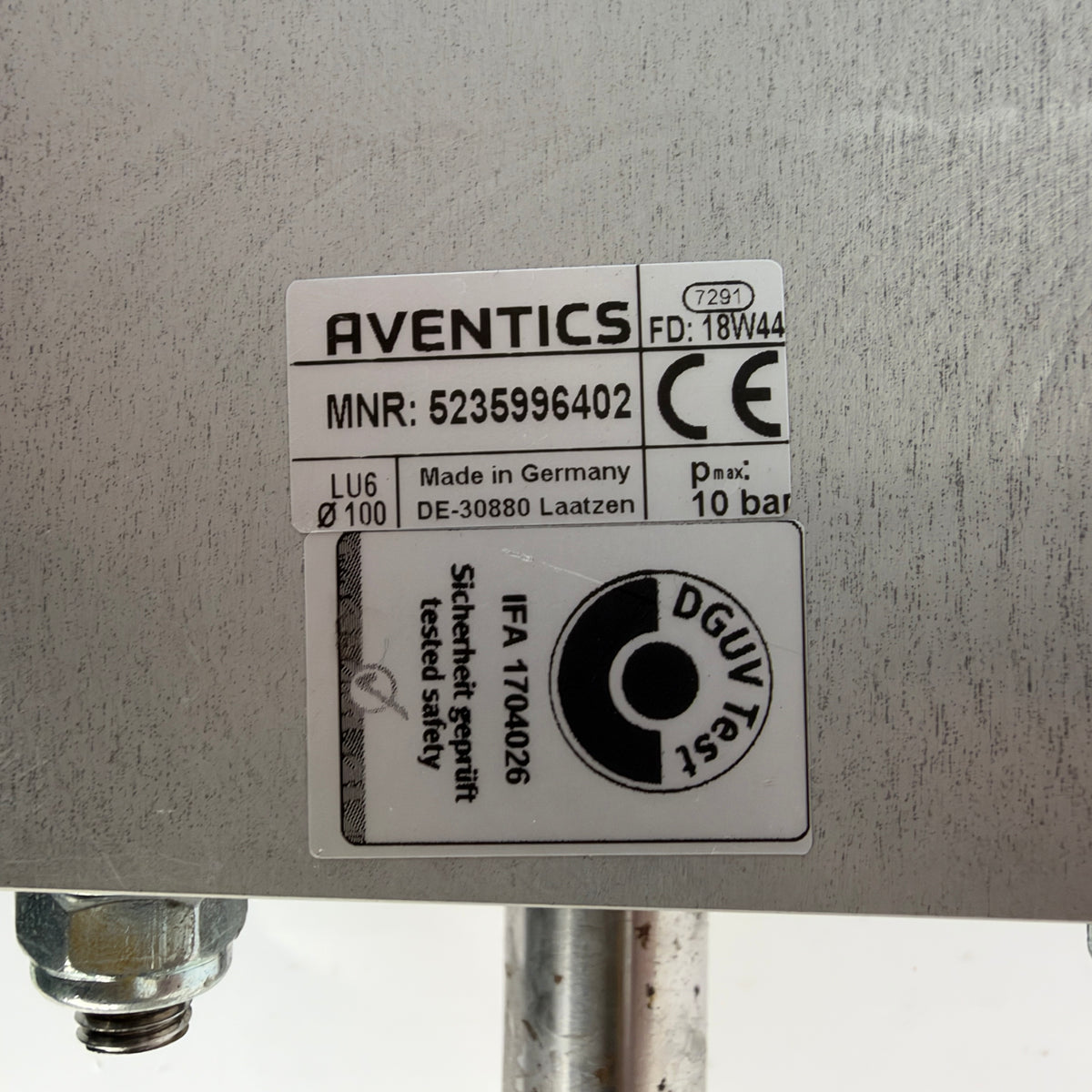

The identification plate on this unit confirms model series LU6, MNR 5235996402, 100 mm piston size, maximum pressure of 10 bar and manufacture in Germany.

Technical specifications:

• Manufacturer: AVENTICS
• Series: LU6
• MNR / Part Number: 5235996402
• Type: Pneumatic locking / braking unit
• Lock Type: Clamping jaw lock
• Function: Static holding and dynamic braking
• Holding / Braking: Non-adjustable spring
• Release: Compressed air
• Piston Diameter: 100 mm
• Suitable Piston Rod Diameter: 25 mm
• Piston Rod Extension: 220 mm
• Pneumatic Connection: G 1/8
• Maximum Piston Speed: 1 m/s
• Release Pressure: 4–10 bar
• Medium: Compressed air
• Required Flow Rate Qn: 700 l/min
• Maximum Particle Size: 5 µm
• Ambient Temperature: -25°C to +80°C
• Medium Temperature: -25°C to +80°C
• Maximum External Moving Mass: 815 kg
• Maximum Piston Rod Torsional Moment: 9 Nm
• Braking Energy per Cycle related to B10d: 29 J
• Maximum Braking Energy per Cycle: 88 J
• Maximum Braking Energy per Hour: 13,200 J
• Maximum Total Braking Energy: 58 MJ
• Maximum Pressure Marked on Unit: 10 bar
• Country of Manufacture: Germany
• Sensor: Included, exact sensor model not confirmed

Condition: Used, fully functional.

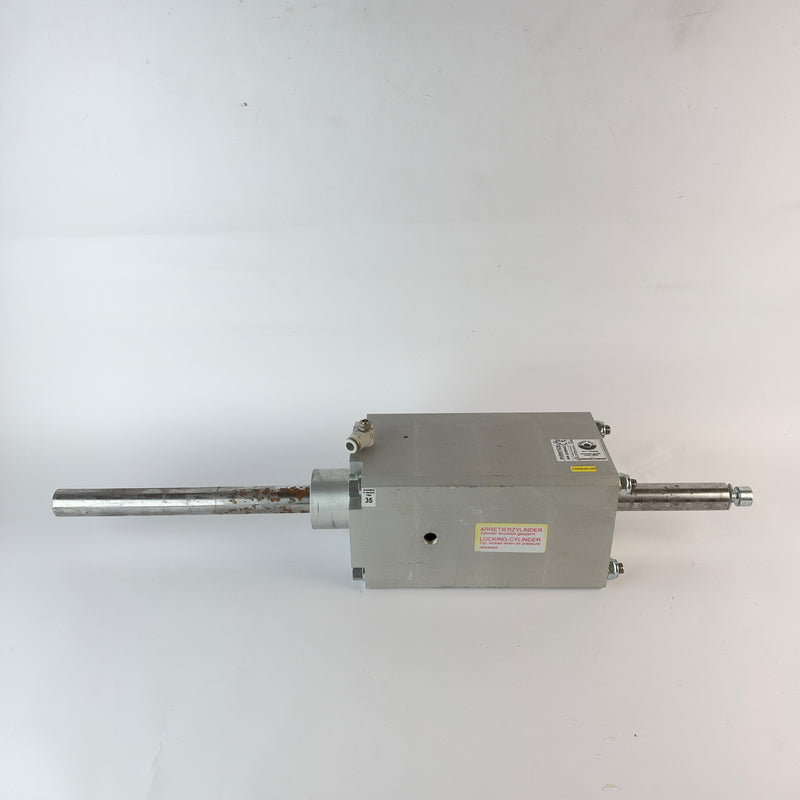

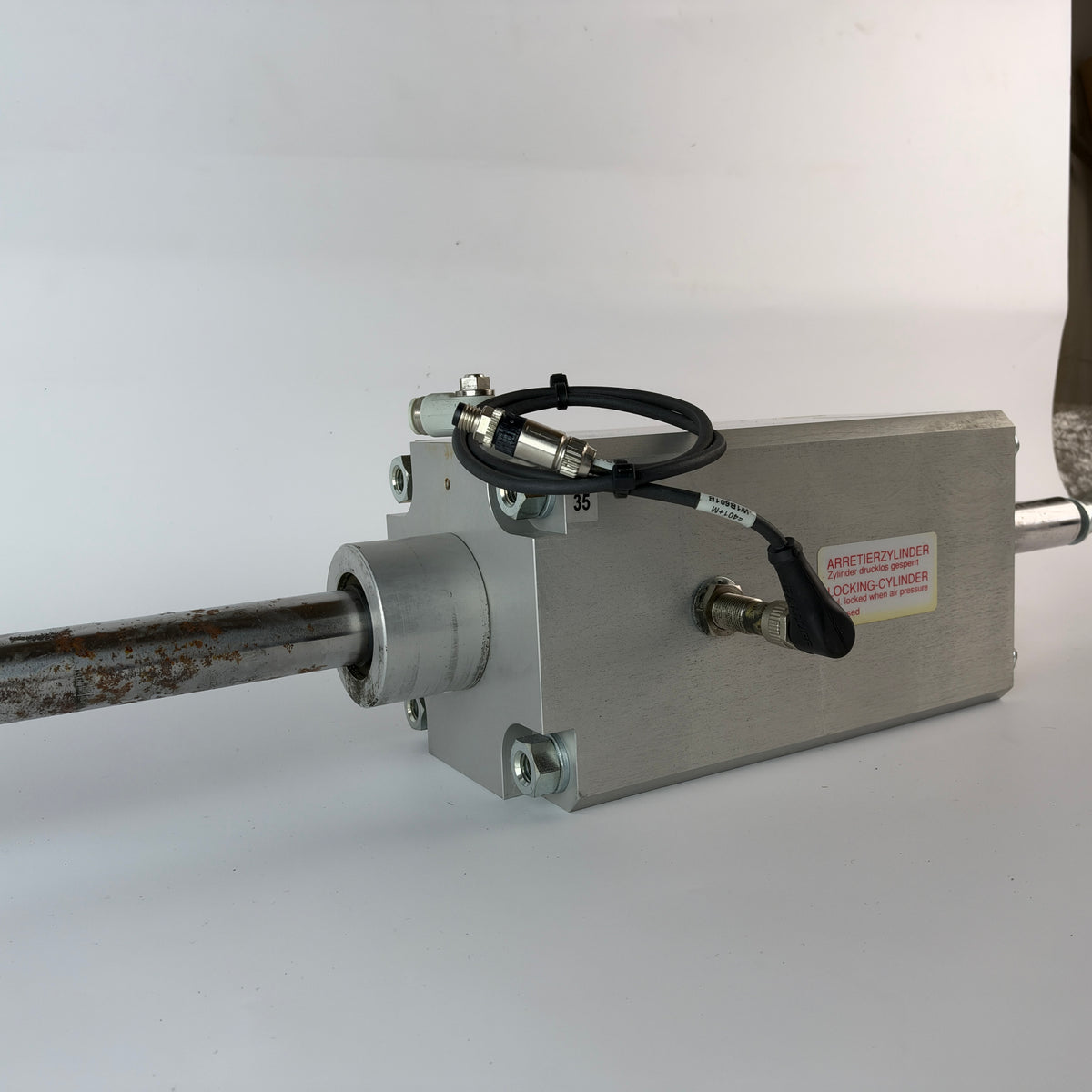

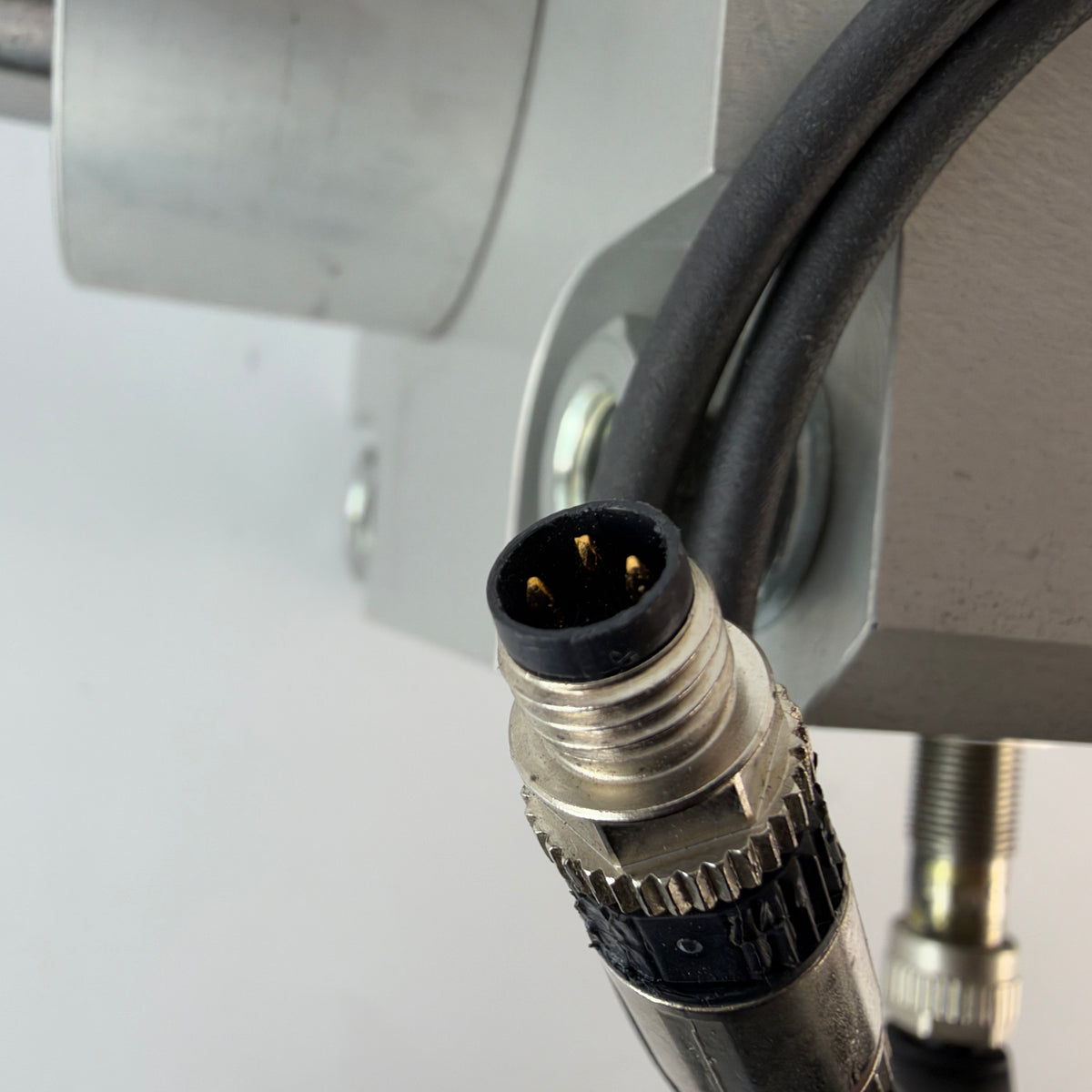

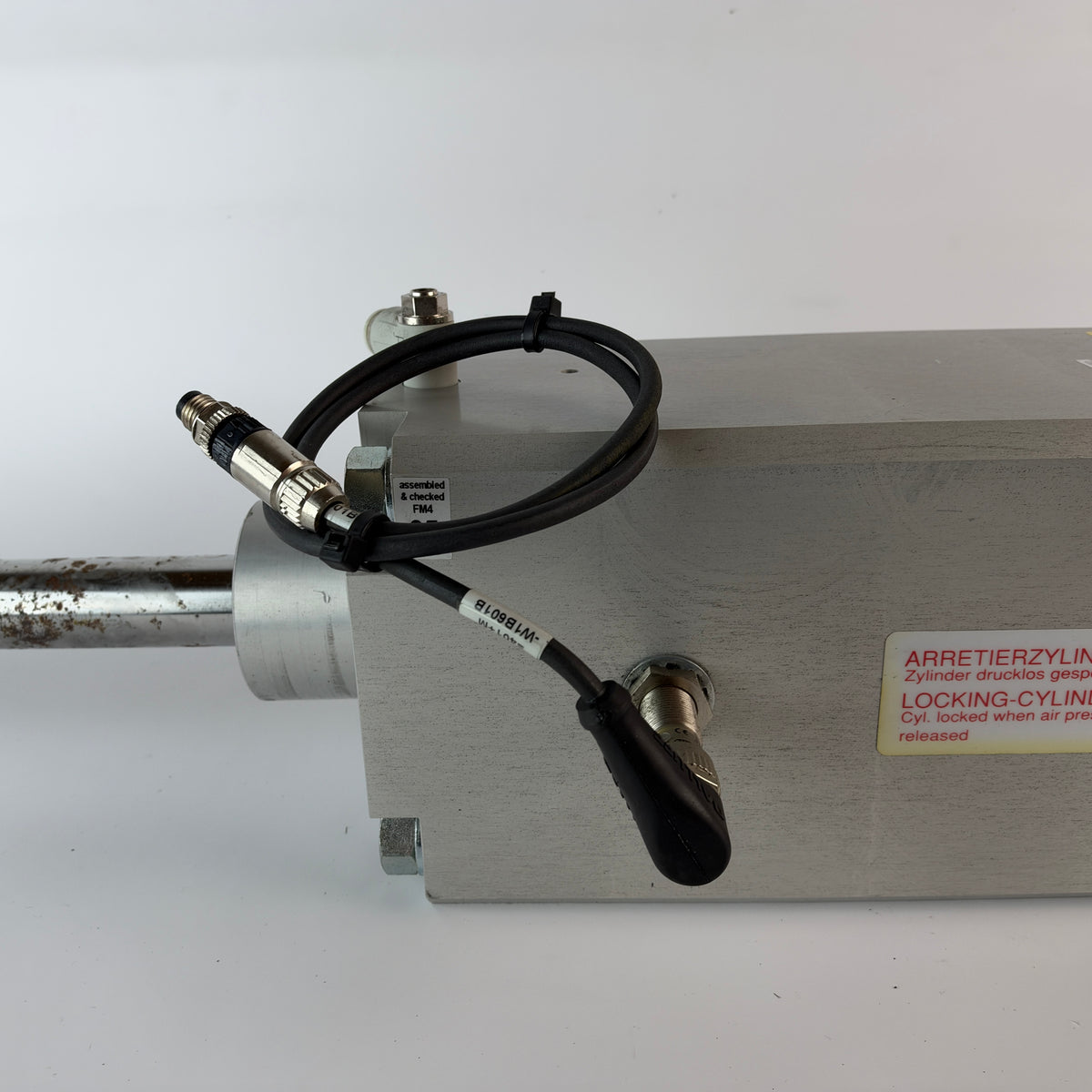

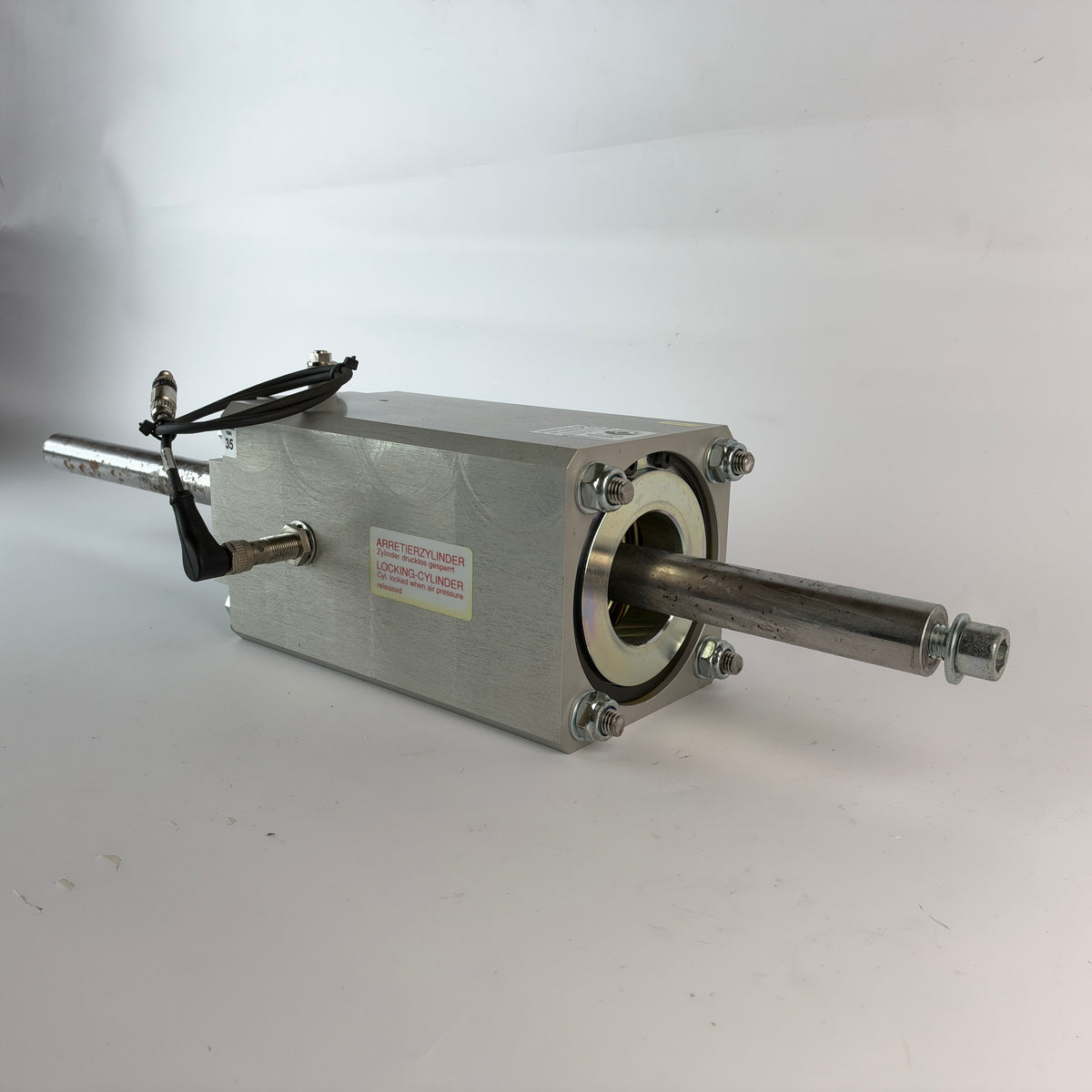

The unit shows normal signs of previous industrial use. Surface corrosion and wear are visible on portions of the piston rod; please refer to the photographs for the exact cosmetic condition. Supplied with the installed sensor, cable and fittings/components shown.
