AVENTICS R412006256, Series AS2 mechanically operated 3/2 pneumatic shut-off valve for industrial compressed-air preparation and automation systems.

The valve is designed for manual isolation and venting of a pneumatic circuit. It uses a rotary operating element and is lockable for improved safety during machine servicing and maintenance.

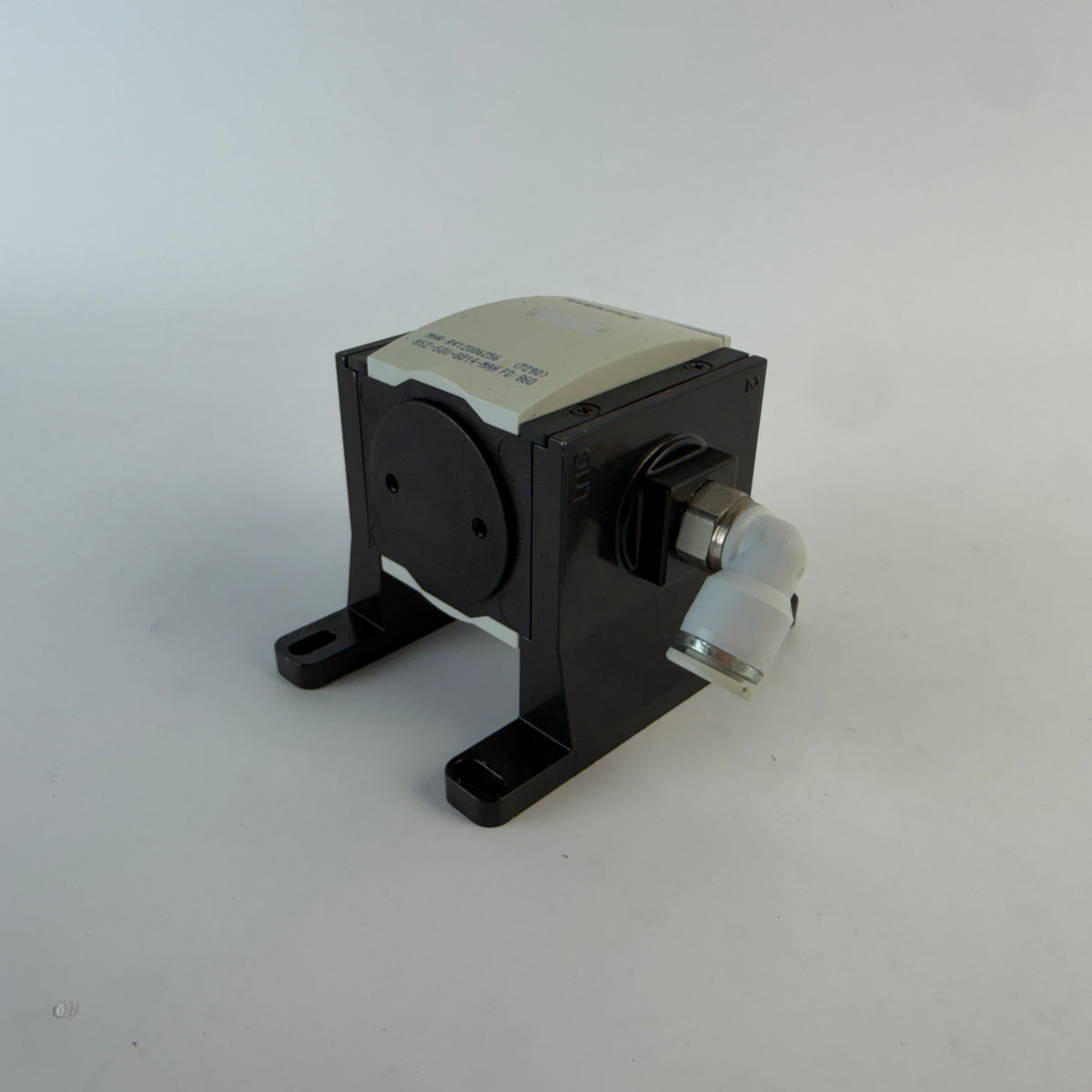

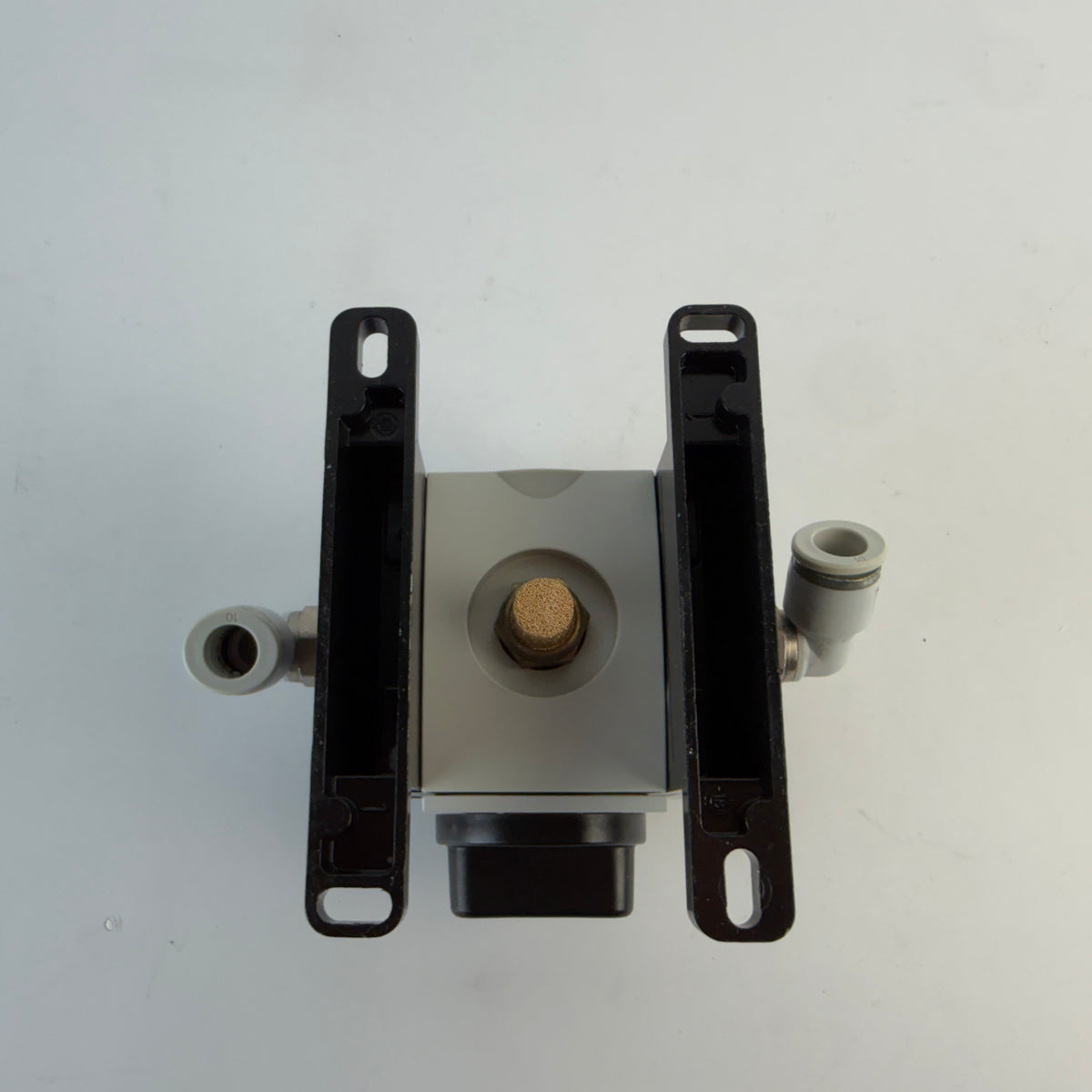

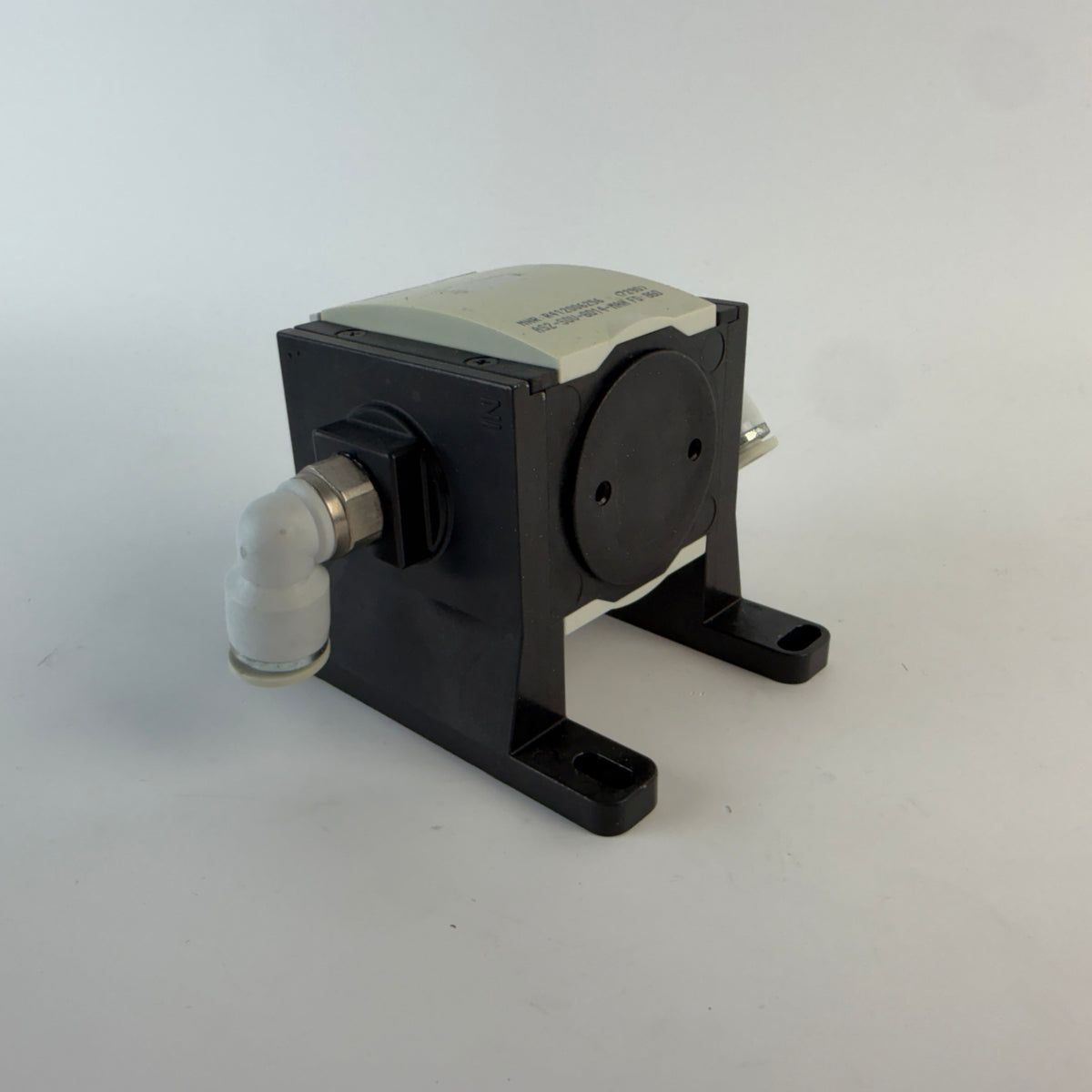

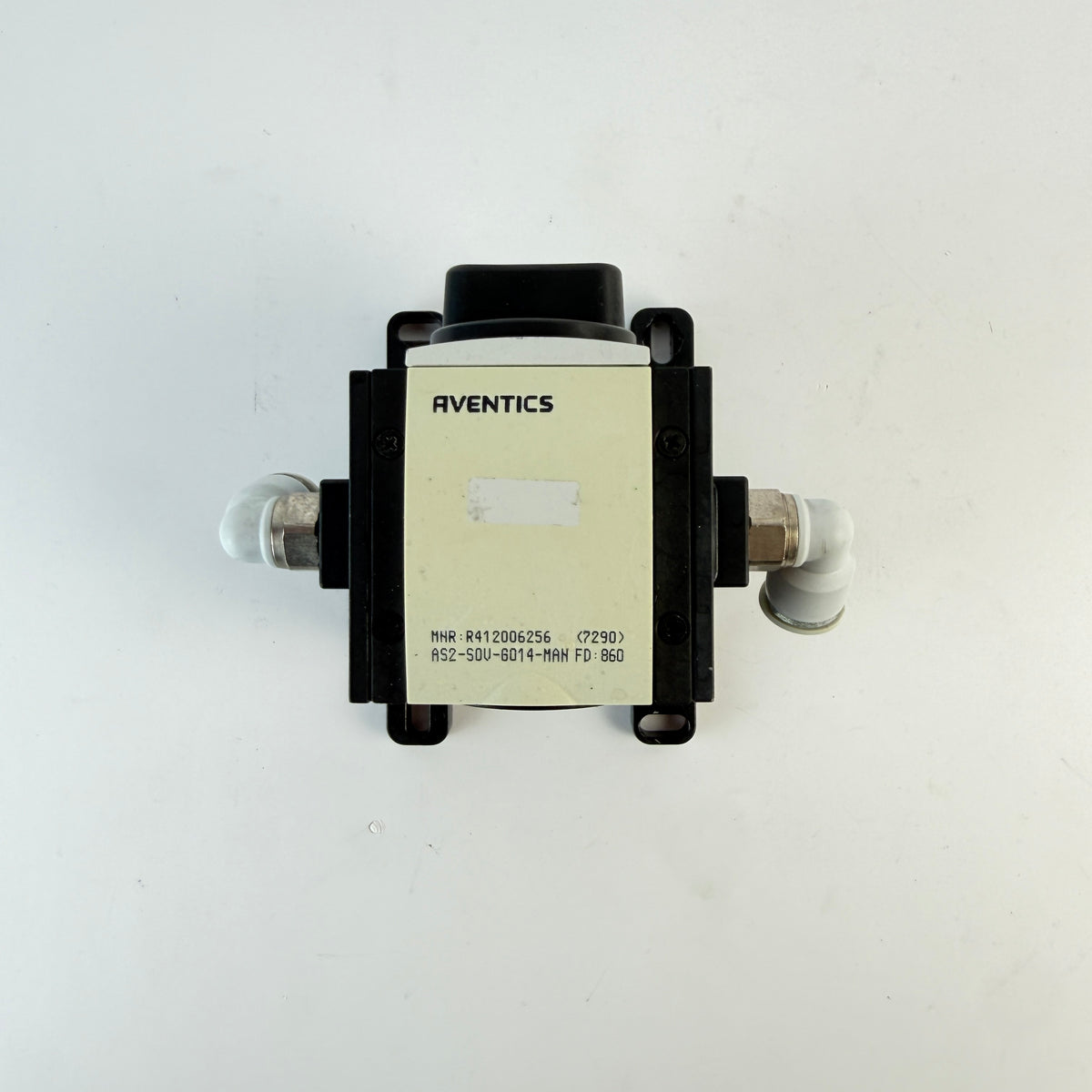

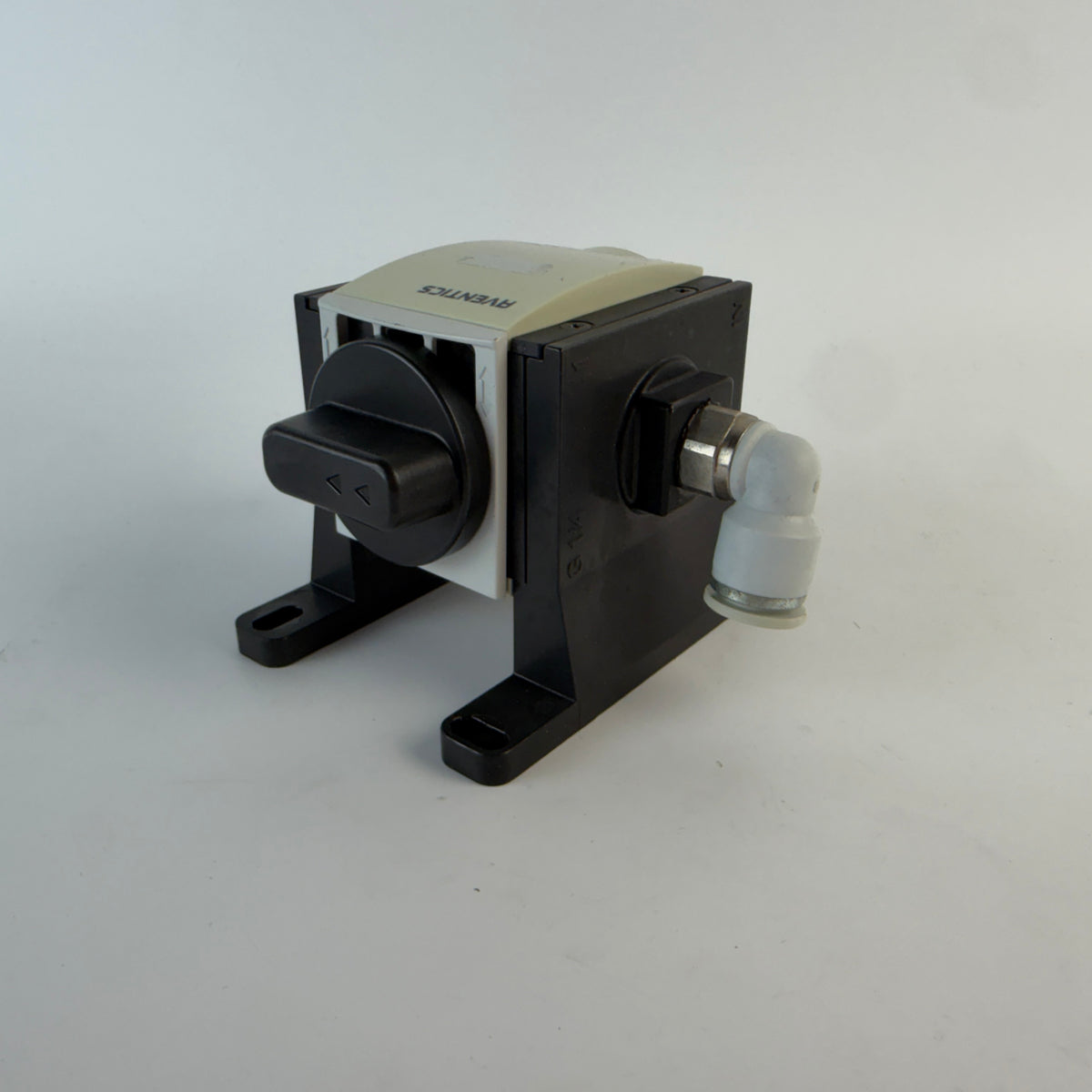

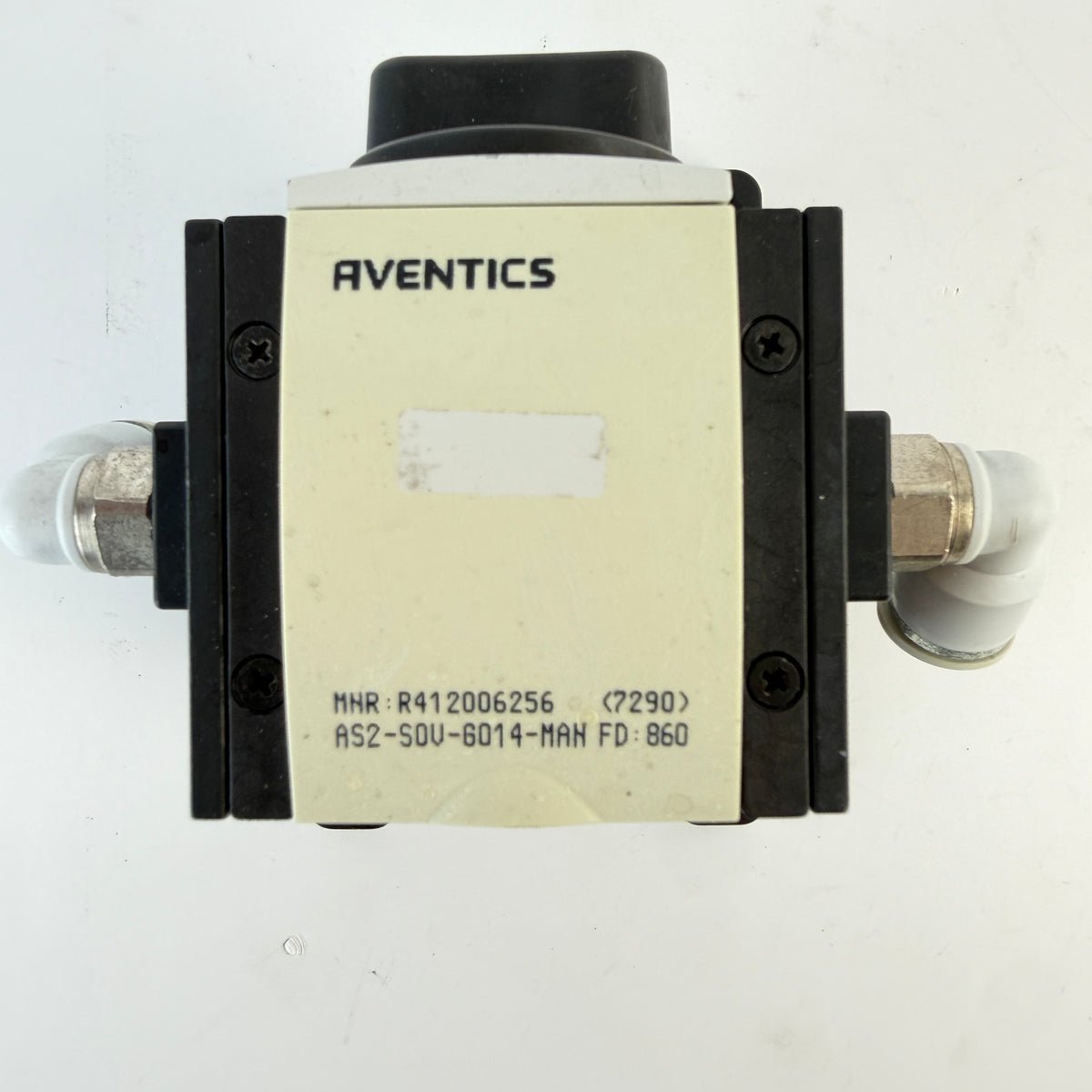

The unit is identified as AS2-SOV-G014-MAN-4-ST, with AS2-SOV-G014-MAN marked on the housing. The photographed unit is also fitted with pneumatic elbow push-in fittings.

Technical Specifications:

• Manufacturer: AVENTICS
• Series: AS2 / AS2-BAV
• Part Number / MPN: R412006256
• Type Code: AS2-SOV-G014-MAN-4-ST
• Type: Pneumatic shut-off valve
• Valve Function: 3/2-way
• Actuation: Mechanical
• Actuating Element: Rotary switch
• Valve Design: Poppet valve
• Sealing Principle: Soft sealing
• Lockable: Yes, provision for padlock
• Inlet Connection: G1/4
• Outlet Connection: G1/4
• Exhaust Connection: G1/4
• Working Pressure: 0–16 bar
• Nominal Flow 1 → 2: 2,000 l/min
• Nominal Flow 2 → 3: 380 l/min
• Medium: Compressed air / neutral gases
• Maximum Particle Size: 25 µm
• Ambient Temperature: -10°C to +50°C
• Medium Temperature: -10°C to +50°C
• Housing Material: Polyamide
• Seal Material: NBR
• Weight: approx. 0.206 kg
• Suitable for integration into AVENTICS AS2 air-preparation assemblies

Pneumatic elbow fittings shown in the photos are included with the supplied unit; their exact part numbers and tube sizes are not confirmed.

Condition: Used, fully functional.
