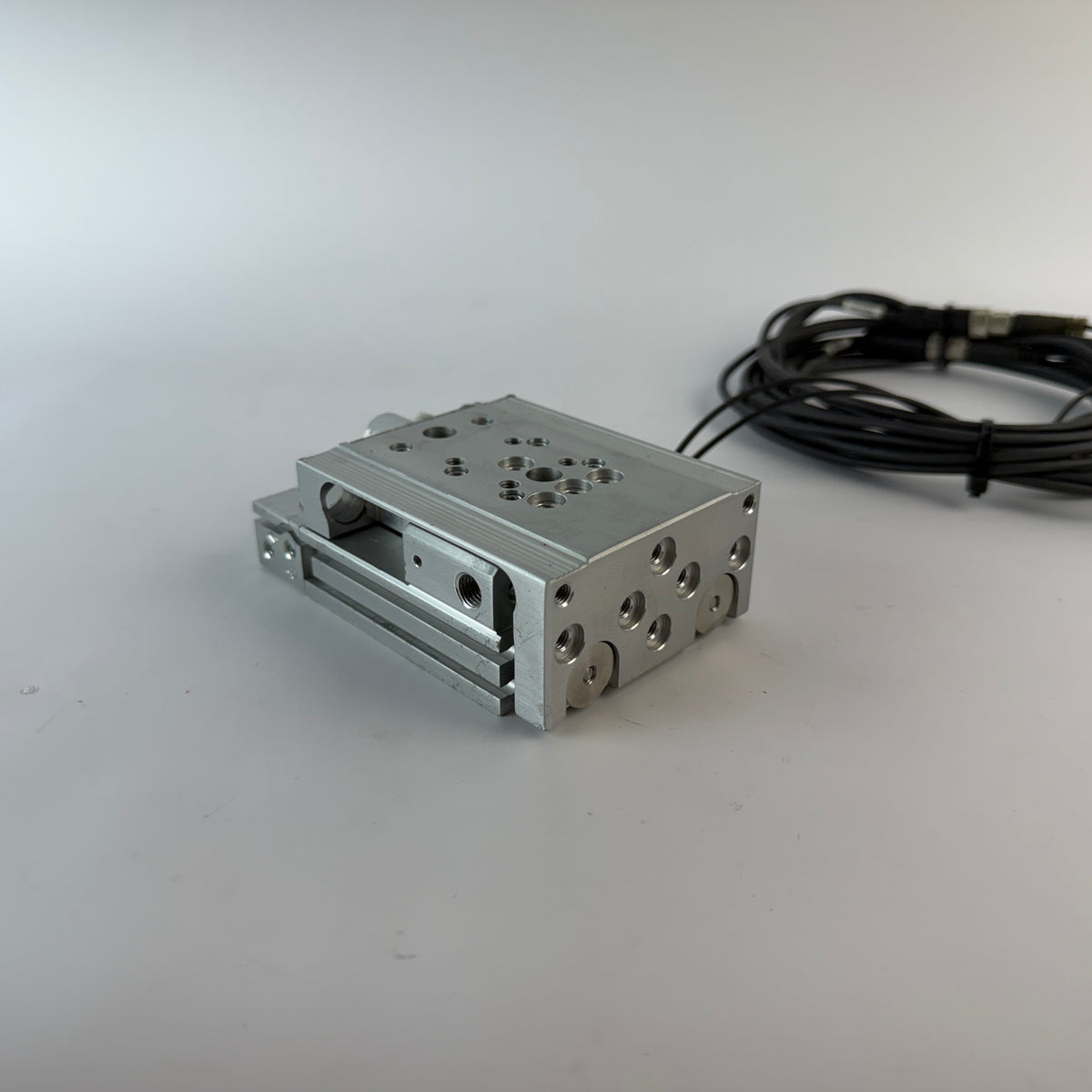

AVENTICS R412019183 pneumatic mini slide from the MSC-HG-HM Series, designed for compact and precise guided linear motion in industrial automation equipment.
The R412019183 uses a double-piston, double-acting pneumatic design with an integrated High Performance ball rail guide. This configuration provides a guided moving platform for applications where controlled linear movement and good repeatability are required.
Technical Specifications:

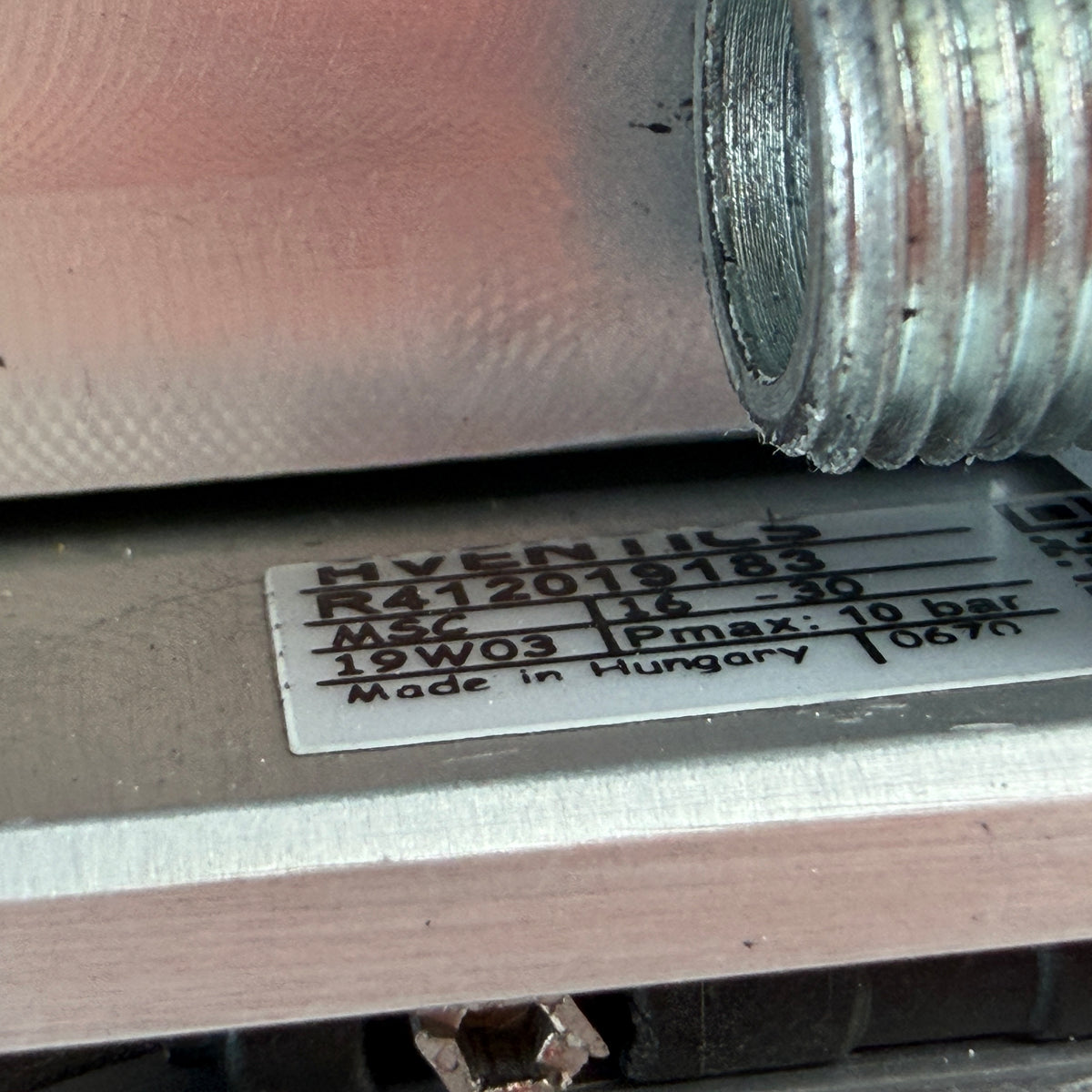

- Manufacturer: AVENTICS
- MPN: R412019183
- Series: MSC-HG-HM
- Configuration: MSC-DA-016-0030-HG-HM-HM-02-M-S-0-0-ACC
- Type: Pneumatic mini slide / guided cylinder
- Piston diameter: 16 mm
- Stroke: 30 mm
- Operating principle: Double-acting
- Design: Double piston
- Guide: Integrated High Performance ball rail system
- Magnetic piston: Yes
- Cushioning: Hydraulic
- Working pressure: 1–10 bar
- Pneumatic ports: M5
- Maximum speed: 0.8 m/s
- Repeatability: 0.02 mm
- Theoretical extending force at 6.3 bar: 253 N
- Theoretical retracting force at 6.3 bar: 218 N
- Cushioning length: 7 mm
- Cushioning energy: 1.2 J
- Operating medium: Compressed air
- Ambient temperature: 0°C to +60°C
- Housing material: Aluminum
- Country of Origin: Hungary

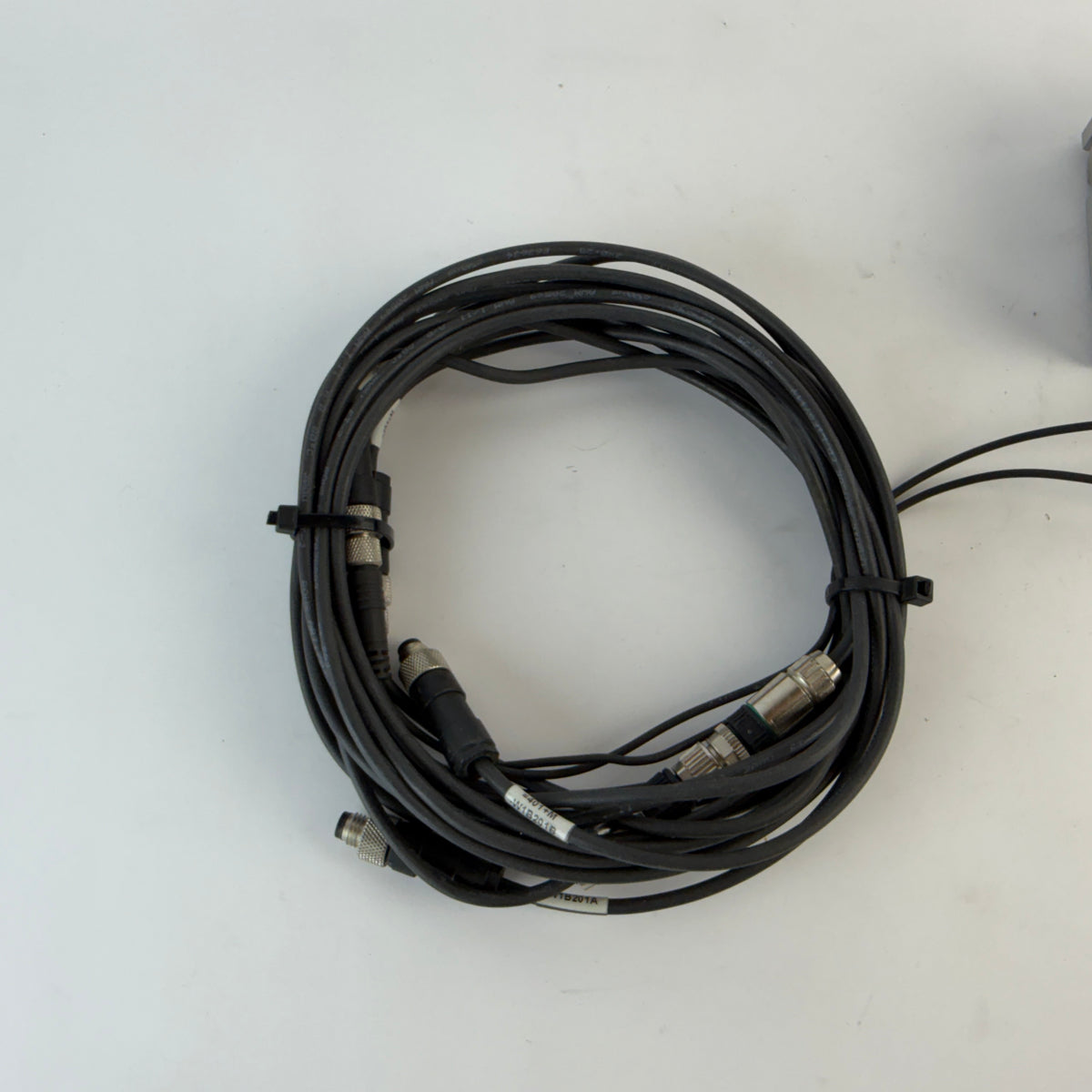

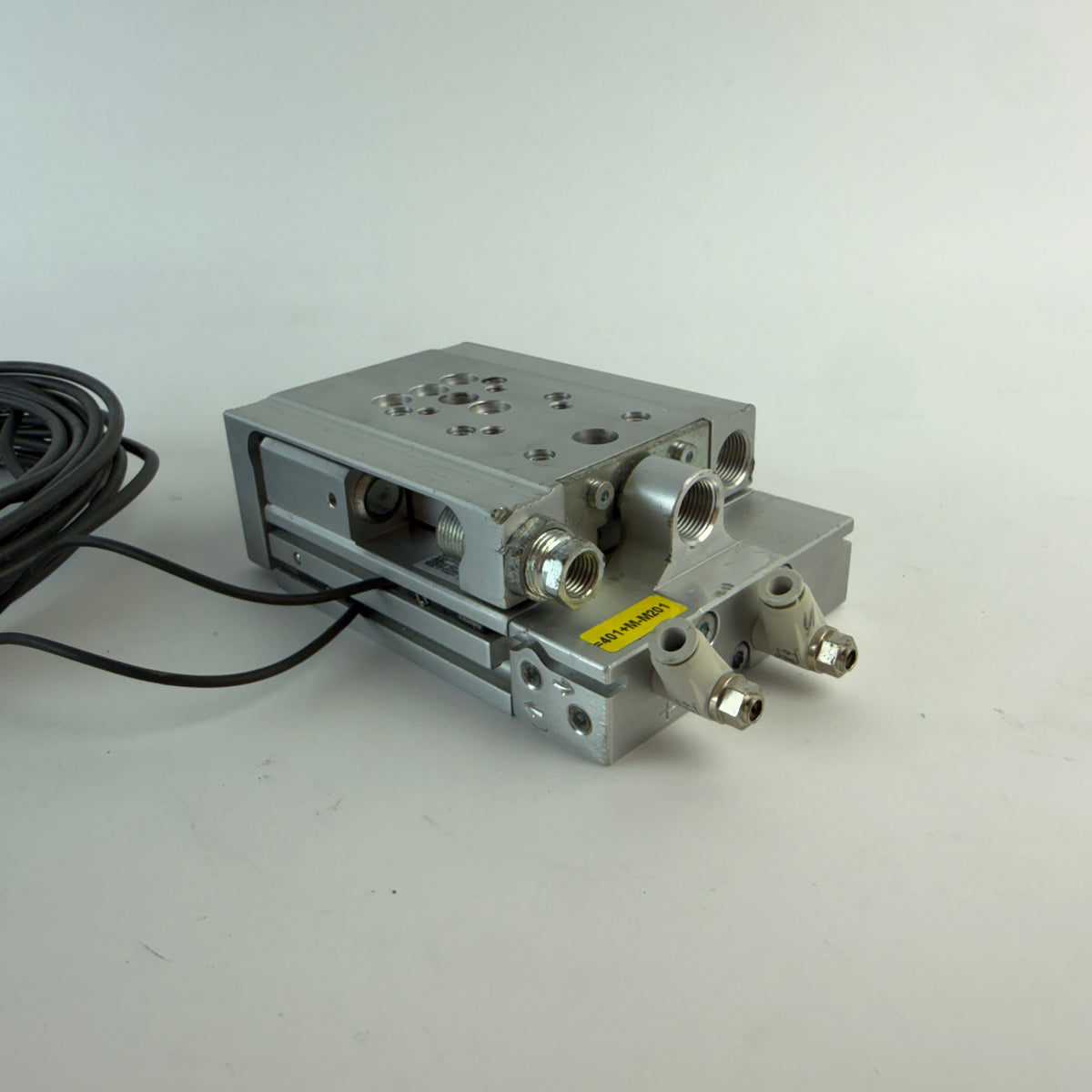

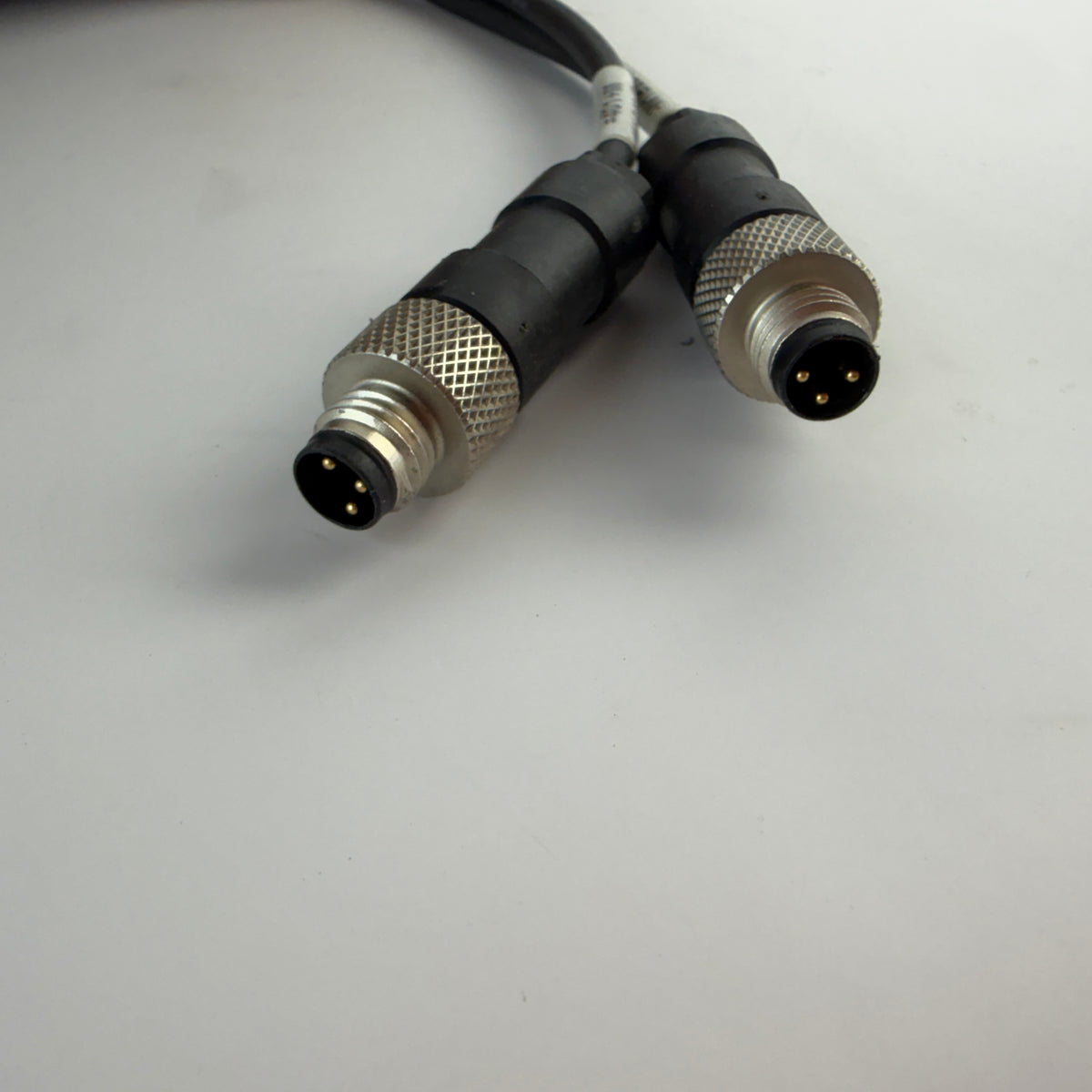

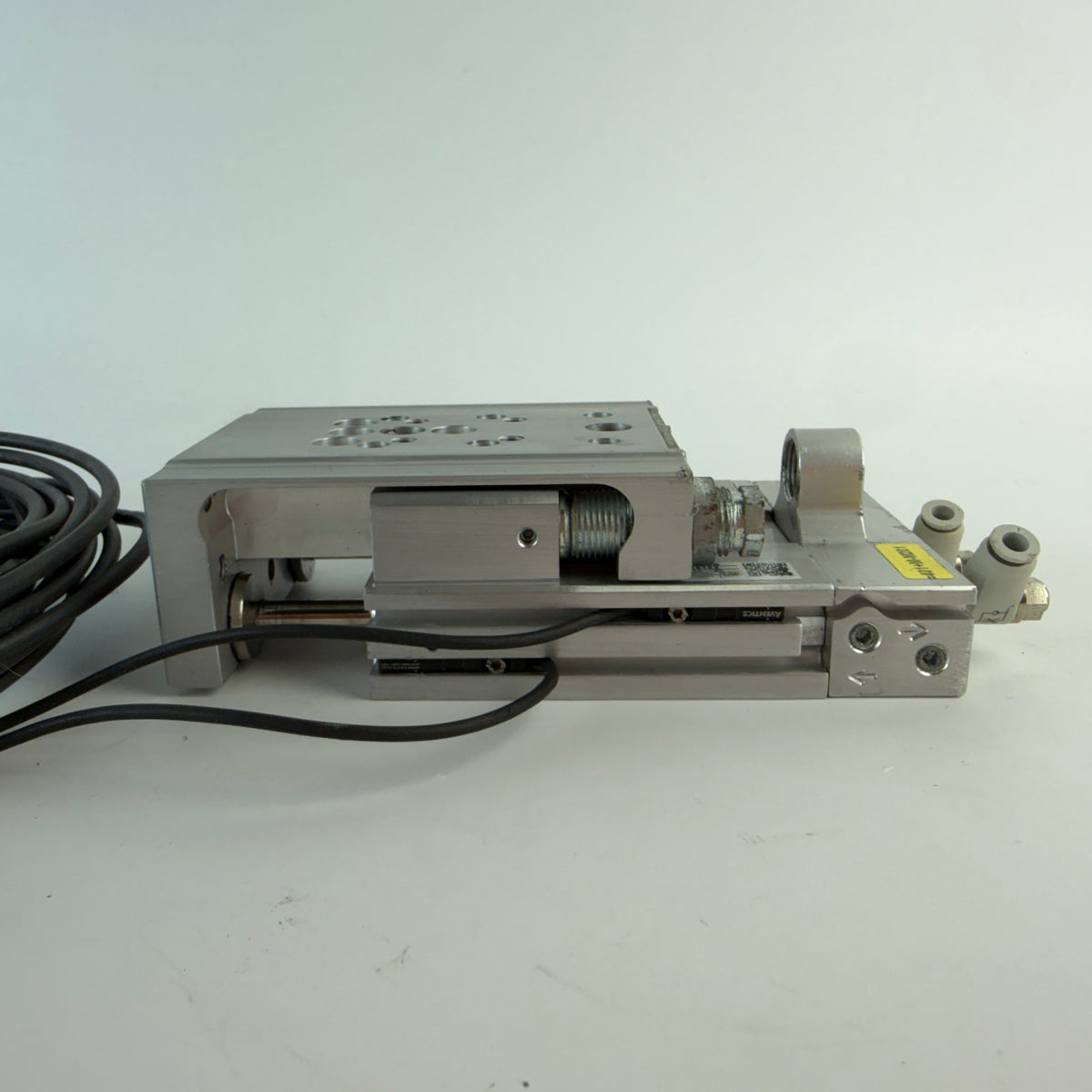

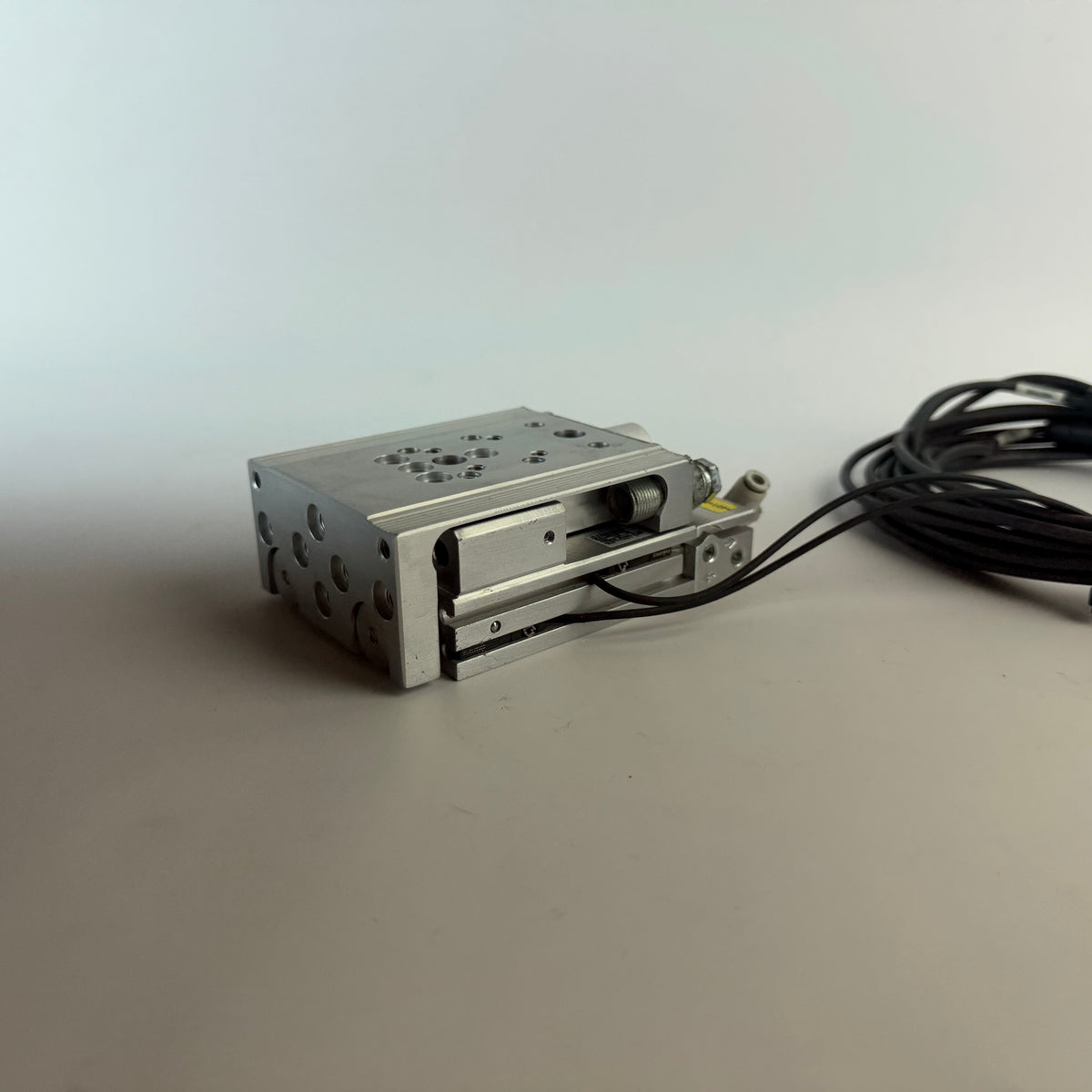

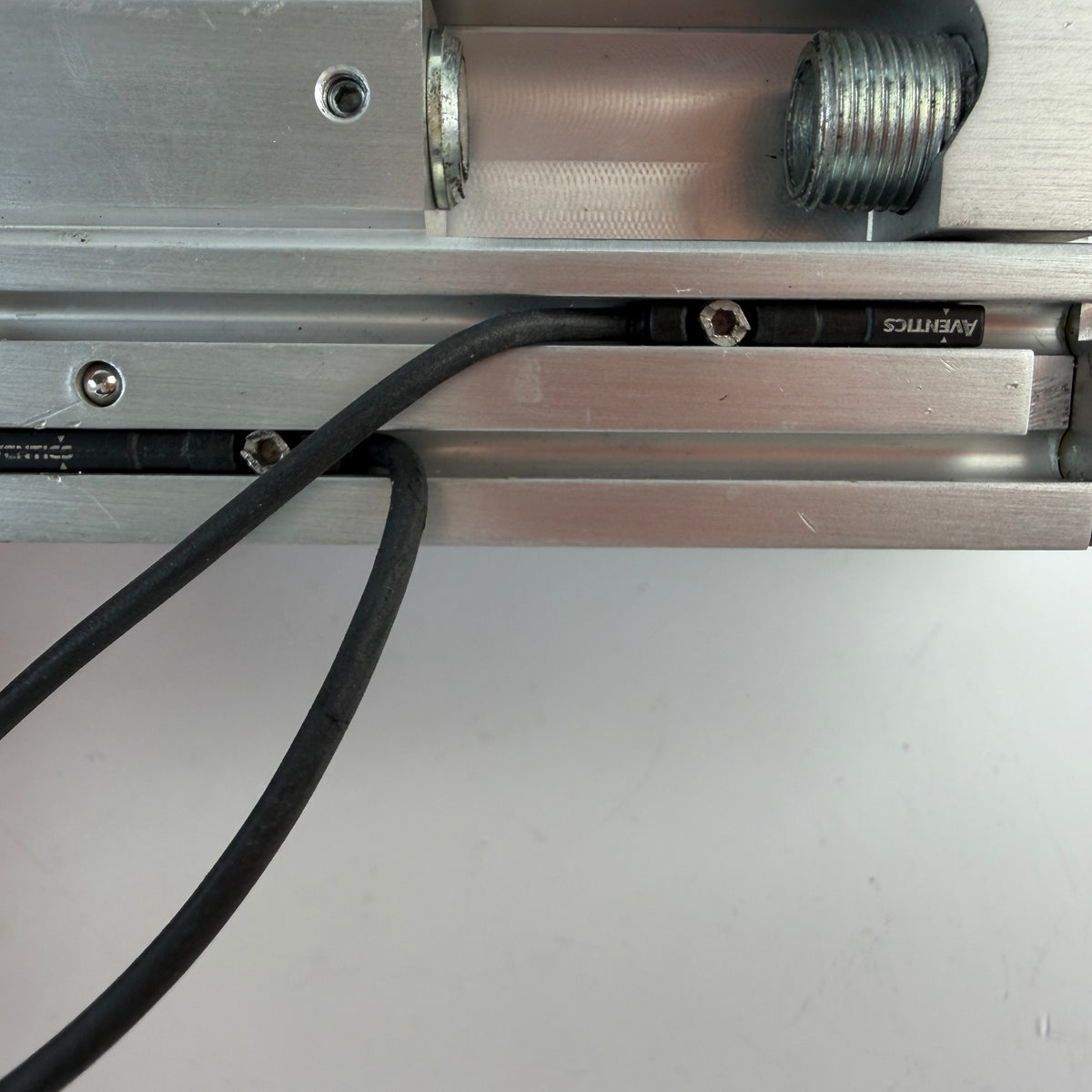

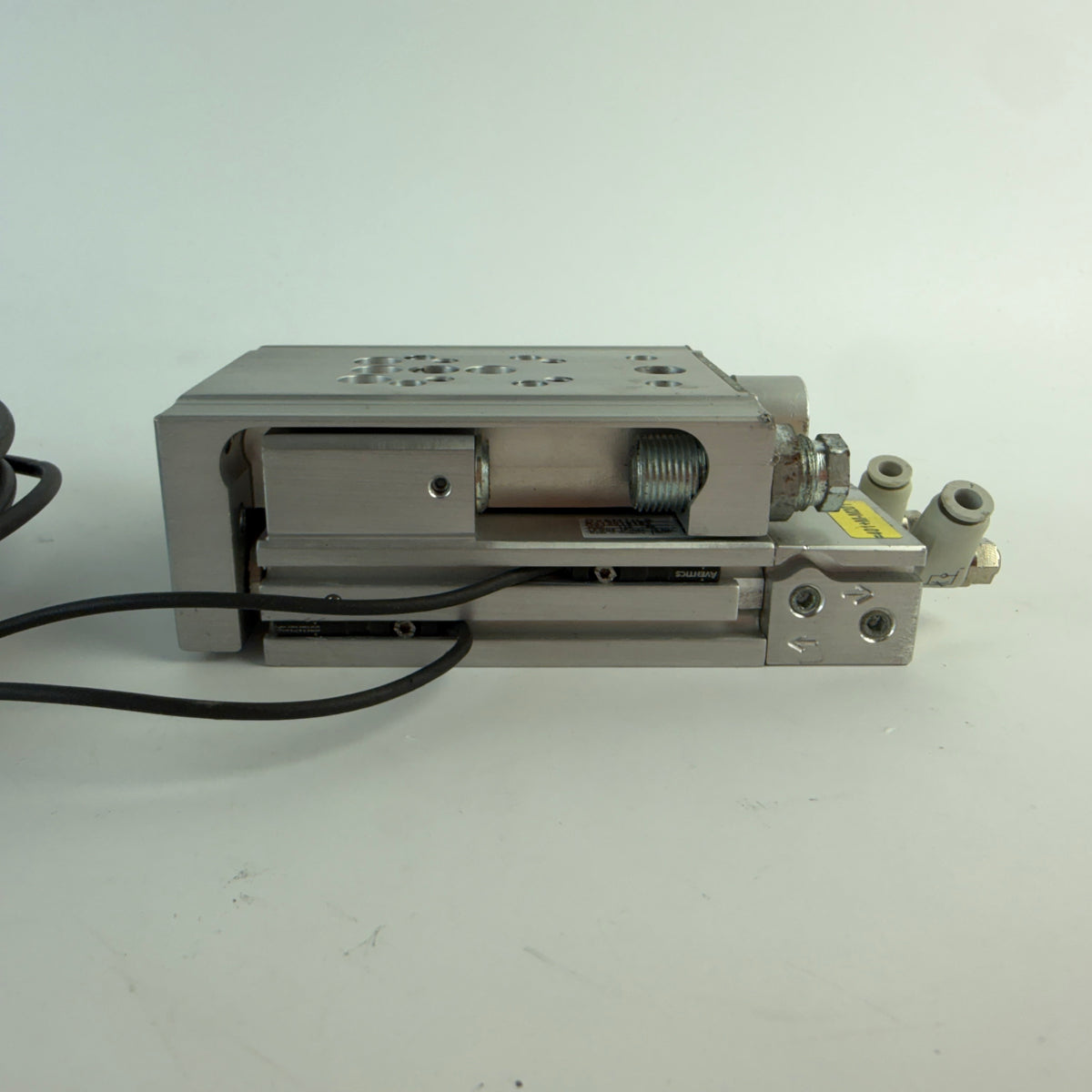

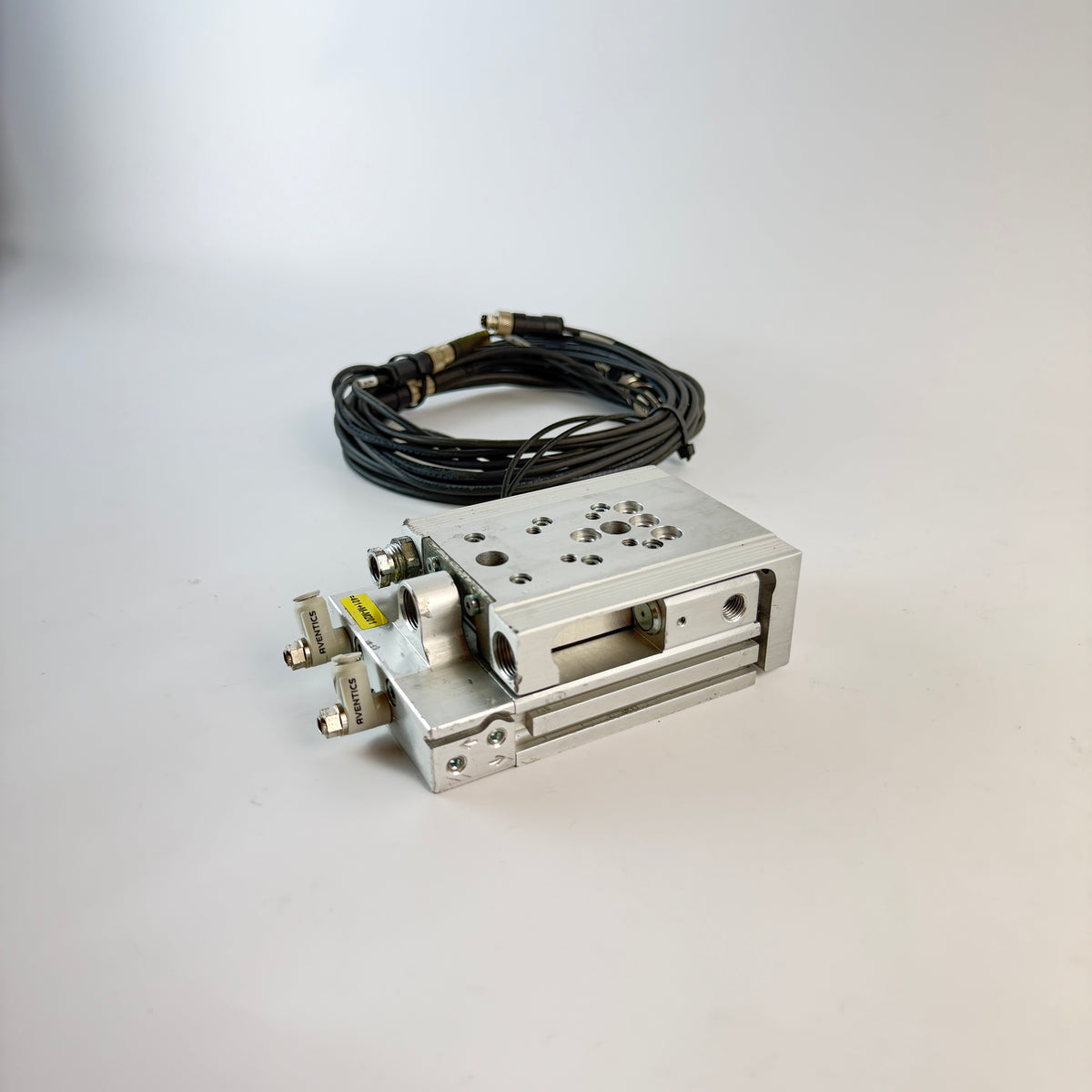

The pictured assembly includes two installed AVENTICS magnetic position sensors, associated sensor cables/connectors, pneumatic fittings and the installed mounting/interface hardware. Exact part numbers of these additional components are not confirmed.
Condition: Used, fully functional.
