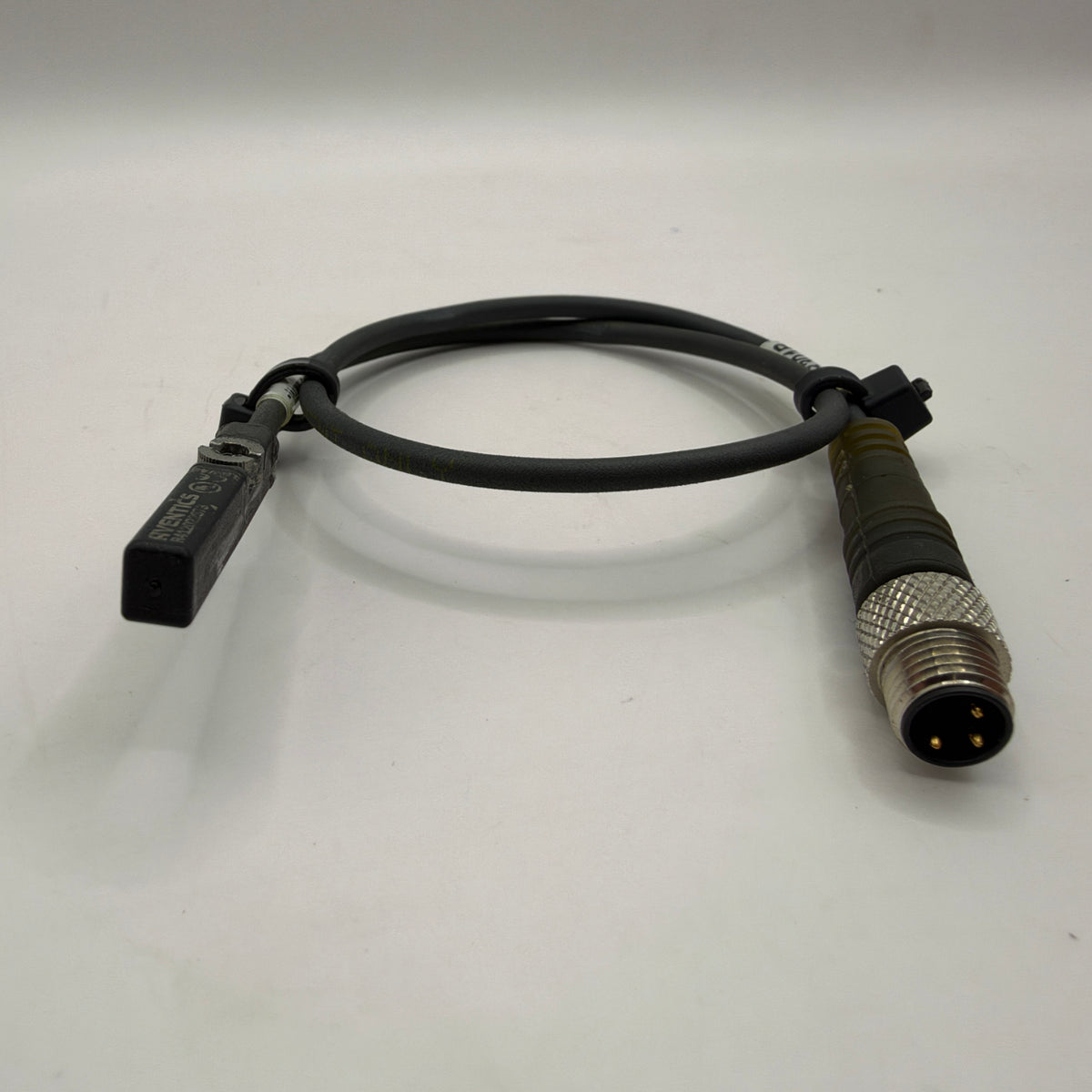

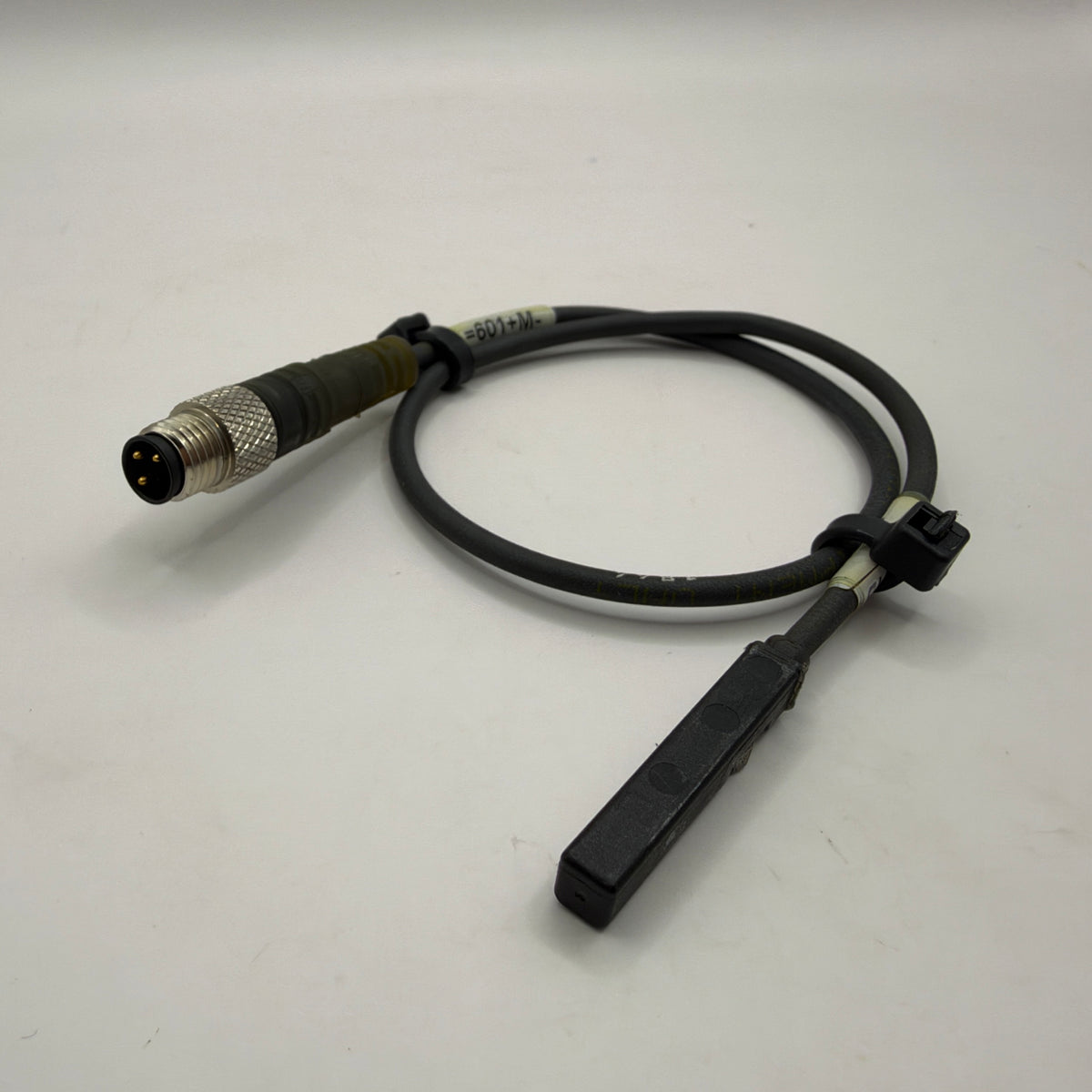

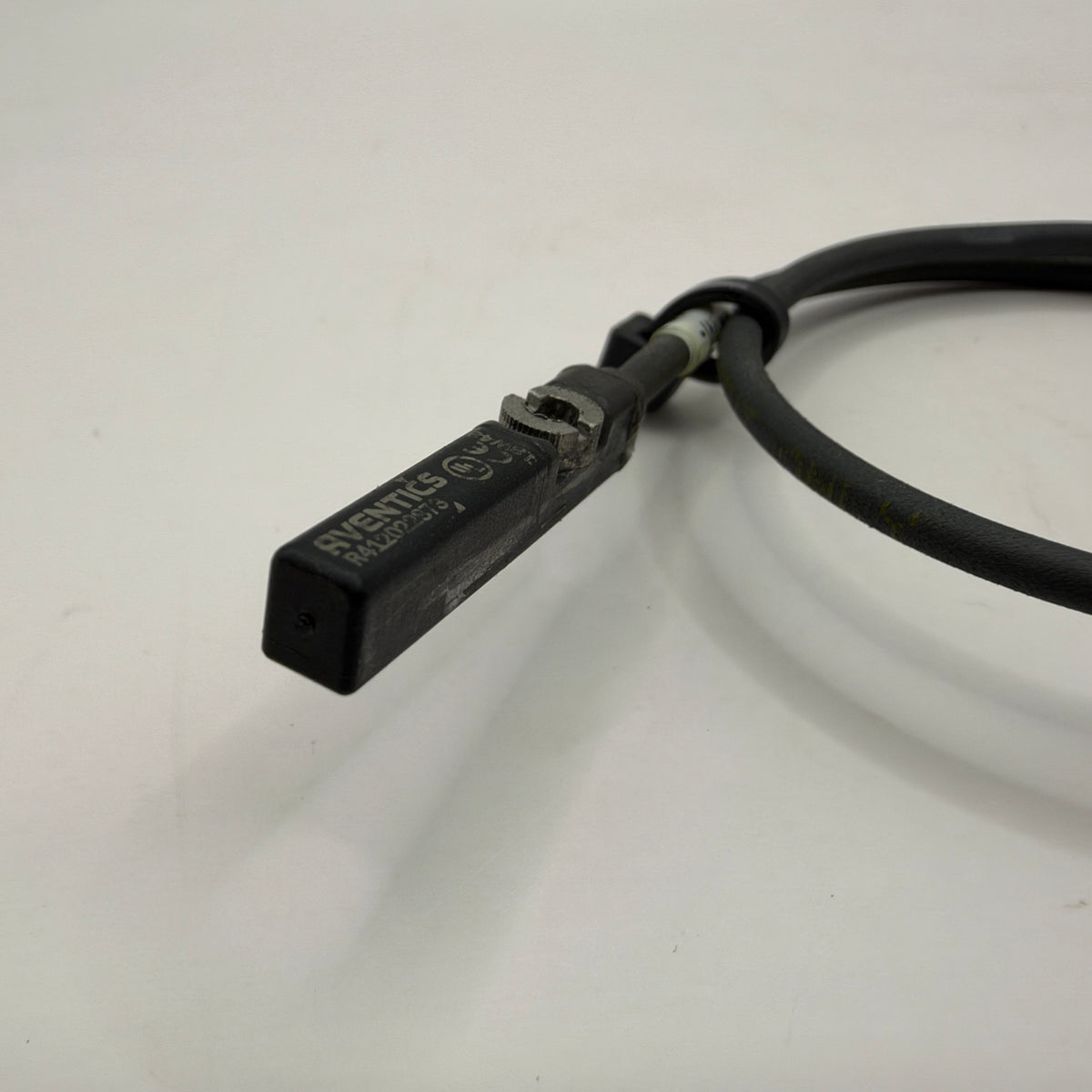

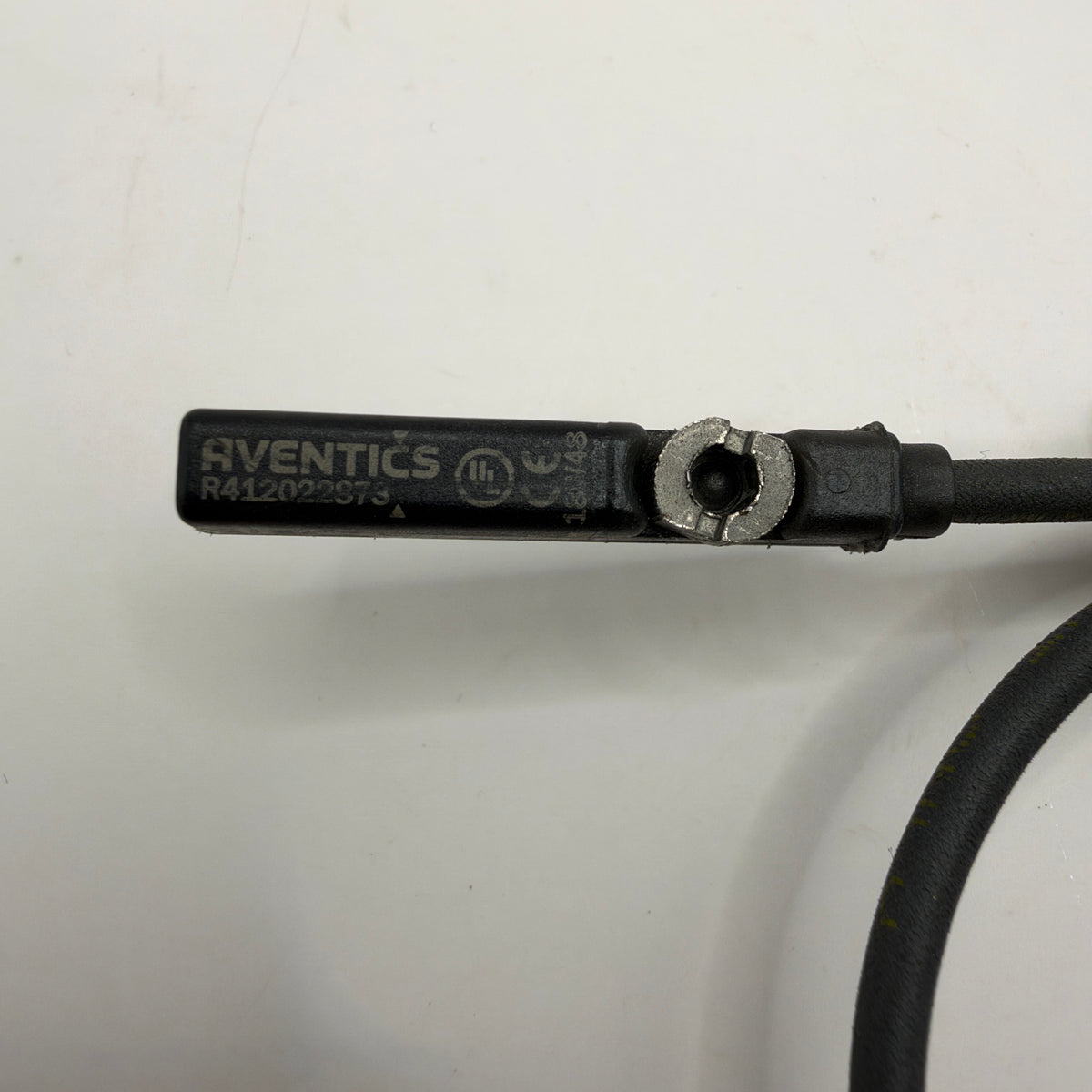

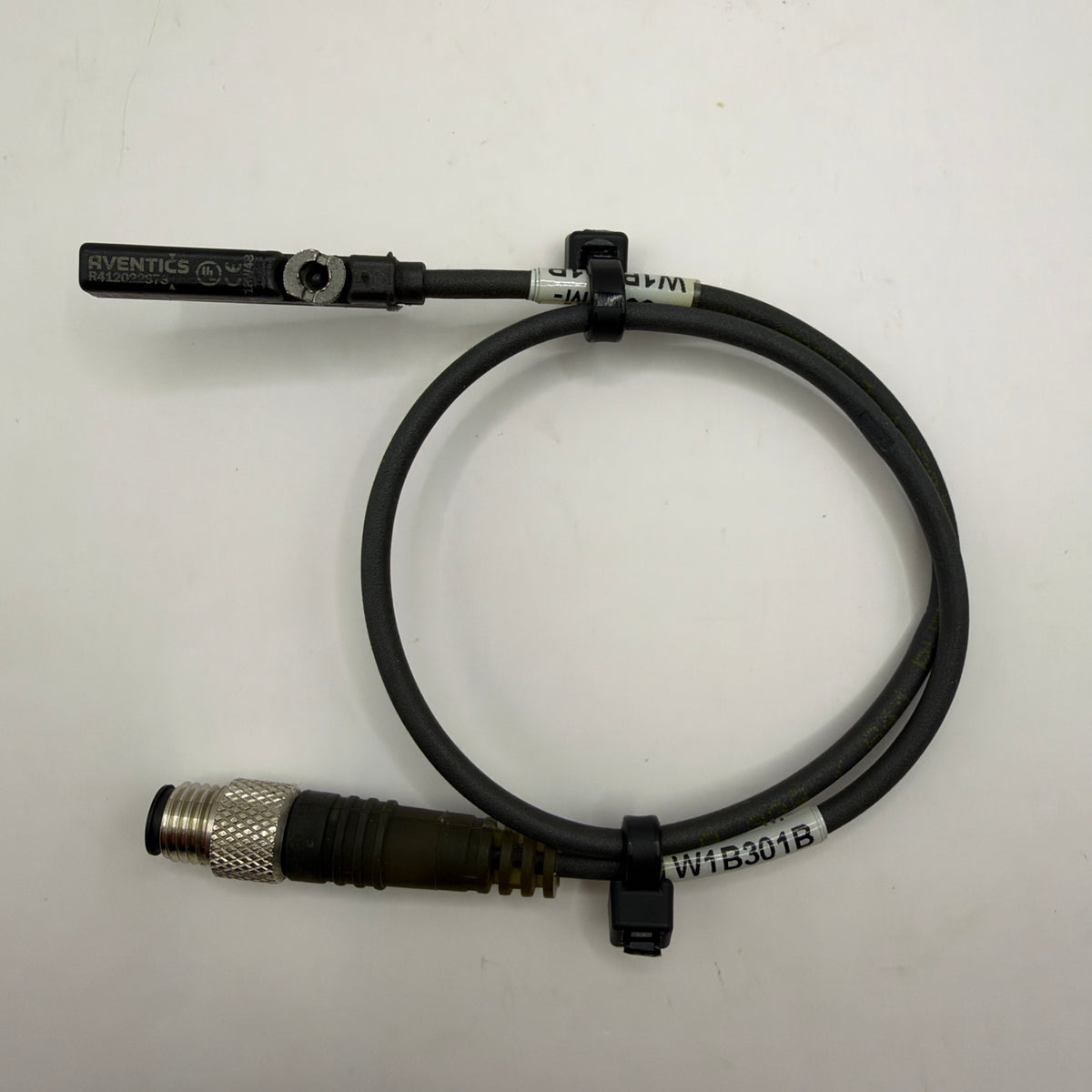

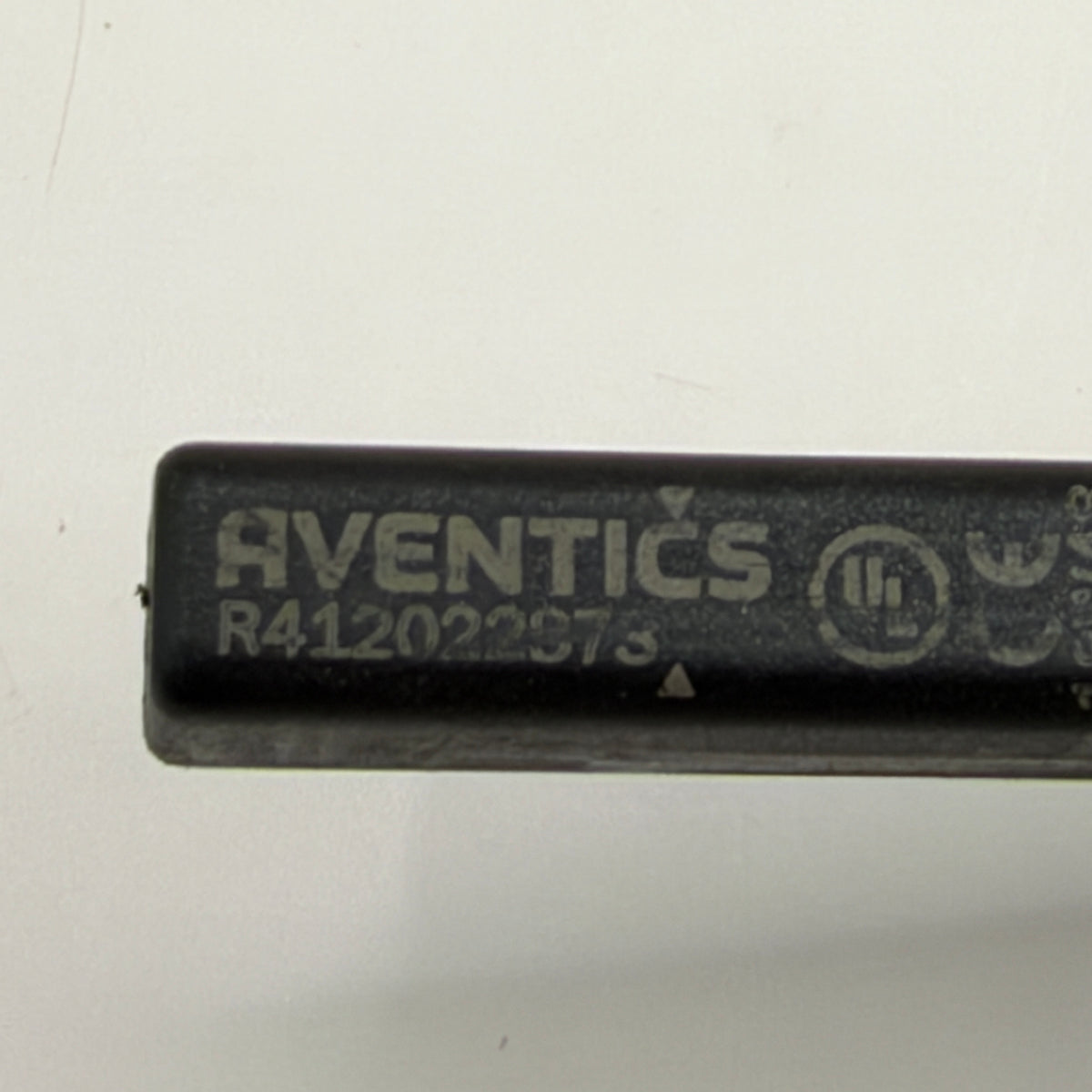

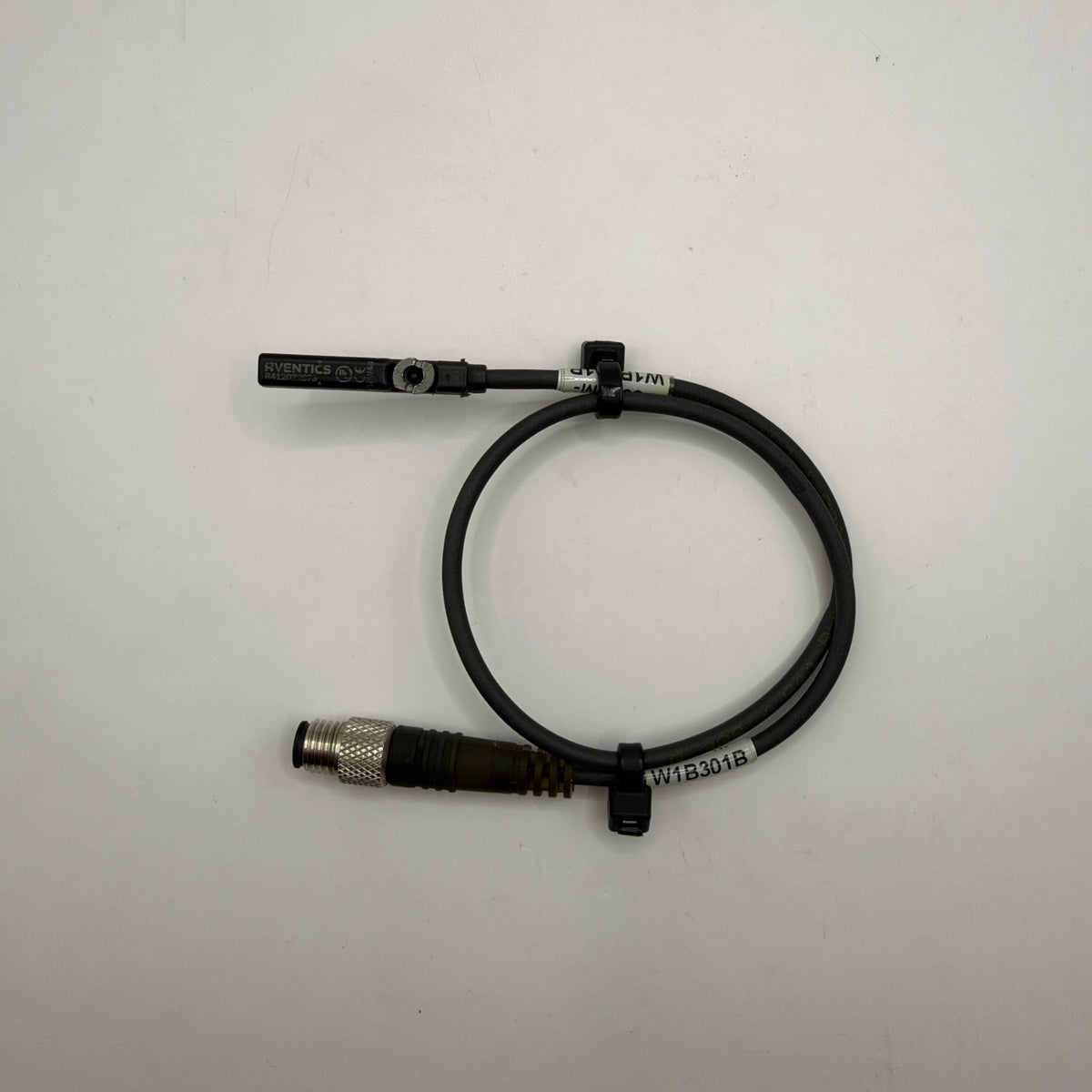

AVENTICS R412022873 magnetic proximity sensor from the Series ST6, designed for position sensing on pneumatic cylinders.

This compact sensor uses a Reed contact with normally open (NO) switching logic and is designed for installation in a 6 mm T-slot. Its compact housing allows flush installation in compatible pneumatic cylinder profiles.

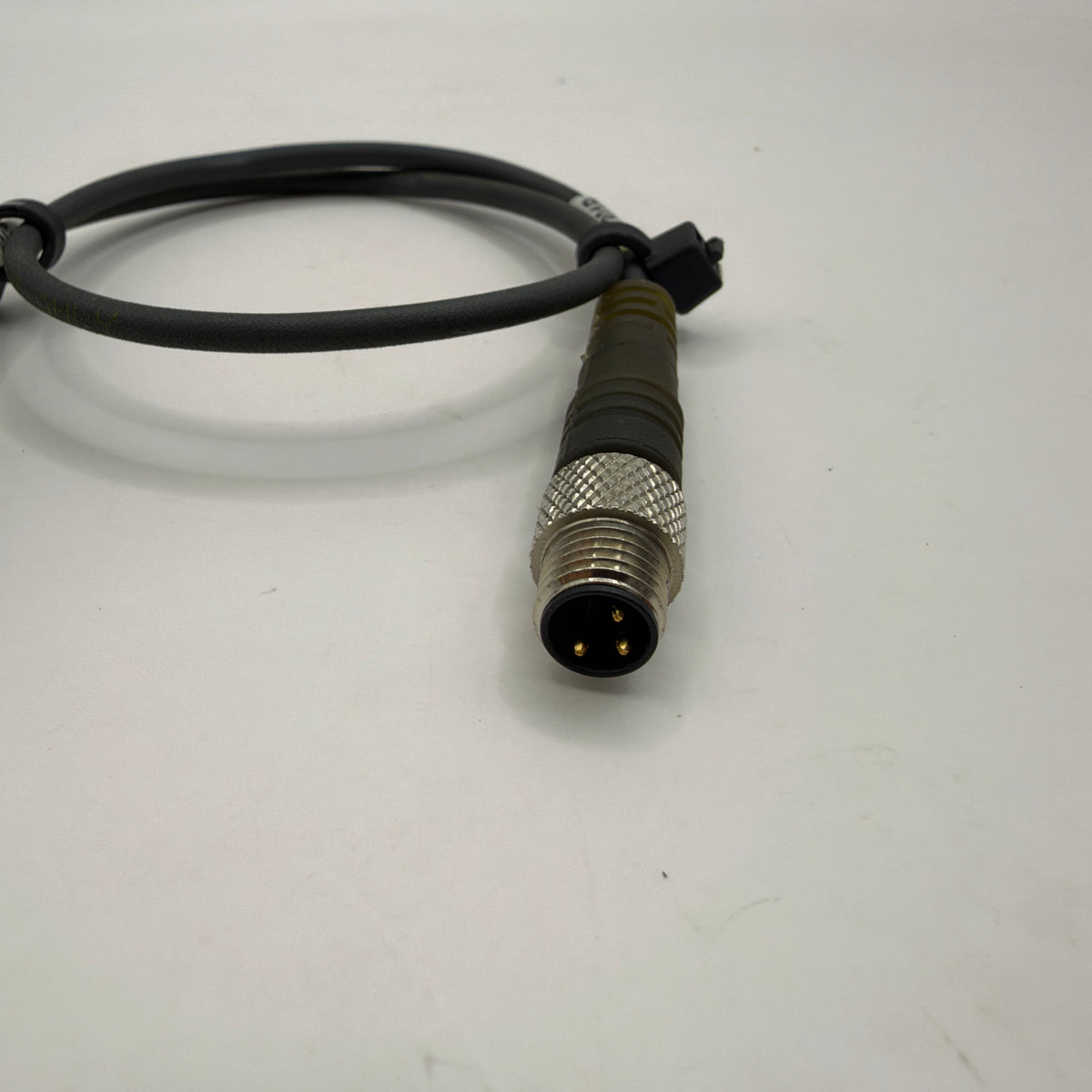

The sensor is supplied with an integrated cable terminating in an M8x1 3-pin male connector.

Specifications:

• Manufacturer: AVENTICS
• Part Number / MPN: R412022873
• Series: ST6
• Type: Magnetic proximity sensor / pneumatic cylinder sensor
• Sensing principle: Magnetic
• Contact type: Reed
• Switching logic: Normally Open (NO)
• Mounting: 6 mm T-slot
• Operating voltage: 10–30 V AC/DC
• Maximum DC switching current: 0.3 A
• Maximum AC switching current: 0.5 A
• Maximum switching capacity: 6 W
• Maximum switching frequency: 400 Hz
• Switching point precision: ±0.1 mT
• Hysteresis: ≥0.2 mT
• Connection: M8x1 male, 3-pin
• Protection rating: IP65 / IP67
• Operating temperature: -30 to +80 °C
• Housing material: Polyamide
• Polarity reversal protection
• CE, cULus and RoHS approvals

Suitable for industrial pneumatic cylinder position detection and compatible mounting arrangements using the AVENTICS 6 mm T-slot system.

Used, fully functional.
