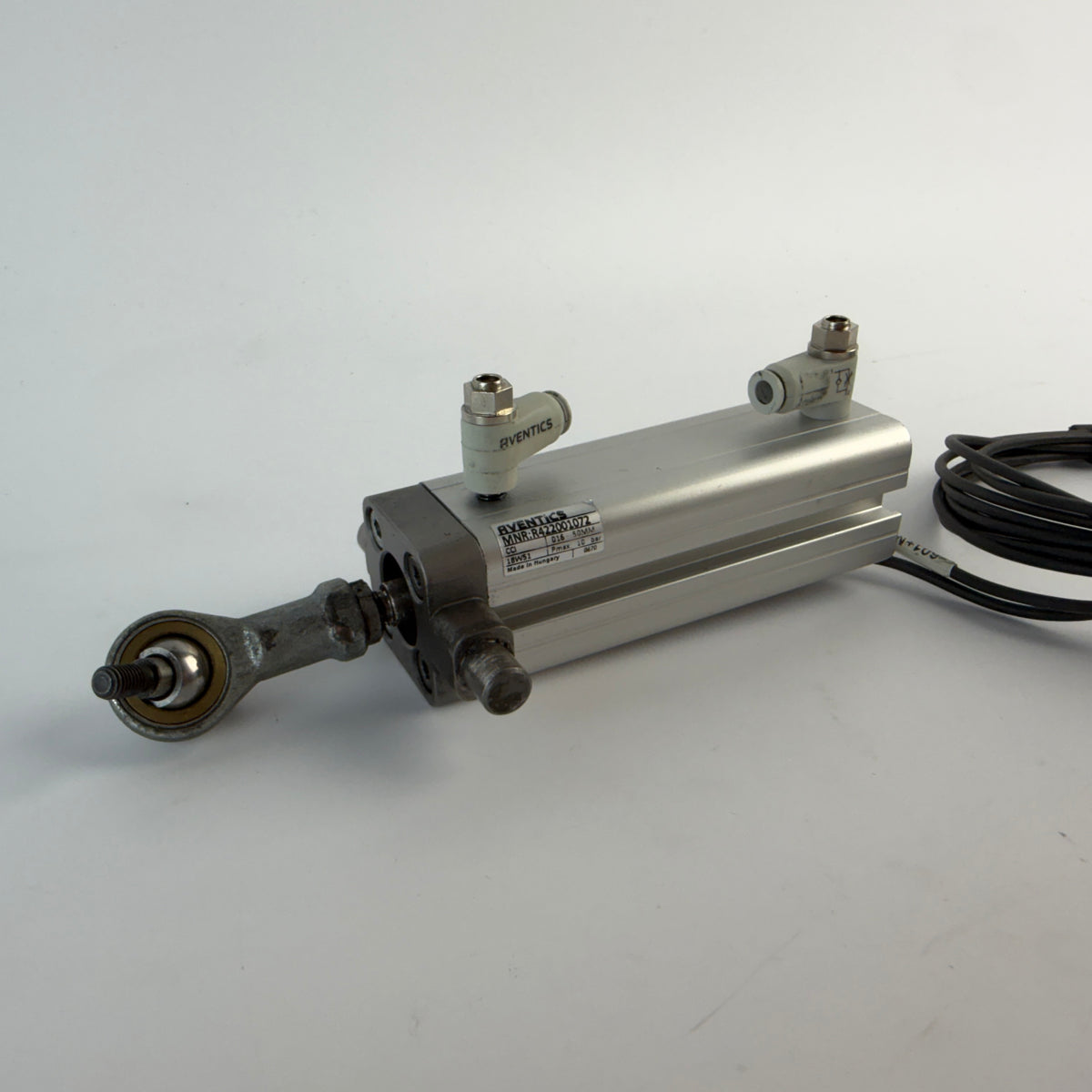

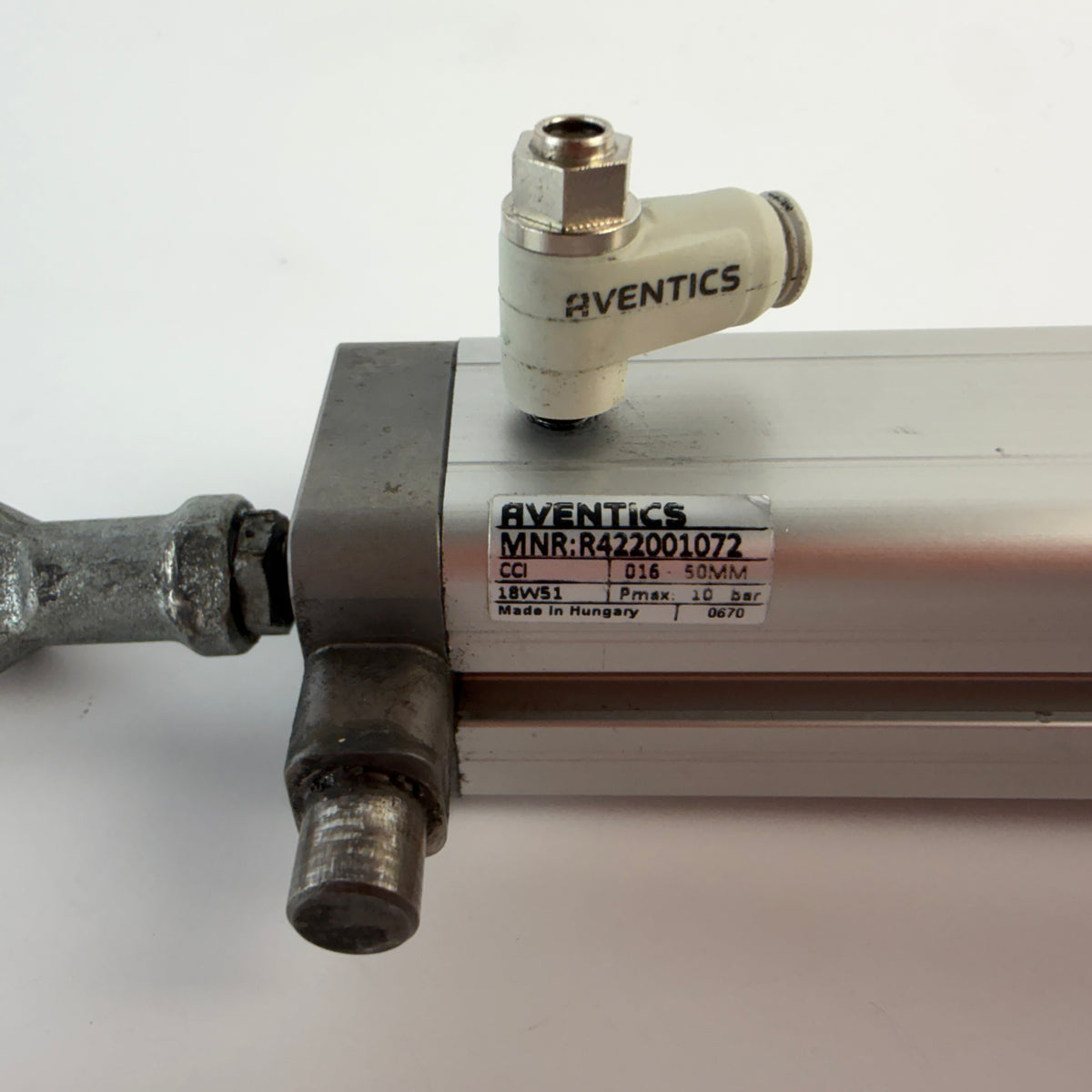

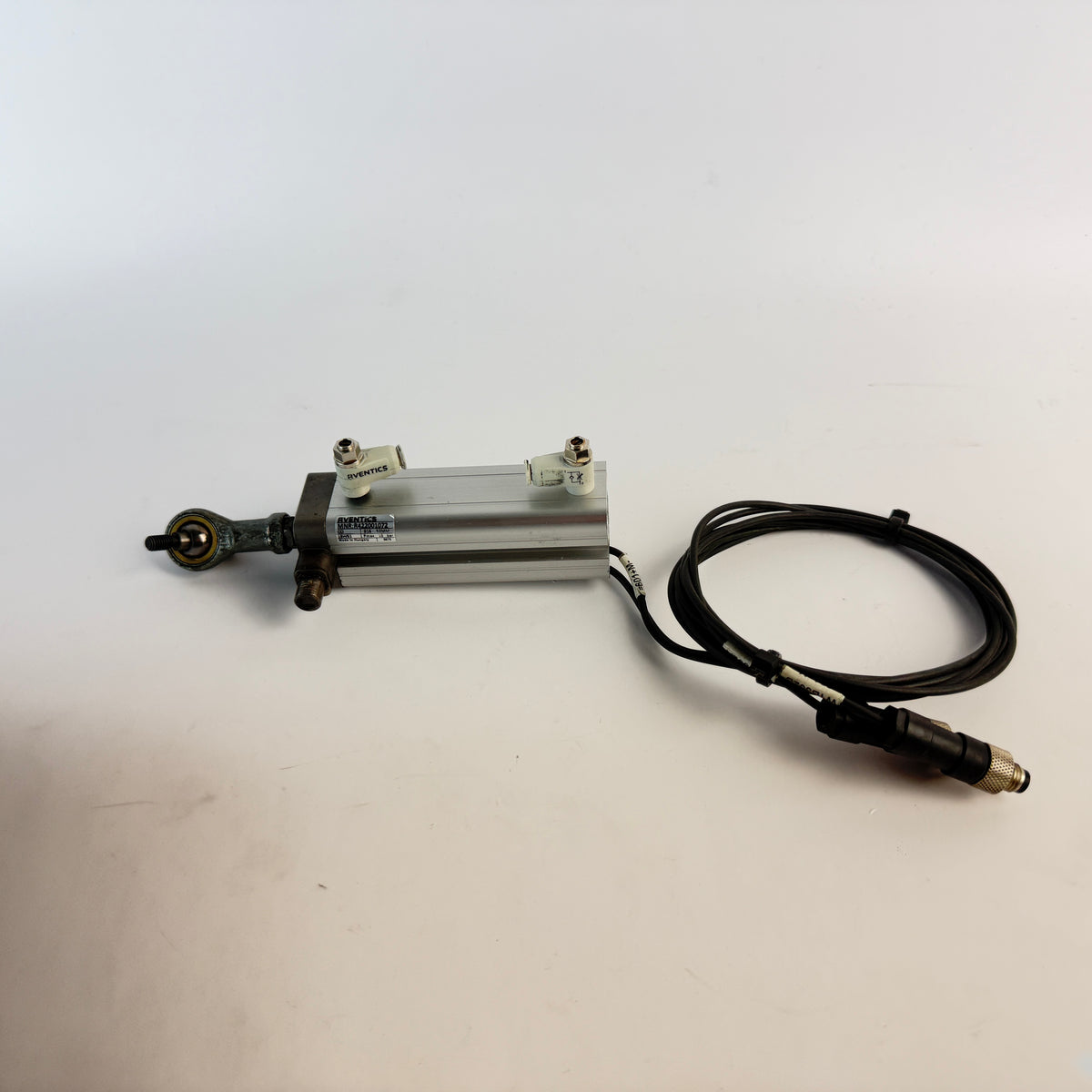

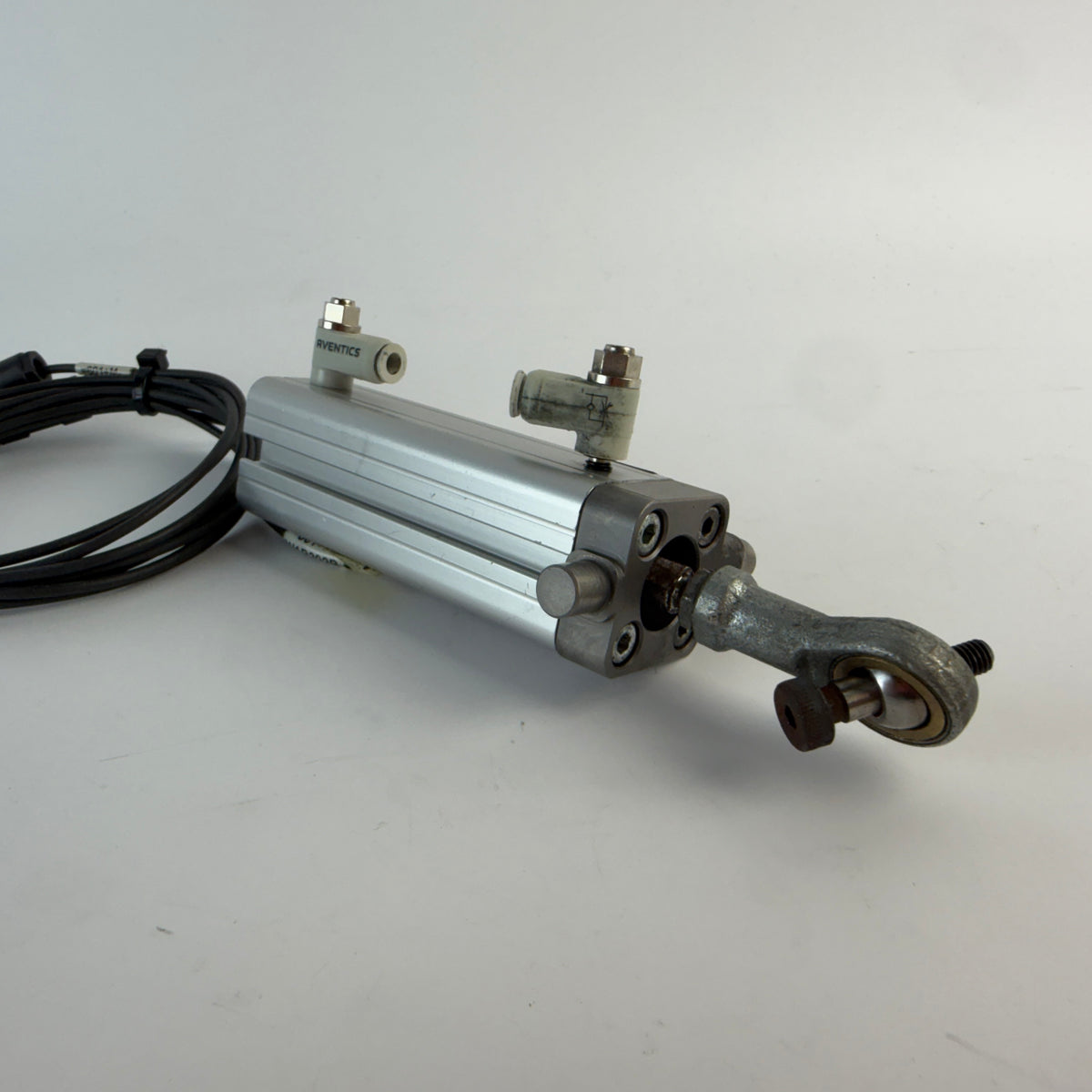

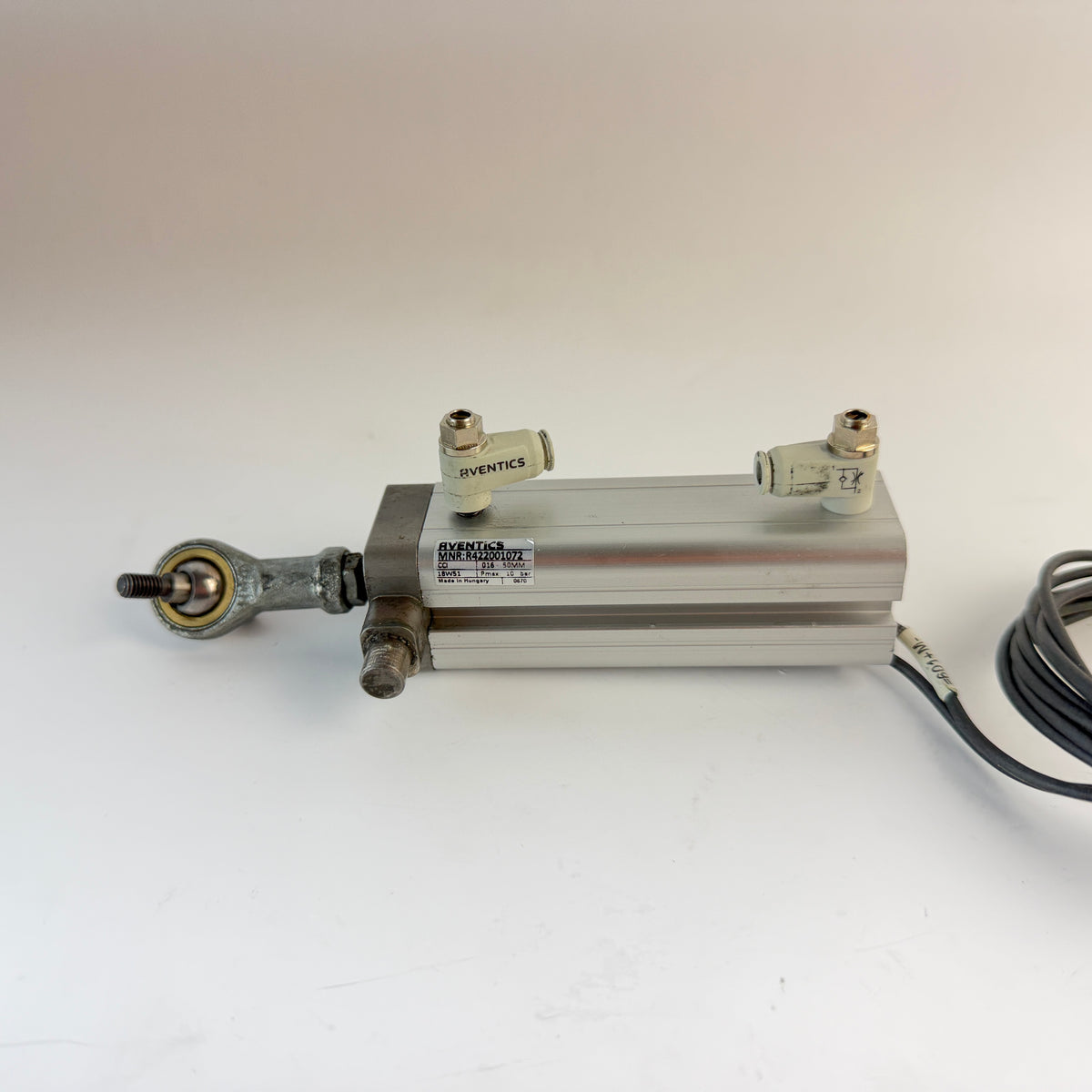

AVENTICS R422001072 compact pneumatic cylinder from the CCI series, supplied as a complete assembly with two installed position sensors, sensor cables, pneumatic fittings and rod-end joint.
The cylinder is a double-acting ISO 21287 design with a magnetic piston and elastic cushioning. This specific model has a 16 mm bore and 50 mm stroke.
Technical specifications:
- Manufacturer: AVENTICS
- Series: CCI
- Part Number: R422001072
- Type: Compact pneumatic cylinder
- Operating principle: Double-acting
- Bore / piston diameter: 16 mm
- Stroke: 50 mm
- Maximum operating pressure: 10 bar
- Operating pressure: 1–10 bar
- Magnetic piston: Yes
- Cushioning: Elastic
- Piston rod diameter: 8 mm
- Pneumatic ports: M5
- Standard: ISO 21287
- Operating temperature: -20°C to +80°C
- Country of manufacture: Hungary
Included with the cylinder:

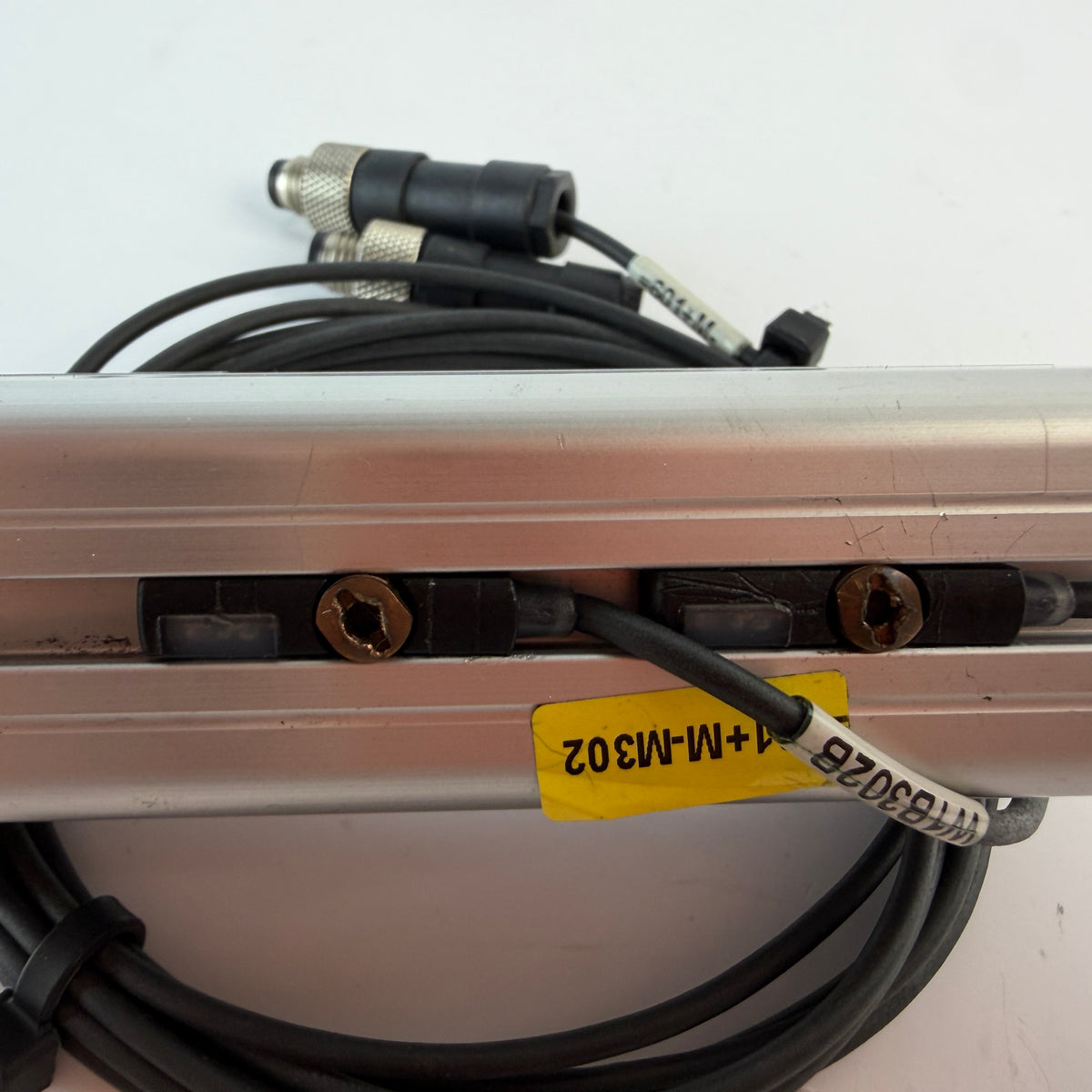

- 2 installed position sensors

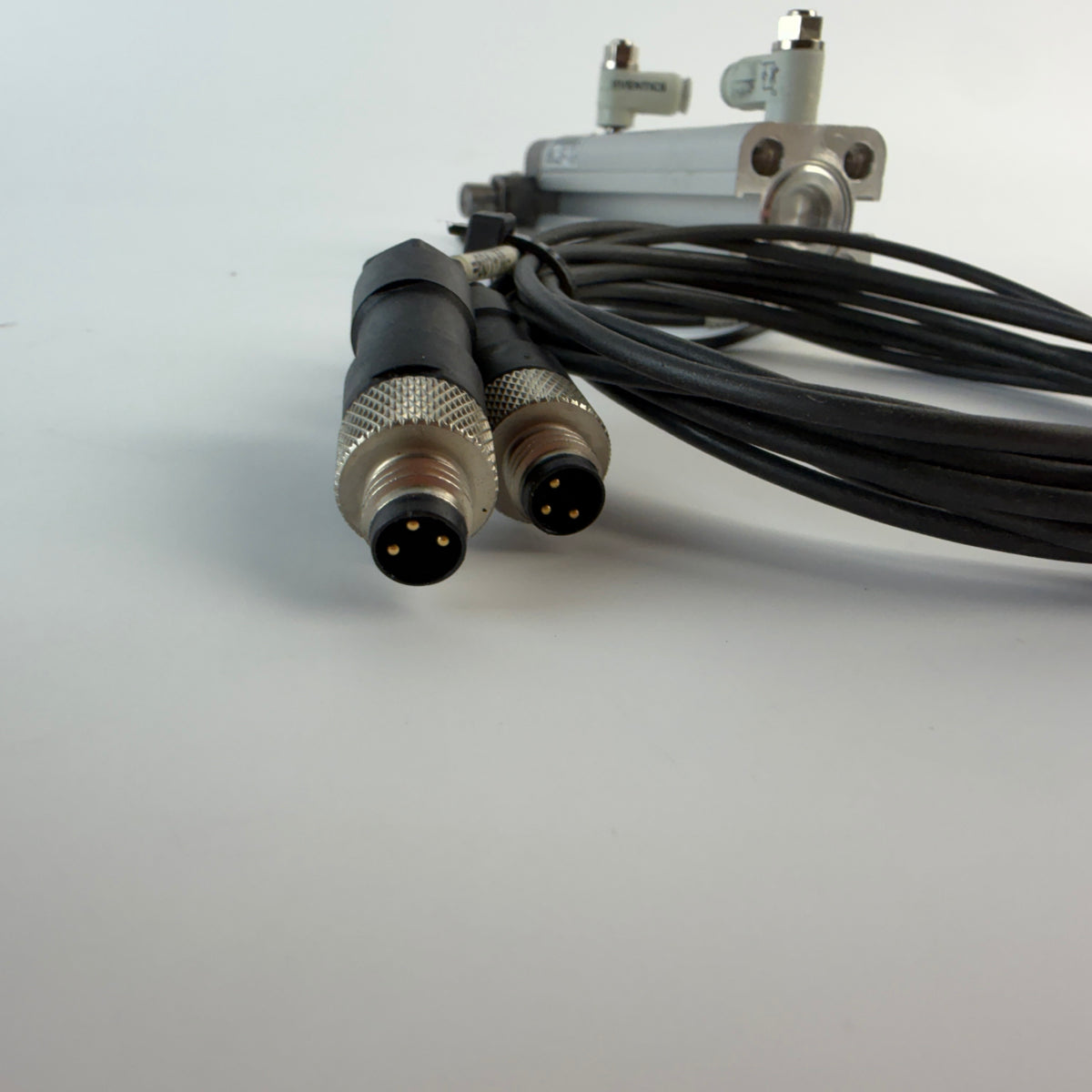

- 2 sensor cables with 3-pin circular connectors
- 2 pneumatic fittings
- Rod-end joint
The exact model numbers and electrical specifications of the two installed sensors have not been confirmed.
Used, fully functional.
