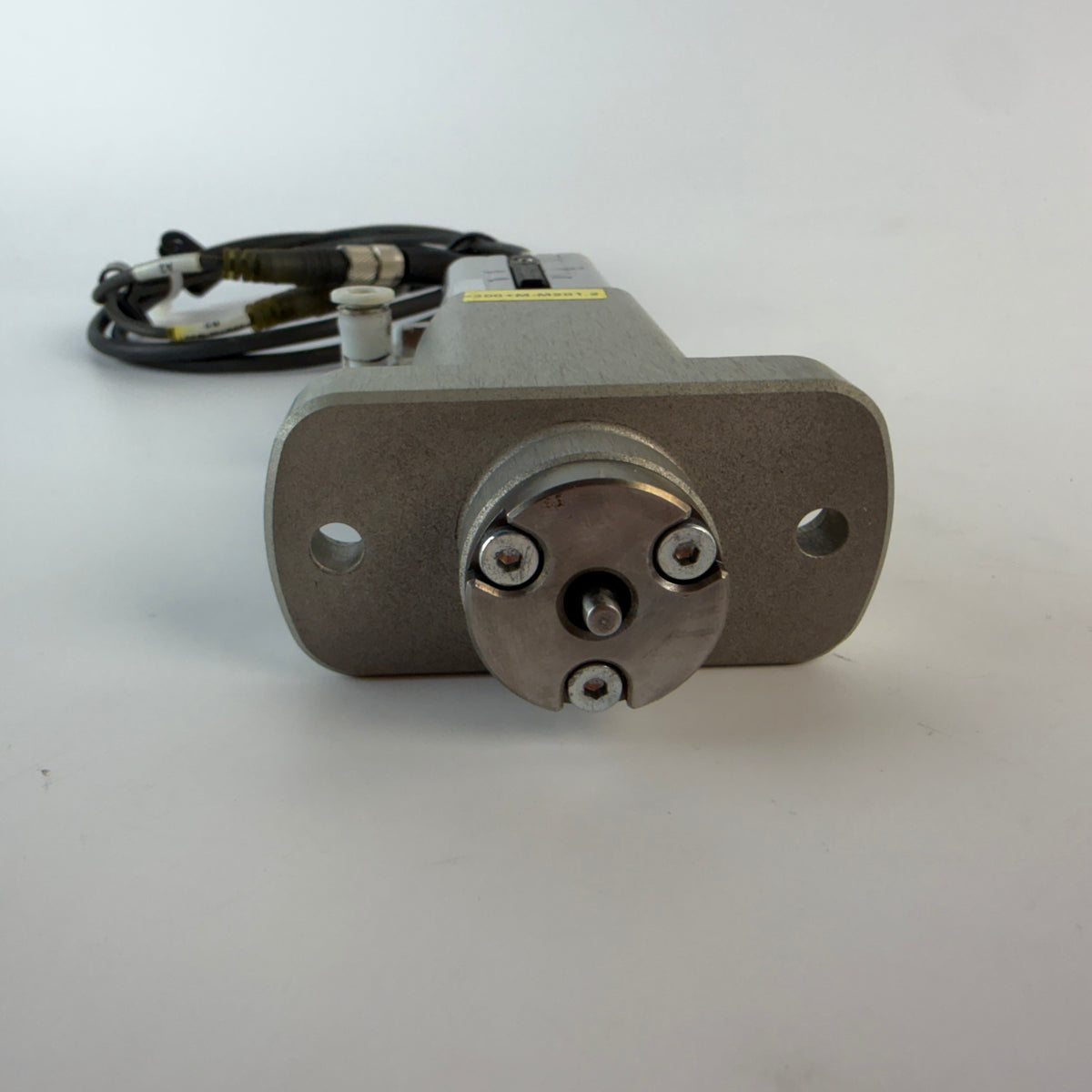

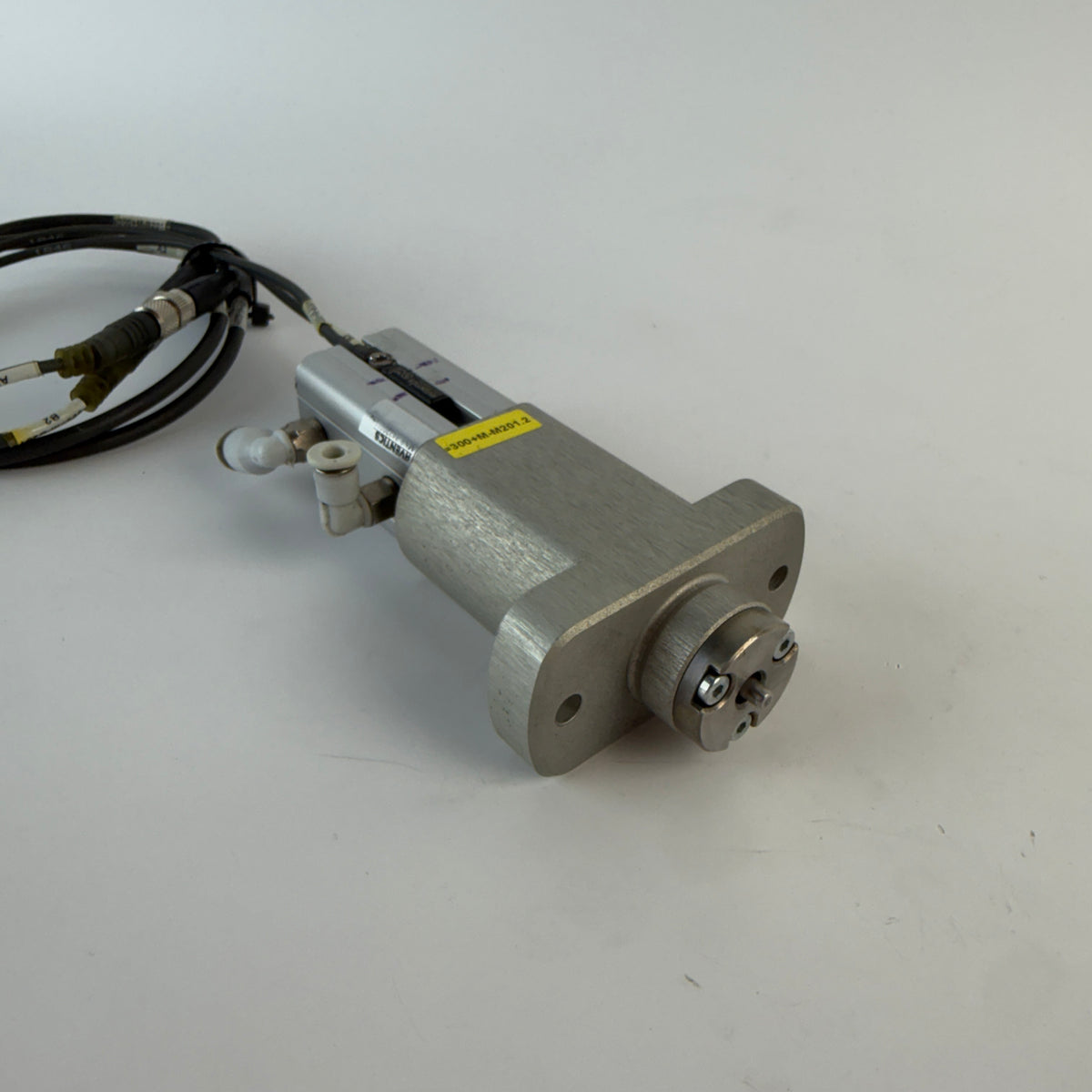

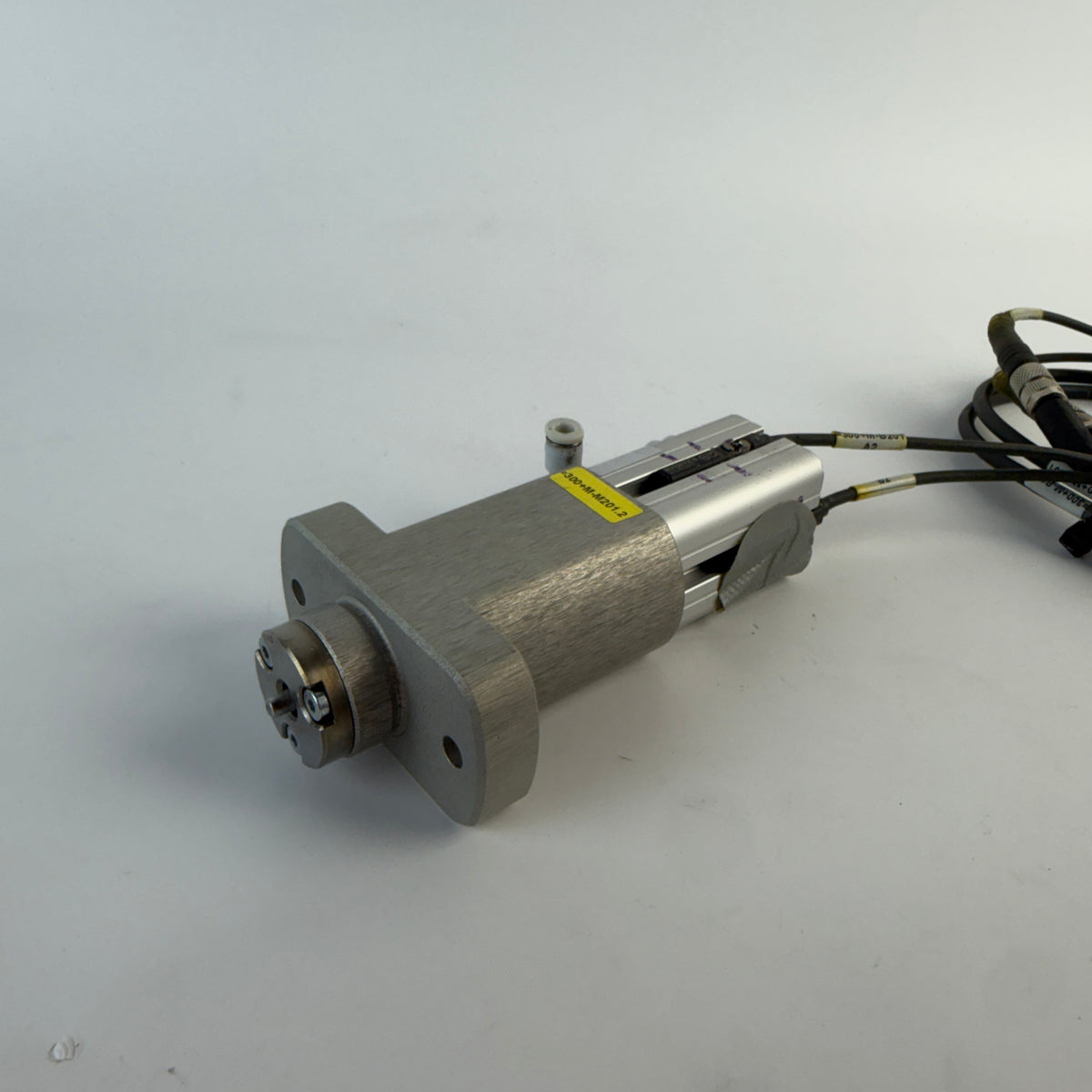

AVENTICS R422001142 compact pneumatic cylinder from the CCI series, supplied as the pictured complete assembly with two installed position sensors, sensor cables, pneumatic fittings and custom mechanical mounting hardware.

The R422001142 is an ISO 21287 double-acting compact cylinder with a 16 mm piston diameter and 10 mm stroke. It features a magnetic piston for position sensing and elastic end cushioning.

Cylinder specifications:

• Manufacturer: AVENTICS
• Series: CCI
• Part Number: R422001142
• Type: Compact pneumatic cylinder
• Standard: ISO 21287
• Functional principle: Double-acting
• Bore: 16 mm
• Stroke: 10 mm
• Operating pressure: 1–10 bar
• Pneumatic ports: M5
• Piston rod thread: M6x1 external
• Magnetic piston: Yes
• Cushioning: Elastic
• Retracting piston force at 6.3 bar: 95 N
• Extending piston force at 6.3 bar: 127 N
• Operating temperature: -20°C to +80°C
• Medium: Compressed air

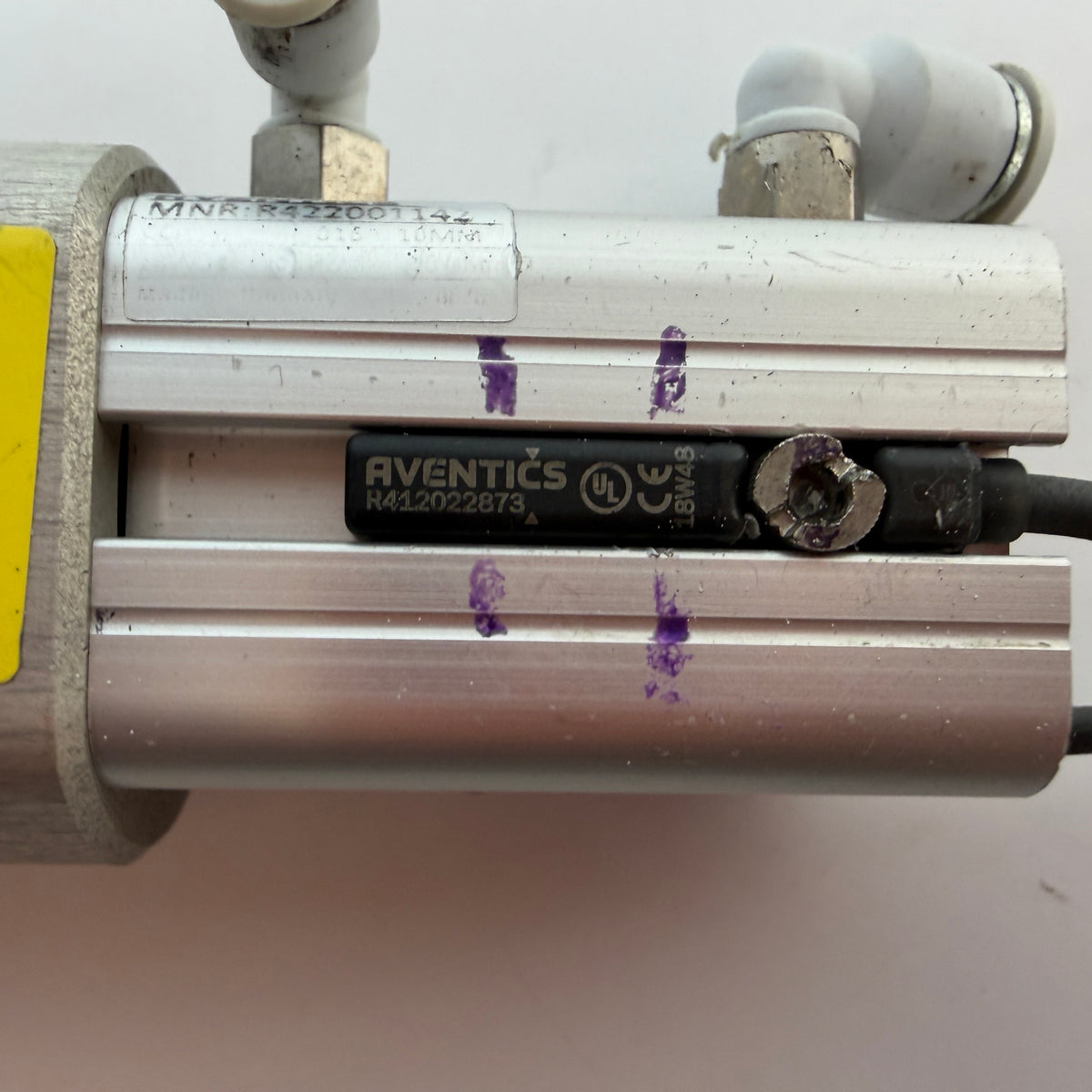

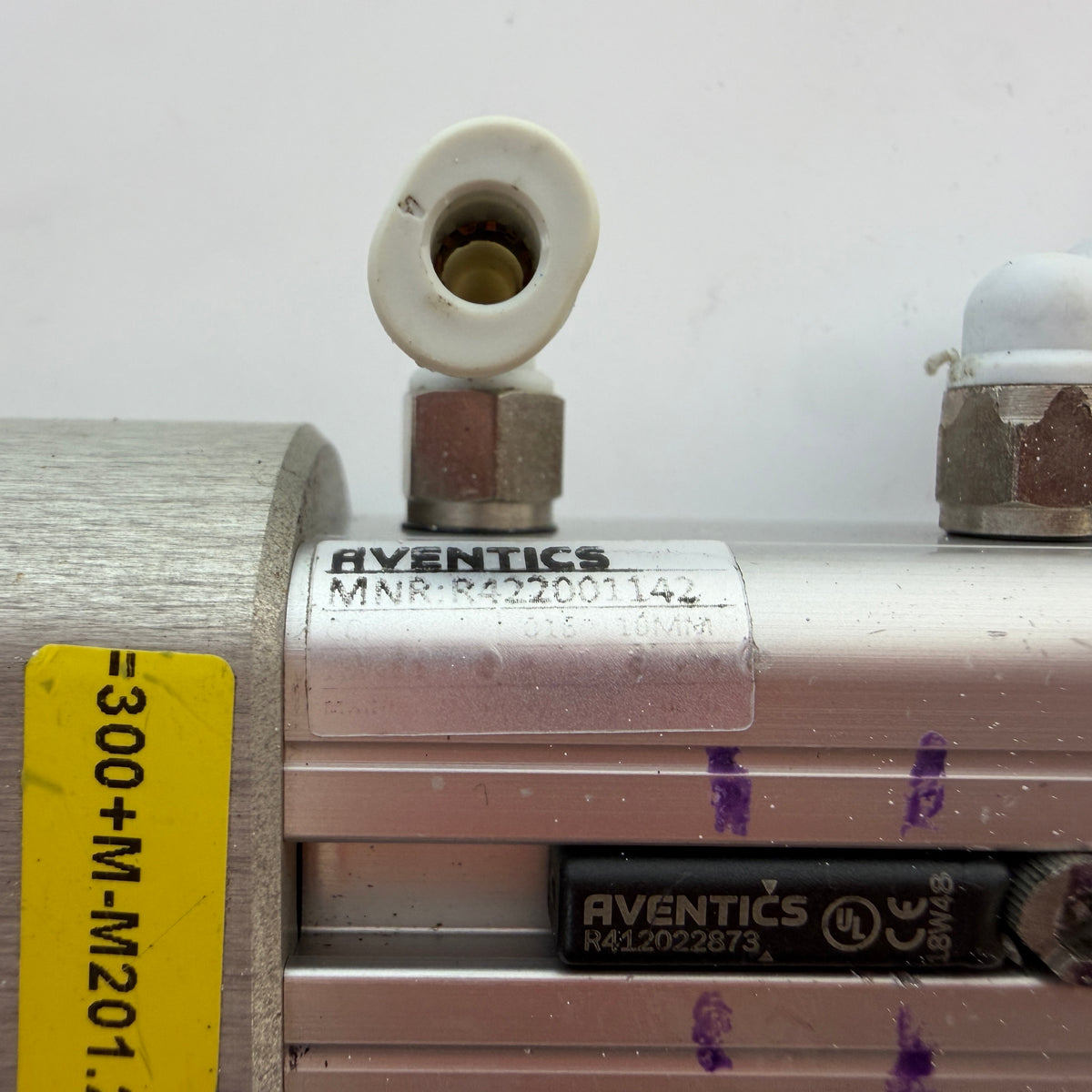

One installed sensor is clearly identified as AVENTICS R412022873, Series ST6, type ST6-R3-M08T-030. This is a magnetic reed cylinder sensor for a 6 mm T-slot with an M8x1 3-pin connection, 10–30 V AC/DC operating range, NO switching logic and IP65/IP67 protection.

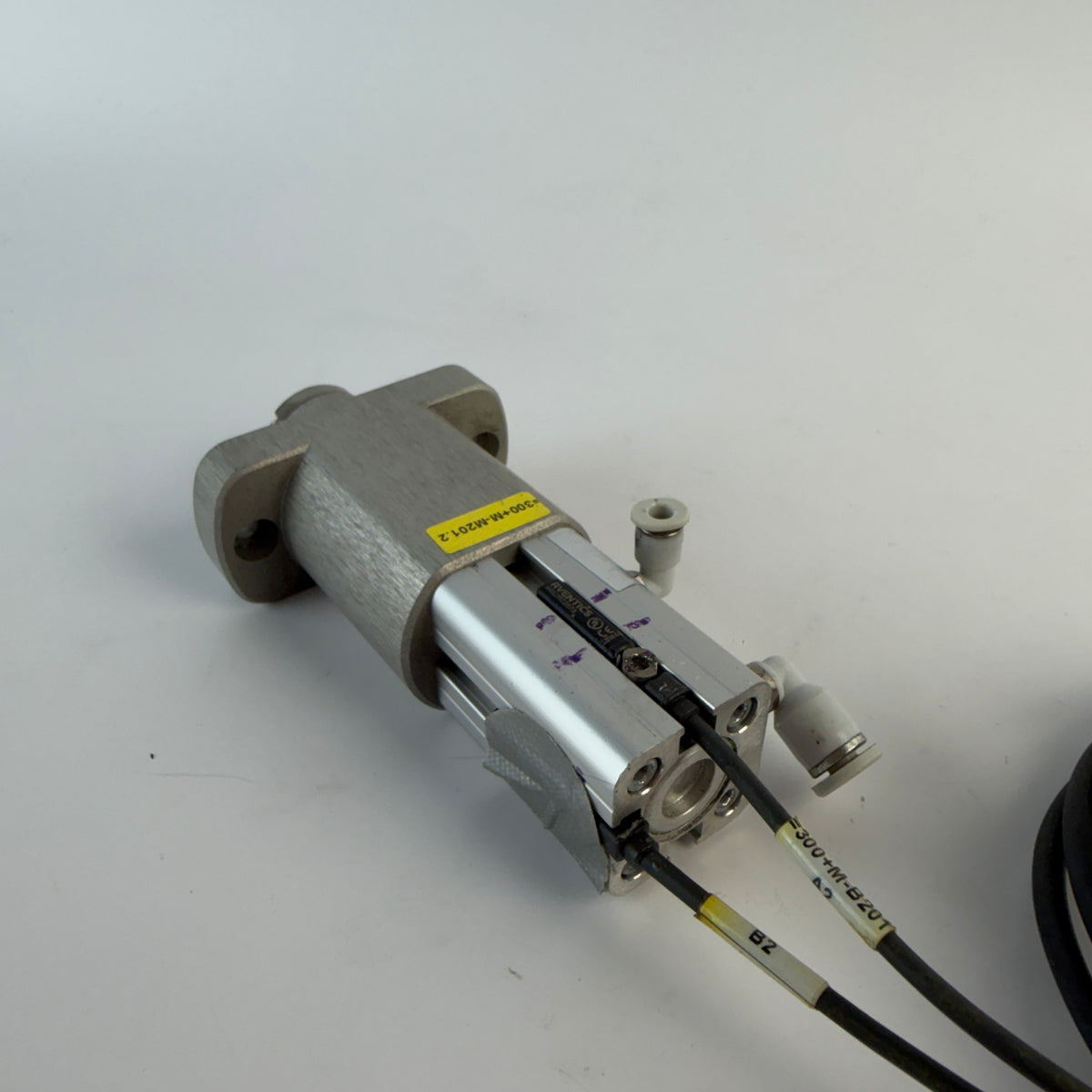

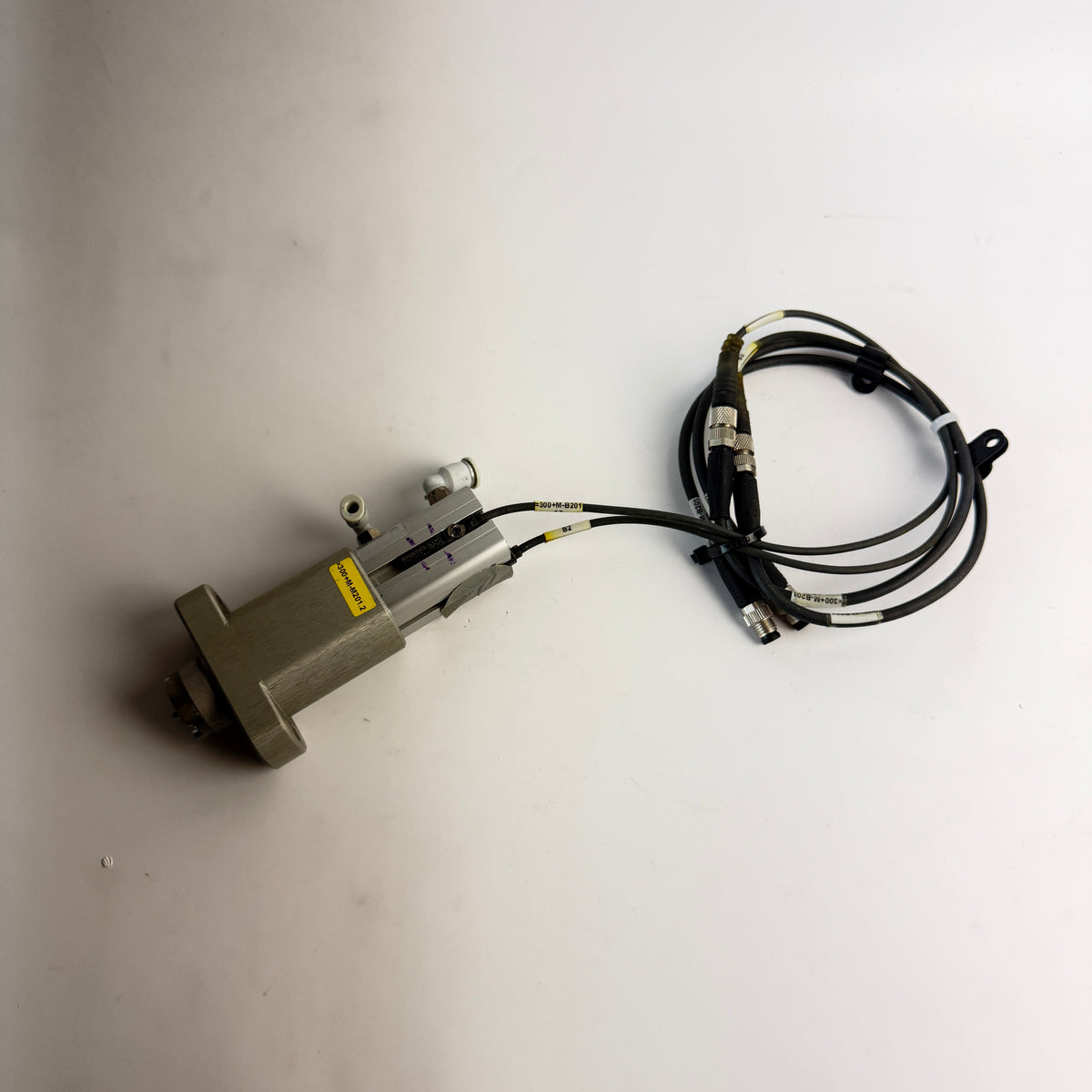

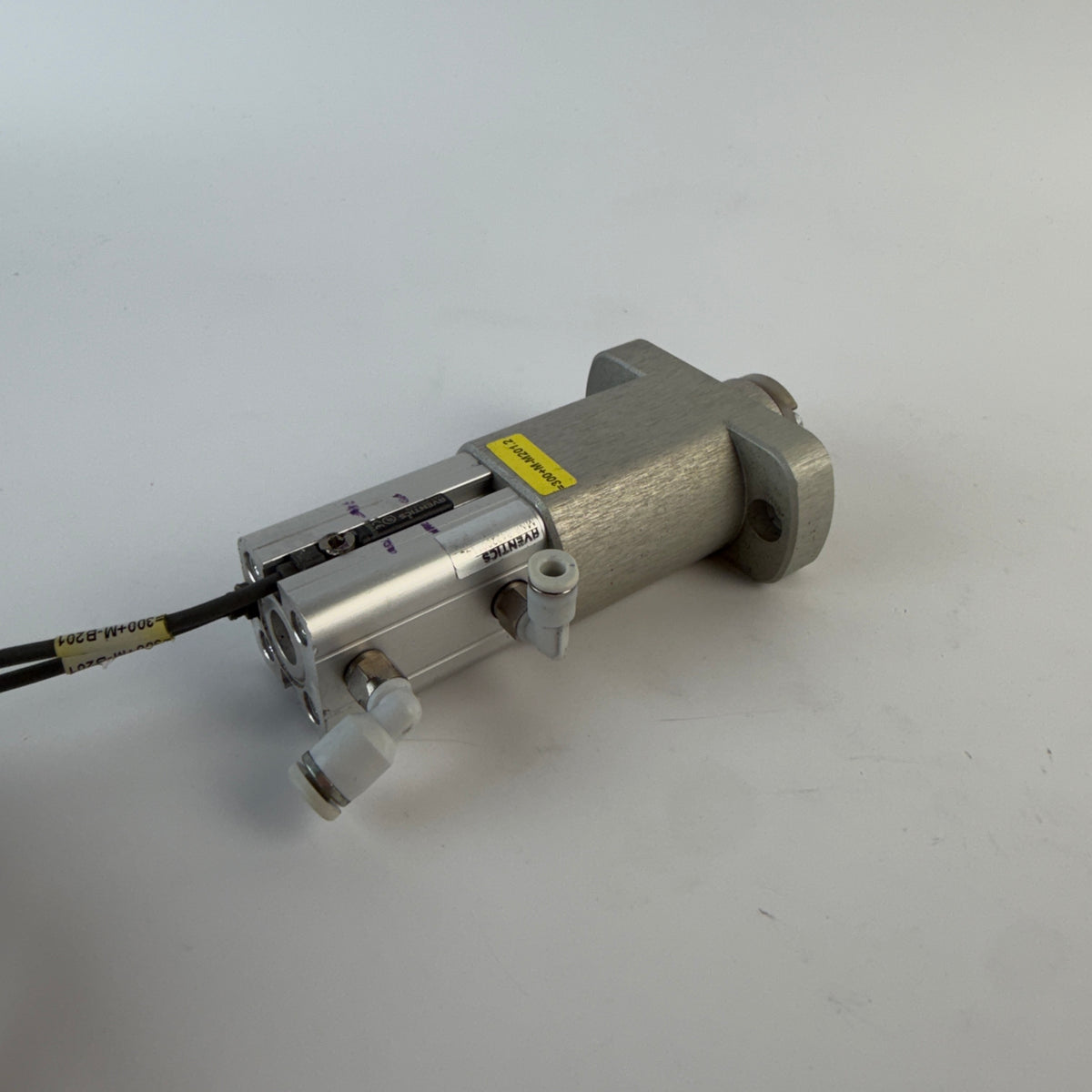

The assembly includes two sensor cables/connectors and installed pneumatic push-in fittings. The exact part number of the second sensor and the part number/application of the additional mechanical mounting assembly have not been confirmed.

Used, fully functional.
