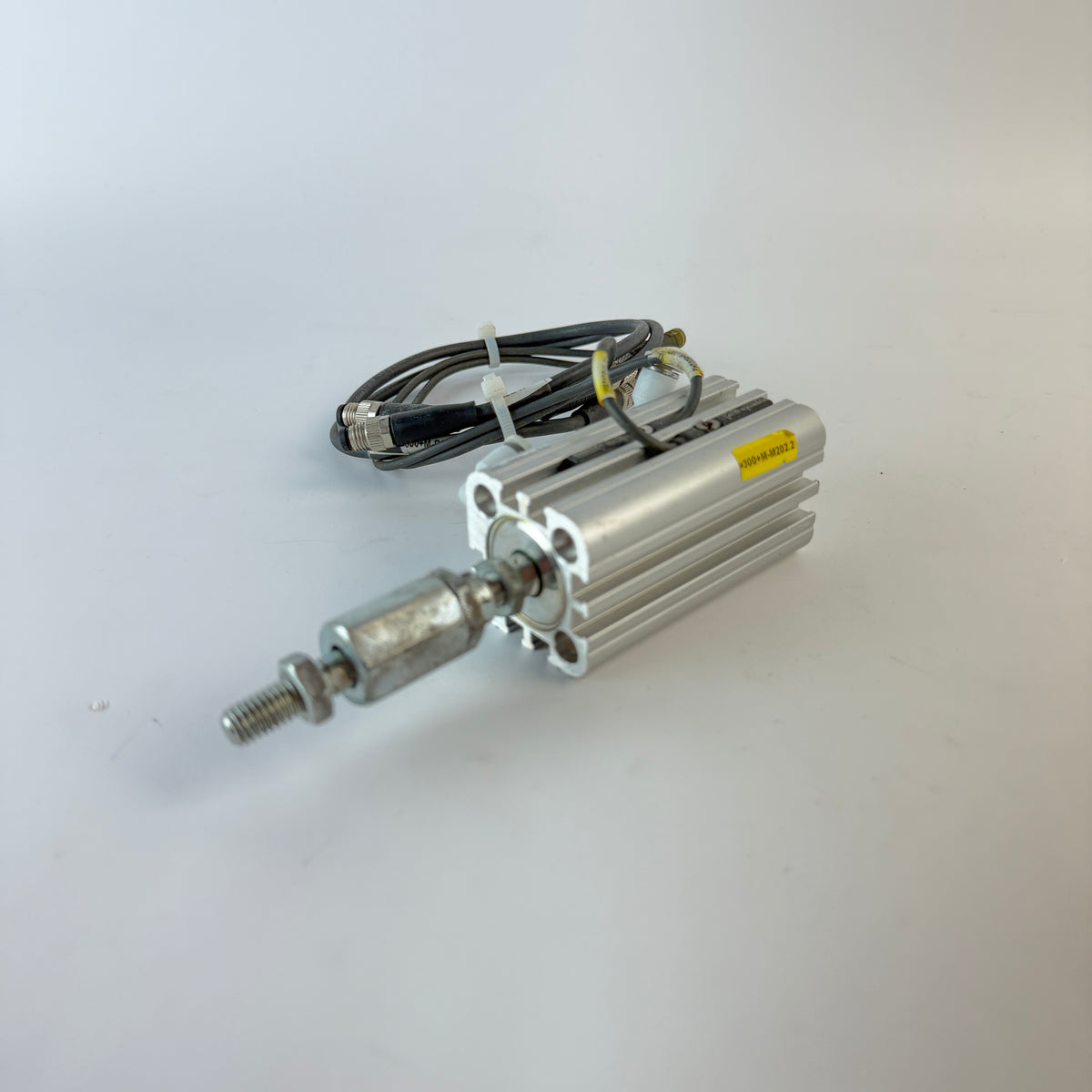

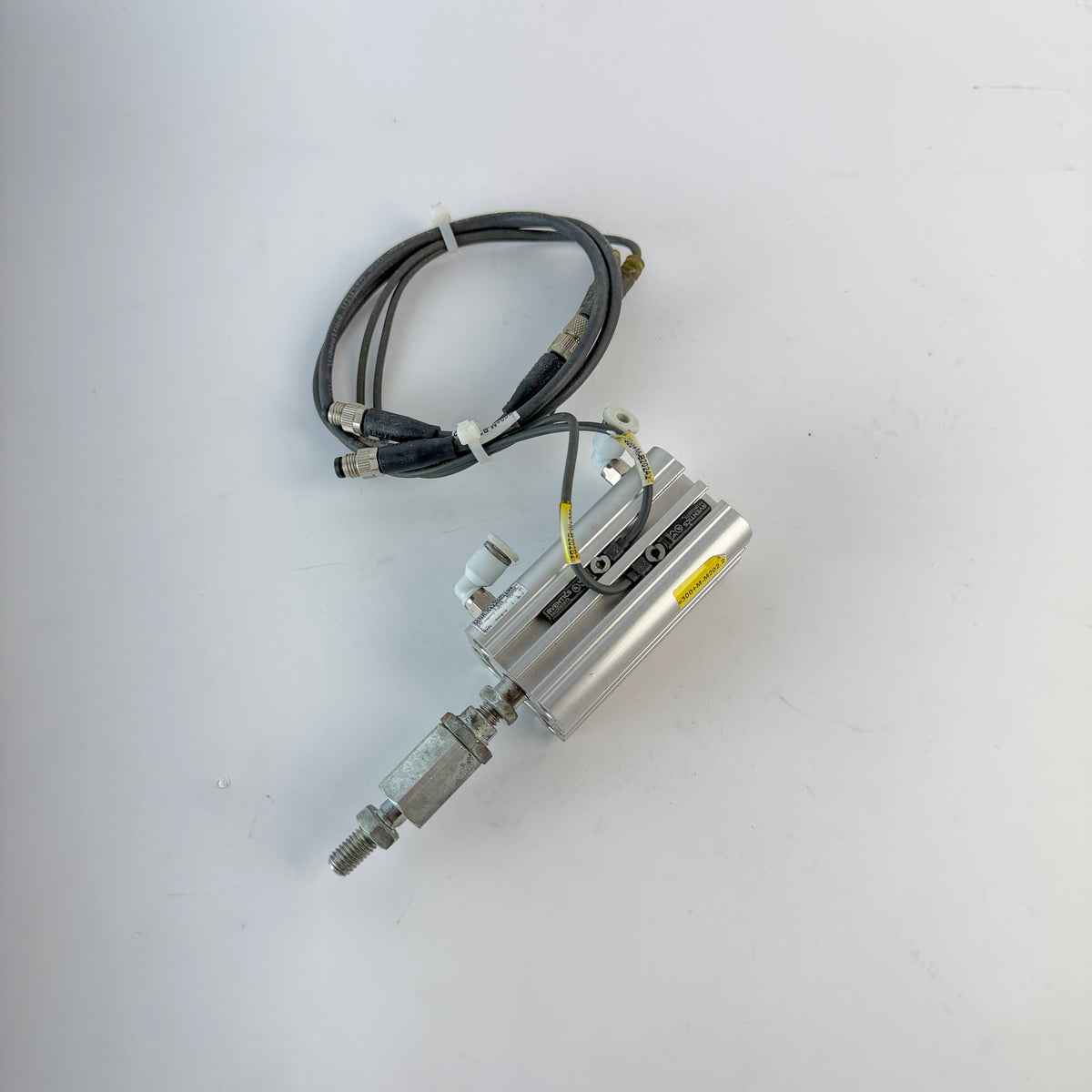

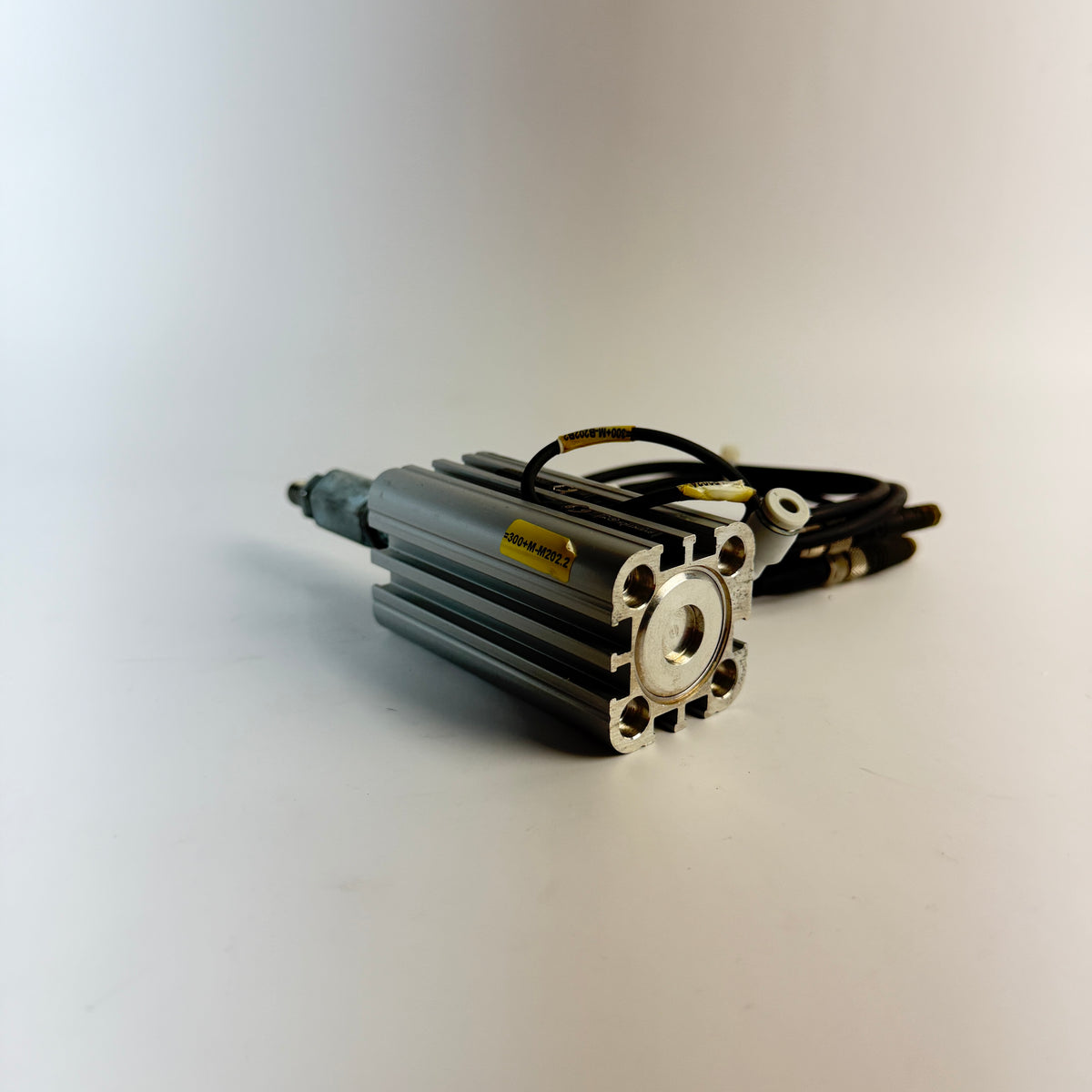

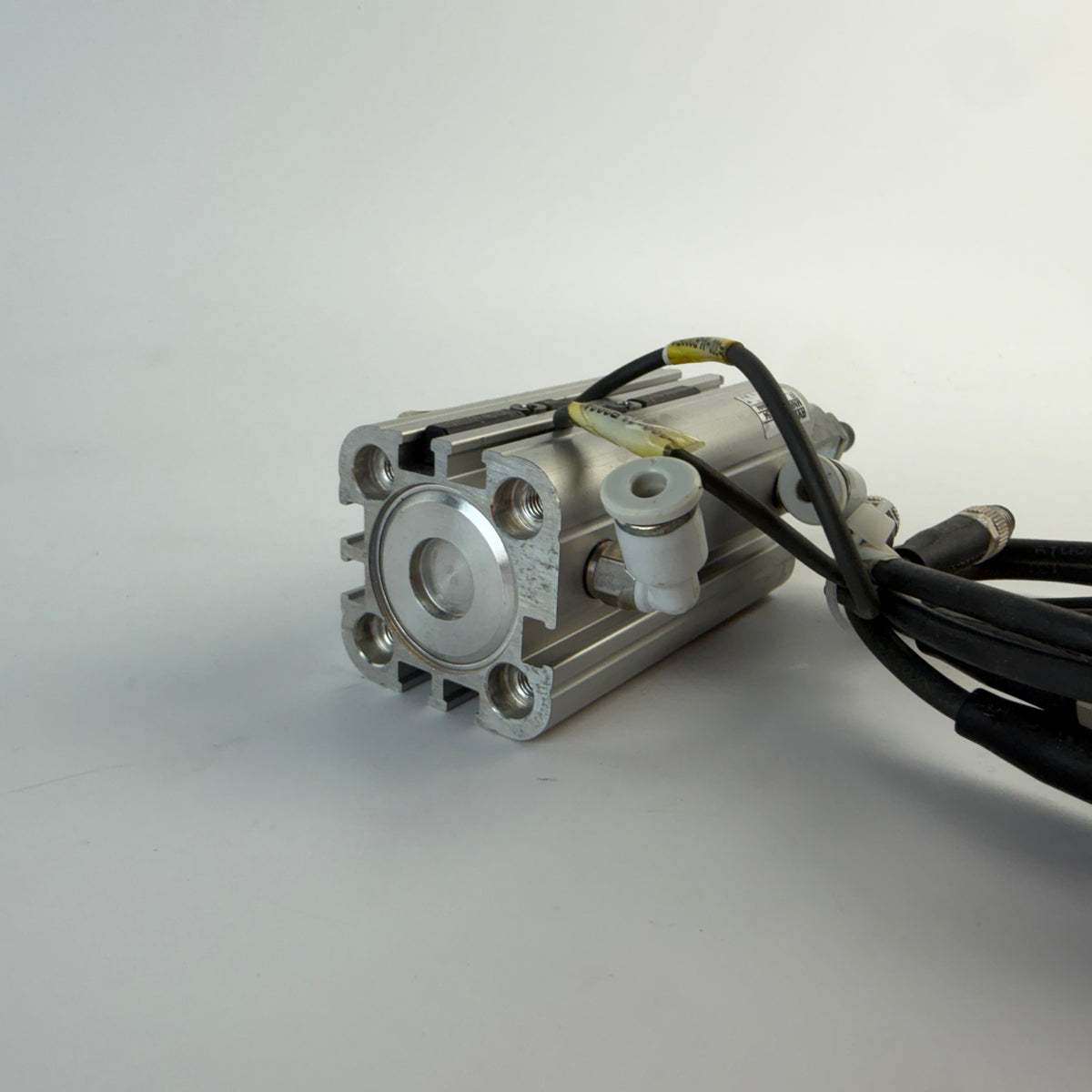

AVENTICS R422001194 compact pneumatic cylinder from the CCI series, supplied with two AVENTICS R412022873 ST6 magnetic position sensors, sensor cables/connectors, pneumatic push-in fittings and the piston rod attachment shown in the photos.

The R422001194 is an ISO 21287 compact double-acting pneumatic cylinder with a 25 mm piston diameter and 40 mm stroke. It incorporates a magnetic piston for external position sensing and elastic cushioning.

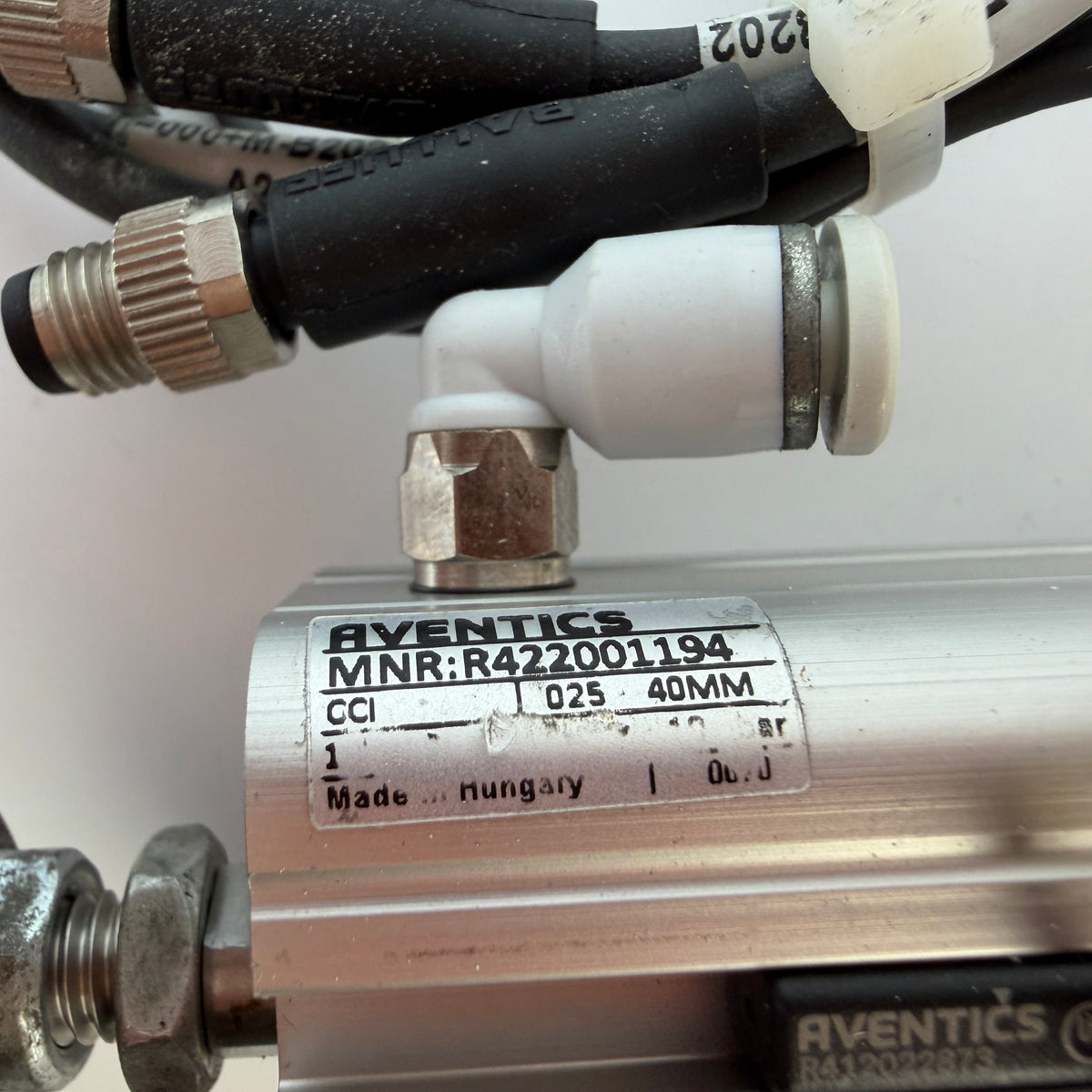

Cylinder specifications:

• Manufacturer: AVENTICS
• Series: CCI
• Part Number: R422001194
• Type: Compact pneumatic cylinder
• Standard: ISO 21287
• Acting principle: Double-acting
• Bore: 25 mm
• Stroke: 40 mm
• Operating pressure: 1–10 bar
• Pneumatic ports: M5
• Cushioning: Elastic
• Magnetic piston: Yes
• Single piston rod
• Body material: Aluminum
• Operating temperature: -20°C to +80°C
• Country of Origin: Hungary

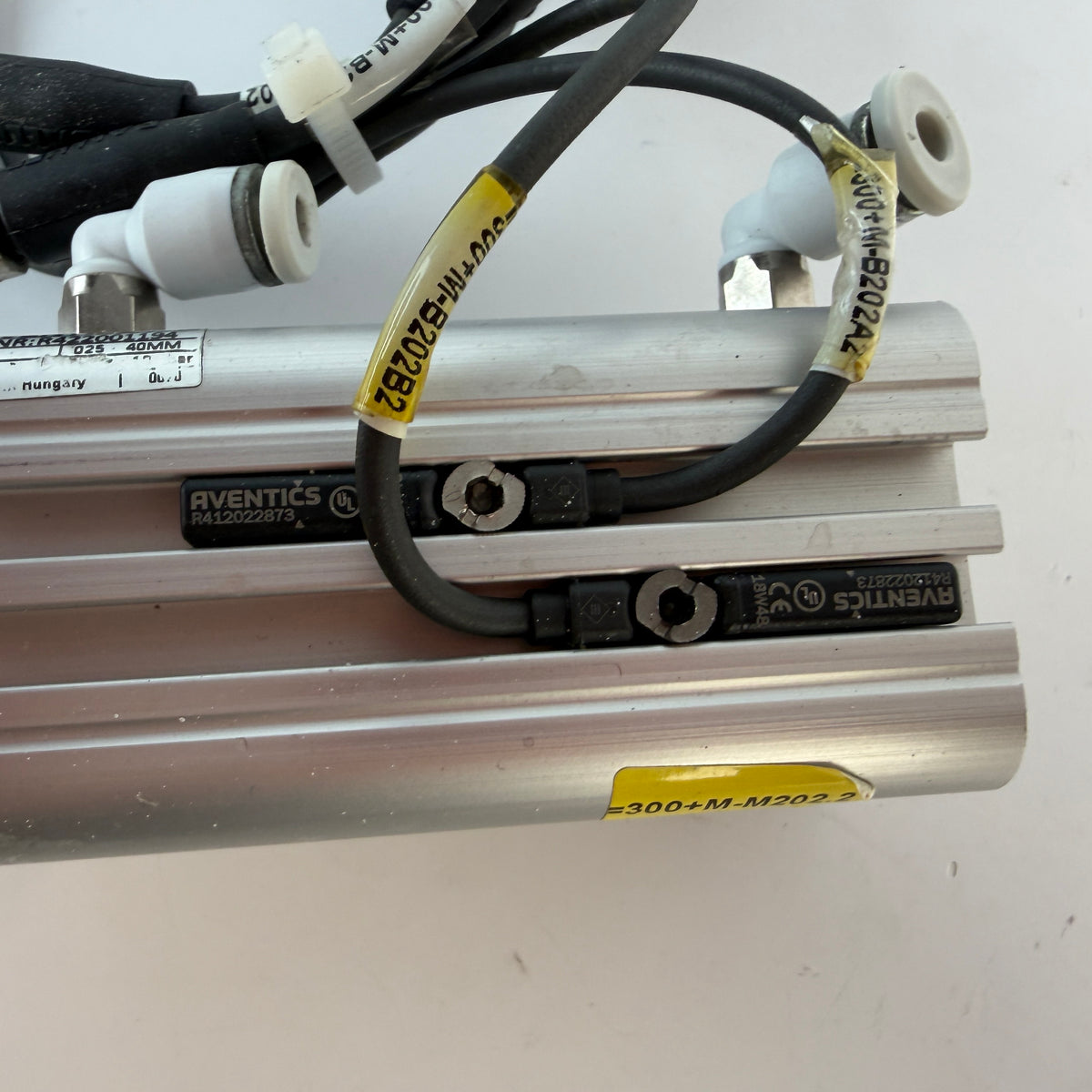

Included sensors:

• Quantity: 2
• Manufacturer: AVENTICS
• Part Number: R412022873
• Series: ST6
• Type: ST6-R3-M08T-030
• Sensor principle: Reed
• Slot: 6 mm T-slot
• Switching logic: Normally Open (NO)
• Operating voltage: 10–30 V AC/DC
• Connection: M8x1, 3-pin
• Protection: IP65 / IP67
• Sensor operating temperature: -30°C to +80°C

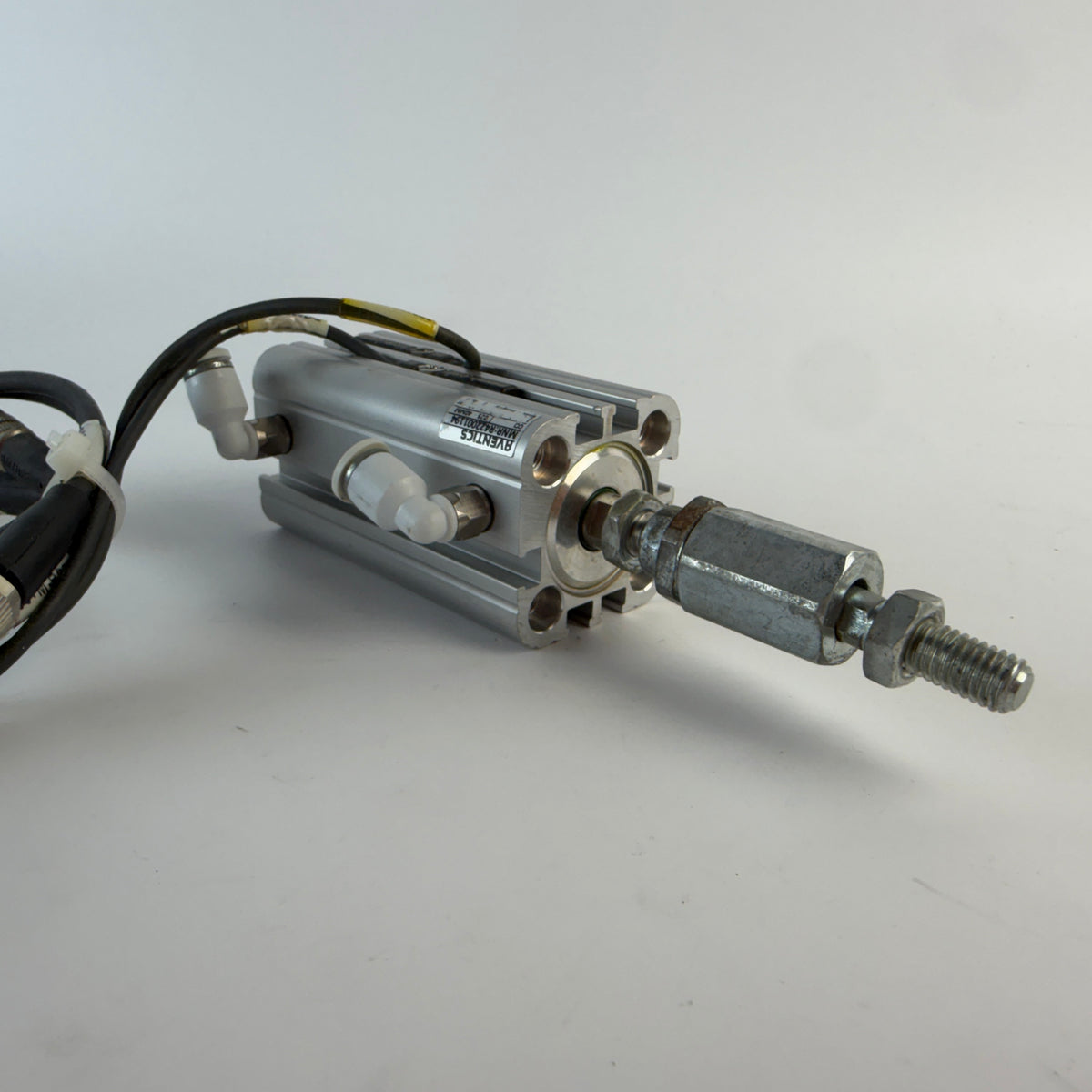

The cylinder is supplied with two installed pneumatic push-in elbow fittings and the mechanical piston rod attachment shown in the photos. The exact part numbers of these accessories have not been confirmed.

Used, fully functional.
