AVENTICS R422001250 CCI Double-Acting Pneumatic Cylinder with Two Sensors

Industrial compact pneumatic cylinder from the AVENTICS CCI series, manufactured according to ISO 21287. The cylinder has a 100 mm piston diameter, 125 mm stroke and a maximum working pressure of 10 bar.

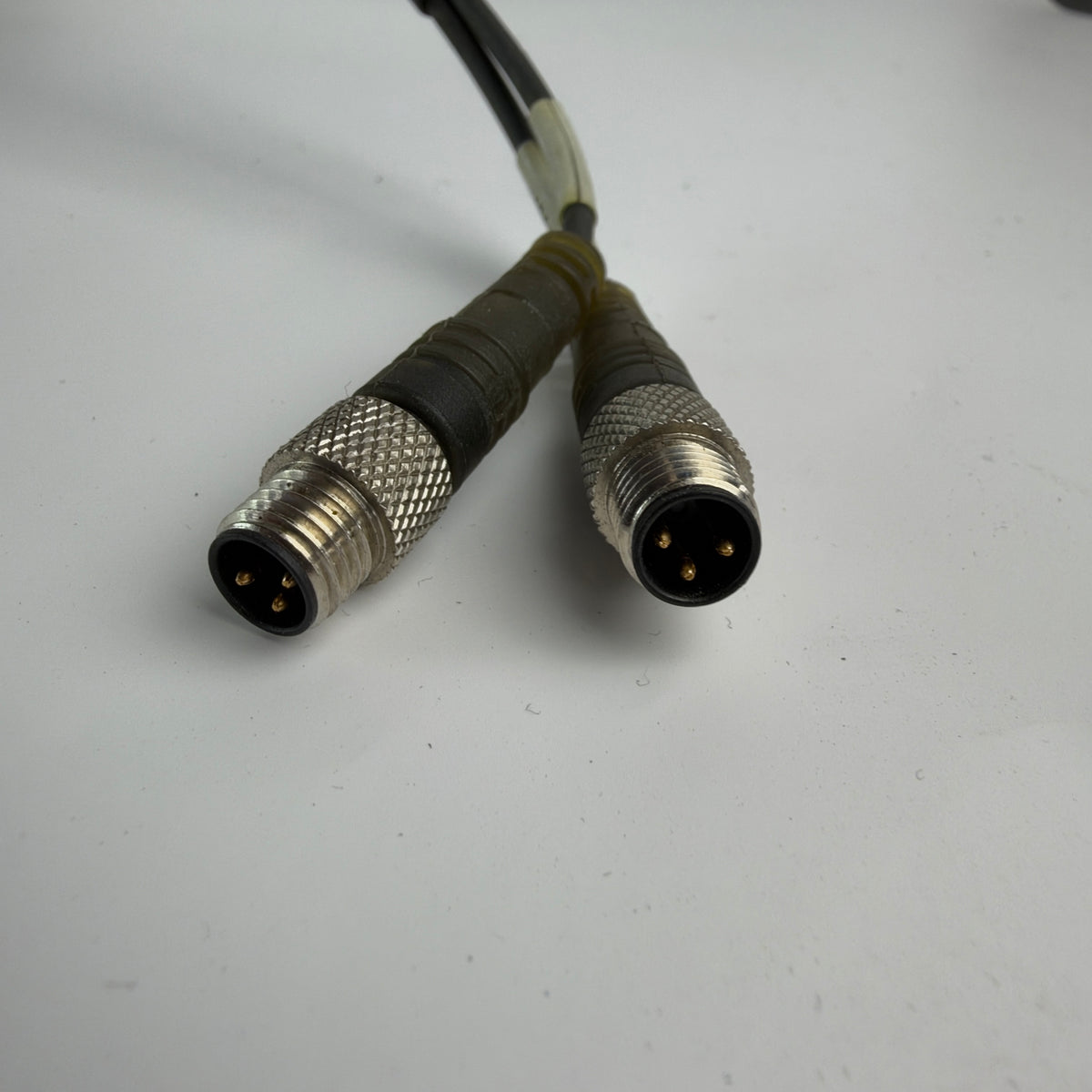

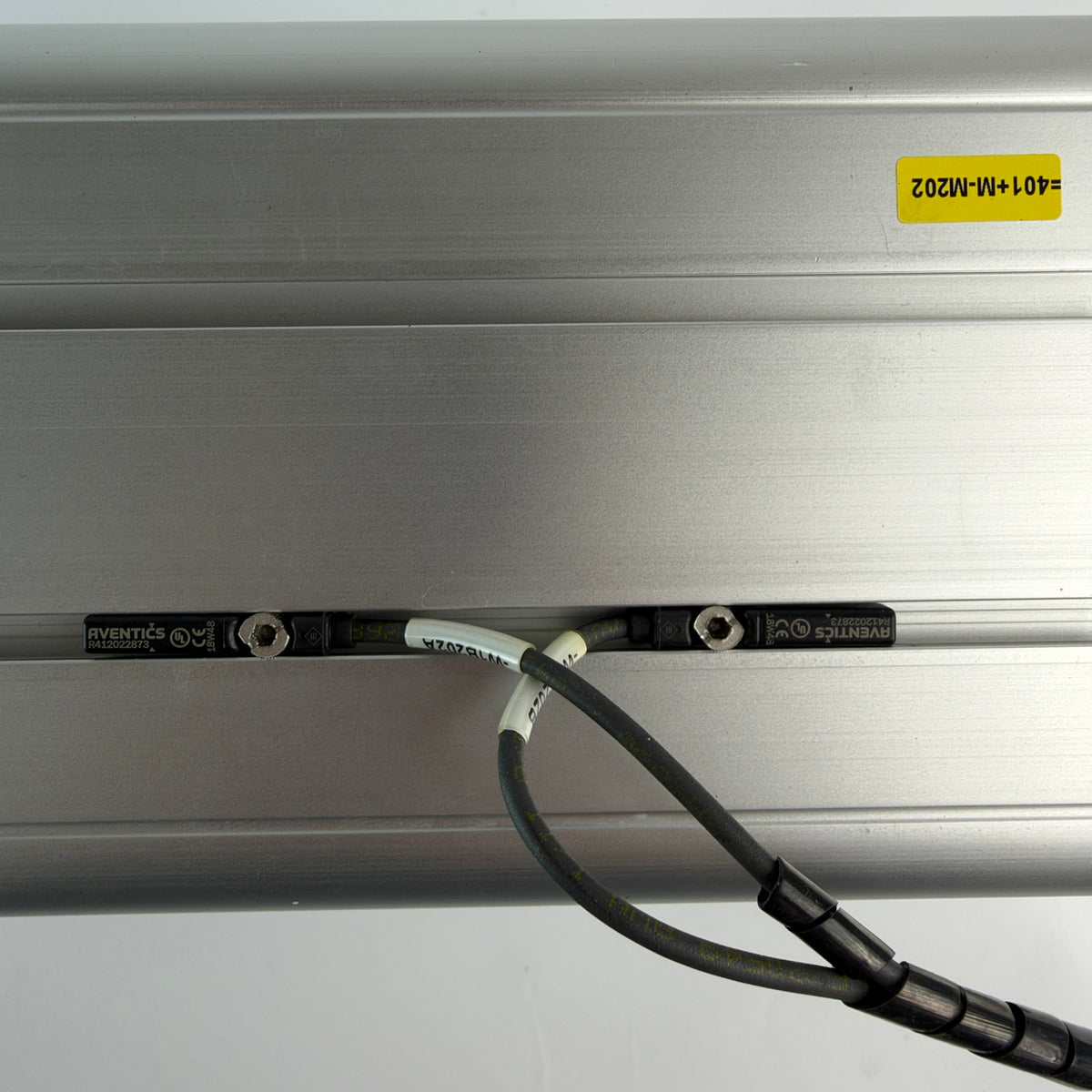

This unit is supplied with two installed AVENTICS magnetic cylinder sensors, marked R412022873, with attached cables and circular connectors as pictured.

Technical specifications:

• Manufacturer: AVENTICS
• Series: CCI
• MNR / Part Number: R422001250
• Standard: ISO 21287
• Operating Principle: Double-acting
• Bore / Piston Diameter: 100 mm
• Stroke: 125 mm
• Maximum Stroke for Series: 500 mm
• Ports: G 1/8
• Working Pressure: 1–10 bar
• Piston: Magnetic
• Piston Rod: Single
• Piston Rod Thread: M16 x 1.5 external thread
• Cushioning: Elastic cushioning
• Impact Energy: 2.5 J
• Medium: Compressed air
• Ambient Temperature: -20°C to +80°C
• Retracting Piston Force at 6.3 bar: 4639 N
• Extending Piston Force at 6.3 bar: 4948 N
• Weight at 0 mm Stroke: 2.23 kg
• Additional Weight per 10 mm Stroke: 0.168 kg

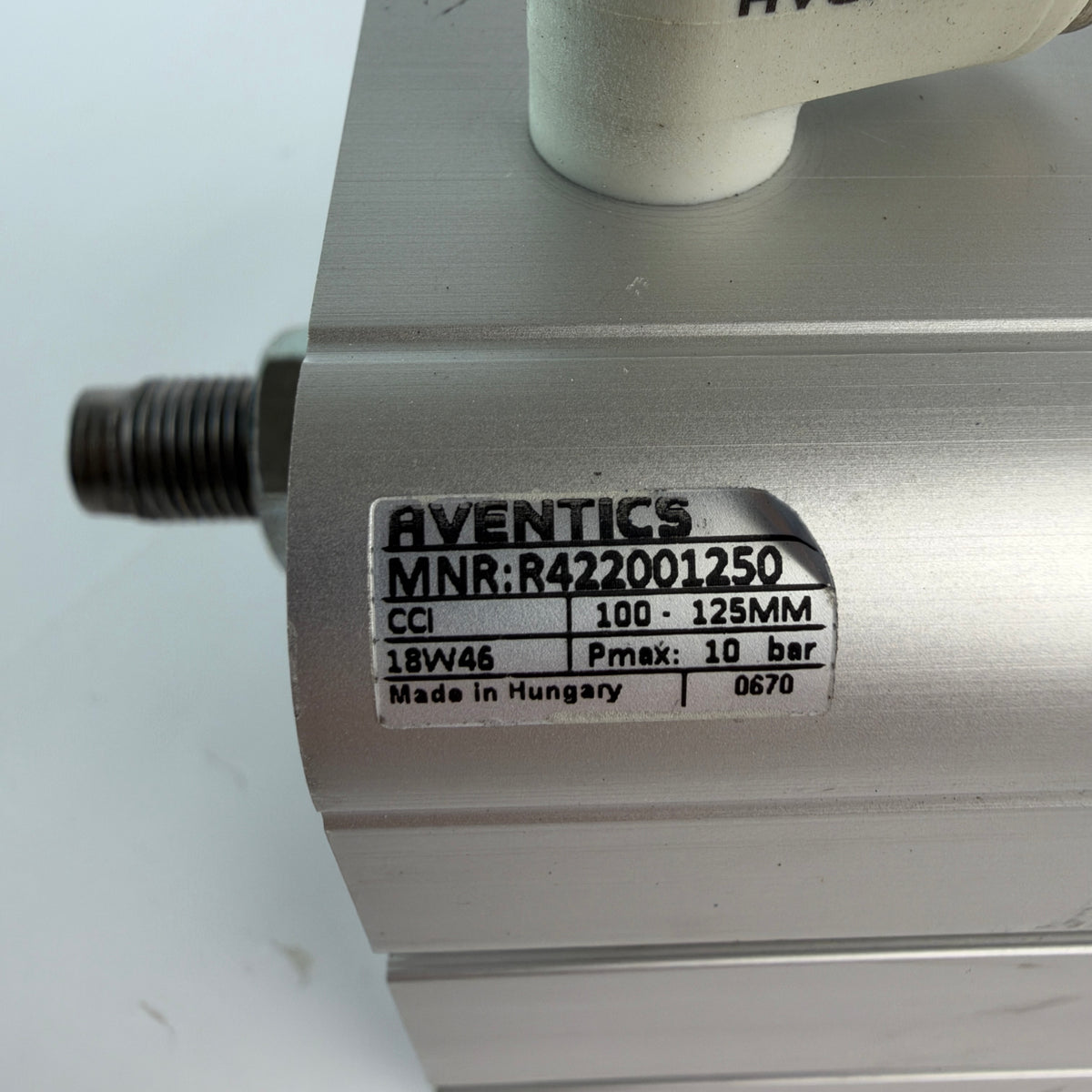

• Maximum Pressure Marked on Unit: 10 bar
• Country of Manufacture: Hungary
• Included Sensors: 2 × AVENTICS R412022873

Condition: Used, fully functional.

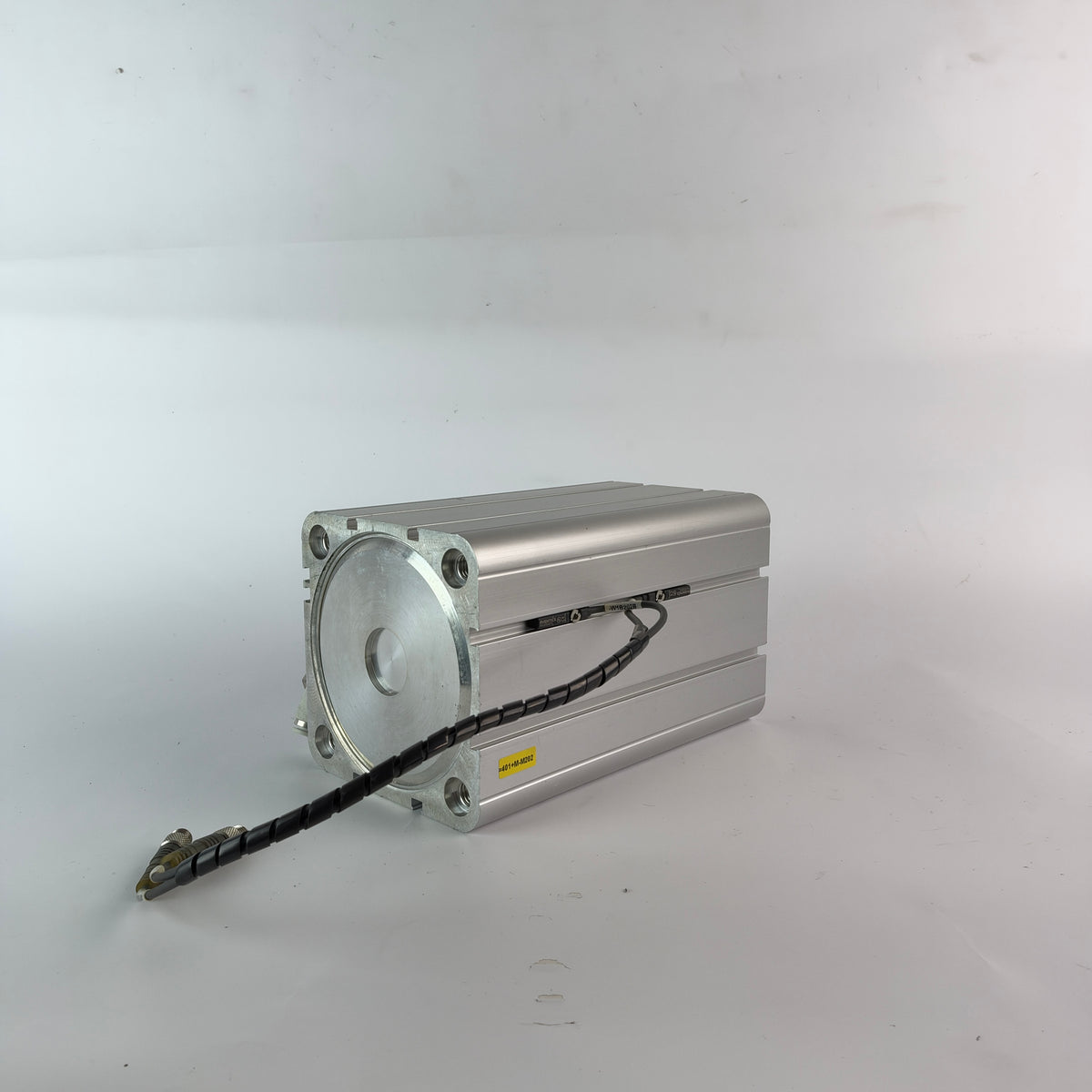

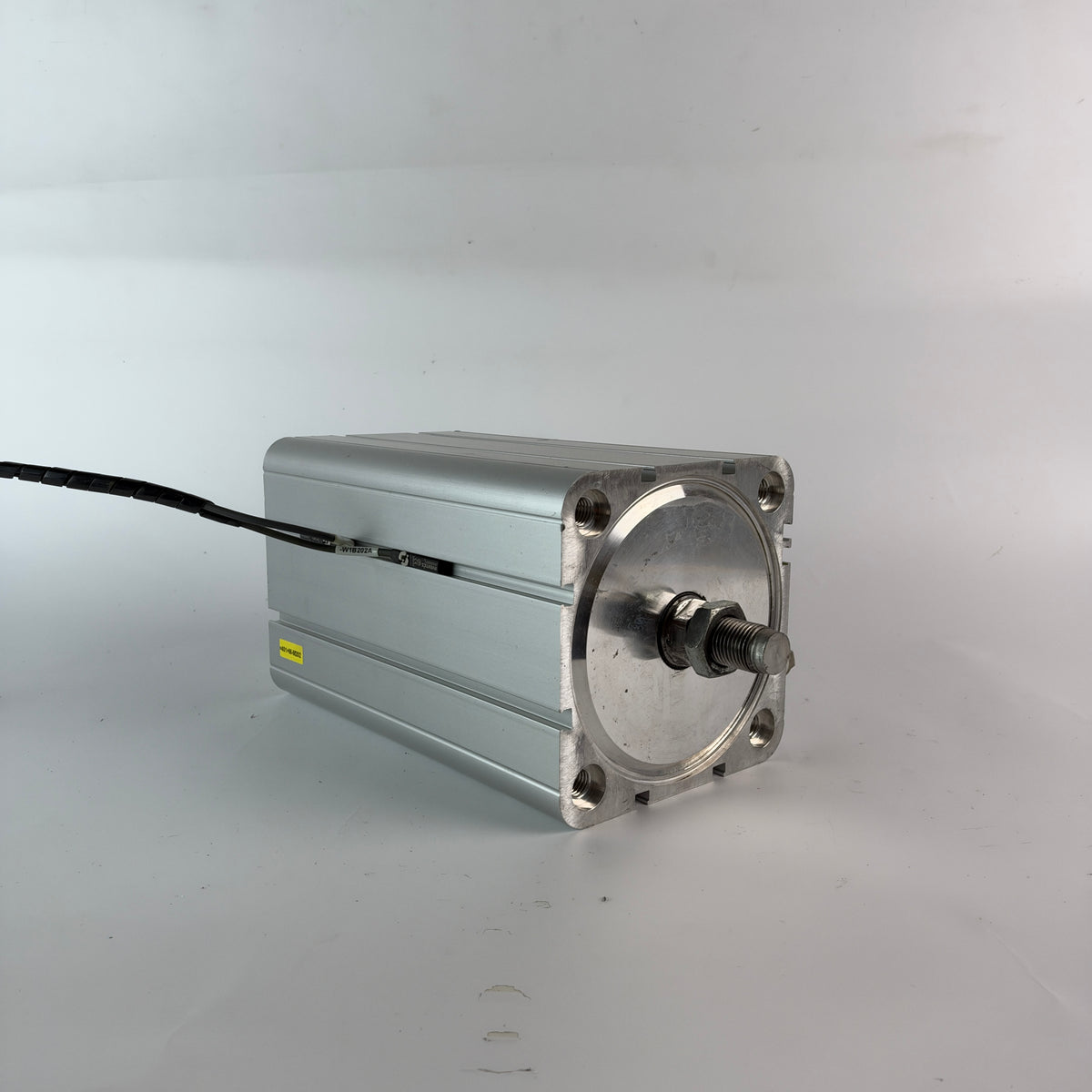

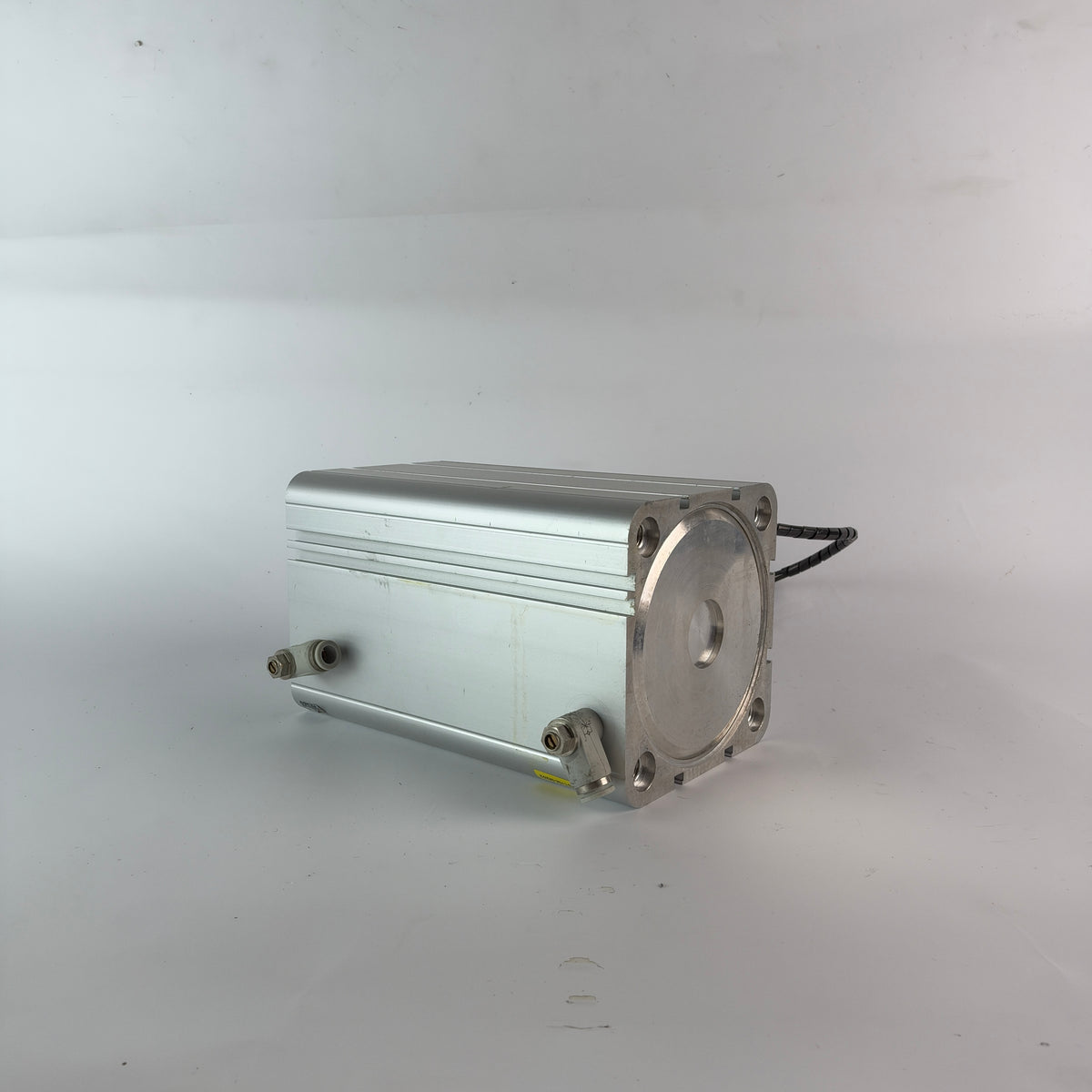

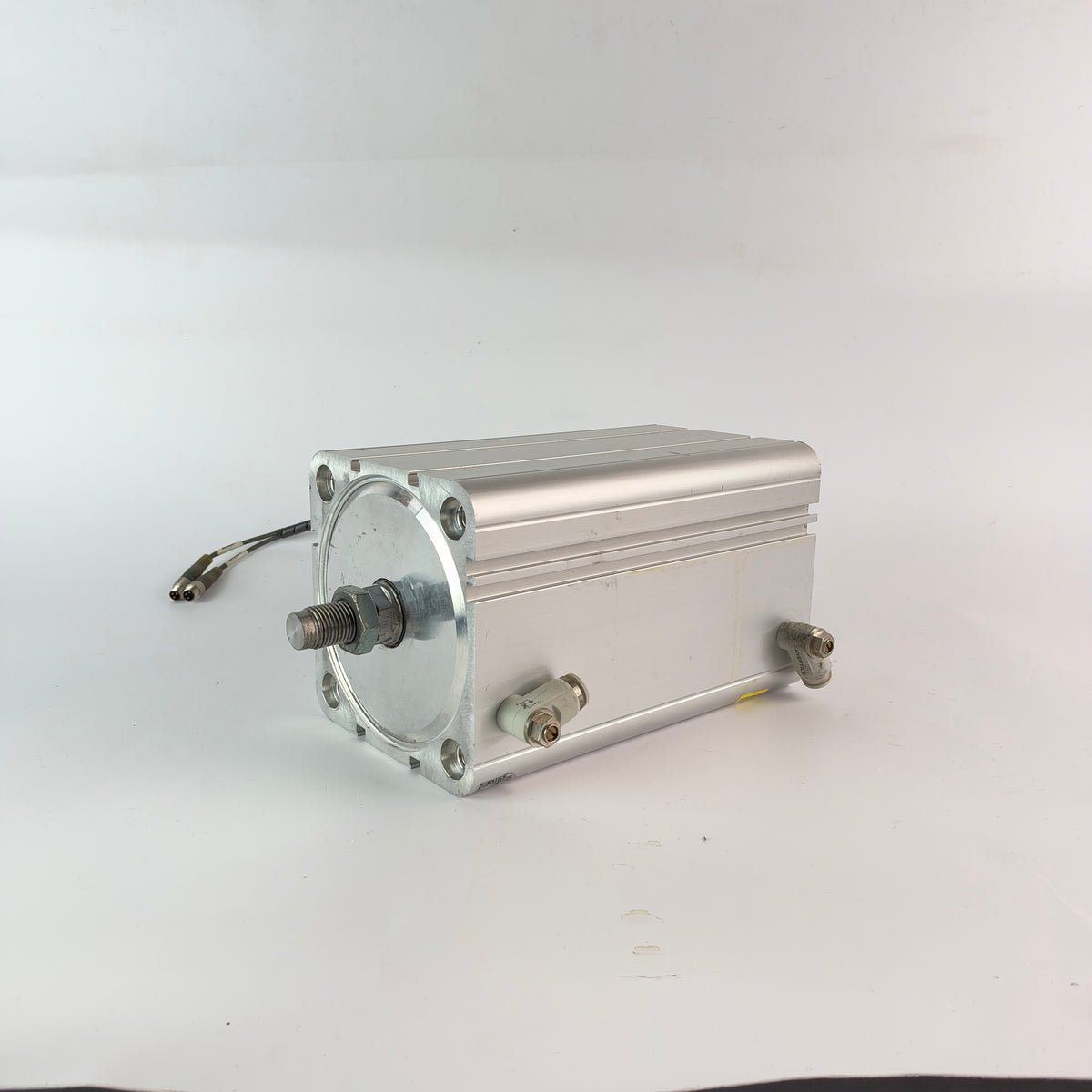

The cylinder is supplied in the configuration shown in the photographs, including the two installed sensors, sensor cables and pneumatic fittings. Normal cosmetic signs of previous industrial use may be present.
