AVENTICS R422103582 Series LS04-AF electrically operated pneumatic directional valve supplied with two connected electrical cables as pictured.

This compact valve combines two 3/2 directional valve functions in an NC/NC configuration and is designed for industrial pneumatic automation systems.

Specifications:

• Manufacturer: AVENTICS
• Part Number: R422103582
• Series: LS04-AF
• Valve type: 2x3/2 directional valve
• Configuration: NC/NC (normally closed / normally closed)
• Actuation: Electrical
• Operating voltage: 24 VDC
• Power consumption: 1.3 W
• Nominal flow Qn: 310 l/min
• Operating pressure: 3 to 7 bar
• Pneumatic connections: Ø6 mm
• Electrical interface: M8, 3-pin
• Manual override: Without detent
• Pilot: Internal
• Ambient temperature range: -10°C to +50°C
• Medium: Compressed air

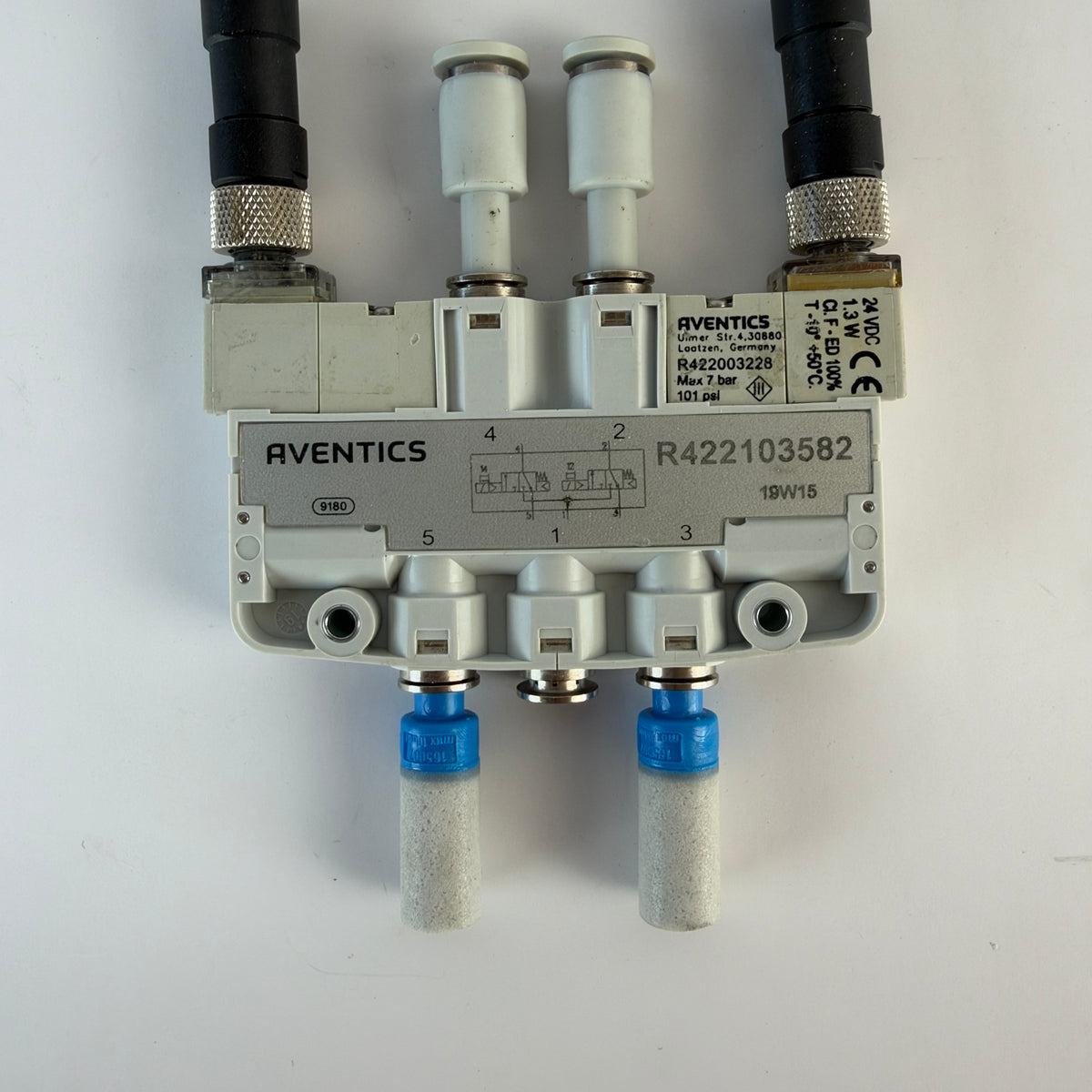

• Solenoid marking: R422003228
• Two electrical connection cables included

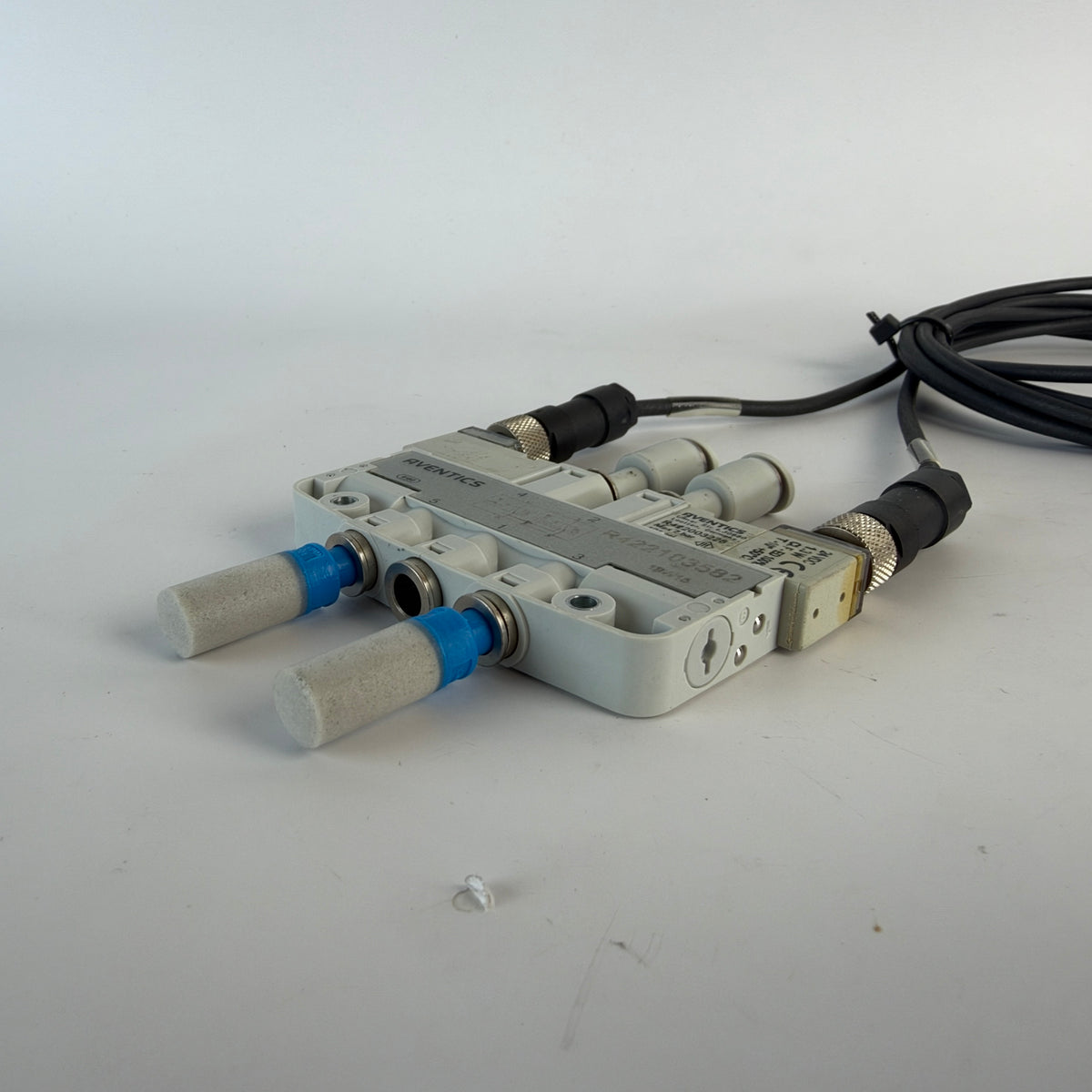

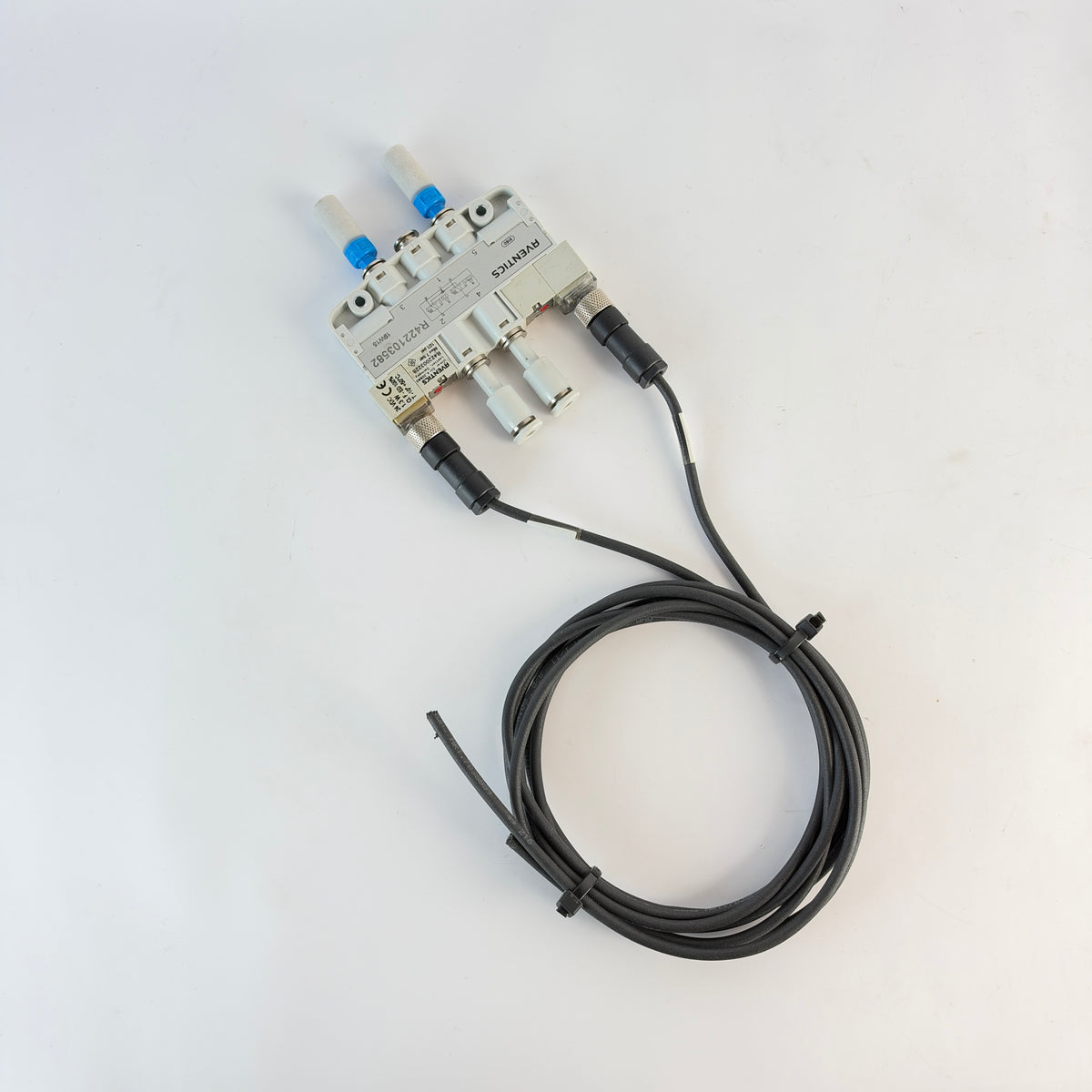

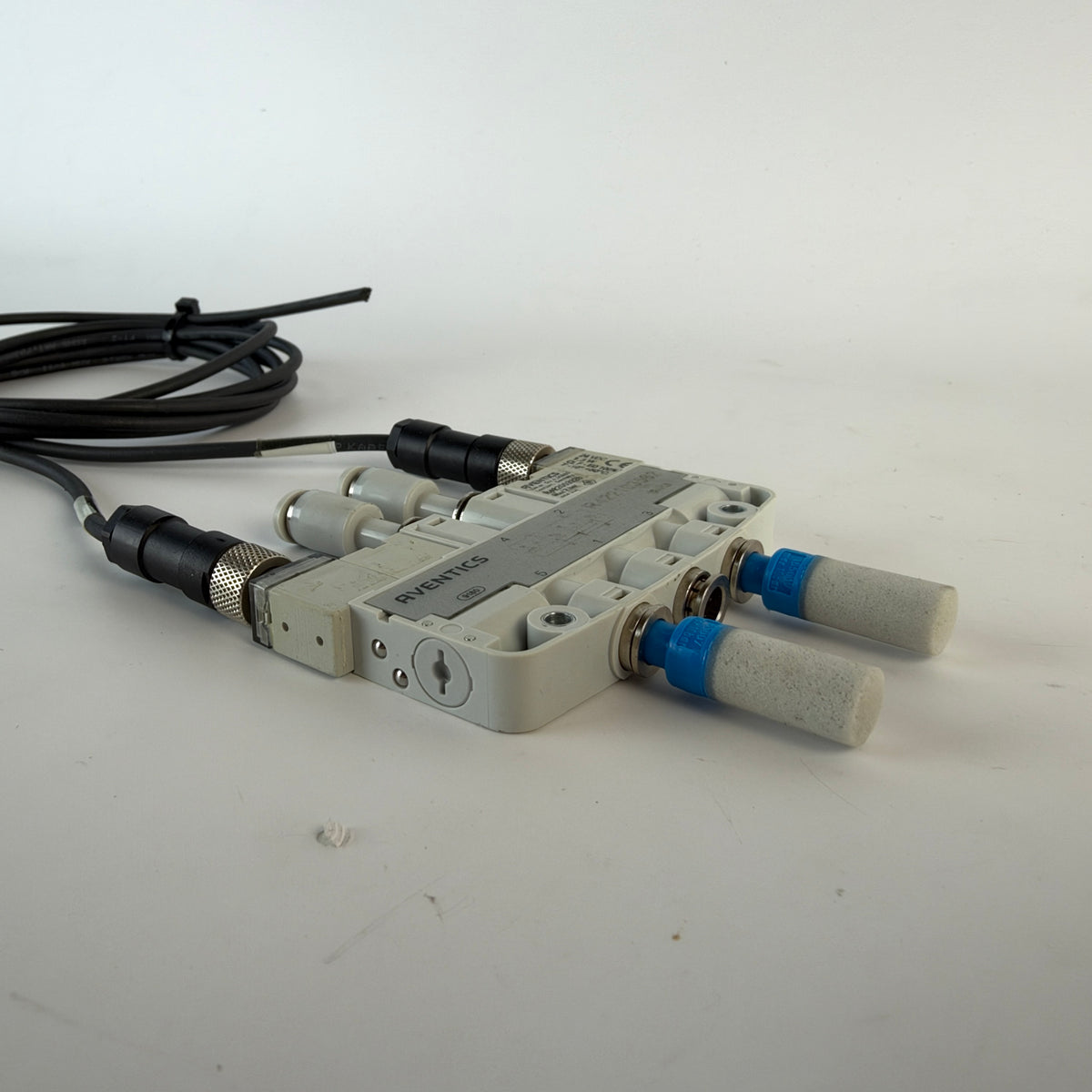

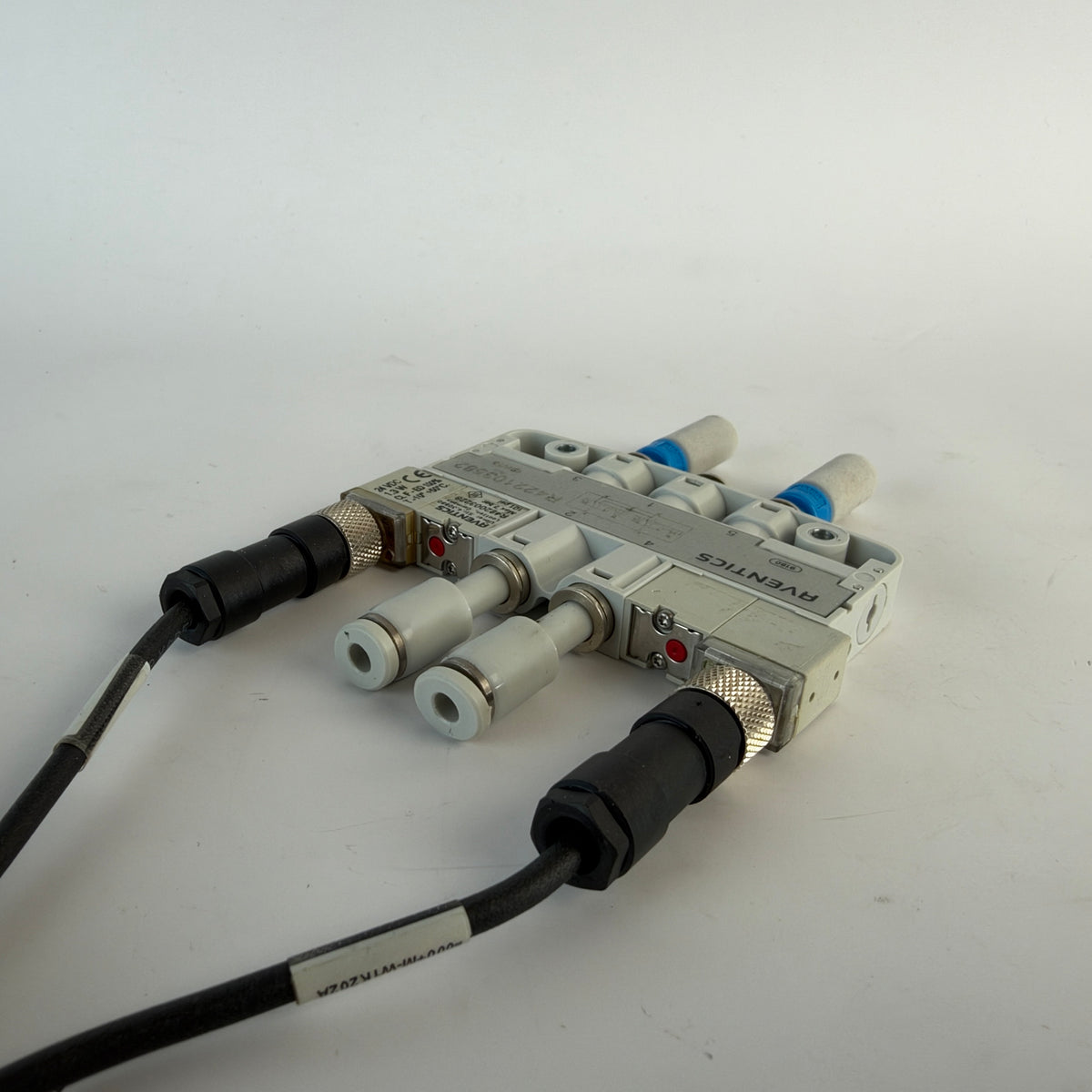

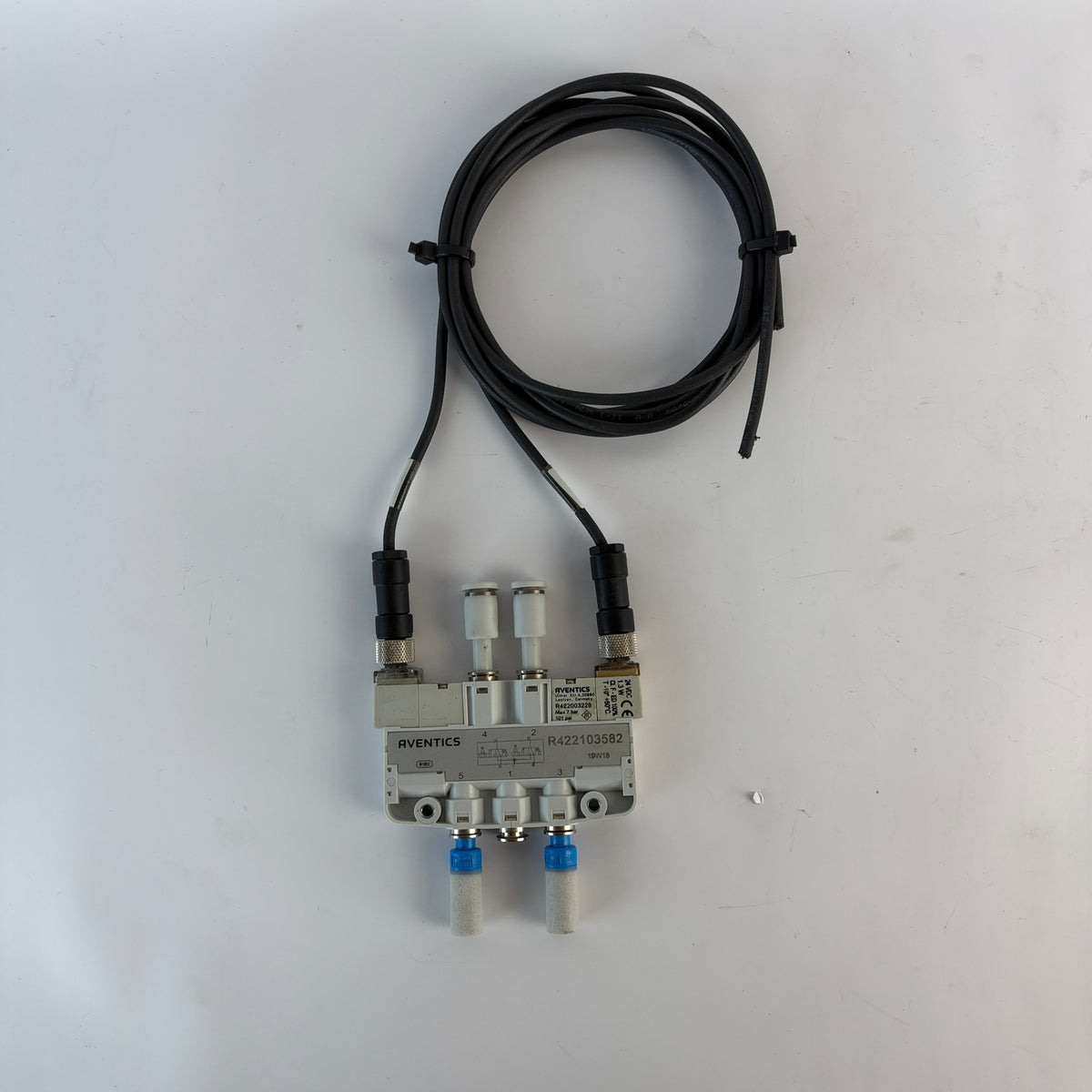

The unit shown is fitted with pneumatic push-in connections and exhaust silencers as pictured.

Used, fully functional.

Supplied exactly as pictured.
