AVENTICS R480772884 complete AV05 pneumatic valve island / valve system for industrial automation and compressed-air control applications.

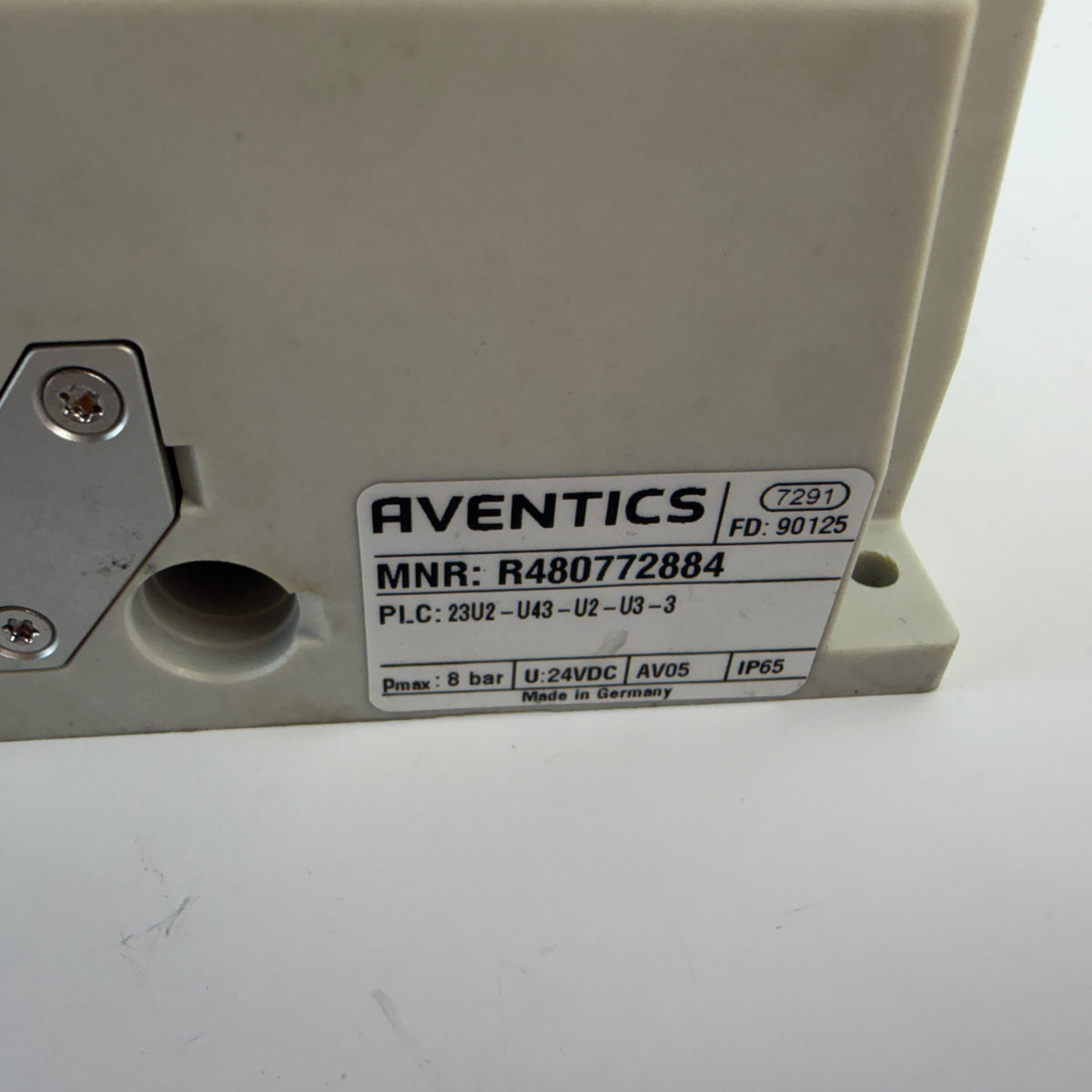

The assembly is factory identified as R480772884, configuration 23U2-U43-U2-U3-3, and operates from a 24 VDC electrical supply. The main assembly is rated for a maximum pressure of 8 bar and IP65 protection.

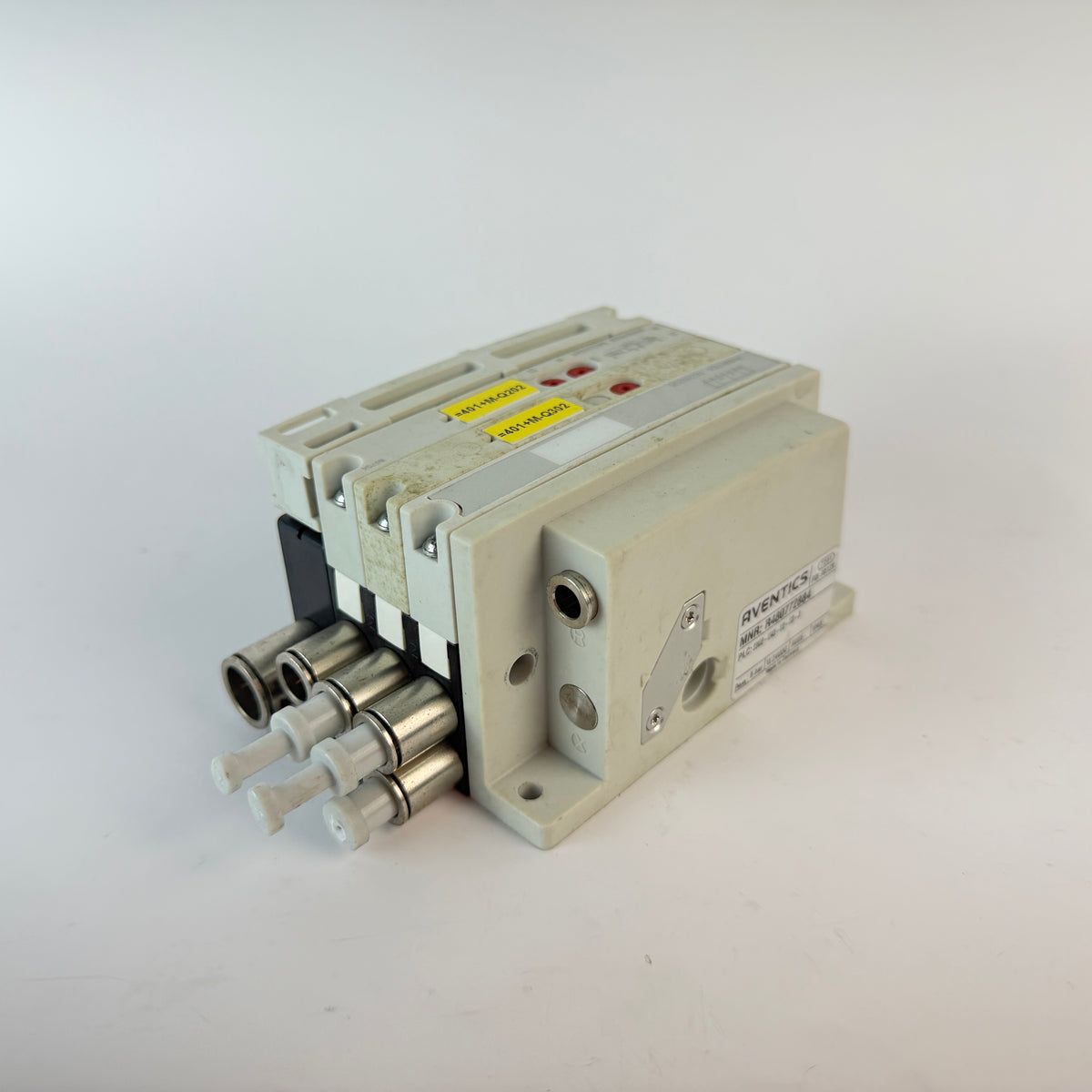

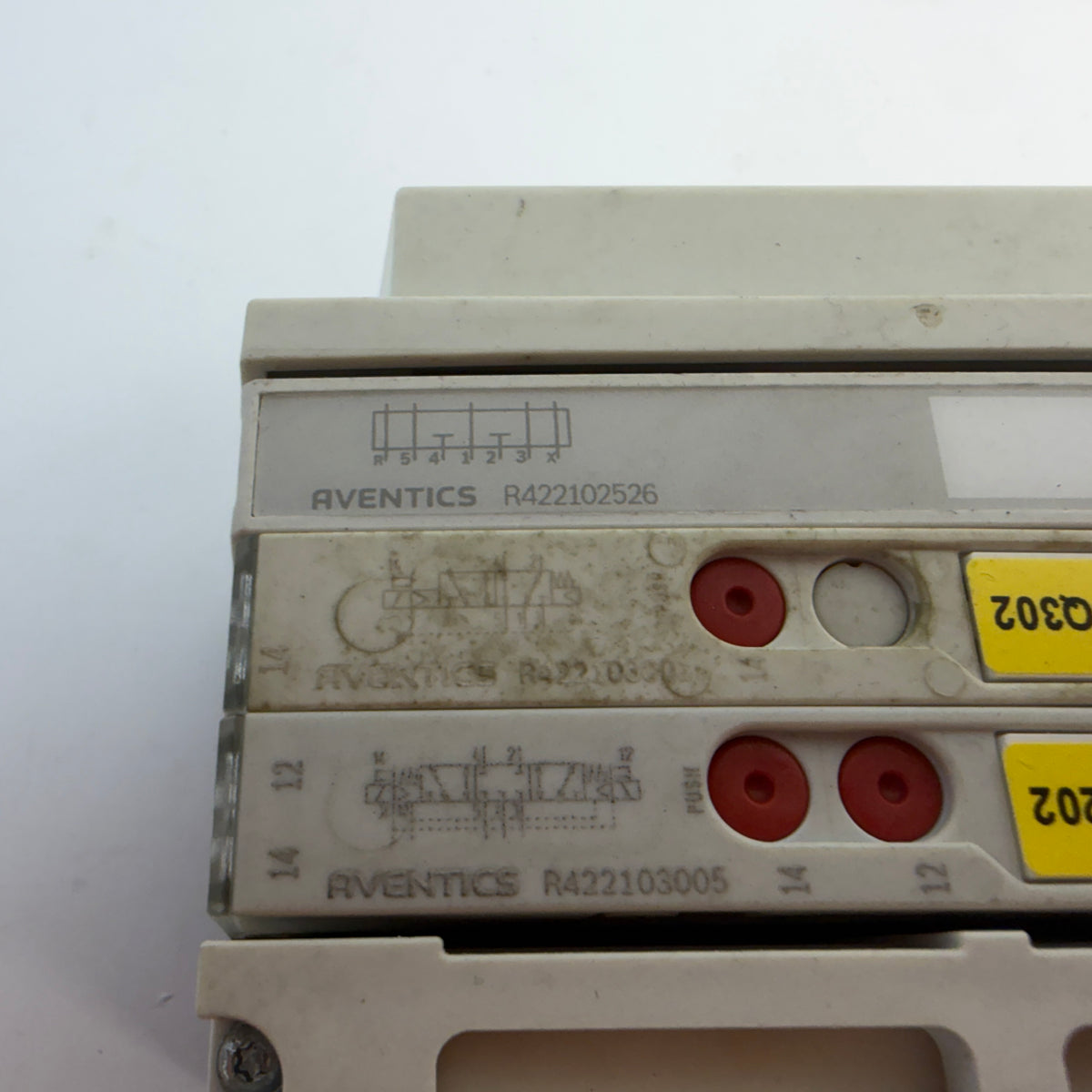

The photographed valve island includes two AVENTICS R422103005 AV05 electrically operated 5/3 closed-center directional valves and one R422102526 AV05 blanking plate.

Main Assembly:

• Manufacturer: AVENTICS
• MPN: R480772884
• Series: AV05
• Type: Pneumatic Valve Island / Valve System
• Configuration: 23U2-U43-U2-U3-3
• Supply Voltage: 24 VDC
• Maximum Pressure: 8 bar
• Protection Rating: IP65
• Country of Origin: Germany

Installed R422103005 Valves:

• Quantity: 2
• Series: AV05
• Type: 5/3 directional valve
• Switching Function: 5/3, closed center
• Actuation: Electrical
• Actuating Control: Double solenoid
• Operating Voltage: 24 VDC
• Valve Design: Spool valve
• Nominal Flow: 650 l/min
• Nominal Flow 1→2: 650 l/min
• Nominal Flow 2→3: 520 l/min
• Working Pressure: -0.9 to 10 bar
• Control Pressure: 3 to 8 bar
• Medium: Compressed air
• Protection Rating: IP65

Installed R422102526:

• Quantity: 1
• Type: AV05 blanking plate
• Series: AV05
• Protection Rating: IP65

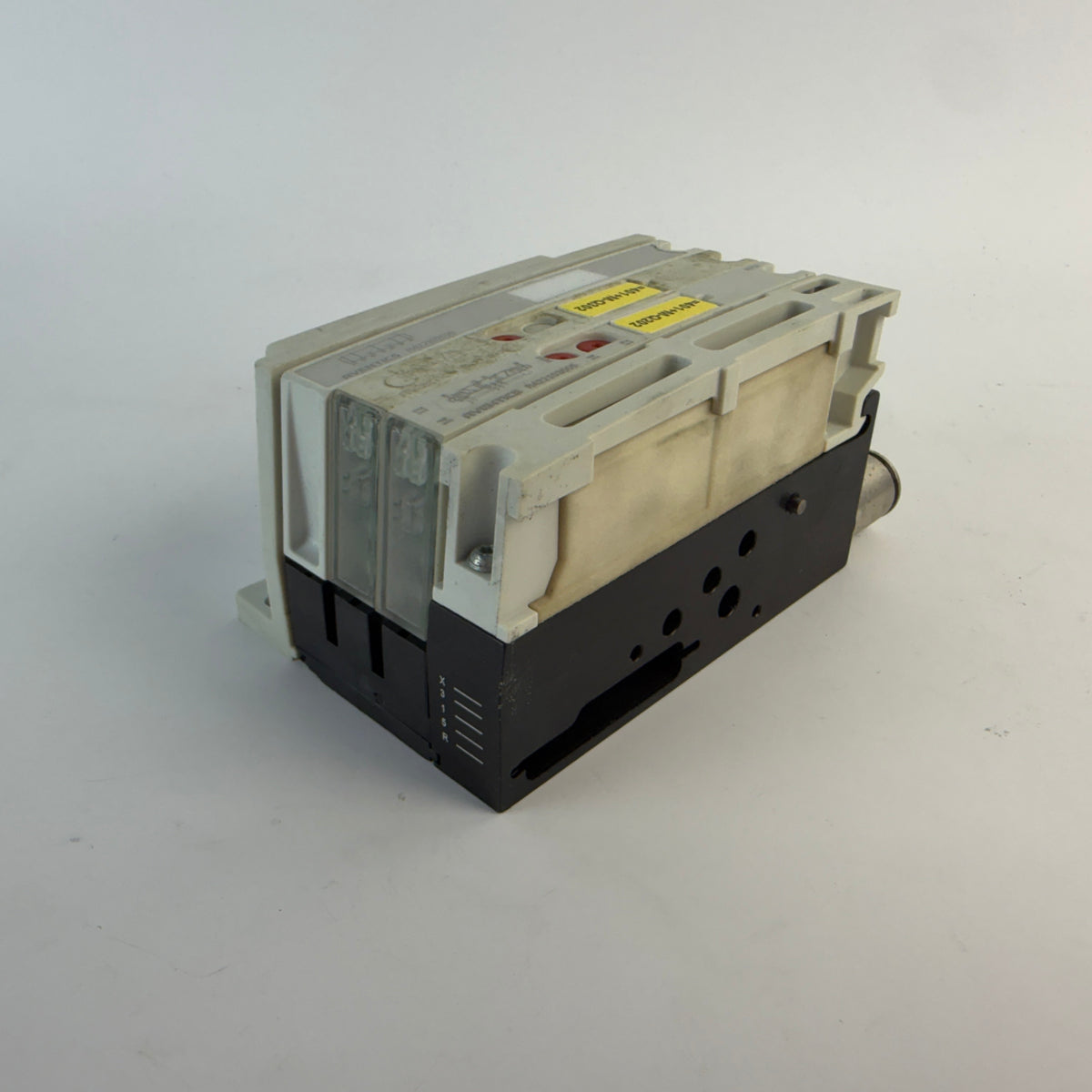

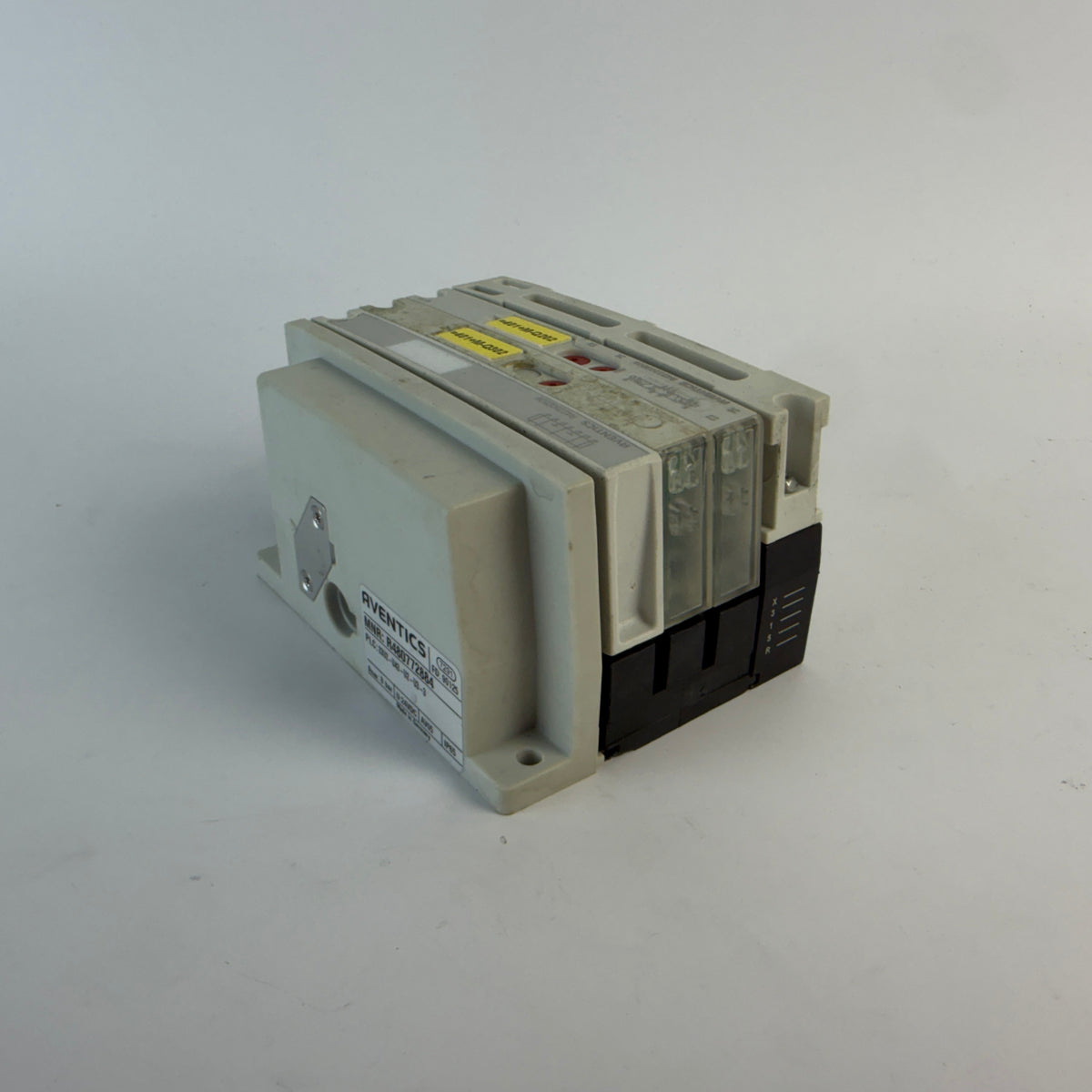

The complete assembly is supplied as pictured, including the installed valve modules, blanking plate, manifold/base and pneumatic connections.

Condition: Used, fully functional.
