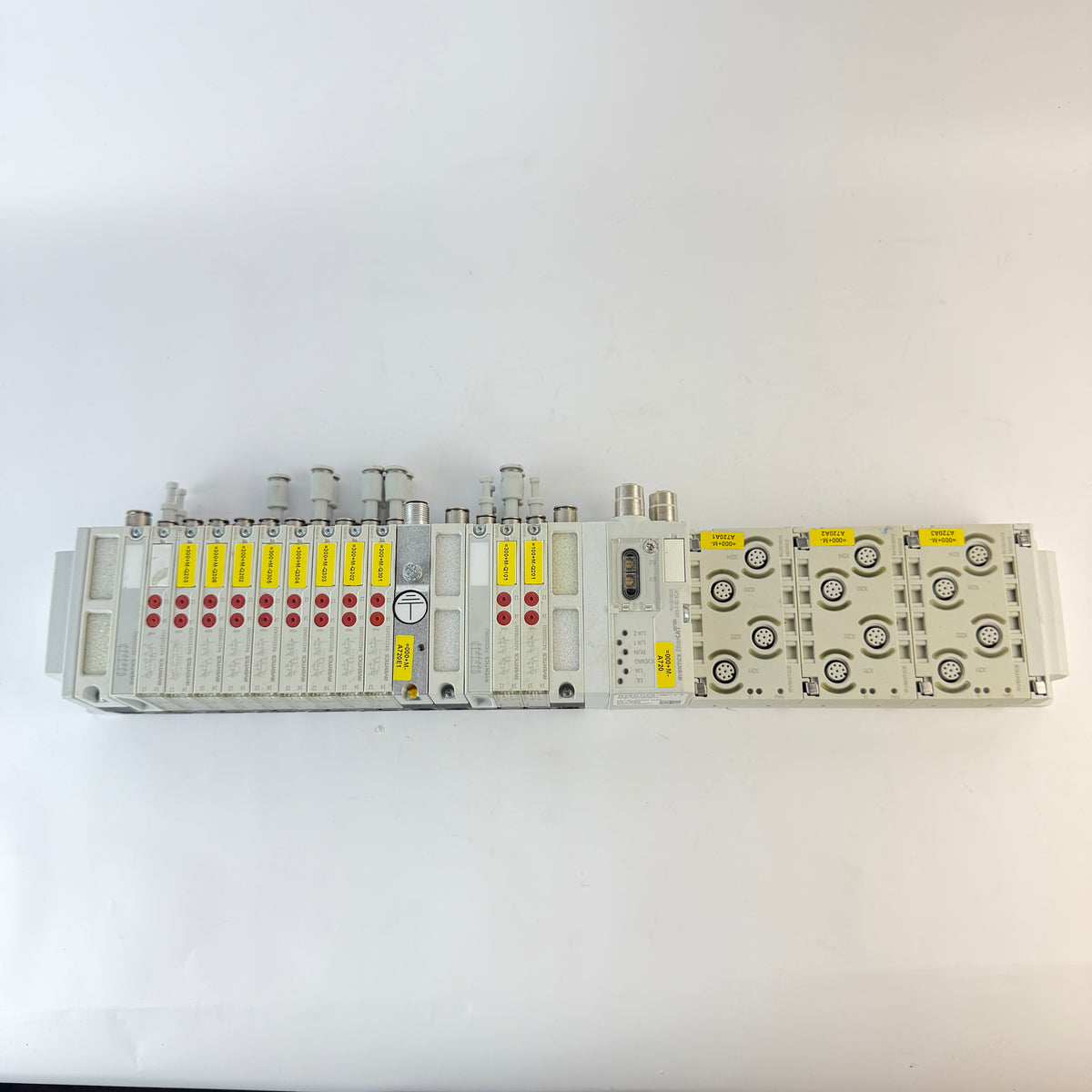

Complete AVENTICS AV03 pneumatic valve island with AES EtherCAT fieldbus interface, distributed I/O modules and multiple AV03 directional valves.

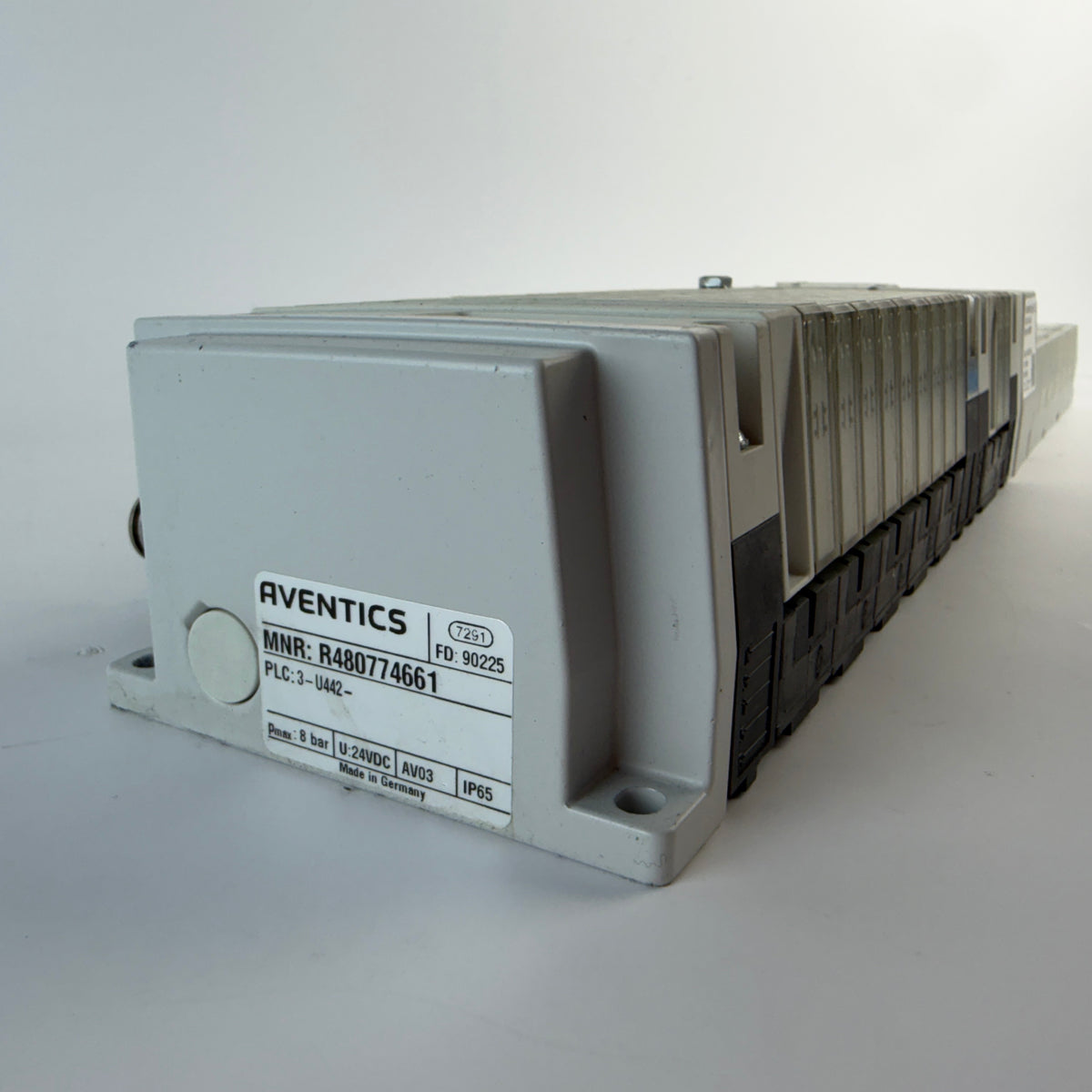

The complete assembly is identified on the main system label as AVENTICS R480774661, configuration PLC: 3-U442-, AV03, 24 VDC, Pmax 8 bar, IP65, Made in Germany.

This is a complete modular automation assembly combining pneumatic valve control with an AVENTICS AES EtherCAT bus coupler and distributed I/O modules.

Installed components identified on the assembly:

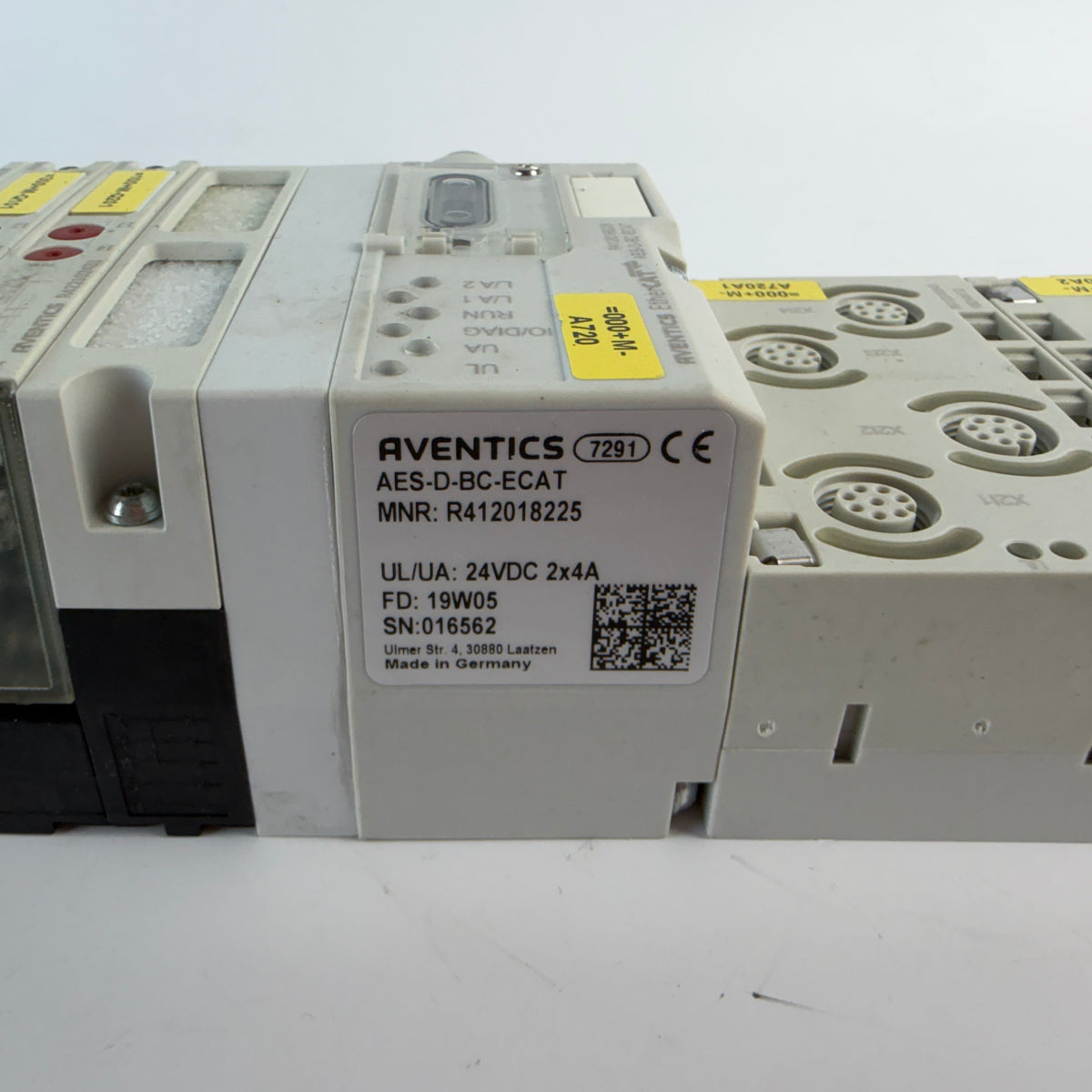

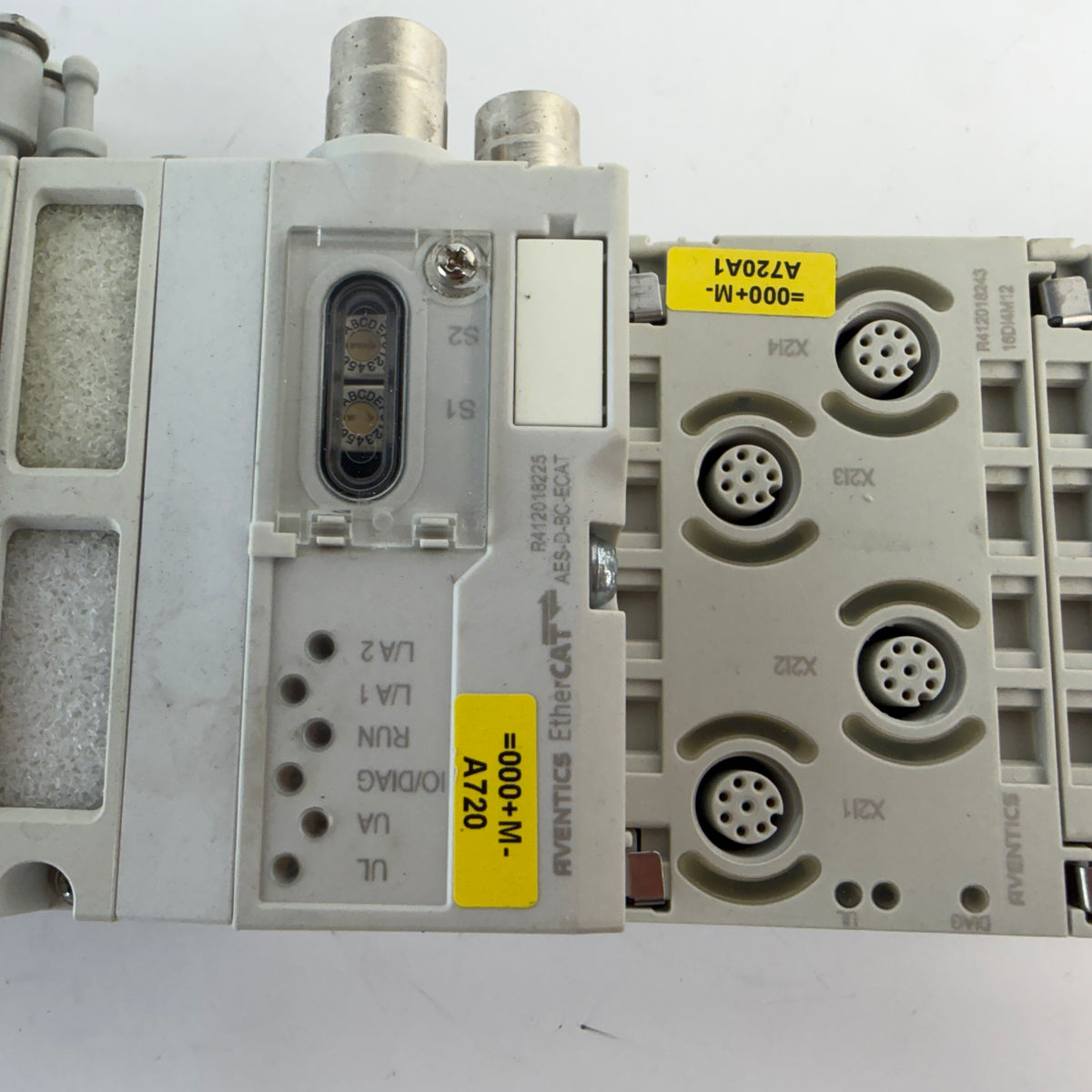

1× AVENTICS R412018225 – AES-D-BC-ECAT

• AES Series bus coupler
• EtherCAT fieldbus interface
• Operating voltage: 24 V DC
• Logic and actuator supply
• Maximum actuator current: 2 × 4 A
• M12 fieldbus / electrical connections
• Designed for integration of AES I/O and AVENTICS valve systems
• IP65
• Marked Made in Germany

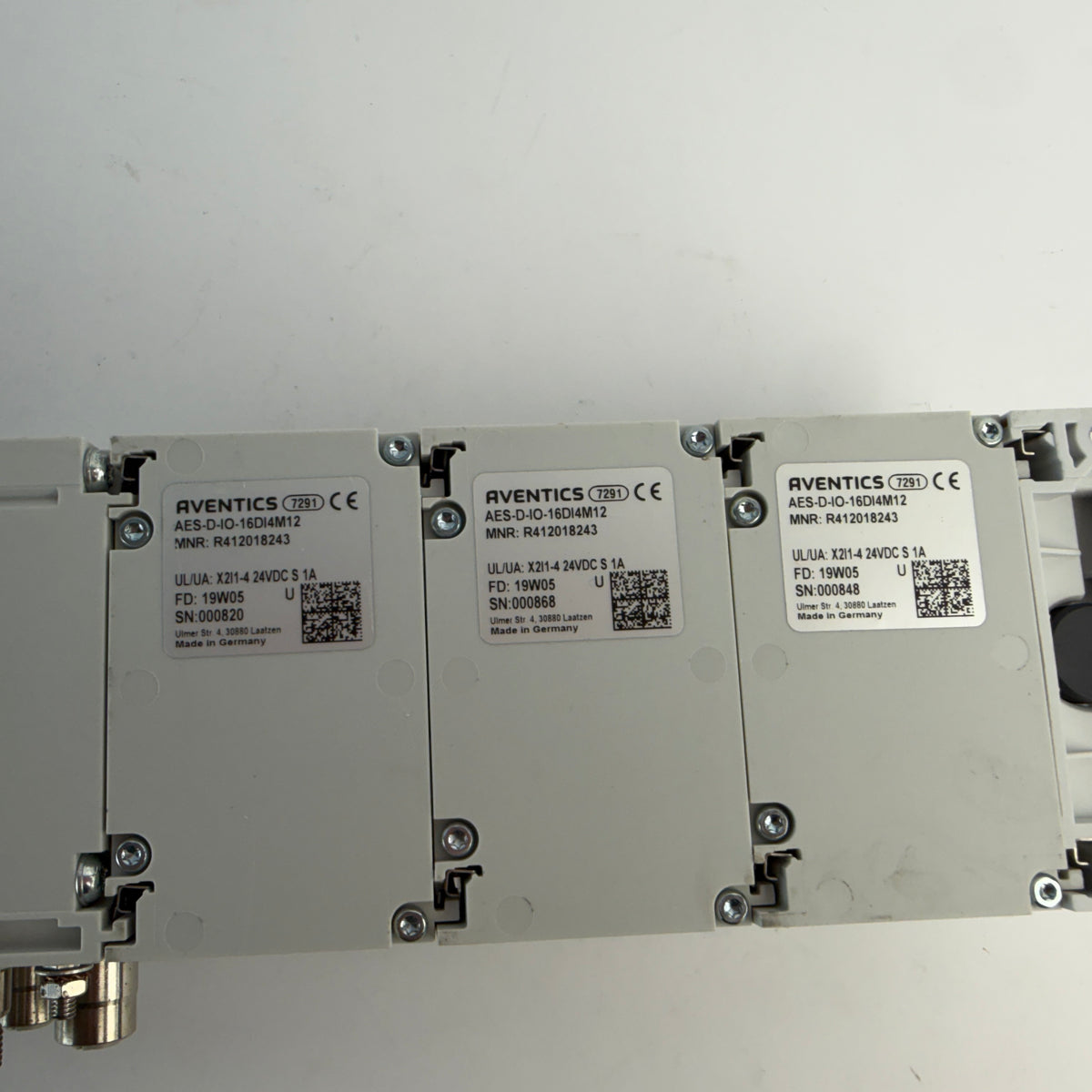

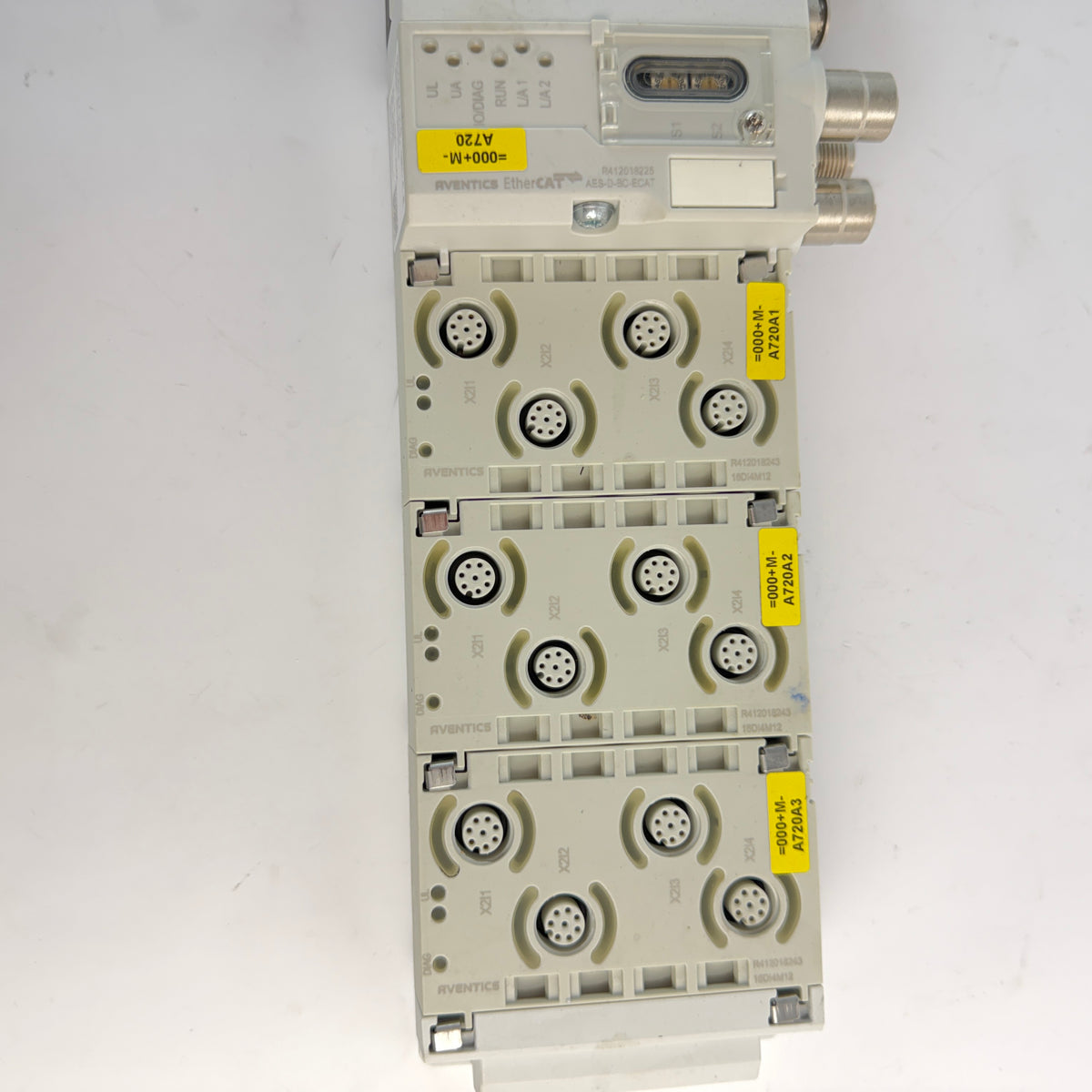

3× AVENTICS R412018243 – AES-D-IO-16DI4M12

• AES digital input modules
• 16 digital inputs per module
• 4 × M12 I/O connections per module
• 24 V DC
• Marked Made in Germany

1× AVENTICS R422102427 – AV03 5/2 Directional Valve

• Electrically operated
• 5/2 function
• Double solenoid
• 24 V DC
• Nominal flow: 300 l/min
• Working pressure: -0.9 to 10 bar
• External pilot
• IP65 with electrical connection
• Manual override
• LED status indication

1× AVENTICS R422102429 – AV03 5/3 Directional Valve

• Electrically operated
• 5/3 function
• Double solenoid
• Closed-center valve function
• 24 V DC
• Nominal flow: 240 l/min
• AV03 base-plate valve

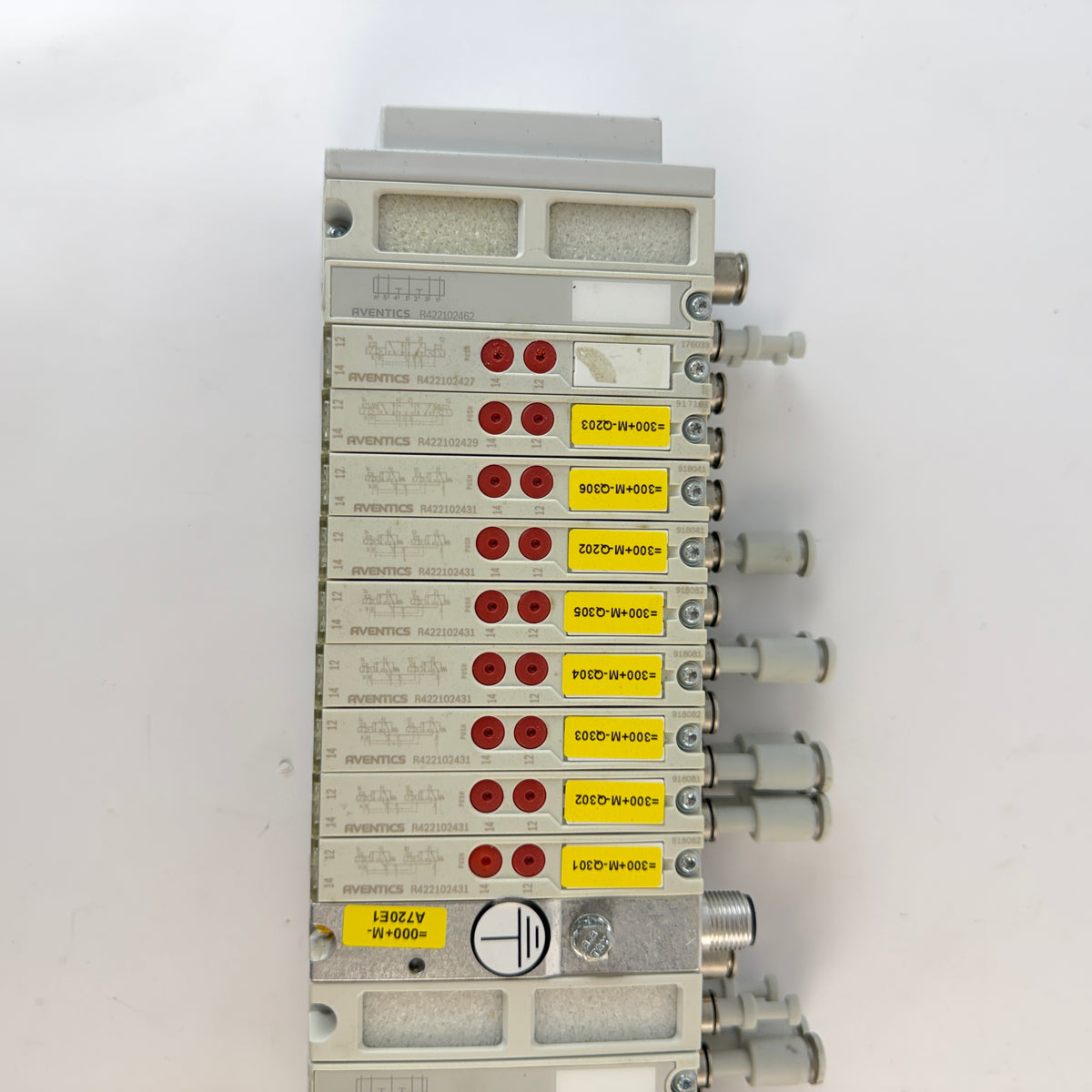

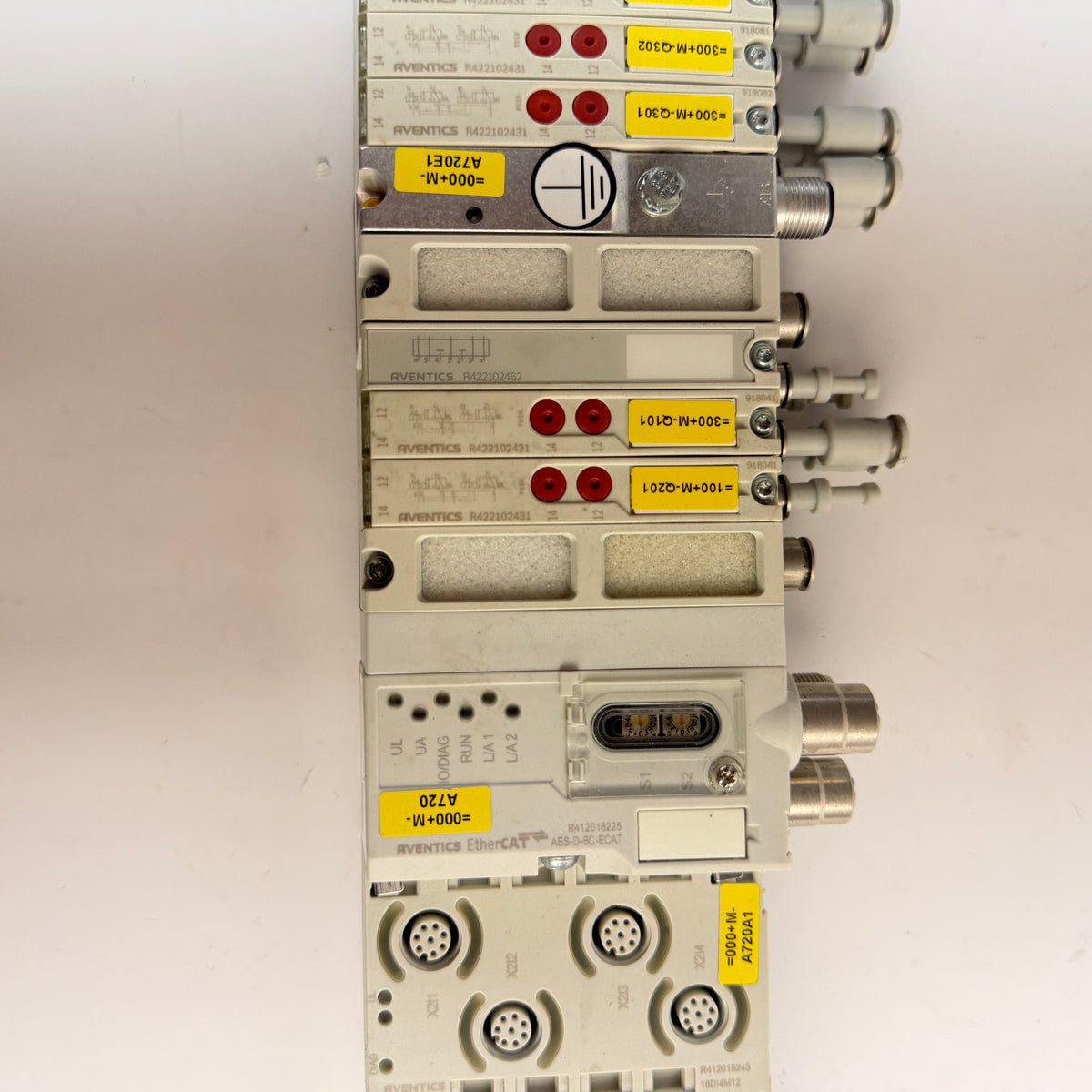

9× AVENTICS R422102431 – AV03 2x3/2 Directional Valves

• Dual 3/2 valve configuration
• 2 × 3/2 NC/NC function
• Electrically operated
• Double solenoid
• Spring return
• 24 V DC
• Nominal flow: 300 l/min
• Working pressure: -0.9 to 10 bar
• External pilot
• IP65 with electrical connection
• Yellow LED status indication
• 0.55 W power consumption

1× AVENTICS R422102462

• AV03 blanking plate
• Used for closing an unused valve position in the AV03 manifold

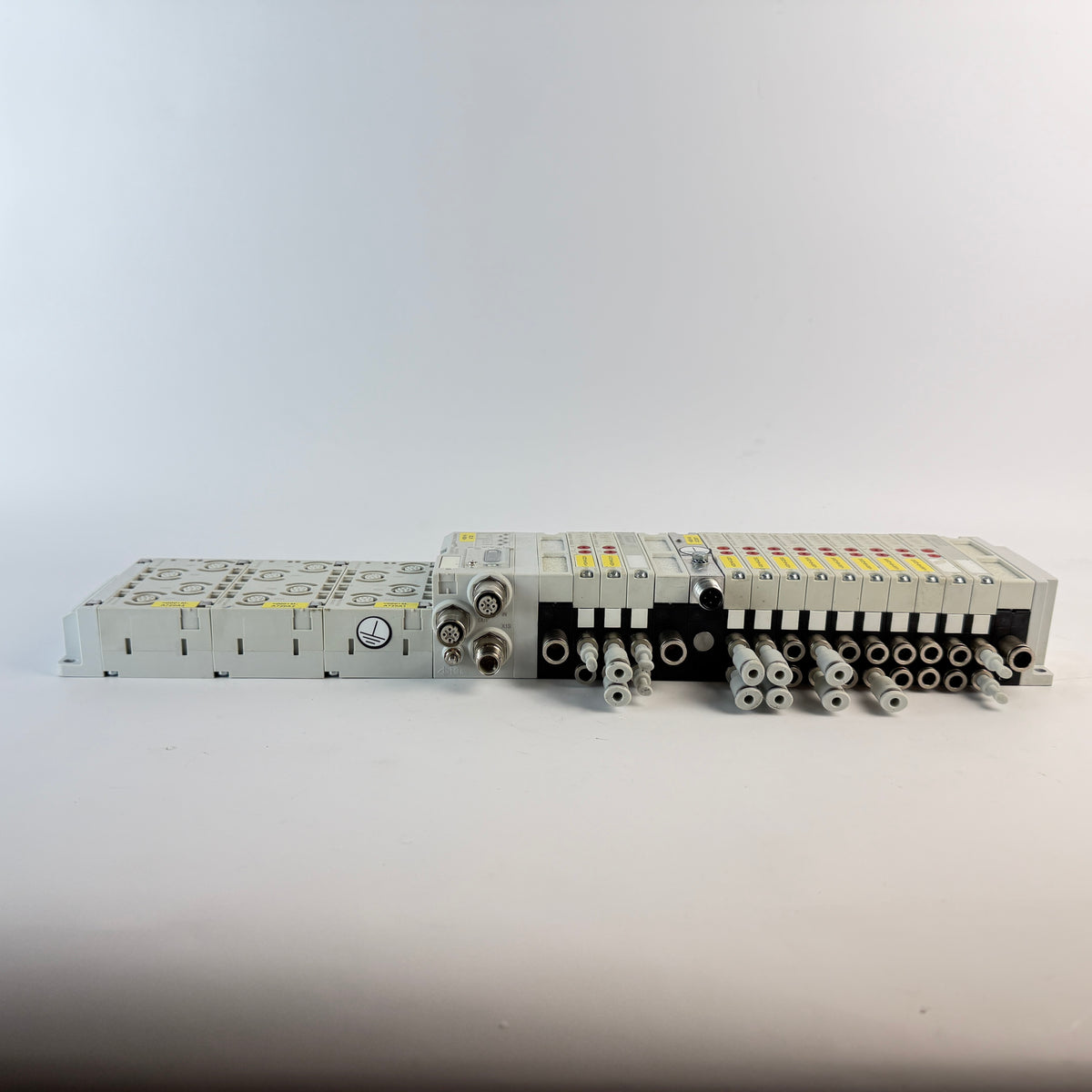

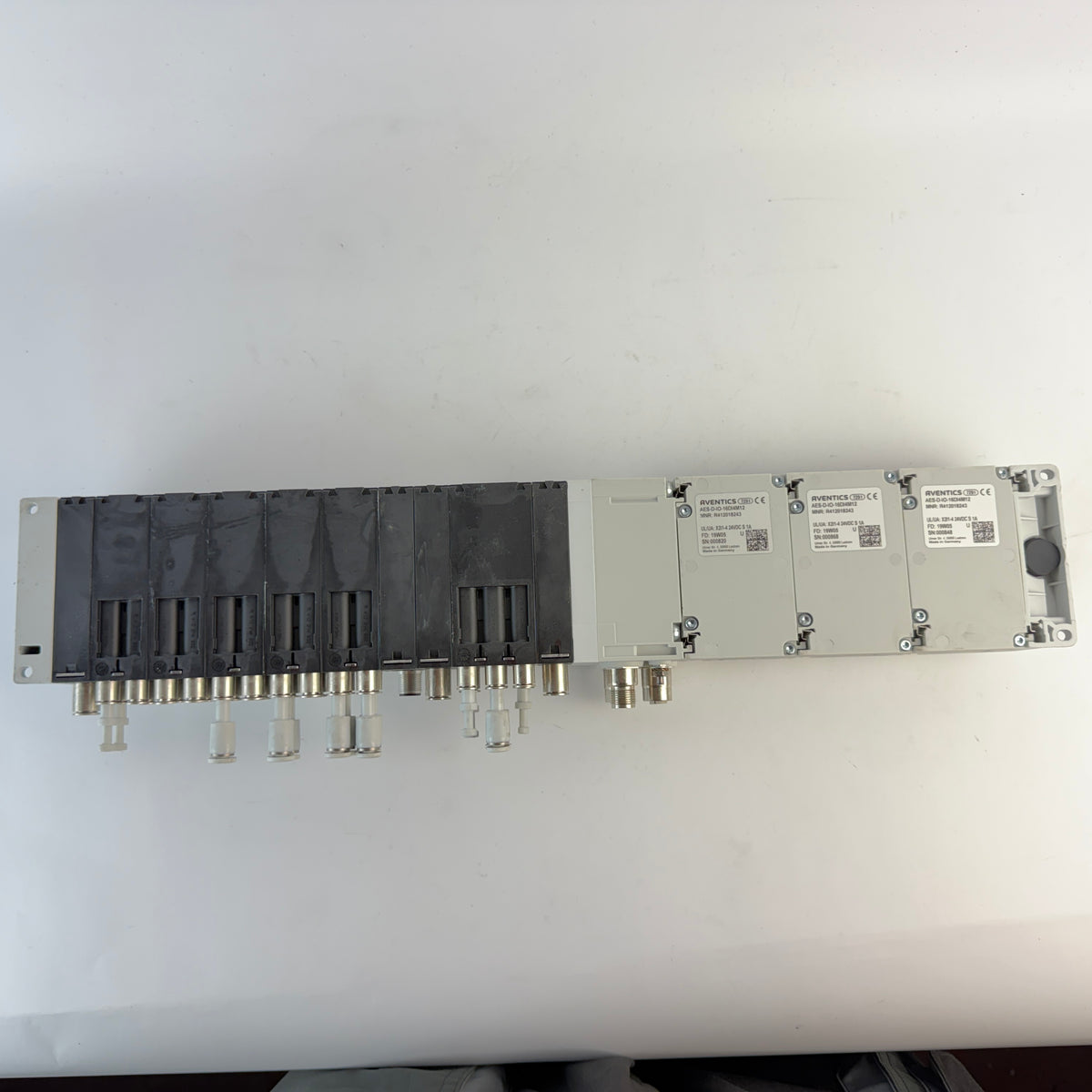

The assembly includes the valve manifold/base, pneumatic push-in fittings, silencers, electrical and pneumatic connection modules and mounting/end plates shown in the photographs.

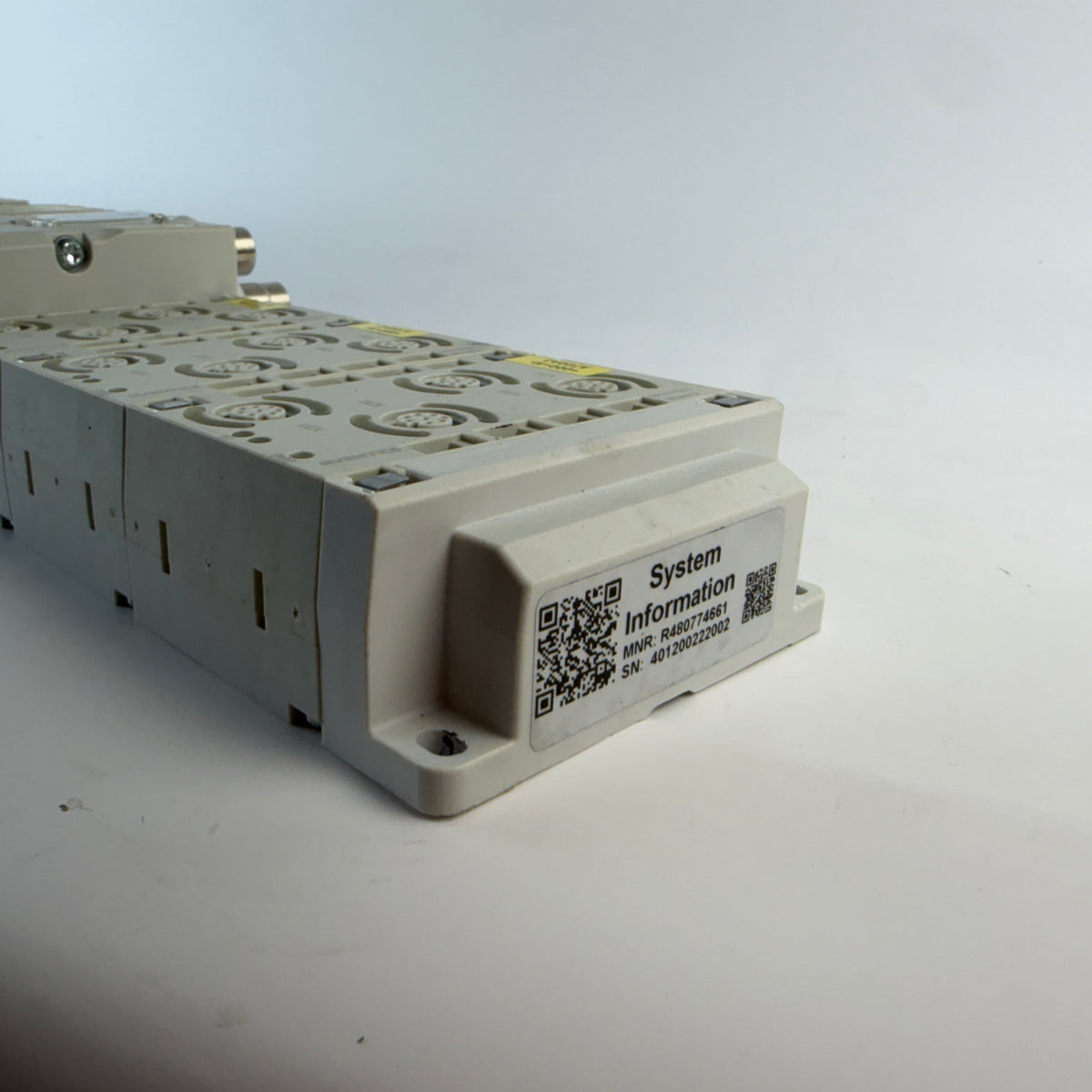

Main assembly identification:

• Manufacturer: AVENTICS
• MPN: R480774661
• Series: AV03 / AES
• Configuration marking: PLC: 3-U442-
• Supply voltage: 24 V DC
• Maximum pressure: 8 bar
• Protection class: IP65
• Fieldbus: EtherCAT
• Country of Origin: Germany

Used, fully functional.
