AVENTICS R480774698 complete pneumatic valve island assembly featuring AV03/AV05 directional valves, an AES-D-BC-ECAT EtherCAT bus coupler, and AES digital input modules.

This industrial valve island provides integrated pneumatic valve control and distributed I/O connectivity for automated machinery and industrial control systems. The assembly combines AVENTICS AV03 and AV05 pneumatic components with the AES fieldbus platform and EtherCAT communication.

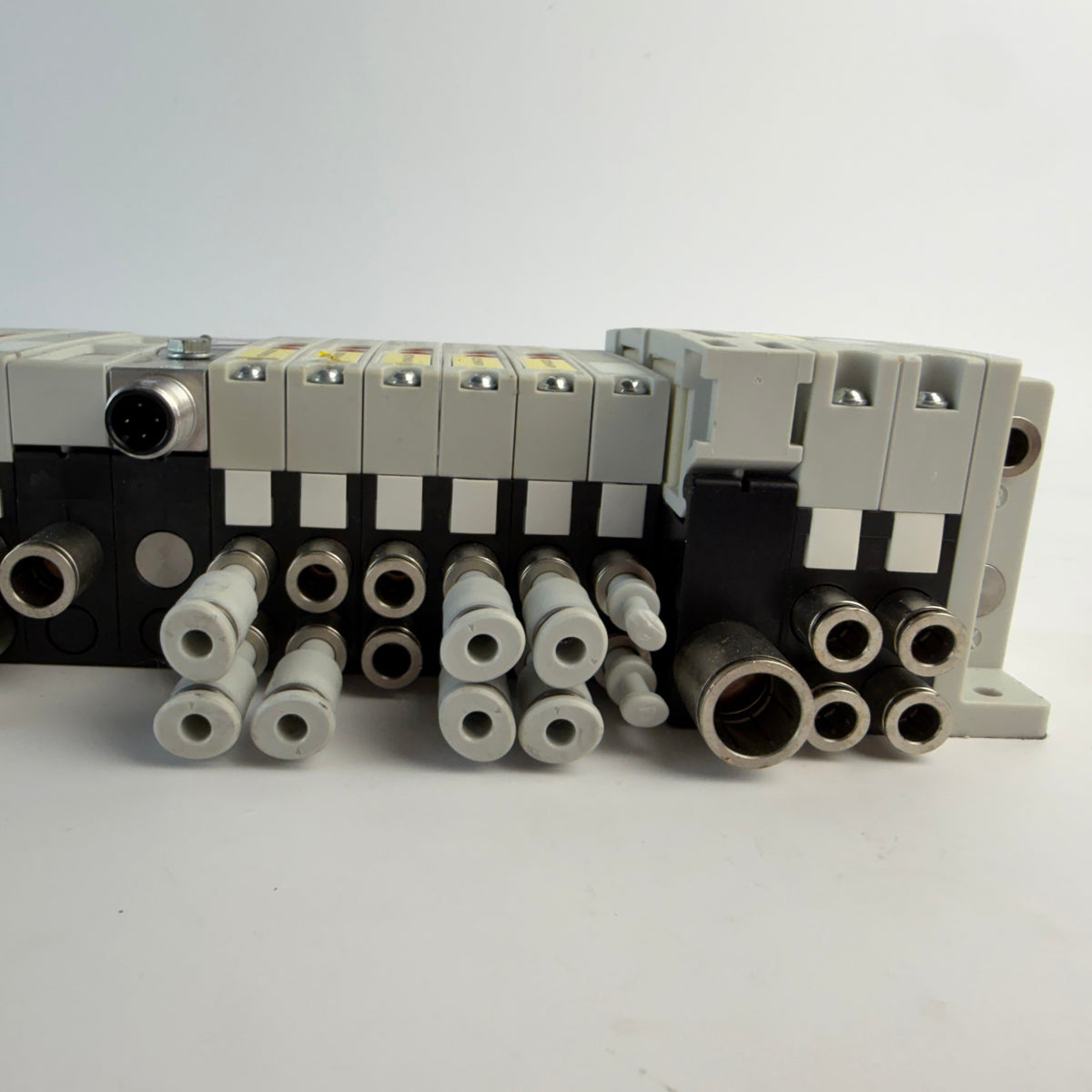

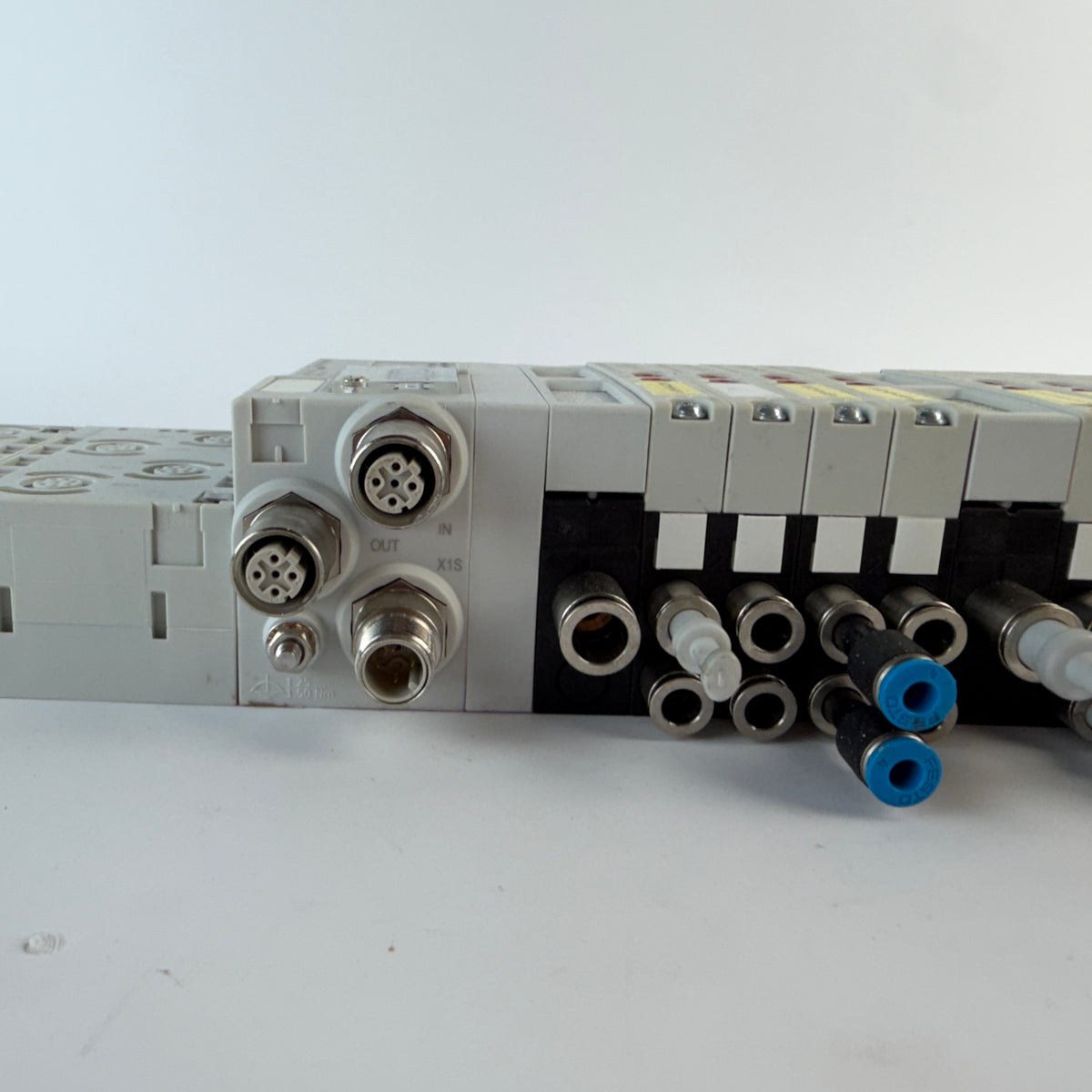

The installed R412018225 AES-D-BC-ECAT module functions as the EtherCAT bus coupler for communication between the valve system and an EtherCAT control network.

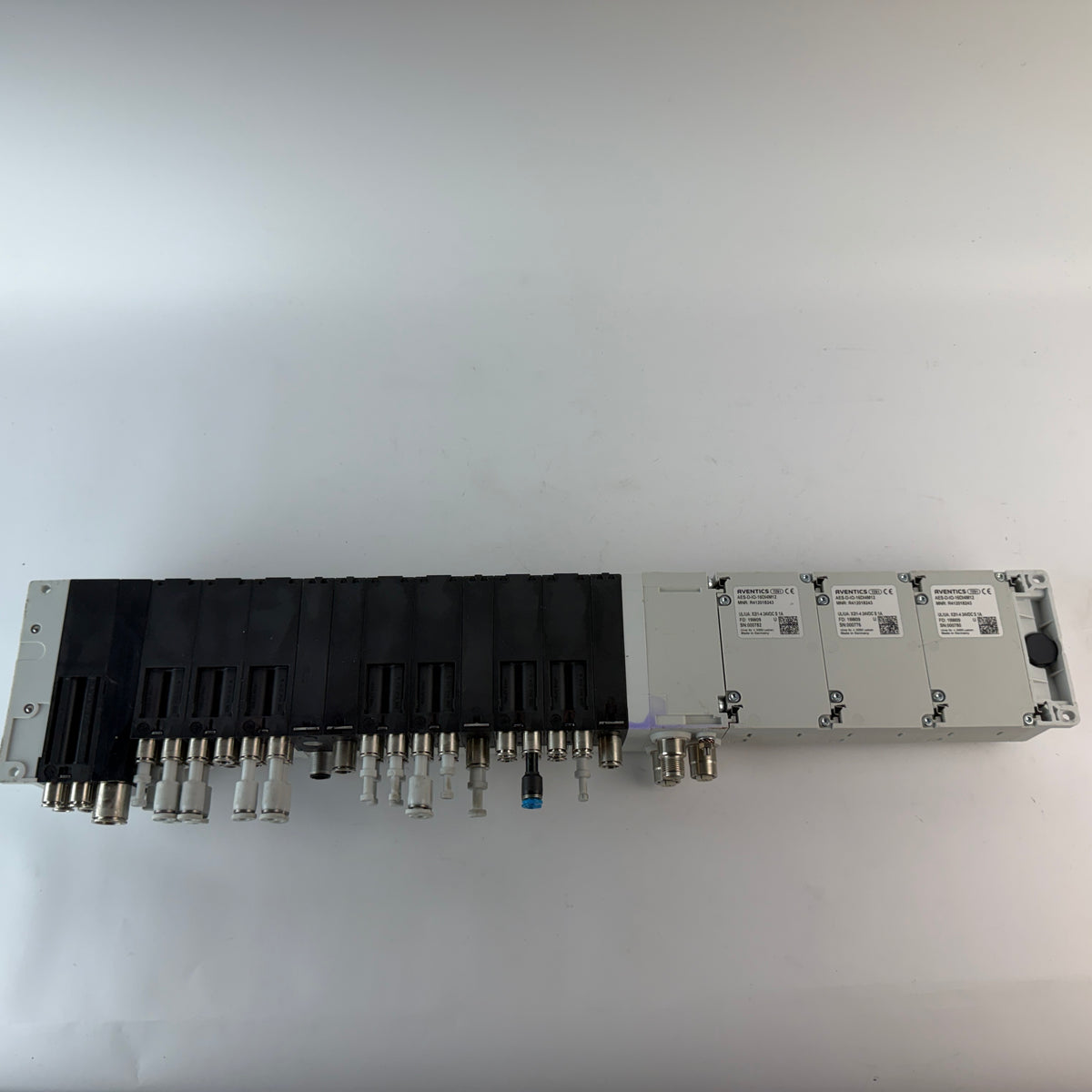

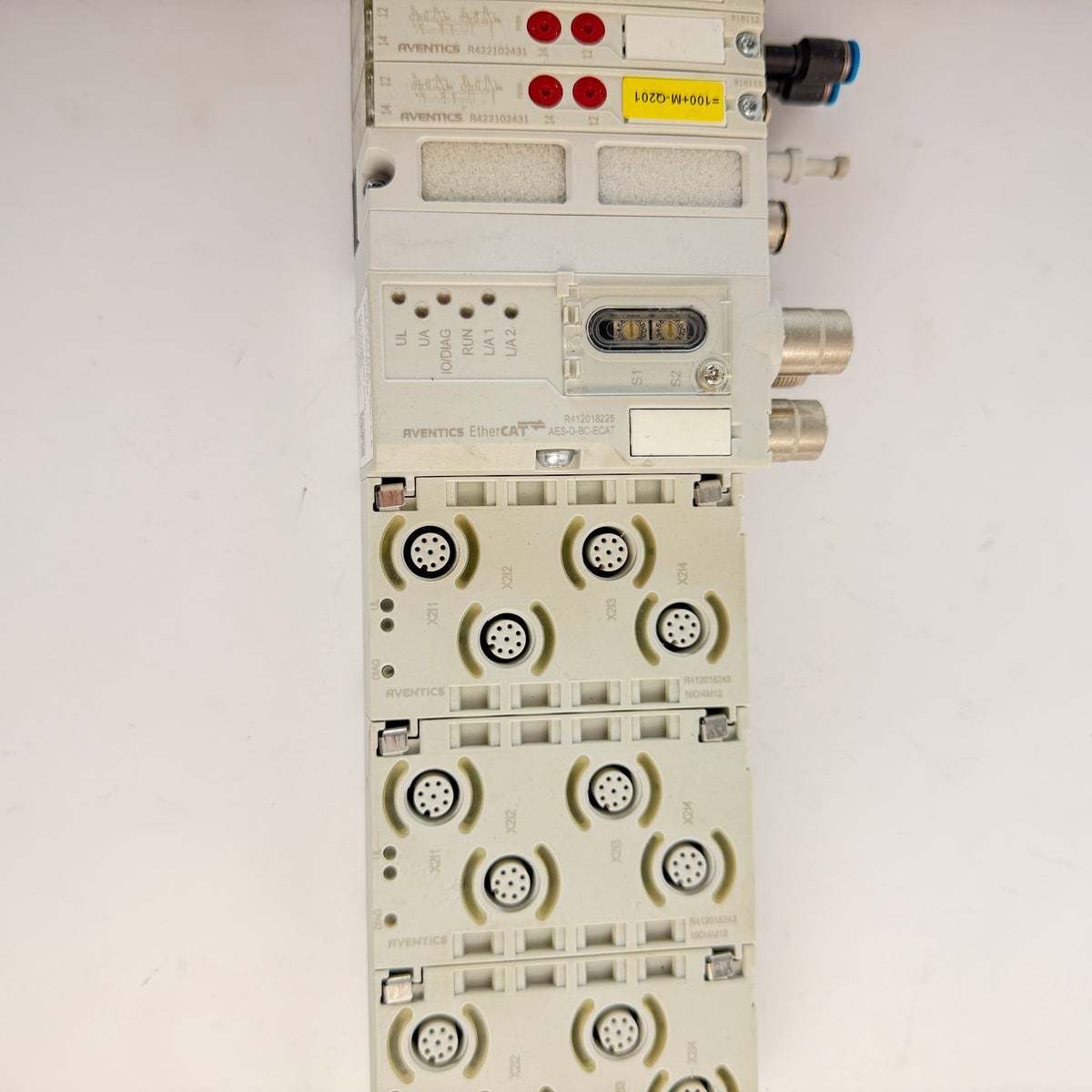

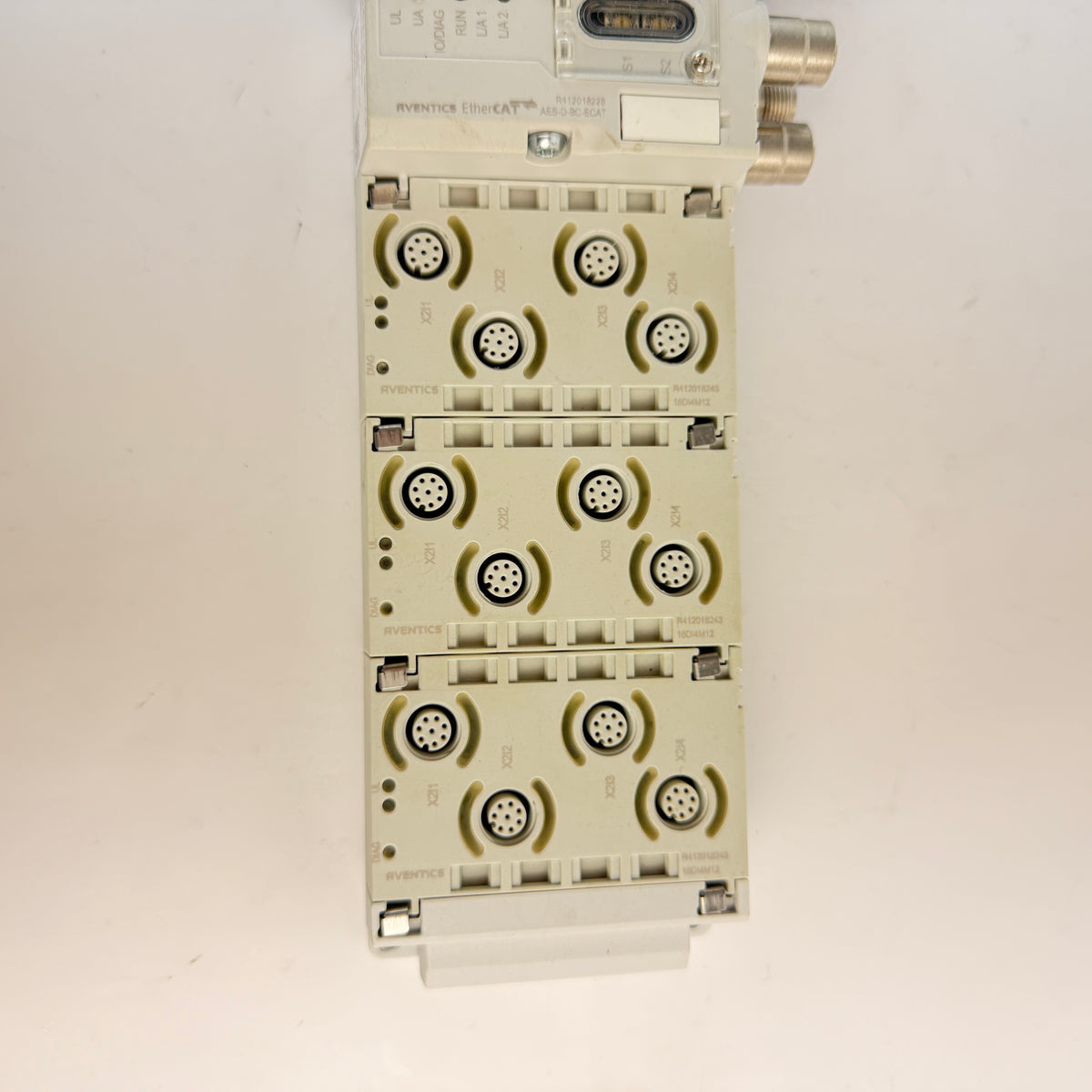

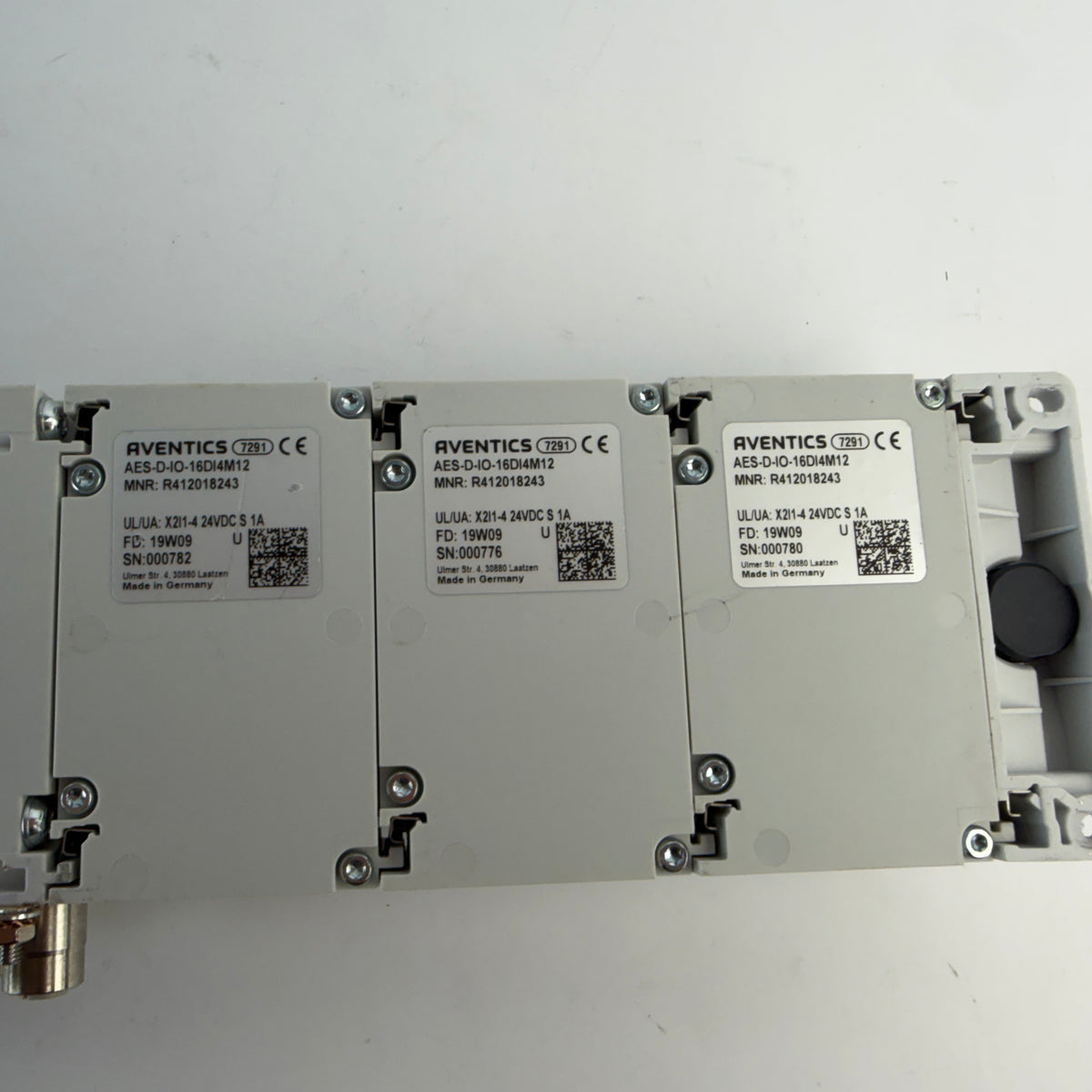

The assembly also includes three R412018243 AES-D-IO-16DI4M12 digital input modules. Each module provides 16 digital inputs through four M12 8-pin connections and operates from 24 V DC.

Complete assembly identification:

• Manufacturer: AVENTICS

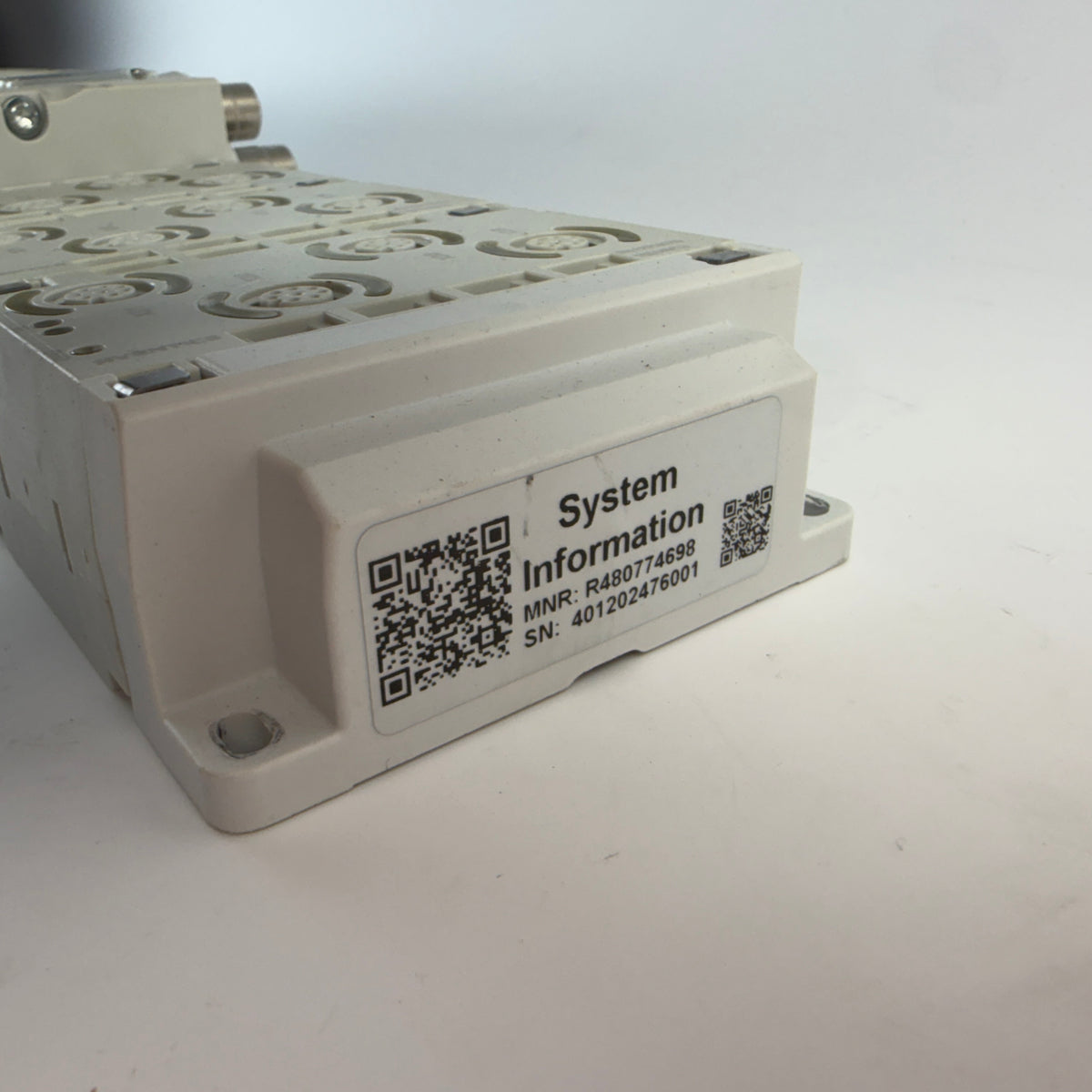

• System MNR: R480774698
• Fieldbus: EtherCAT
• Bus Coupler: AES-D-BC-ECAT
• Bus Coupler MPN: R412018225
• Supply Voltage: 24 V DC

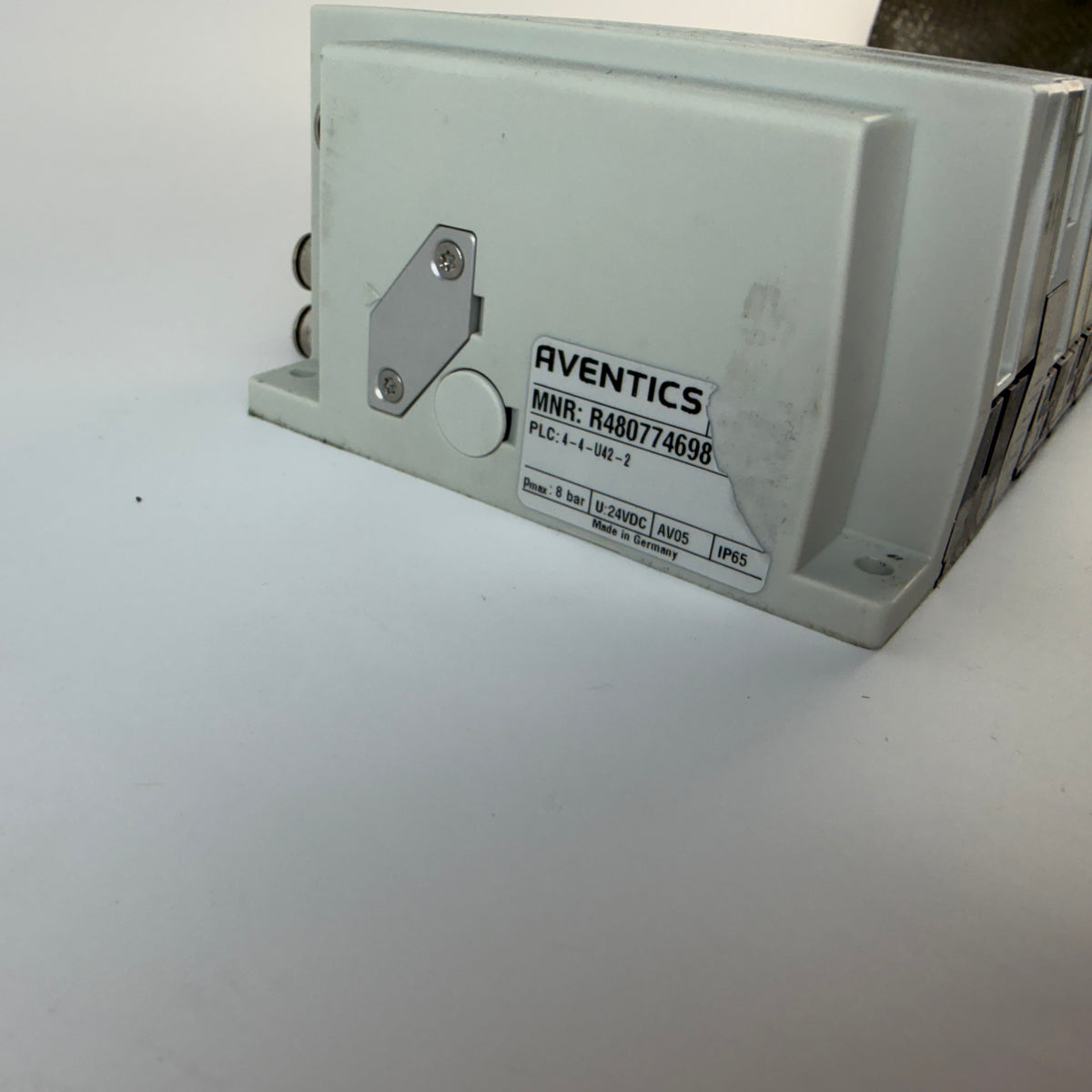

• Maximum Pressure: 8 bar (system label)
• Protection Rating: IP65
• Country of Manufacture: Germany

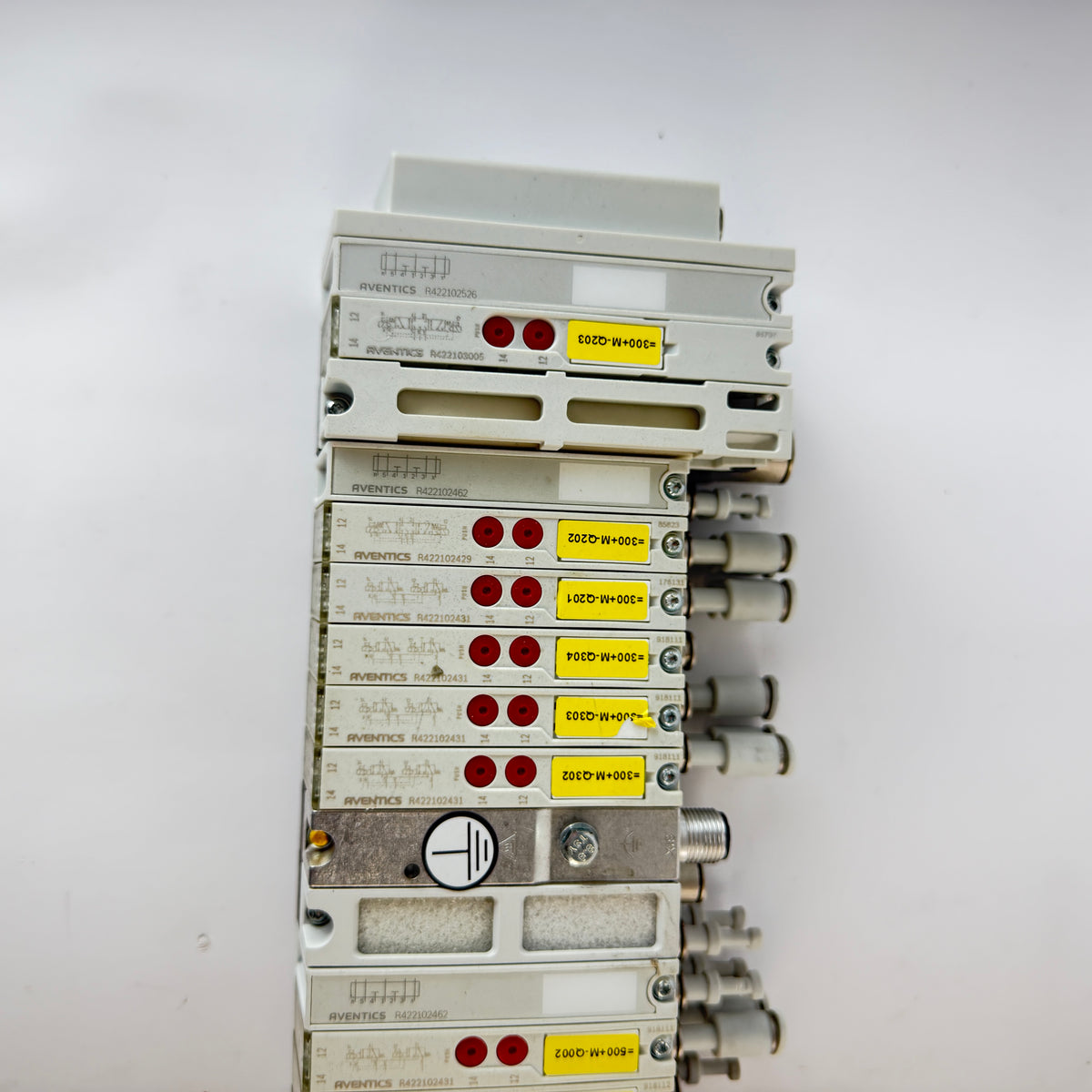

Installed components:

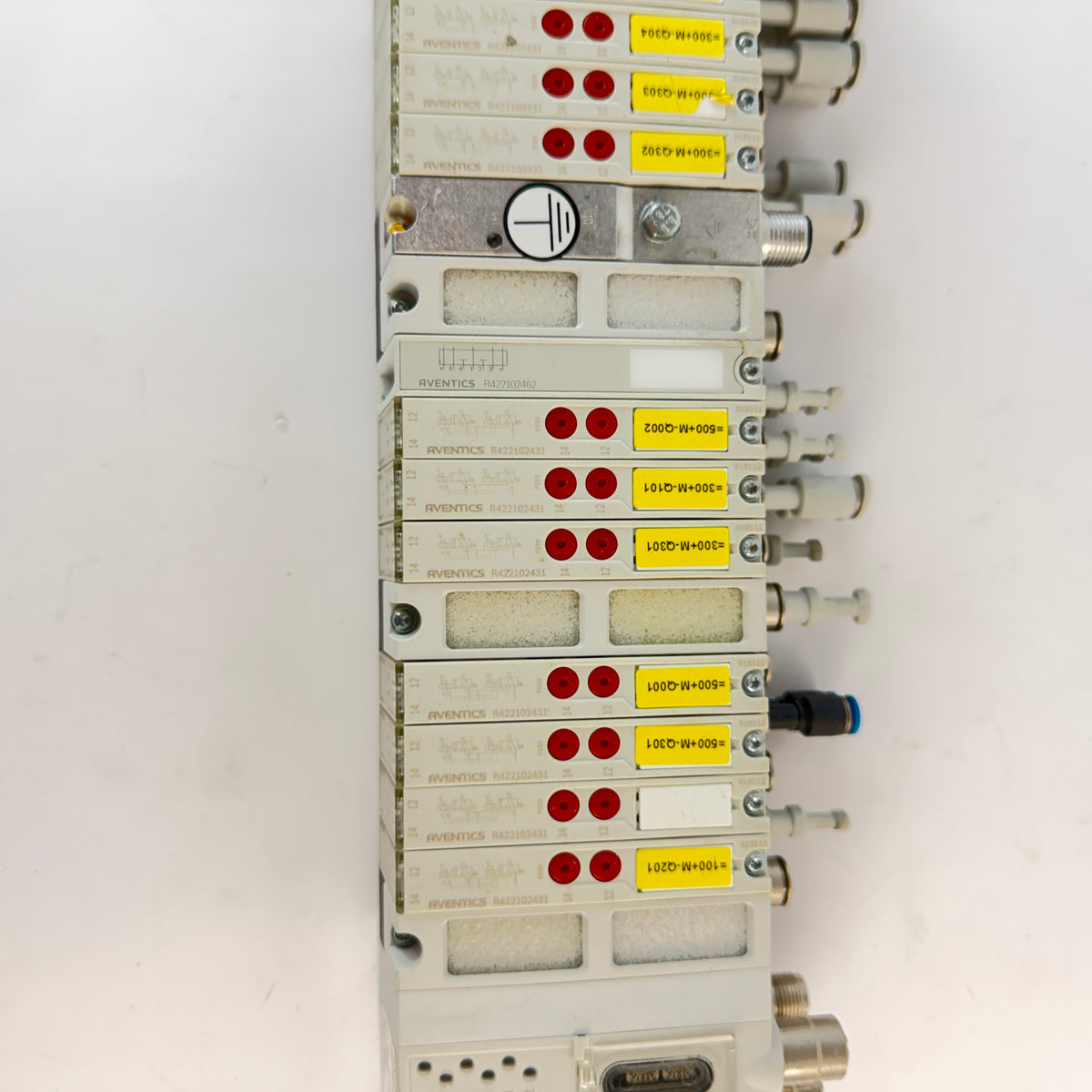

• 1x R422102526 – AV05 blanking plate
• 1x R422103005 – AV05 5/3 directional valve, closed center, 24 V DC
• 2x R422102462 – AV03 blanking plates
• 1x R422102429 – AV03 5/3 directional valve, closed center, 24 V DC
• 11x R422102431 – AV03 2x3/2 directional valves, NC/NC, 24 V DC
• 1x R412018225 – AES-D-BC-ECAT EtherCAT bus coupler
• 3x R412018243 – AES-D-IO-16DI4M12 digital input modules, 16 inputs per module

R422102431 valve specifications:

• Series: AV03
• Valve function: 2x3/2 NC/NC
• Activation: Electrical
• Operating voltage: 24 V DC
• Nominal flow: 300 l/min
• Working pressure range: -0.9 to 10 bar
• Protection class with connection: IP65

R422102429 valve specifications:

• Series: AV03
• Valve function: 5/3 closed center
• Activation: Electrical
• Operating voltage: 24 V DC
• Nominal flow: 240 l/min
• Working pressure range: -0.9 to 10 bar

R422103005 valve specifications:

• Series: AV05
• Valve function: 5/3 closed center
• Activation: Electrical
• Operating voltage: 24 V DC
• Nominal flow: 650 l/min

R412018243 I/O module specifications:

• Series: AES
• Type: AES-D-IO-16DI4M12
• Function: Digital input module
• Inputs: 16 digital inputs
• Connections: 4x M12, 8-pin
• Electronics operating voltage: 24 V DC
• Protection class: IP65

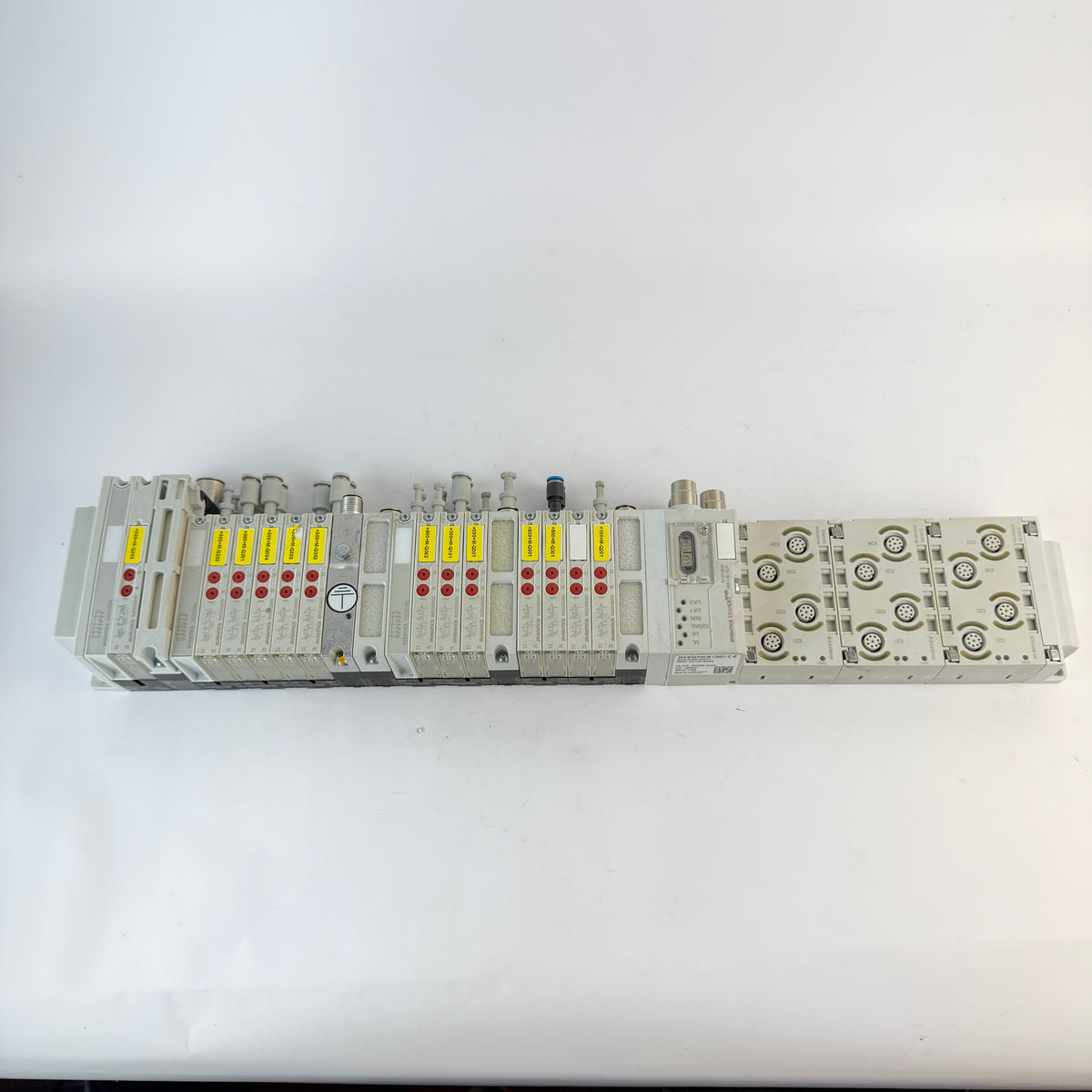

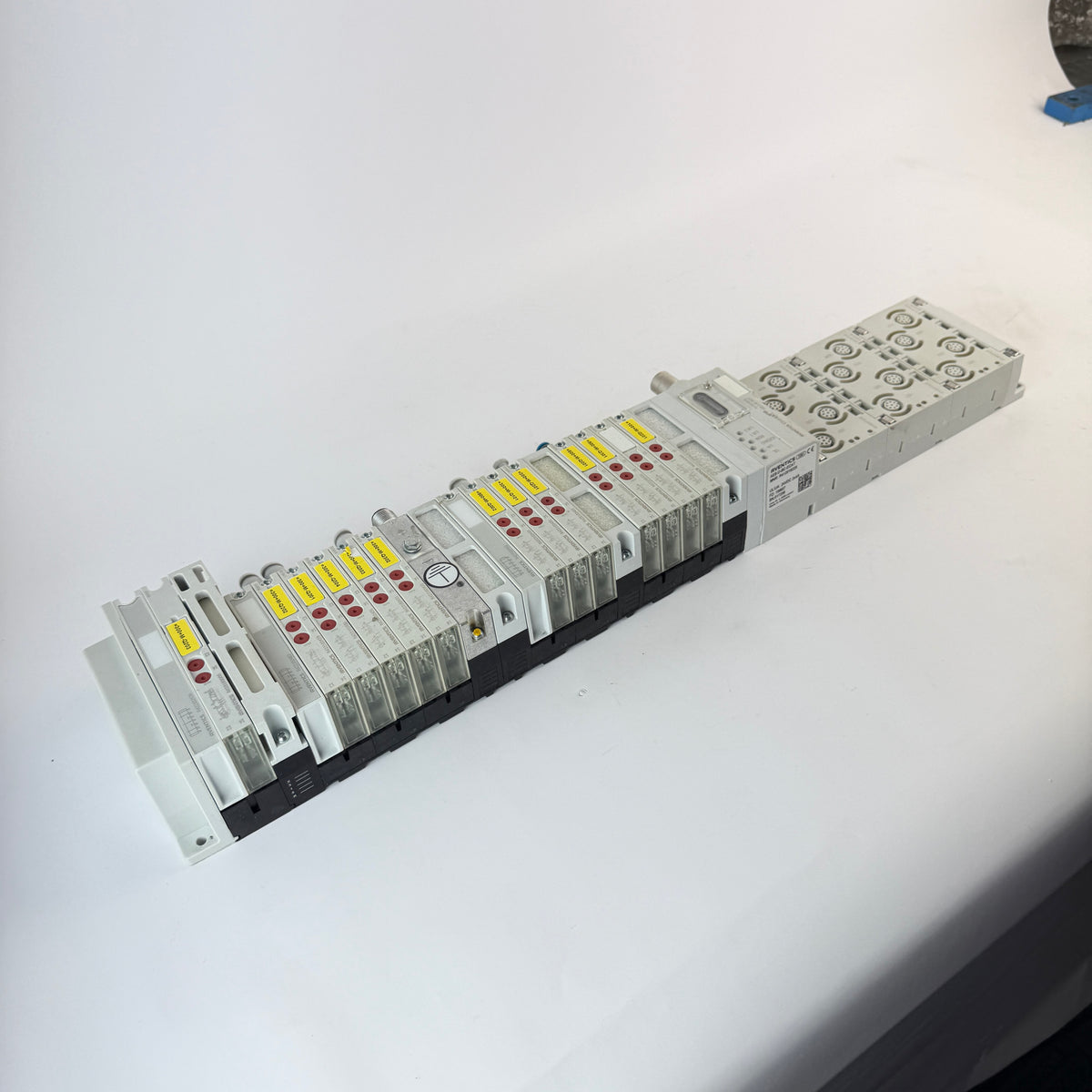

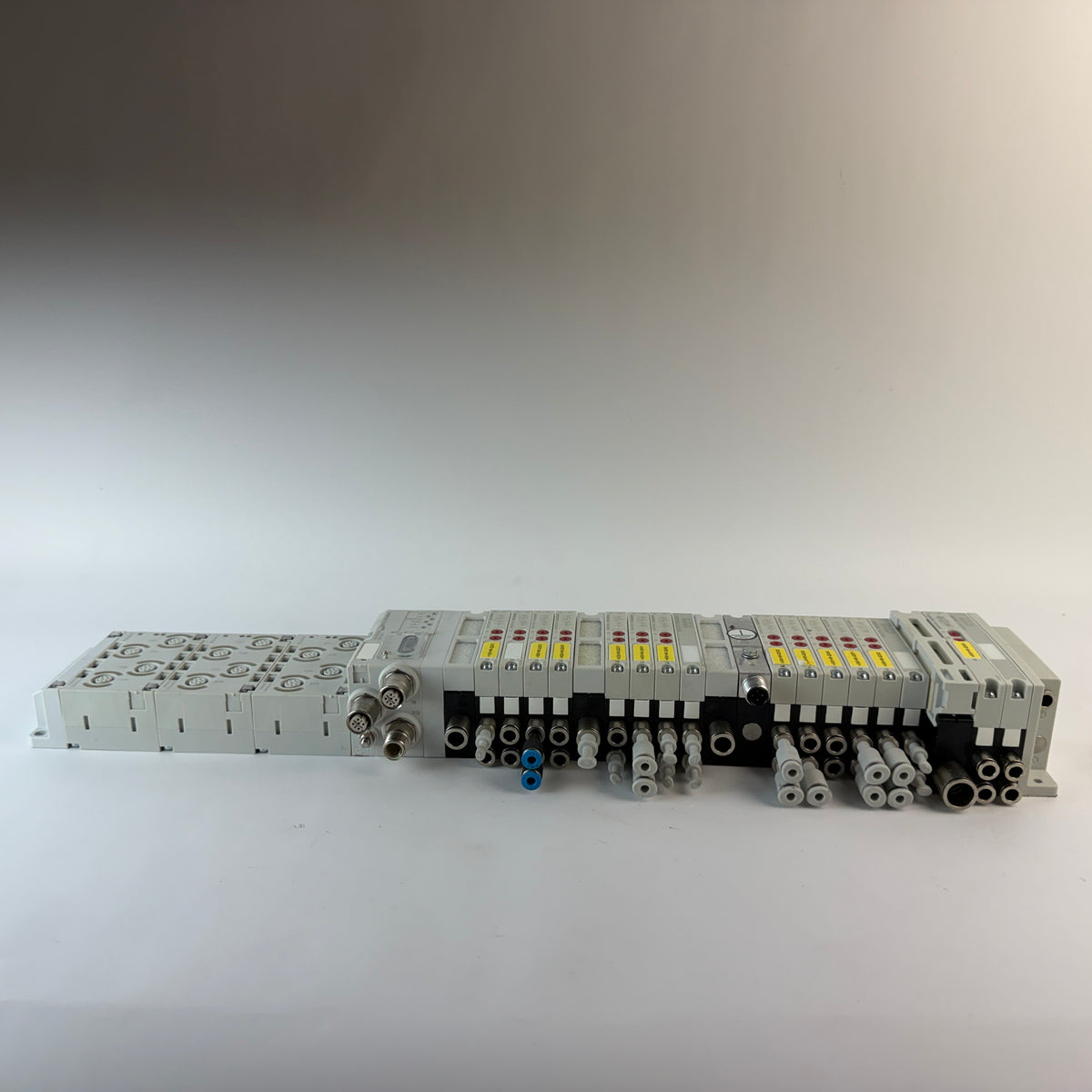

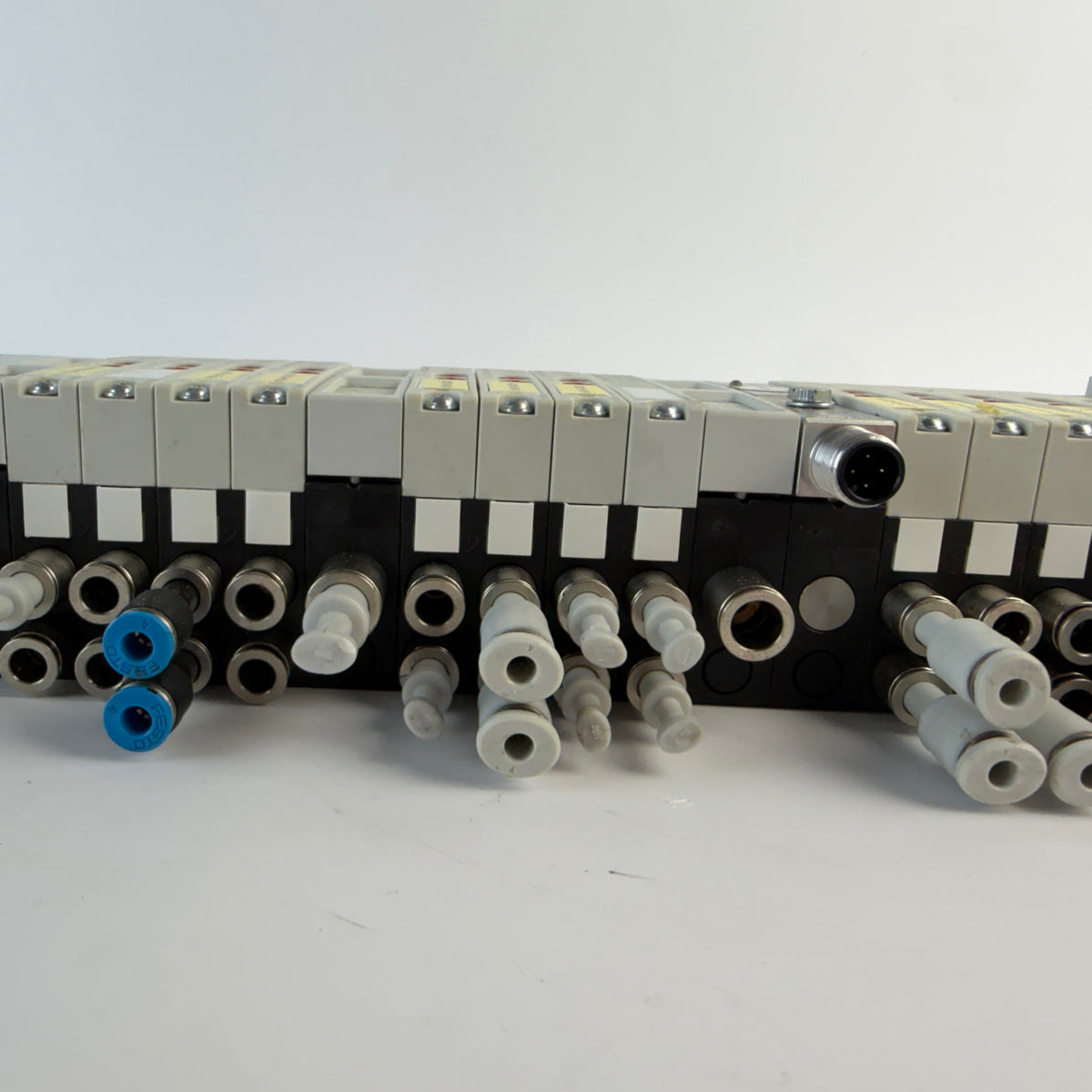

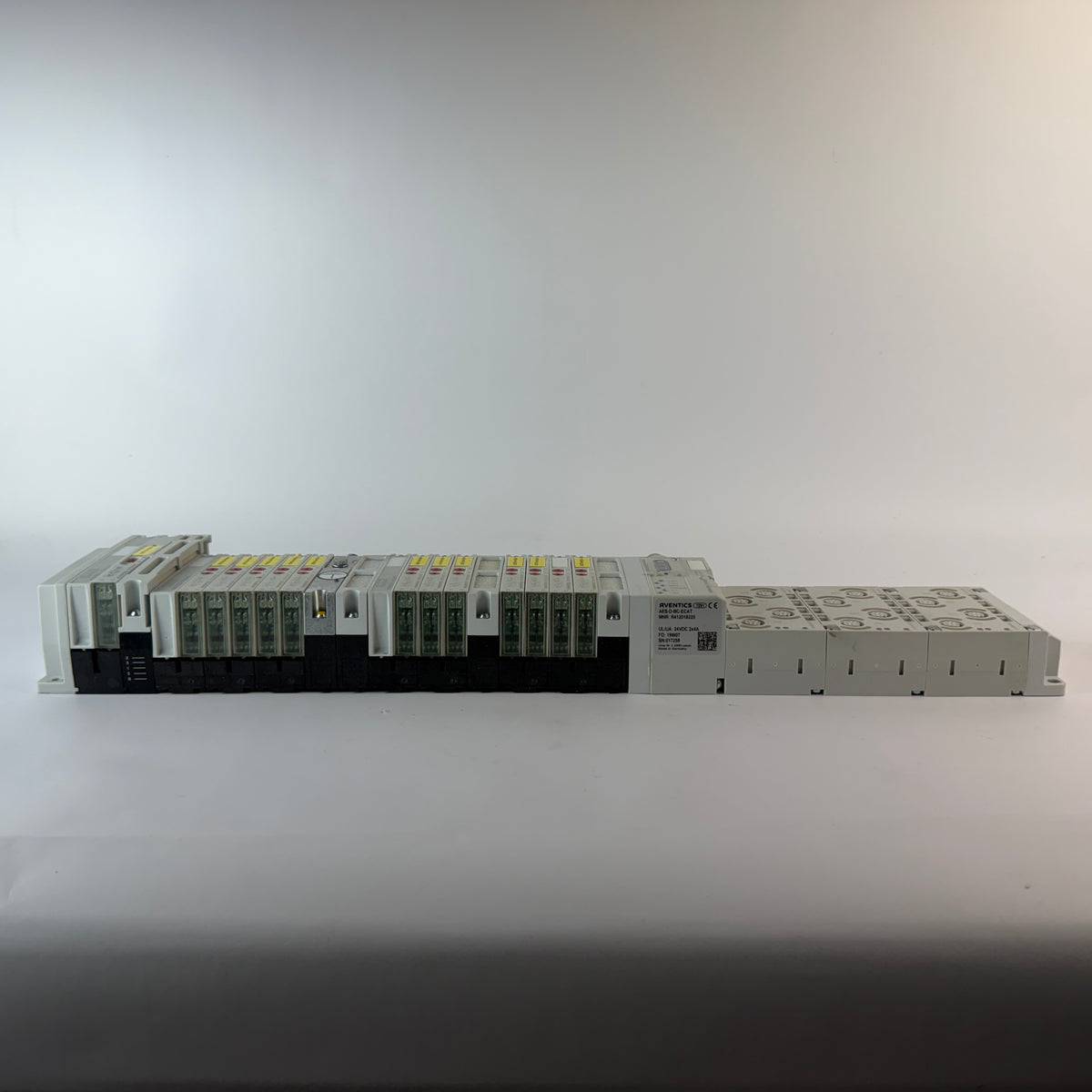

Supplied as the complete assembled valve island shown in the photographs, including installed pneumatic fittings and modules.

Used, fully functional.
