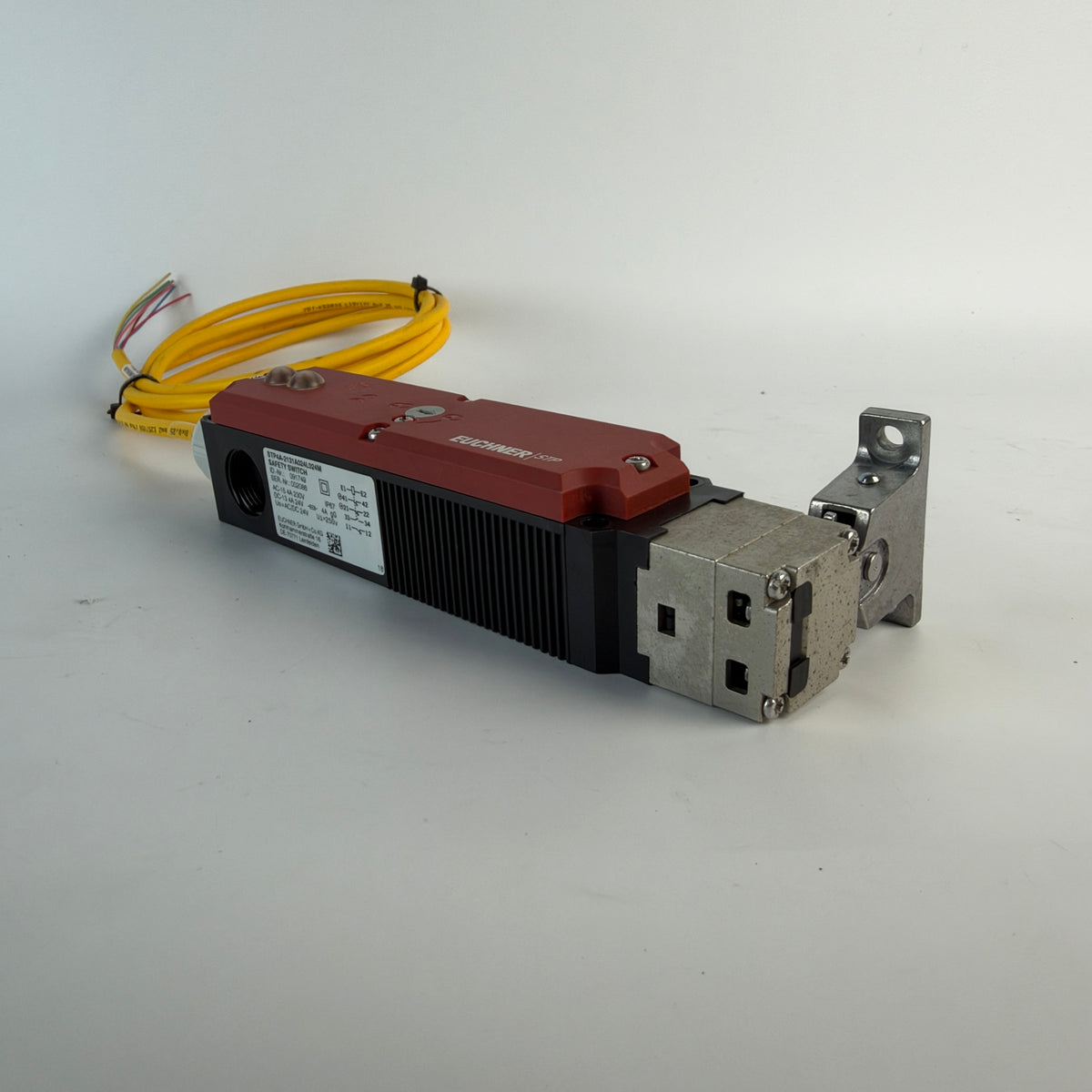

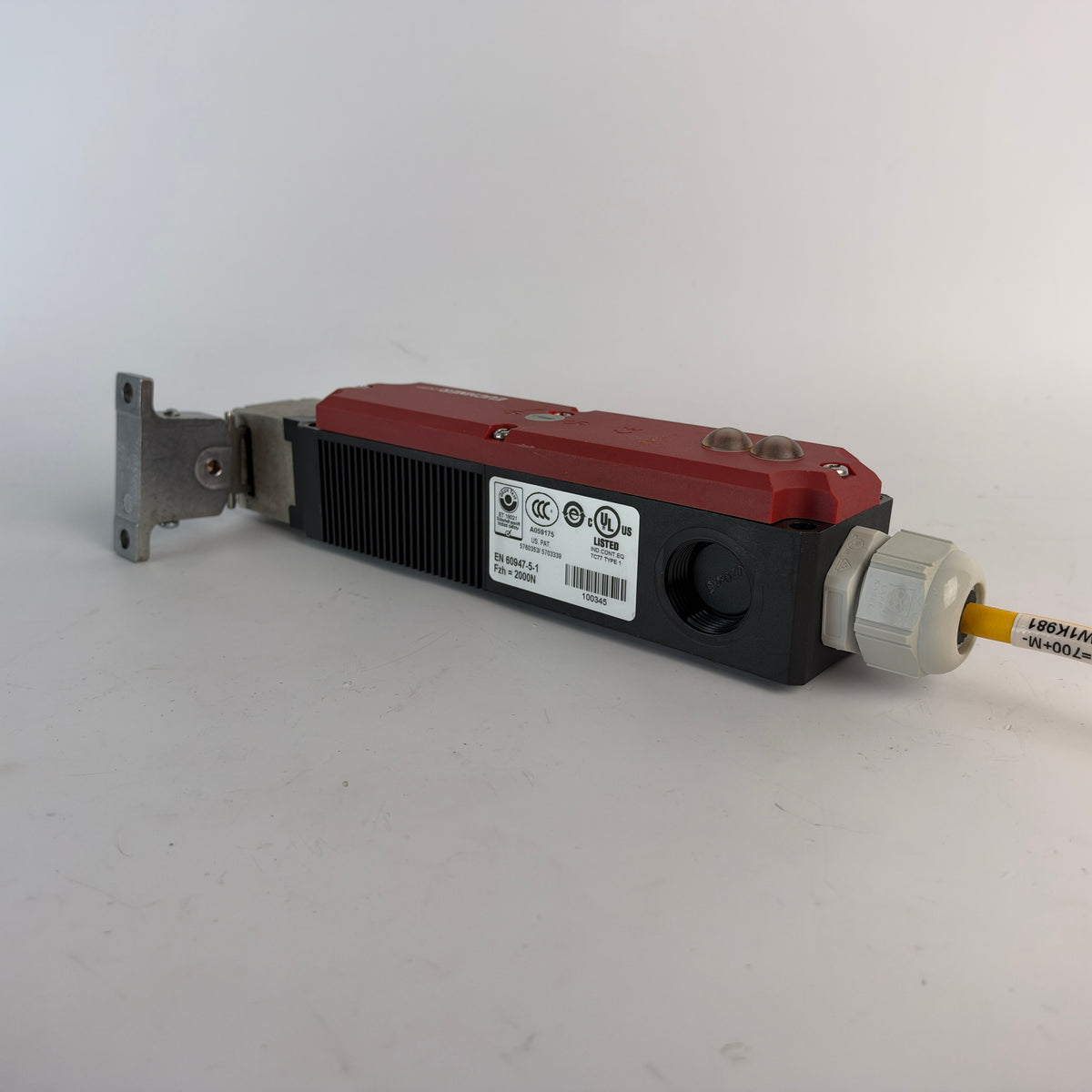

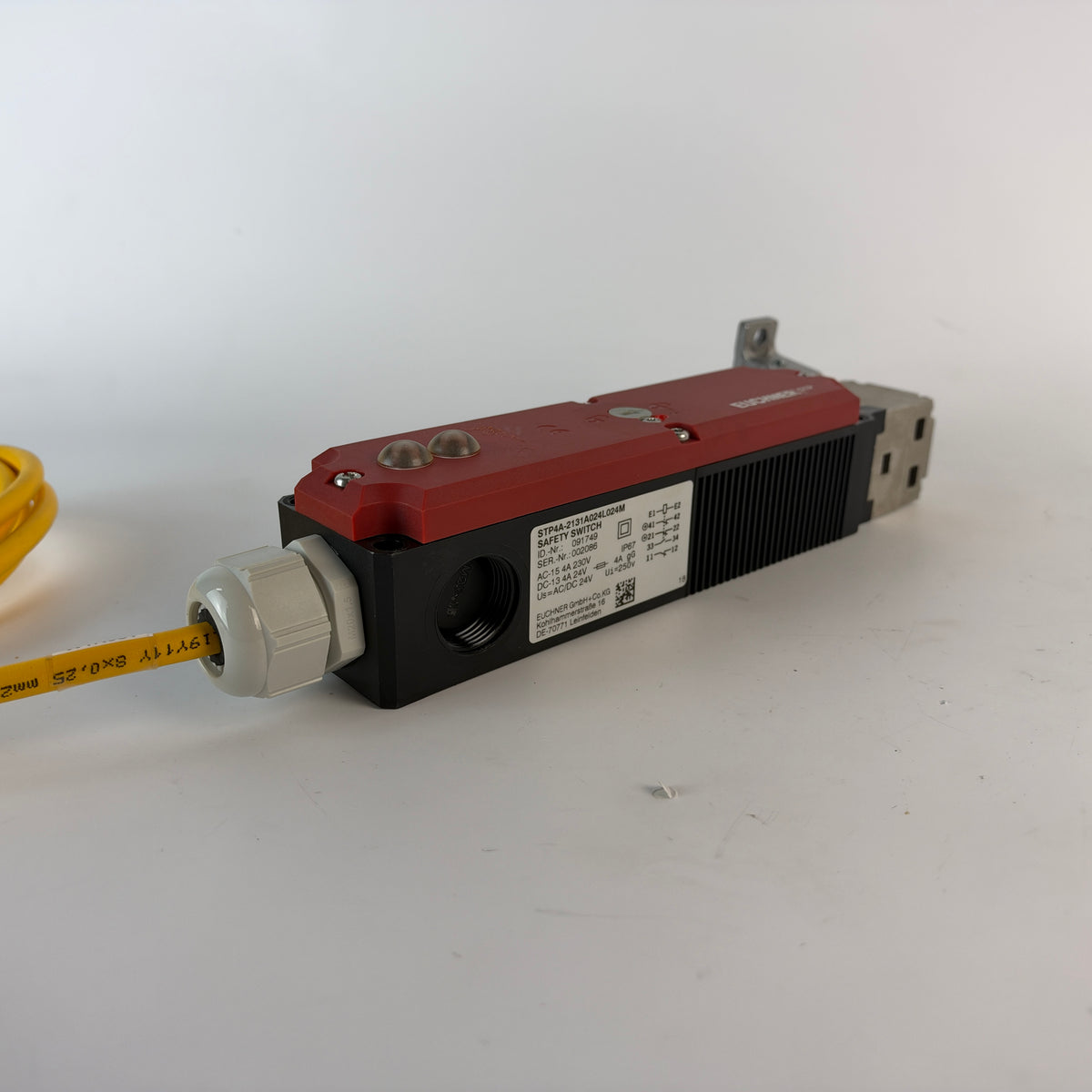

Euchner STP4A-2131A024L024M electromechanical safety switch with guard locking, supplied with the matching metal actuator shown in the photos and an approximately 1.8 m connection cable.

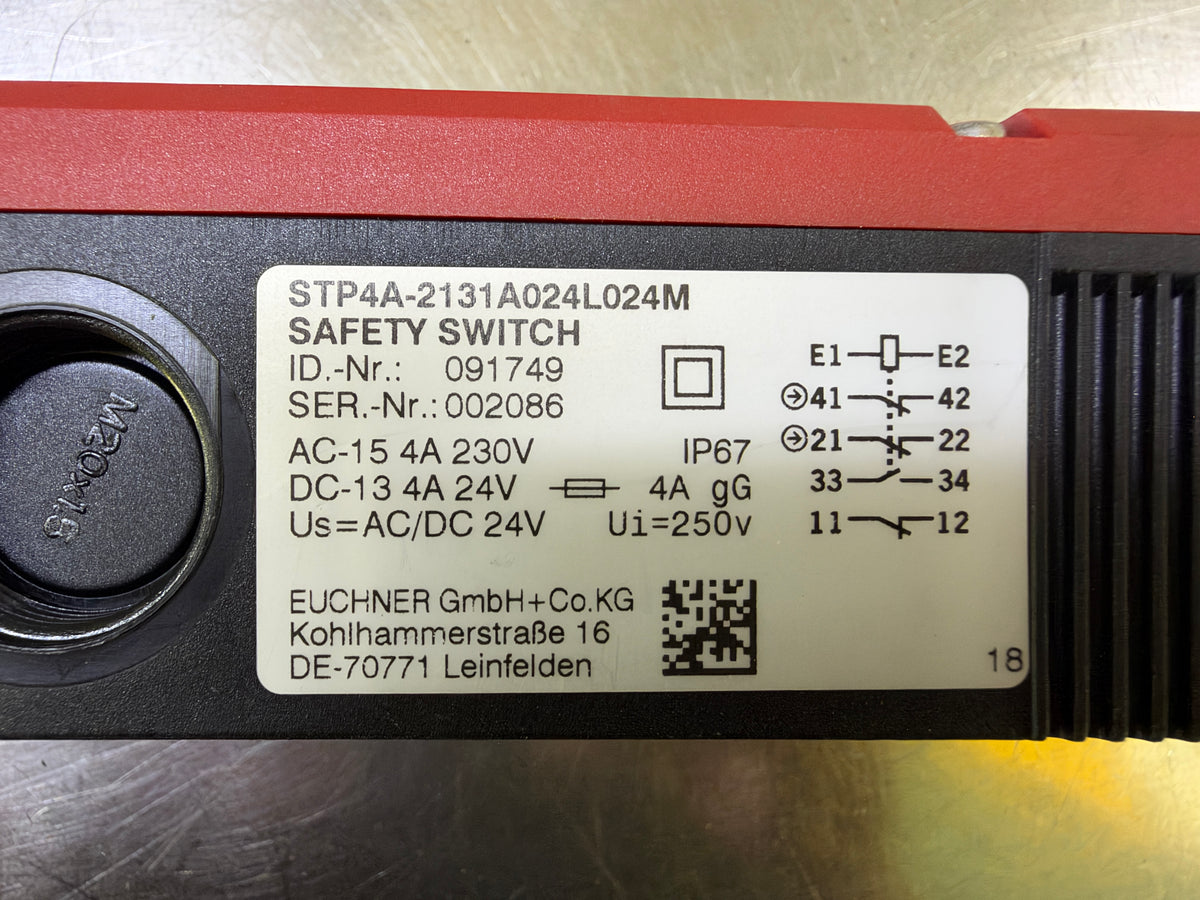

Manufacturer identification:

• Manufacturer: Euchner
• Model: STP4A-2131A024L024M
• Order Number: 091749
• Series: STP
• Type: Safety Switch with Guard Locking
• Solenoid Operating Voltage: 24 V AC/DC
• Utilization Category AC-15: 4 A at 230 V
• Utilization Category DC-13: 4 A at 24 V
• Rated Insulation Voltage Ui: 250 V
• Guard Locking Force Fzh: 2000 N
• Maximum Locking Force Fmax: 2500 N
• Protection Rating: IP67
• Switching Principle: Slow-action switching contact
• Guard Locking Principle: Open-circuit current / power-to-lock
• Cable Entry: M20 × 1.5
• Ambient Temperature: -20°C to +55°C

The STP4A-2131A024L024M provides monitored guard locking for industrial machine safety applications. The switching element incorporates two positively driven contacts and one NO contact for guard-lock monitoring, together with one NC contact for door-position monitoring.

The unit also features an auxiliary mechanical release and two LED indicators.

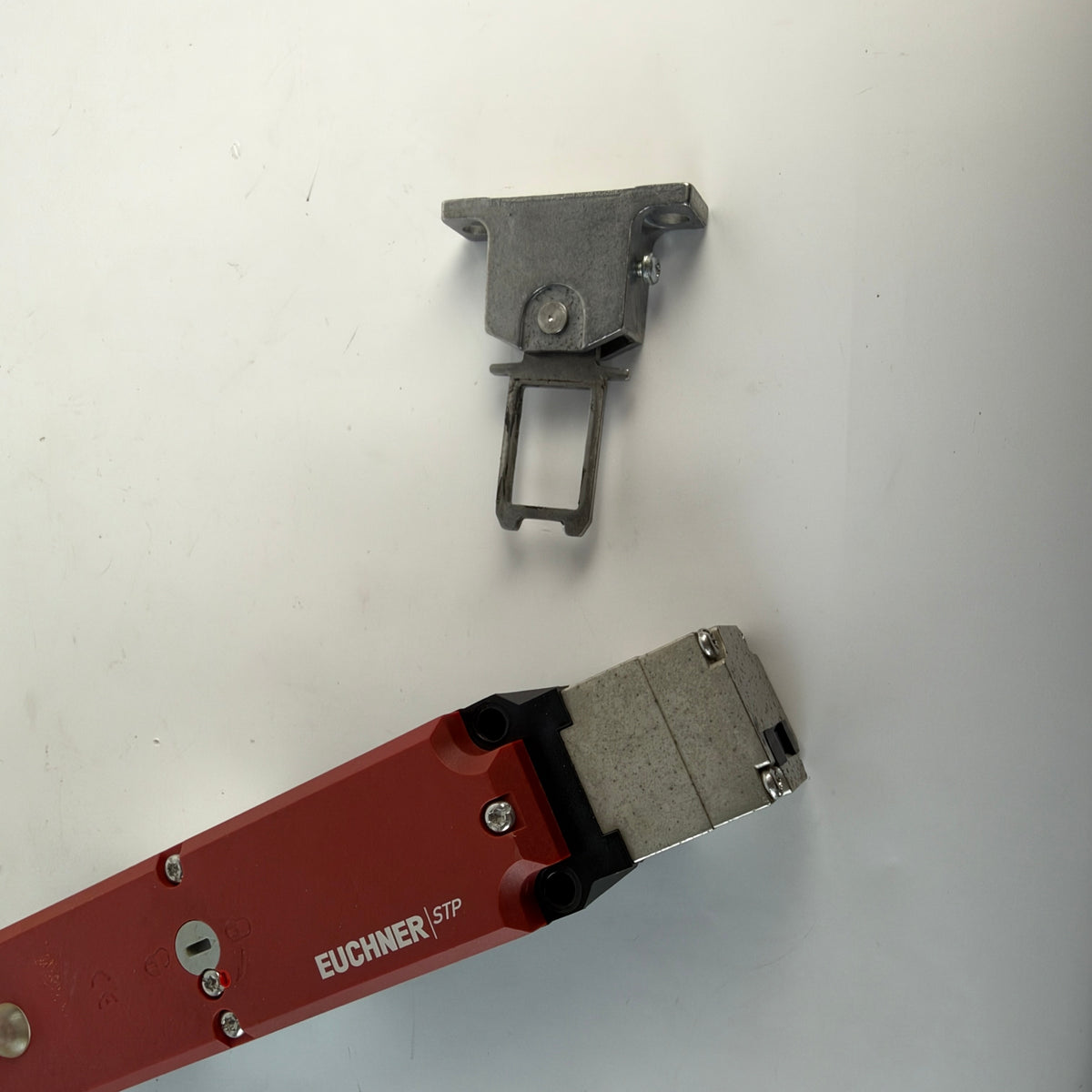

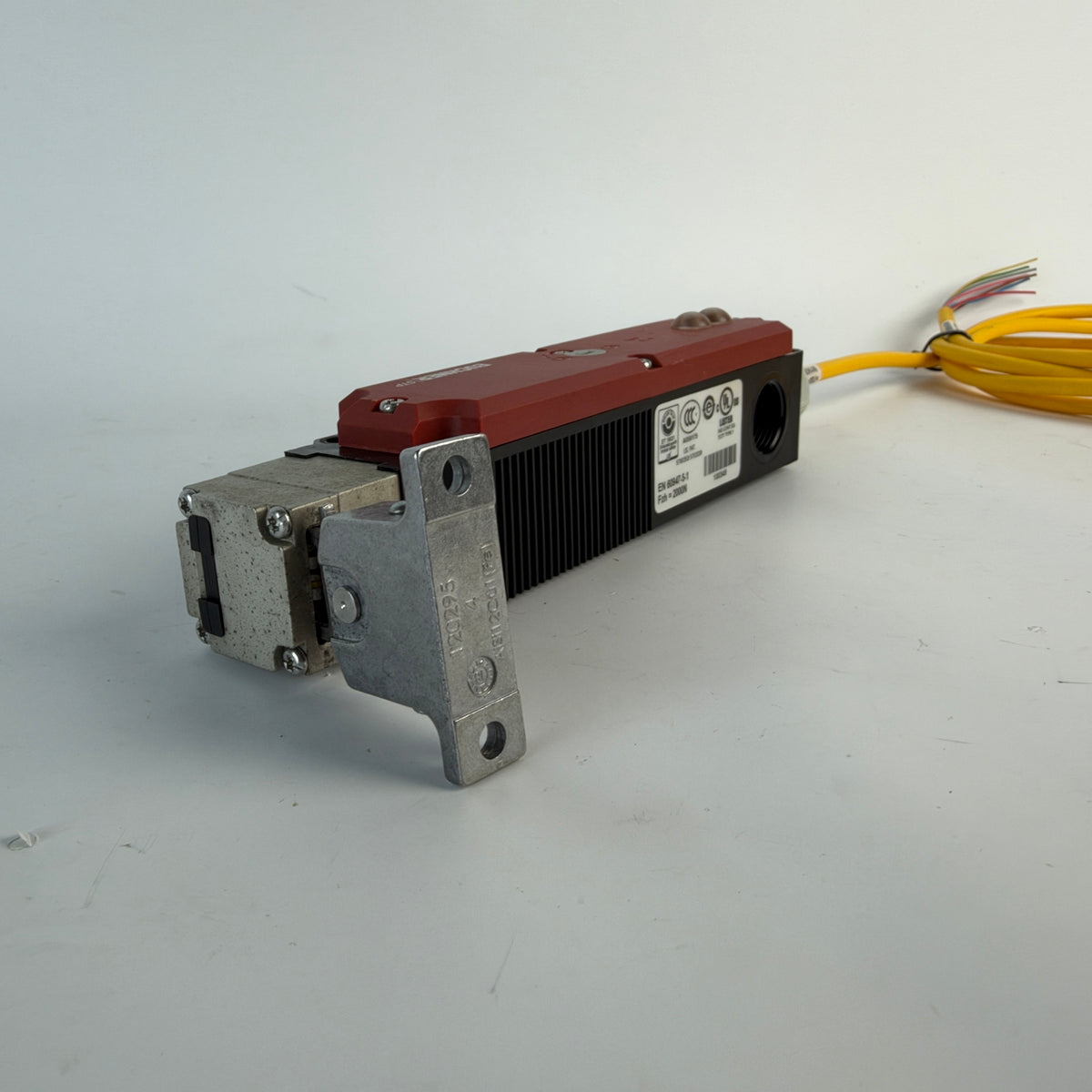

Included with this unit is the metal safety-switch actuator shown in the photos. This is the mechanical component that enters the switch head when a machine guard or safety door is closed. The actuator itself carries the marking 120295; its exact Euchner order number has not been independently confirmed.

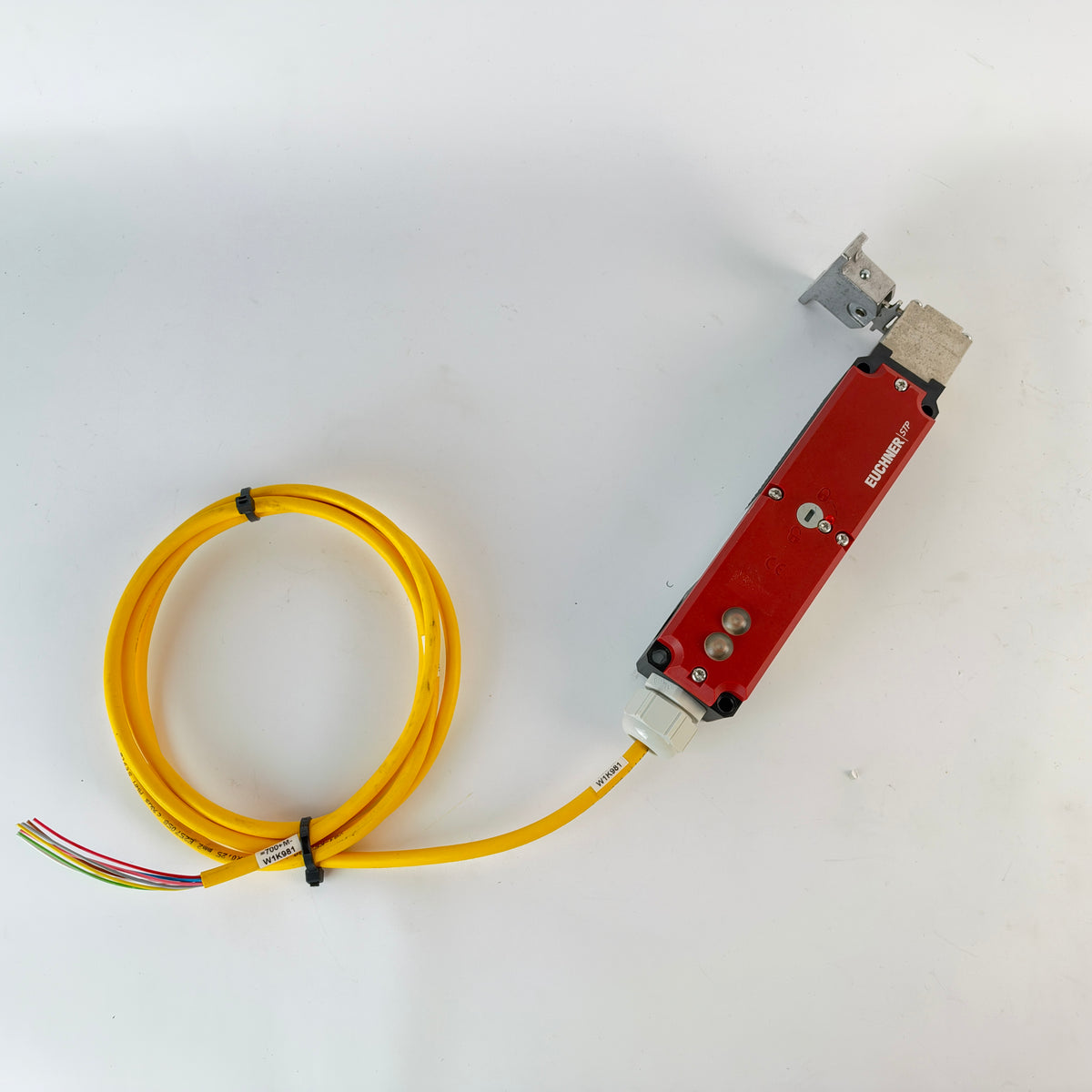

An approximately 1.8 m yellow connection cable is fitted. The remote end of the cable is open and terminates in individual conductors, as pictured.

Used, fully functional.
