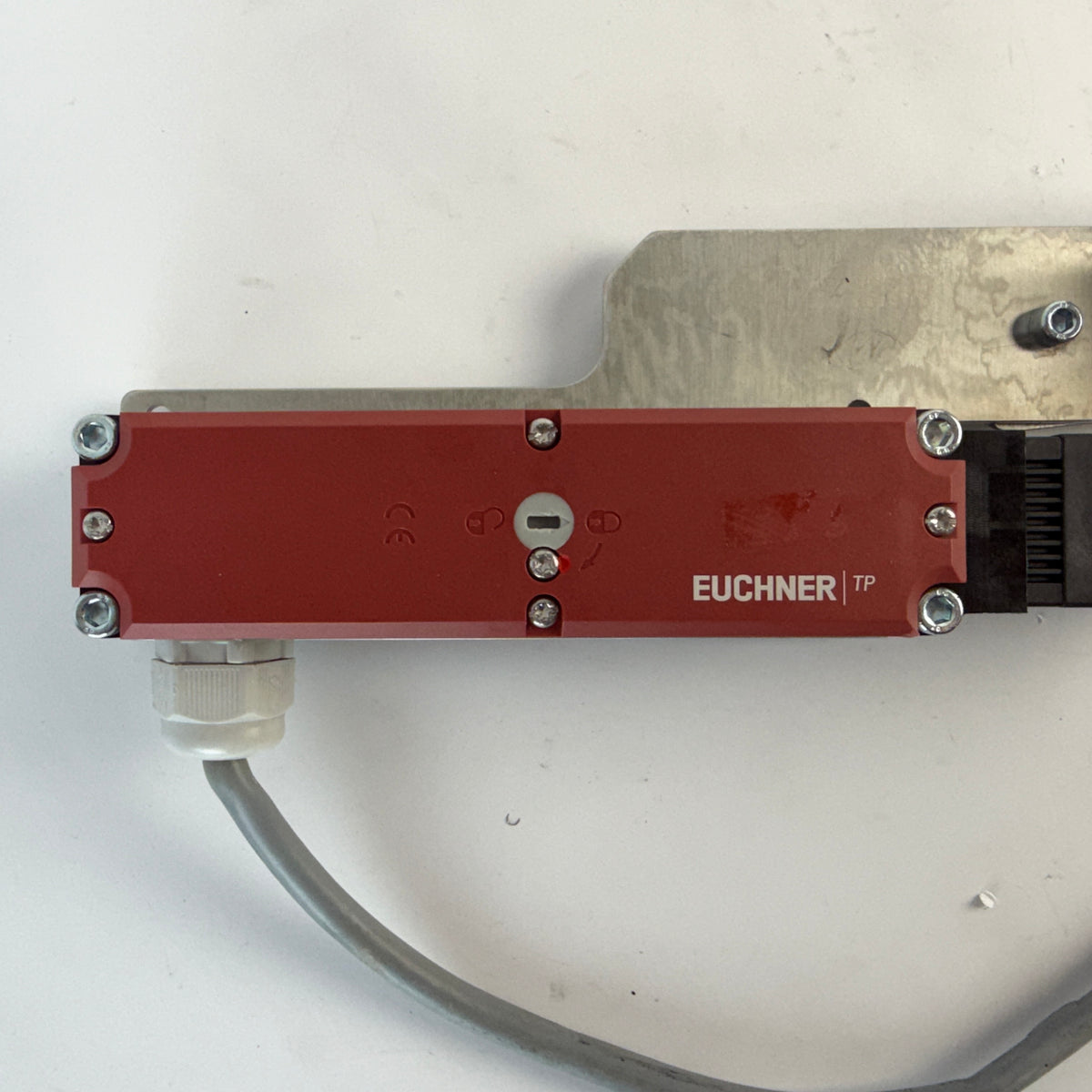

Euchner TP4-4141K024M electromechanical safety switch with guard locking and guard lock monitoring, Order No. 096296.

Designed for industrial machine guarding applications where the position and locking status of a protective door or guard must be monitored. This TP-series version uses a power-to-lock (open-circuit current) guard locking principle and features an auxiliary mechanical release.

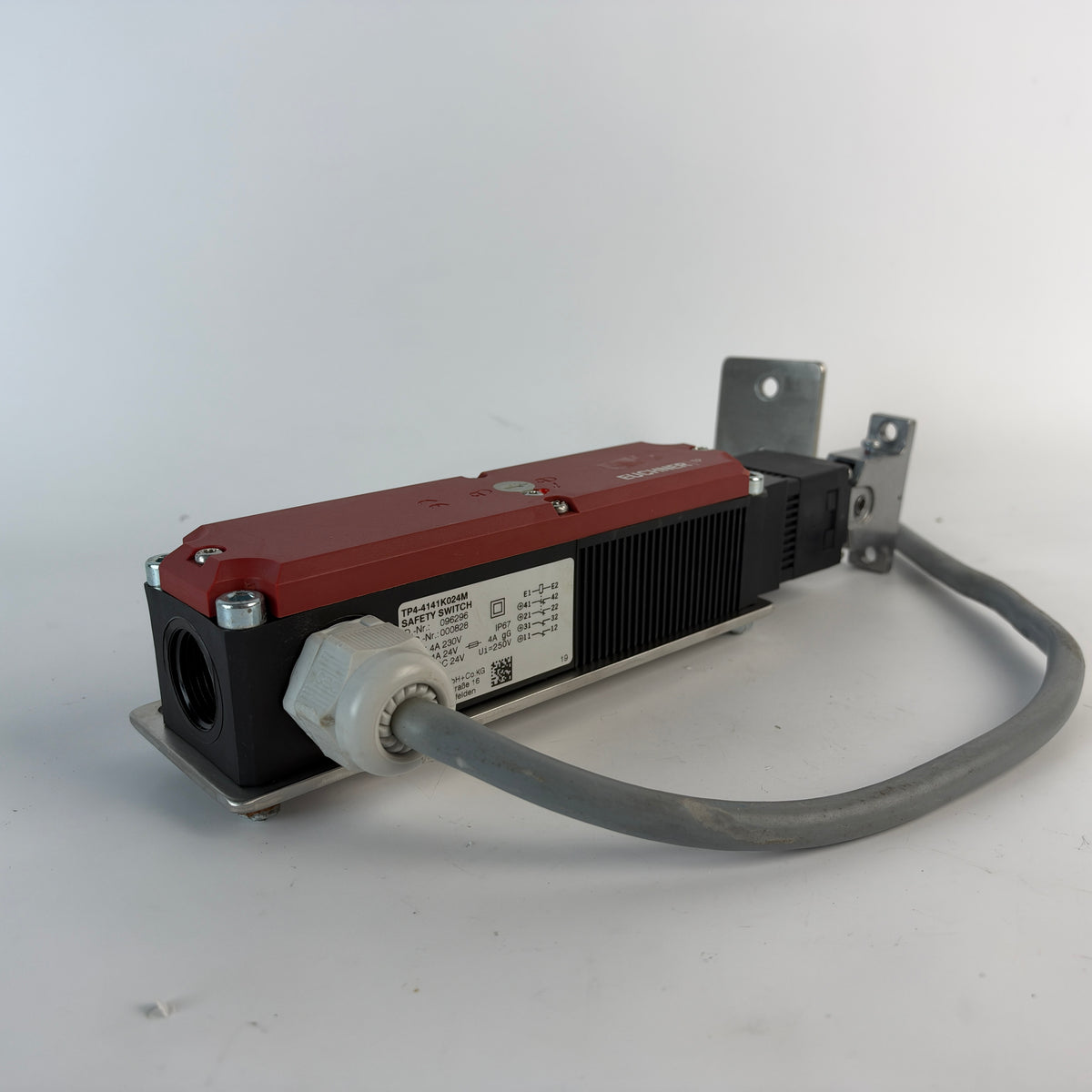

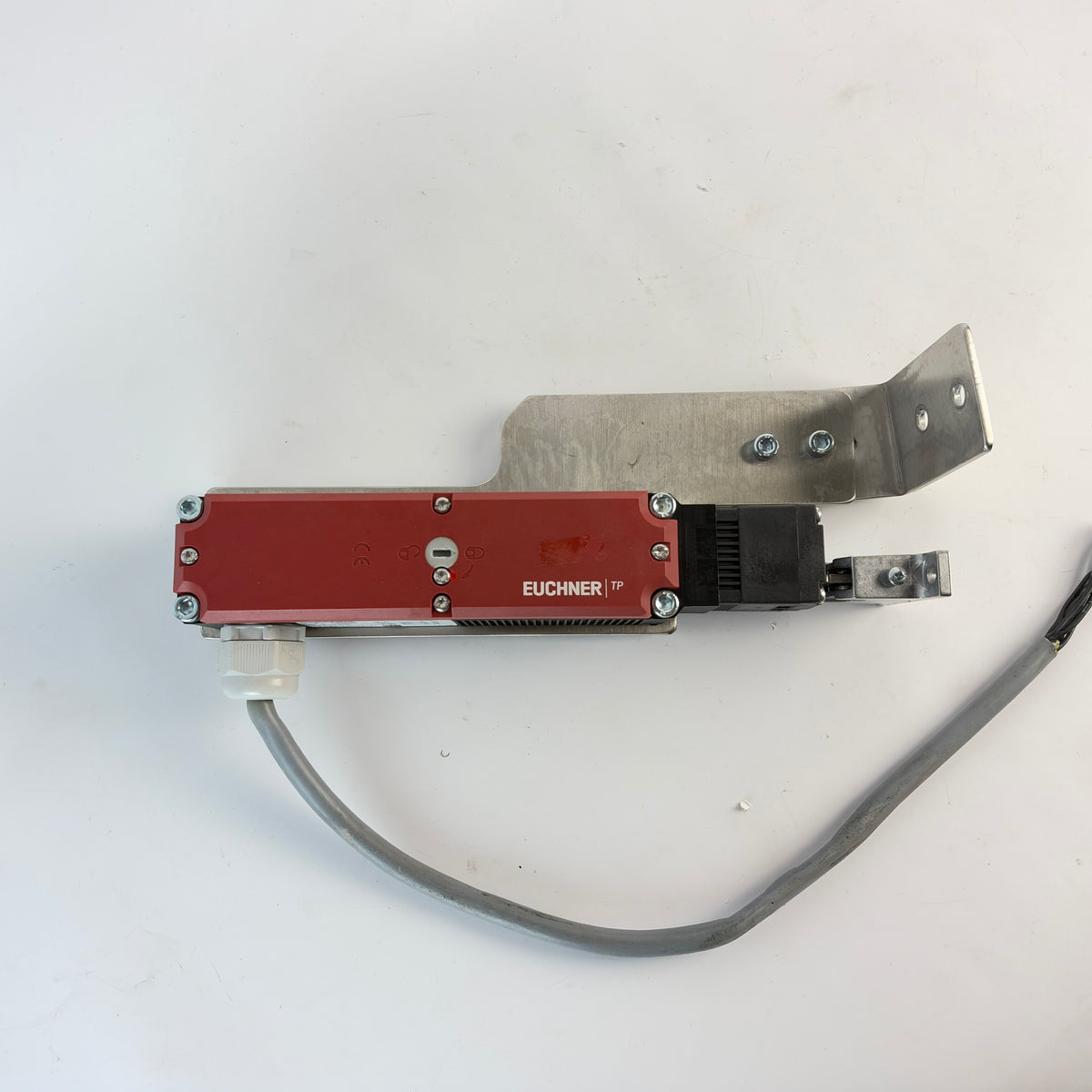

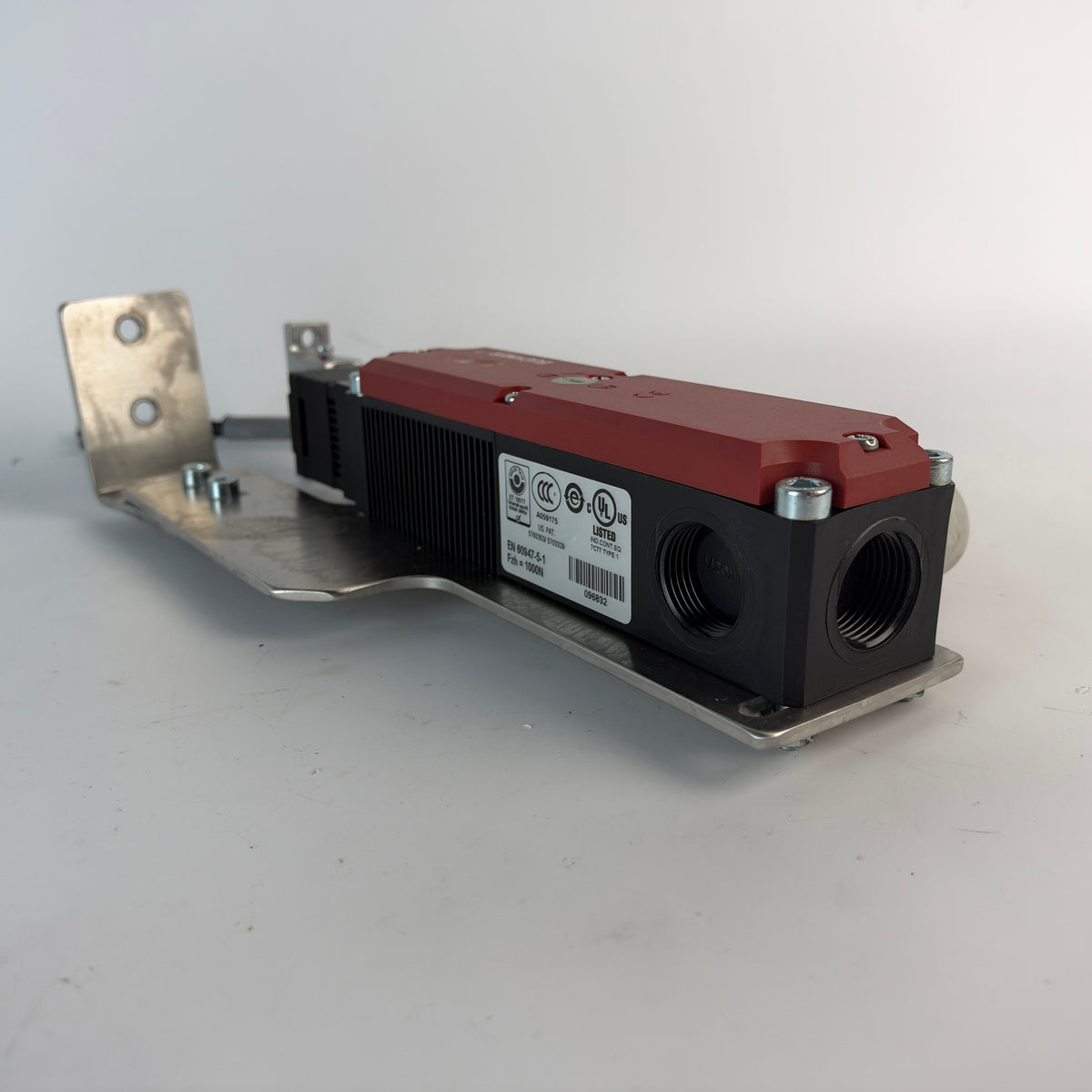

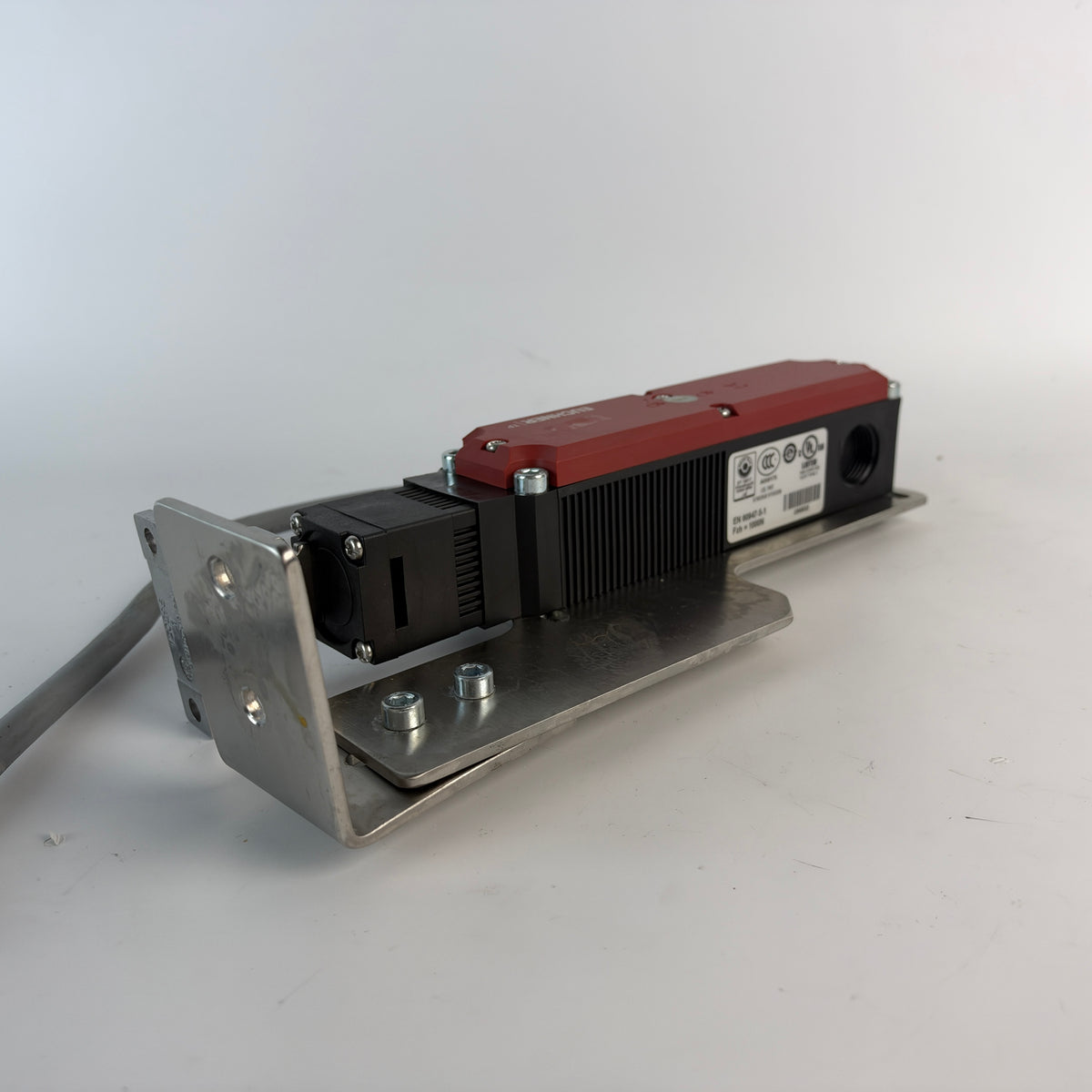

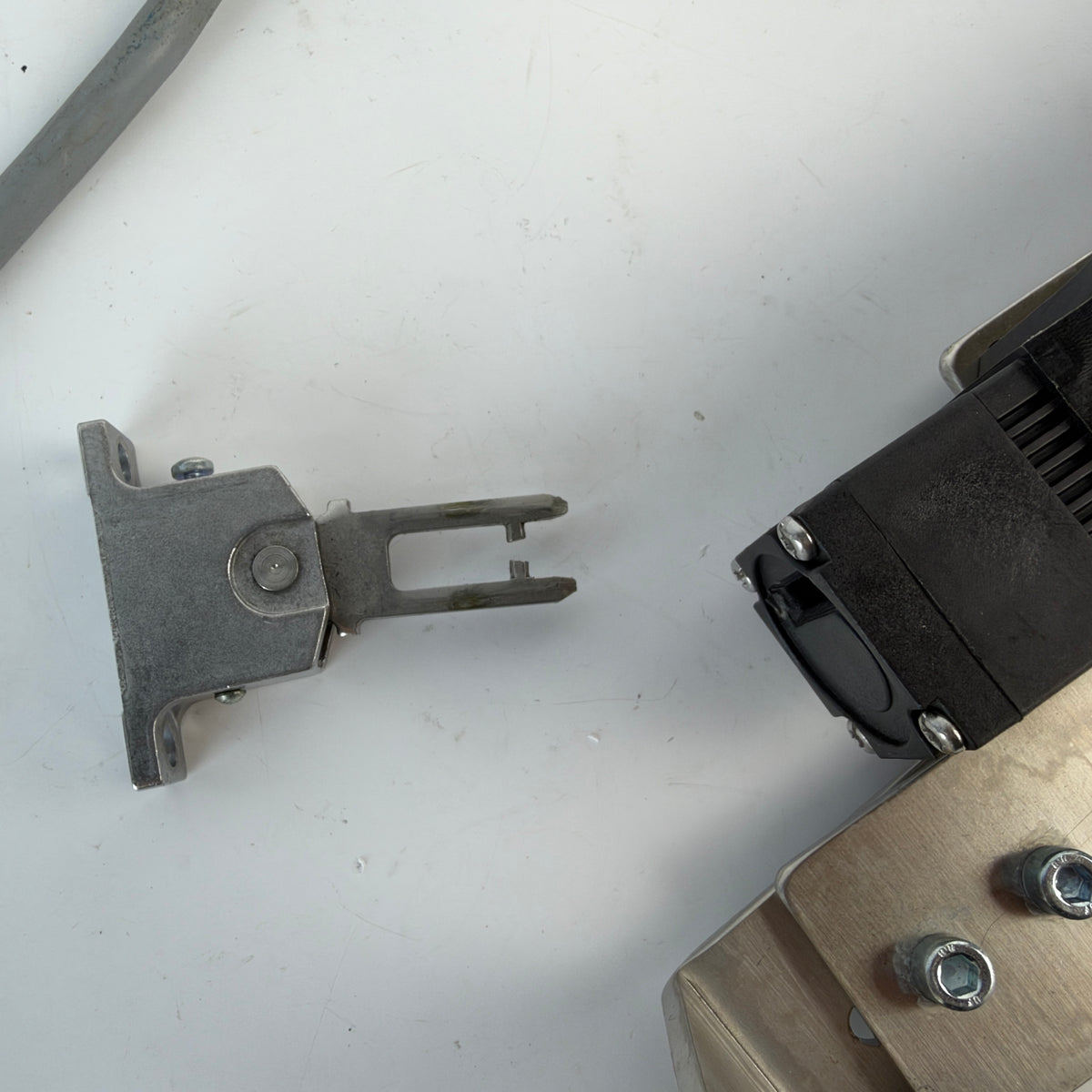

This unit is supplied with the metal actuator shown in the photos, as well as the installed metal mounting bracket. The actuator is marked 120295; its exact catalog part number has not been independently confirmed.

Specifications:

• Manufacturer: Euchner
• Model: TP4-4141K024M
• Order No.: 096296
• Series: TP
• Type: Safety Switch with Guard Locking and Guard Lock Monitoring
• Guard Locking Principle: Power-to-lock / open-circuit current principle
• Solenoid Operating Voltage: 24 V AC/DC (-15% / +10%)
• Power Consumption: 8 W
• AC-15 Rating: 4 A at 230 V
• DC-13 Rating: 4 A at 24 V
• Thermal Rated Current: 4 A
• Rated Insulation Voltage Ui: 250 V
• Rated Impulse Voltage Uimp: 2.5 kV
• Guard Locking Force Fzh: 1000 N
• Maximum Locking Force: 1300 N
• Protection Rating: IP67
• Switching Principle: Slow-action
• Guard Position Contacts: 2 positively driven contacts
• Guard Lock Monitoring Contacts: 2 positively driven contacts
• Cable Entries: 3 × M20 × 1.5
• Operating Temperature: -20°C to +55°C
• Mechanical Life: 1 × 10⁶ operating cycles

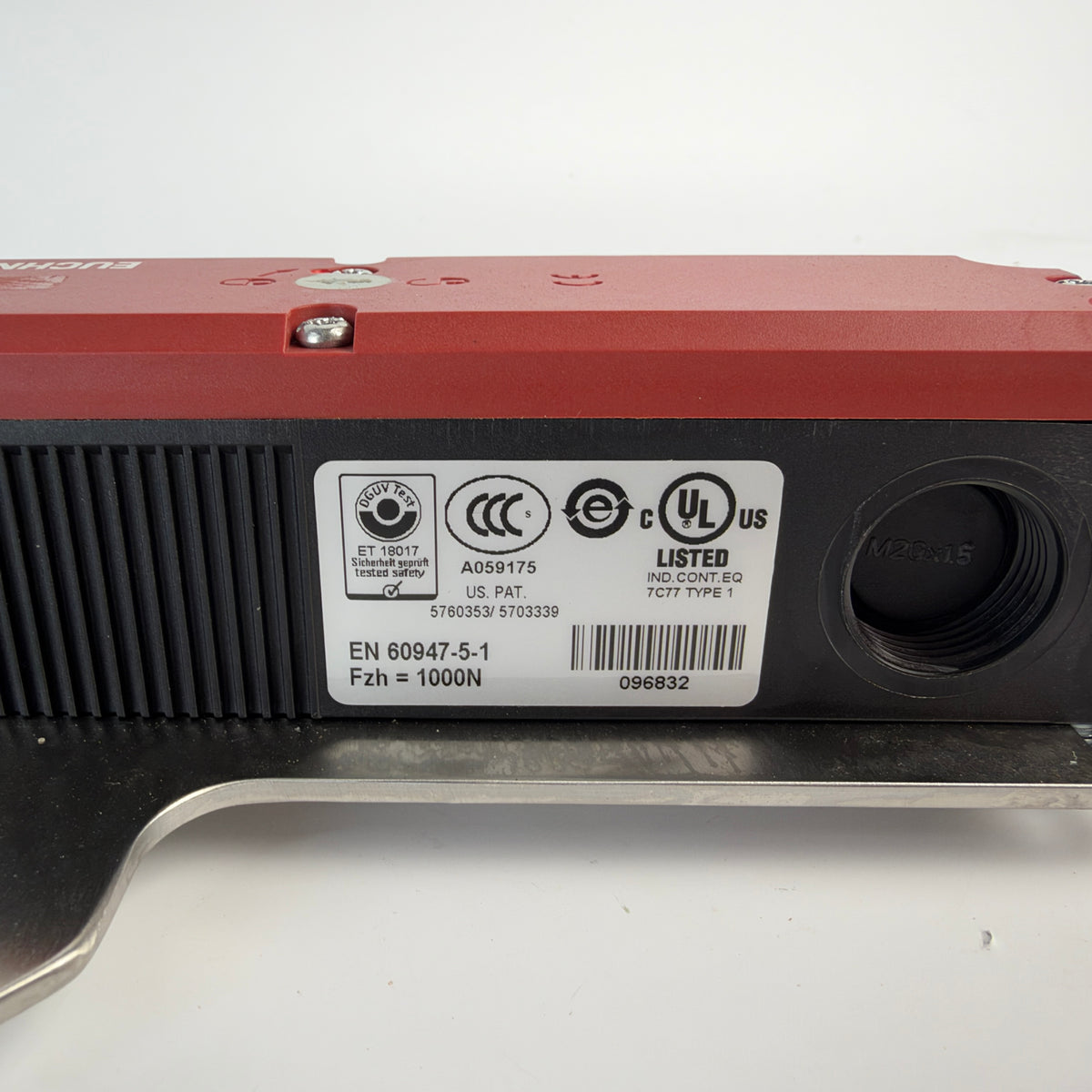

• Standard: EN 60947-5-1

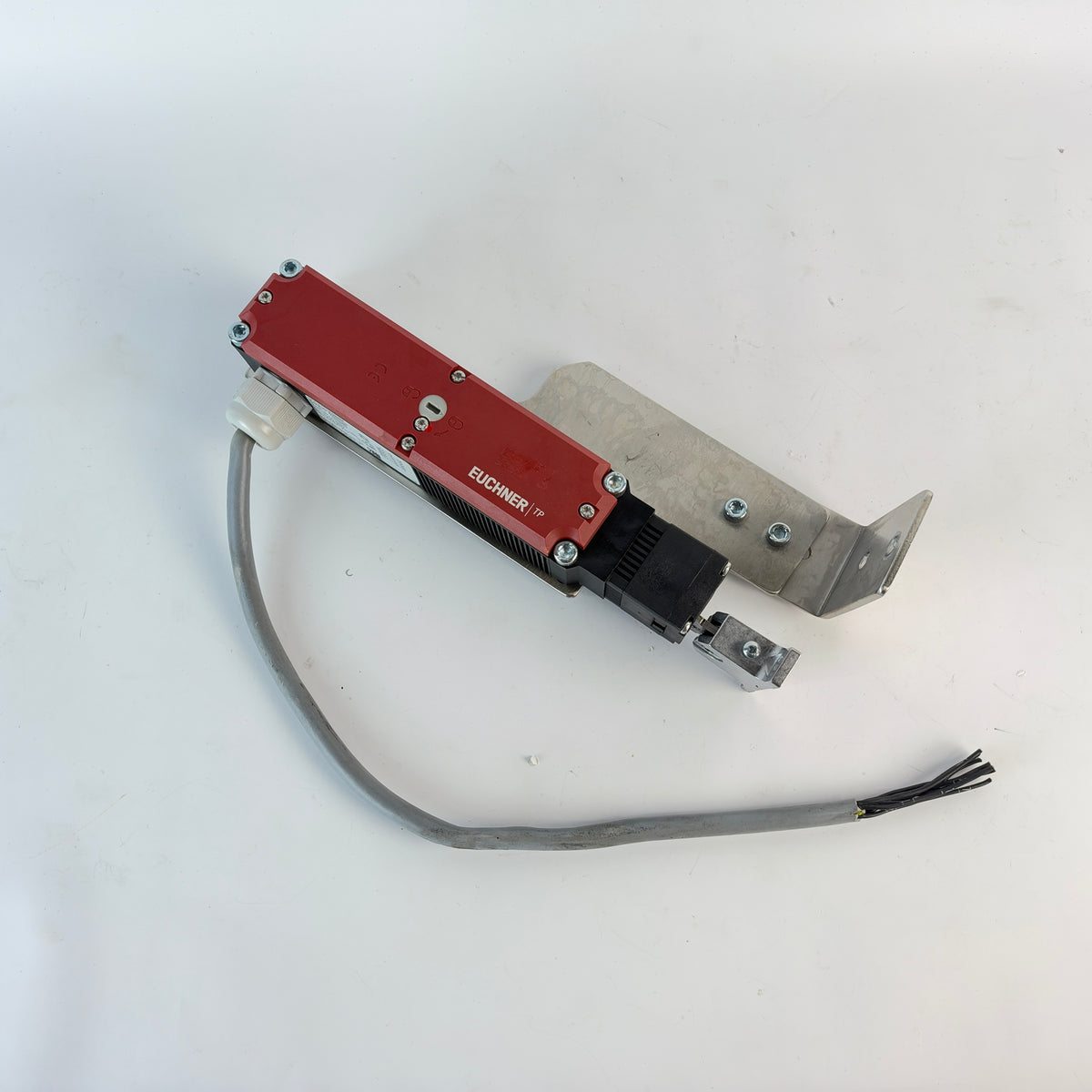

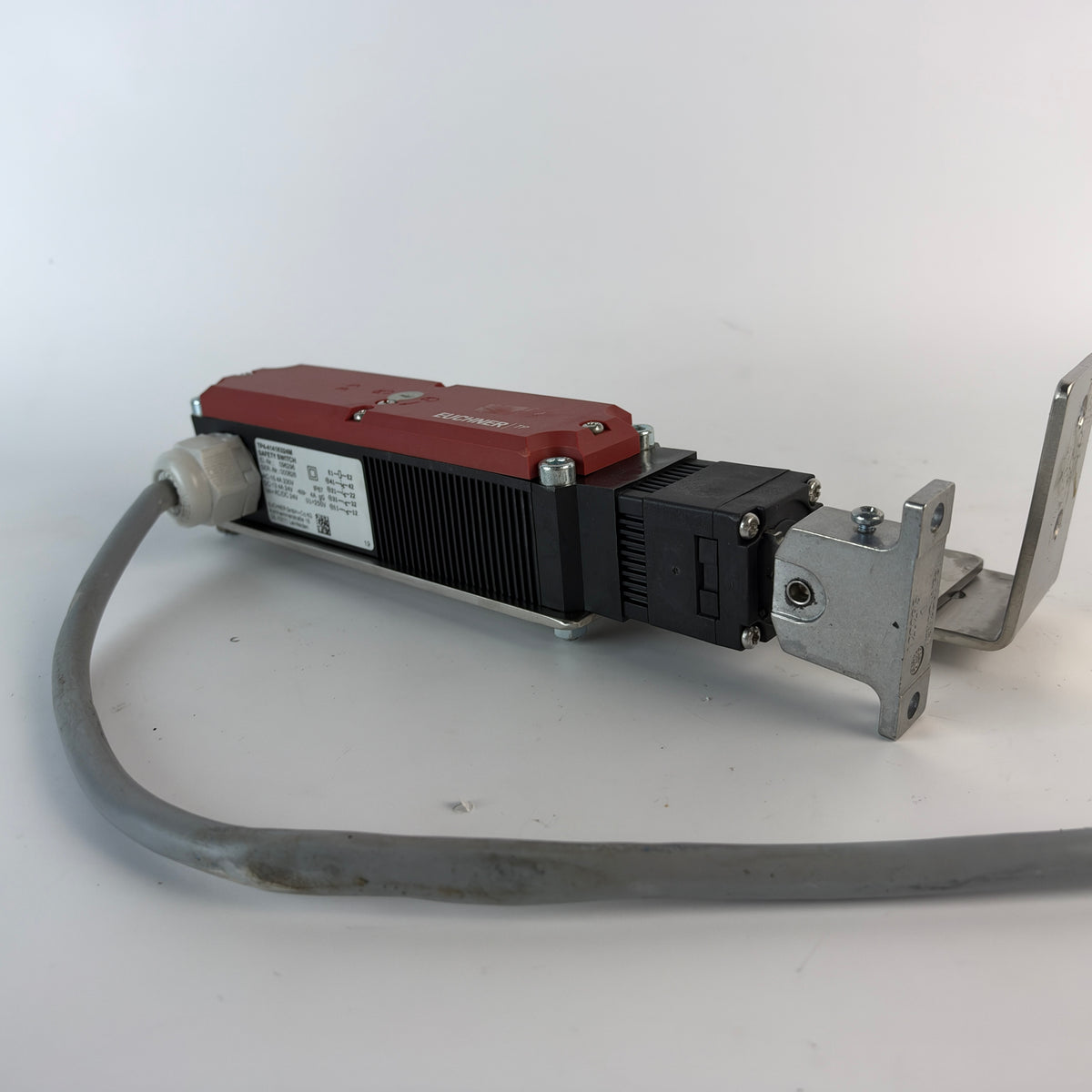

Includes the safety switch, metal actuator and installed mounting bracket shown in the photos. A gray connection cable is fitted to the switch; its free end is cut/unterminated as pictured.

Used, fully functional.
