EUCHNER TP3-4141A024M Safety Switch with Guard Locking – Order No. 084270

The EUCHNER TP3-4141A024M is an industrial electromechanical safety switch with integrated guard locking, designed for monitoring and securing protective doors, guards, and access panels on industrial machinery.

The switch uses a spring-applied, solenoid-released locking mechanism. The guard remains mechanically locked without electrical power and is released when the 24V AC/DC solenoid is energized.

This design is suitable for industrial machine safety applications where access to hazardous machine areas must be controlled.

The device also features an auxiliary release mechanism for manual unlocking when required.

Technical Specifications

• Manufacturer: EUCHNER
• Model: TP3-4141A024M
• Order Number / MPN: 084270
• Series: TP
• Product Type: Electromechanical safety switch with guard locking
• Guard Locking Principle: Spring applied, power to unlock
• Solenoid Operating Voltage: 24V AC/DC (-15% / +10%)
• Power Consumption: 8W
• Contact Configuration: 2 positively driven contacts for door monitoring and 2 for guard-lock monitoring
• Switching Principle: Slow-action contacts
• Rated Thermal Current: 4A
• Utilization Category: AC-15: 4A at 230V; DC-13: 4A at 24V
• Rated Insulation Voltage: 250V
• Cable Entries: 3 × M20 × 1.5
• Conductor Cross-Section: 0.34–1.5 mm²
• Protection Rating: IP67
• Guard Locking Force (FZh): 1000N
• Maximum Locking Force (Fmax): 1300N
• Operating Temperature: -20°C to +55°C
• Housing Material: Reinforced thermoplastic
• Auxiliary Release: Yes
• Country of Origin: Germany

Condition

New, unused.

Supplied in the original EUCHNER packaging.

Package Contents

• 1 × EUCHNER TP3-4141A024M safety switch
• Original manufacturer packaging

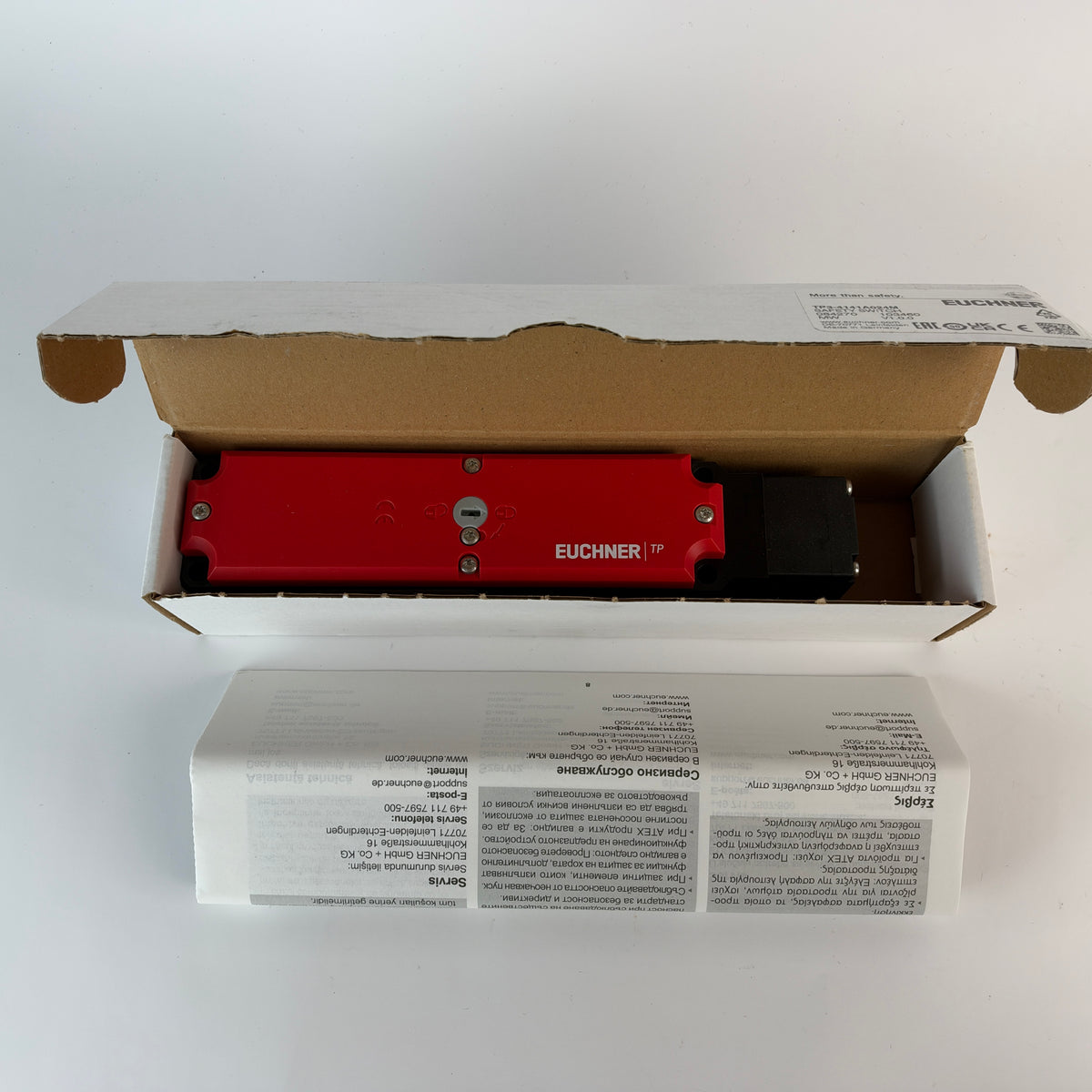

• Documentation shown in the photographs

Important: The separate door actuator is not included.

Suitable for industrial safety doors, protective guards, machine enclosures, automated production equipment, and industrial machinery safety systems.
