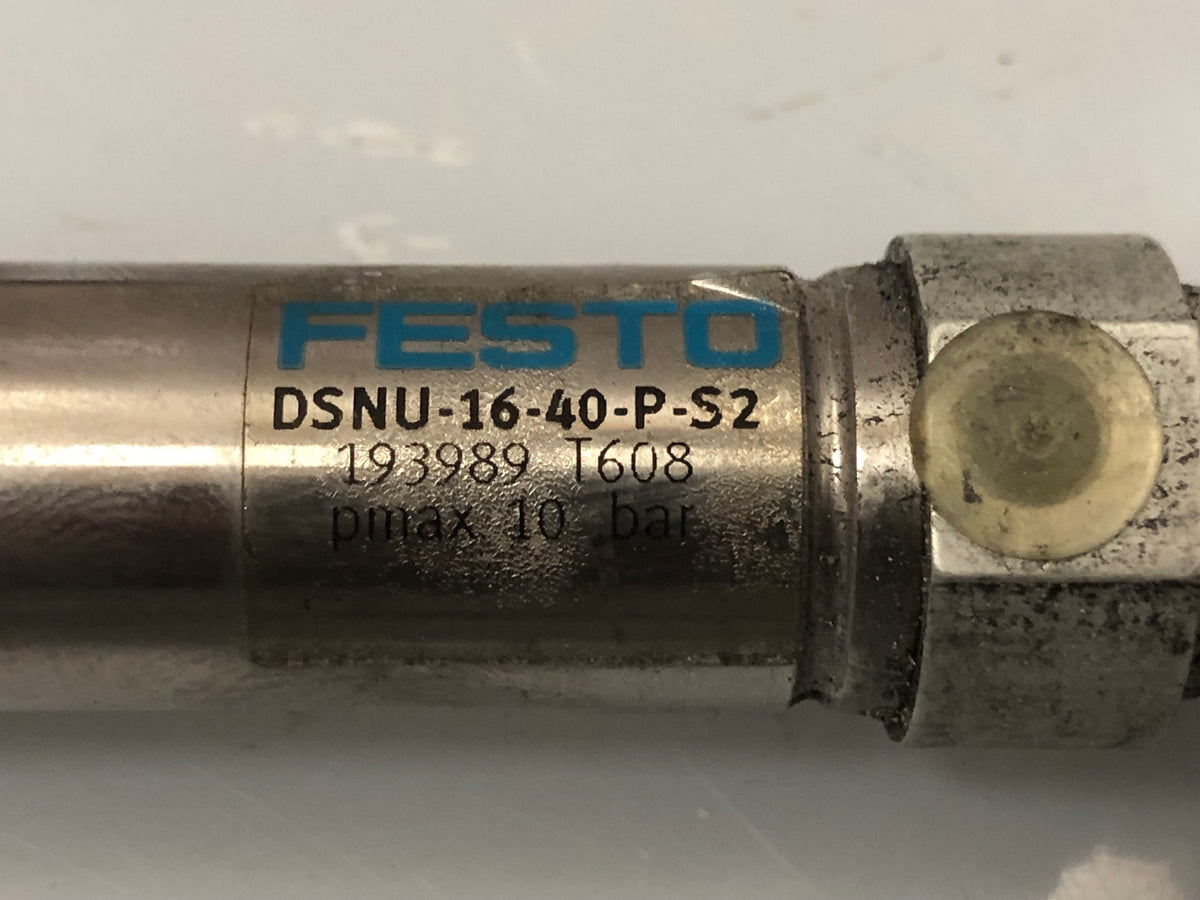

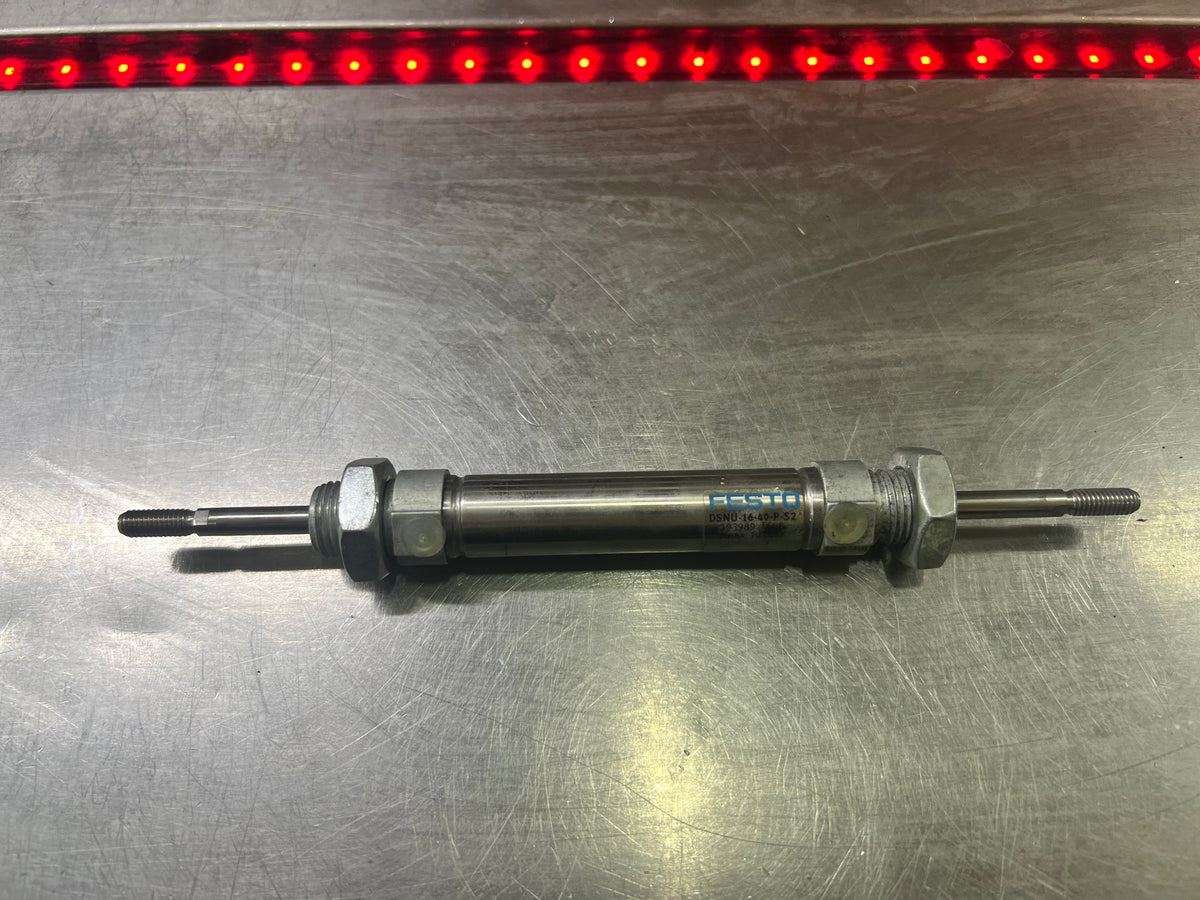

The Festo DSNU-16-40-P-S2 is a compact and durable round-body pneumatic cylinder from the DSNU series, designed in accordance with ISO 6432 standards. With a 16 mm bore, 40 mm stroke, and magnetic piston (S2 variant), it is perfect for automation systems requiring reliable motion and compatibility with position sensors.

Technical Specifications:

• Model: DSNU-16-40-P-S2

• Part Number: 193969

• Alternate Code: DSNU1640PS2

• Bore Size: 16 mm

• Stroke Length: 40 mm

• Cylinder Type: Round cylinder, ISO 6432 standard

• Action: Double acting

• Piston Variant: S2 – magnetic piston for proximity sensing

• Piston Rod: Double-ended, stainless steel

• Cushioning: Elastic end-position cushioning

• Body Material: Stainless steel

• Rod Material: Stainless steel

• Operating Pressure: Up to 10 bar

• Medium: Filtered compressed air, lubricated or unlubricated

• Mounting Options: Nose thread, rear thread, or optional brackets

• Manufacturer: Festo

Item condition: New, in perfect working condition.
