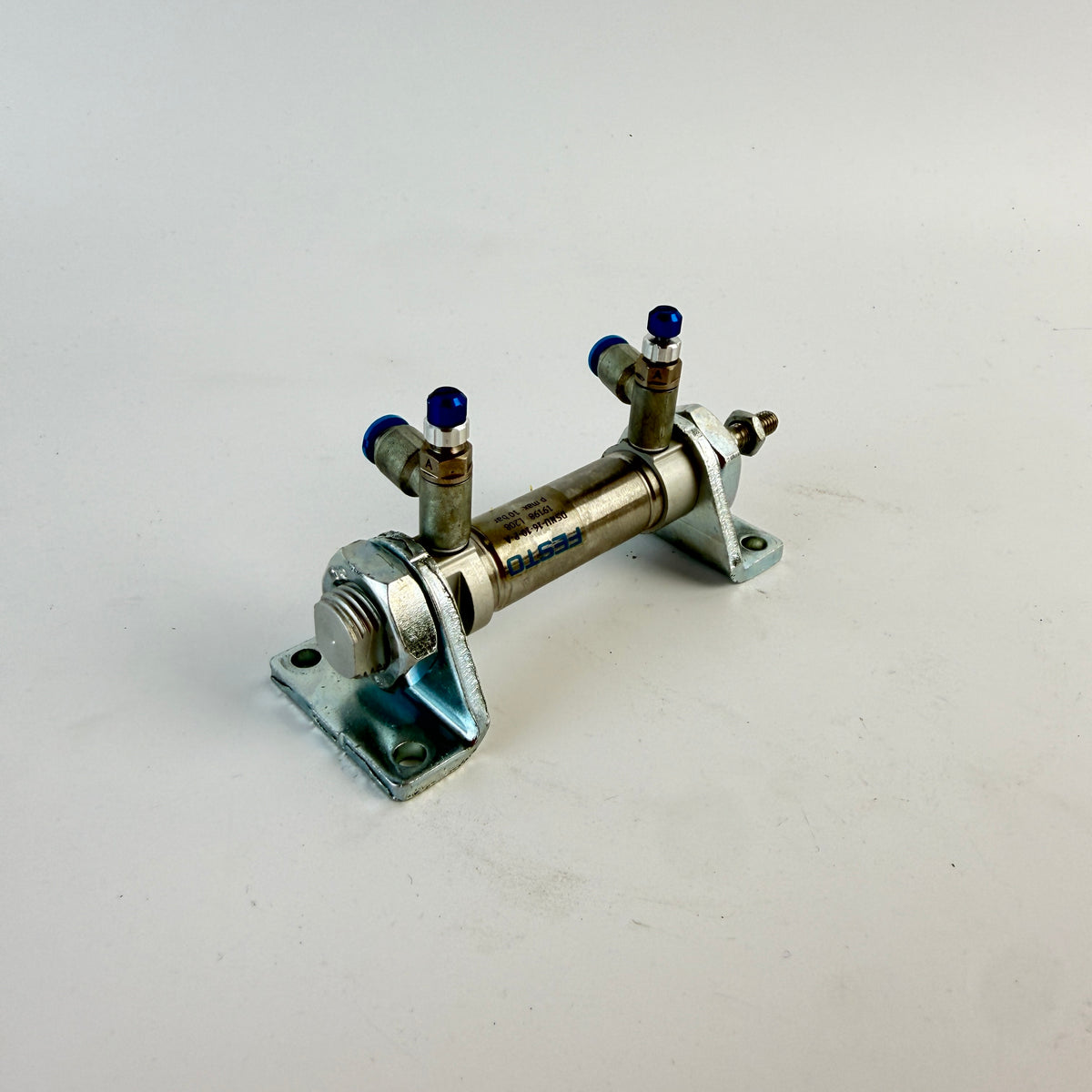

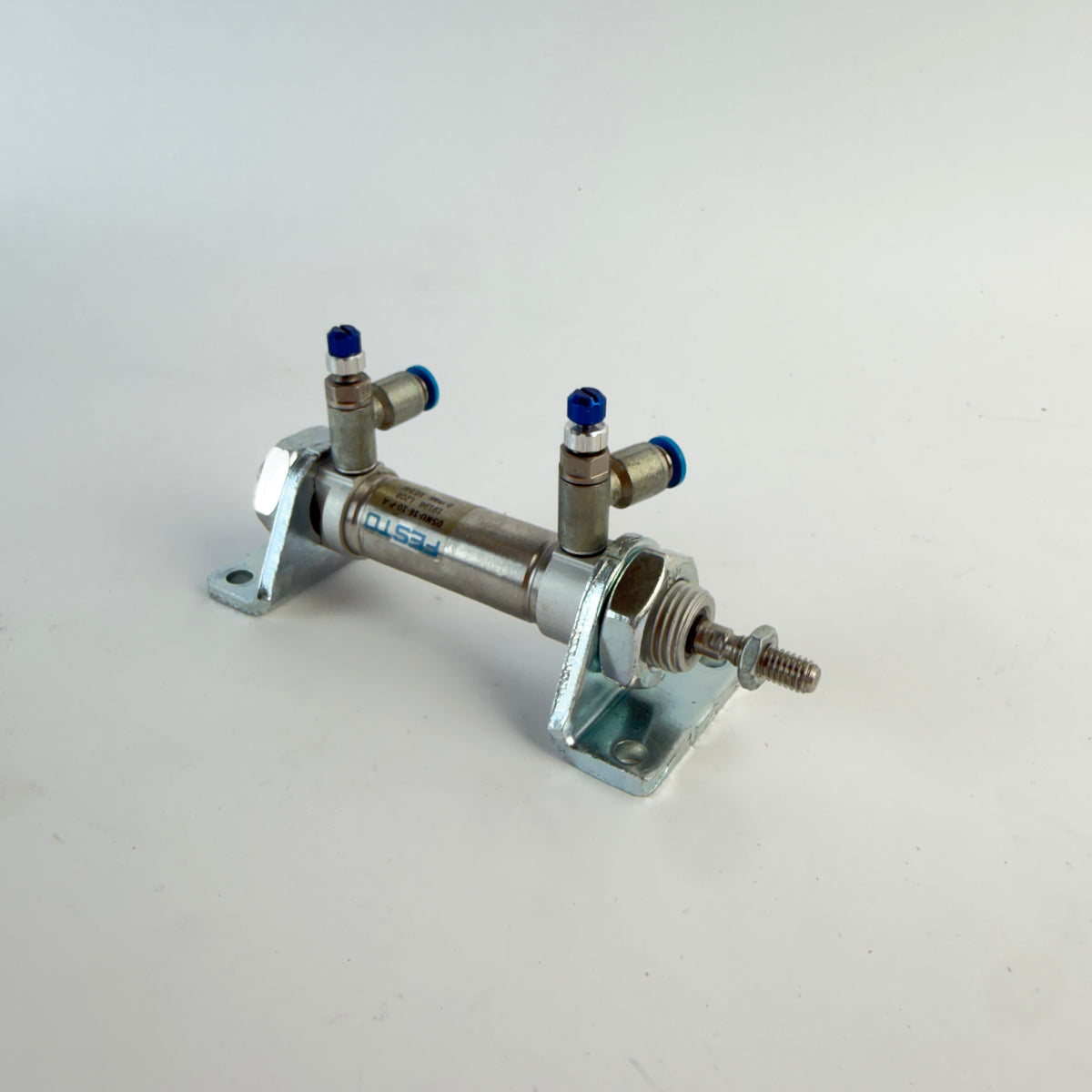

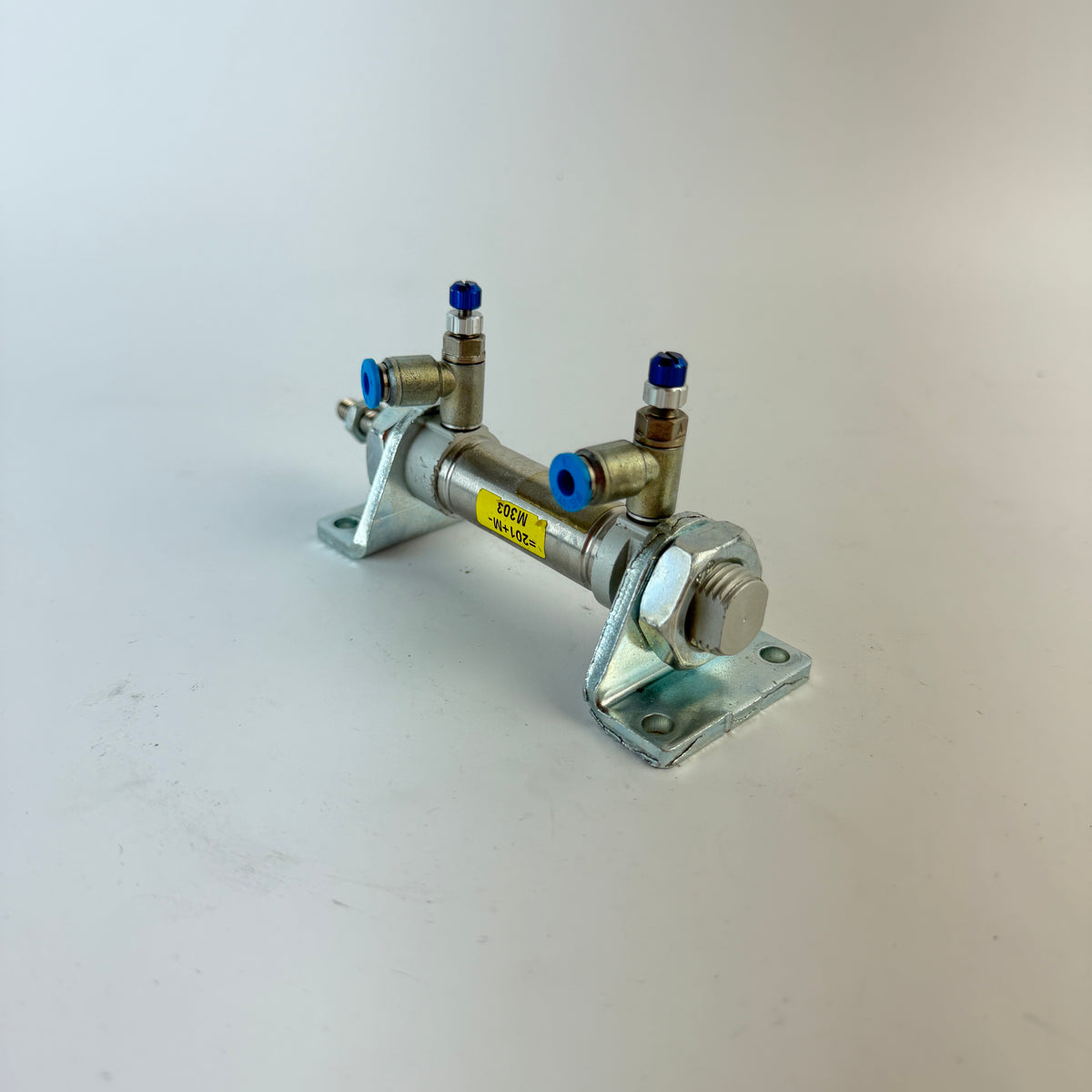

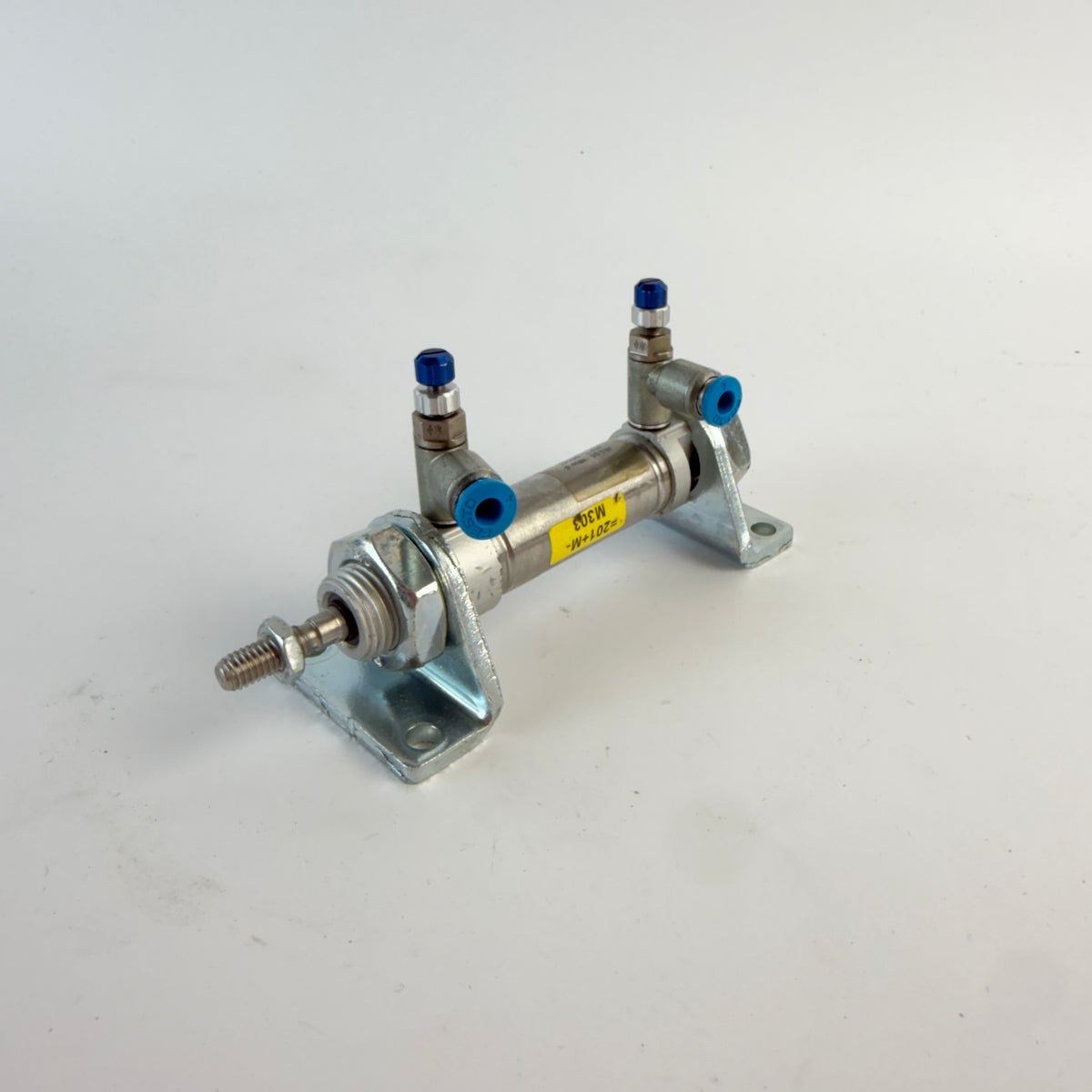

Festo DSNU-16-10-P-A standard double-acting pneumatic cylinder, part number 19198, supplied with the mounting brackets and pneumatic fittings shown in the photos.
The DSNU series is a round-body pneumatic cylinder based on ISO 6432. This model has a 16 mm piston diameter and a 10 mm stroke and is designed to provide linear motion using compressed air in industrial automation and machinery applications.
Technical specifications:
- Manufacturer: Festo
- Series: DSNU

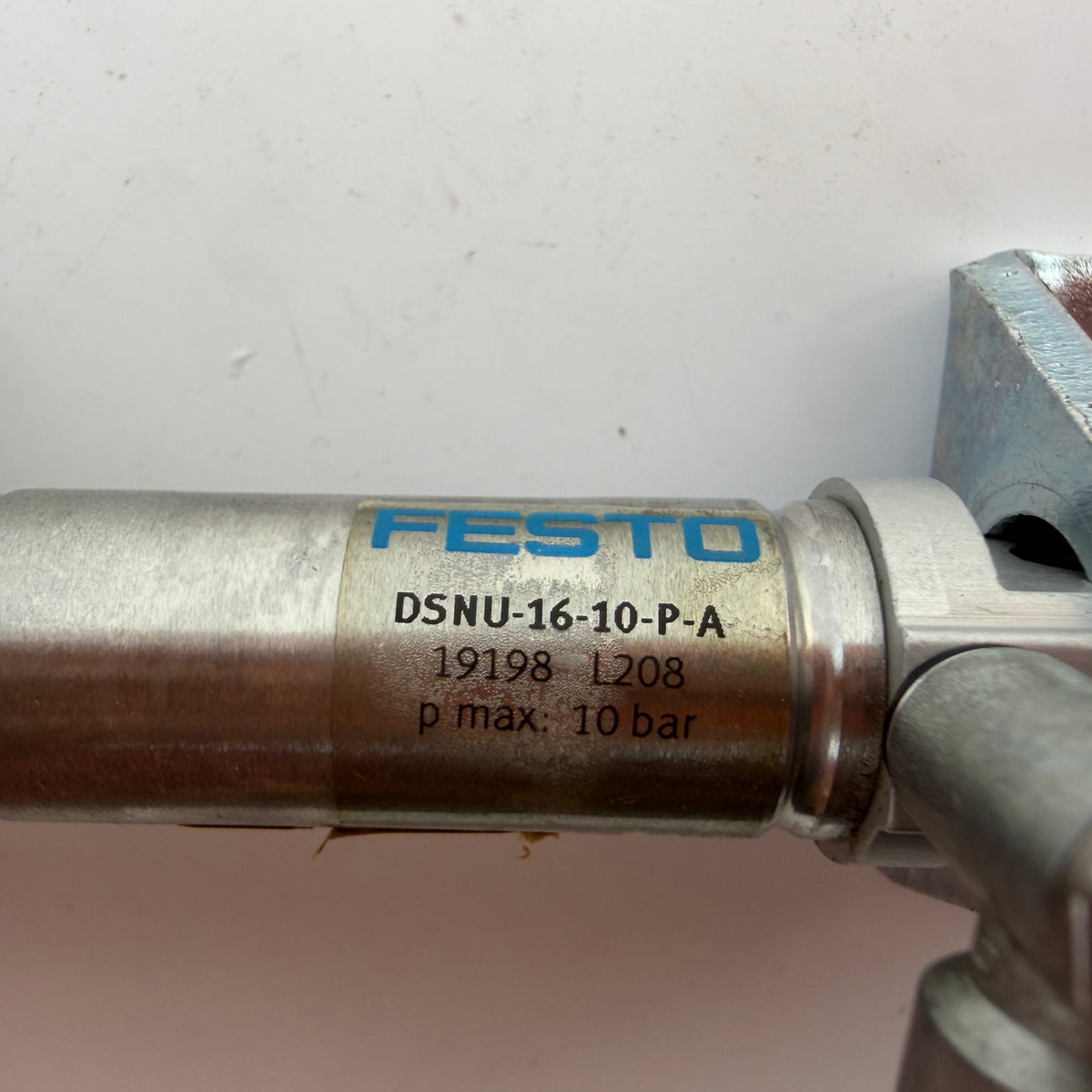

- Model: DSNU-16-10-P-A
- Part Number: 19198
- Type: Standard pneumatic cylinder
- Mode of Operation: Double-acting
- Piston Diameter / Bore: 16 mm
- Stroke: 10 mm

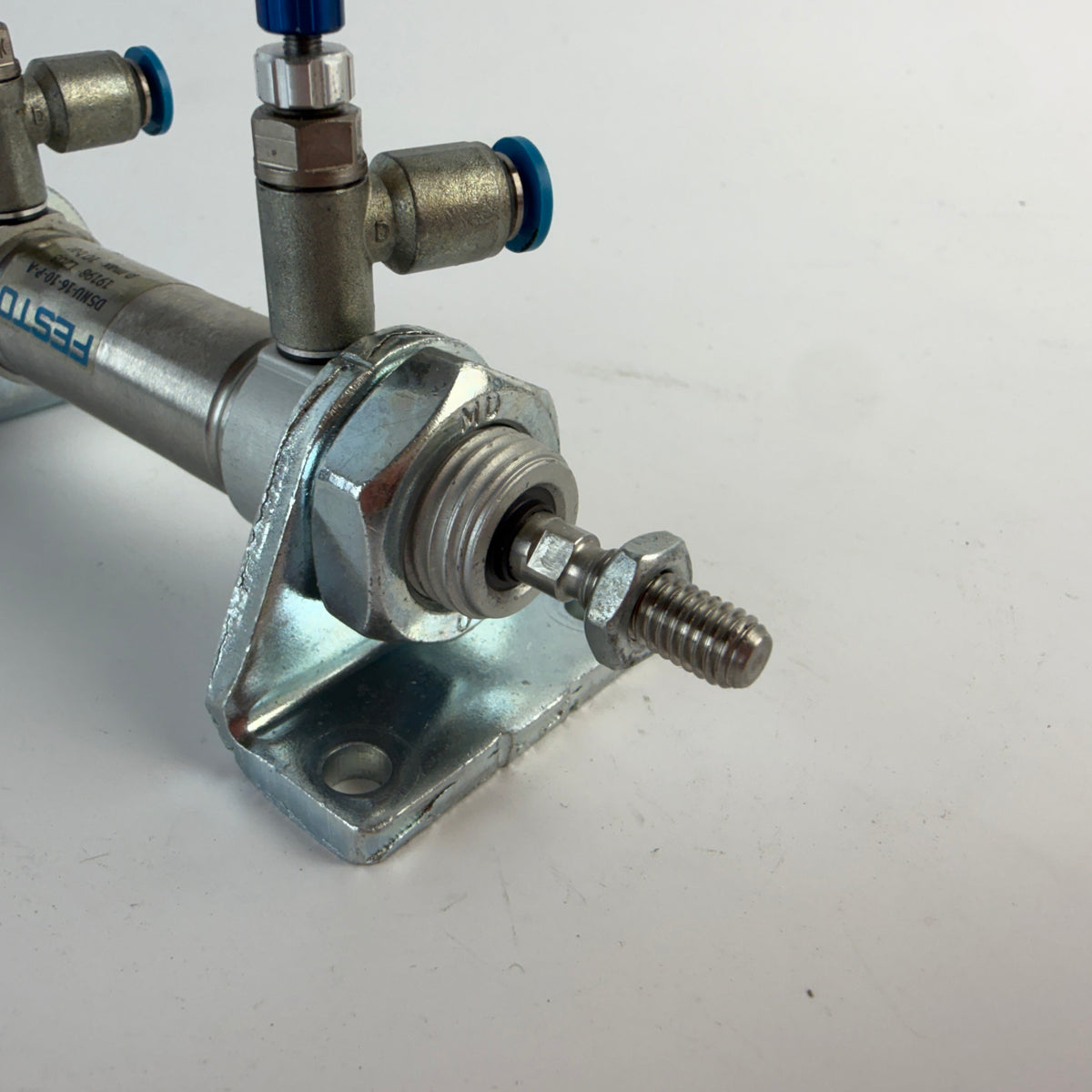

- Piston Rod Thread: M6
- Pneumatic Connection: M5
- Operating Pressure: 1 to 10 bar
- Standard: ISO 6432
- Cushioning: Elastic cushioning rings/plates at both ends
- Position Detection: Suitable for proximity sensing
- Operating Medium: Compressed air
- Ambient Temperature: -20°C to +80°C
- Theoretical Force at 6 bar, Advance Stroke: 120.6 N
- Theoretical Force at 6 bar, Return Stroke: 103.7 N
Used, fully functional.
The unit is supplied as pictured with attached mounting brackets and pneumatic fittings/flow-control components. Exact part numbers for the attached accessories have not been confirmed.
