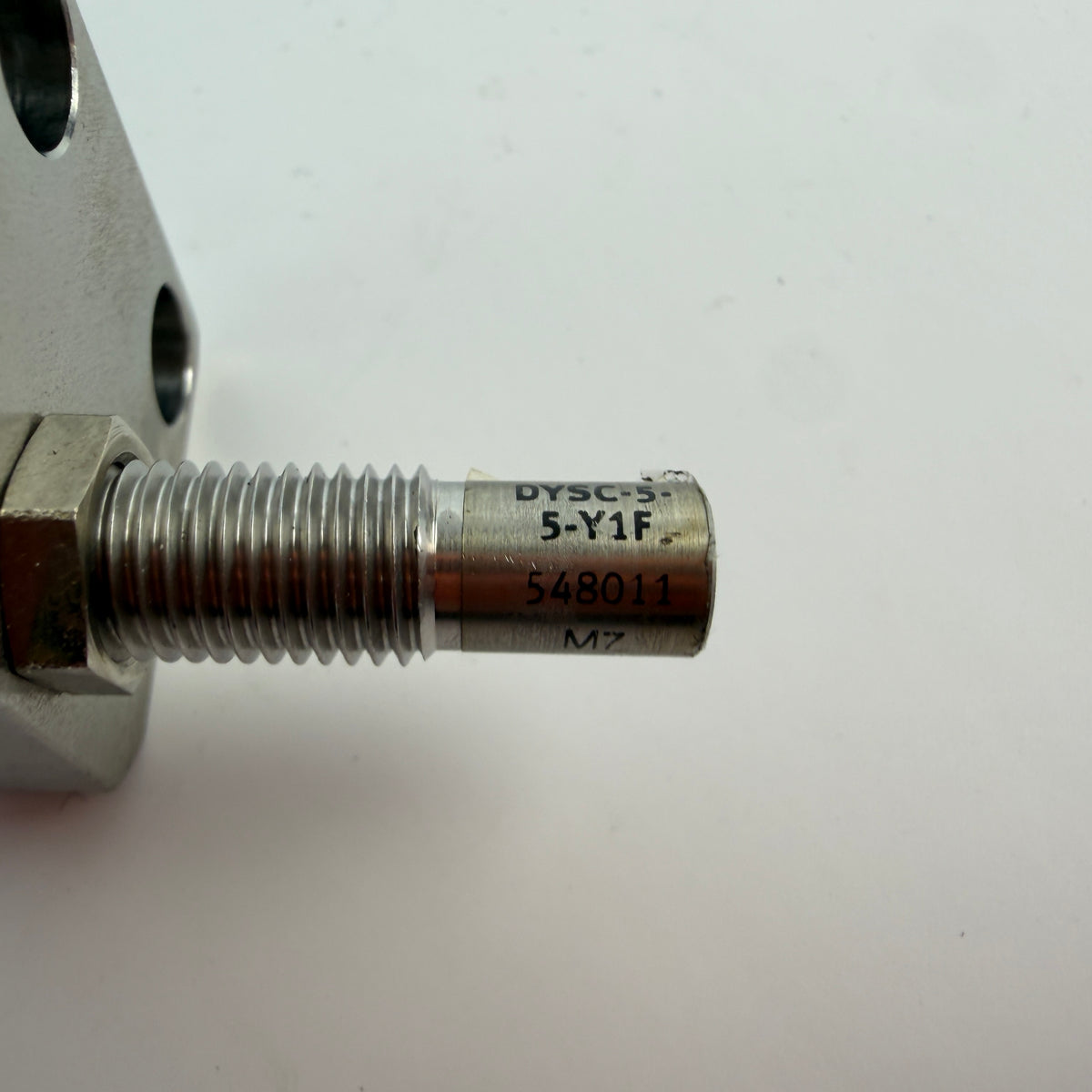

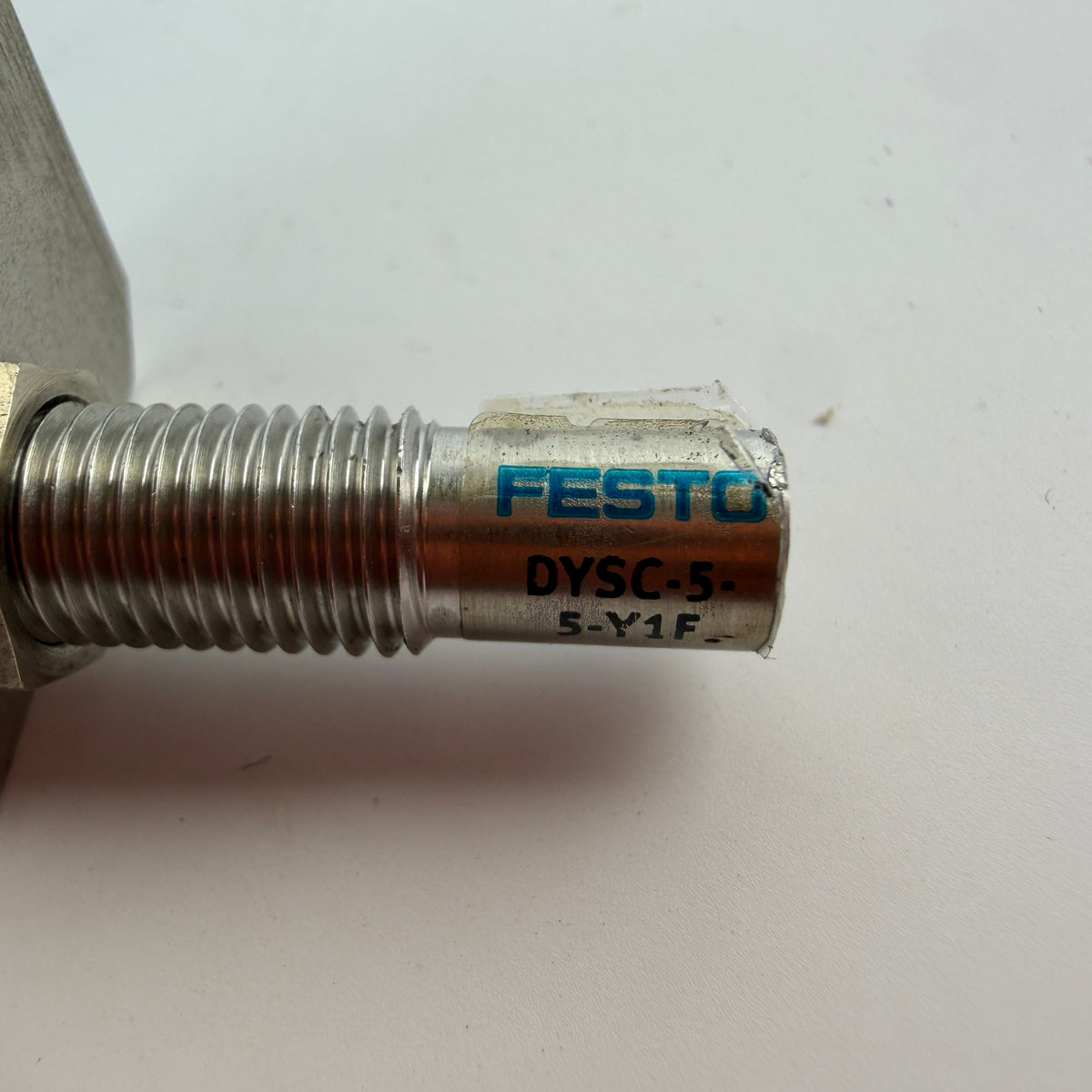

Festo DYSC-5-5-Y1F industrial shock absorber, part number 548011, supplied with the mounting block shown in the photos.

The DYSC series is designed for controlled deceleration and energy absorption at the end position of moving machine components. This model features a self-adjusting cushioning system and a compact 5 mm cushioning stroke, making it suitable for industrial automation and mechanical motion applications.

Technical specifications:

• Manufacturer: Festo
• Series: DYSC
• Model: DYSC-5-5-Y1F
• Part Number: 548011
• Type: Shock Absorber
• Size: 5
• Stroke: 5 mm
• Cushioning: Self-adjusting
• Mode of Operation: Pushing, single-acting
• Maximum Impact Speed: 2 m/s
• Maximum Stop Force: 200 N
• Maximum Energy Absorption per Stroke: 1 J
• Maximum Energy Absorption per Hour: 8,000 J
• Reset Time at Room Temperature: 0.2 s
• Reset Force: 0.9 N
• Minimum Insertion Force: 7.5 N
• Load Range: 1.5 kg
• Ambient Temperature: -10°C to +80°C
• Housing Material: High-alloy steel
• Piston Rod Material: High-alloy steel
• Seal Material: NBR
• Standard Mounting: Via lock nut

These specifications are confirmed by Festo documentation for part number 548011.

Used, fully functional.

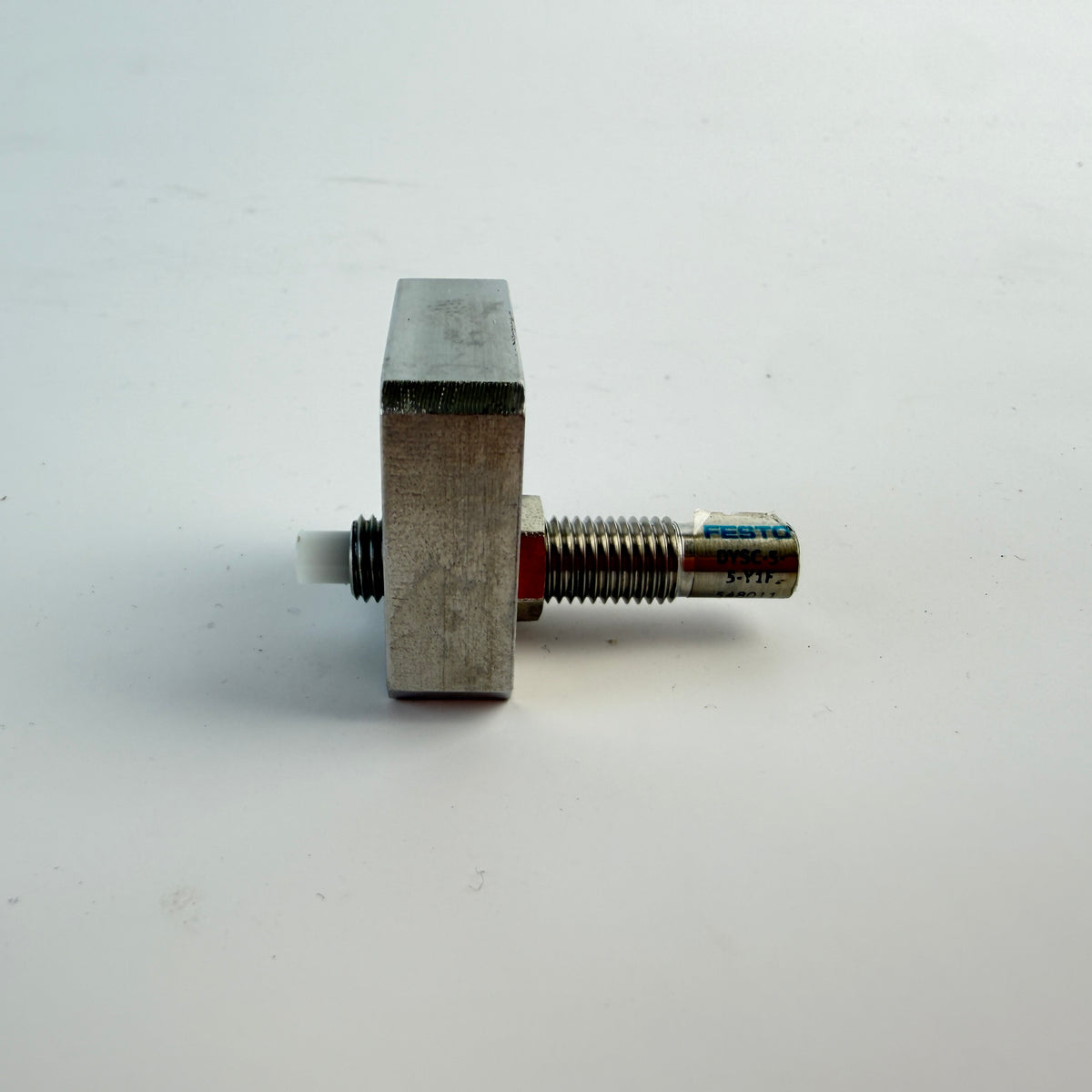

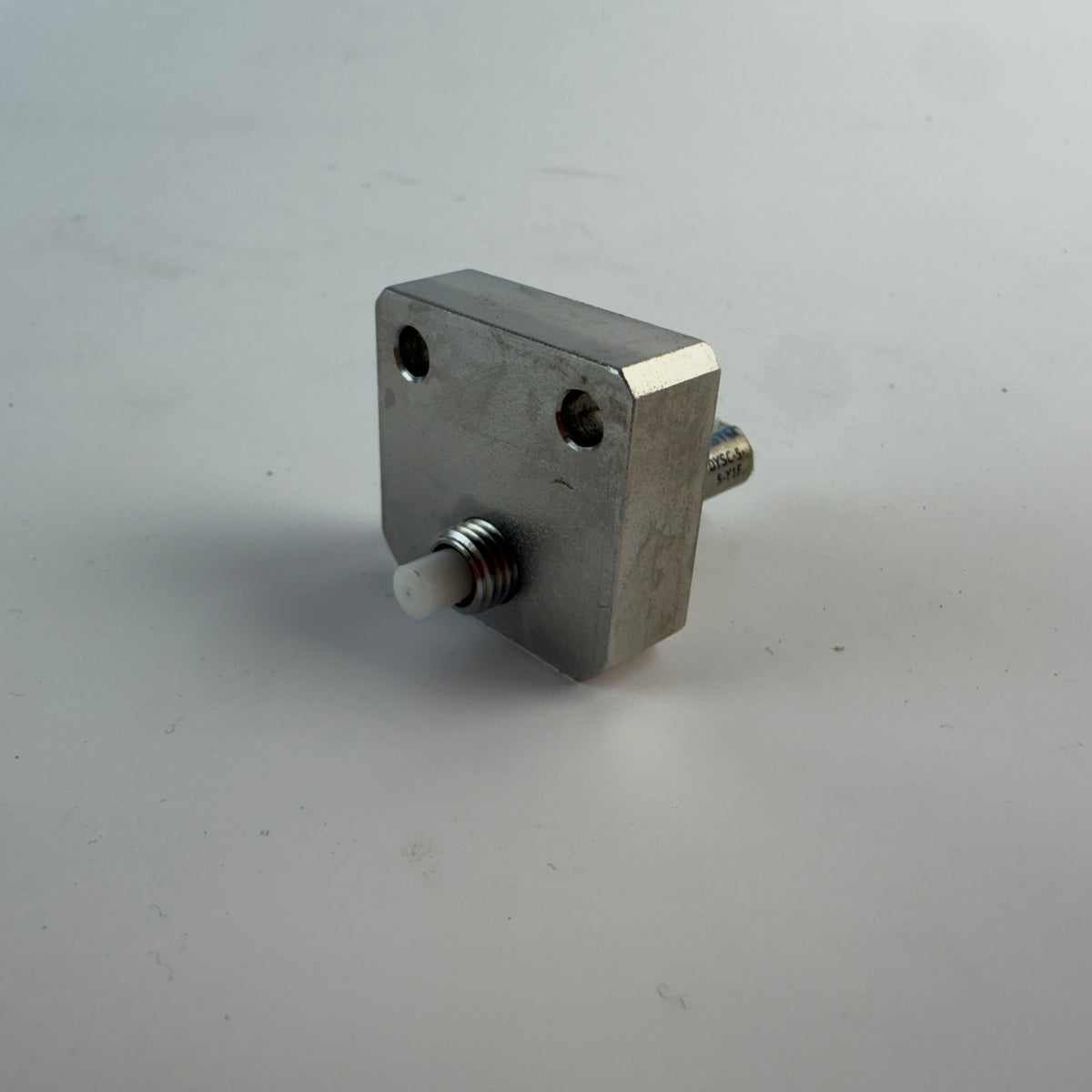

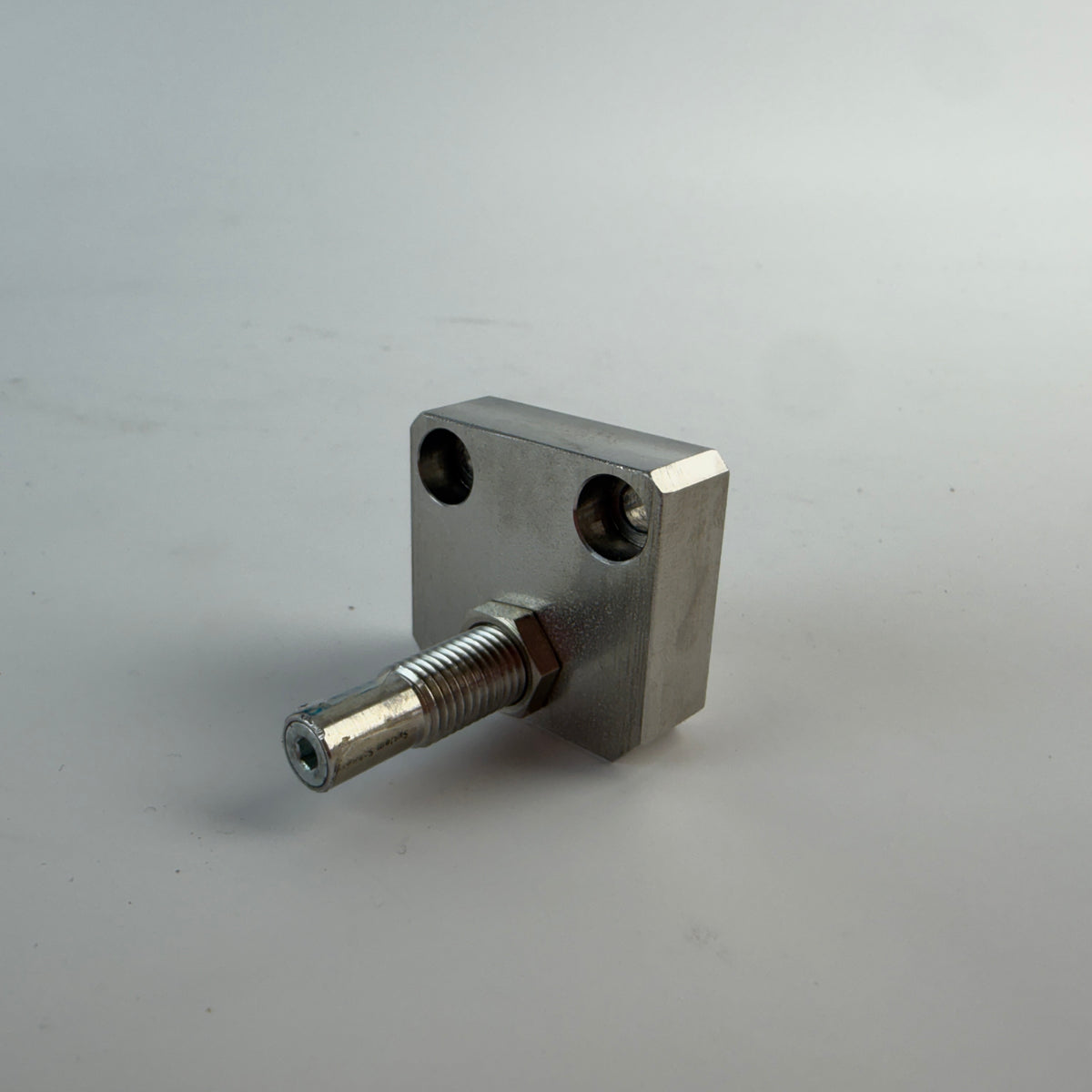

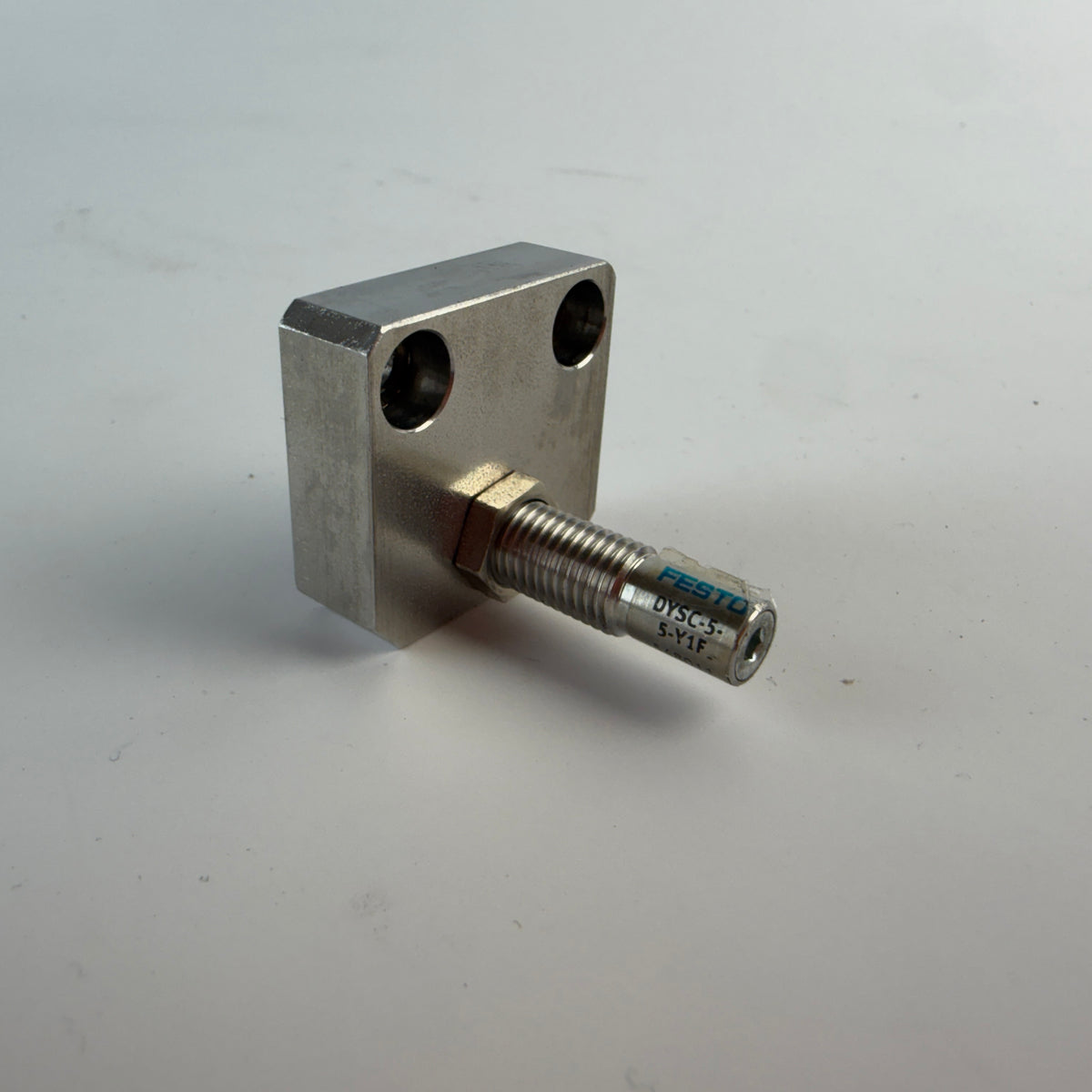

The shock absorber is supplied with the metal mounting block shown in the photos. The mounting block has not been identified as a separate Festo catalog part and is included as pictured.
