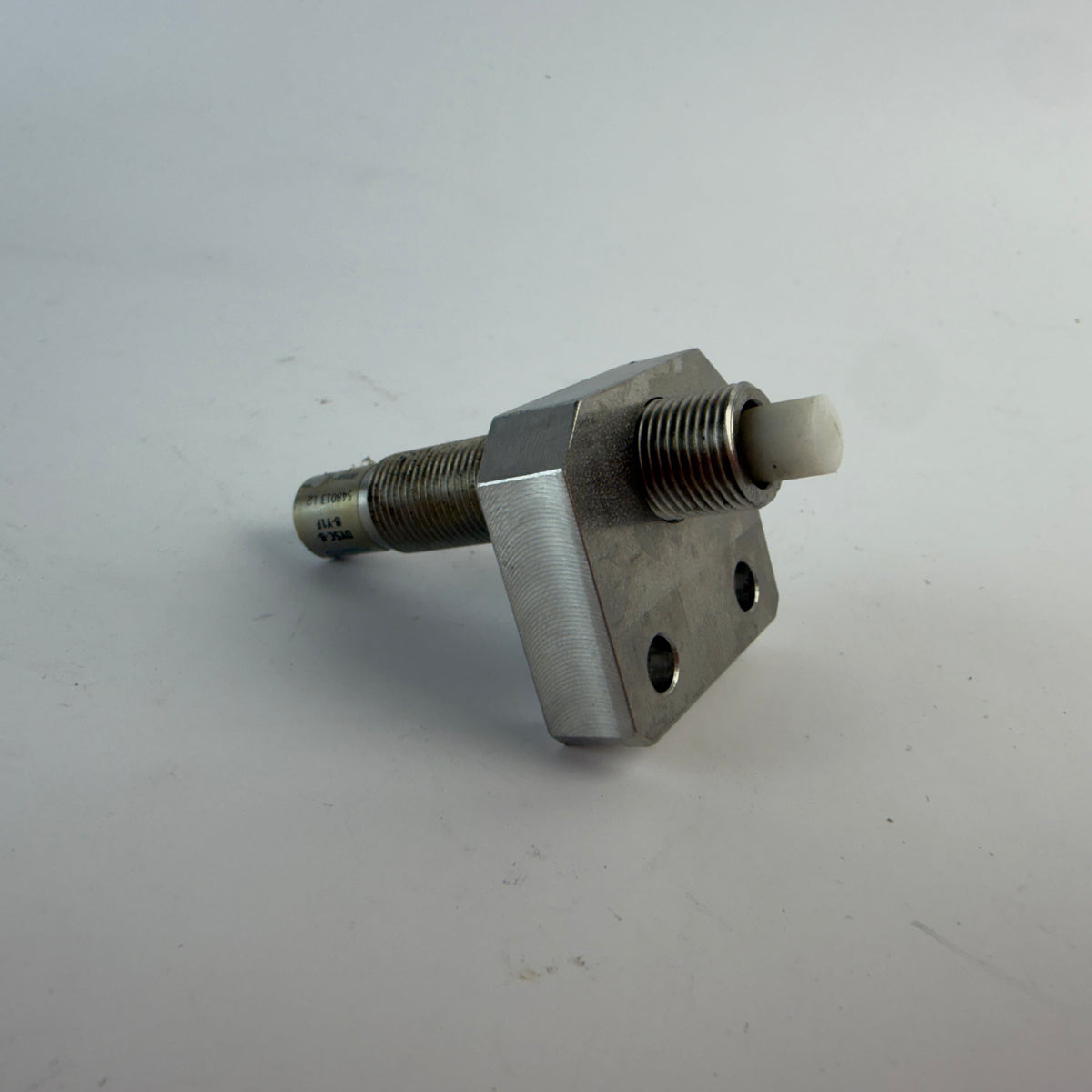

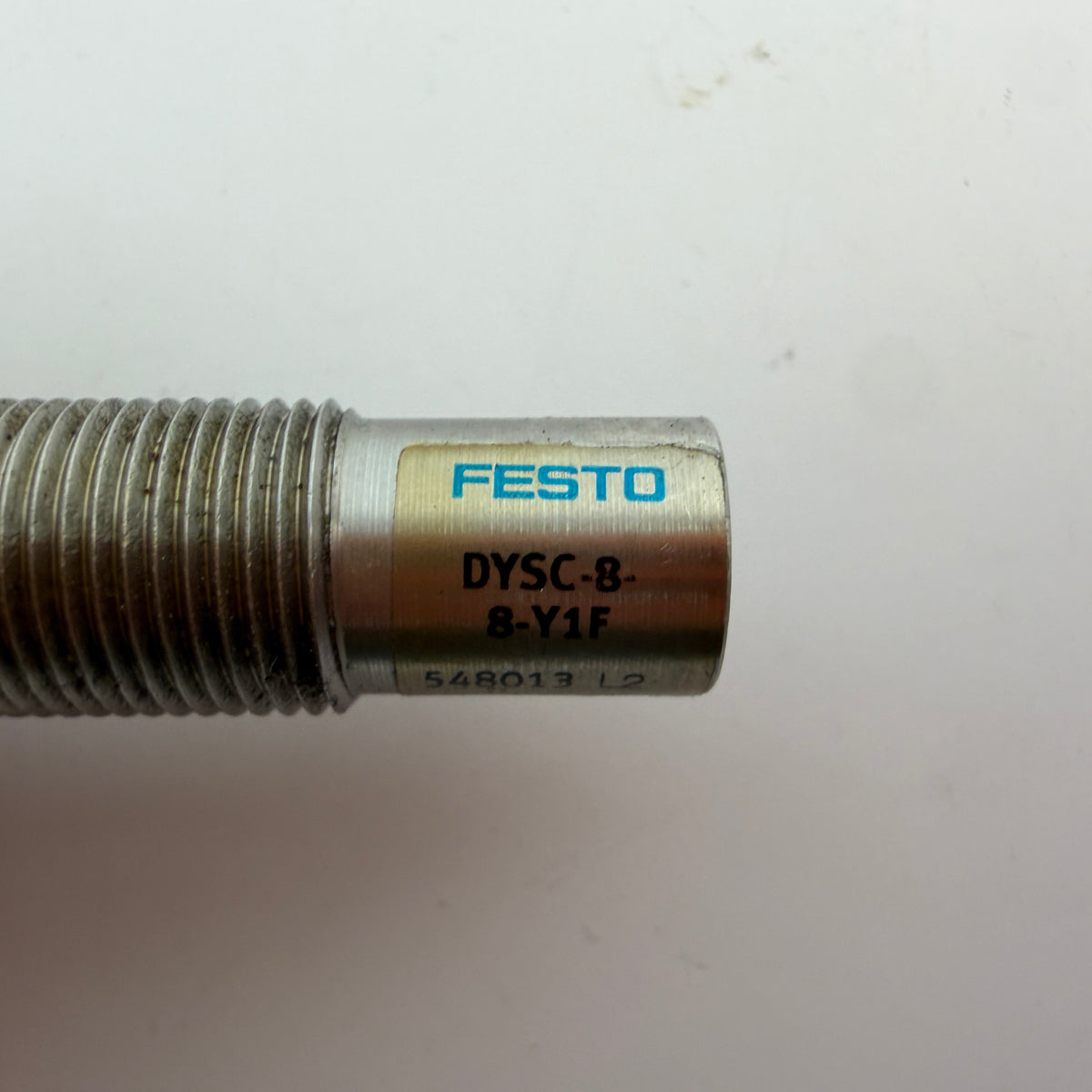

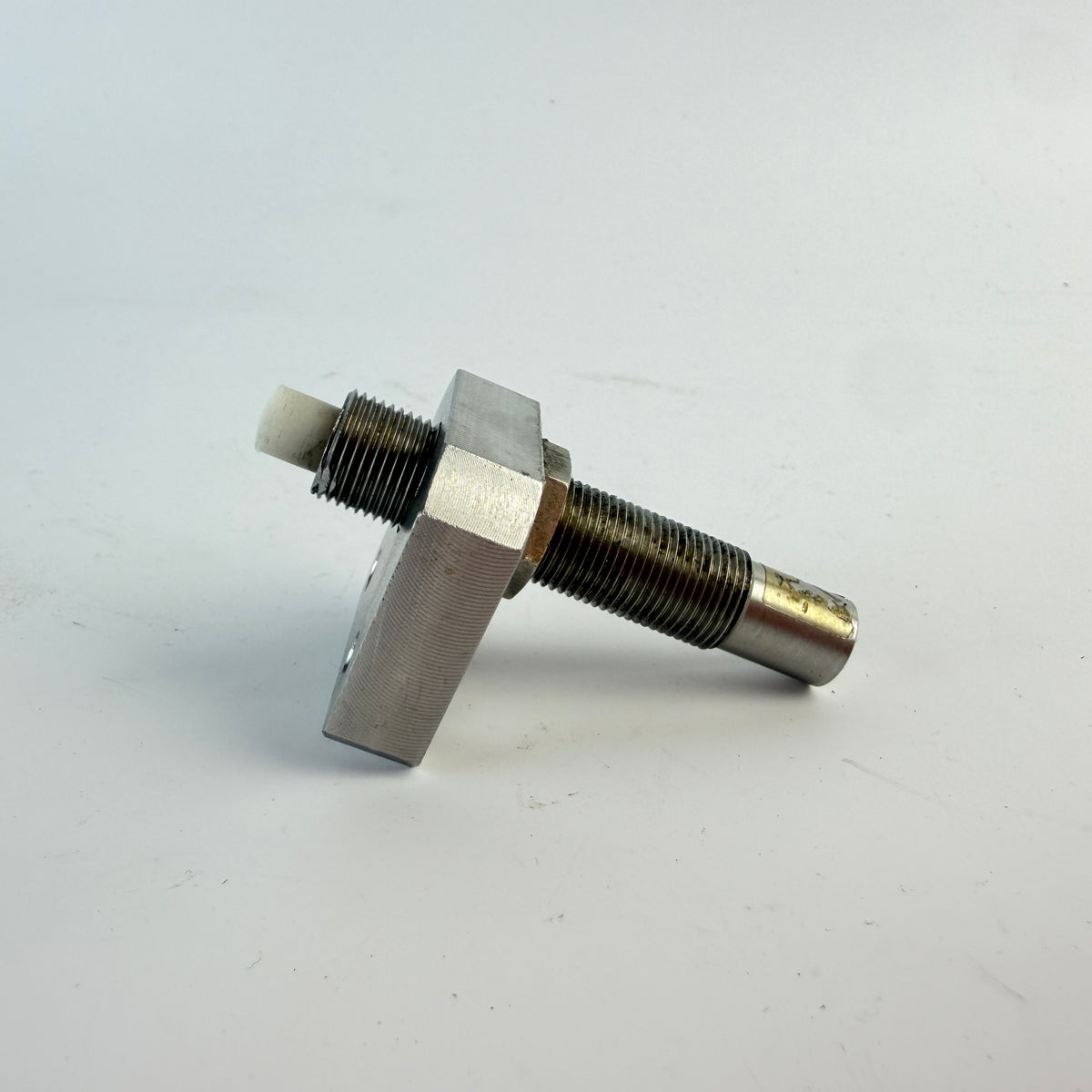

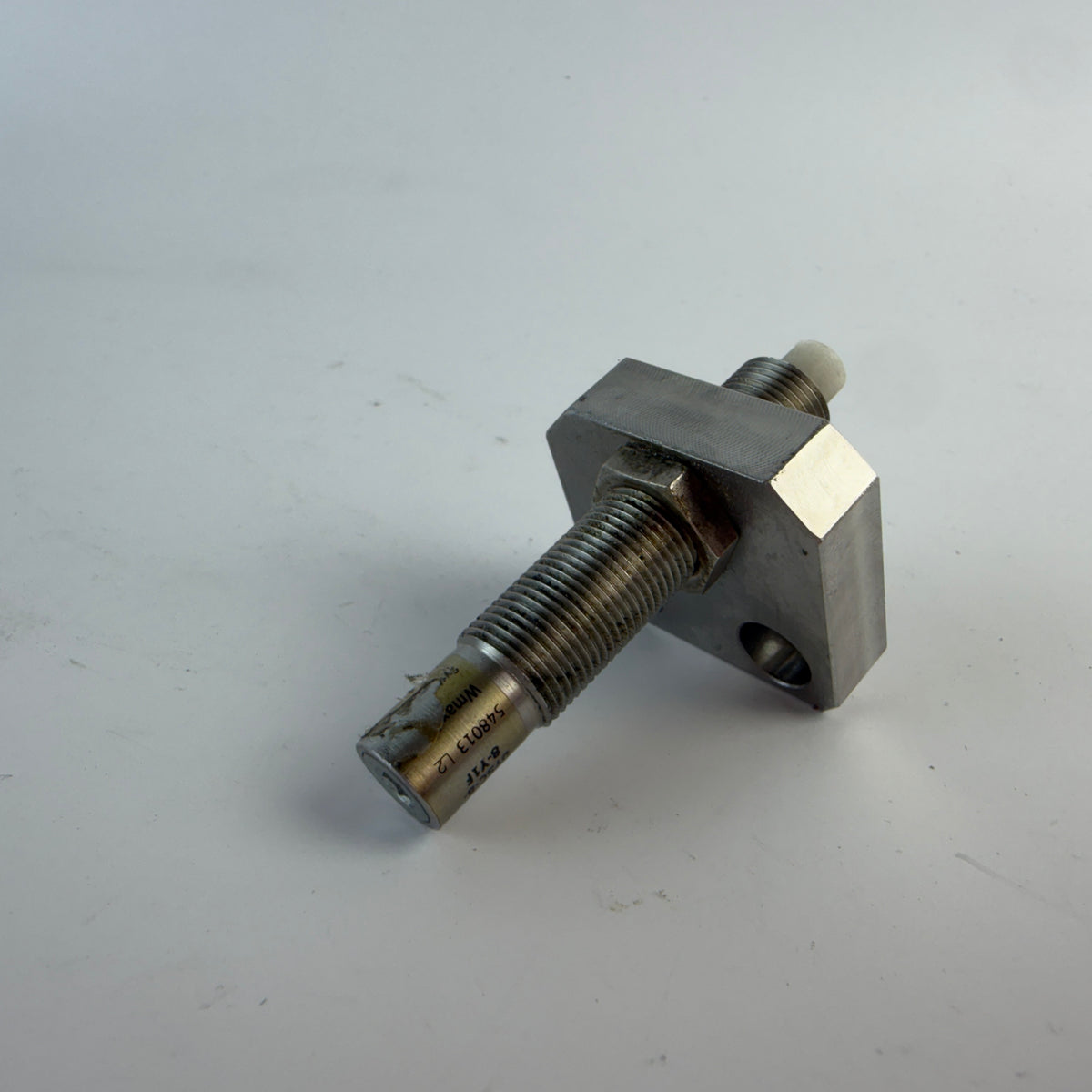

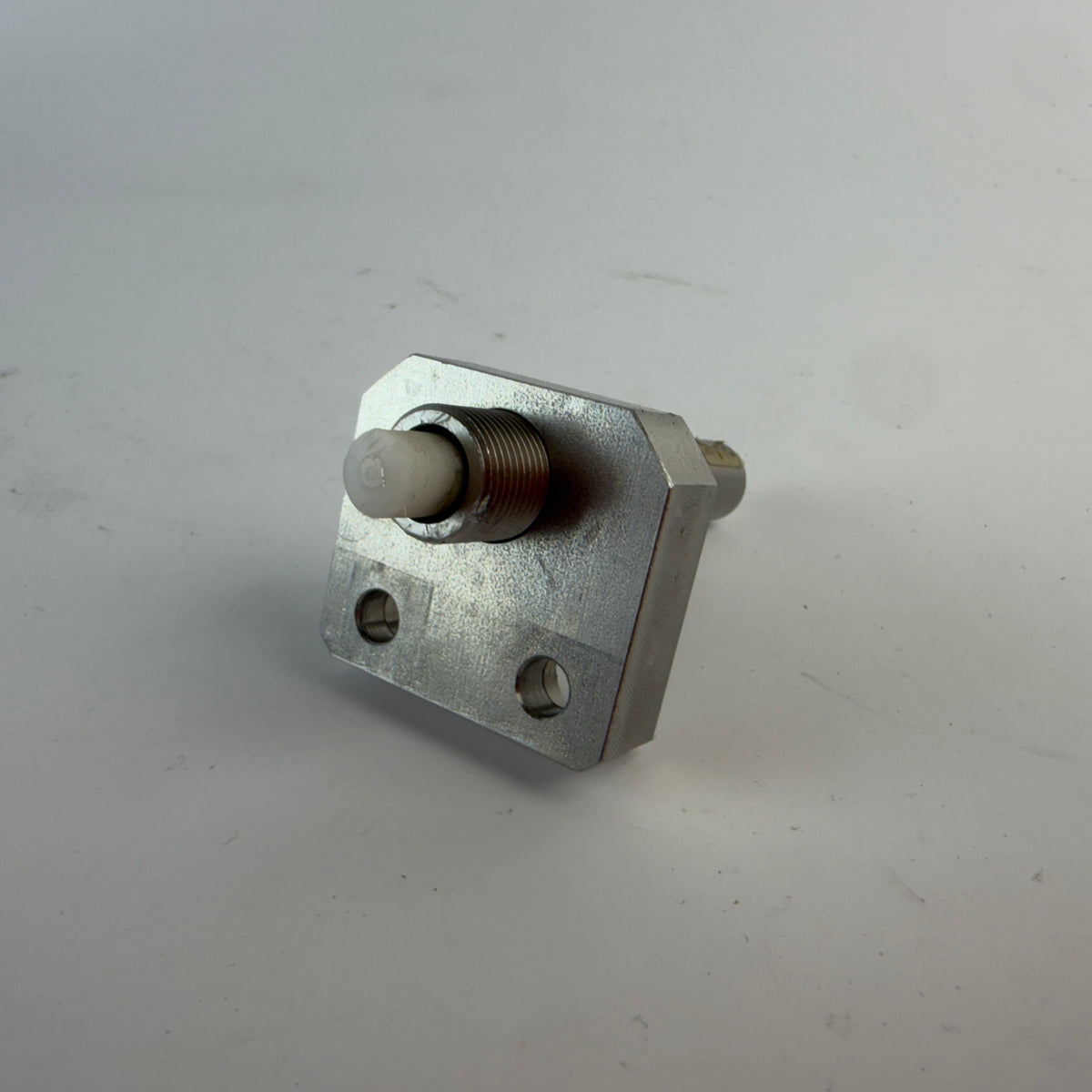

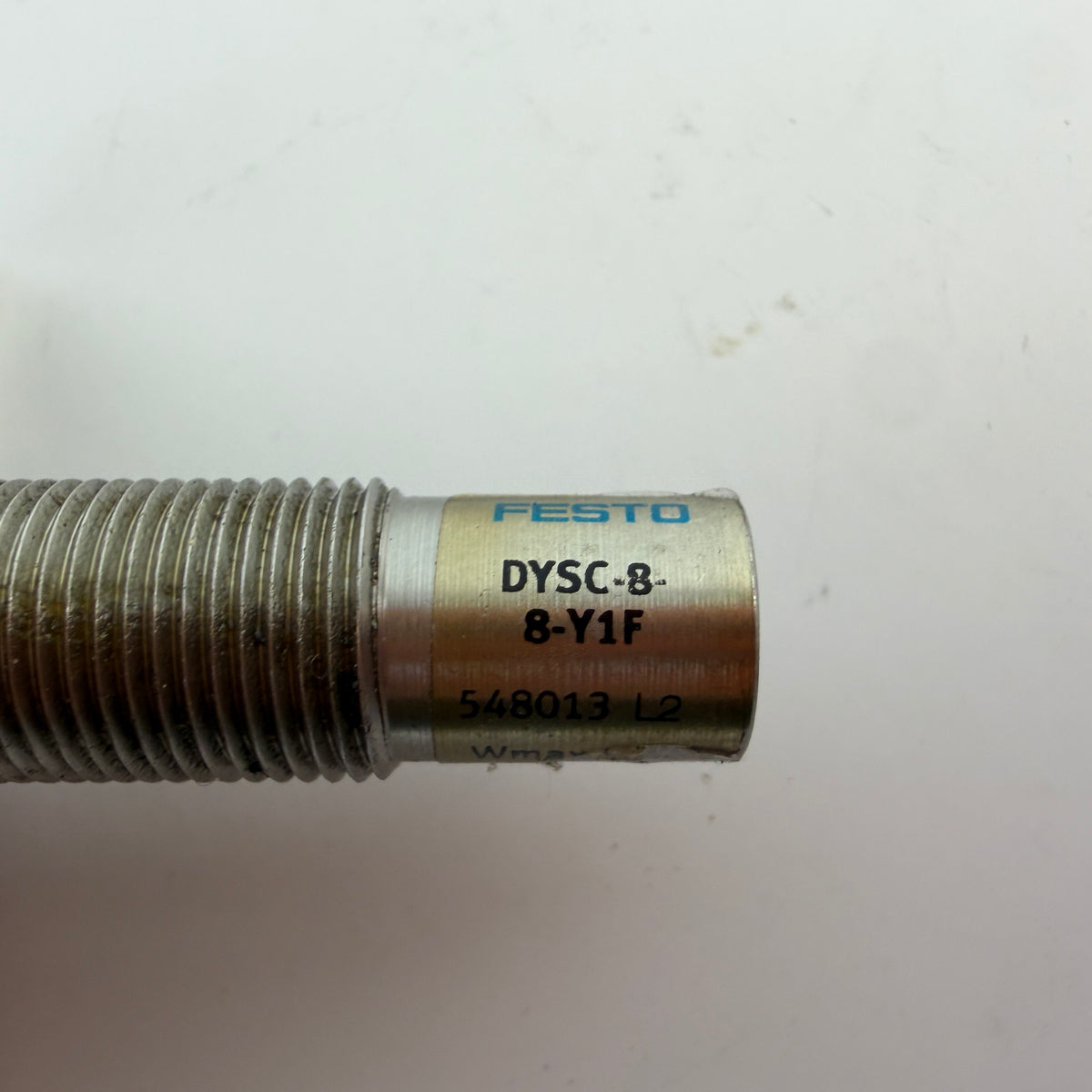

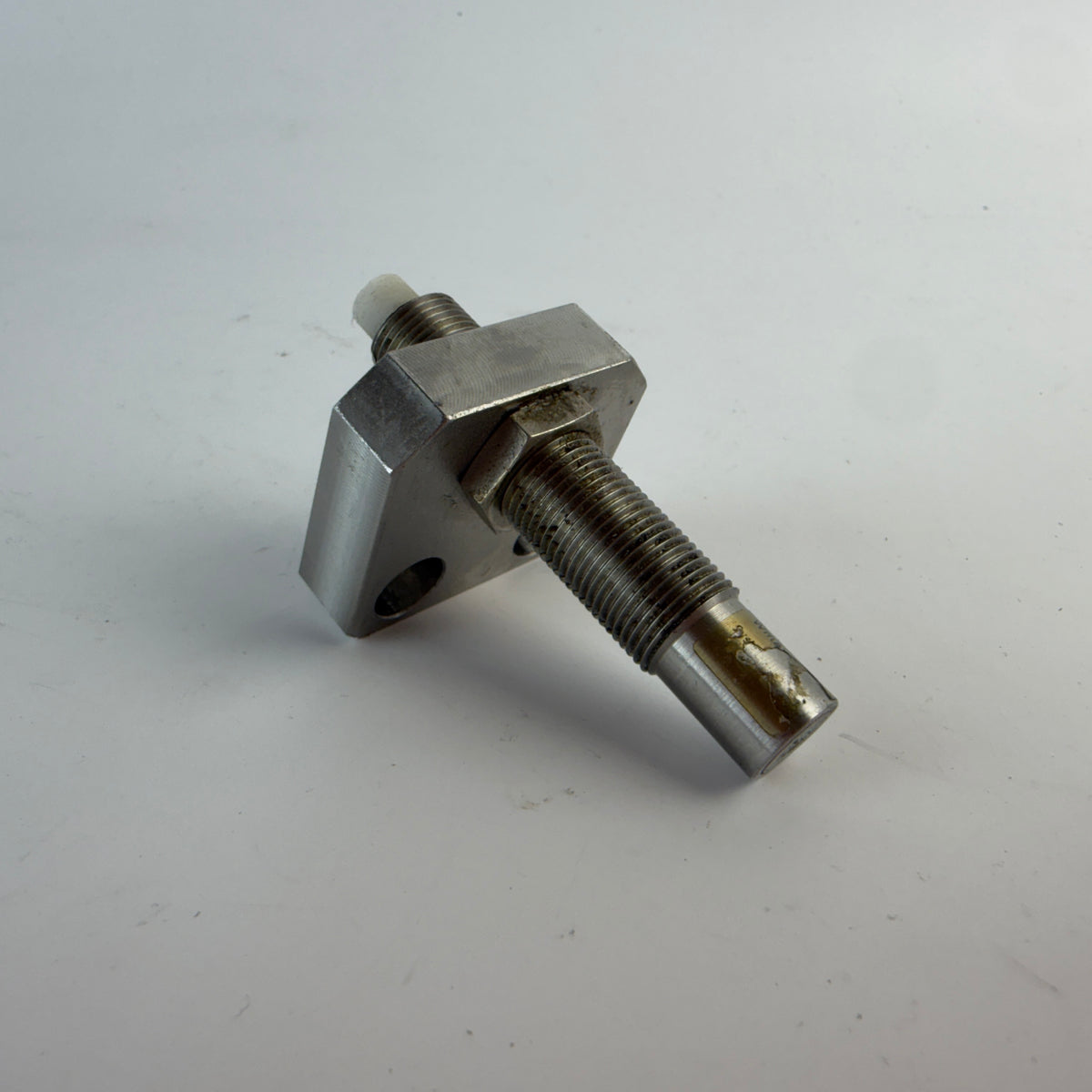

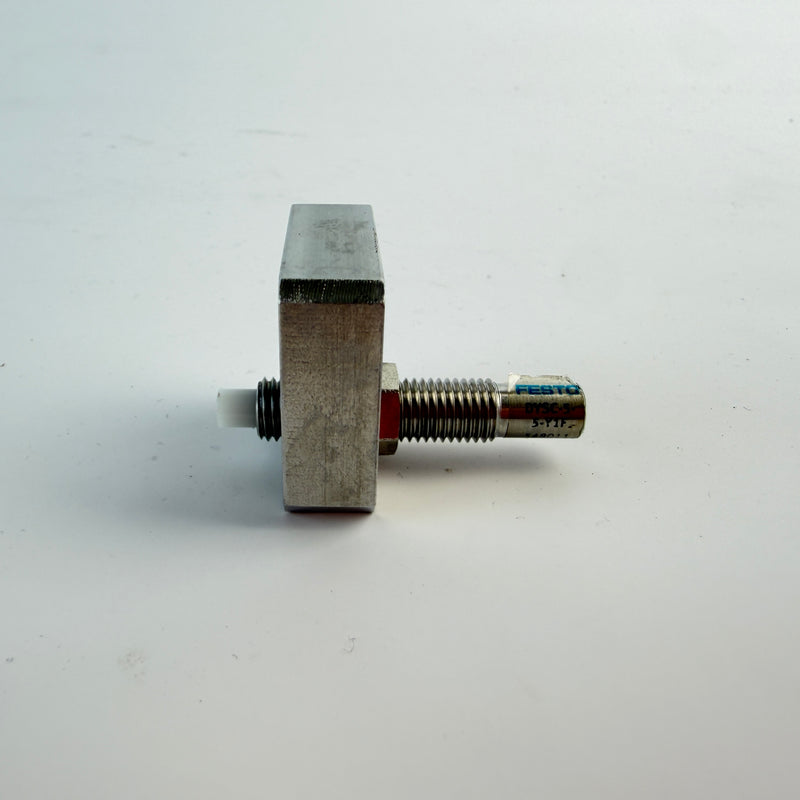

Festo DYSC-8-8-Y1F industrial shock absorber, part number 548013, supplied with the metal mounting block shown in the photos.

The DYSC series is designed for controlled deceleration and kinetic energy absorption at the end position of moving machine components. This model features self-adjusting cushioning and an 8 mm cushioning stroke for industrial automation and mechanical motion applications.

Technical specifications:

• Manufacturer: Festo
• Series: DYSC
• Model: DYSC-8-8-Y1F
• Part Number: 548013
• Type: Industrial Shock Absorber
• Size: 8
• Stroke: 8 mm
• Cushioning Length: 8 mm
• Cushioning: Self-adjusting
• Mode of Operation: Pushing, single-acting
• Mounting Position: Any
• Maximum Impact Velocity: 3 m/s
• Maximum Stop Force: 500 N
• Maximum Energy Absorption per Stroke: 3 J
• Maximum Energy Absorption per Hour: 18,000 J
• Maximum Residual Energy: 0.02 J
• Reset Time at Room Temperature: 0.2 s
• Reset Force: 2.5 N
• Minimum Insertion Force: 18 N
• Load Range: 15 kg
• Ambient Temperature: -10°C to +80°C
• Product Weight: 36 g
• Housing Material: High-alloy steel
• Piston Rod Material: High-alloy steel
• Seal Material: NBR
• Standard Mounting: Lock nut
• Position Sensing: None

Used, fully functional.

The shock absorber is supplied with the metal mounting block shown in the photos. The exact manufacturer and part number of the mounting block have not been confirmed.
