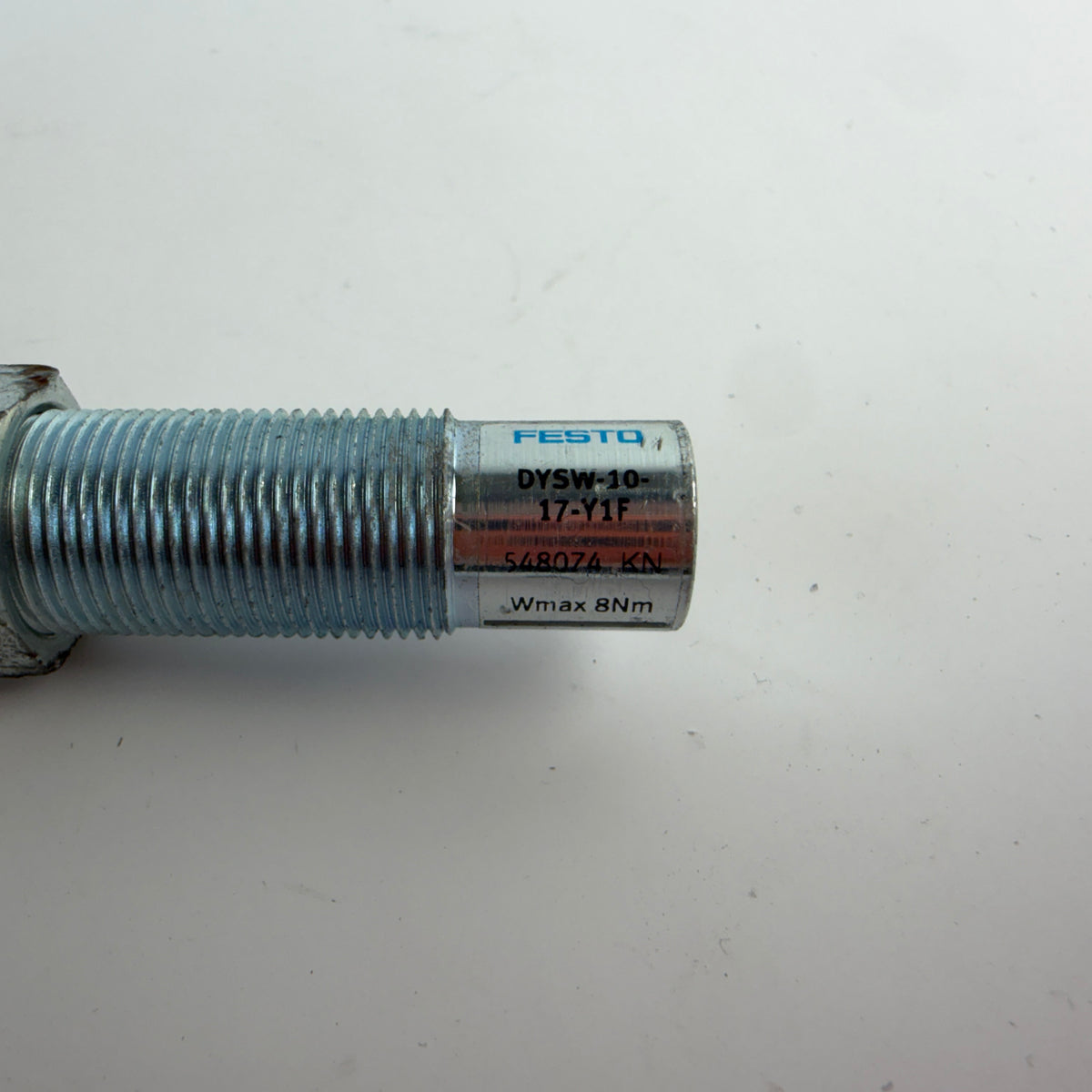

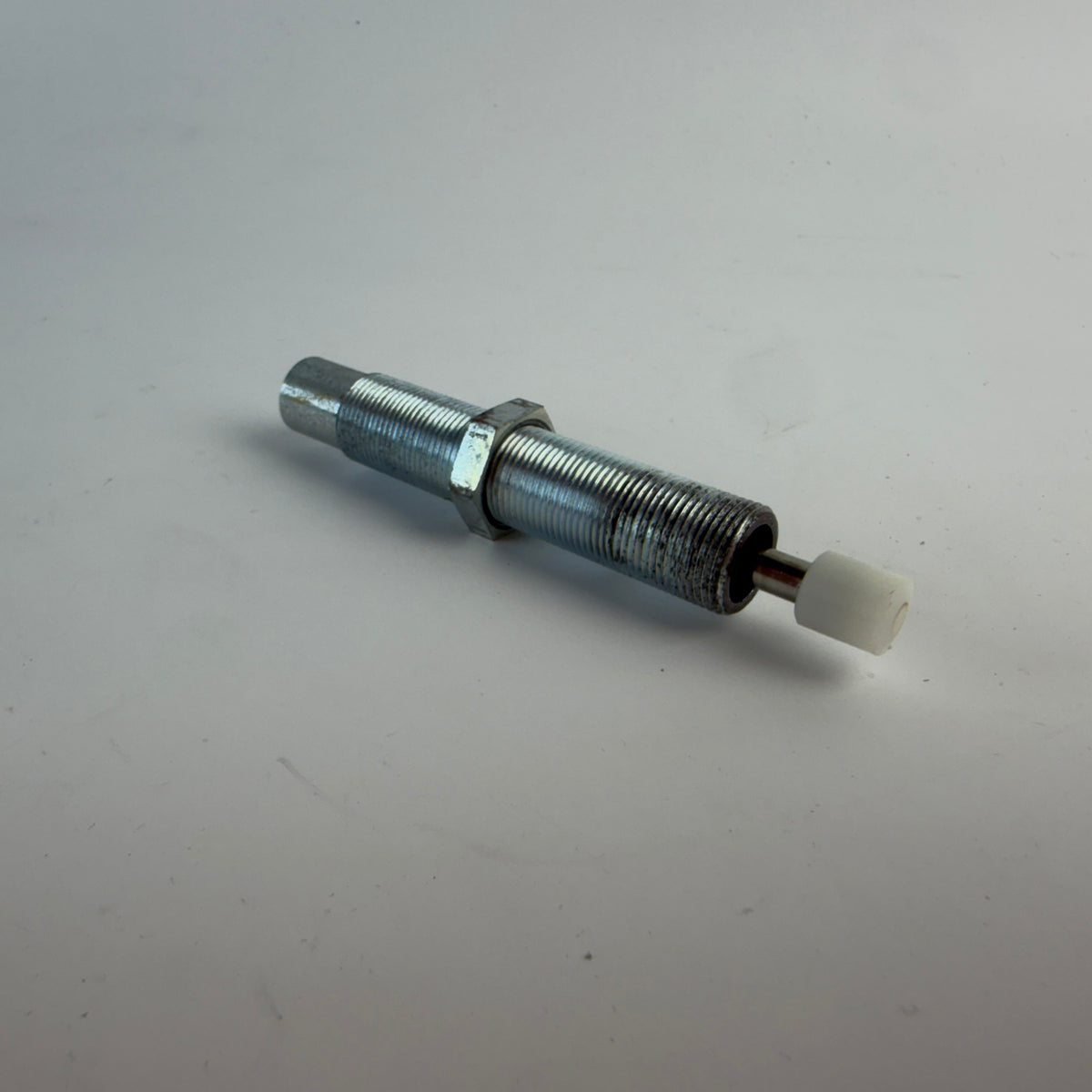

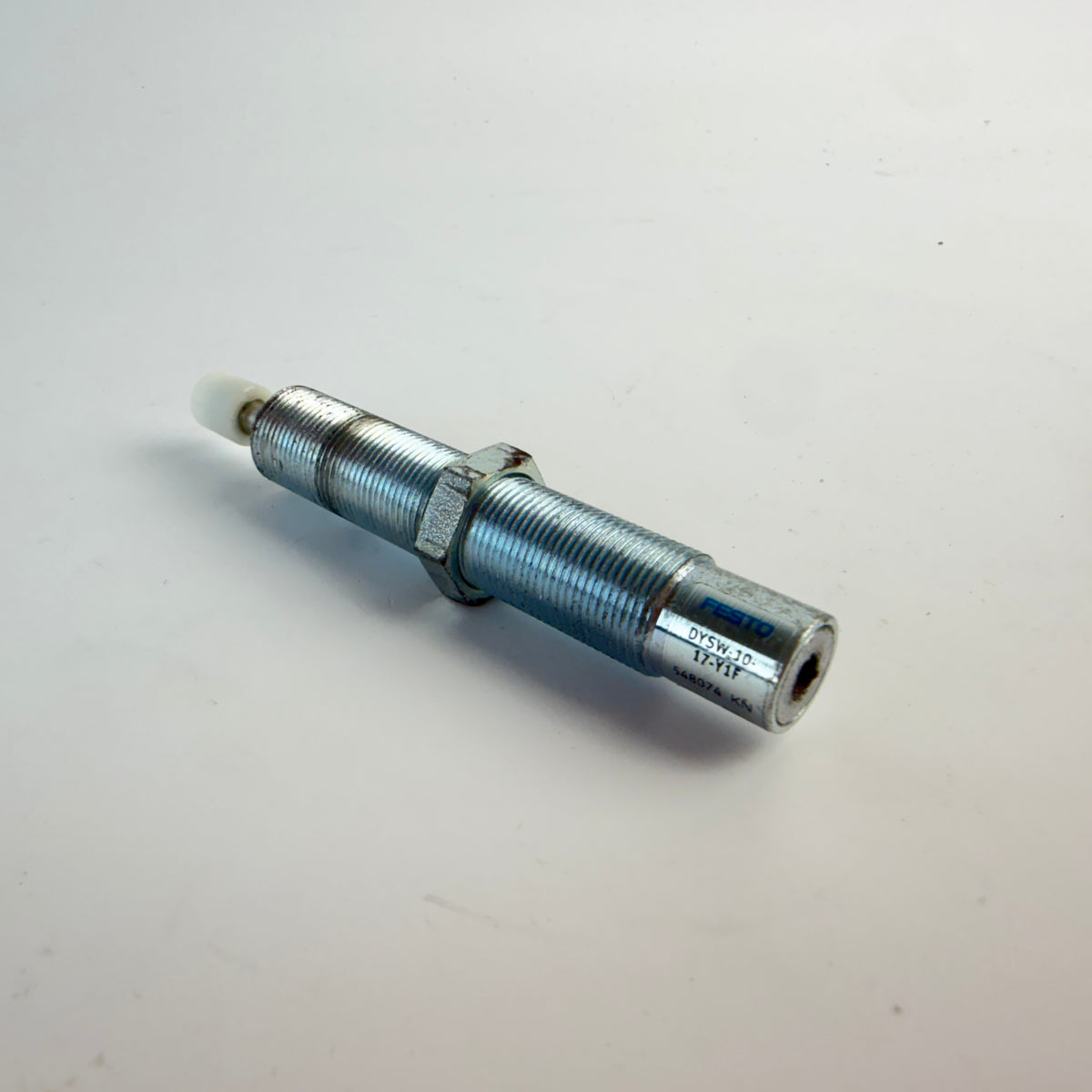

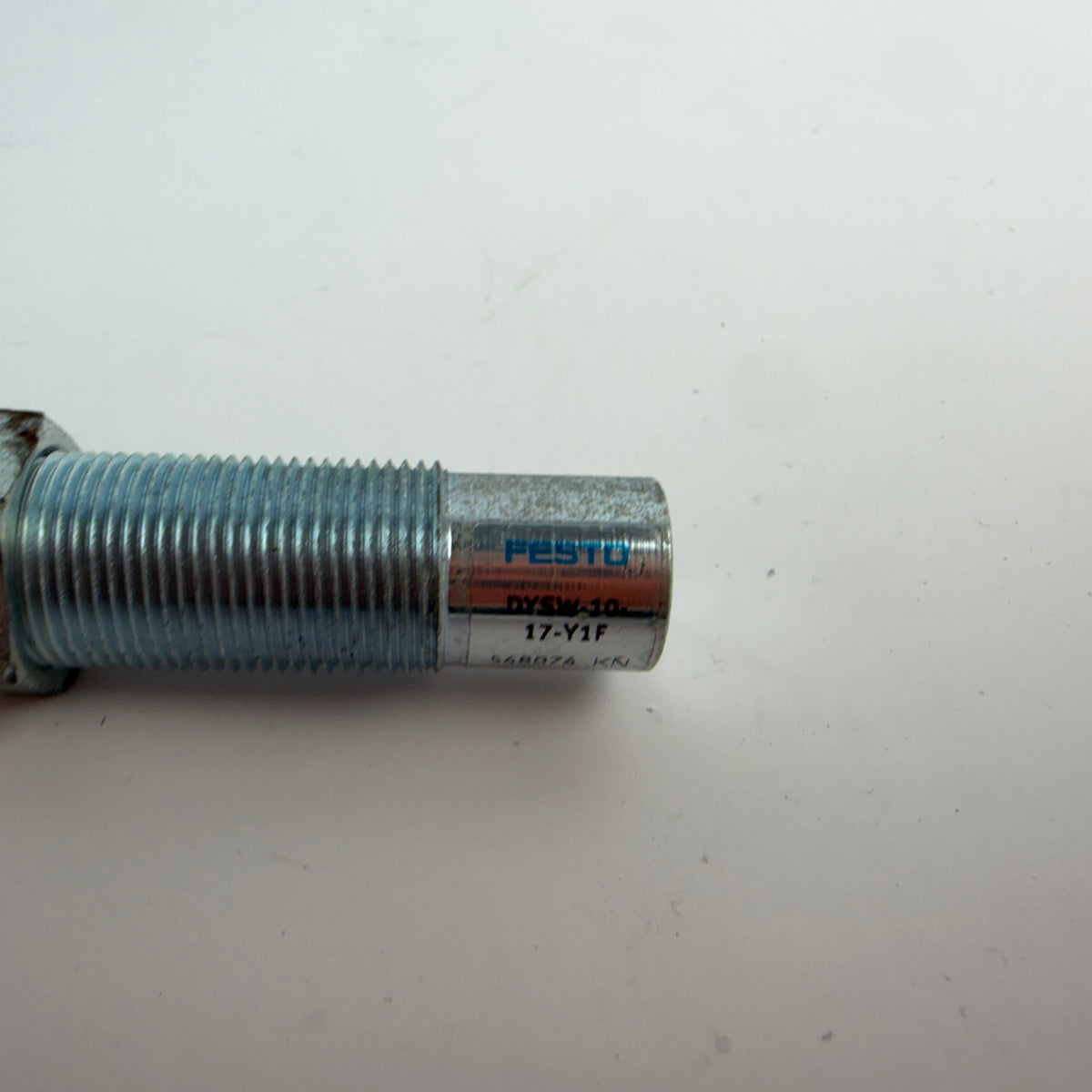

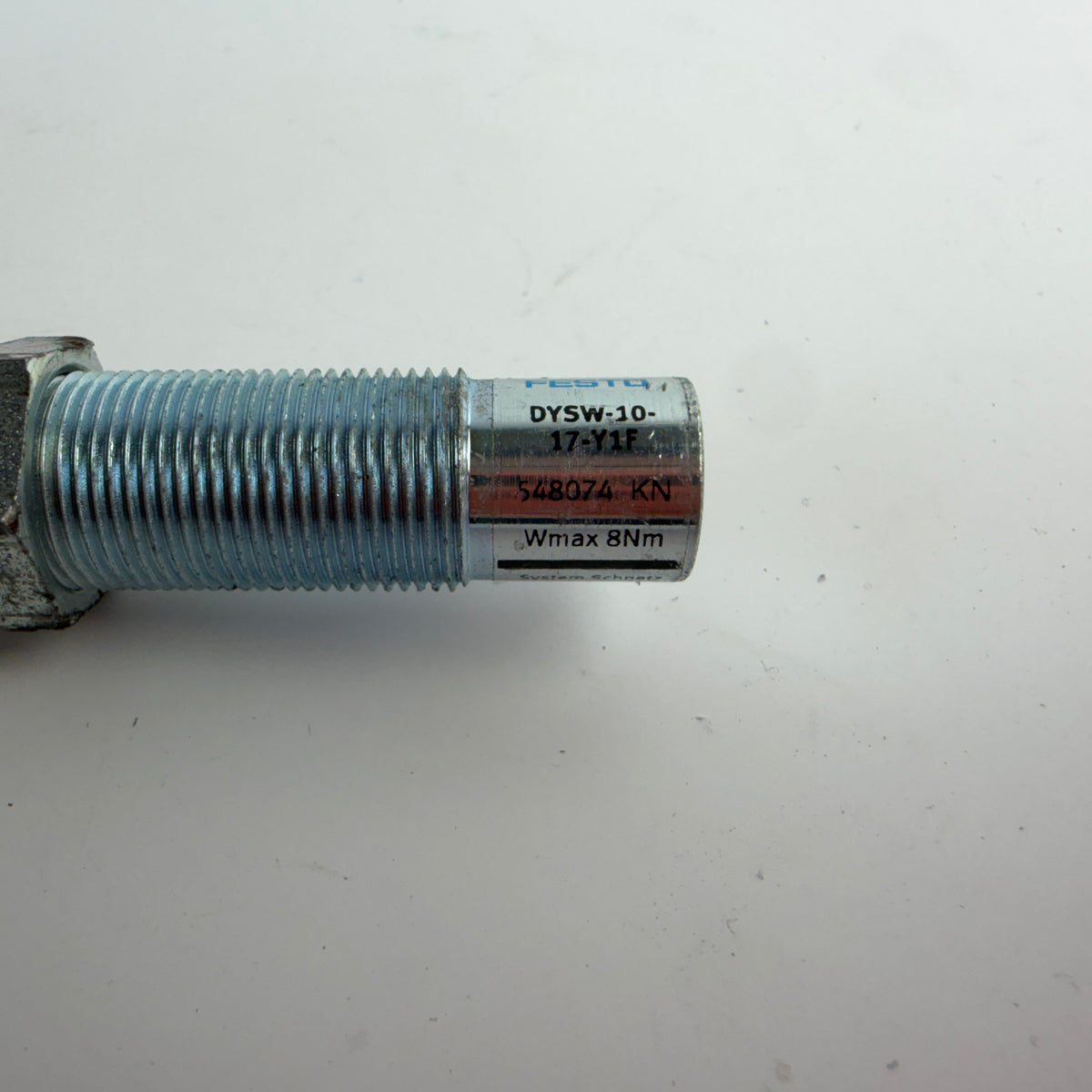

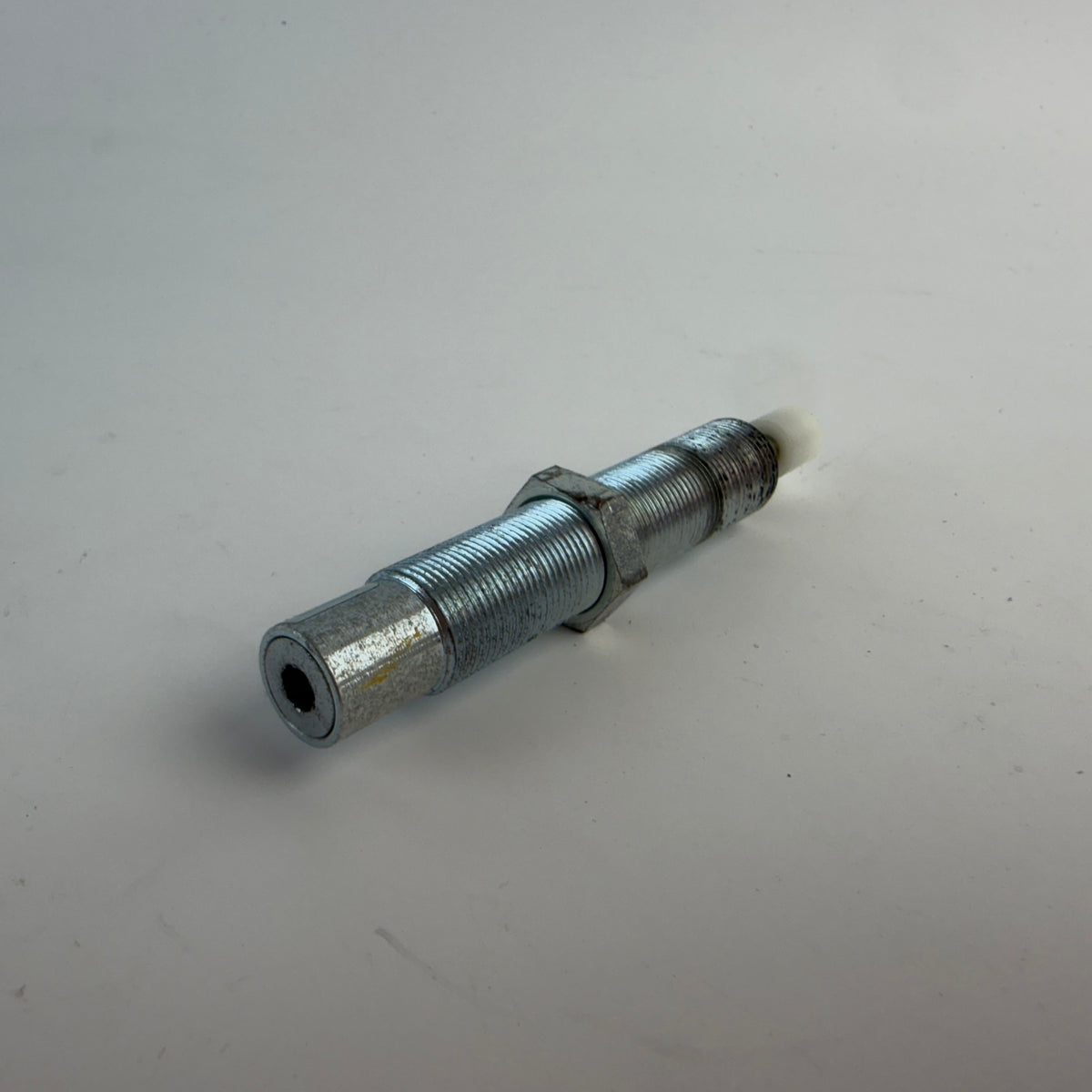

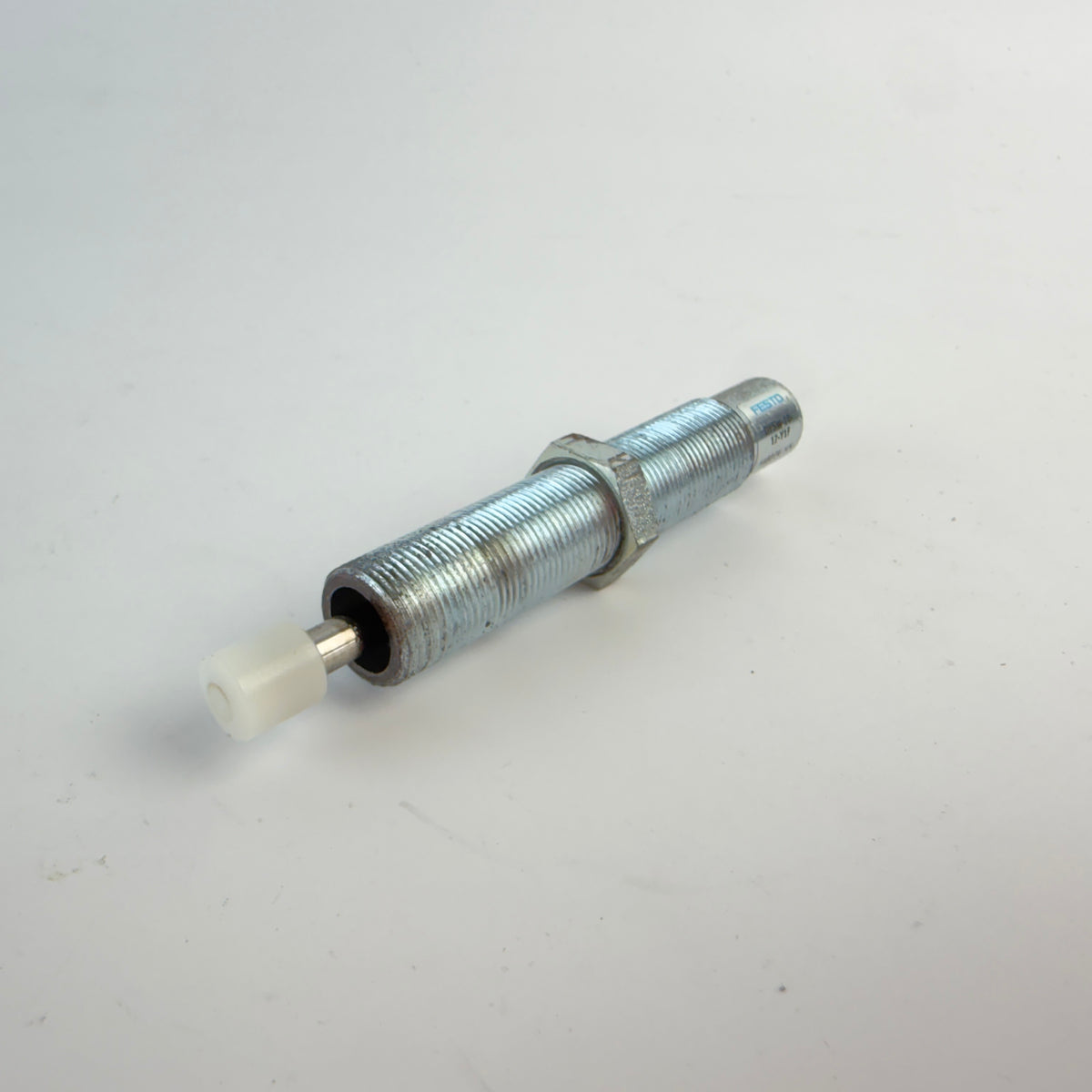

Festo DYSW-10-17-Y1F industrial self-adjusting shock absorber, part number 548074, designed for controlled deceleration and cushioning of moving components in industrial machinery and automation systems.

The DYSW series uses a self-adjusting cushioning system with a soft characteristic curve. This size 10 model provides a 17 mm cushioning stroke and is designed for pushing, single-acting operation. The threaded housing and lock nut allow adjustable mounting and positioning.

Technical specifications:

• Manufacturer: Festo
• Model: DYSW-10-17-Y1F
• Part number: 548074
• Series: DYSW
• Size: 10
• Stroke: 17 mm
• Cushioning length: 17 mm
• Cushioning: Self-adjusting, soft characteristic curve
• Operating mode: Pushing, single-acting
• Maximum impact speed: 3 m/s
• Maximum stop force: 700 N
• Maximum energy absorption per stroke: 8 J
• Maximum energy absorption per hour: 30,000 J
• Reset force: 3.5 N
• Minimum insertion force: 25 N
• Reset time at room temperature: 0.2 s
• Ambient temperature: -10°C to +80°C
• Mounting: Via lock nut
• Mounting thread: M14 x 1
• Maximum tightening torque: 8 Nm
• Housing material: Galvanised steel
• Piston rod material: High-alloy steel
• Seal material: NBR
• Product weight: 67 g

Used, fully functional.

Suitable as a replacement or spare cushioning component for compatible industrial machinery and automation assemblies using the Festo DYSW-10-17-Y1F.
