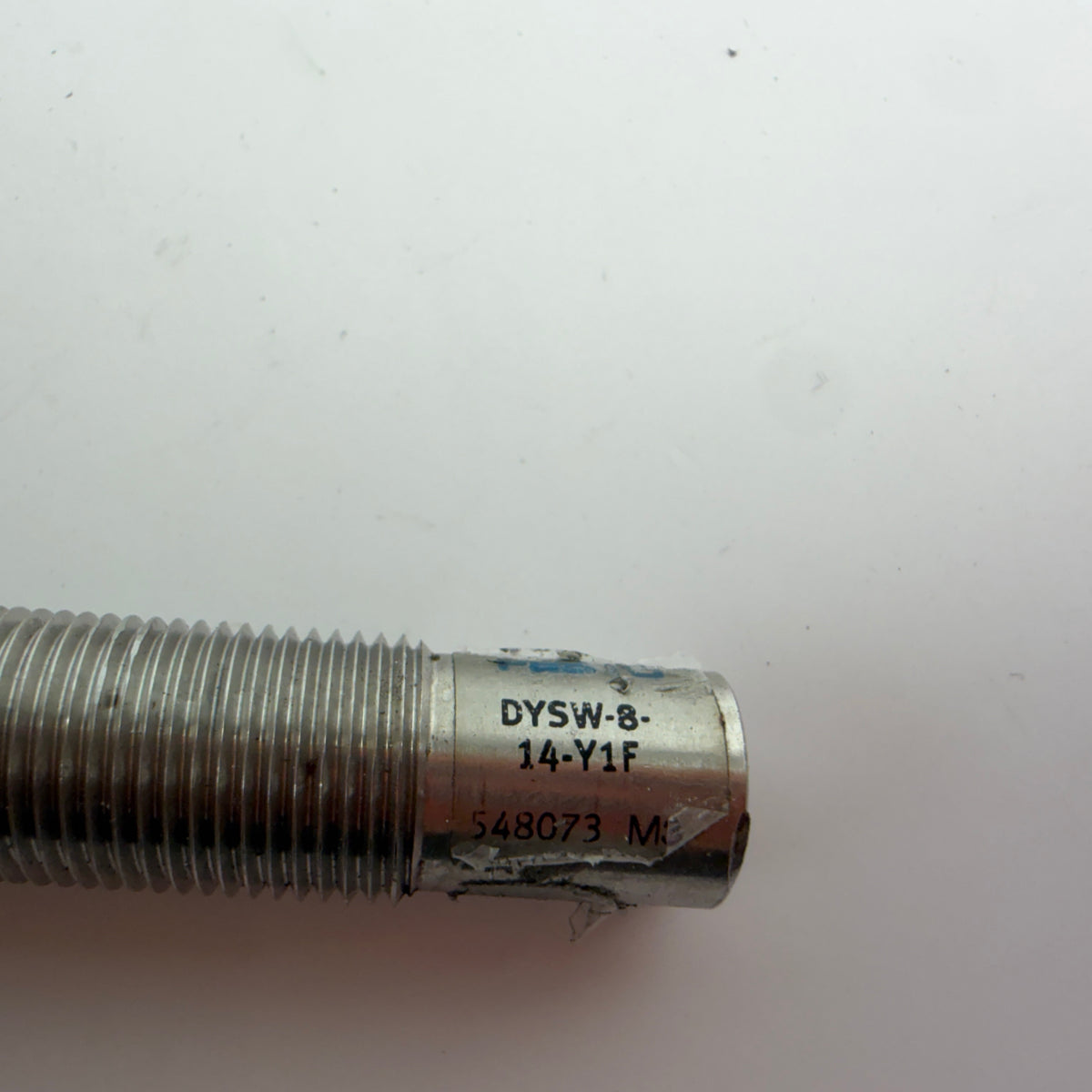

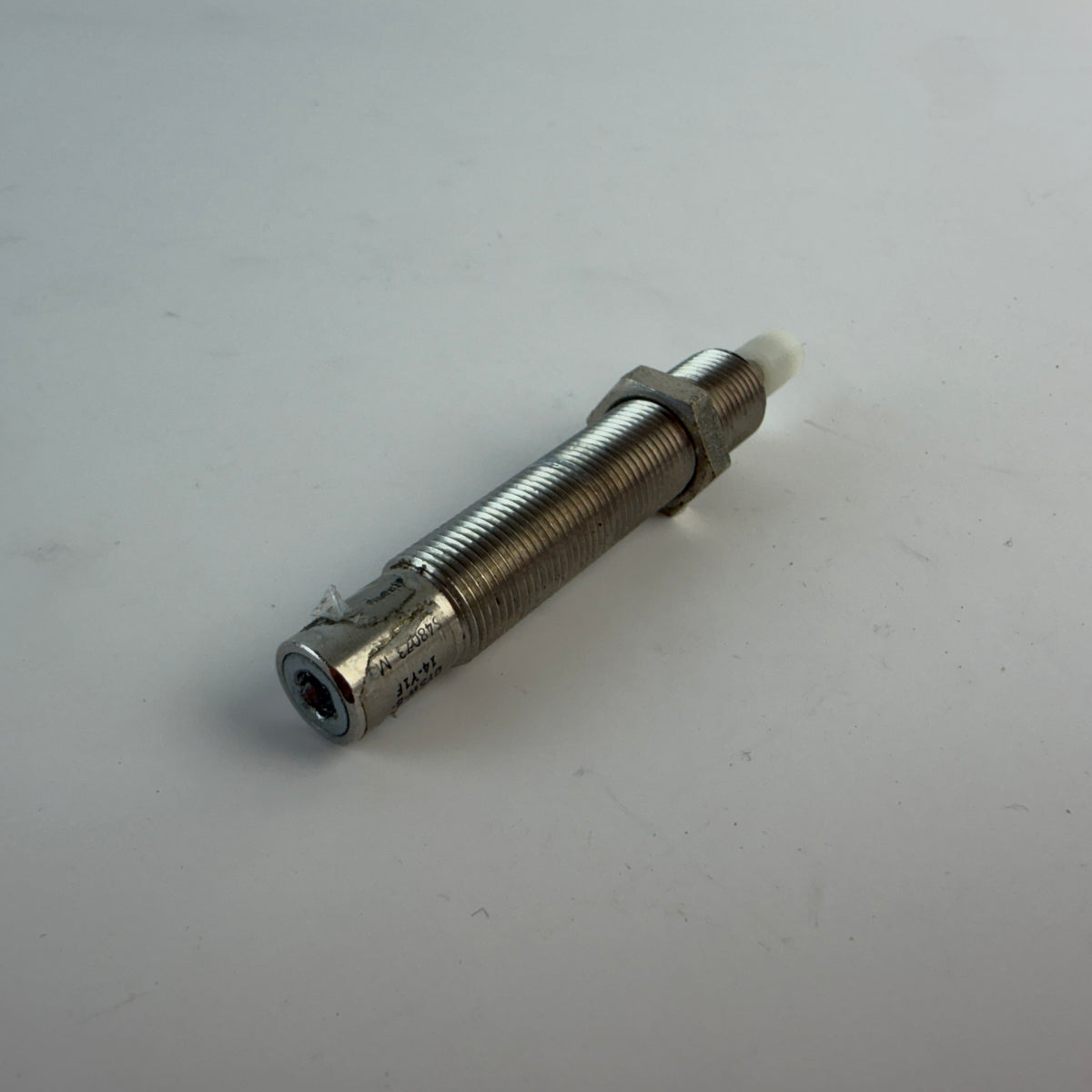

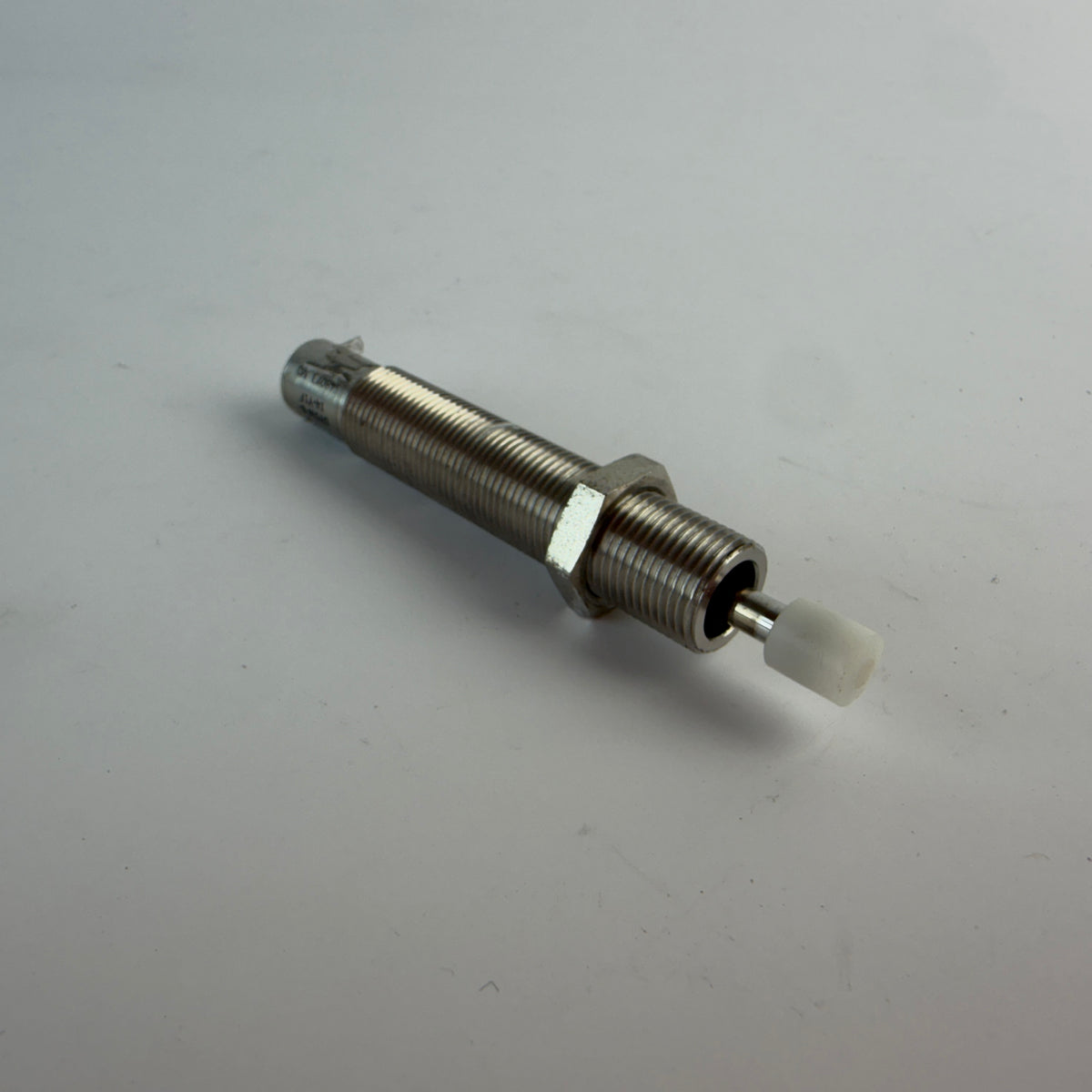

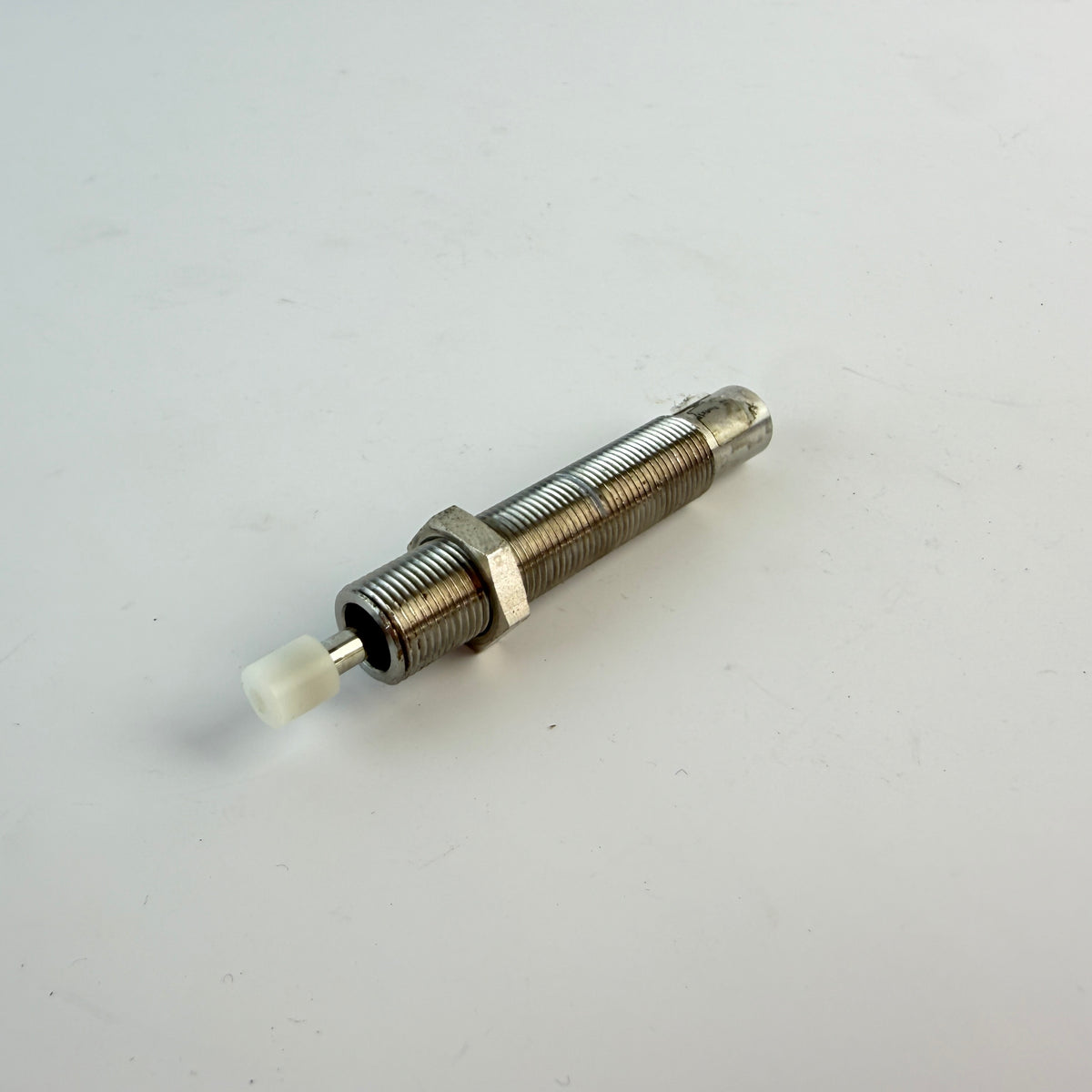

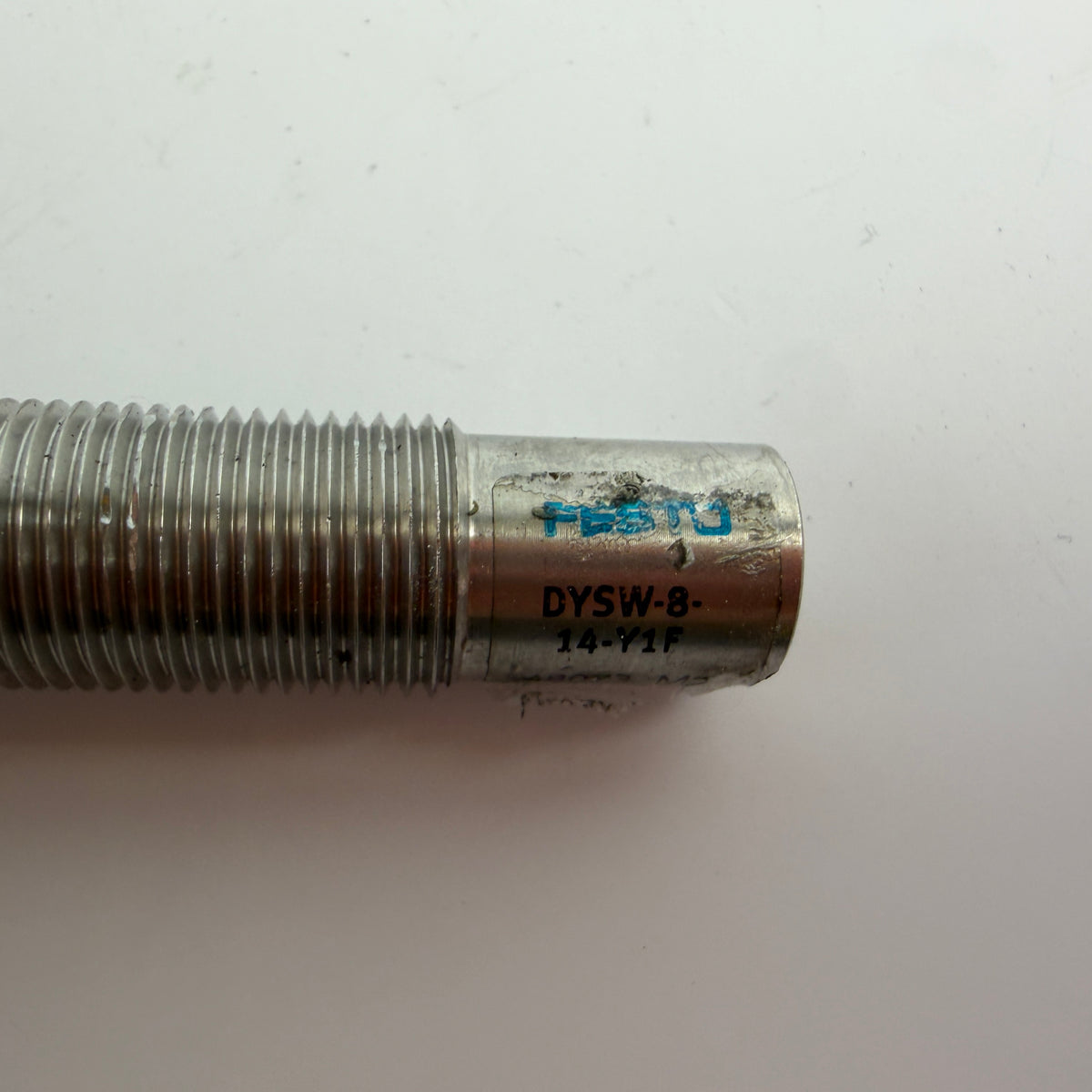

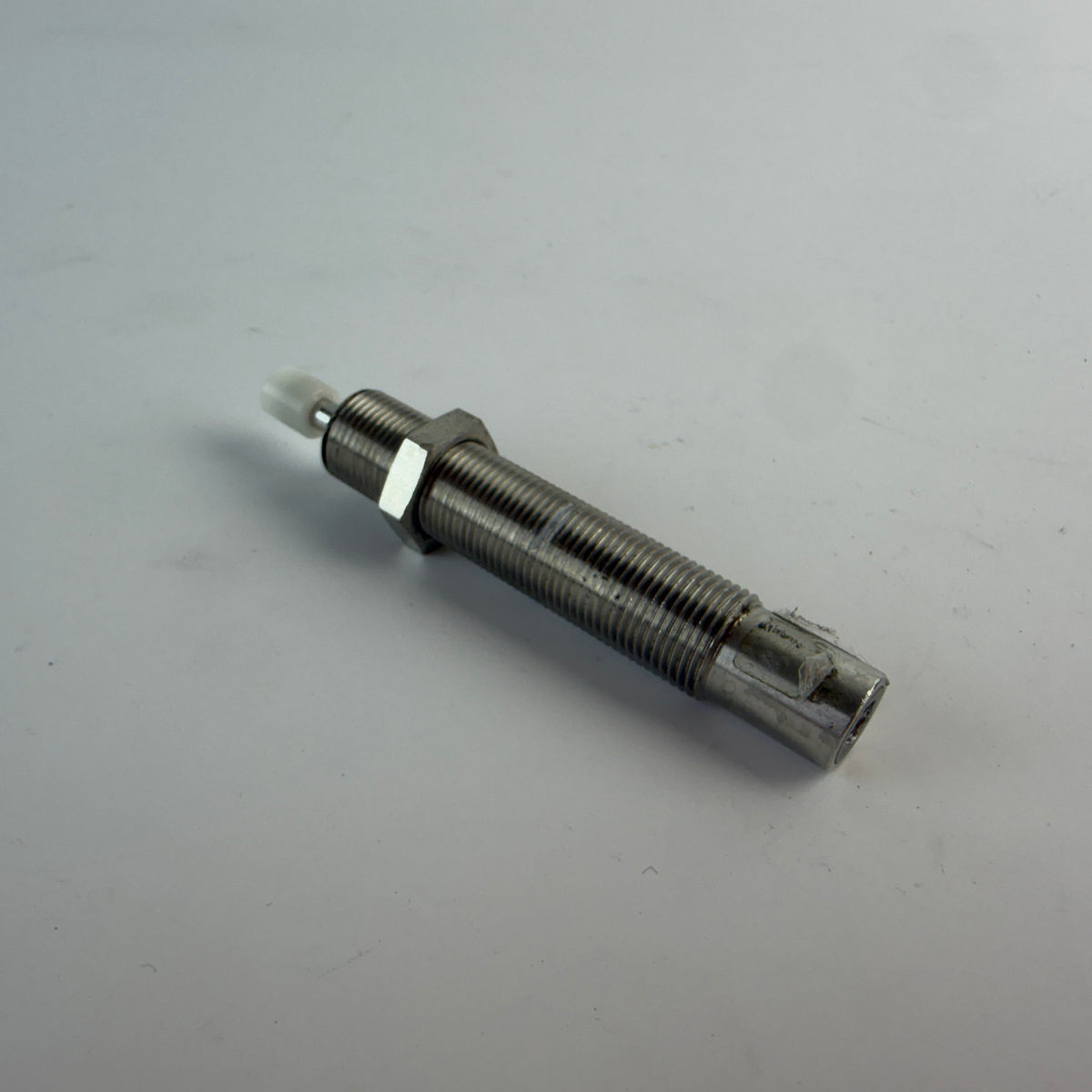

Festo DYSW-8-14-Y1F industrial shock absorber, part number 548073.

The DYSW series is designed for controlled deceleration and kinetic energy absorption at the end position of moving machine components. This model features self-adjusting cushioning with a soft characteristic curve and a 14 mm stroke, making it suitable for industrial automation, handling equipment, linear mechanisms, and other machine applications.

Technical specifications:

• Manufacturer: Festo
• Series: DYSW
• Model: DYSW-8-14-Y1F
• Part Number: 548073
• Type: Industrial Shock Absorber
• Size: 8
• Stroke: 14 mm
• Cushioning Length: 14 mm
• Cushioning: Self-adjusting, soft characteristic curve
• Mode of Operation: Pushing, single-acting
• Mounting Position: Any
• Maximum Impact Velocity: 3 m/s
• Maximum Stop Force: 500 N
• Maximum Energy Absorption per Stroke: 4 J
• Maximum Energy Absorption per Hour: 21,000 J
• Maximum Residual Energy: 0.02 J
• Reset Time at Room Temperature: 0.2 s
• Reset Time at Minimum Ambient Temperature: 1 s
• Reset Force: 2.5 N
• Minimum Insertion Force: 18 N
• Load Range: 10 kg
• Ambient Temperature: -10°C to +80°C
• Product Weight: 42 g
• Mounting: Via lock nut
• Housing Material: High-alloy steel
• Piston Rod Material: High-alloy steel
• Seal Material: NBR
• Position Sensing: None

Used, fully functional.

The technical specifications above correspond to Festo part number 548073.
