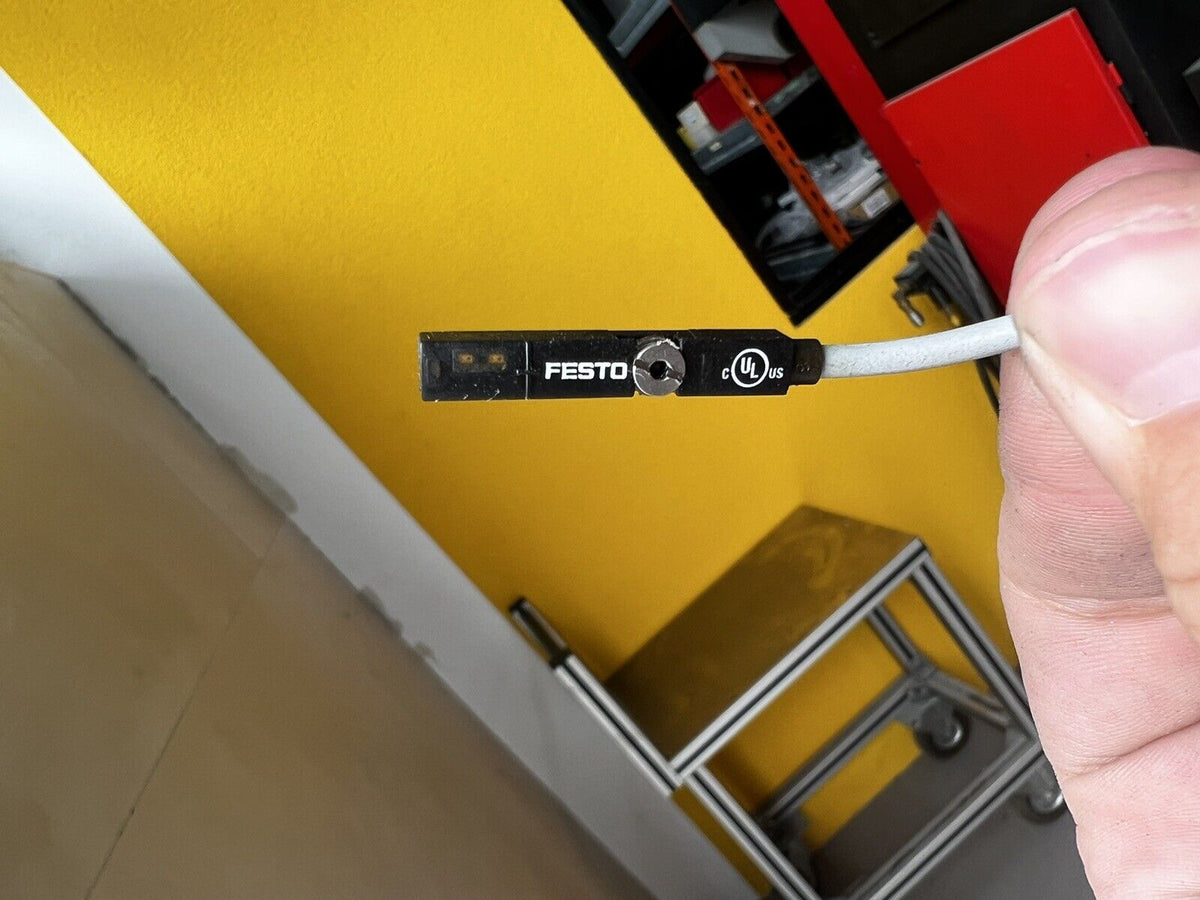

Genuine Festo SME-8M-DS-24V-K5,0-0E proximity sensor (part number 543863) for use with Festo pneumatic cylinders. This magnetic field sensor enables non-contact piston position detection, offering fast response and reliable signal output. Comes with a 2-meter cable for flexible integration in automation environments.

Technical Specifications:

• Brand: Festo

• Part Number: SME-8M-DS-24V-K5,0-0E

• Ordering Number: 543863

• Sensor Type: Magnetic proximity sensor

• Operating Voltage: 10–30 V DC

• Output Type: Switching output, PNP

• Cable Length: 2.0 meters

• Connector Type: Open cable end

• Mounting: For T-slot (e.g., DSNU, DNC, ADVU cylinders)

• LED Display: Integrated switching status LED

• Protection Class: IP65 / IP68

• Housing Material: Plastic

Application:
Ideal for position sensing on Festo pneumatic cylinders in industrial automation, packaging, robotics, and machine control systems. Offers robust performance in demanding environments with reliable switching behavior.
