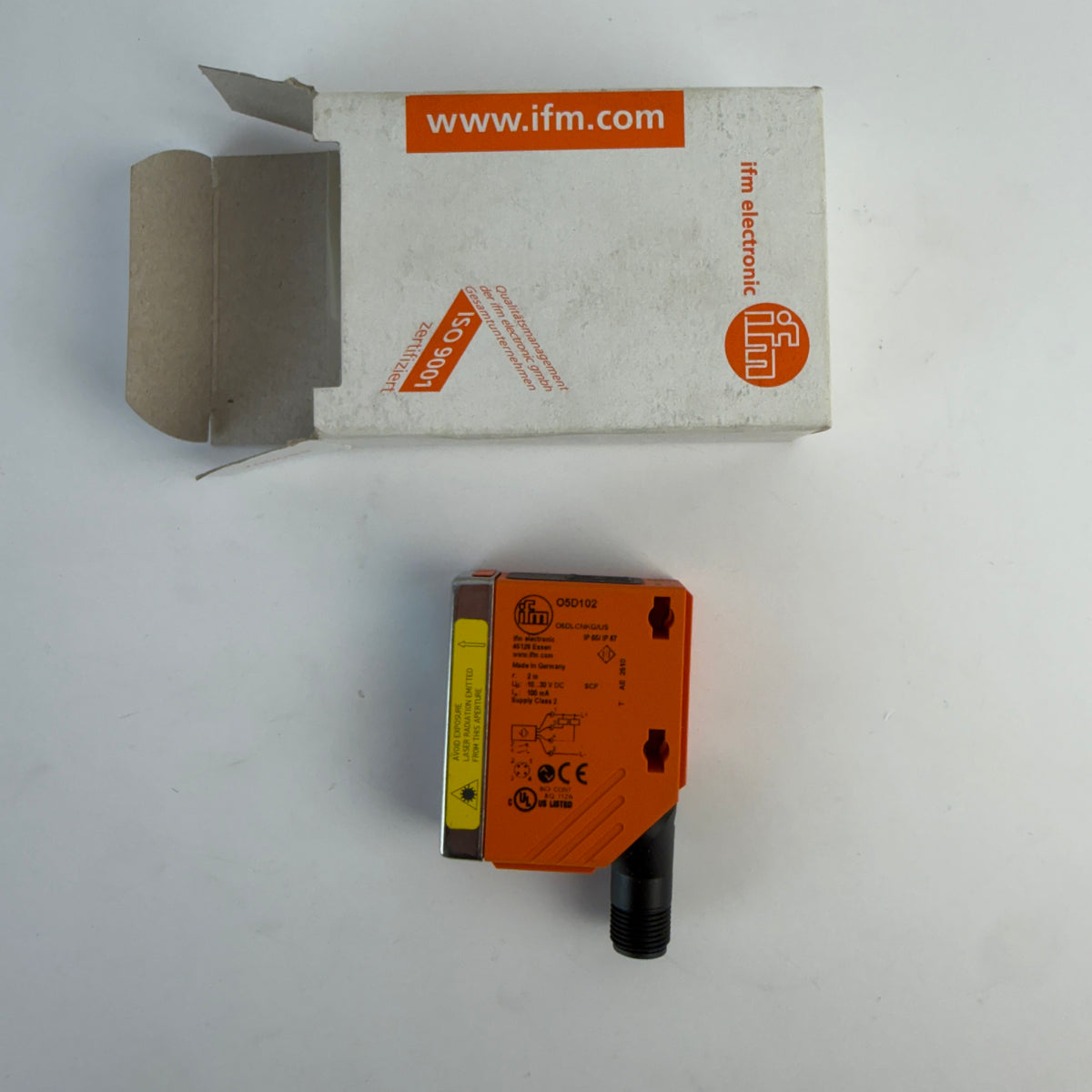

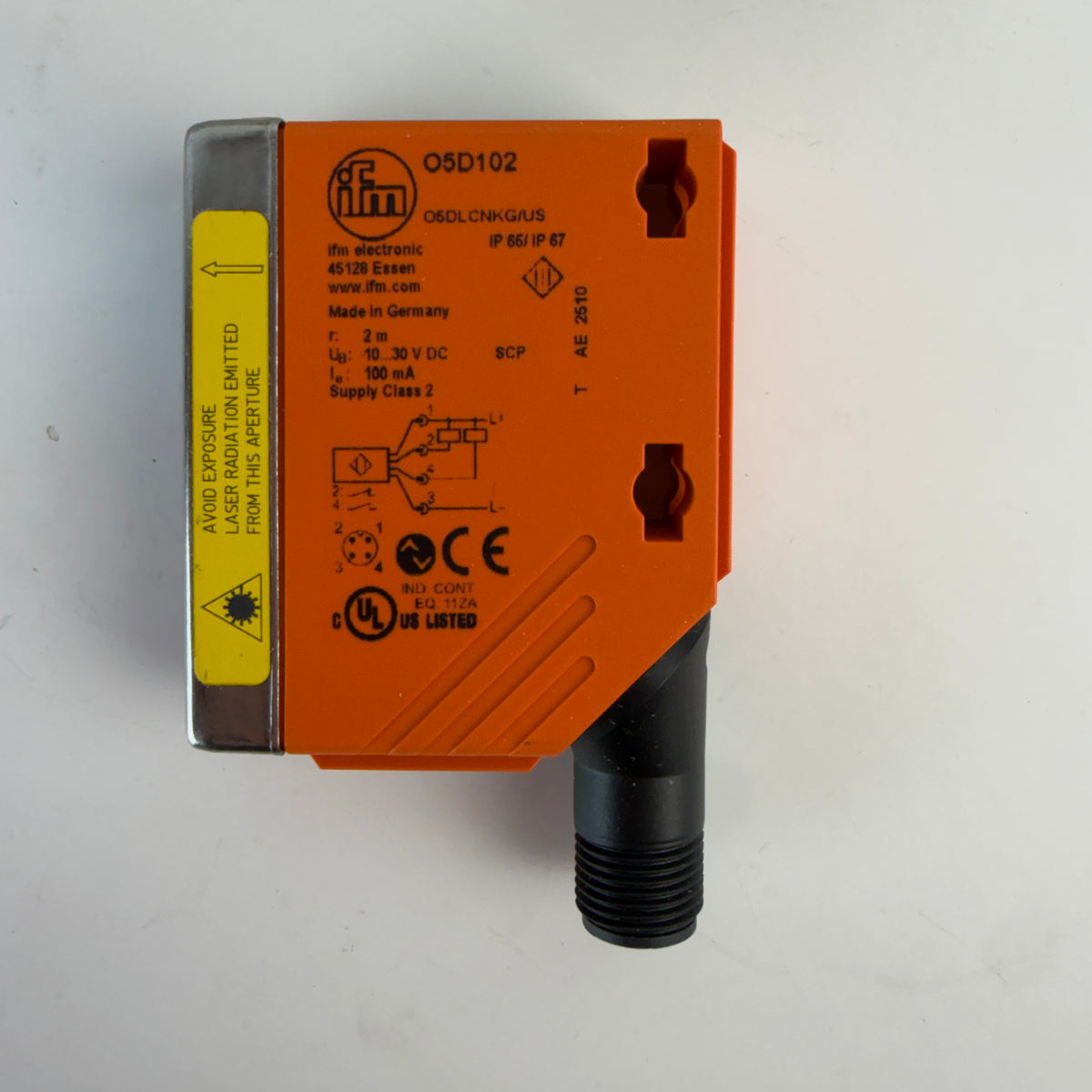

Brand new ifm electronic O5D102 (O5DLCNKG/US) photoelectric laser distance sensor supplied in its original factory packaging.

The O5D102 is designed for industrial distance measurement and reliable object detection with background suppression. It provides a measuring range from 0.03 to 2 m, two NPN digital outputs and IO-Link communication for configuration and process data integration.

Technical Specifications:

• Manufacturer: ifm electronic
• Model / MPN: O5D102
• Type designation: O5DLCNKG/US
• Sensor Type: Photoelectric Laser Distance Sensor
• Measuring Range: 0.03–2 m
• Light Source: Red laser, 650 nm
• Laser Protection Class: Class 2
• Operating Voltage: 10–30 V DC
• Electrical Design: NPN
• Digital Outputs: 2
• Output Function: Normally Open / Normally Closed, complementary
• Maximum Current per Output: 100 mA
• Switching Frequency: 11 Hz
• Sampling Rate: 33 Hz
• Background Suppression: Yes
• Communication Interface: IO-Link
• IO-Link Revision: 1.1
• Transmission Type: COM2, 38.4 kBaud
• Connection: M12 connector
• Protection Rating: IP65 / IP67
• Ambient Temperature: -25°C to +60°C
• Dimensions: 56 × 18.2 × 46.8 mm
• Housing: Polyamide
• Country of Manufacture: Germany

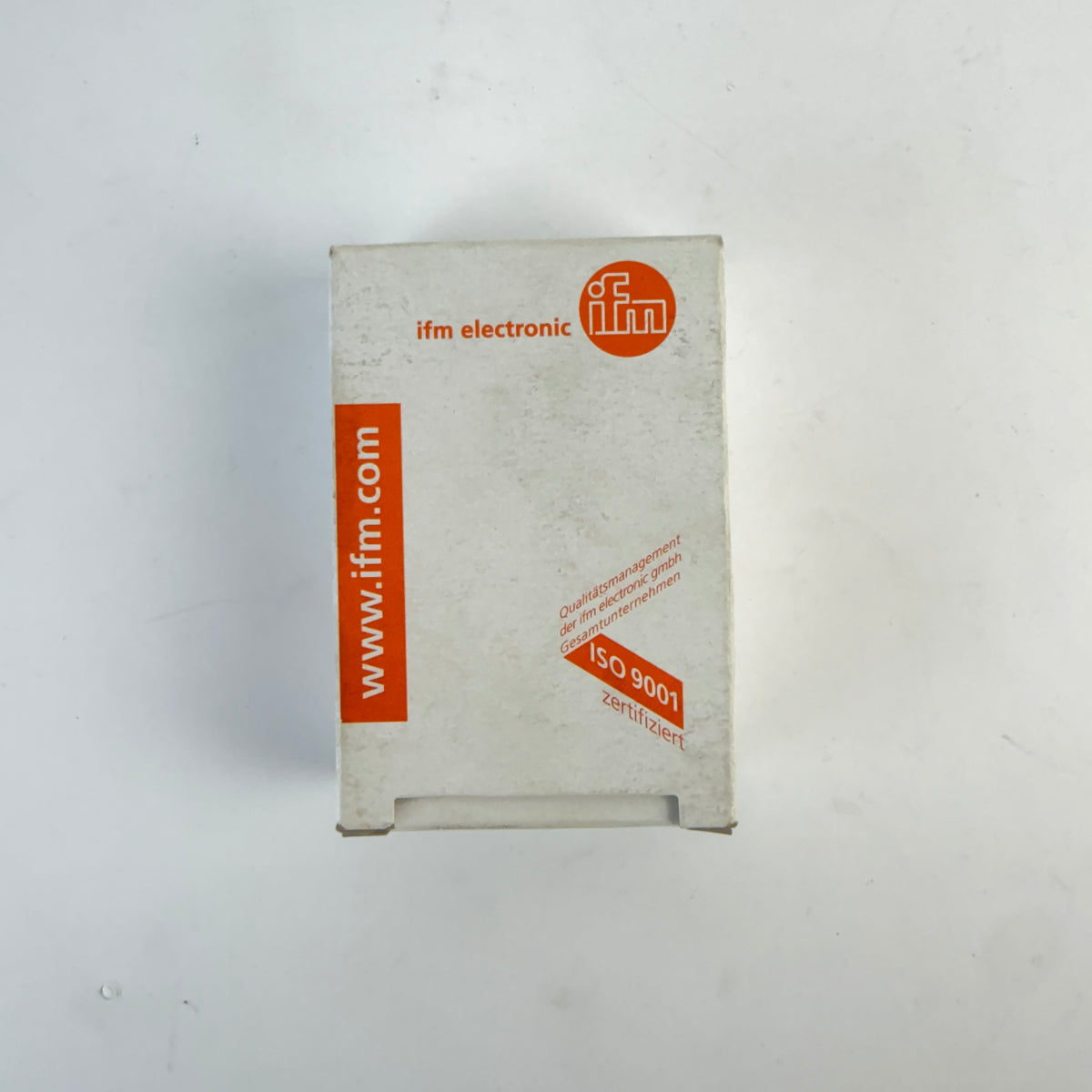

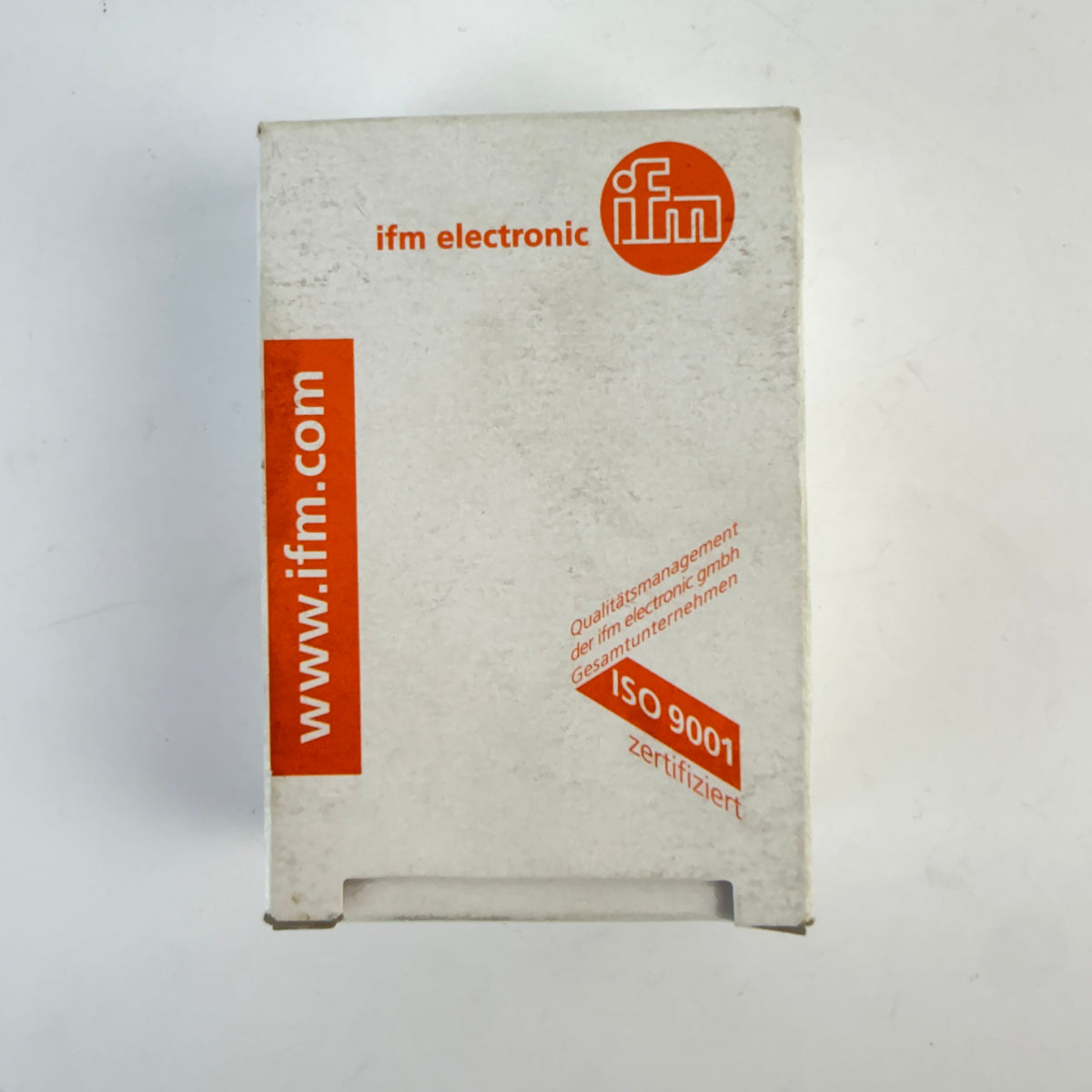

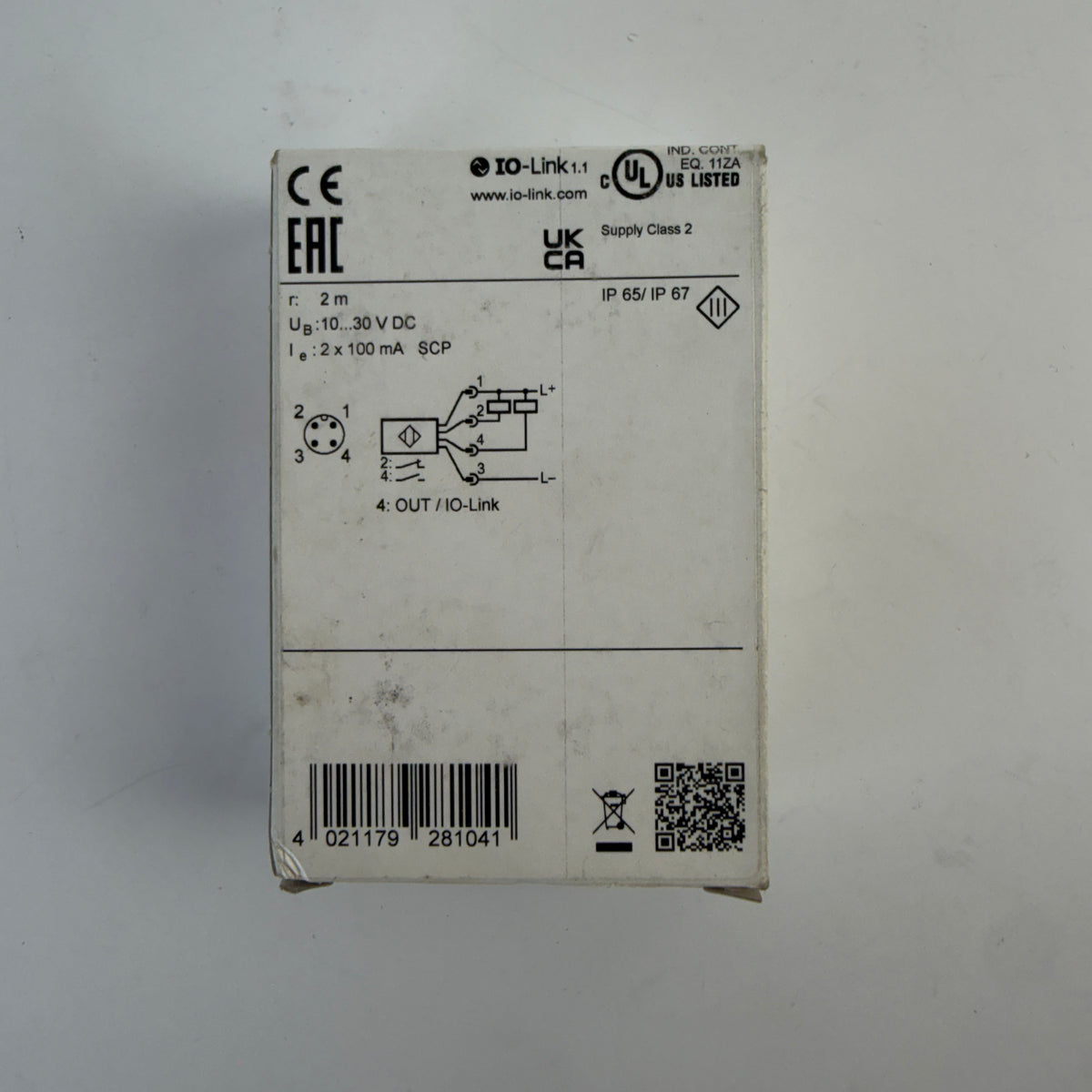

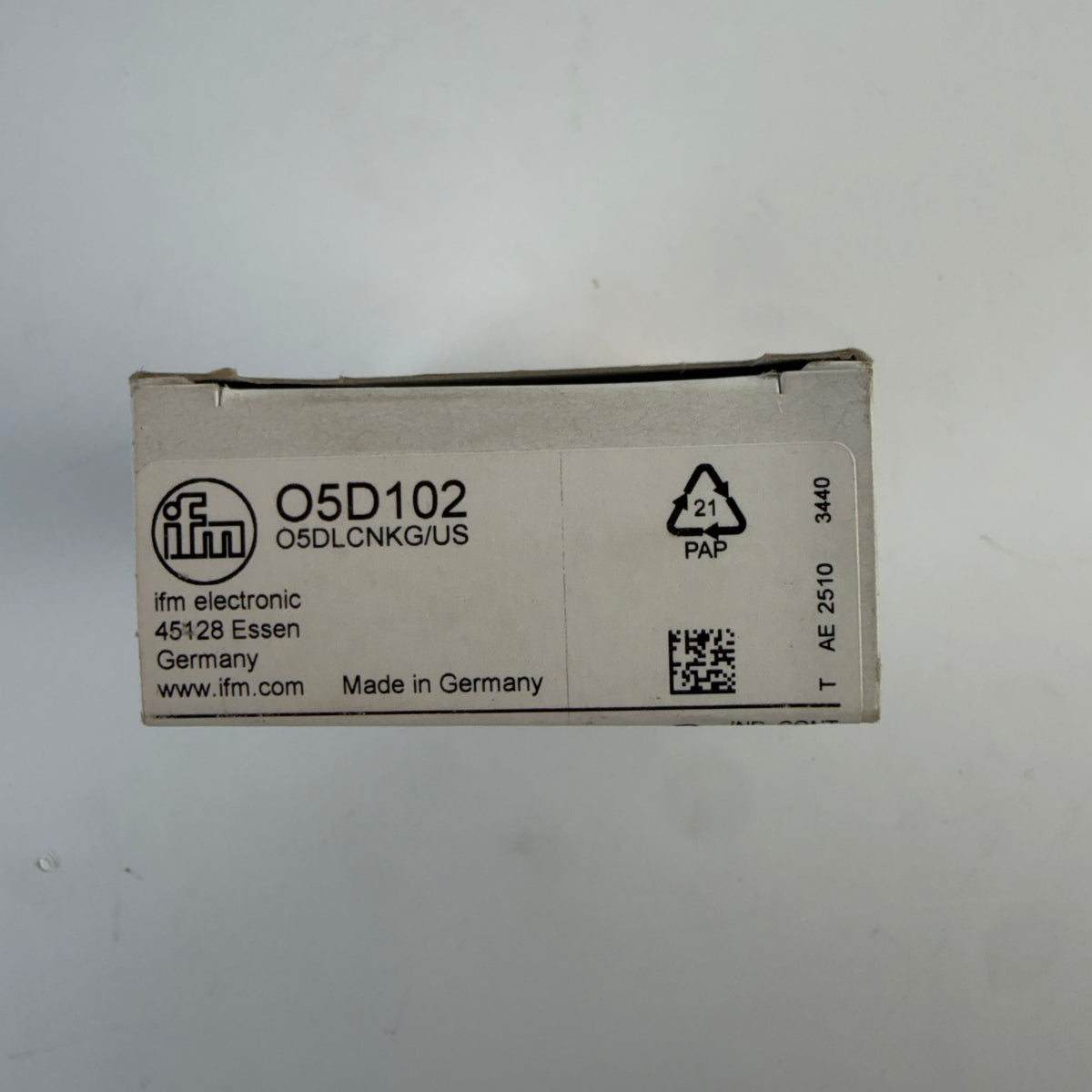

Condition: New, unused. Supplied in the original ifm factory packaging.
