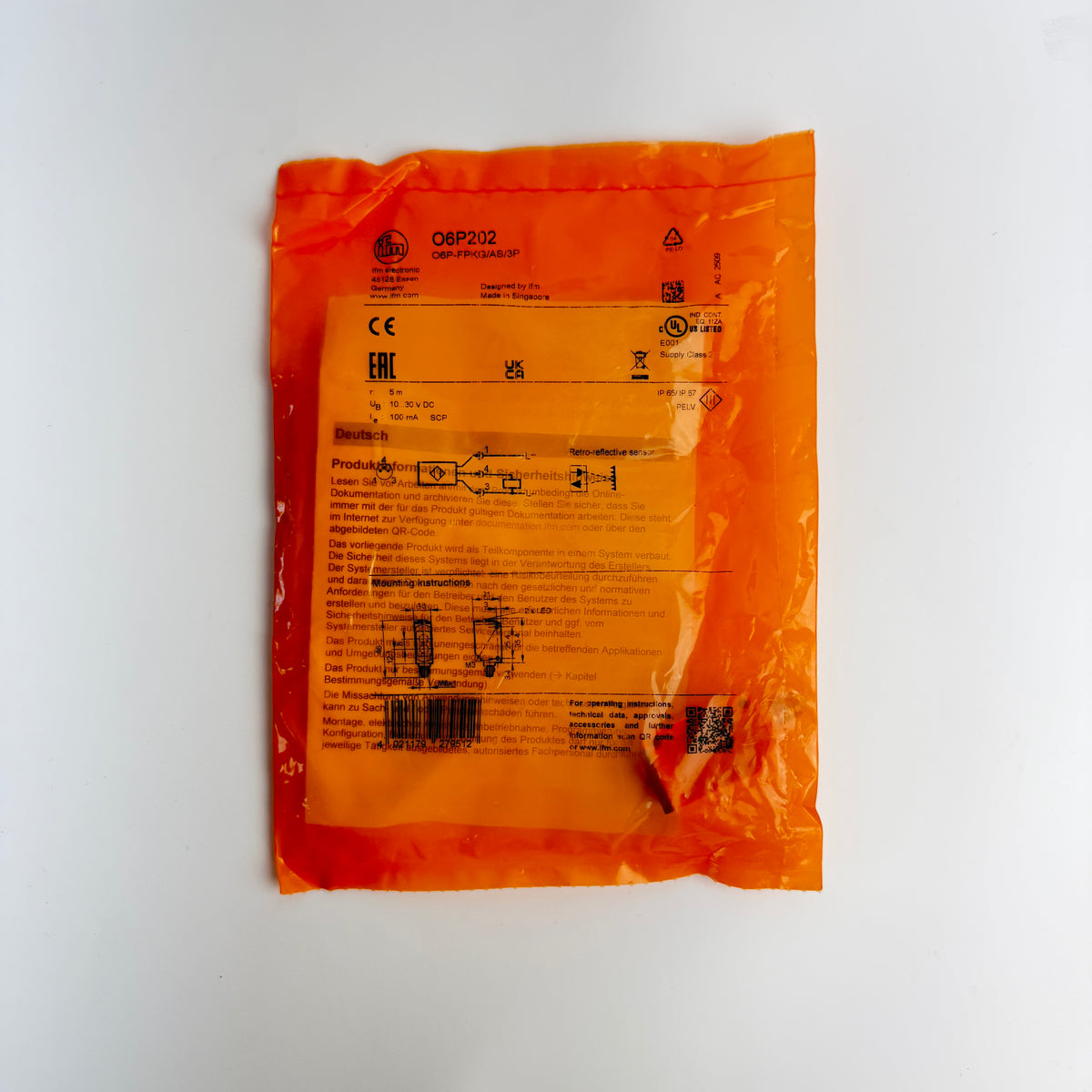

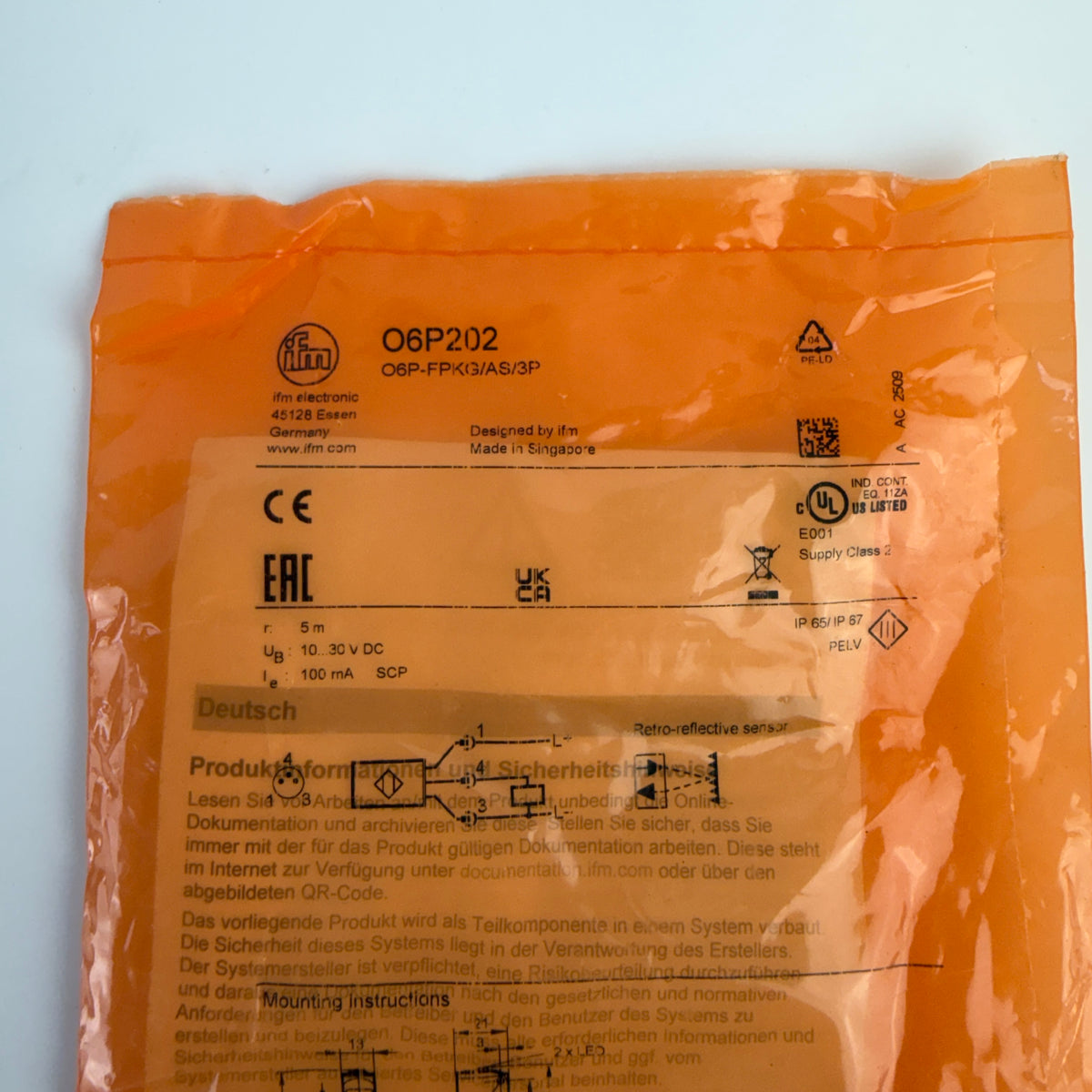

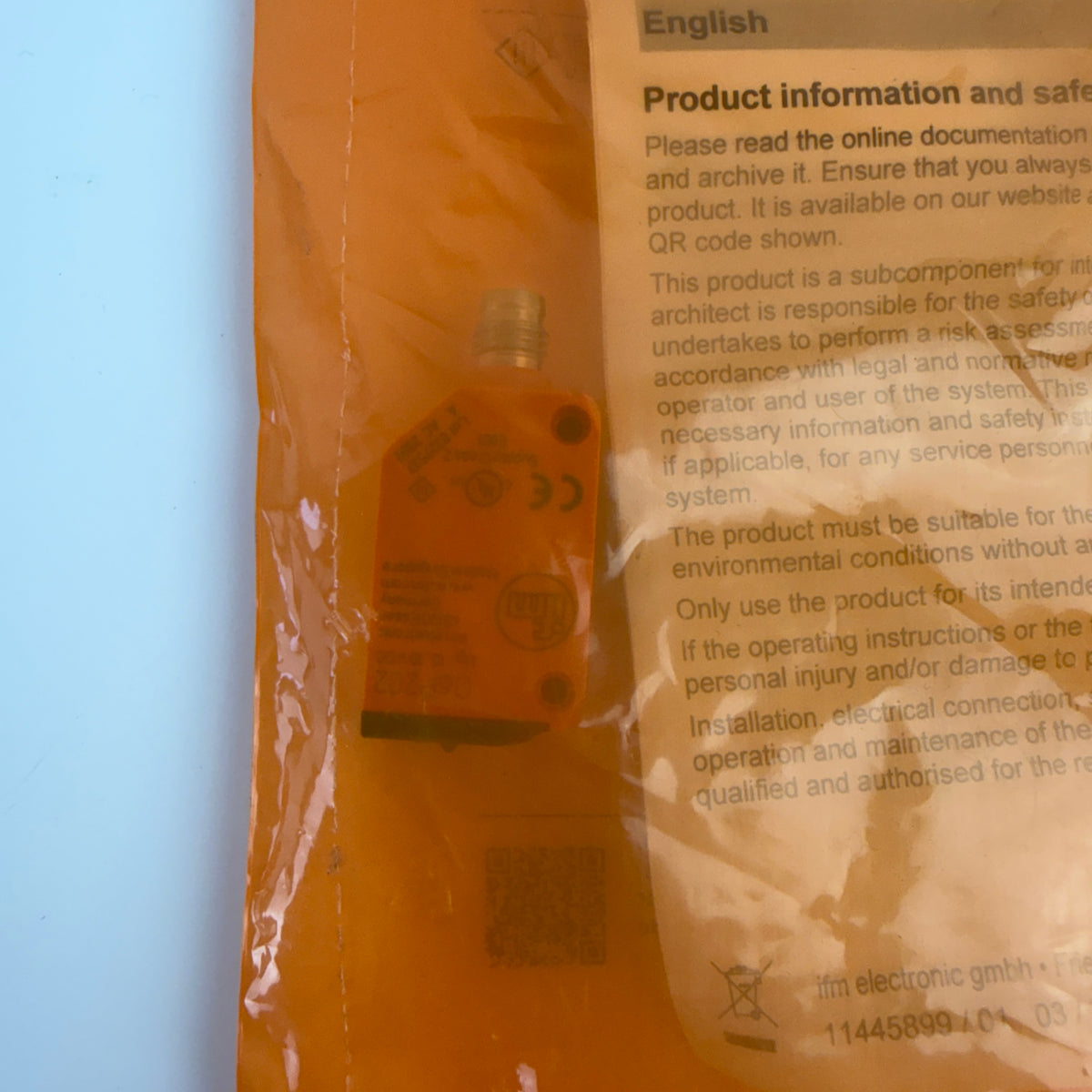

New ifm O6P202 O6P-FPKG/AS/3P retro-reflective photoelectric sensor for industrial automation and object detection applications.
The O6P202 uses visible red light with a polarization filter and provides an adjustable sensing range of 0.05 to 5 m when used with the specified prismatic reflector. It features a PNP switching output with selectable light-on/dark-on operation.
The sensor operates from 10–30 V DC, supports up to 100 mA continuous switching output current and has a switching frequency of 1000 Hz.
Electrical connection is provided by a 3-pin A-coded M8 connector. The compact rectangular housing is rated IP65/IP67 and includes LED indicators for power and switching status.
Condition: New, unused.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | ifm electronic |
| Part Number / MPN | O6P202 |
| Type | O6P-FPKG/AS/3P |
| Sensor Type | Retro-reflective photoelectric sensor |
| Application | Industrial automation |
| Light Source | Red light |
| Wavelength | 633 nm |
| Polarization Filter | Yes |
| Sensing Range | 0.05–5 m |
| Range Adjustment | Yes |
| Electrical Design | PNP |
| Output Function | Light-on / Dark-on selectable |
| Operating Voltage | 10–30 V DC |
| Current Consumption | 12 mA at 24 V |
| Continuous Output Current | 100 mA |
| Max. Switching Output Voltage Drop | 2.5 V |
| Switching Frequency | 1000 Hz |
| Short-Circuit Protection | Yes, non-latching |
| Reverse Polarity Protection | Yes |
| Connector | M8, A-coded, 3-pin |
| Protection Class | III |
| Protection Rating | IP65 / IP67 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | 46 × 13 × 21 mm |
| Weight | 18.2 g |
| Housing | Rectangular |
| Lens Alignment | Side sensing |
| Switching Indicator | 1× yellow LED |
| Power Indicator | 1× green LED |
Package Contents
1× ifm O6P202 photoelectric sensor, as shown.
