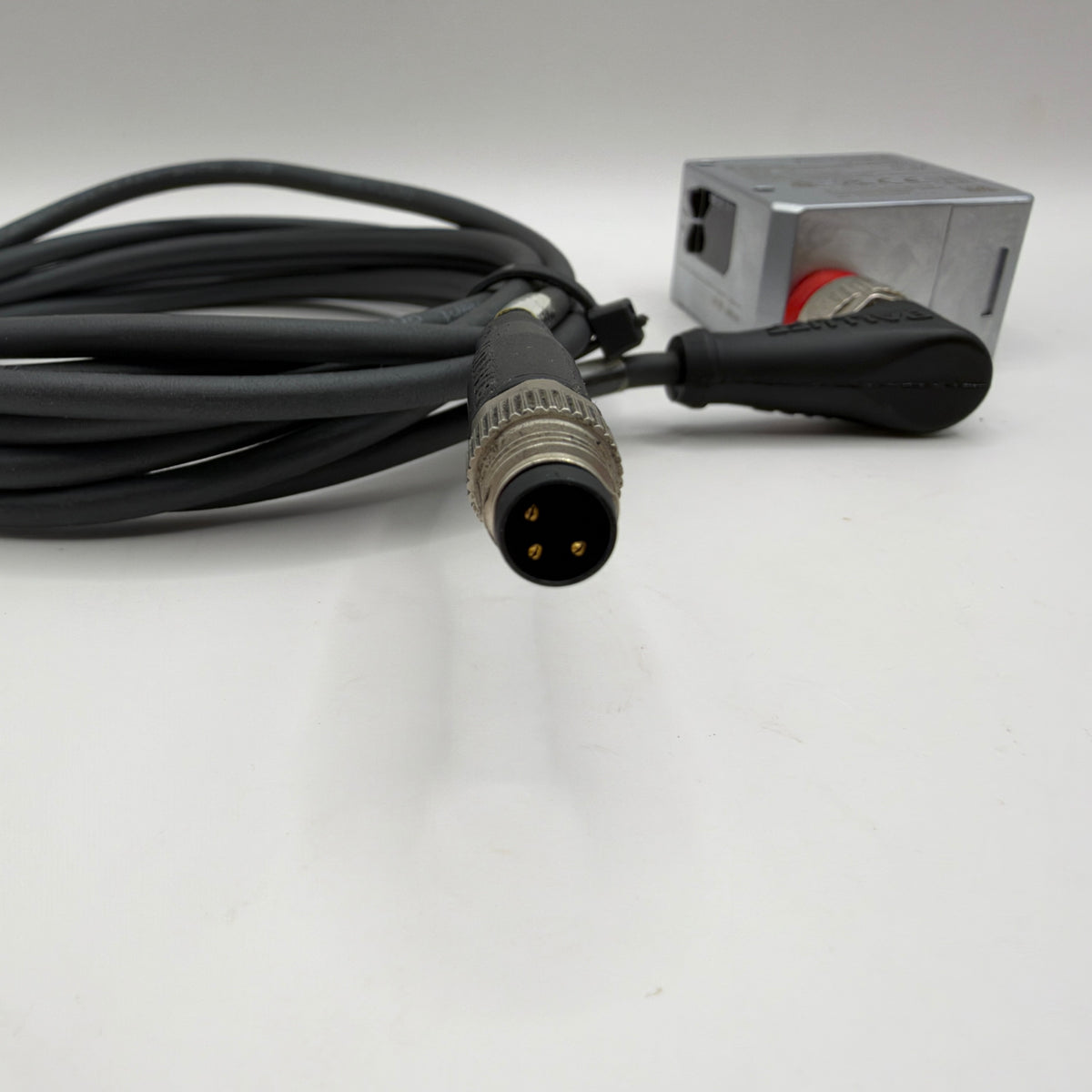

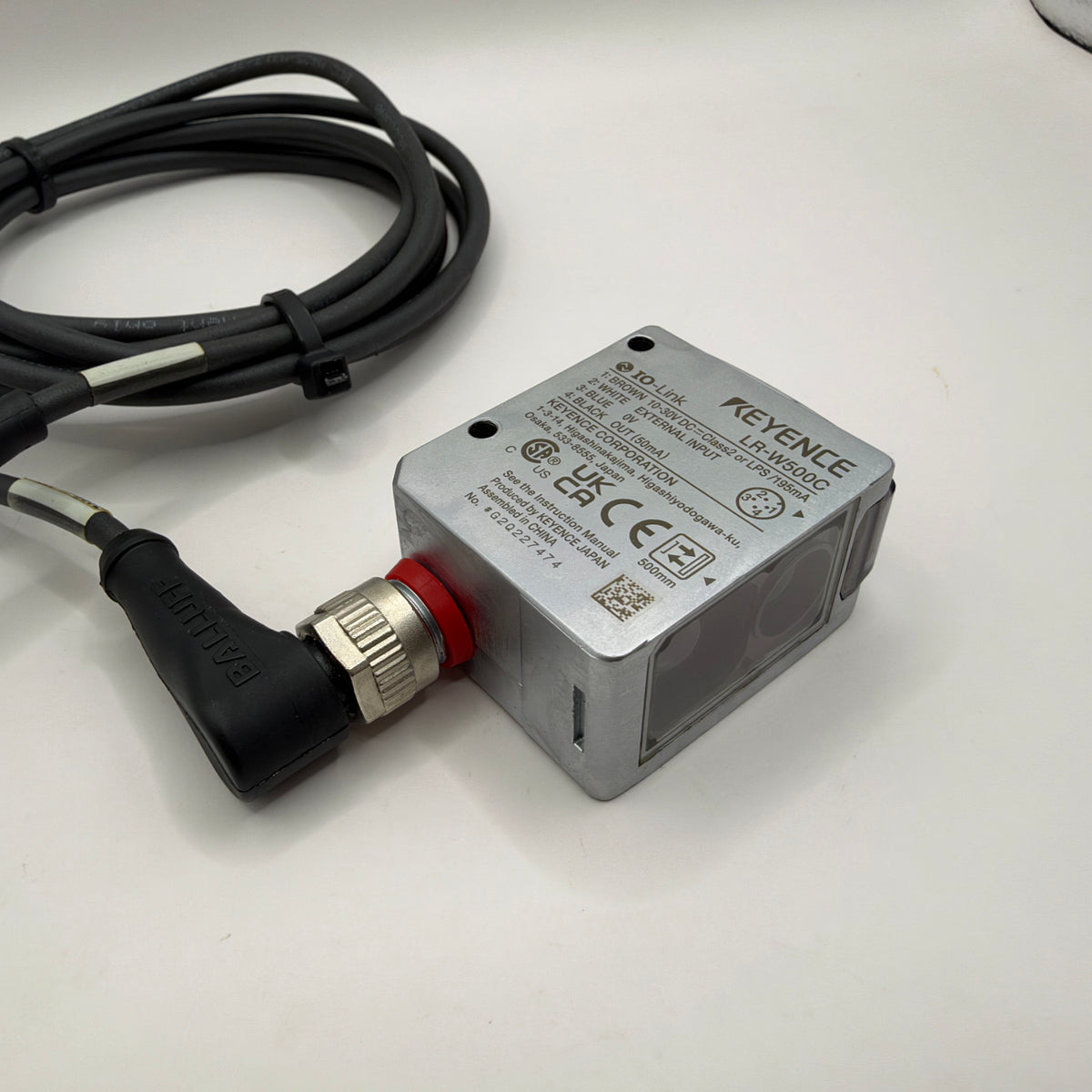

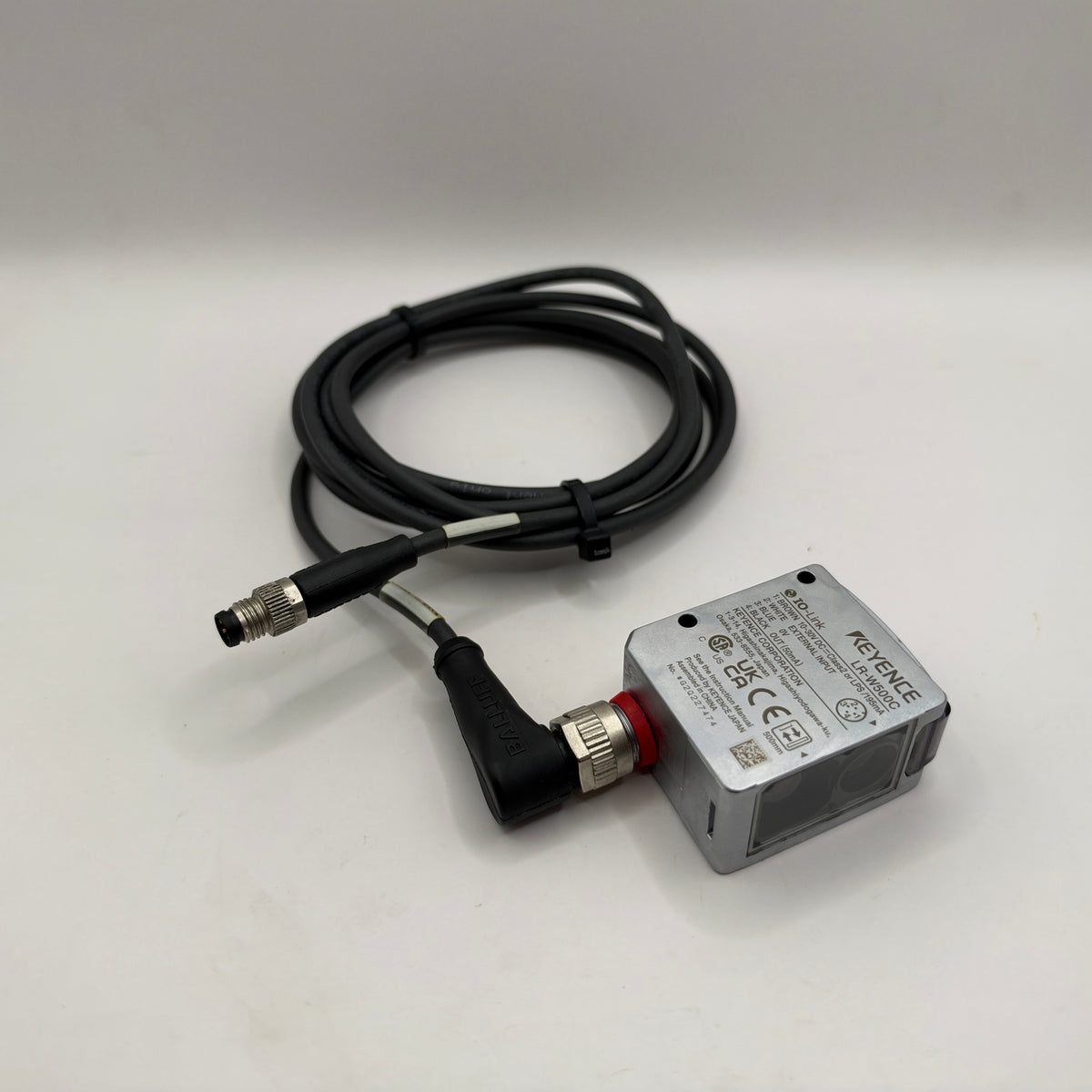

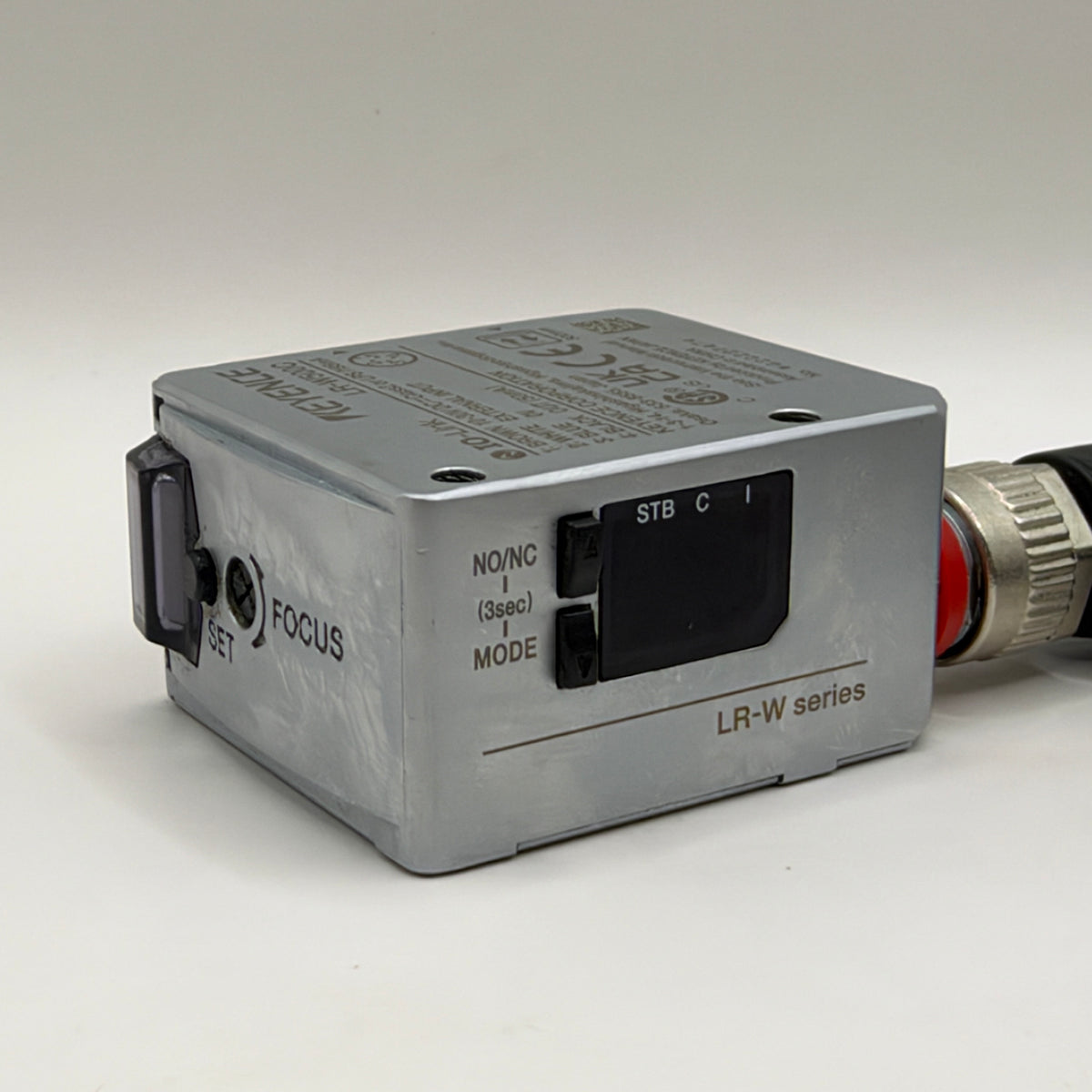

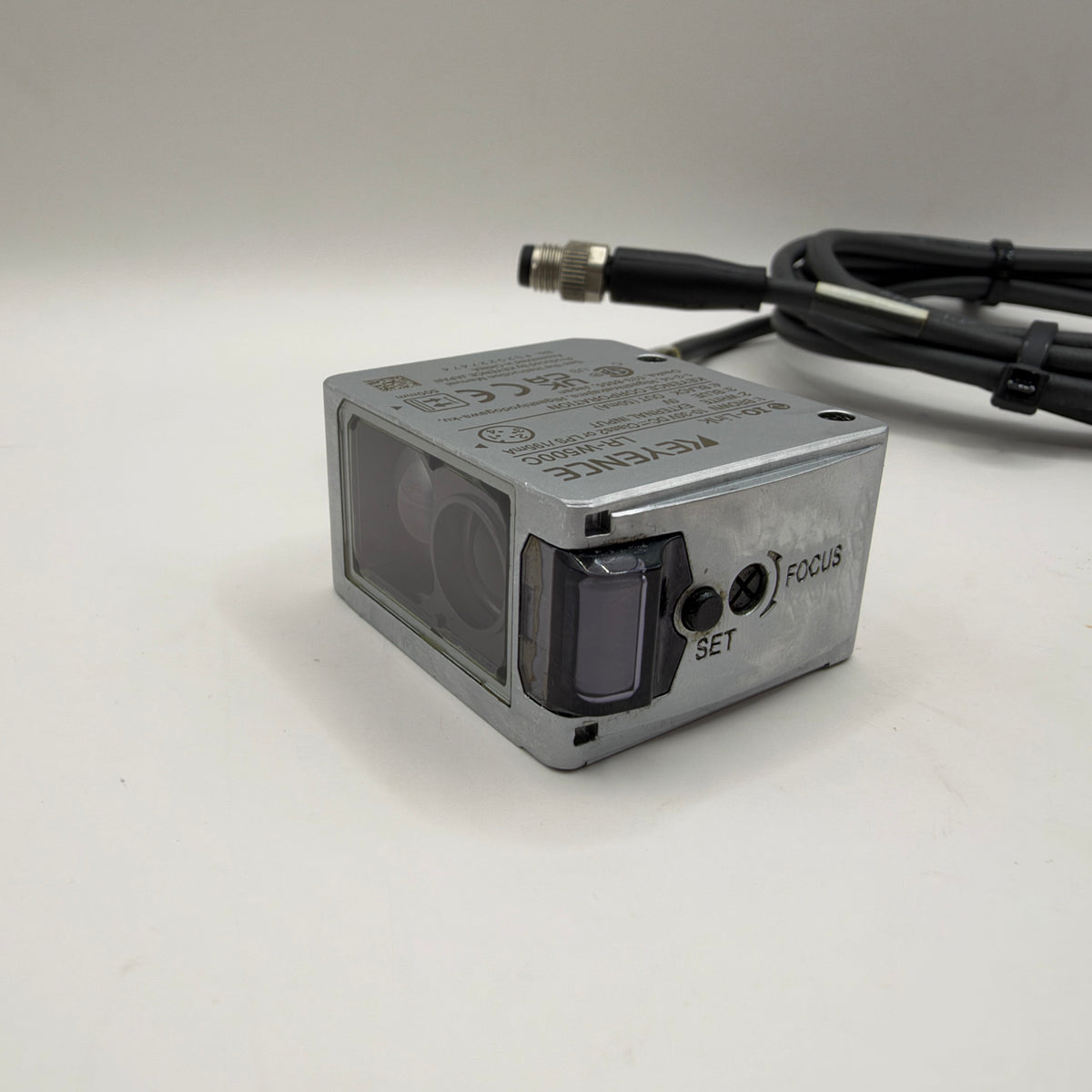

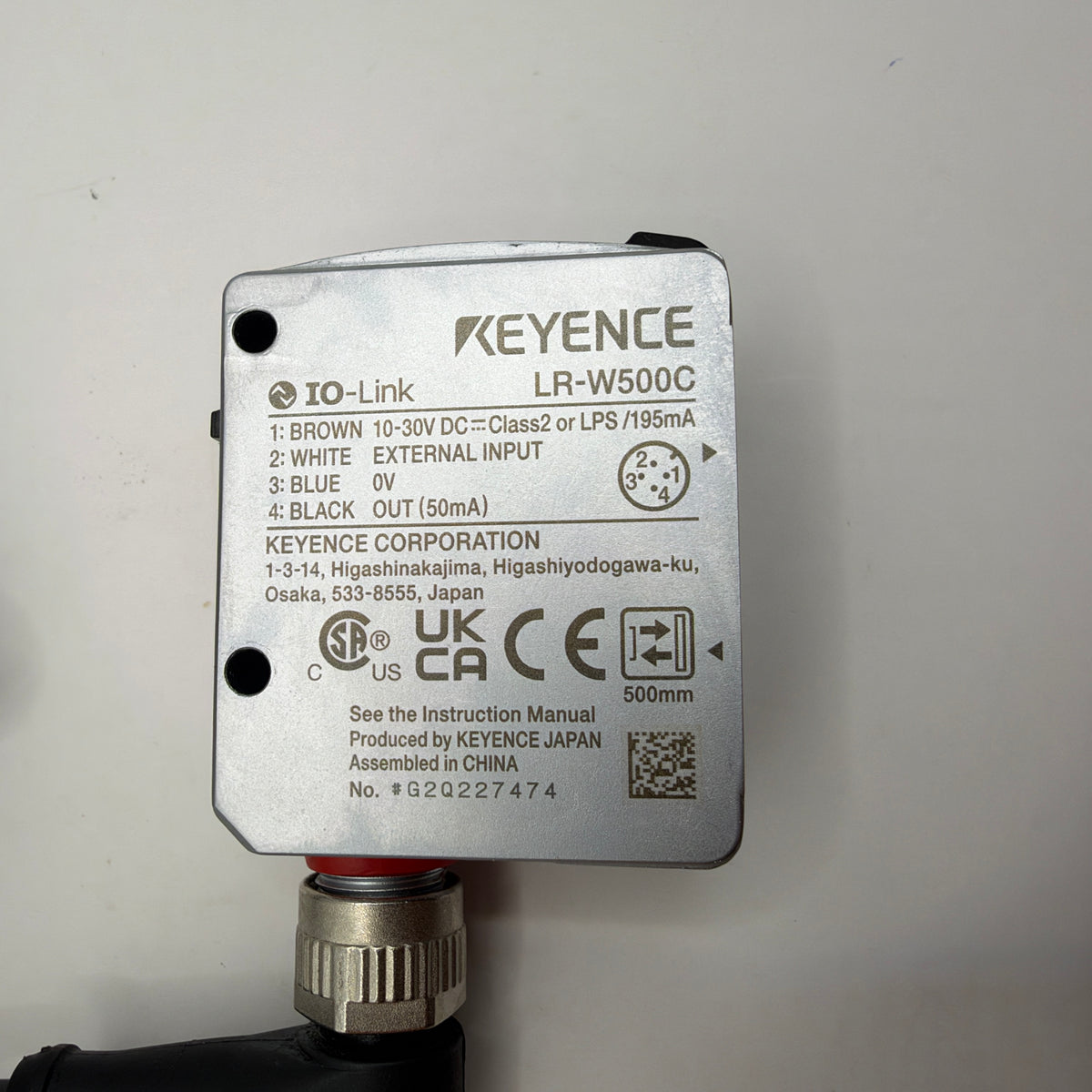

KEYENCE LR-W500C self-contained full-spectrum sensor from the LR-W Series, supplied with a 210 cm BALLUFF connection cable as pictured.

The LR-W500C is designed for industrial object detection and differentiation using a white LED full-spectrum light source. It provides an adjustable sensing range from 30 to 500 mm and features an M12 4-pin connection and IO-Link communication.

Technical specifications:

• Manufacturer: KEYENCE
• Model / MPN: LR-W500C
• Series: LR-W
• Type: Self-contained full-spectrum sensor
• Detecting distance: 30–500 mm
• Light source: White LED
• Spot size: Adjustable
• Approx. spot diameter: 3.5 mm at 100 mm
• Approx. spot diameter: 9 mm at 250 mm
• Approx. spot diameter: 18 mm at 500 mm
• Supply voltage: 10–30 VDC
• Control output: NPN/PNP open collector selectable
• Maximum control output: 30 VDC, 50 mA
• Output mode: N.O./N.C. selectable
• Response time: 200 µs / 1 ms / 10 ms / 100 ms / 500 ms selectable
• Communication: IO-Link
• Sensor connection: M12 4-pin
• Included cable: BALLUFF, approximately 210 cm
• Assembly marking on sensor: Assembled in China

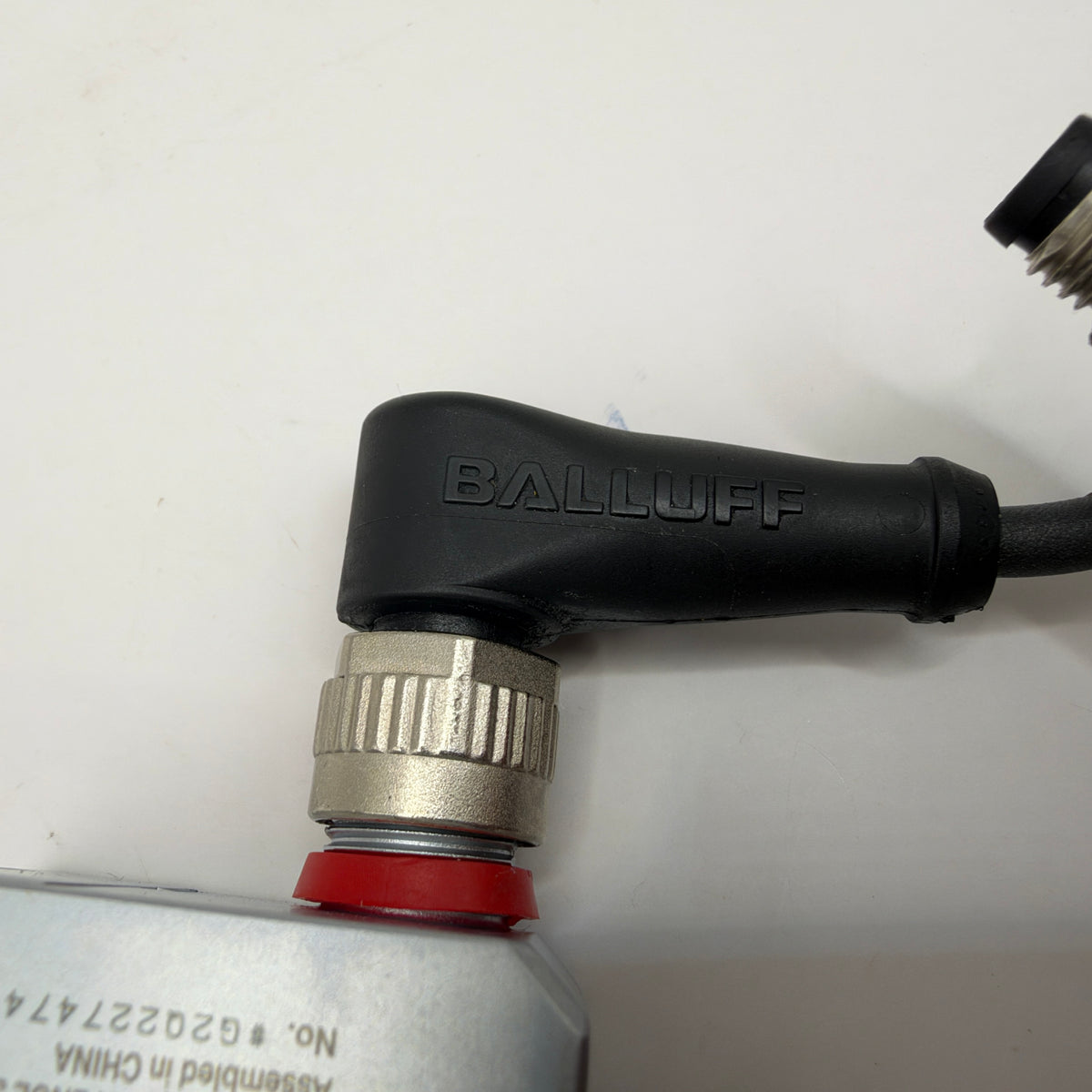

The included BALLUFF cable is the exact cable shown in the photos; its specific part number is not confirmed.

Used, fully functional.
