Kistler 9333A piezoelectric press force transducer / load cell designed for precise measurement of dynamic and quasistatic compression forces in industrial force measurement and press monitoring applications.

The 9333A is a factory-preloaded force transducer with a maximum measuring range of 0 to 50 kN. Force applied to the piezoelectric measuring element generates a proportional electrical charge, which is intended for processing by a suitable charge amplifier.

Specifications:

• Manufacturer: Kistler
• Model / MPN: 9333A
• Type: Piezoelectric Press Force Transducer / Load Cell
• Measurement Axis: Fz
• Maximum Measuring Range: 0 to 50 kN
• Calibrated Ranges: 0 to 50 kN, 0 to 5 kN and 0 to 0.5 kN
• Sensitivity: approx. -3.9 pC/N
• Maximum Compression Overload: 60 kN
• Maximum Tensile Load: -6 kN
• Linearity: ≤ ±0.5% FSO
• Natural Frequency: >55 kHz
• Operating Temperature: -40 to +120°C
• Connector: KIAG 10-32 negative
• Dimensions: approx. Ø30 × 34 mm
• Weight: approx. 137 g
• Serial Number: SN5925864

Sensor only. No connection cable, mounting flange, charge amplifier or other accessories are included.

Used, fully functional.

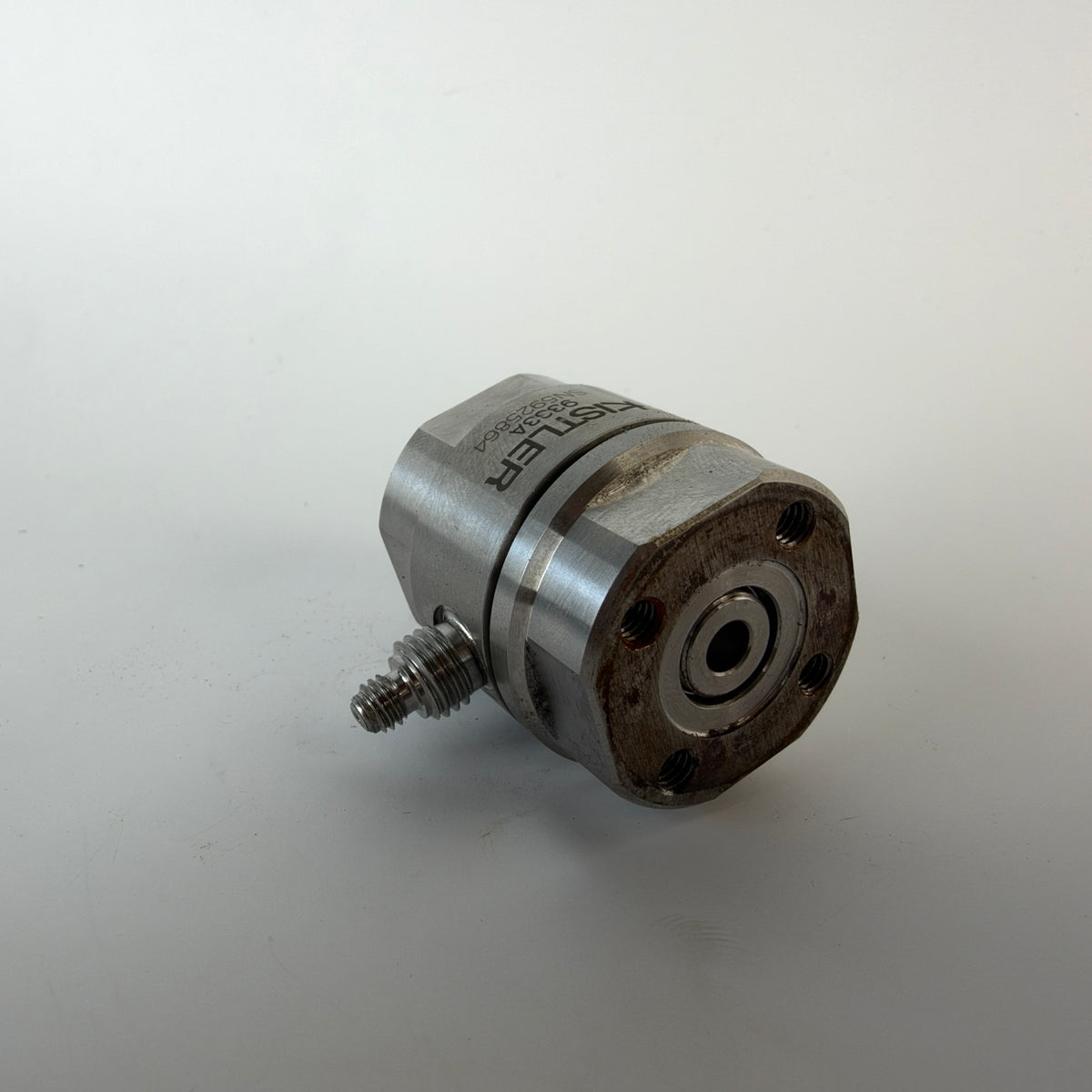

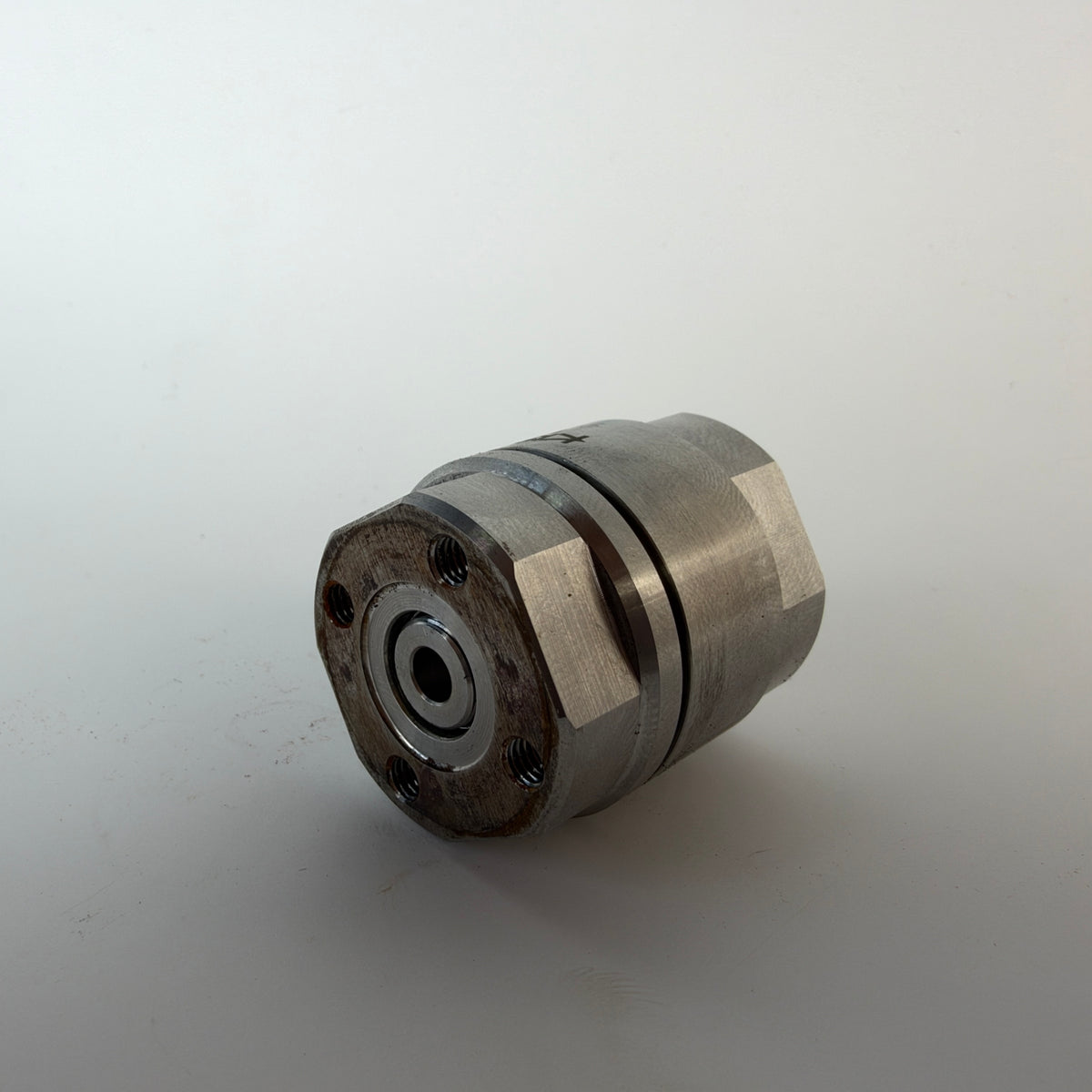

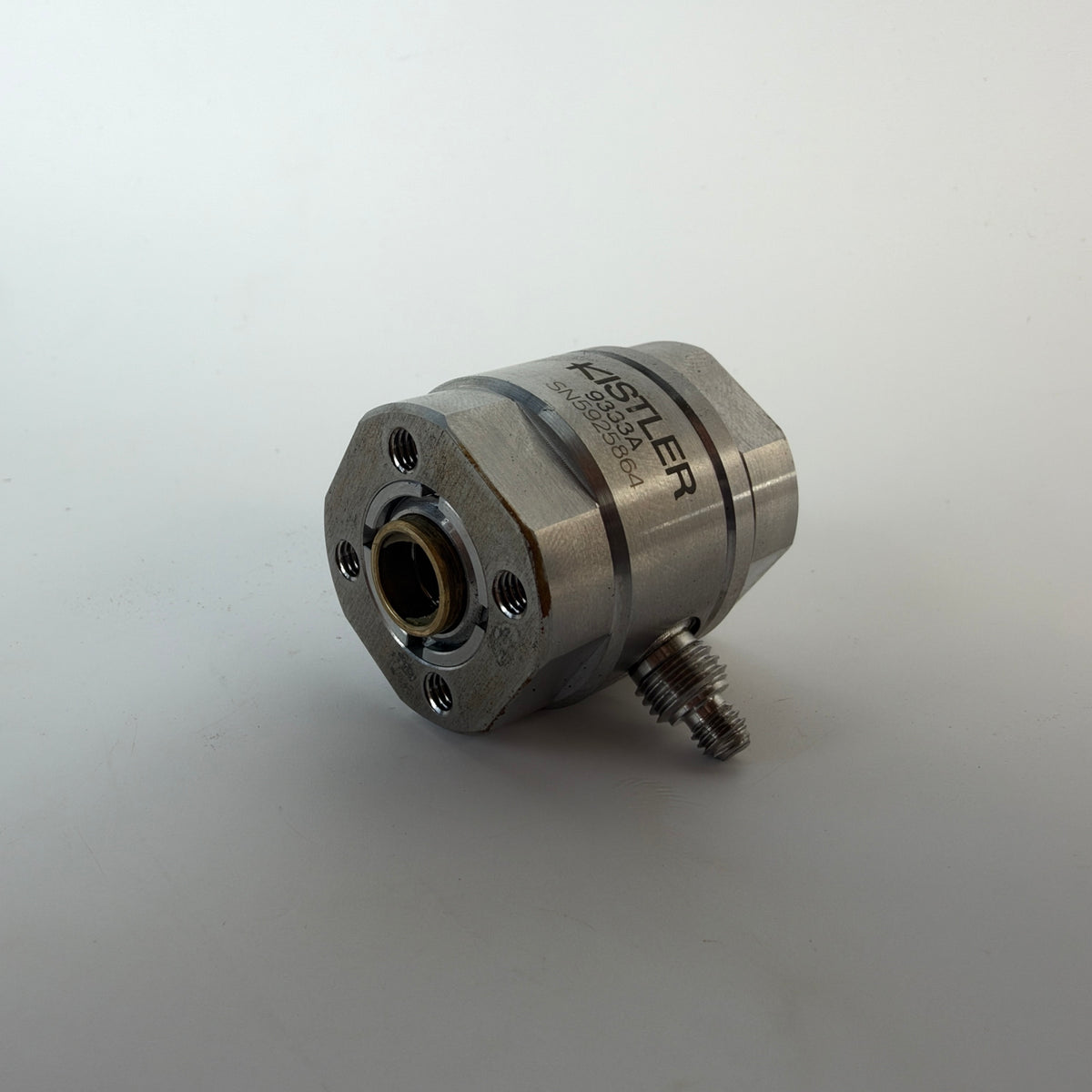

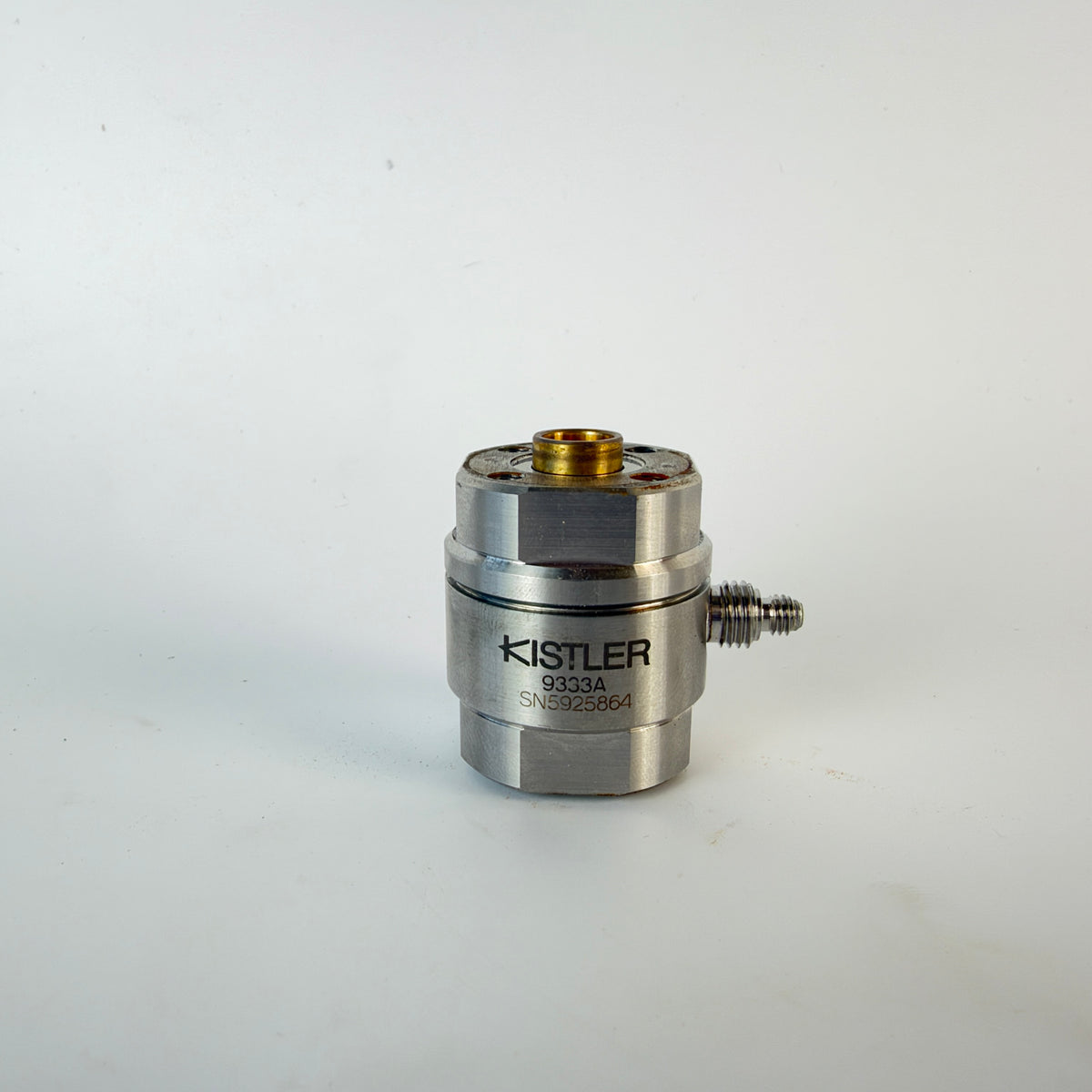

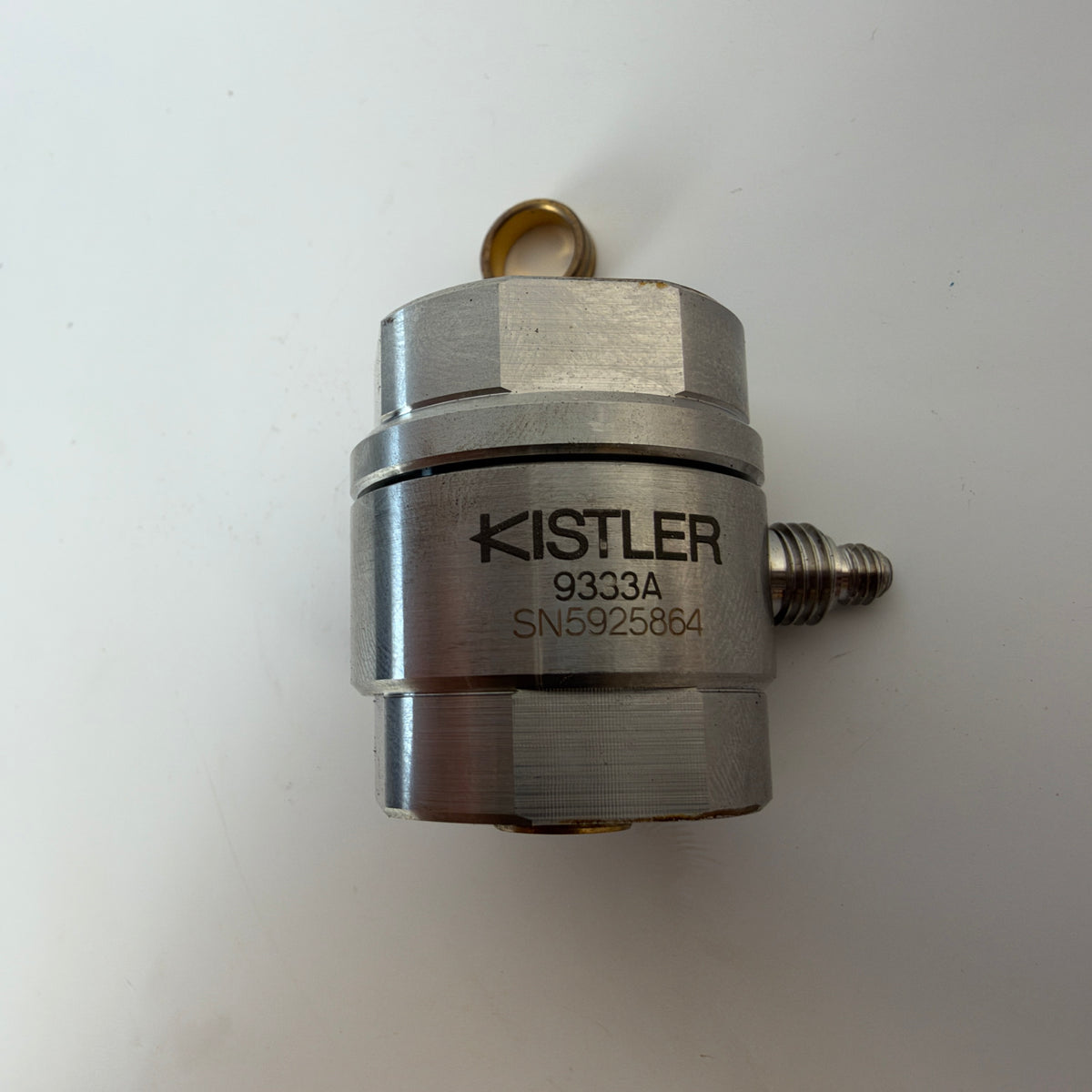

The sensor shows normal cosmetic signs of previous industrial installation and use. Please refer to the photos for the exact physical condition and configuration.
