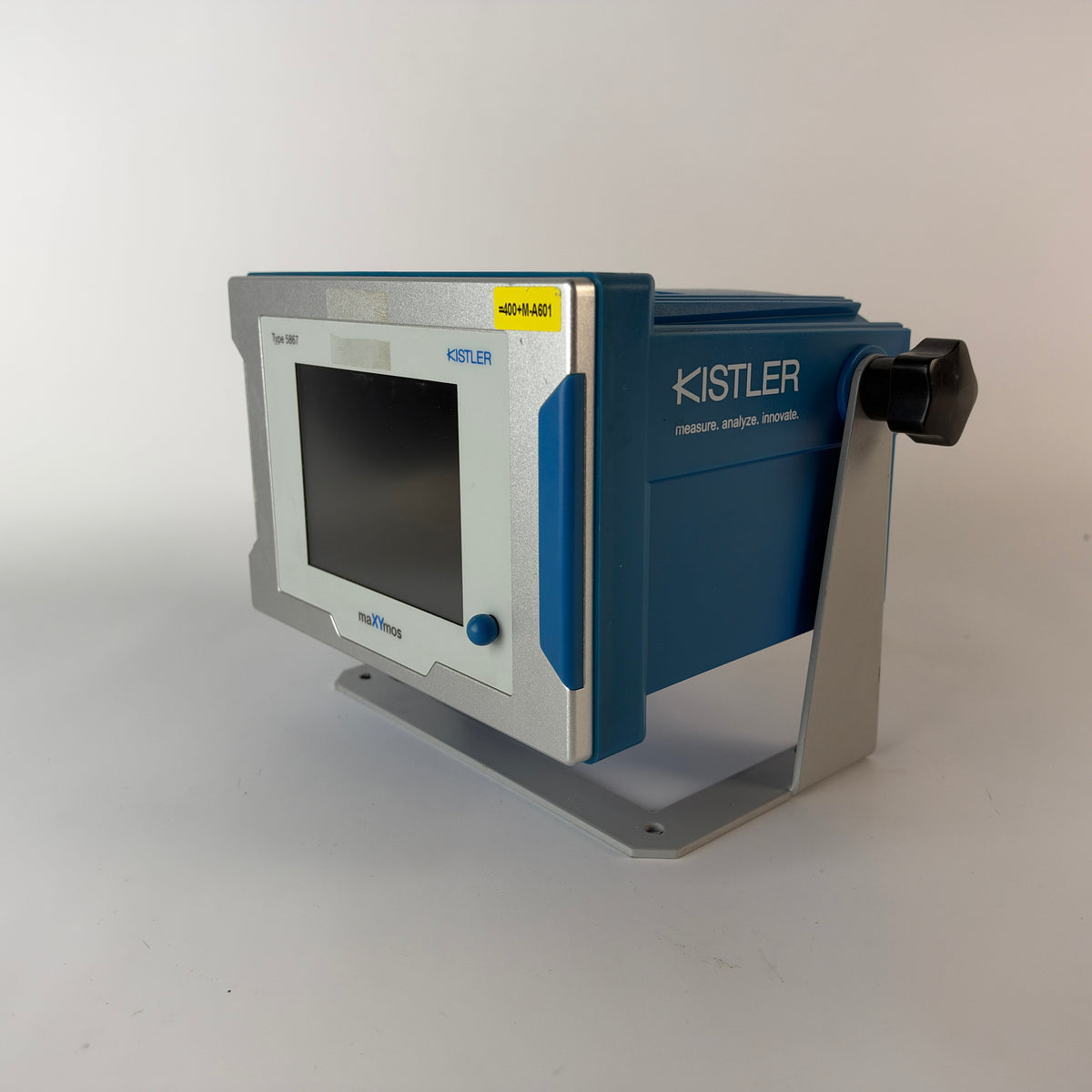

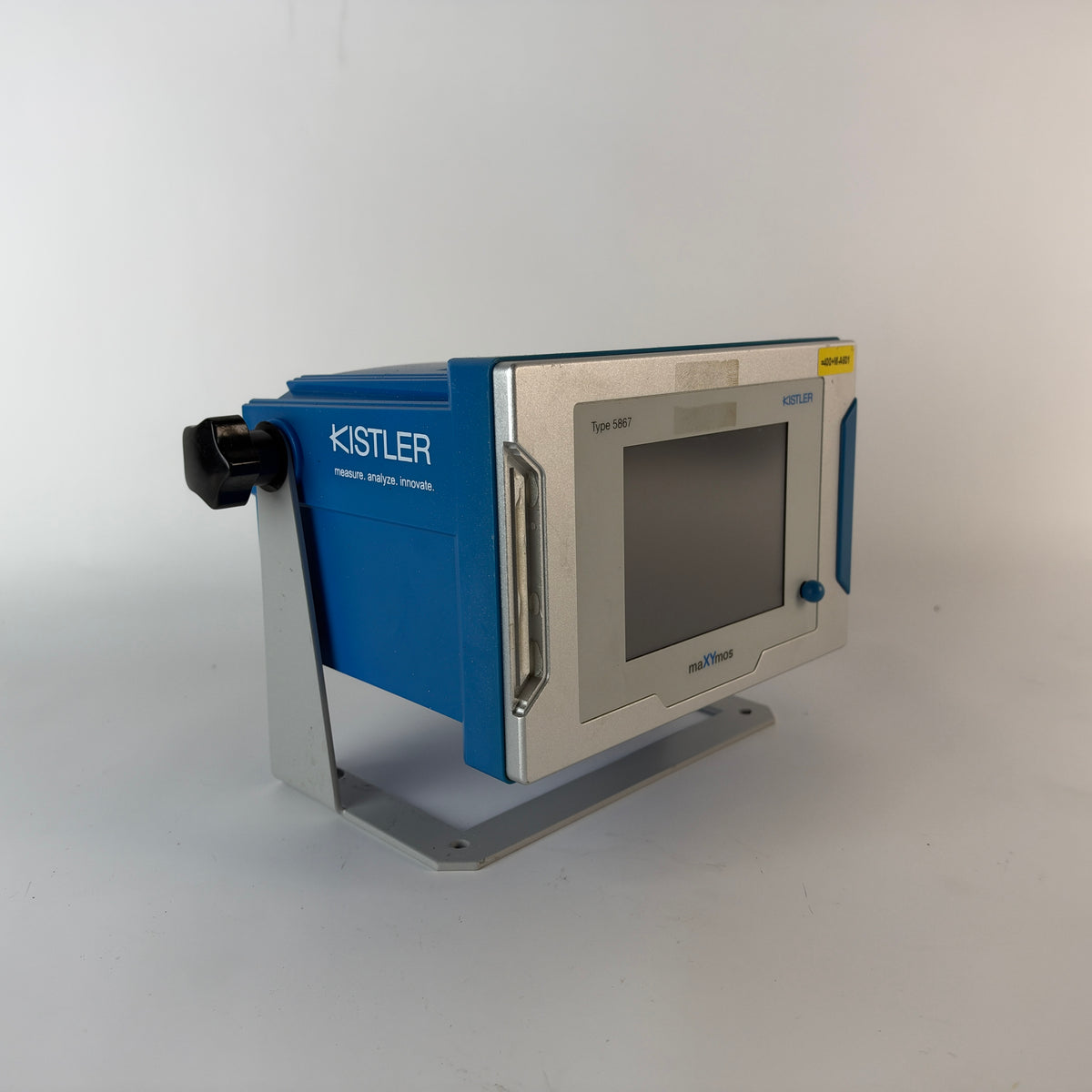

Kistler maXYmos BL Type 5867B0011 industrial process monitoring and XY evaluation system, supplied with connection cable and adjustable metal mounting bracket.

The maXYmos BL is designed for industrial manufacturing process monitoring by recording and evaluating XY curves from two related measurement variables. This 5867B0011 version is configured with a Y-channel for piezoelectric sensors and is designed for desktop or wall mounting.

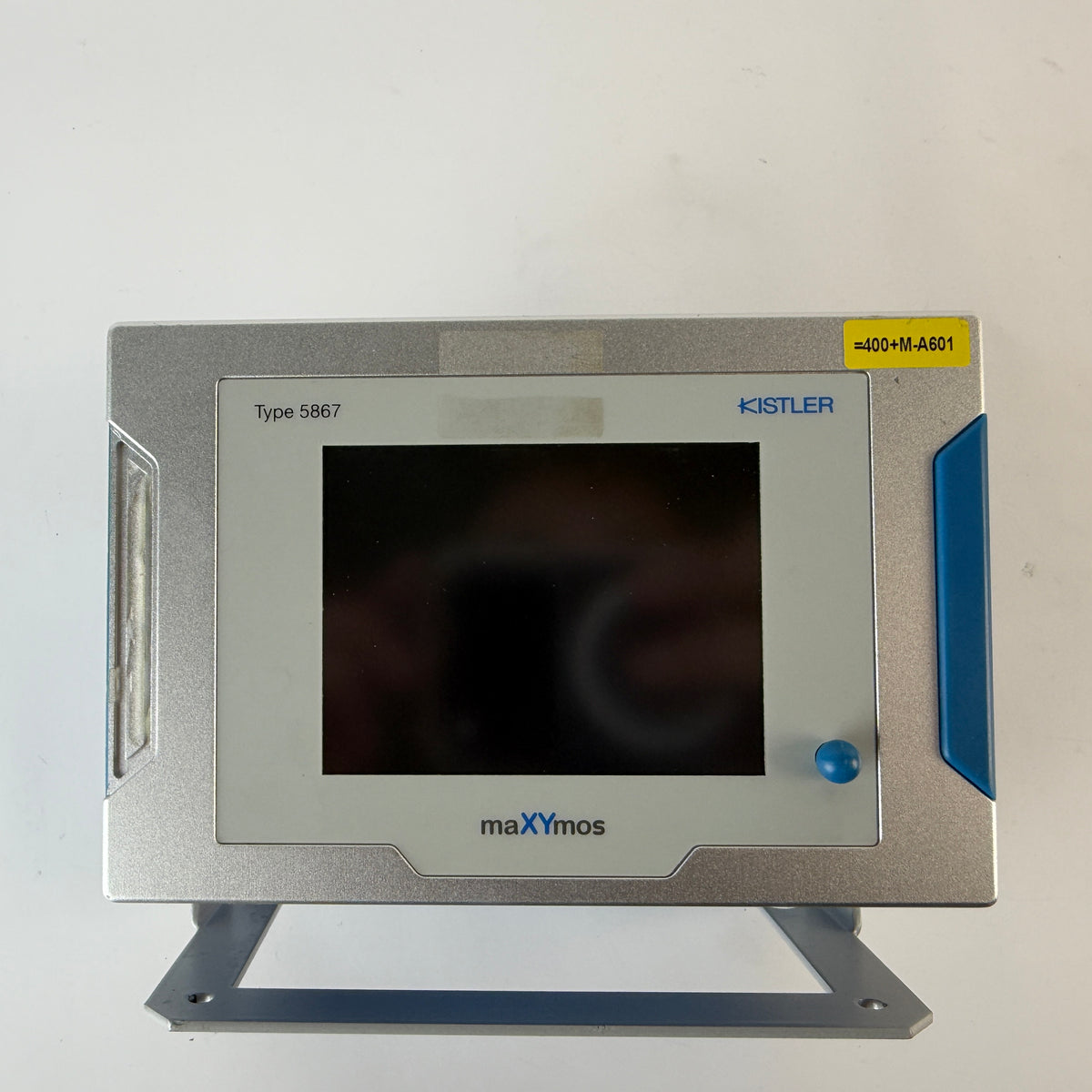

The system provides a color touchscreen interface for visualization, setup and evaluation of process curves. It can be used for applications such as force/displacement monitoring, joining and assembly process evaluation, quality monitoring and other industrial XY measurement applications.

Specifications:

• Manufacturer: Kistler
• Product Family: maXYmos BL
• Type: 5867B0011
• Device Type: XY Process Monitoring System
• Y Channel: For piezoelectric sensors
• Measurement Functions: Y(X), Y(t), Y(X,t), X(t)
• Evaluation Objects: 4
• XY Value Pairs: Up to 8,000 per curve
• Measurement Programs: Up to 16
• Display: Color touchscreen
• Mounting Configuration: Desktop / wall mounting
• Supply Voltage: 20–28 VDC
• Power Consumption: 5 W
• Ethernet interface
• Fieldbus In / Fieldbus Out
• Digital I/O
• USB interface

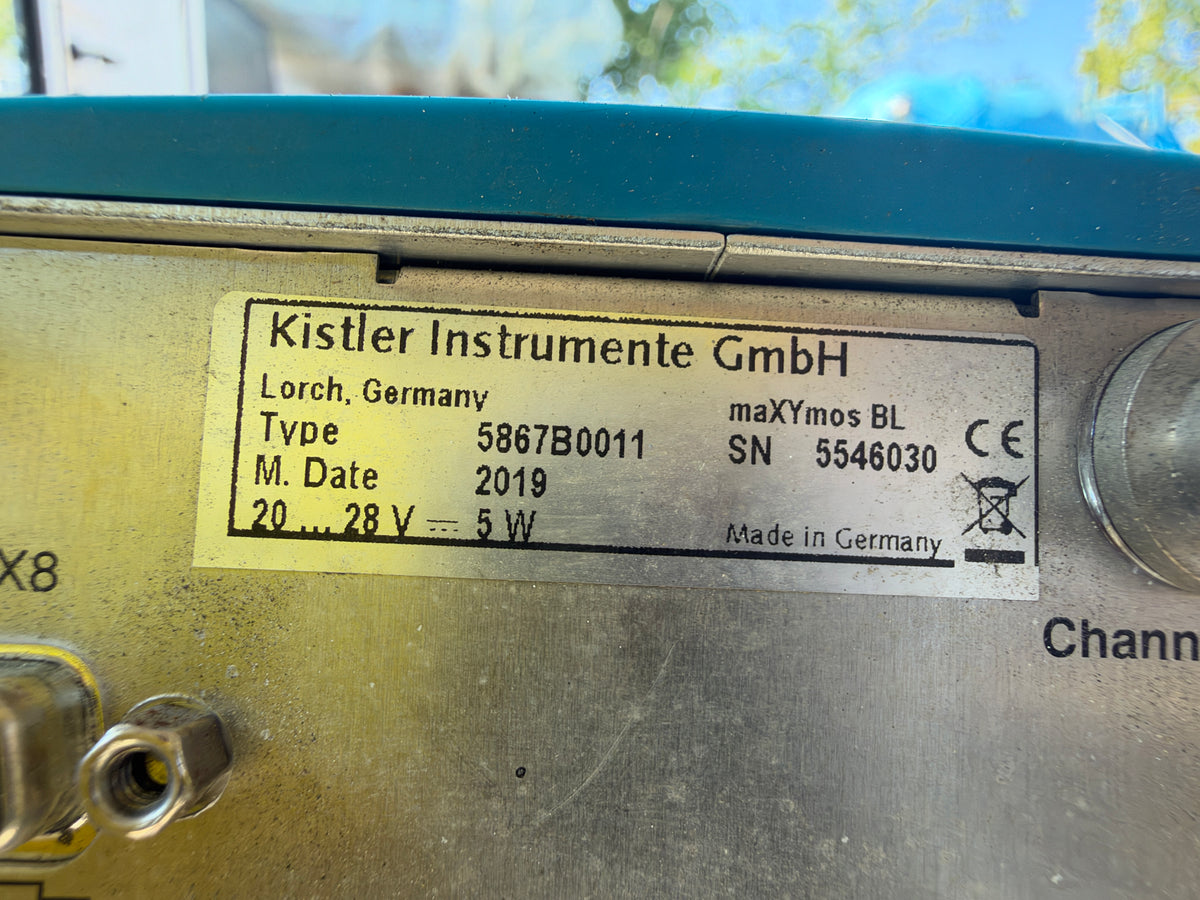

• Year of Manufacture: 2019
• Serial Number: 5546030
• Country of Origin: Germany

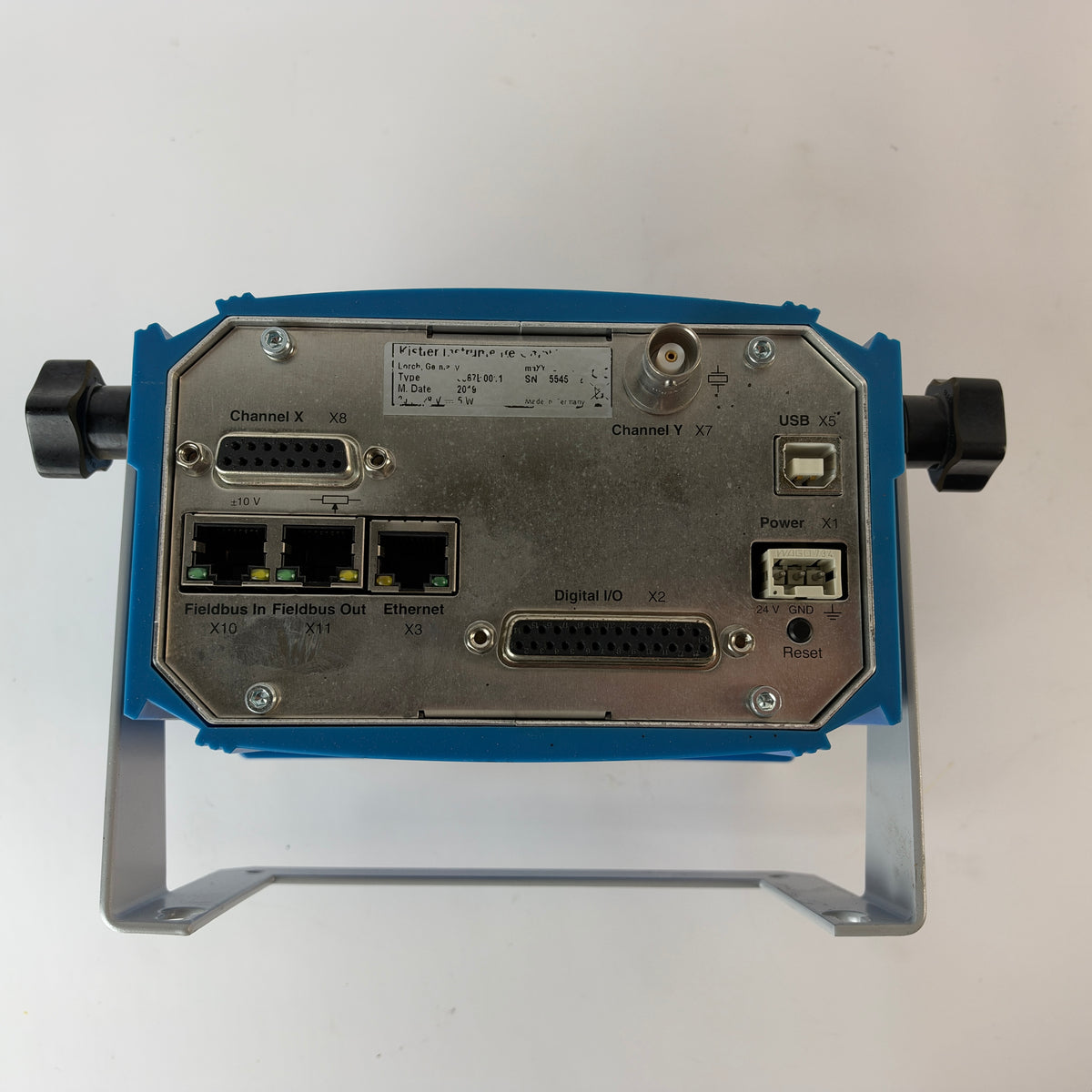

The rear panel provides dedicated Channel X and Channel Y connections, Ethernet, Fieldbus In/Out, Digital I/O, USB and 24 V power connections.

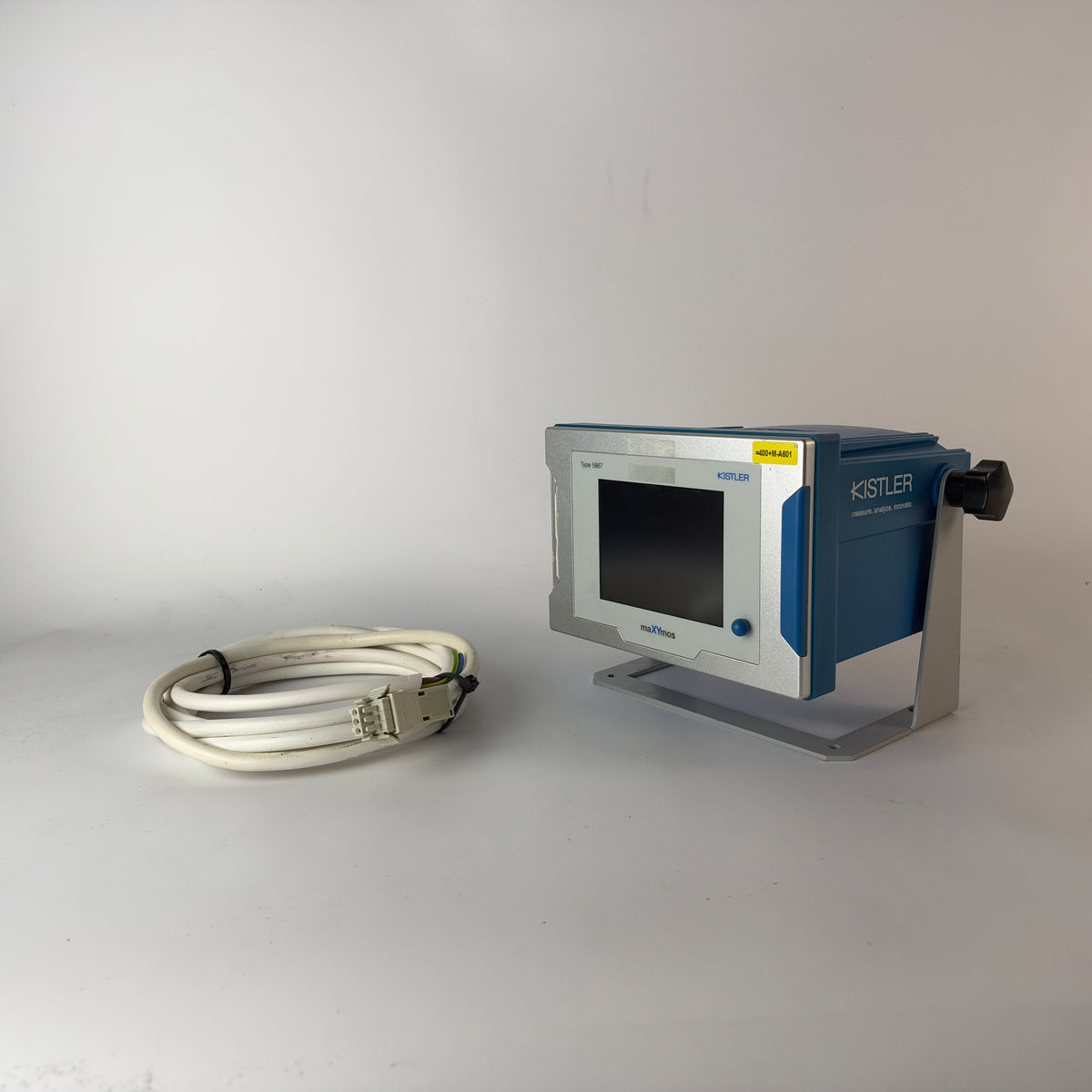

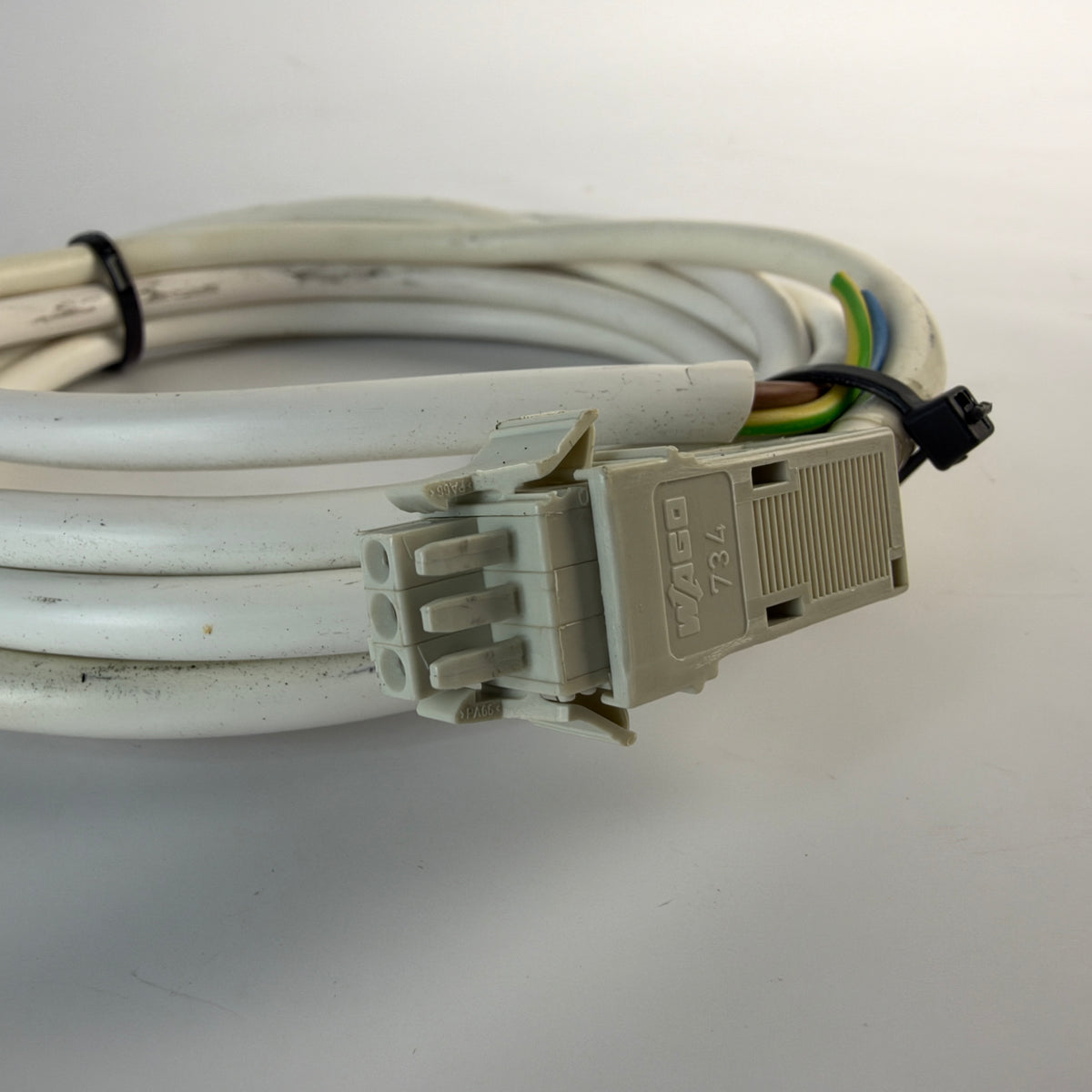

Included with the unit are the pictured white connection cable and adjustable metal mounting bracket. Exact part number and function of the supplied cable are not confirmed.

Used, fully functional.
