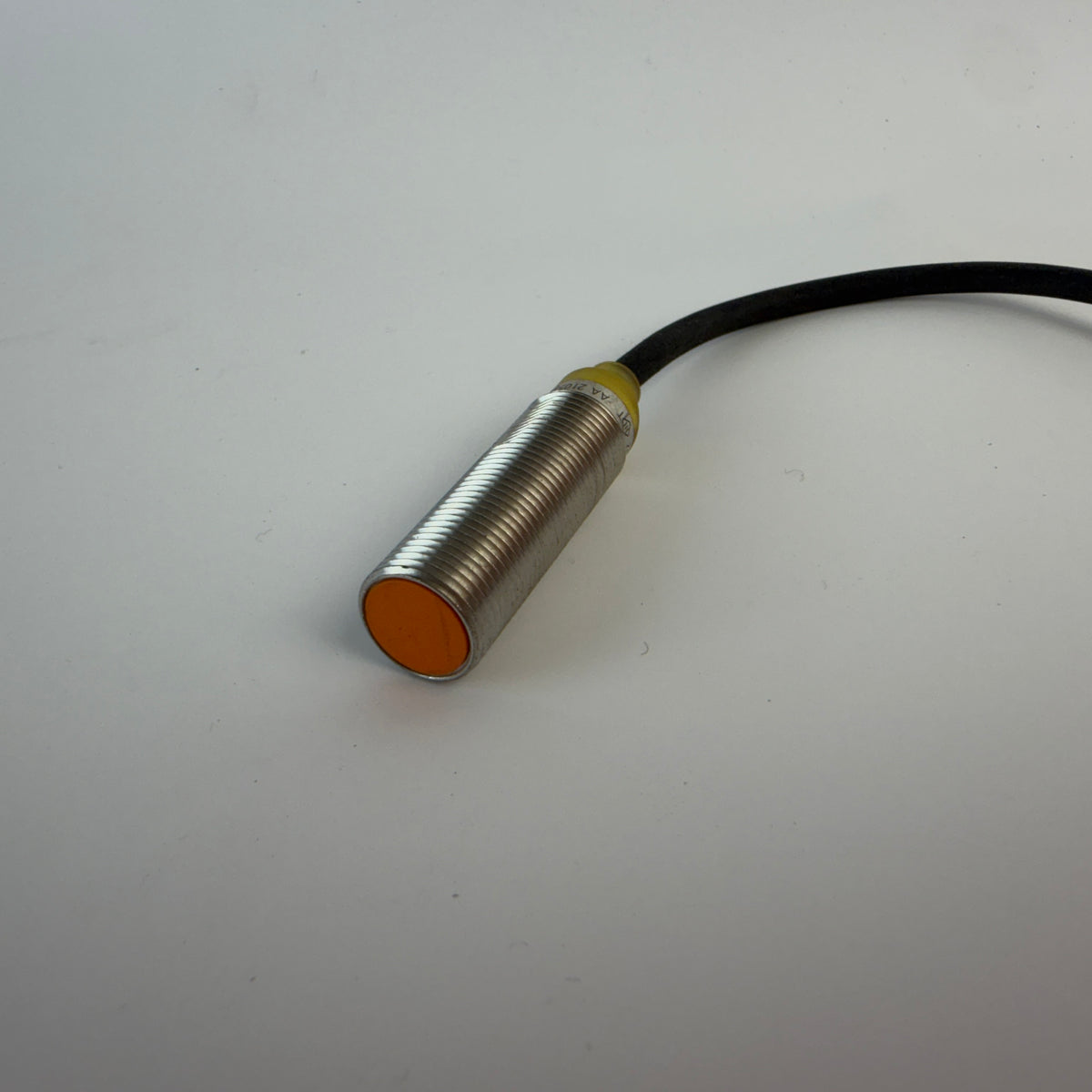

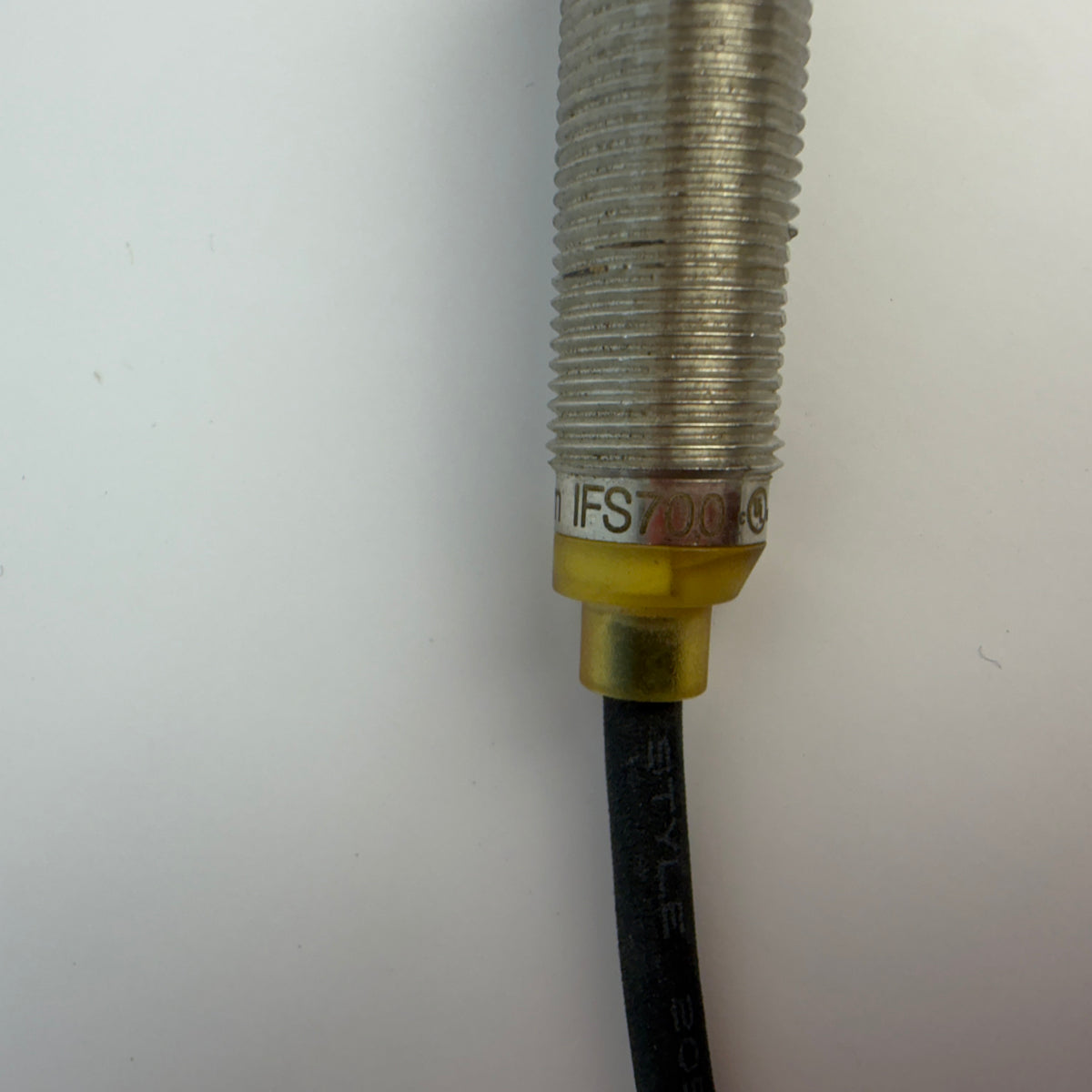

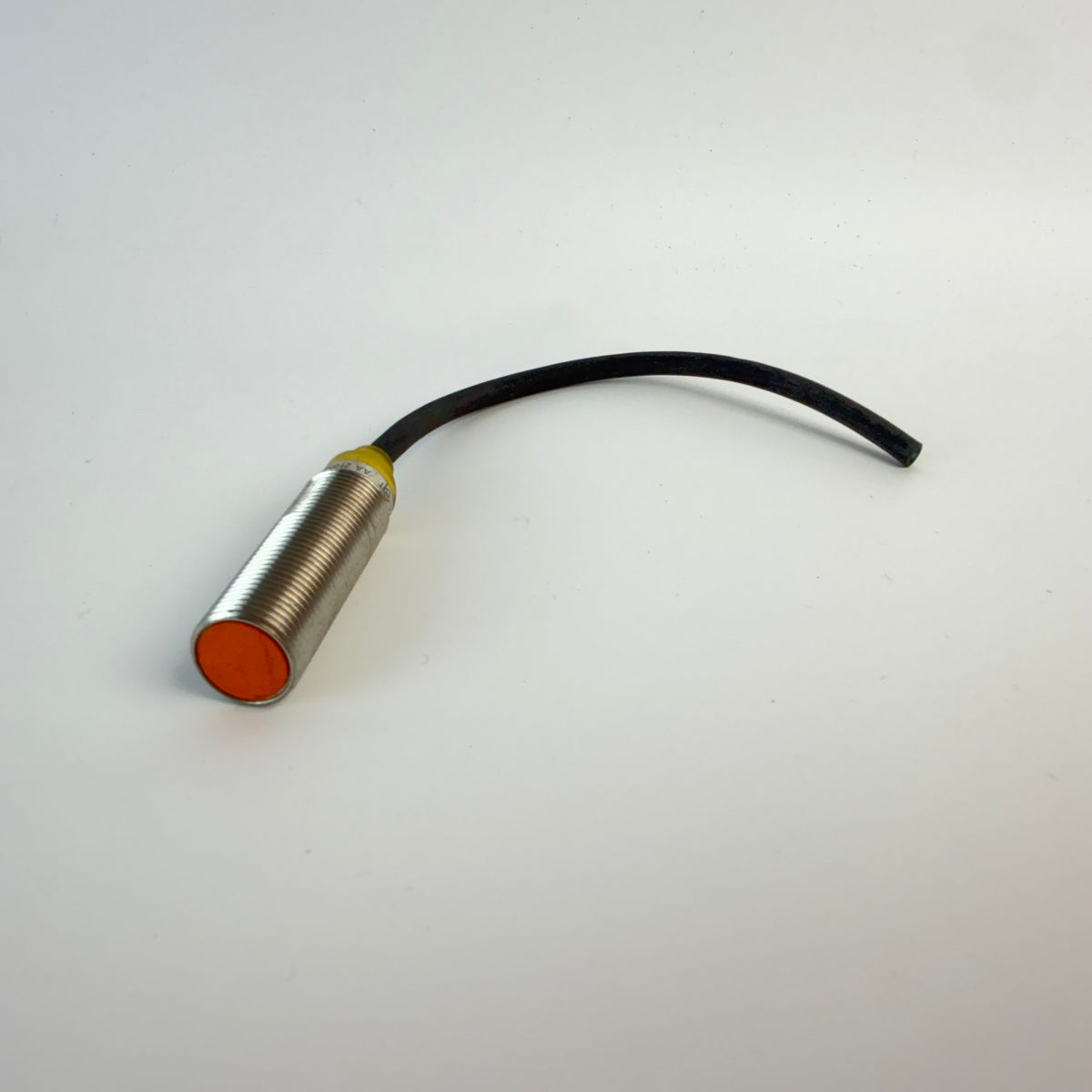

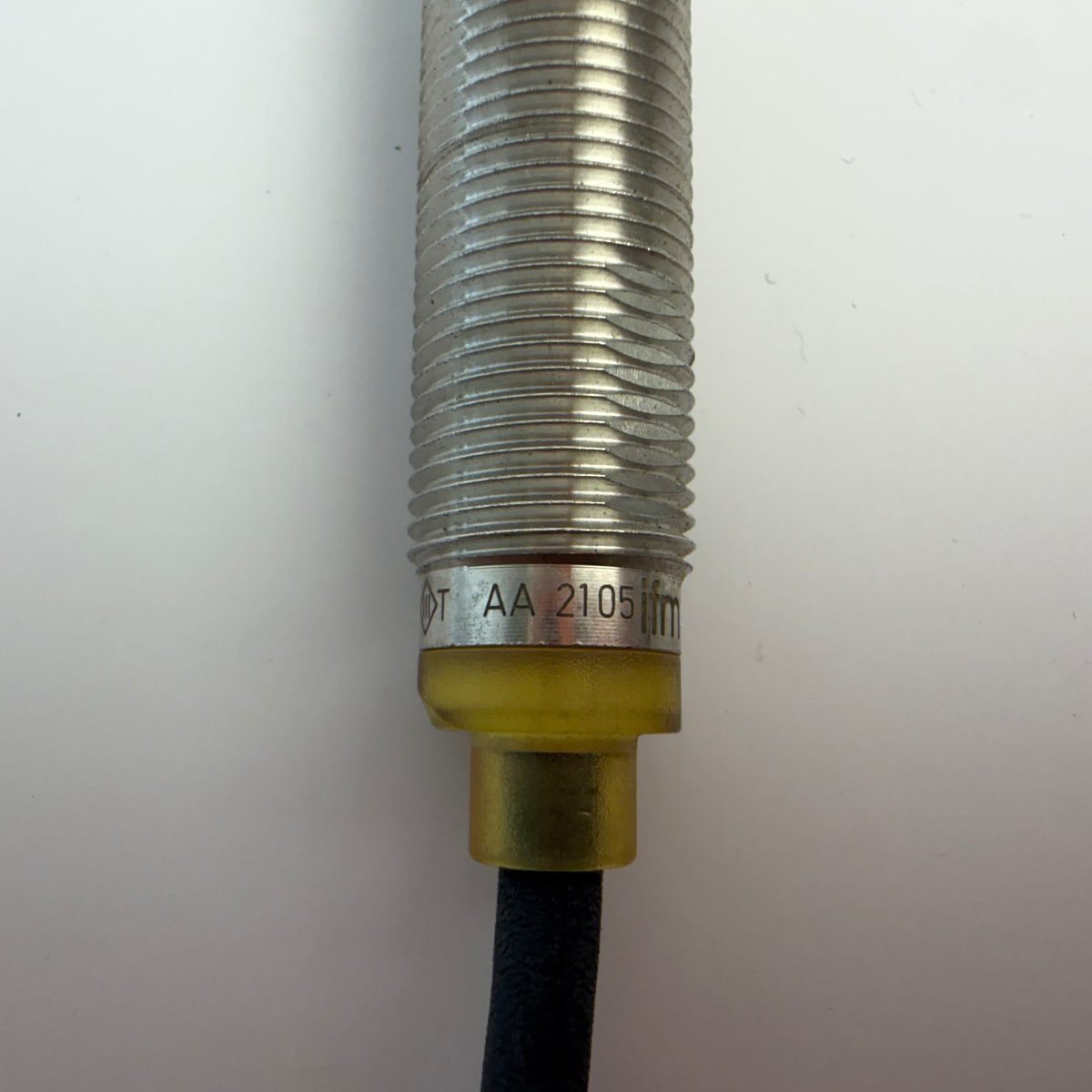

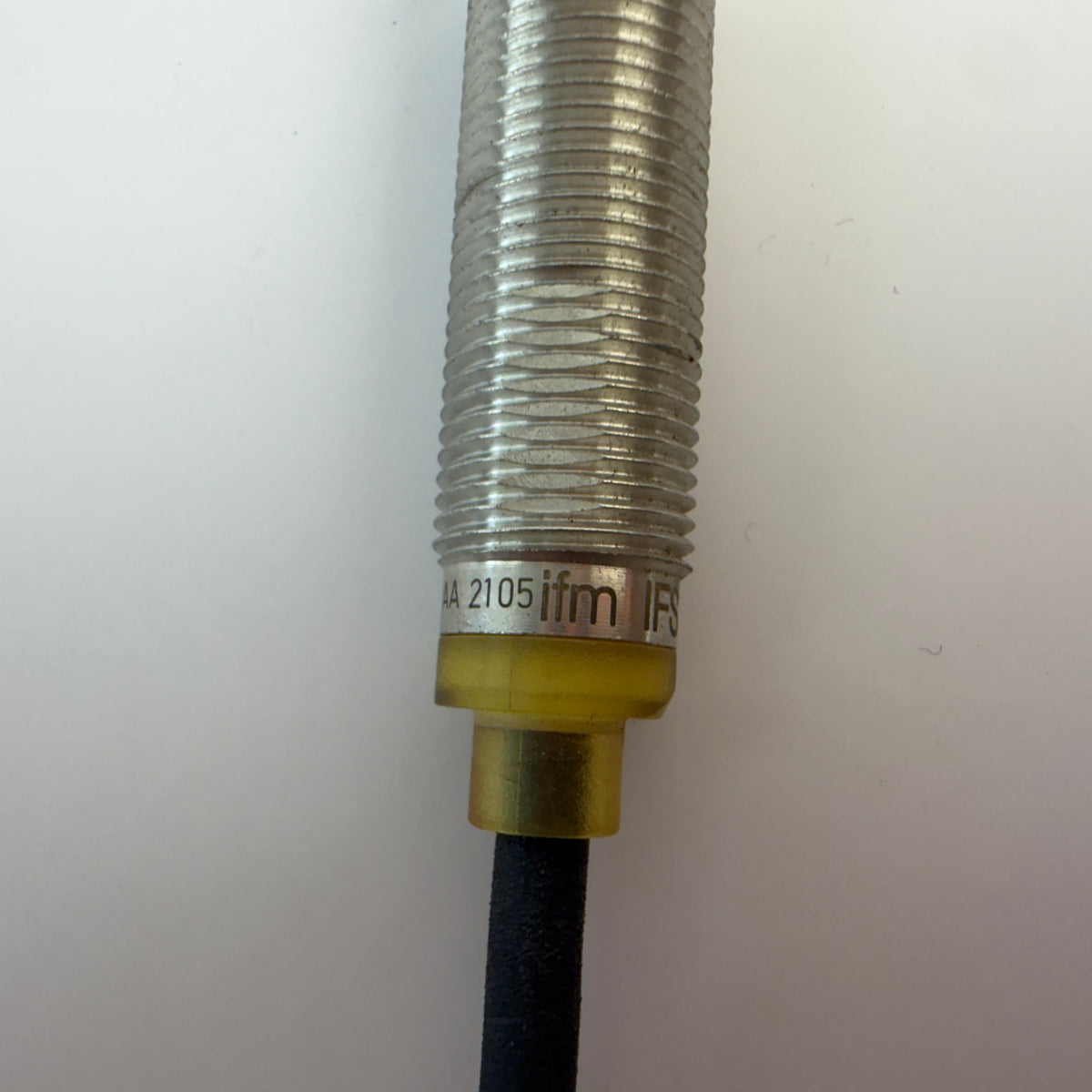

Lot of 6 ifm IFS700 inductive proximity sensors, type IFB3004BANKG/2M/PUR, designed for reliable non-contact detection of metallic objects in industrial automation applications.
The IFS700 features an M12 × 1 threaded cylindrical housing, flush mounting, and an increased nominal sensing range of 4 mm. It operates from 10–30 V DC and provides an NPN normally-open (NO) switching output rated up to 100 mA.
Each sensor is equipped with a 2 m PUR cable, yellow output-status LED and a durable metal housing suitable for demanding industrial environments.

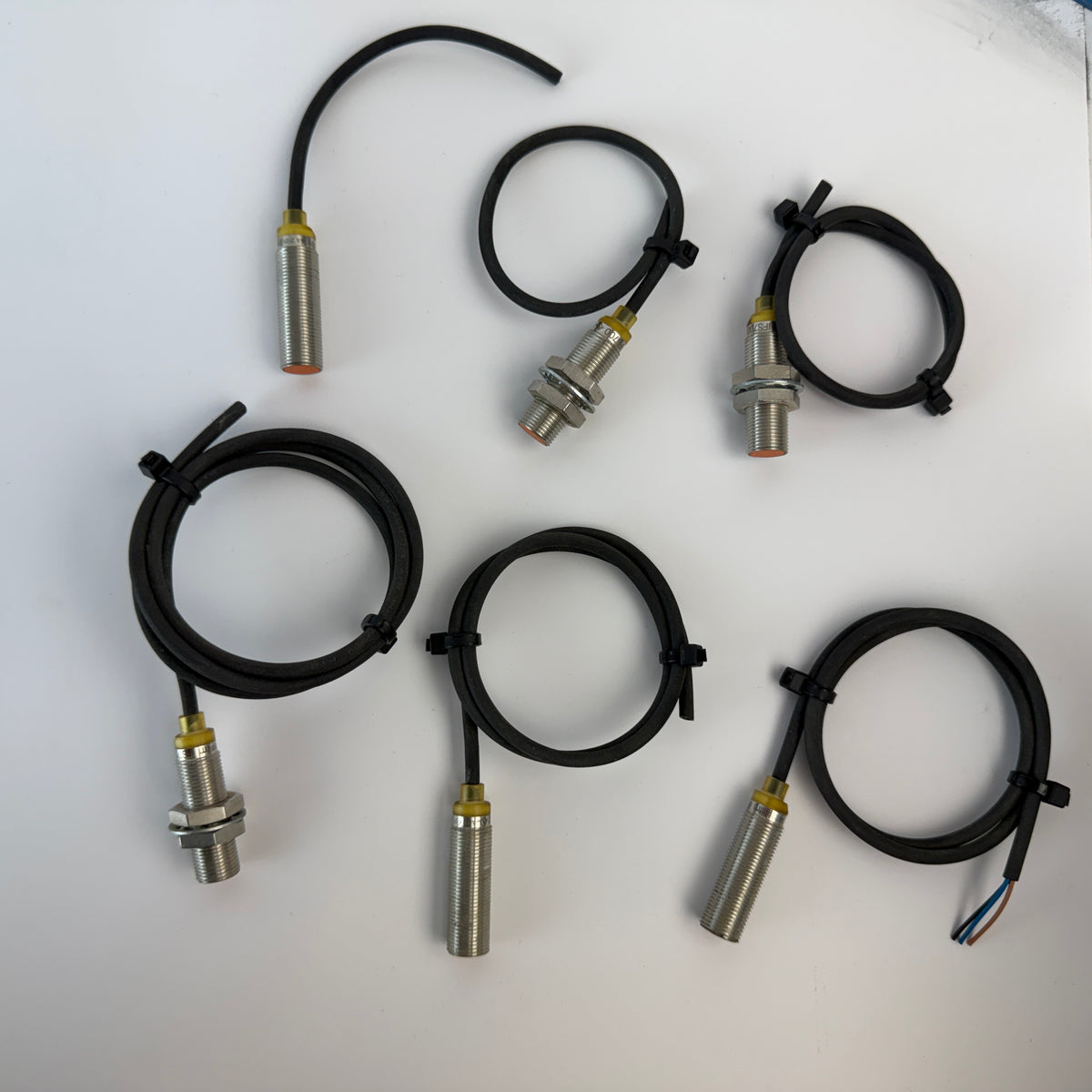

Sale includes 6 sensors as shown in the photos.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | ifm electronic |
| Model | IFS700 |
| Type | IFB3004BANKG/2M/PUR |
| Sensor Technology | Inductive proximity |
| Quantity | 6 pieces |
| Electrical Design | NPN |
| Output Function | Normally open (NO) |
| Nominal Sensing Range | 4 mm |
| Real Sensing Range | 4 mm ±10% |
| Operating Distance | 0–3.24 mm |
| Supply Voltage | 10–30 V DC |
| Current Consumption | <10 mA |
| Output Current | 100 mA |
| Switching Frequency | 700 Hz |
| Voltage Drop | ≤2.5 V |
| Thread | M12 × 1 |
| Mounting | Flush mountable |
| Cable | PUR, 2 m, 3 × 0.34 mm² |
| Status Indicator | Yellow LED |
| Housing | White-bronze-coated brass |
| Protection | IP65 / IP66 / IP67 / IP68 / IP69K |
| Protection Class | III |
| Ambient Temperature | -40°C to +85°C |
| Reverse Polarity Protection | Yes |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
Package Contents
6 × ifm IFS700 inductive sensors, as pictured.
