NEC NL6448AC33-29 industrial 10.4-inch TFT color LCD display panel, supplied as the pictured display assembly with front bezel and function buttons.

The NL6448AC33-29 is an active-matrix a-Si TFT LCD designed for industrial display applications. It provides VGA 640 × 480 resolution with 262,144 simultaneous colors and a 6-bit digital RGB interface.

Specifications:

• Manufacturer: NEC
• Model: NL6448AC33-29
• Display Type: a-Si TFT Color LCD
• Screen Size: 10.4 in / 26 cm
• Resolution: 640 × 480 pixels (VGA)
• Colors: 262,144
• Active Area: 211.2 × 158.4 mm
• Aspect Ratio: 4:3
• Interface: 6-bit digital RGB
• Signal Interface: CMOS, 31-pin
• Typical Luminance: 250 cd/m²
• Display Mode: Transmissive

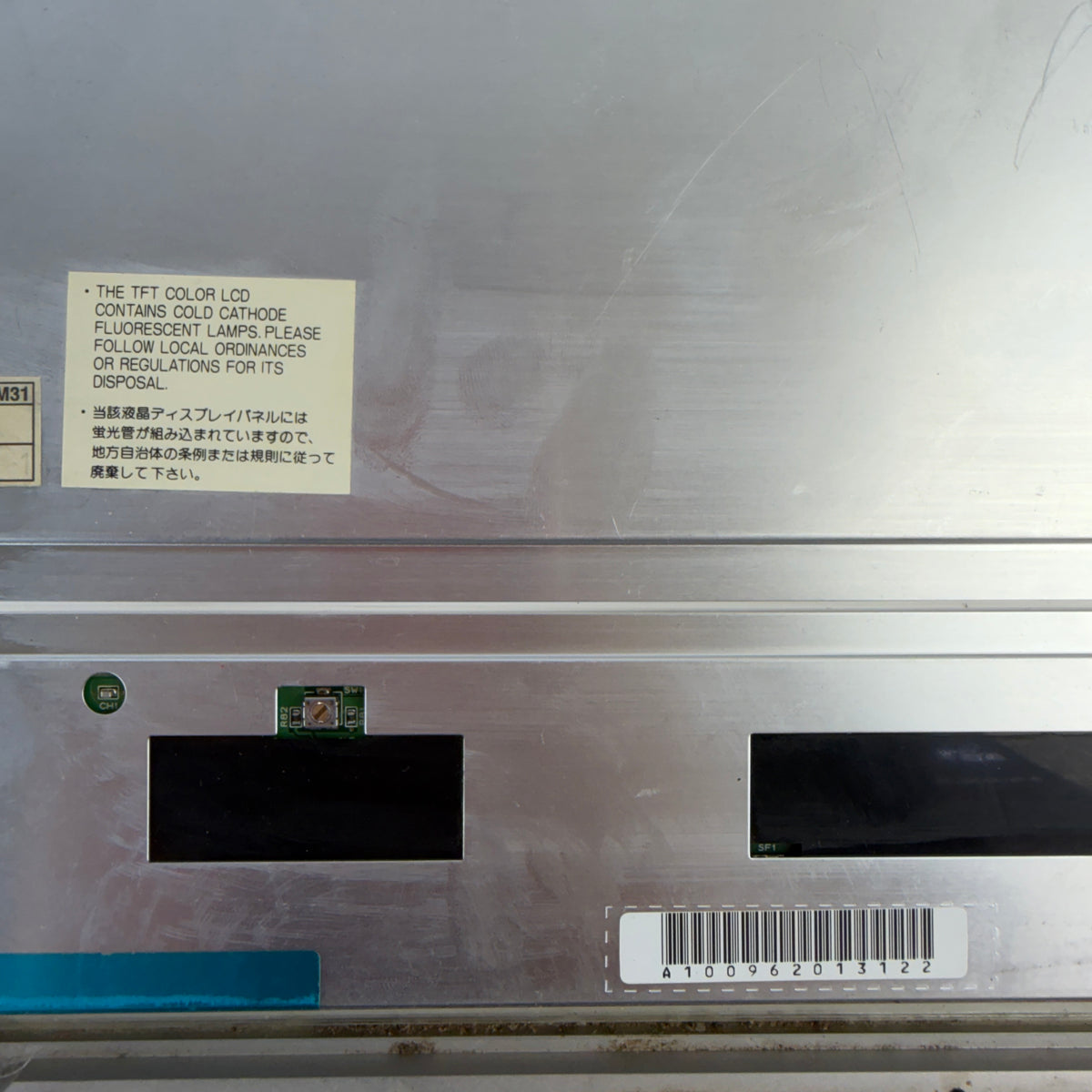

• Backlight: Two-lamp edge-light CCFL system
• Backlight Inverter: Incorporated
• Supply Voltage (VCC): 3.3 V / 5.0 V
• Operating Temperature: 0 to +50°C
• Storage Temperature: -20 to +60°C

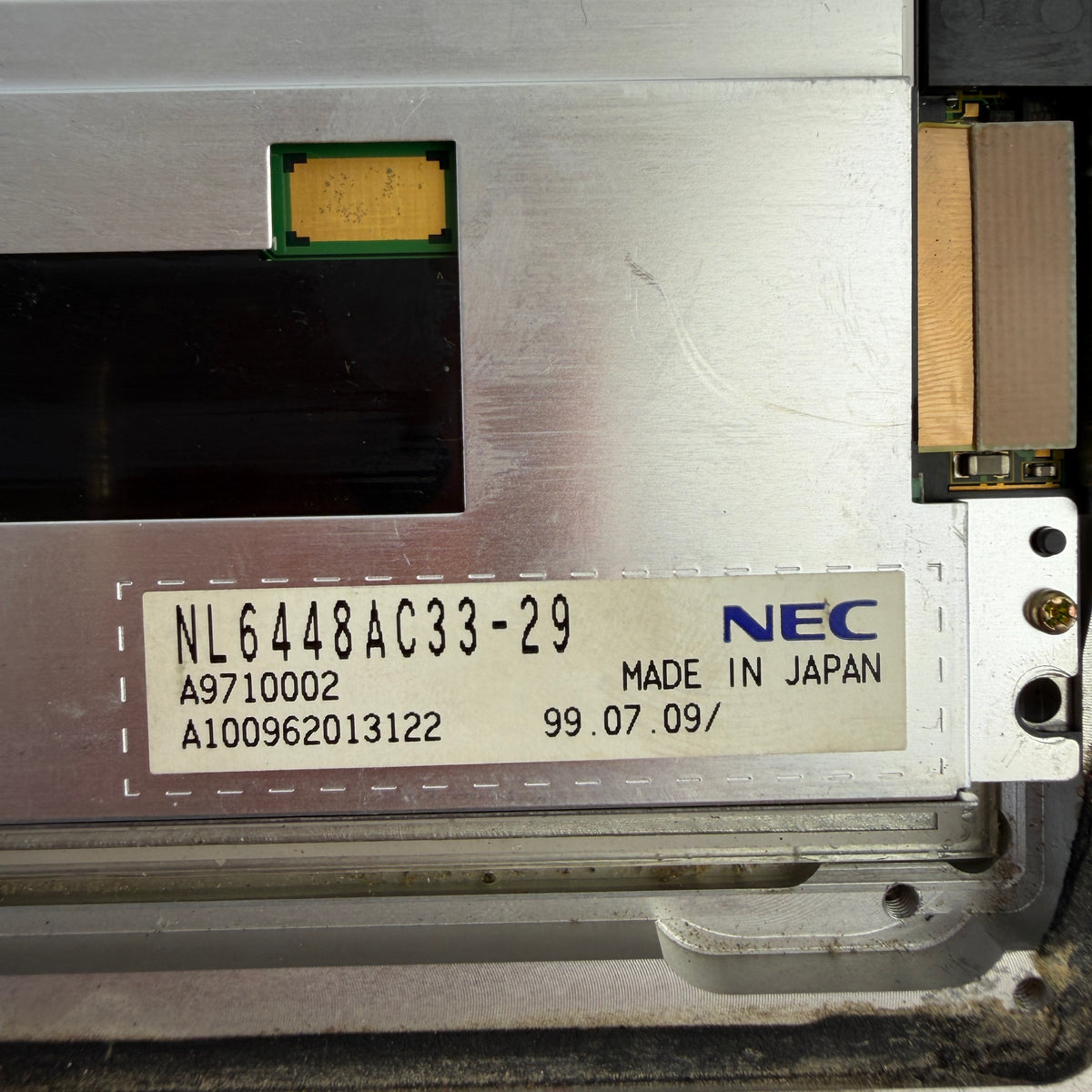

• Panel Country of Manufacture: Japan

Designed for applications such as industrial PCs, control-system display terminals and process-controller monitors.

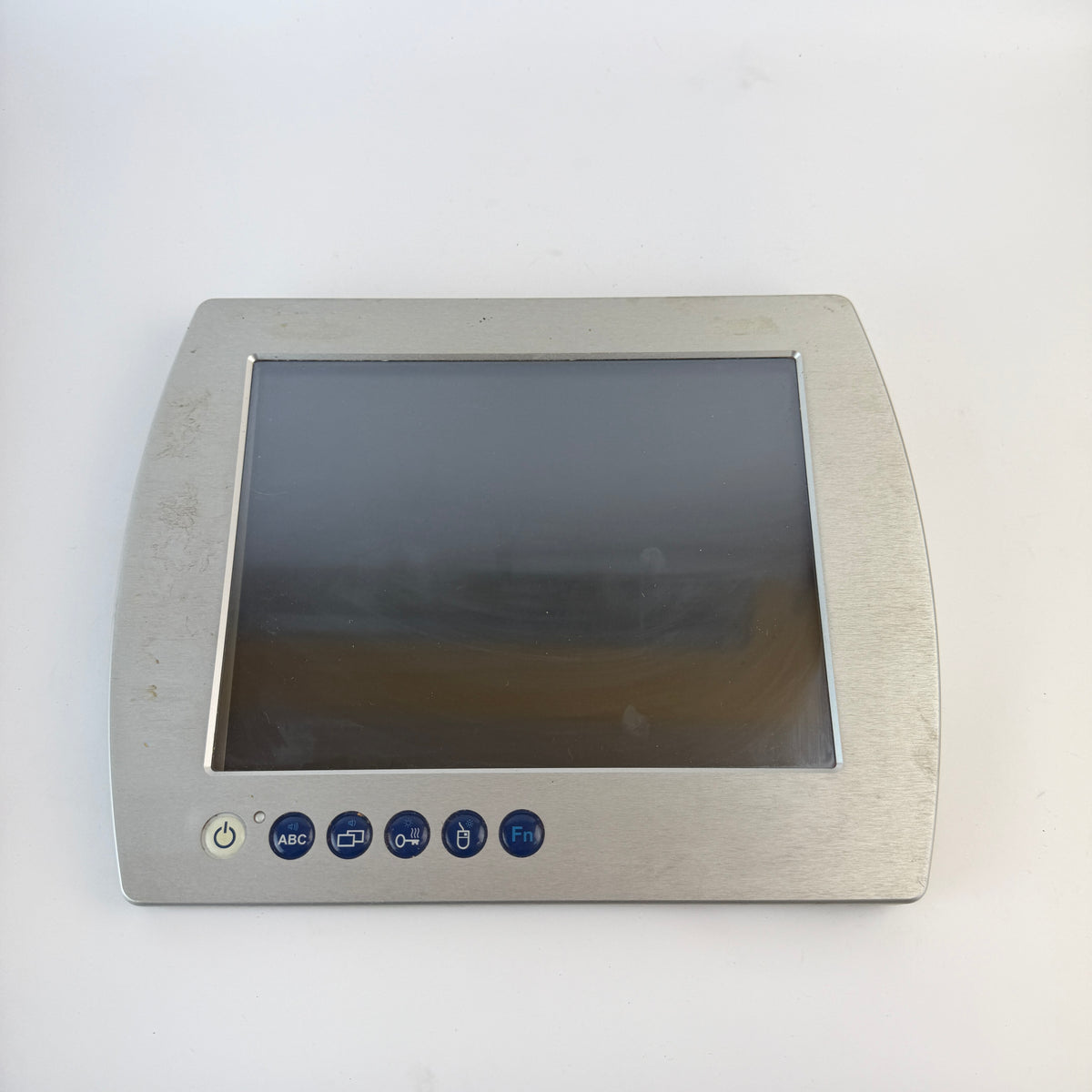

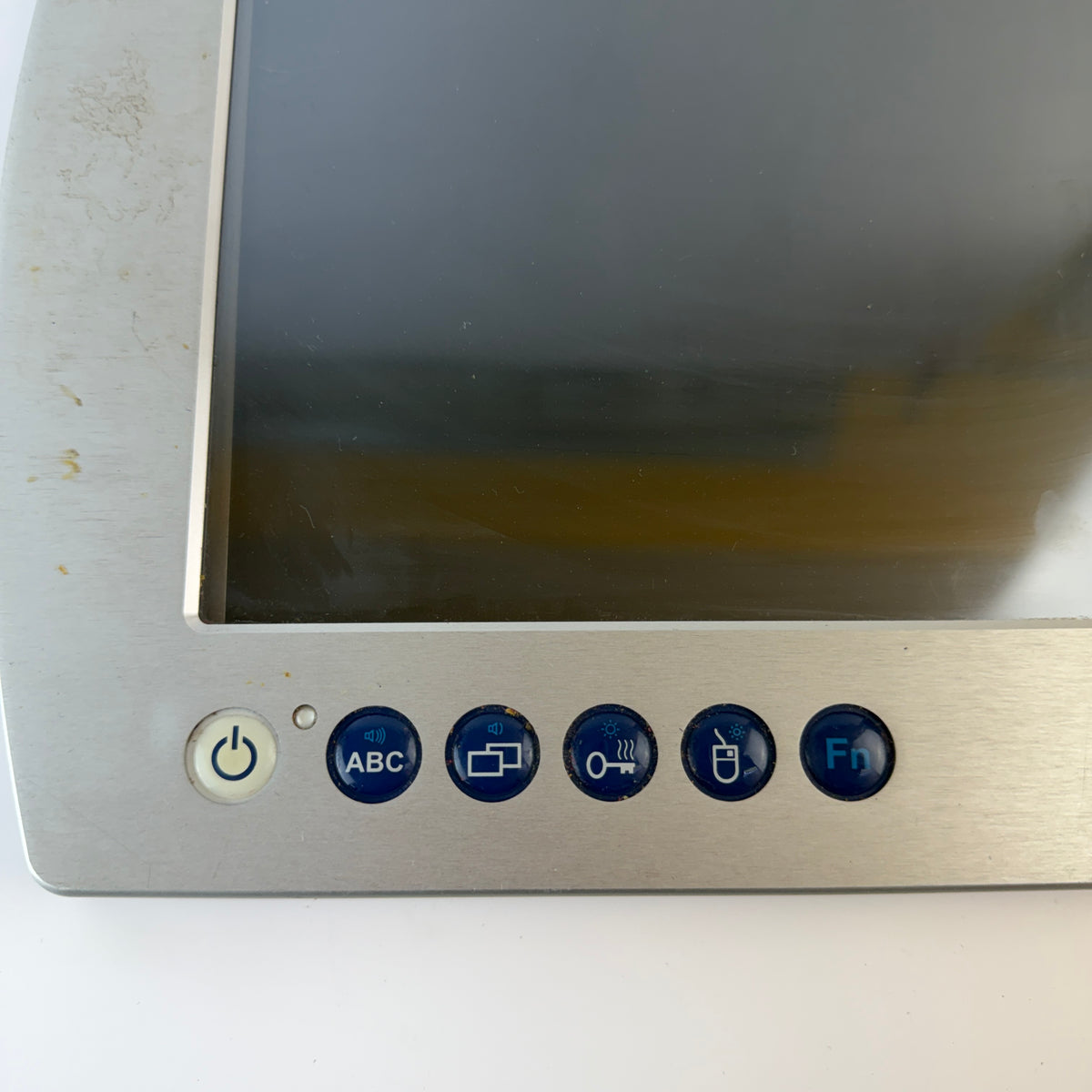

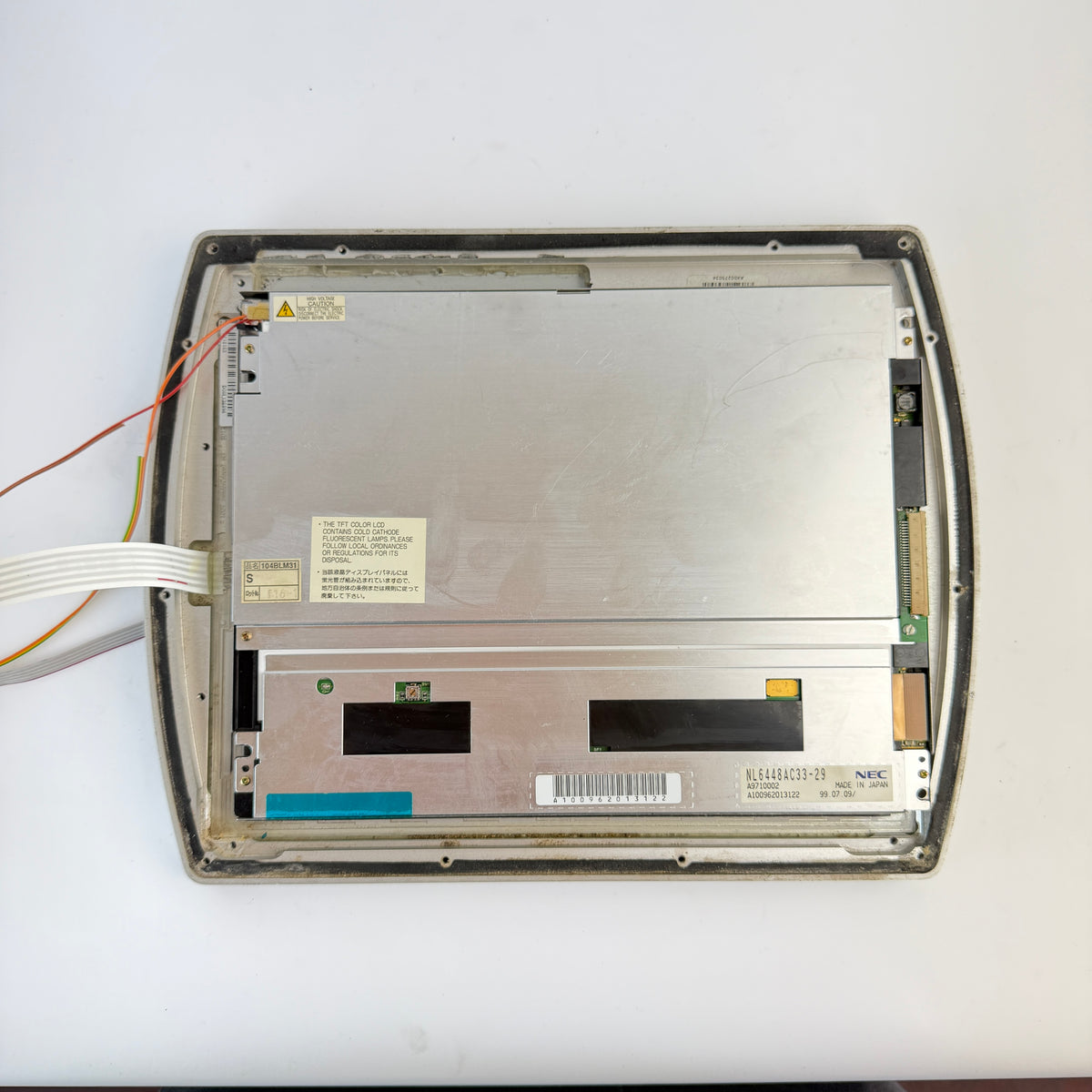

The photographs show the NEC LCD installed in a metal front display assembly with physical function buttons. The manufacturer and equipment model associated with this surrounding assembly have not been confirmed; compatibility should therefore be verified by the buyer using the NEC panel number, dimensions, interface and connections.

Condition: Used, fully functional.
