Novotechnik TRS-0050 Linear Position Transducer – P/N 023272

Industrial potentiometric linear position transducer manufactured by Novotechnik, designed for accurate measurement of linear displacement in automation systems, industrial machinery, and positioning applications.

The TRS-0050 features a spring-loaded measuring rod and converts linear movement into a proportional electrical signal using the potentiometric measuring principle.

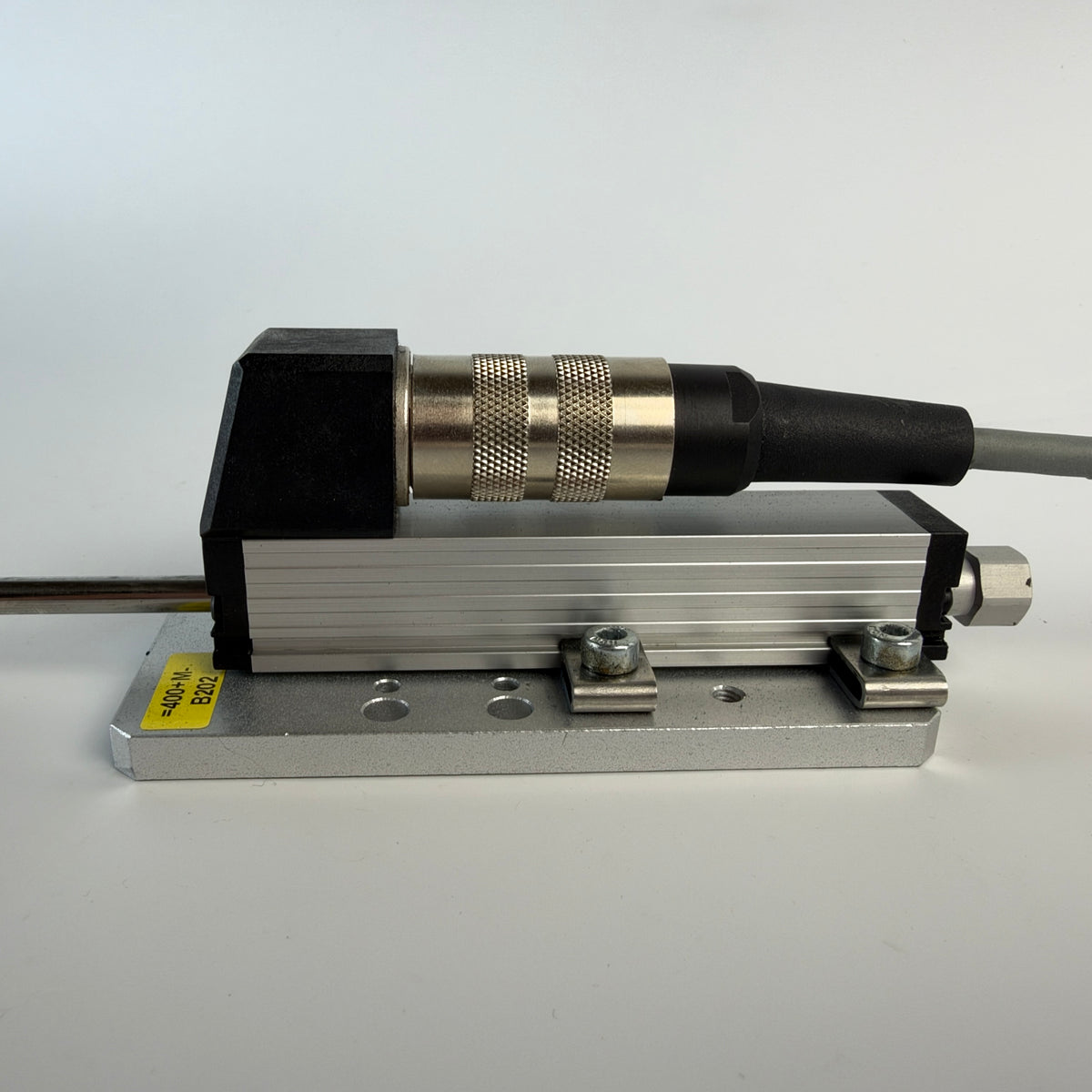

This unit is supplied with its attached metal mounting plate and connection cable featuring a D-Sub connector.

Technical Specifications

• Manufacturer: Novotechnik
• Model: TRS-0050
• Manufacturer Part Number: 023272
• Product Type: Linear Position / Displacement Transducer
• Series: TRS
• Measurement Principle: Potentiometric
• Defined Electrical Measuring Range: 50 mm
• Mechanical Stroke: 55 mm
• Nominal Resistance: 5 kΩ
• Resistance Tolerance: ±20%
• Independent Linearity: ≤ ±0.15% of full scale
• Repeatability: ≤ 0.002 mm
• Maximum Supply Voltage: 42 V DC
• Operating Temperature: -30°C to +100°C
• Protection Rating: IP40
• Sensor Connection: M16 connector
• Country of Manufacture: Germany

Electrical Connection

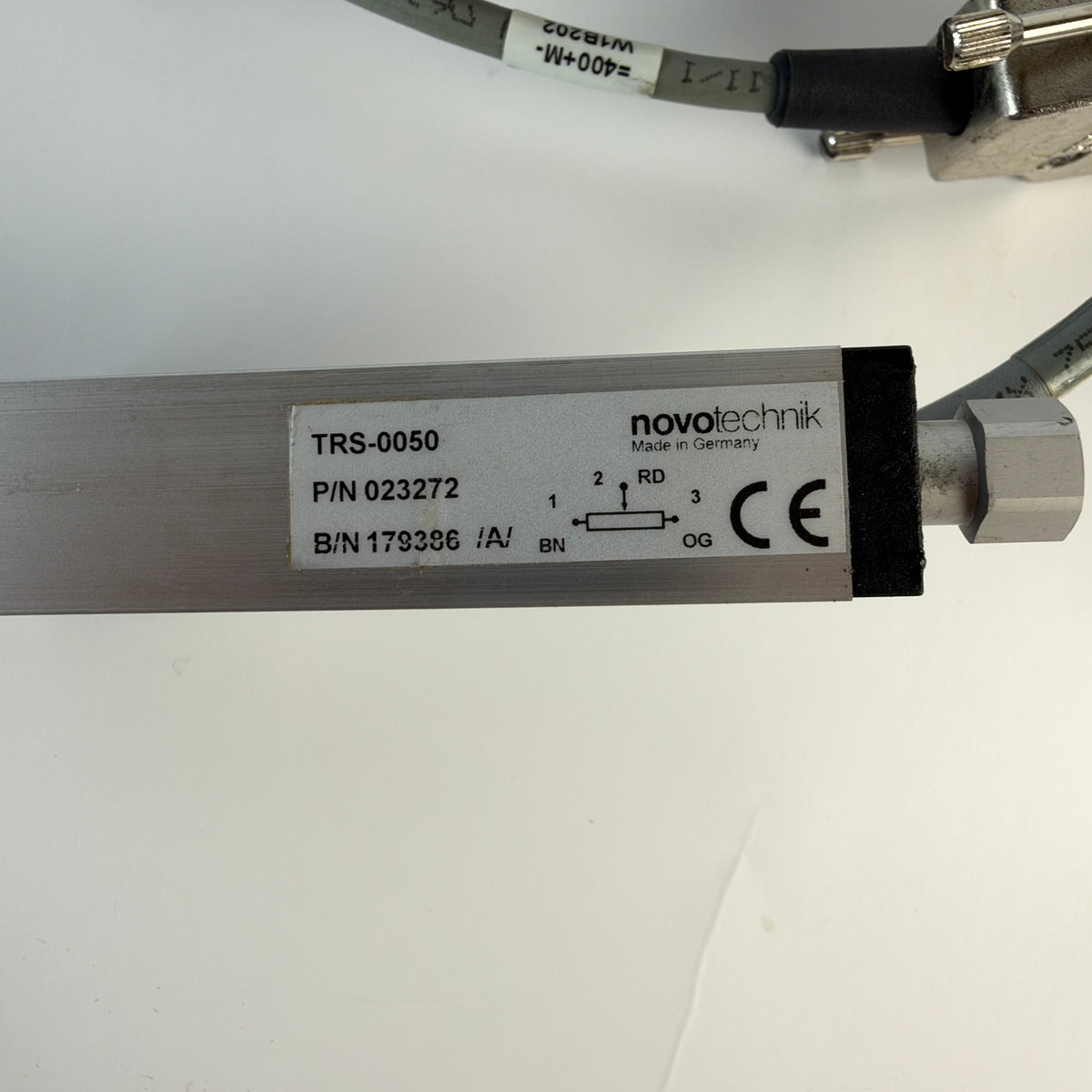

The sensor label identifies the following potentiometer connections:

• Pin 1 (BN): Resistance element terminal
• Pin 2 (RD): Wiper / signal output
• Pin 3 (OG): Resistance element terminal

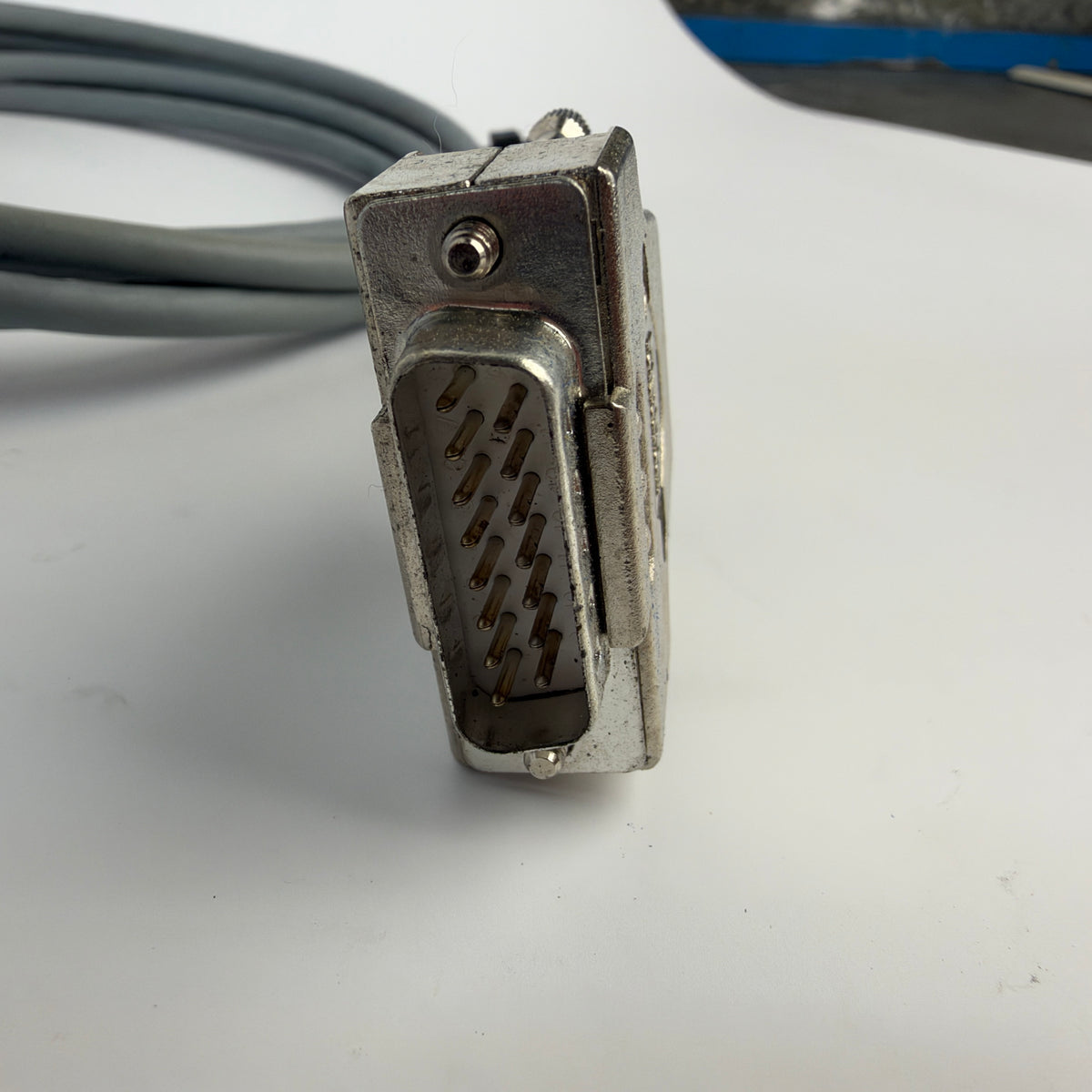

The included connection cable has a D-Sub connector. Its internal wiring and compatibility with specific controllers have not been verified.

Condition

Used, fully functional.

The unit shows signs of previous industrial use. Electrical operation and measurement accuracy have not been independently verified.

Included in Sale

• 1 × Novotechnik TRS-0050 linear position transducer
• Attached metal mounting plate
• Connection cable with D-Sub connector

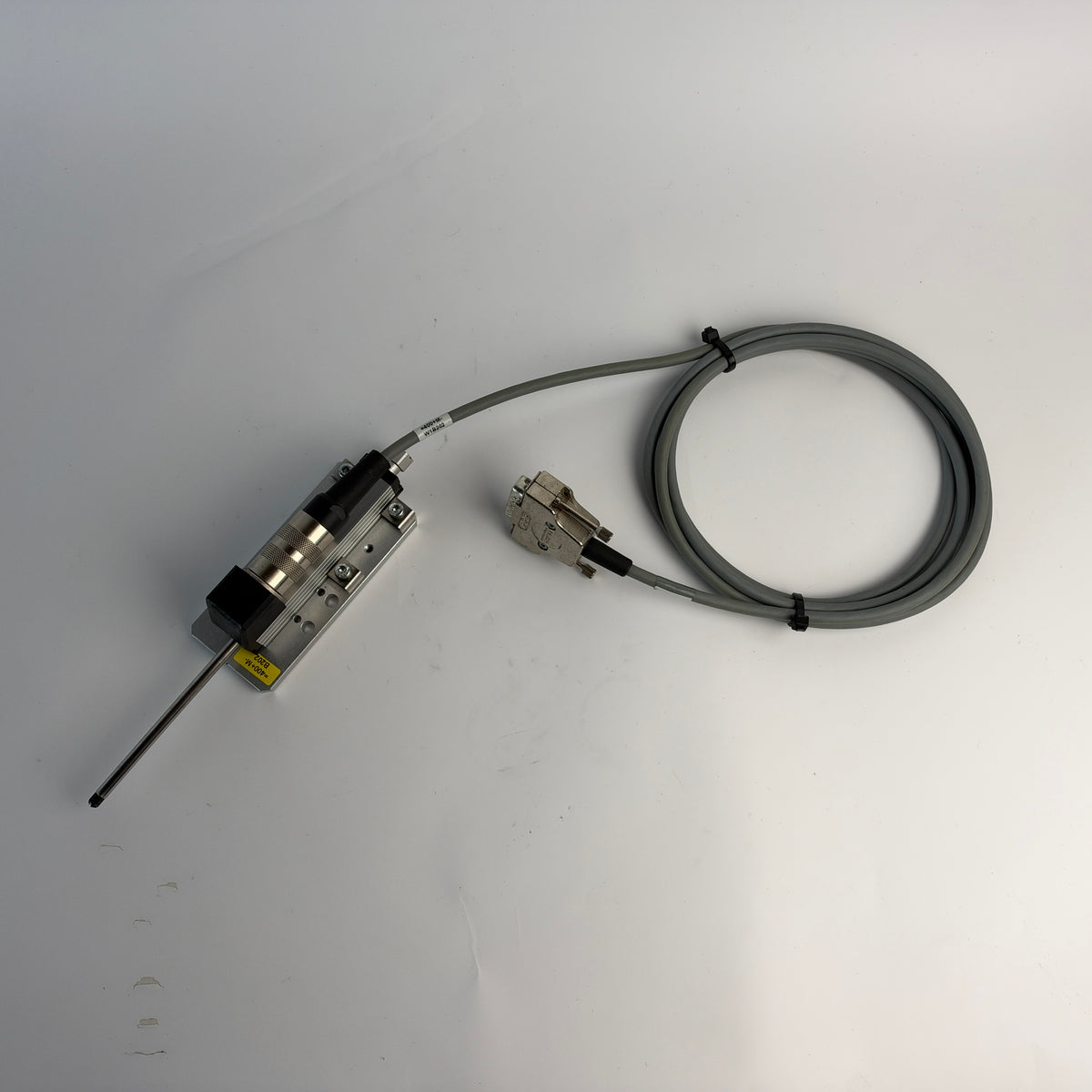

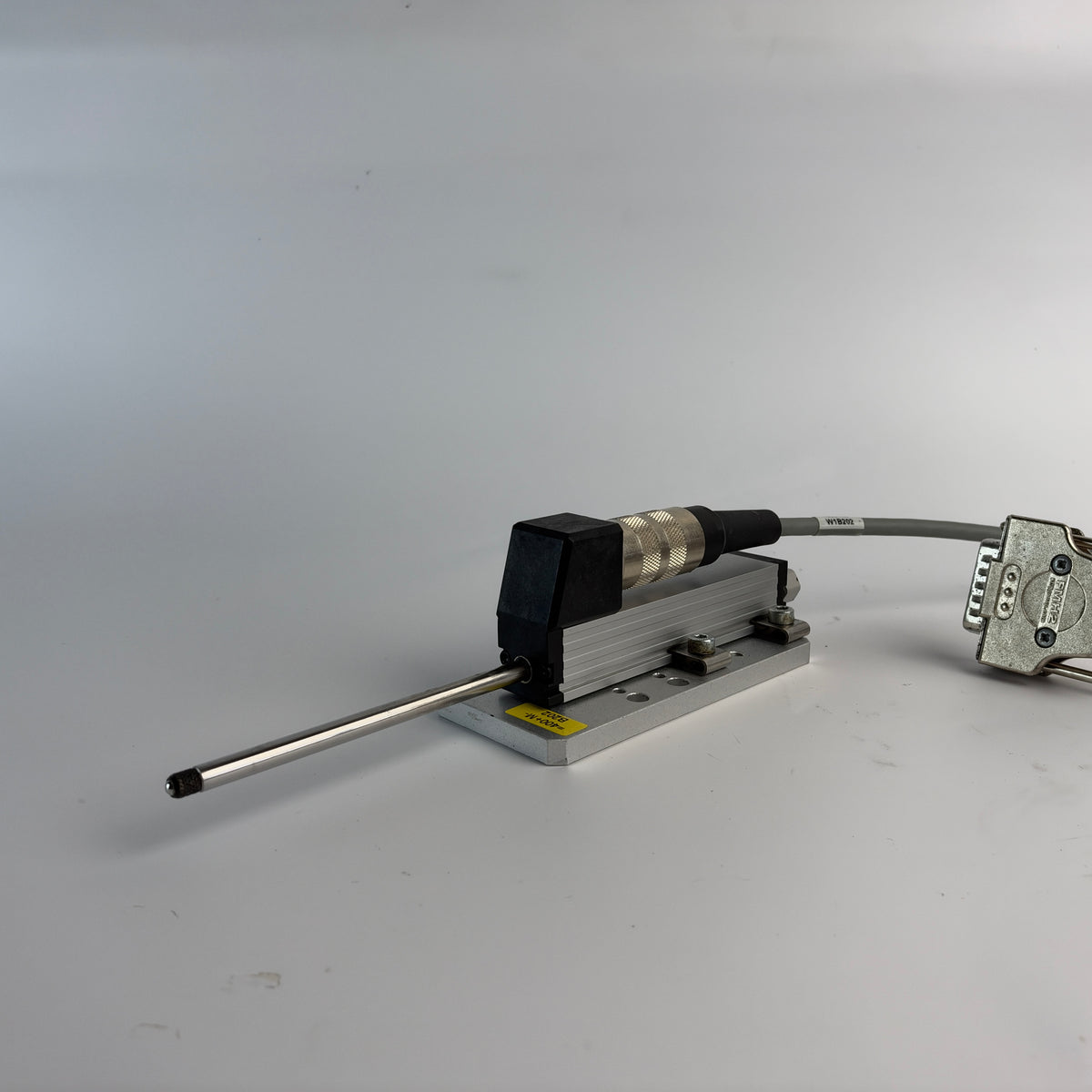

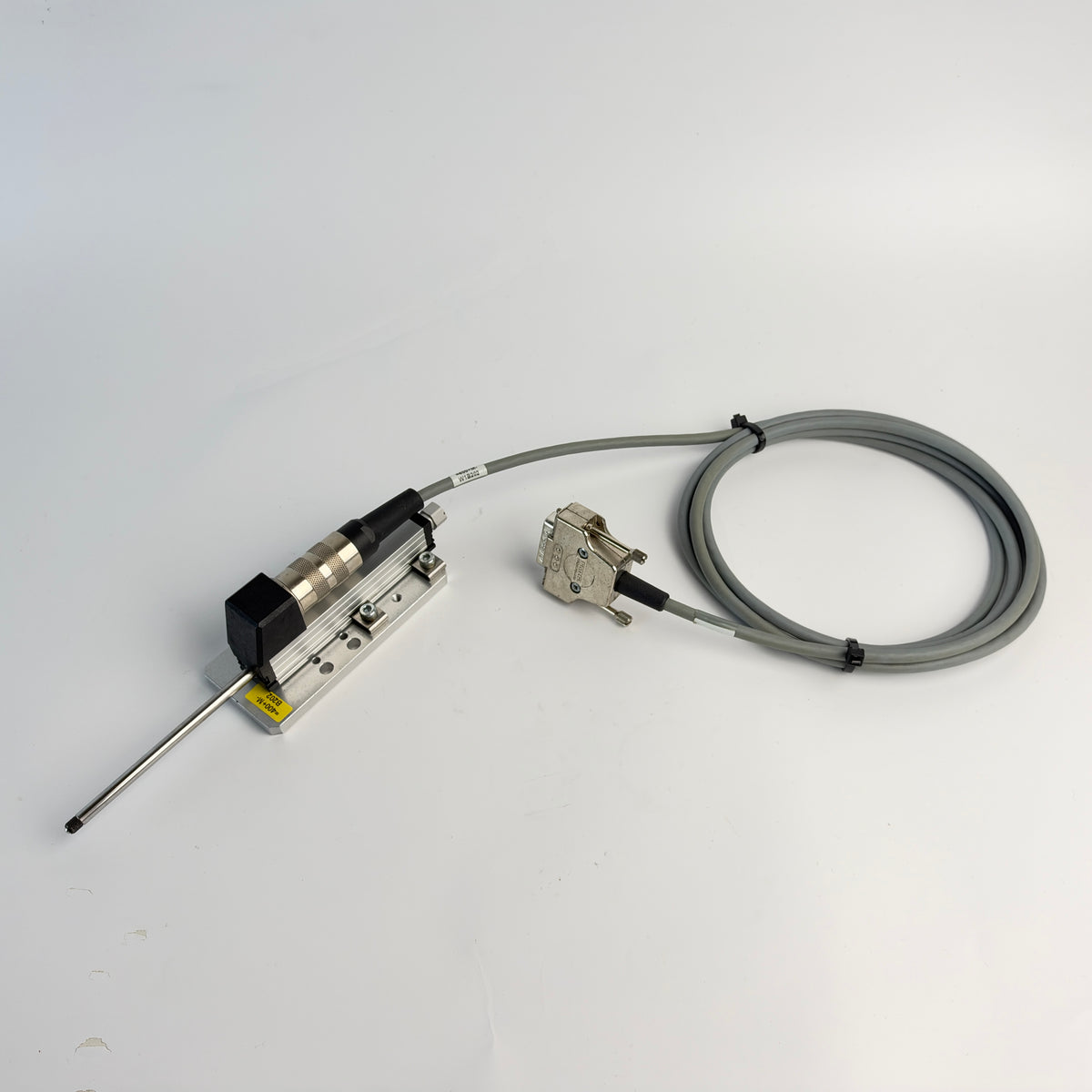

The photographs show the actual item and accessories included in the sale.
