Novotechnik TRS-0075 Linear Position Transducer – P/N 023273

Industrial linear position transducer manufactured by Novotechnik, designed for precise measurement of linear displacement in automation, machinery, and mechanical positioning applications.

The TRS-0075 is a potentiometric displacement sensor that converts linear movement of its spring-loaded measuring rod into a proportional electrical resistance signal.

This unit is supplied with its attached mounting plate and connection cable featuring D-Sub connectors.

Technical Specifications

• Manufacturer: Novotechnik
• Model: TRS-0075
• Manufacturer Part Number: 023273
• Product Type: Linear Position / Displacement Transducer
• Measurement Principle: Potentiometric
• Defined Electrical Measuring Range: 75 mm
• Mechanical Stroke: 80 mm
• Nominal Resistance: 5 kΩ
• Resistance Tolerance: ±20%
• Independent Linearity: ±0.1% of full scale
• Repeatability: 0.002 mm
• Maximum Permissible Applied Voltage: 42 V
• Operating Temperature: -30°C to +100°C
• Protection Rating: IP40
• Sensor Connection: Connector-type TRS version
• Country of Manufacture: Germany

Electrical Connection

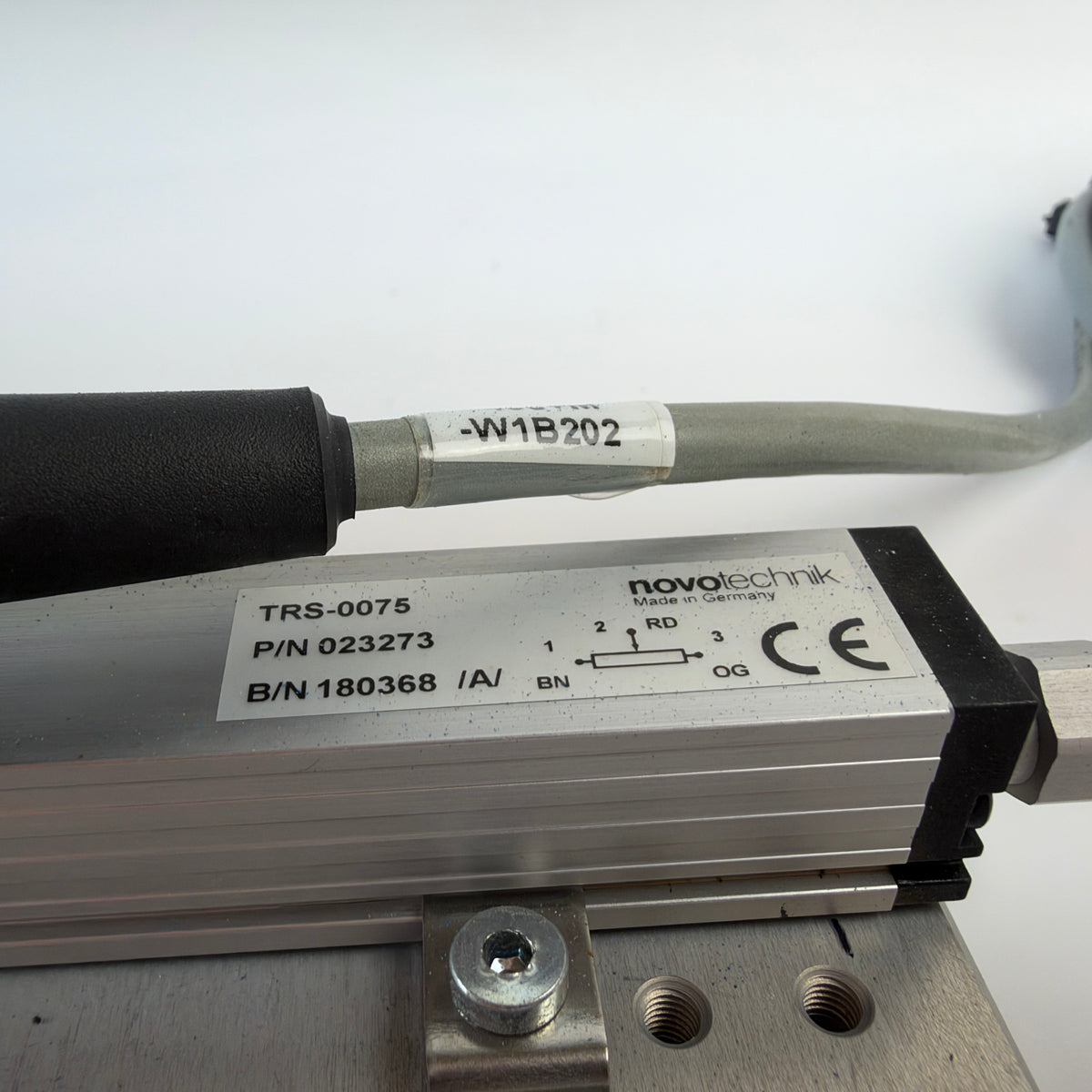

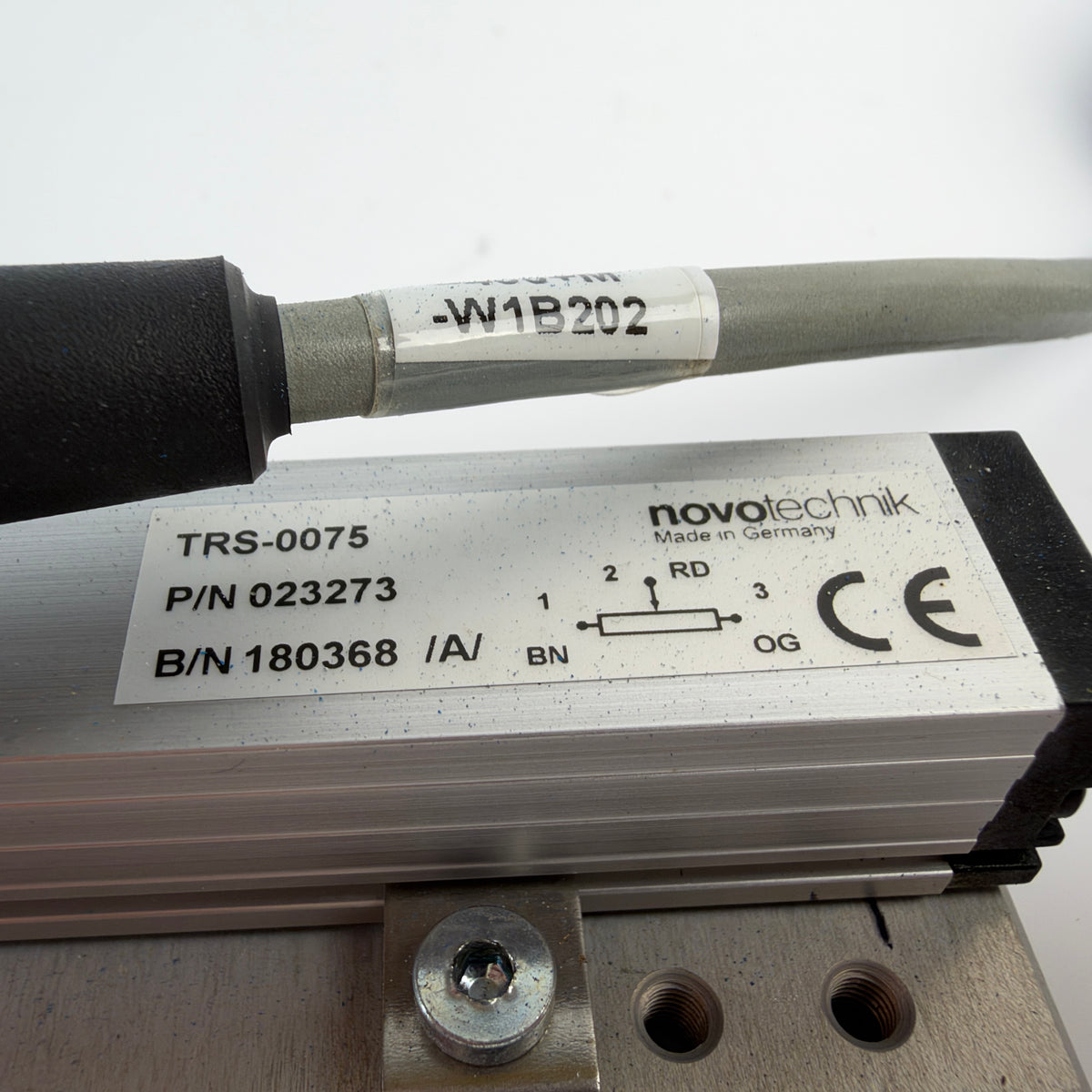

The manufacturer identifies the following potentiometer connections:

• Pin 1 (BN): Resistance element terminal
• Pin 2 (RD): Wiper
• Pin 3 (OG): Resistance element terminal

The supplied cable has D-Sub connectors. Its internal wiring and compatibility with specific control systems have not been verified.

Condition

Used, fully functional.

The item shows normal signs of previous industrial use. Electrical performance and measurement accuracy have not been independently tested.

Included in Sale

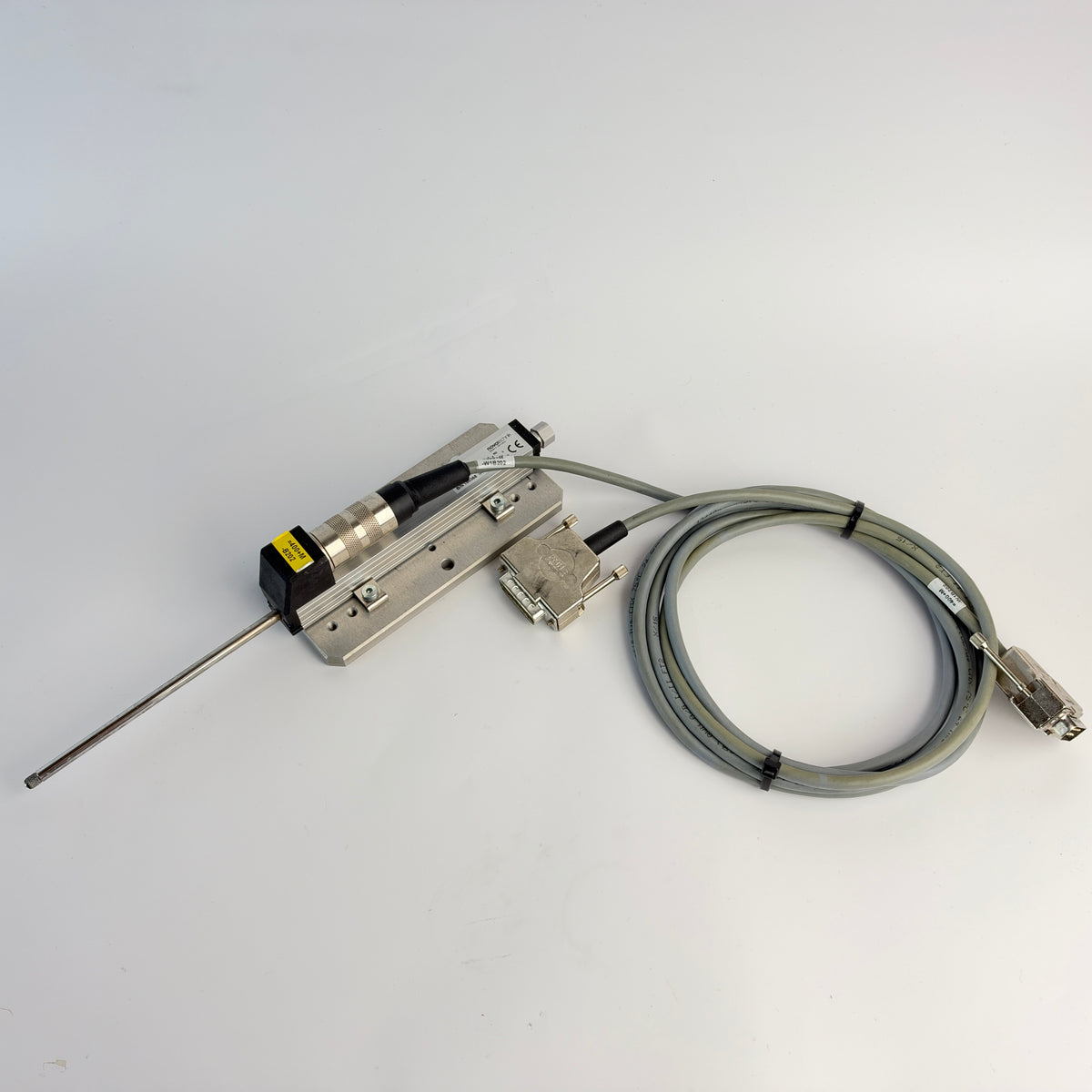

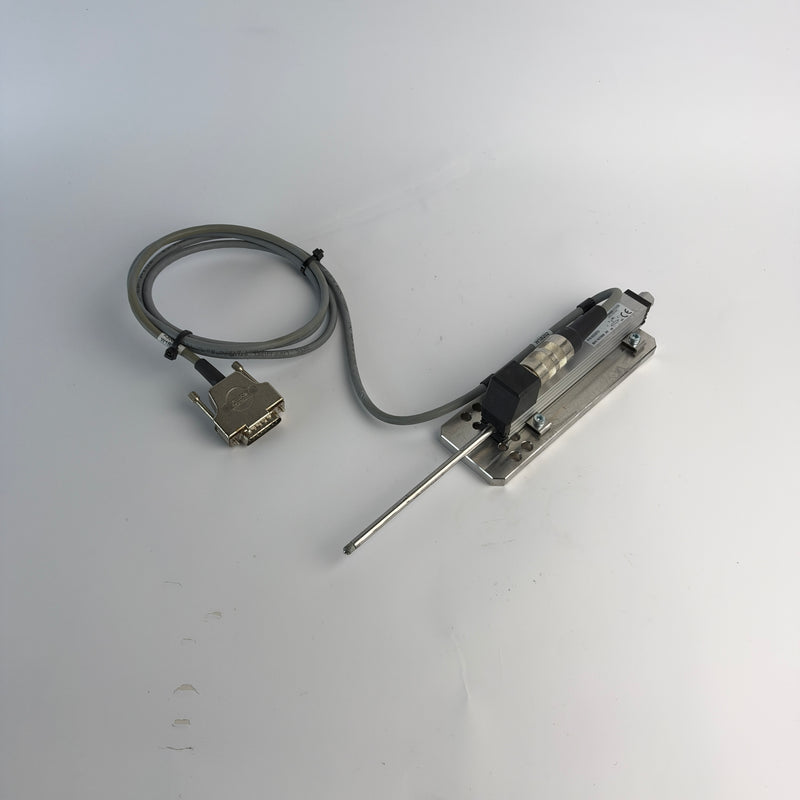

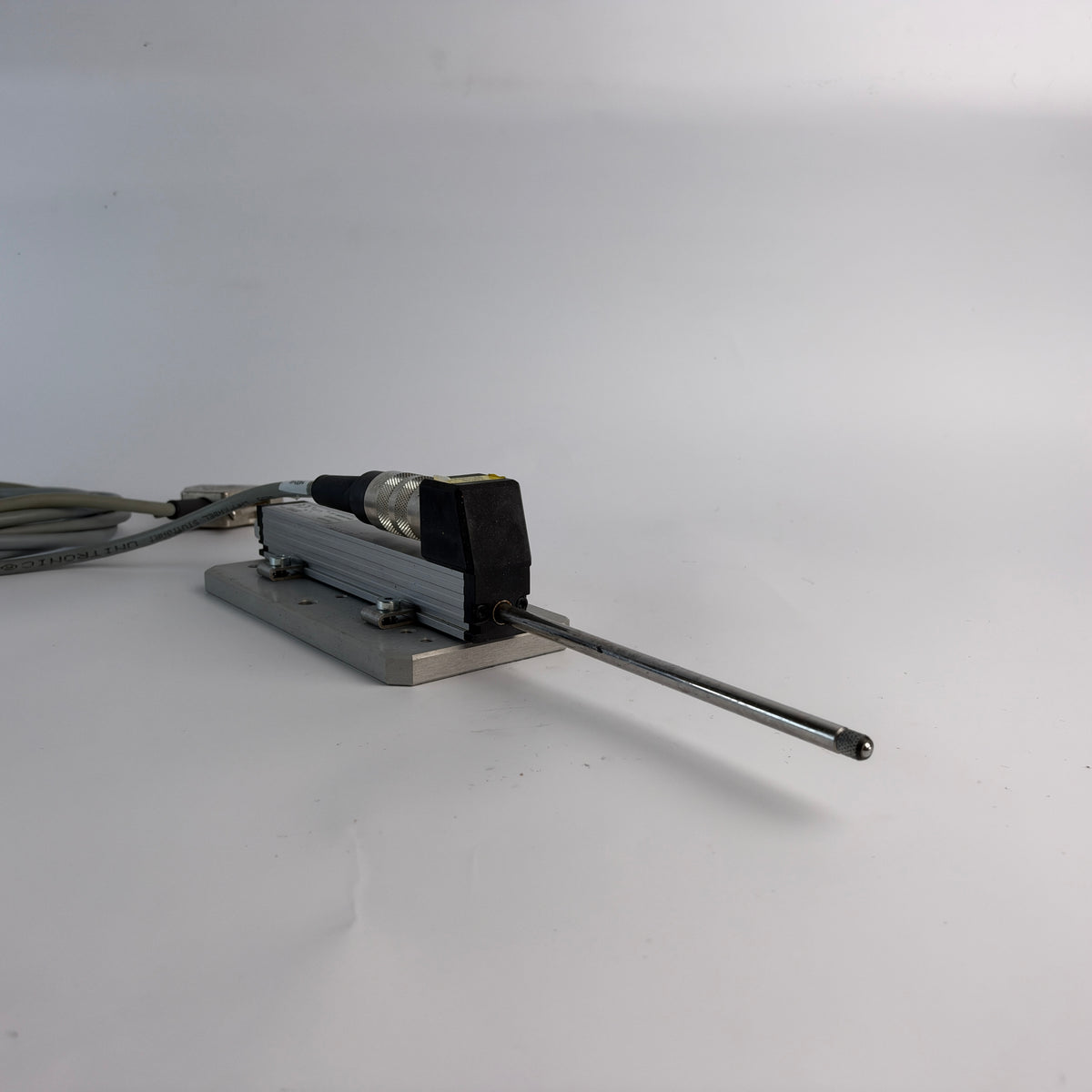

• 1 × Novotechnik TRS-0075 linear position transducer

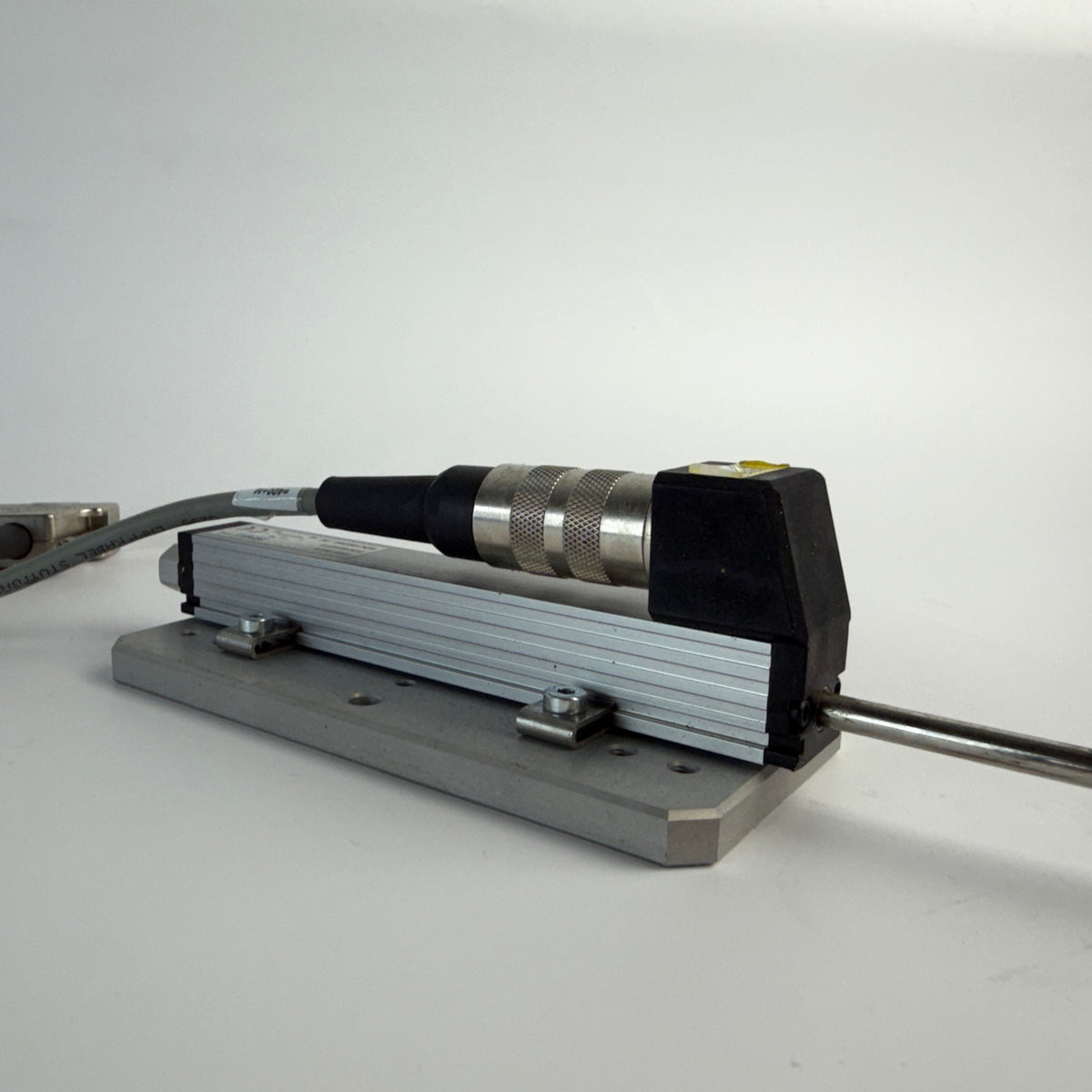

• Attached metal mounting plate

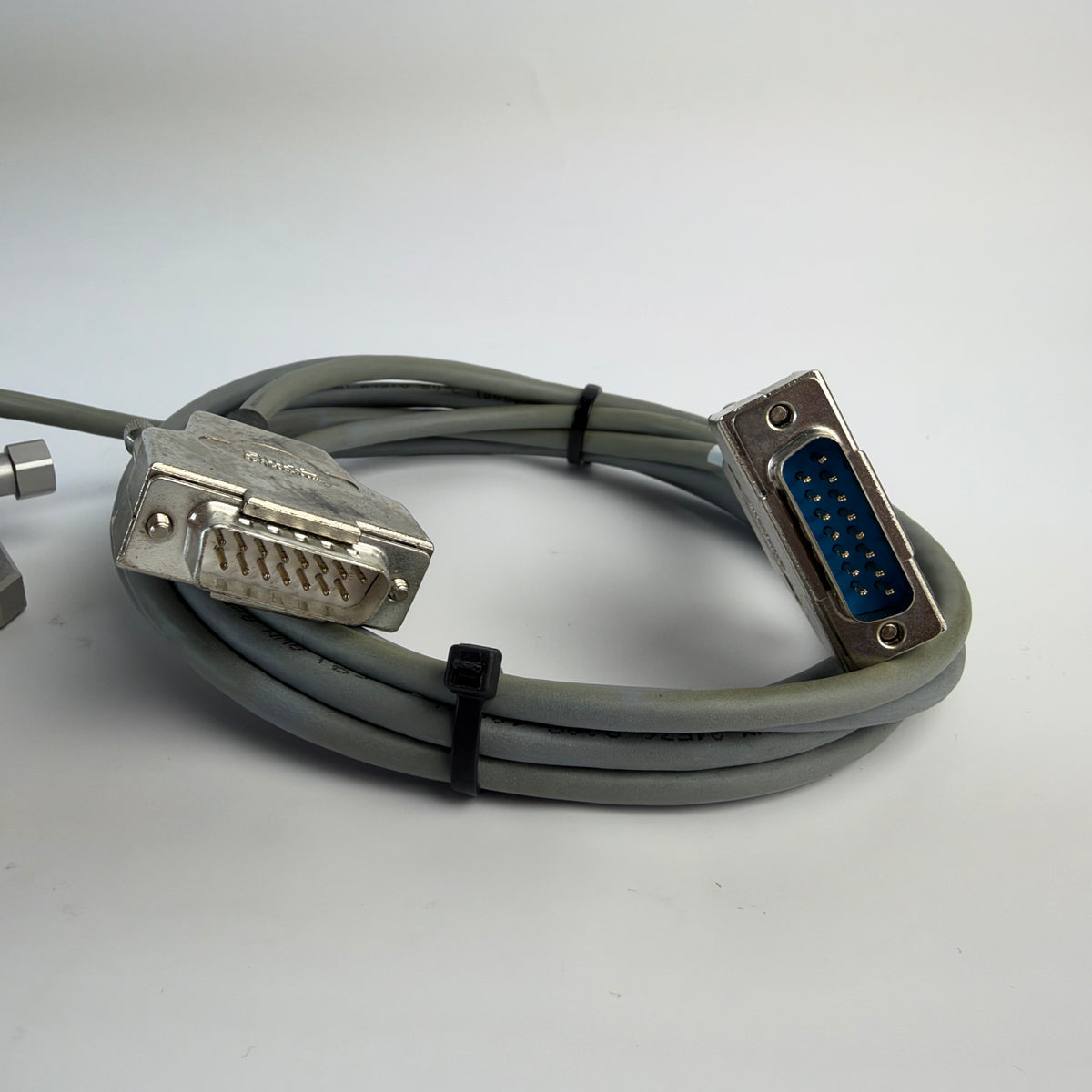

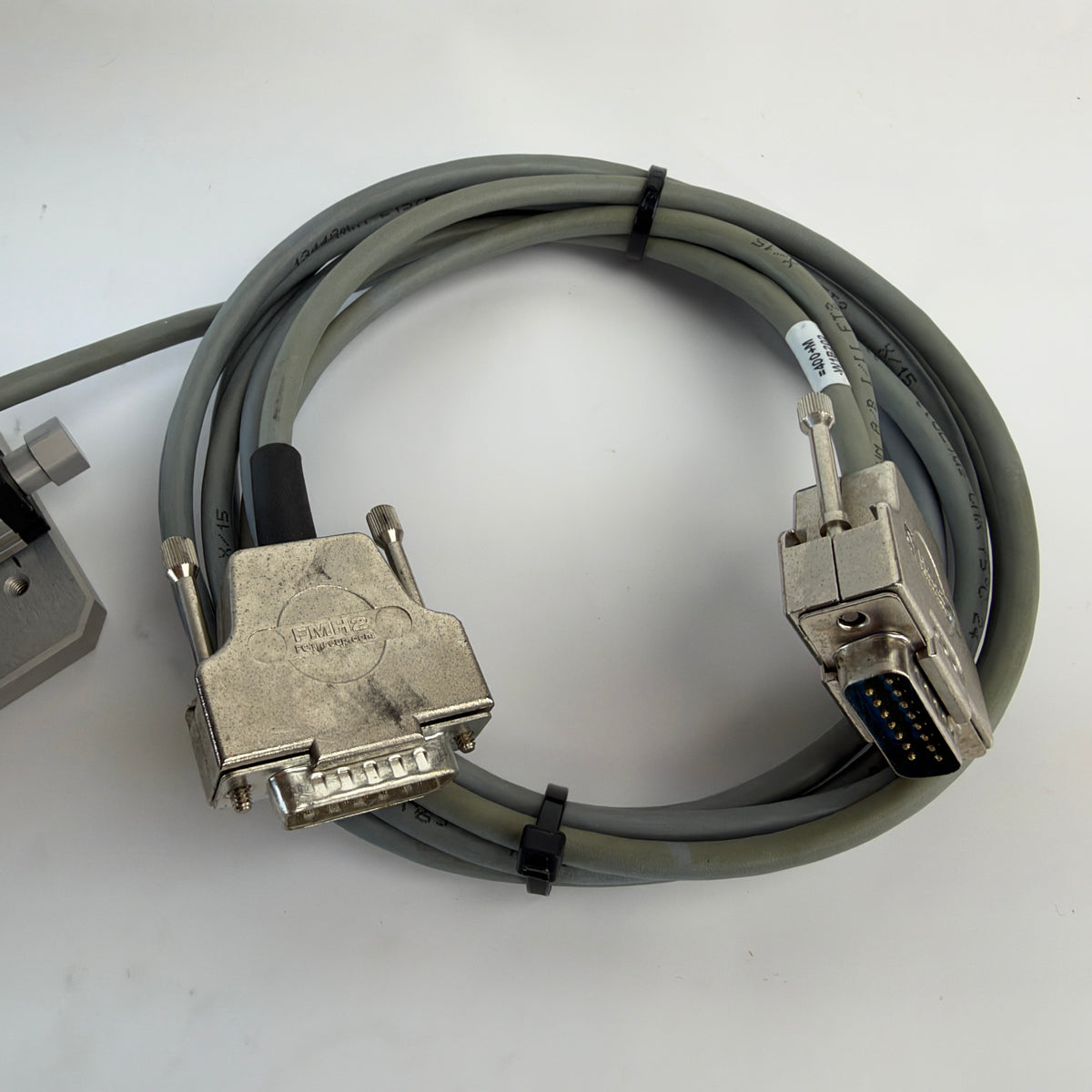

• Connection cable with D-Sub connectors

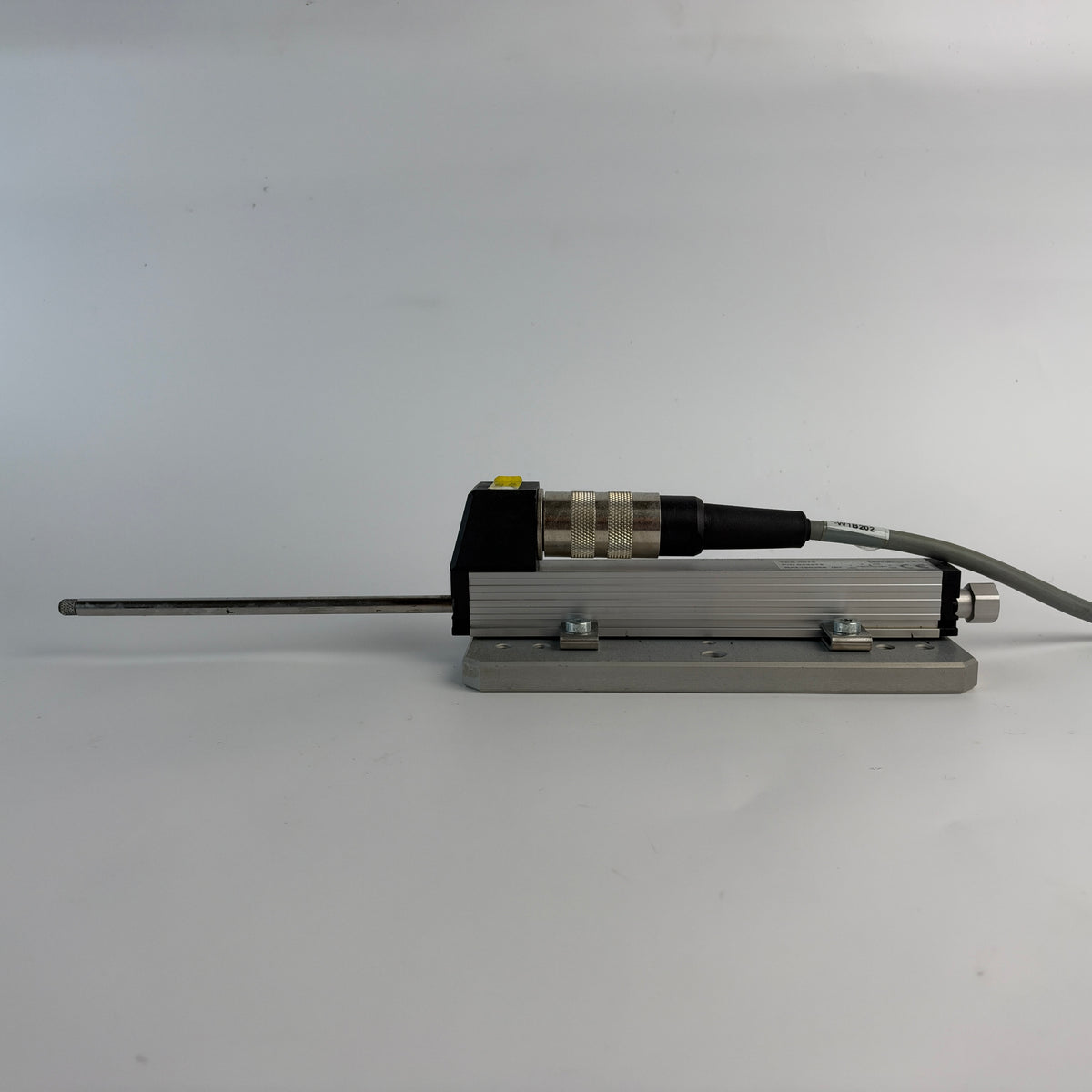

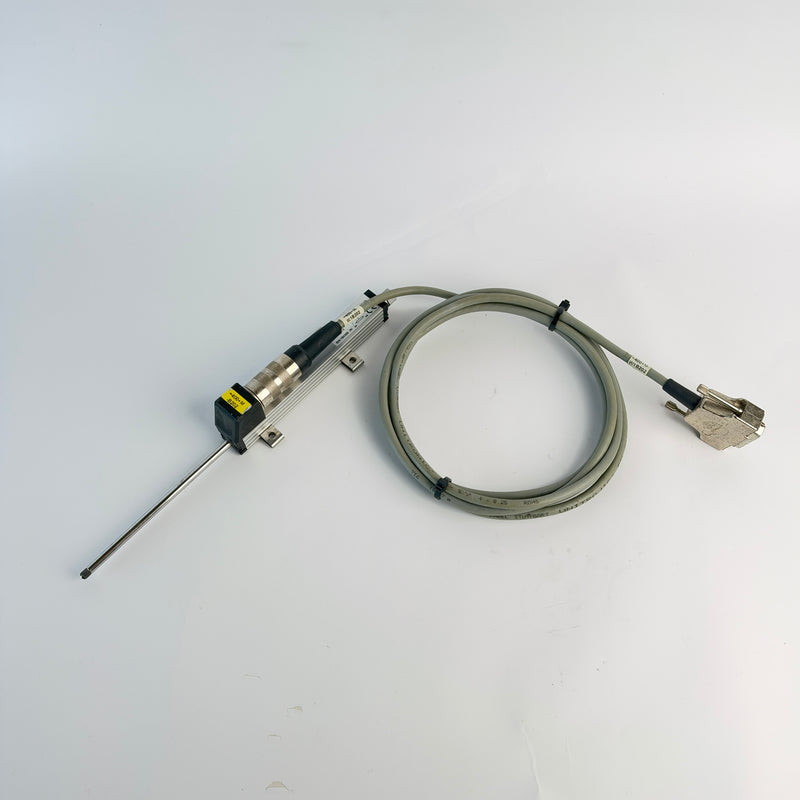

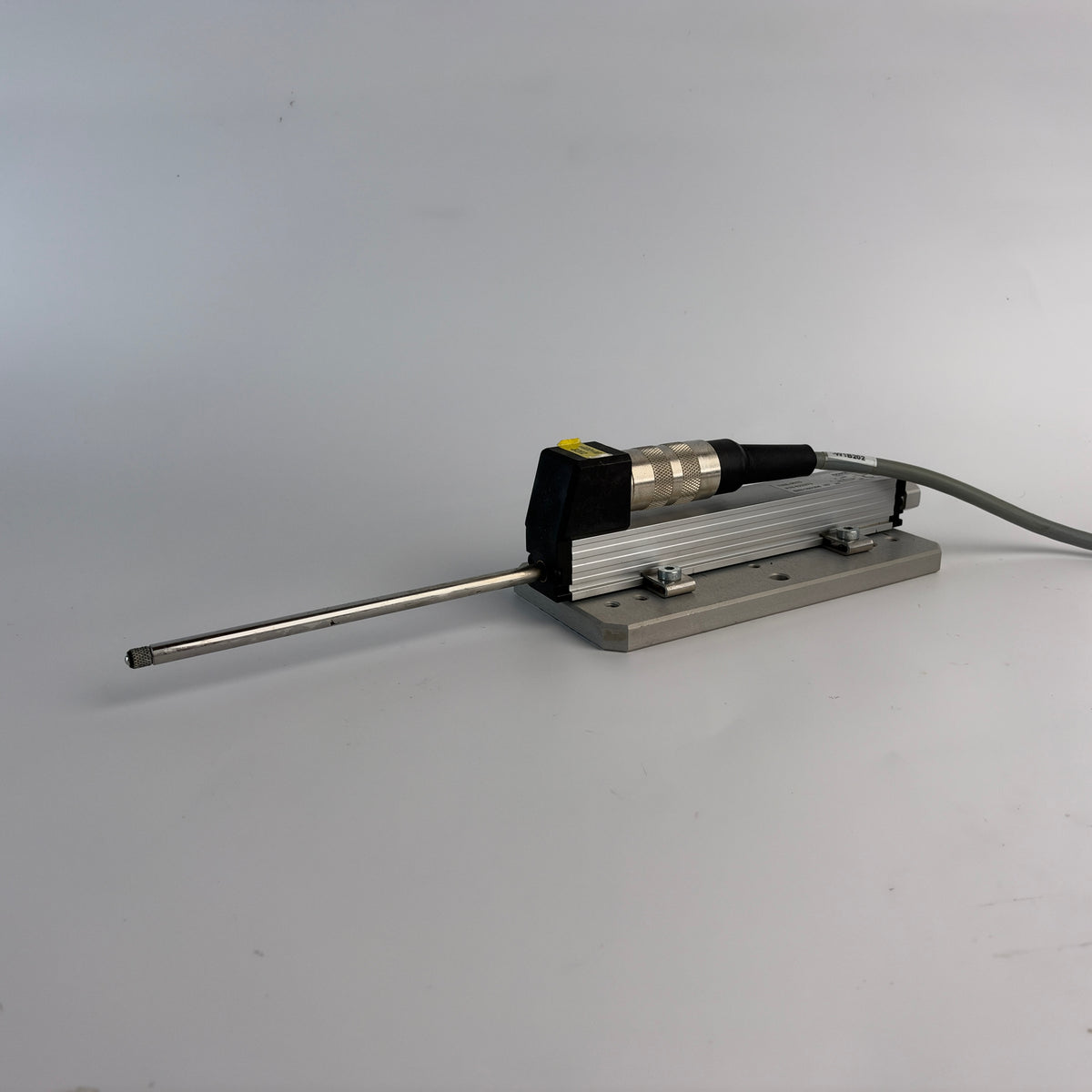

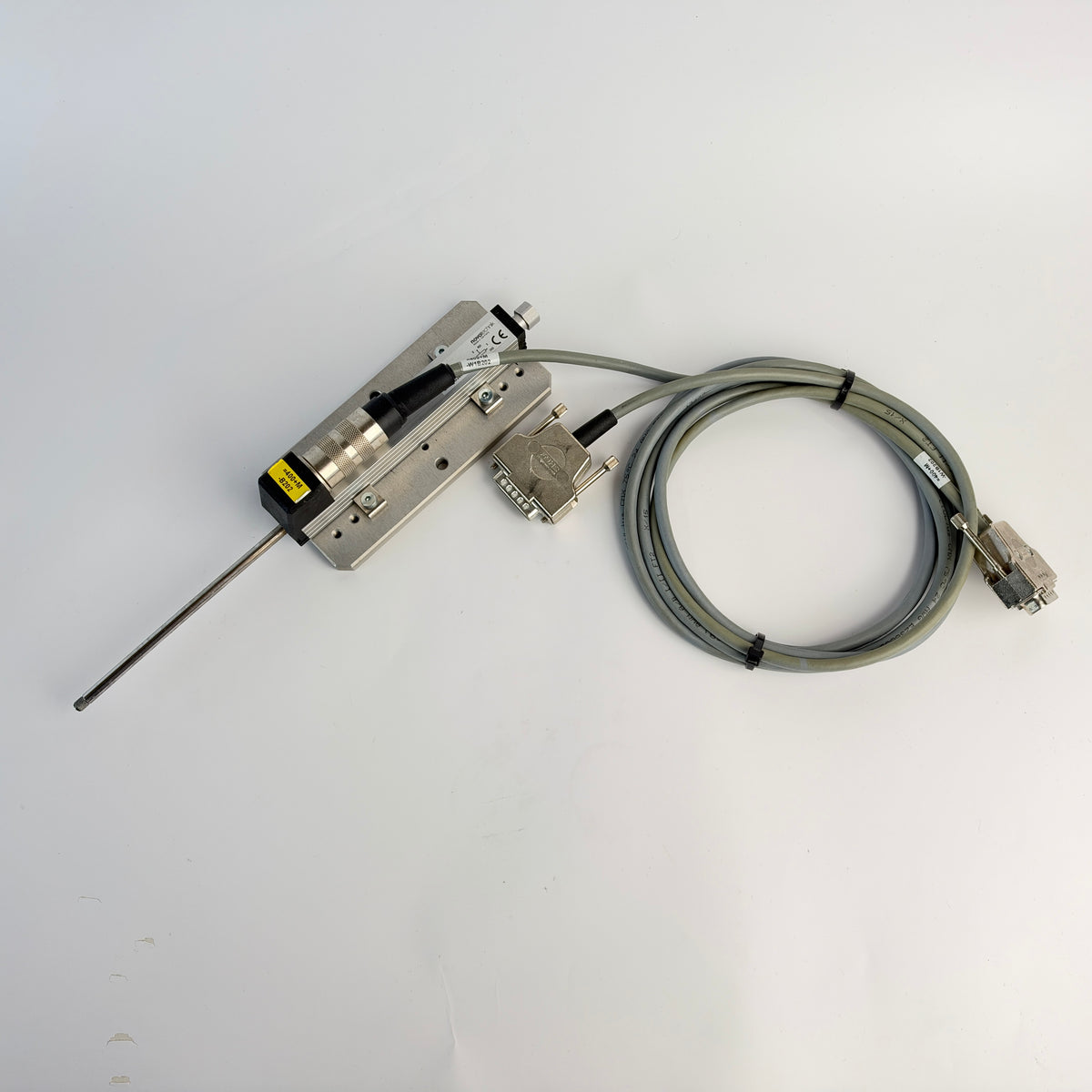

The photographs show the actual item and accessories included in the sale.
