Novotechnik TRS-0075 Linear Position Transducer – P/N 023273

Industrial potentiometric linear position transducer designed for measurement of linear displacement in machinery, automation, positioning, and control applications.

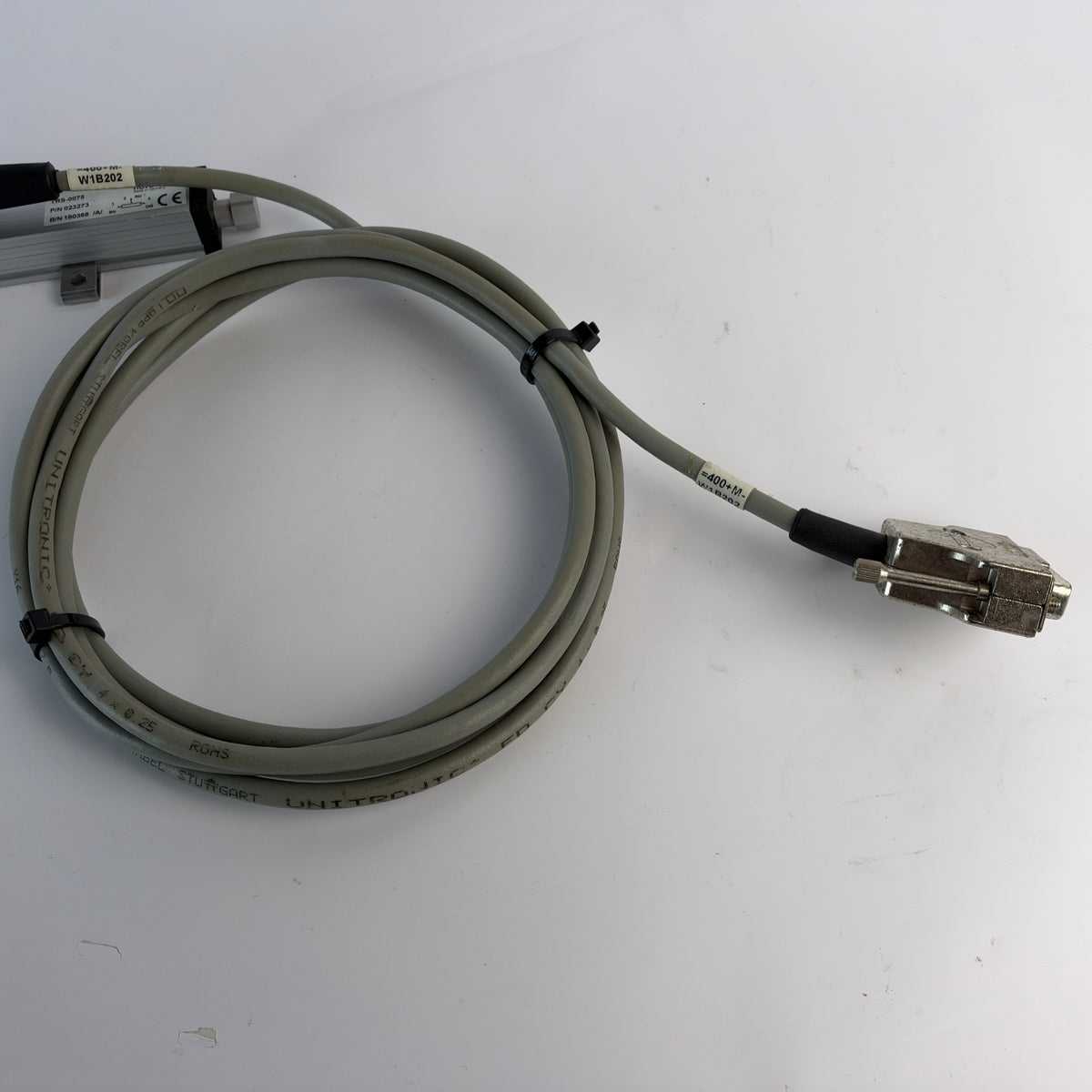

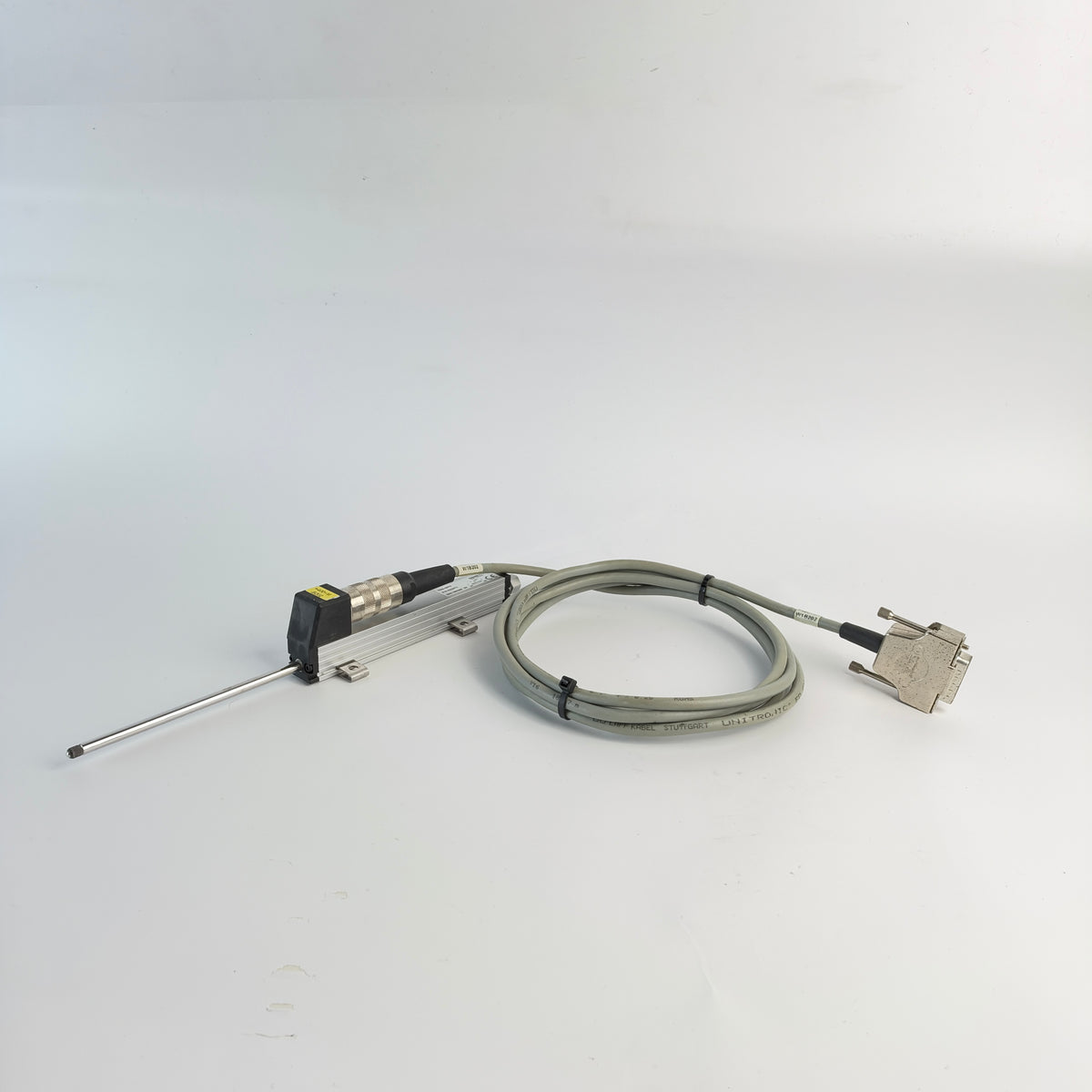

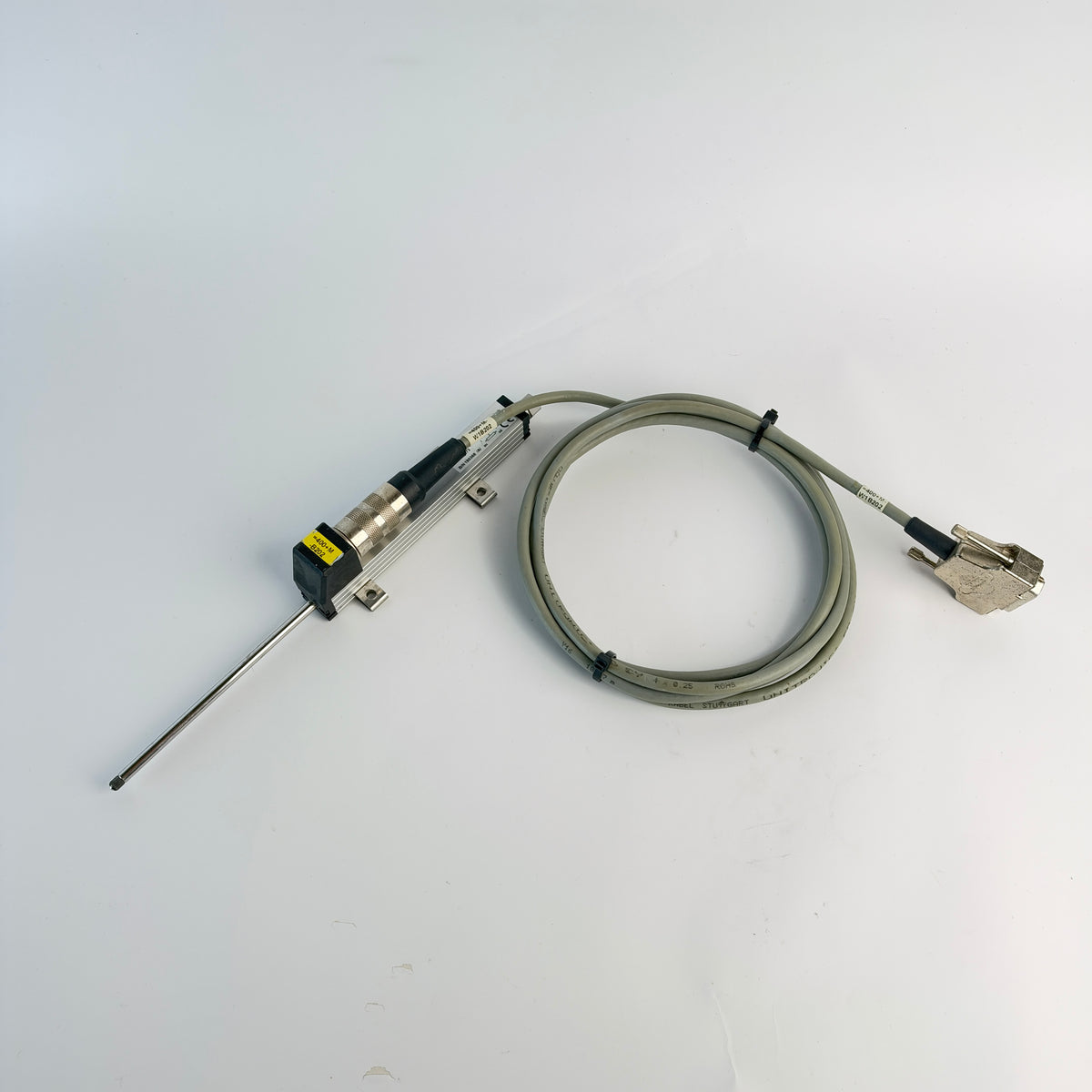

The identification label confirms model TRS-0075, part number 023273, identification B/N 180368 /A/ and Made in Germany. The sensor is supplied with its connection cable and D-Sub connector as shown in the photos.

Technical Details:

• Manufacturer: Novotechnik
• Model: TRS-0075
• Part Number: 023273
• Series: TRS
• Type: Linear position / displacement transducer
• Measurement principle: Potentiometric
• Measuring range: 75 mm
• Electrical stroke: 77 mm
• Nominal resistance: 5 kΩ
• Resistance tolerance: ±20%
• Independent linearity: ≤ ±0.1% FS
• Repeatability: ≤ 0.002 mm
• Sensor connection: M16 circular connector

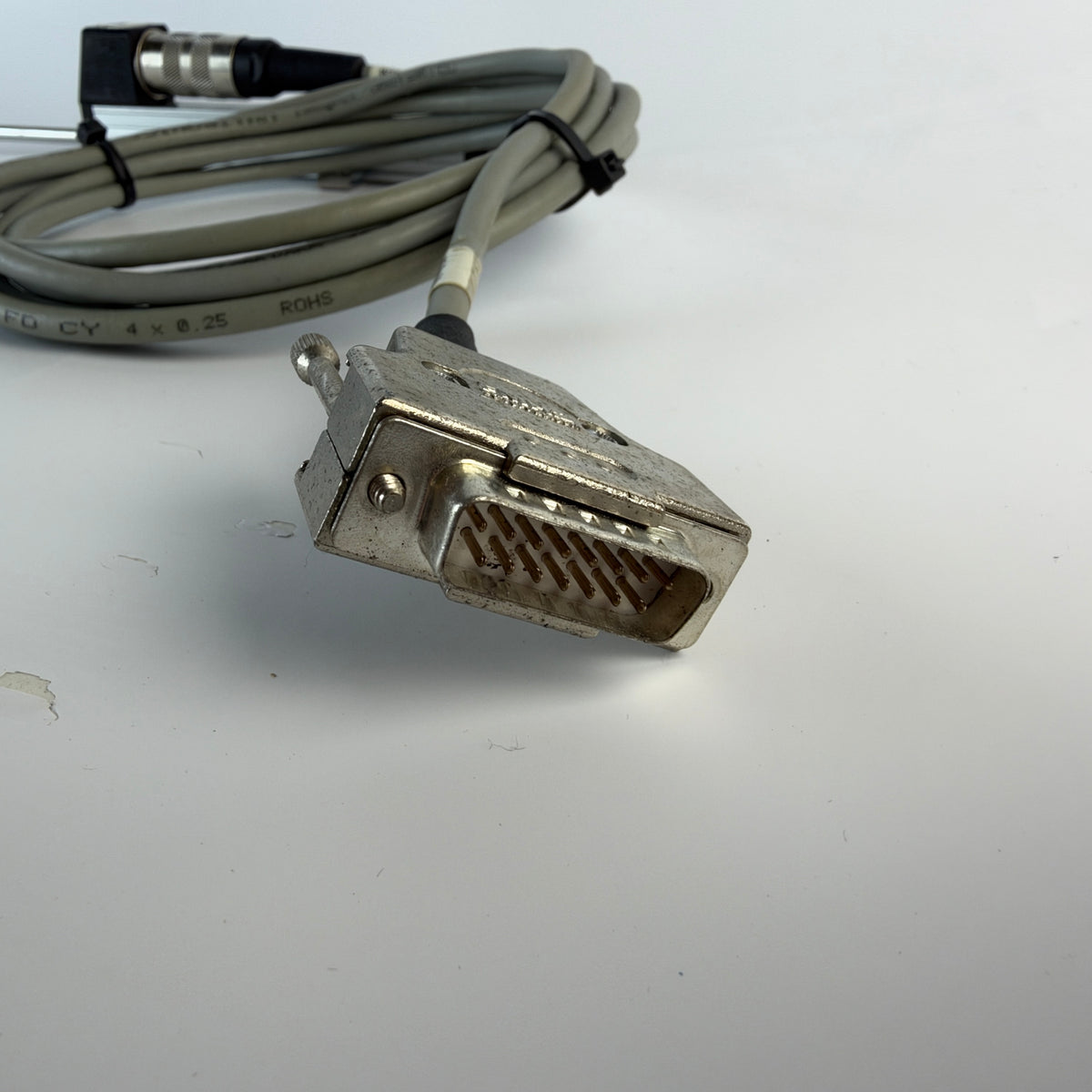

• Cable termination: D-Sub connector
• Label identification: B/N 180368 /A/
• Country of manufacture: Germany

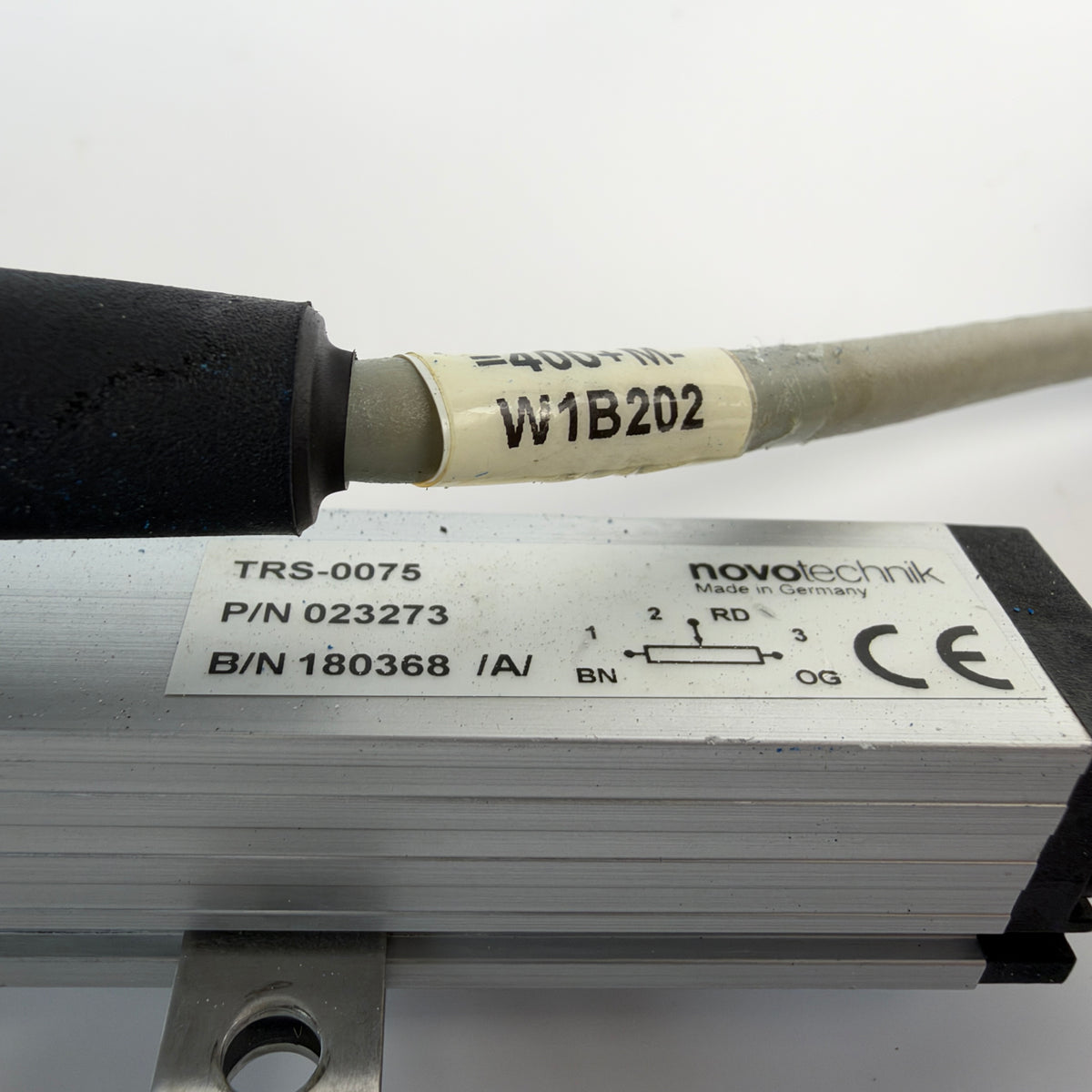

The sensor label shows three potentiometer connections: terminal 1 (BN), terminal 2 (RD/wiper) and terminal 3 (OG).

Condition: Used, fully functional.

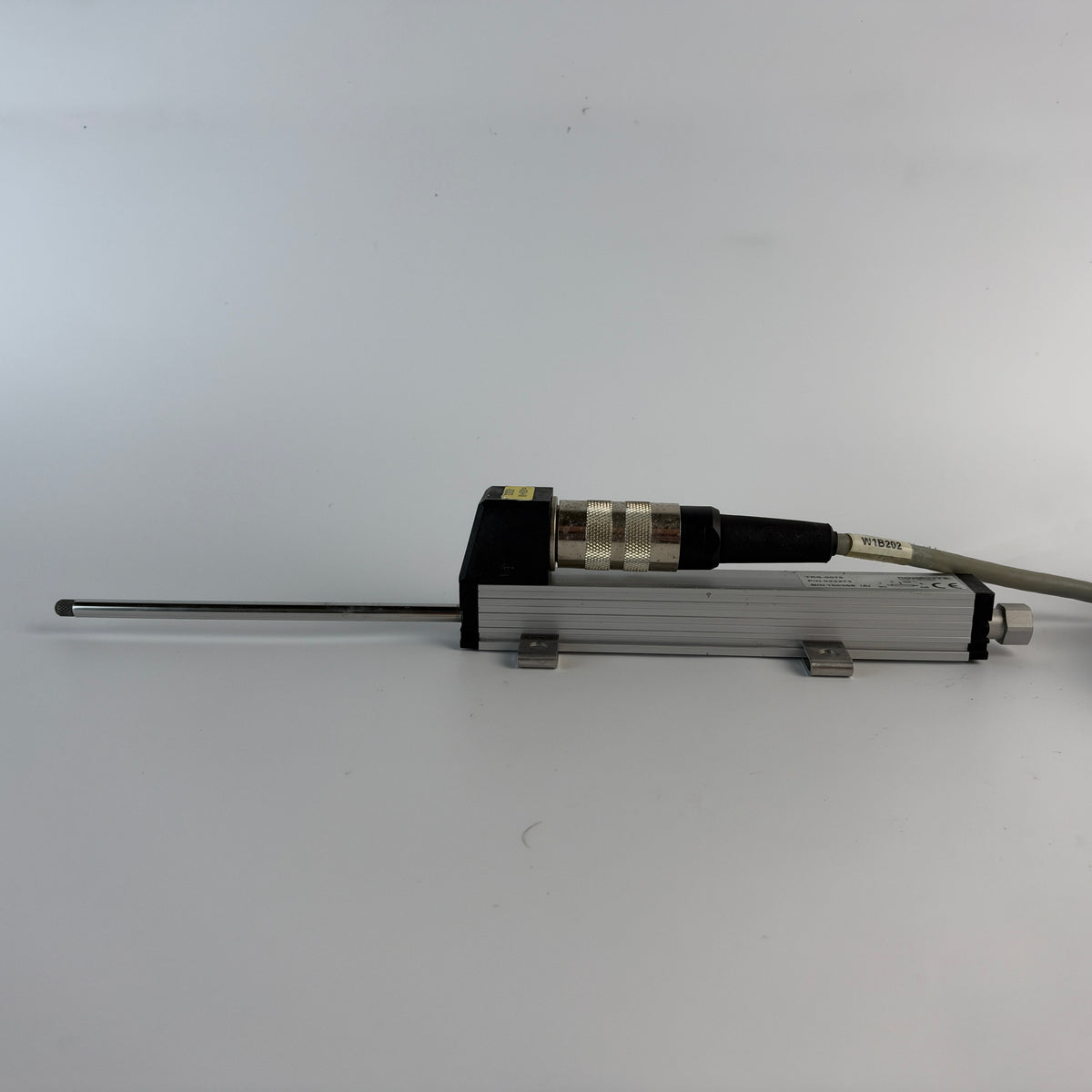

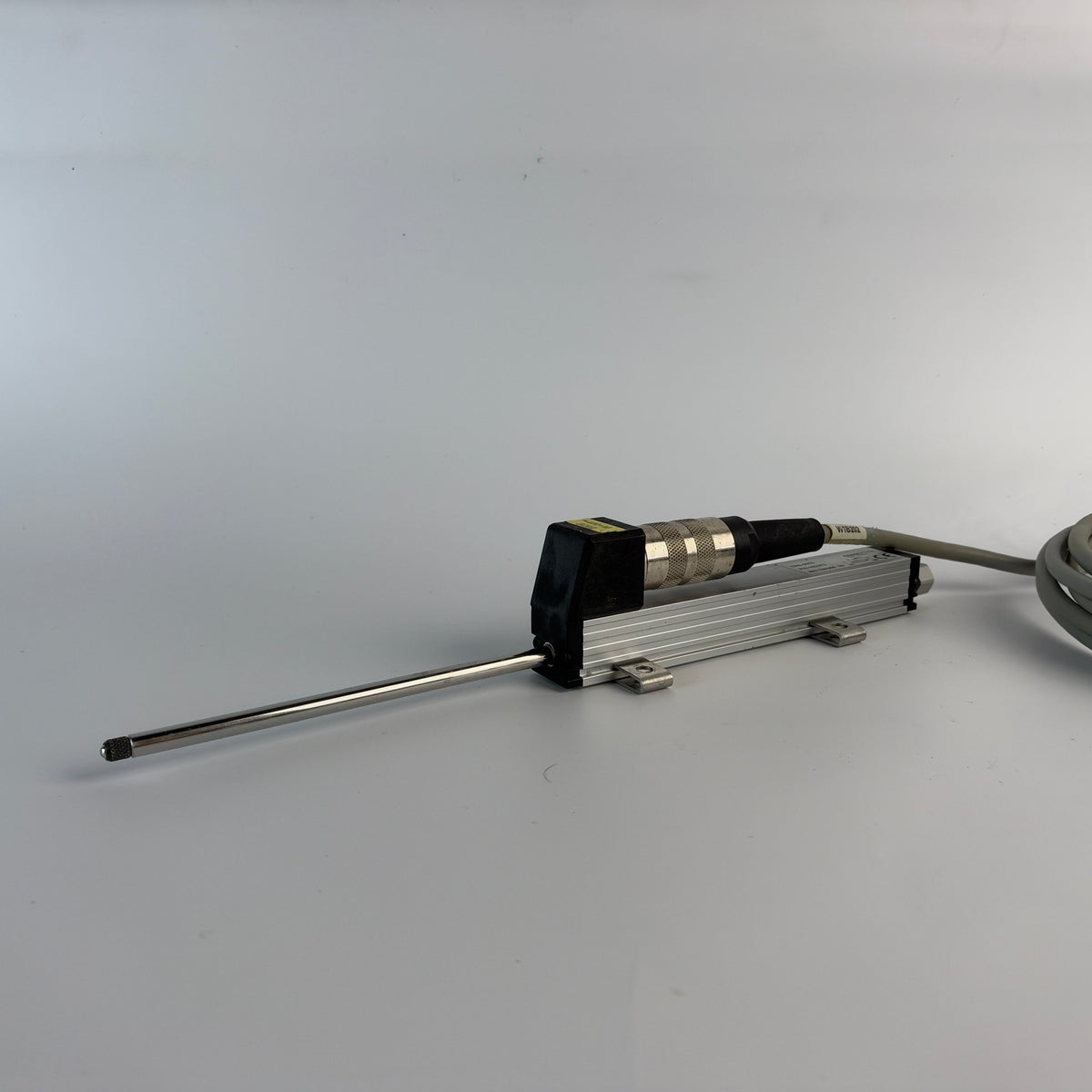

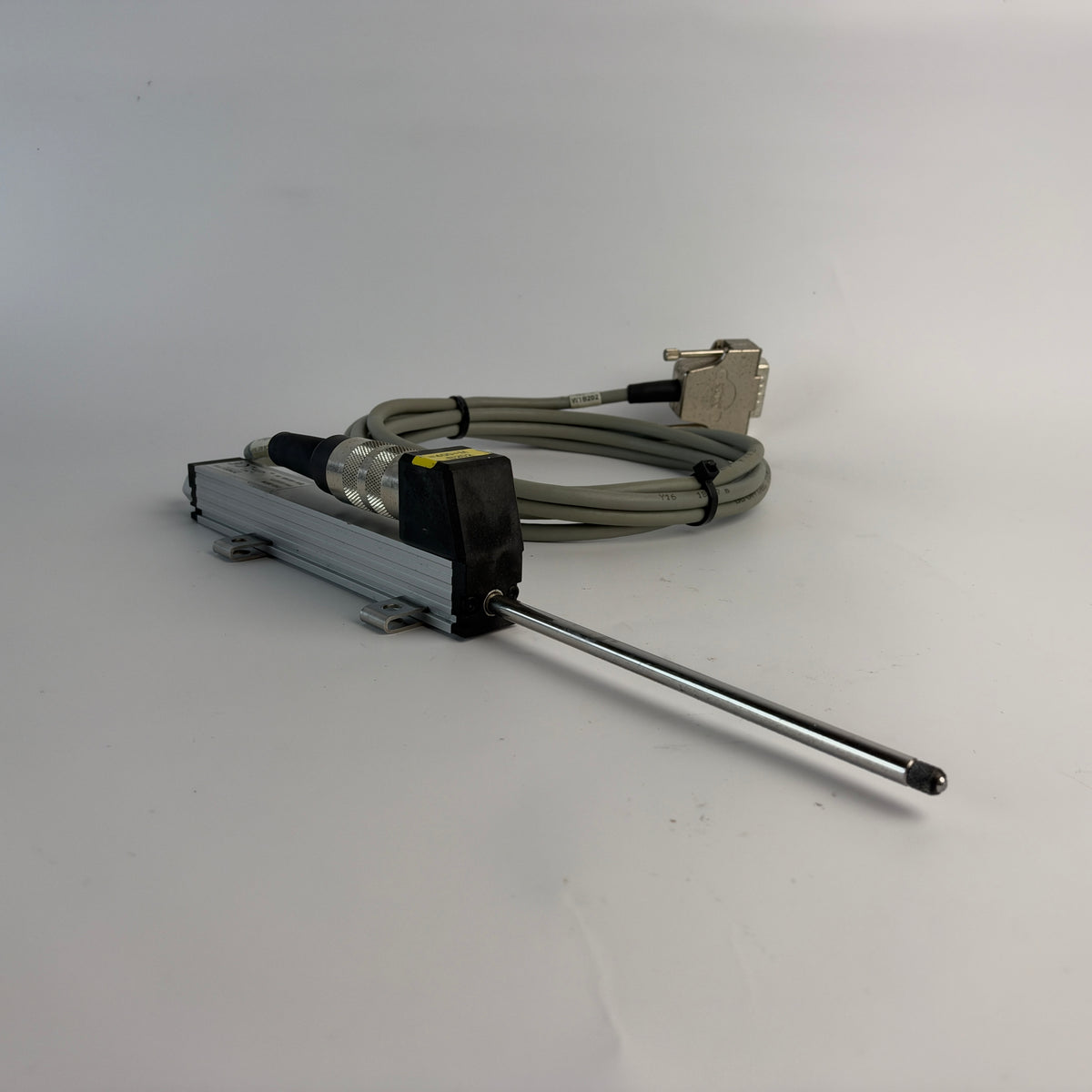

Includes the Novotechnik TRS-0075 transducer, mounting hardware attached to the sensor body, and connection cable shown in the photographs.
