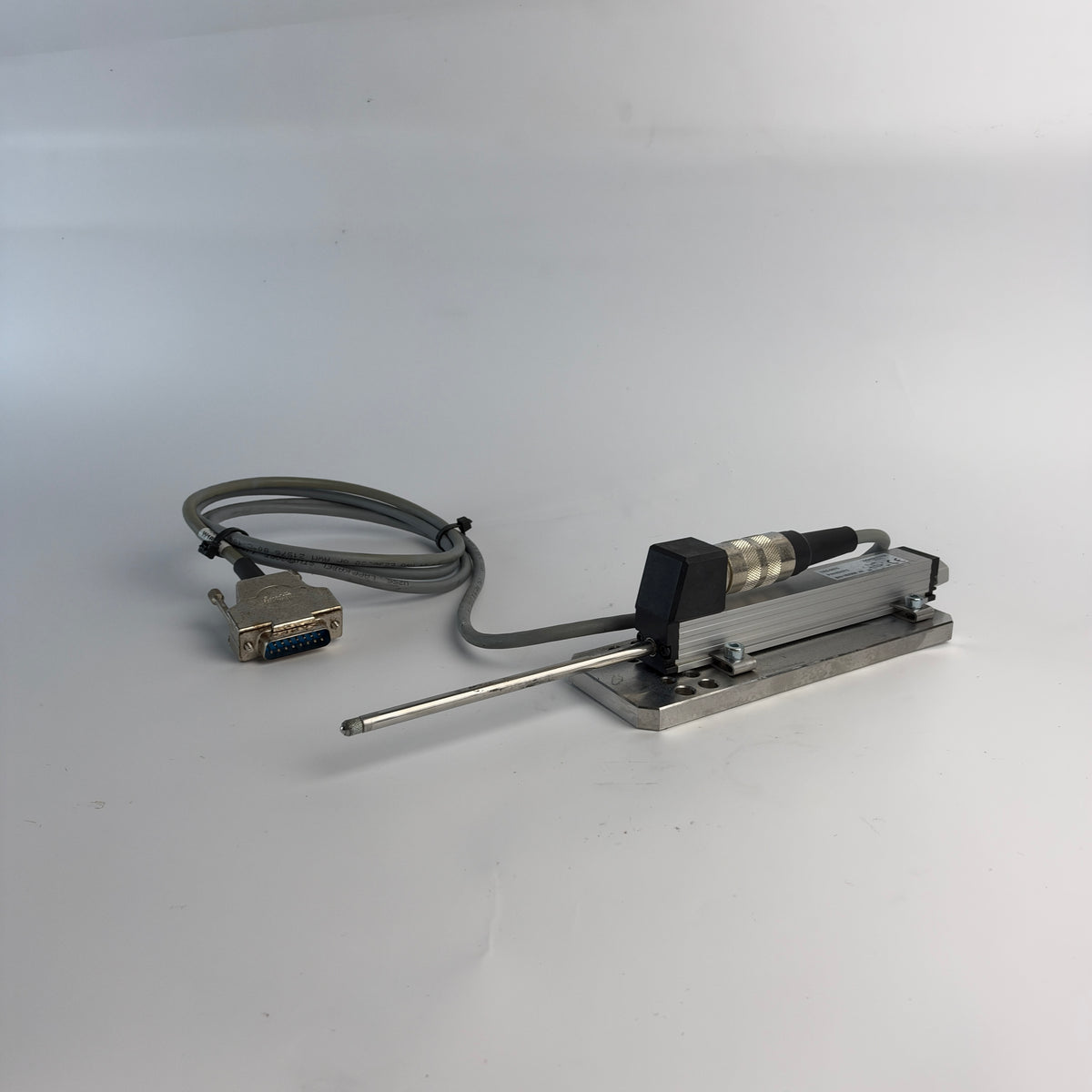

Novotechnik TRS-0075 Linear Position Transducer – P/N 023273

The Novotechnik TRS-0075 is an industrial potentiometric linear position transducer designed for precise measurement of linear displacement in machinery, automation systems, and industrial positioning applications.

This sensor features a spring-loaded measuring rod and a potentiometric sensing element that provides an electrical signal proportional to the measured position.

The unit is supplied with its attached metal mounting plate and connection cable with a D-Sub connector.

Technical Specifications

• Manufacturer: Novotechnik
• Model: TRS-0075
• Manufacturer Part Number: 023273
• Identification Marking: B/N 167008 /A/
• Series: TRS
• Product Type: Linear Position / Displacement Transducer
• Measurement Principle: Potentiometric
• Defined Electrical Measuring Range: 75 mm
• Electrical Stroke: 77 mm
• Nominal Resistance: 5 kΩ
• Resistance Tolerance: ±20%
• Independent Linearity: ≤ ±0.1% of full scale
• Repeatability: ≤ 0.002 mm
• Sensor Connection: M16 circular connector
• Cable Connector: D-Sub 15-pin male
• Country of Manufacture: Germany

Electrical Connection

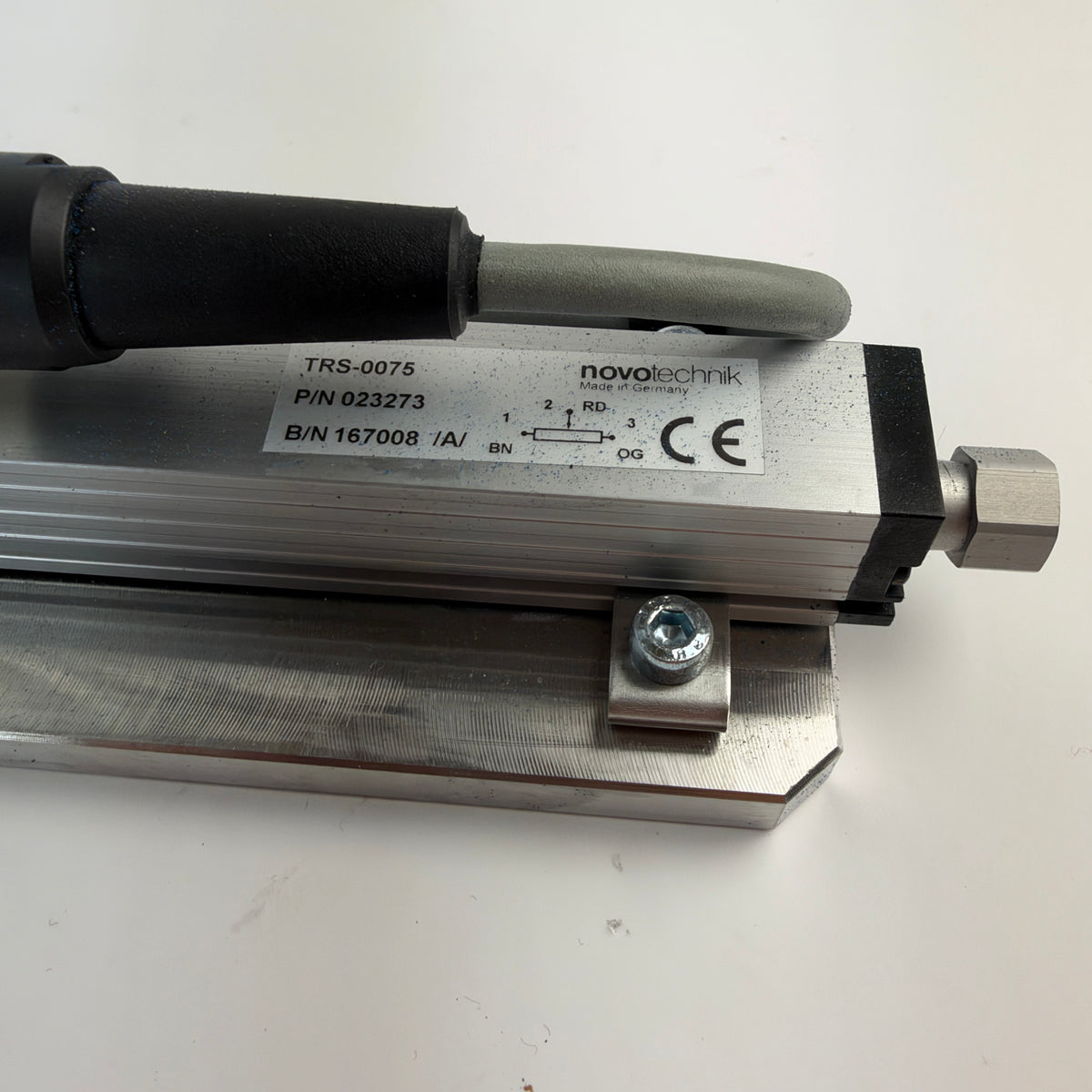

The sensor label identifies the following potentiometer terminals:

• Pin 1 (BN): Resistance element terminal
• Pin 2 (RD): Wiper / position signal
• Pin 3 (OG): Resistance element terminal

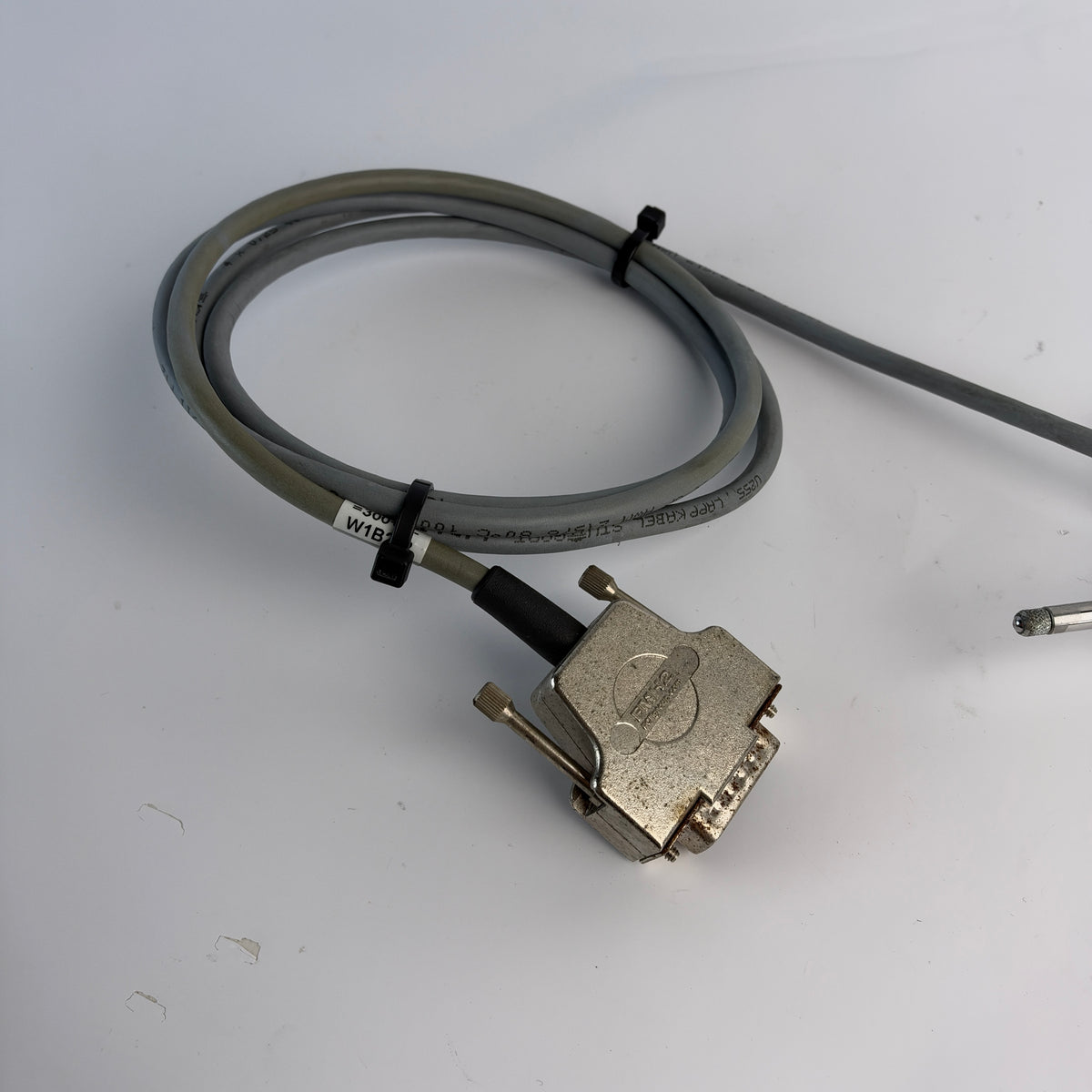

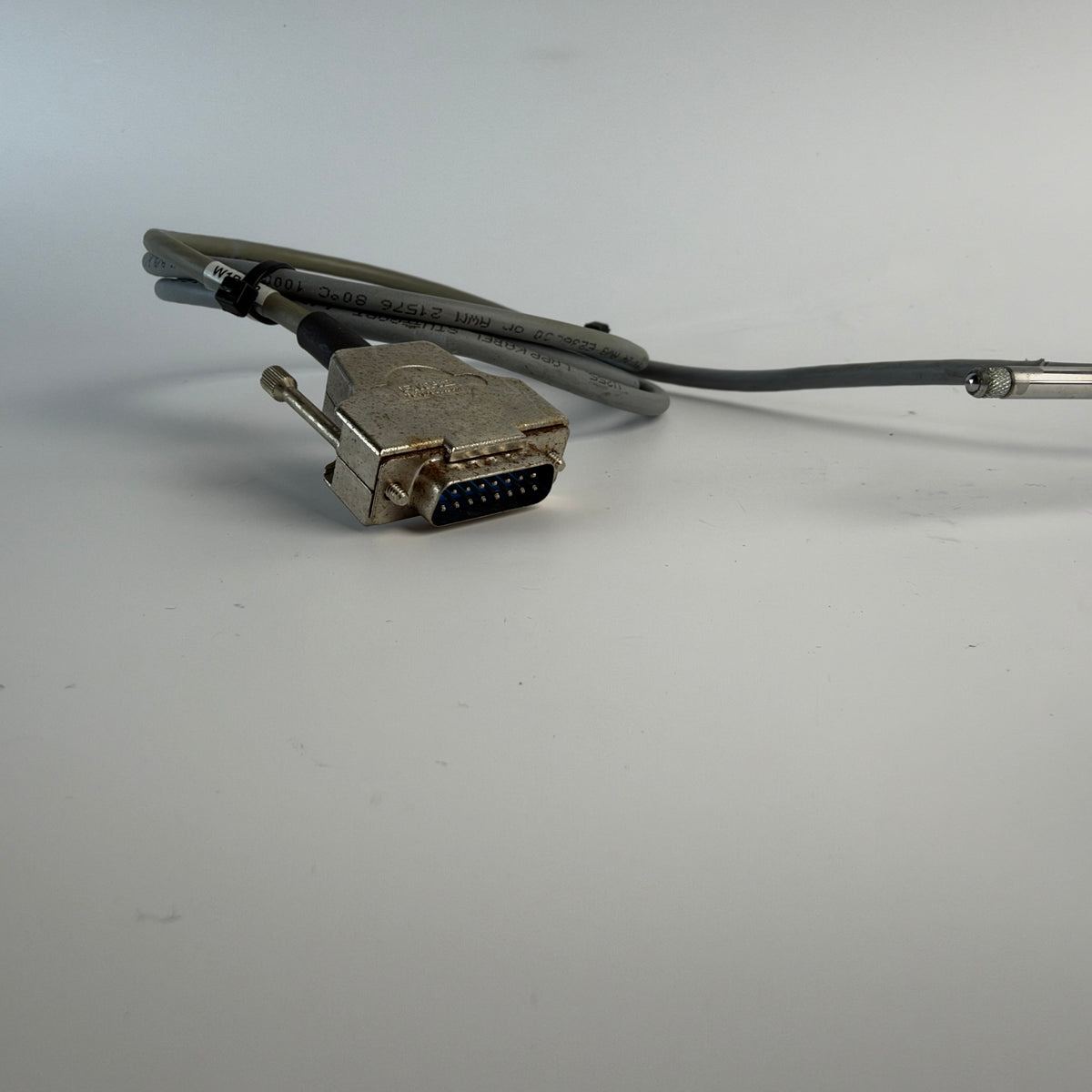

The included cable terminates in a D-Sub connector. The internal cable wiring and compatibility with specific controllers have not been verified.

Condition

Used, fully functional.

The unit shows signs of previous industrial use.

Included in Sale

• 1 × Novotechnik TRS-0075 linear position transducer
• Attached metal mounting plate
• Connection cable with D-Sub 15-pin male connector

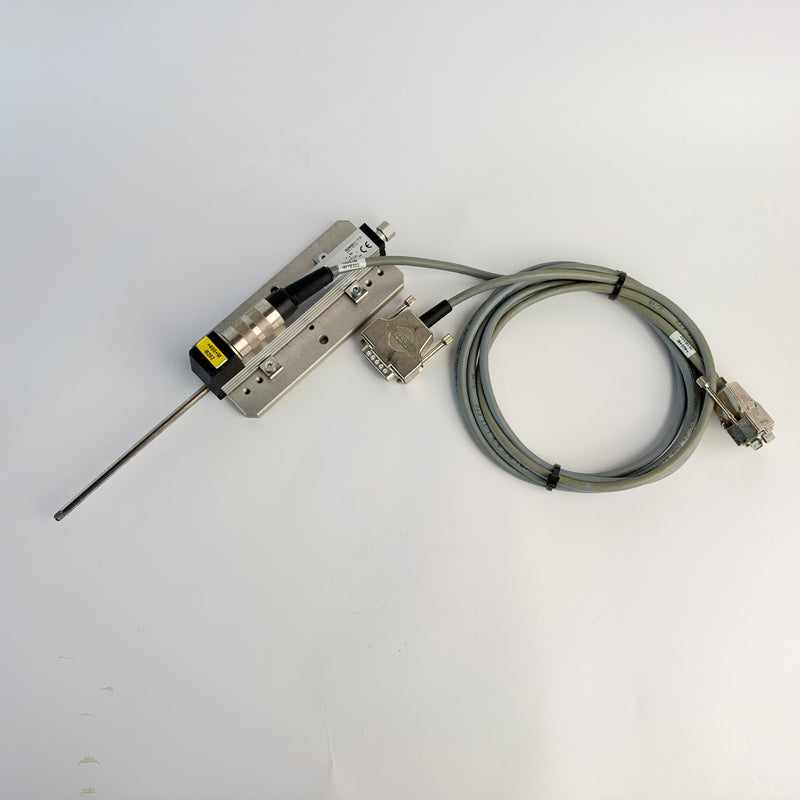

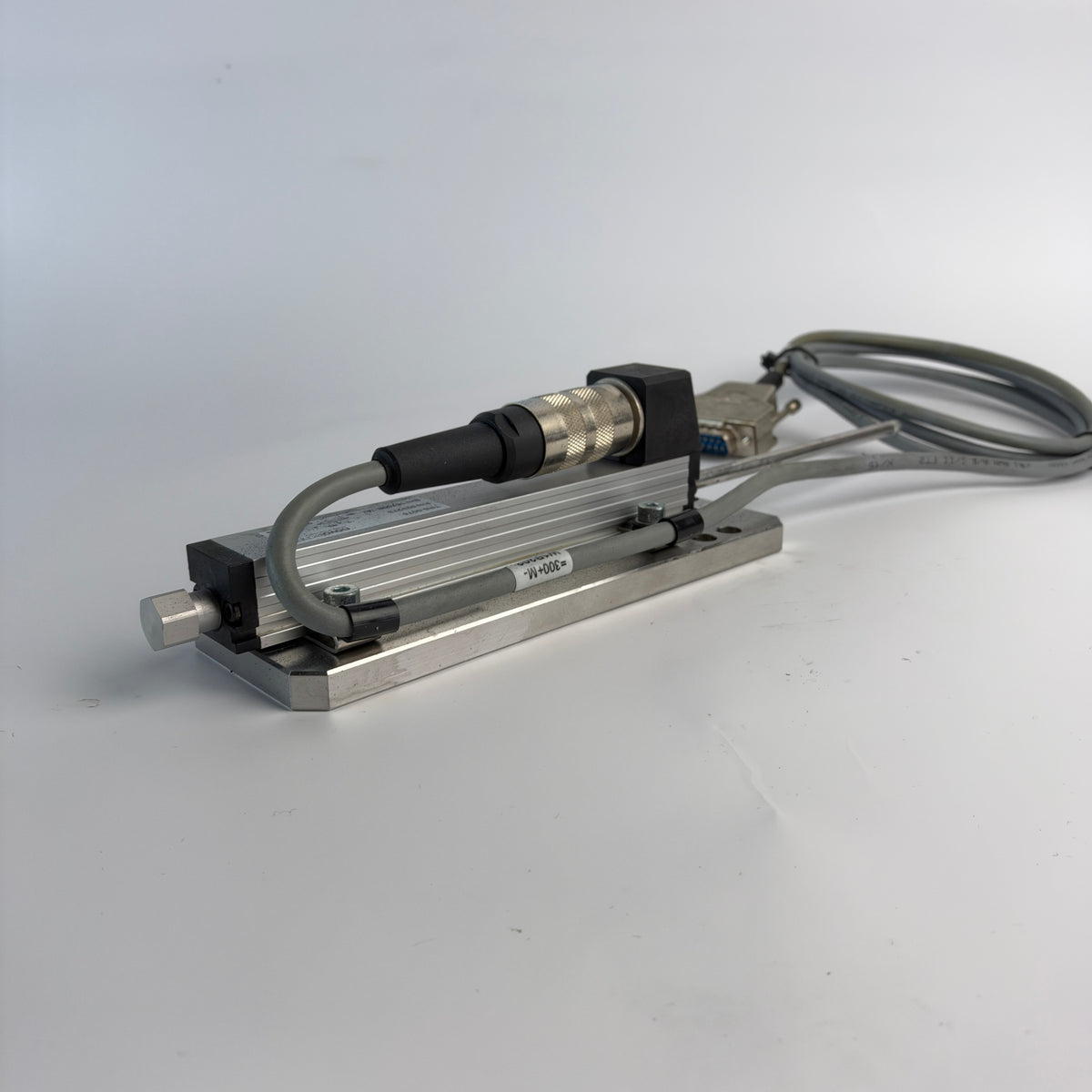

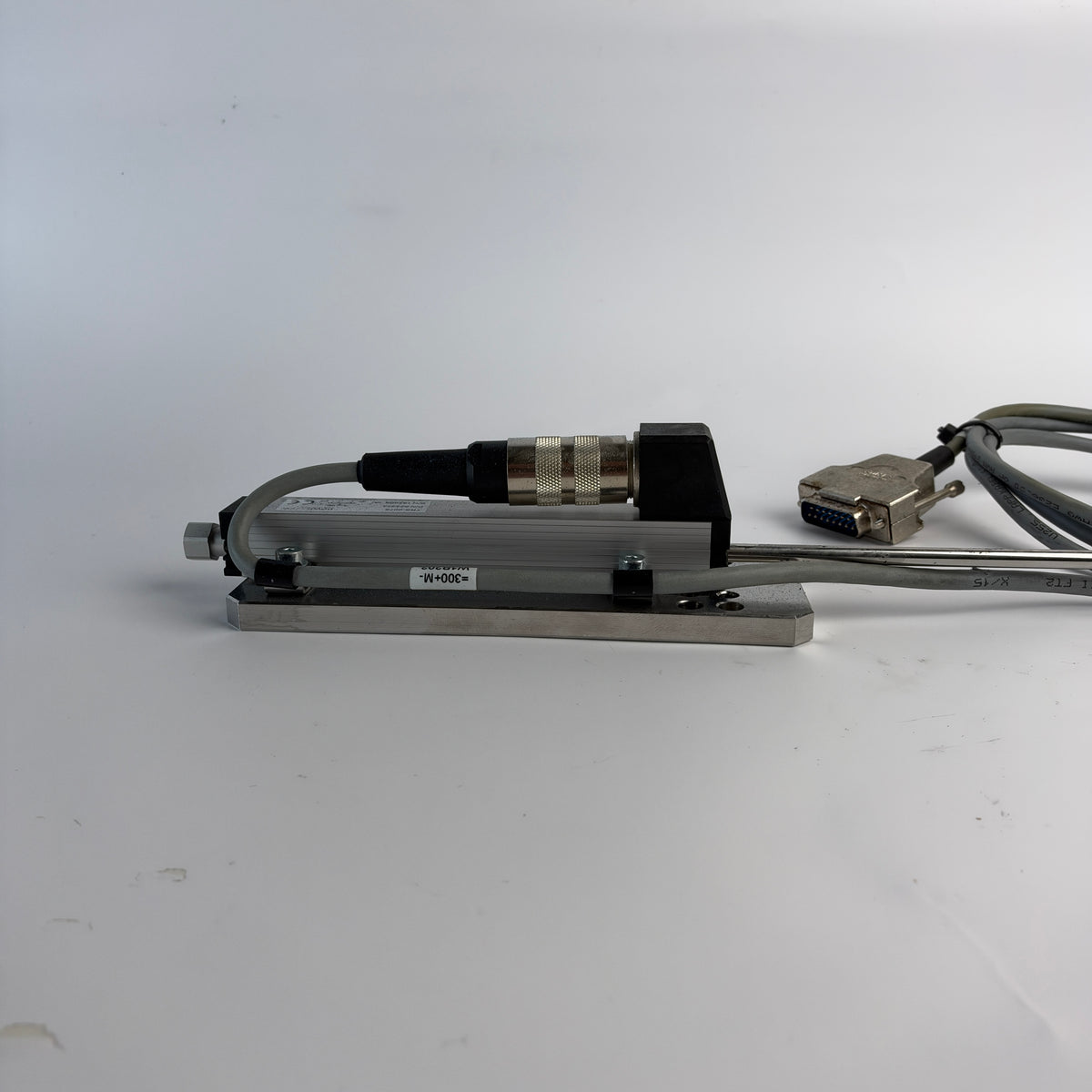

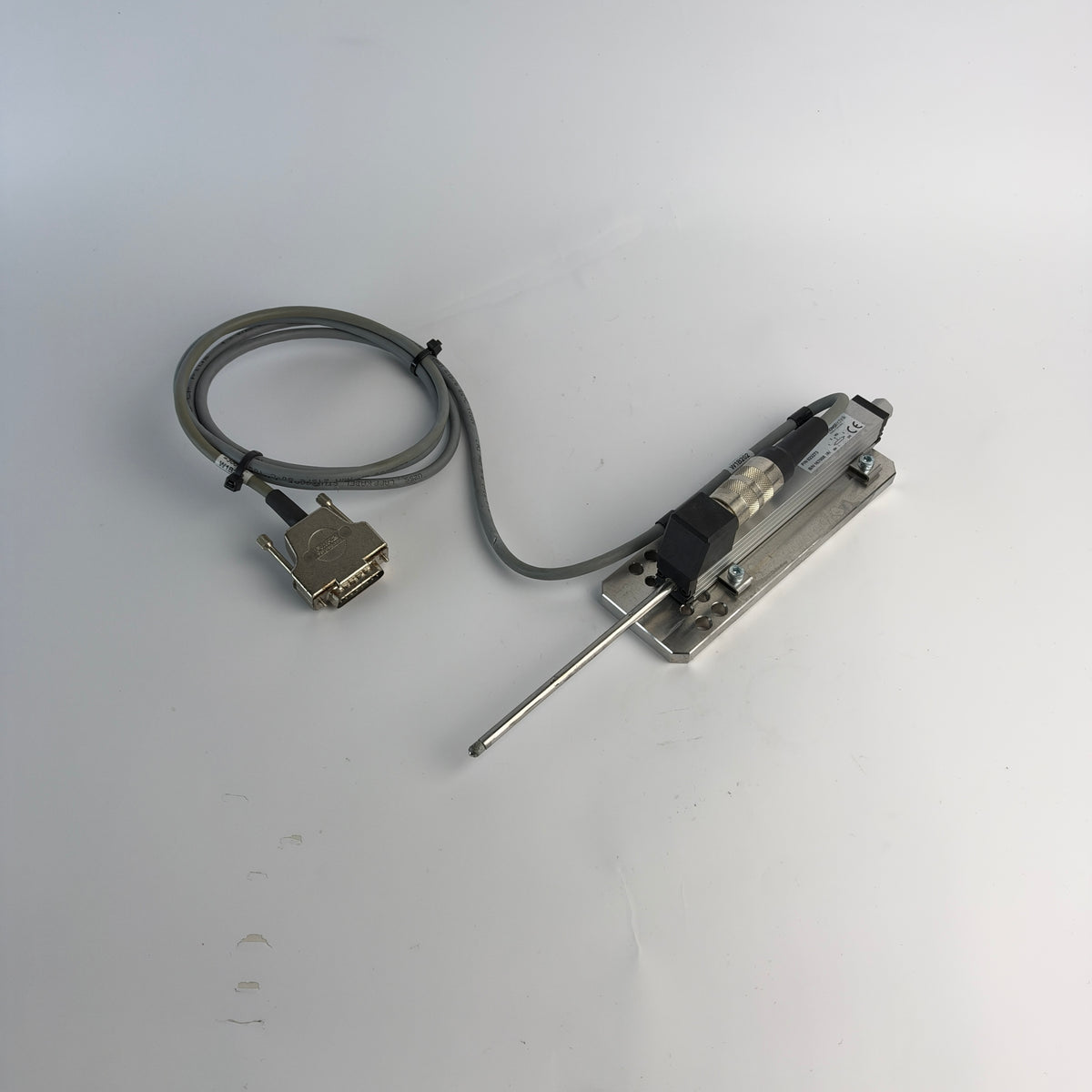

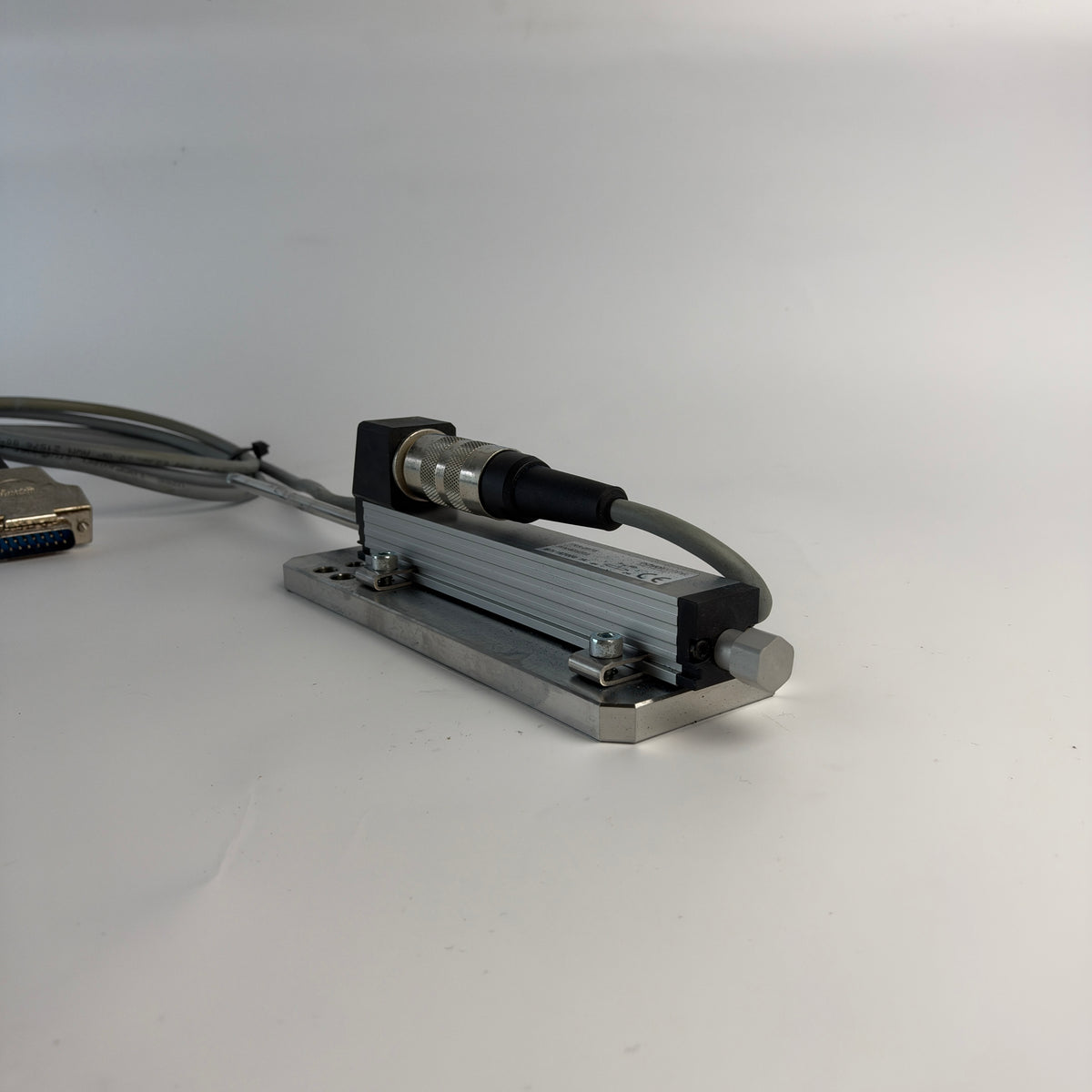

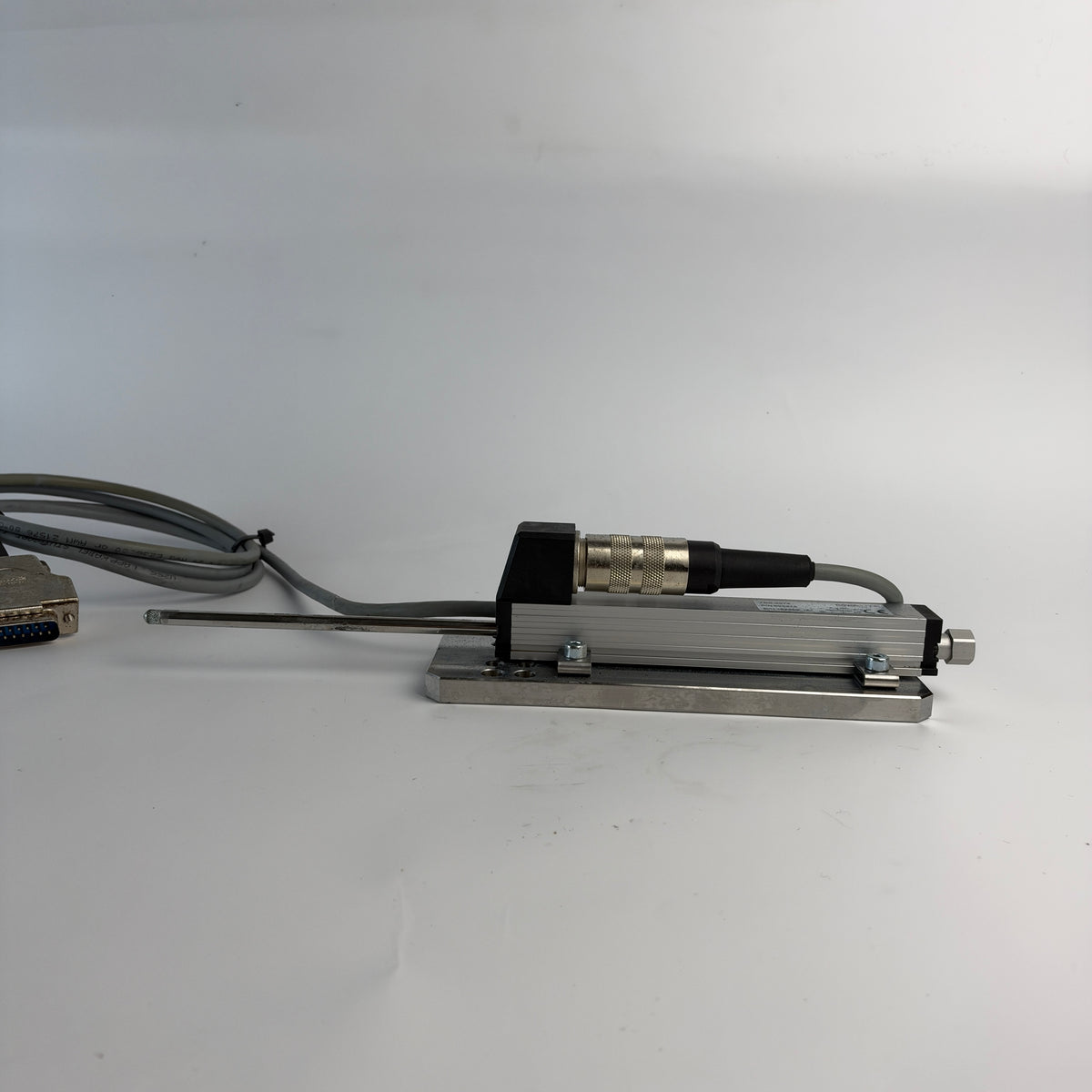

The photographs show the actual item included in the sale.
