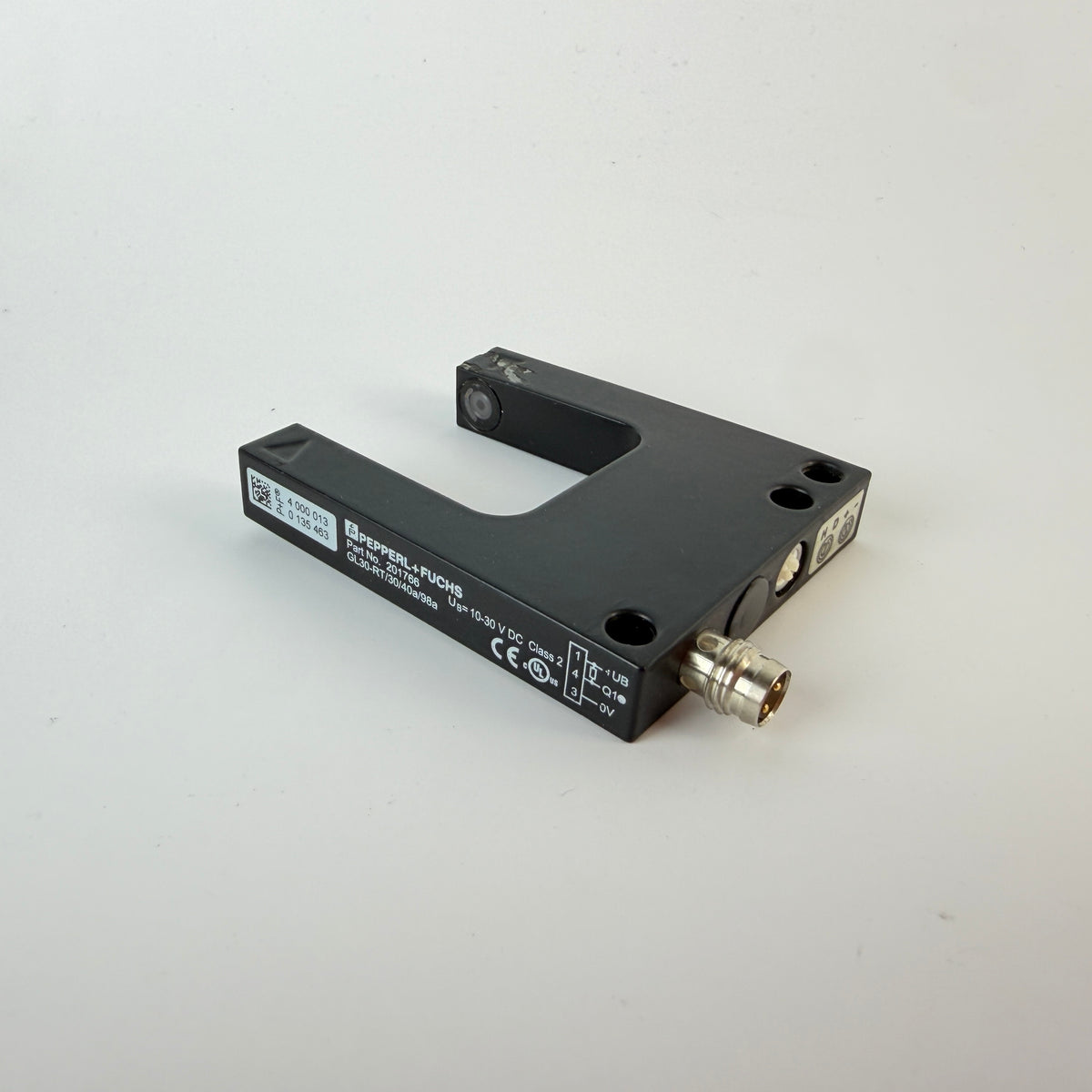

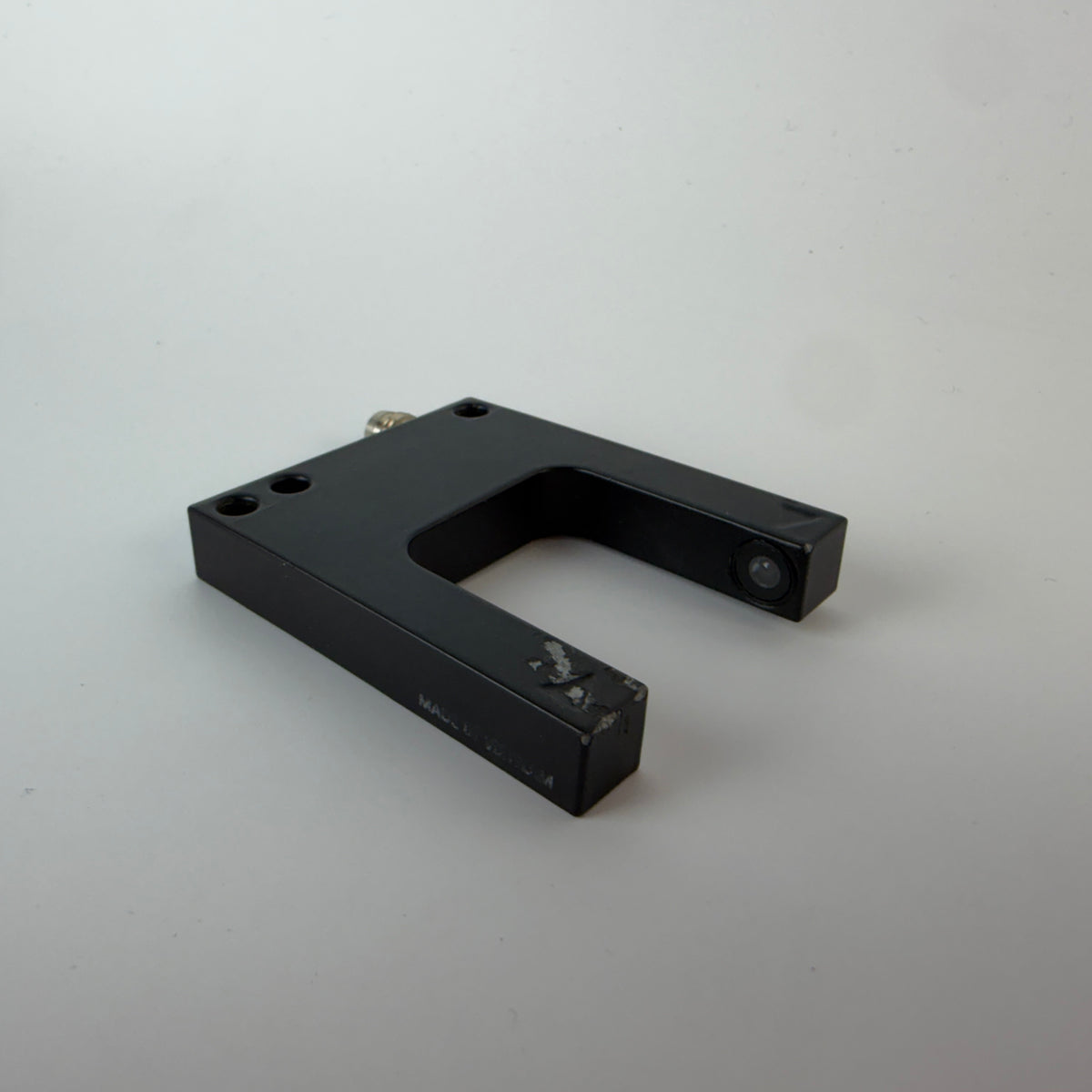

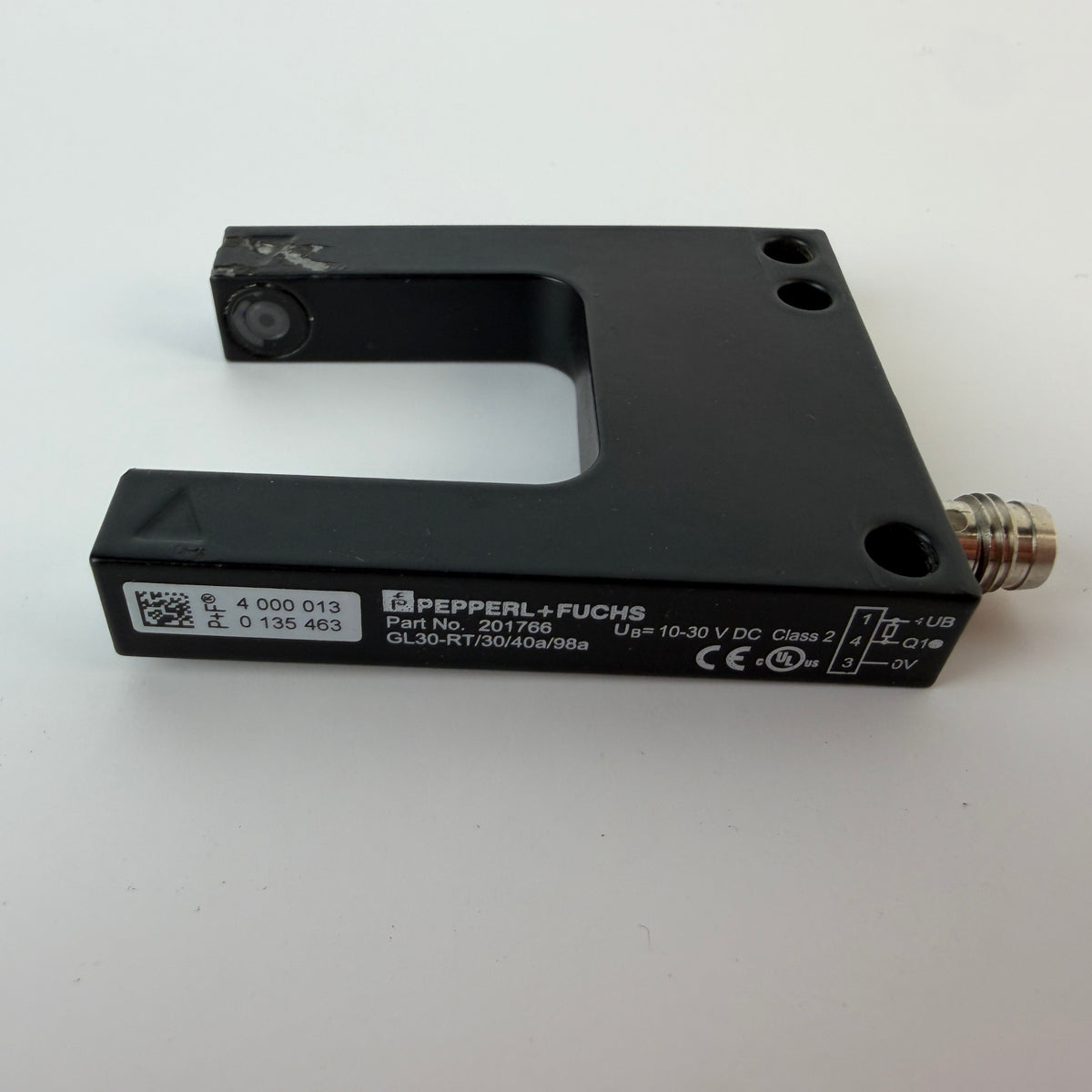

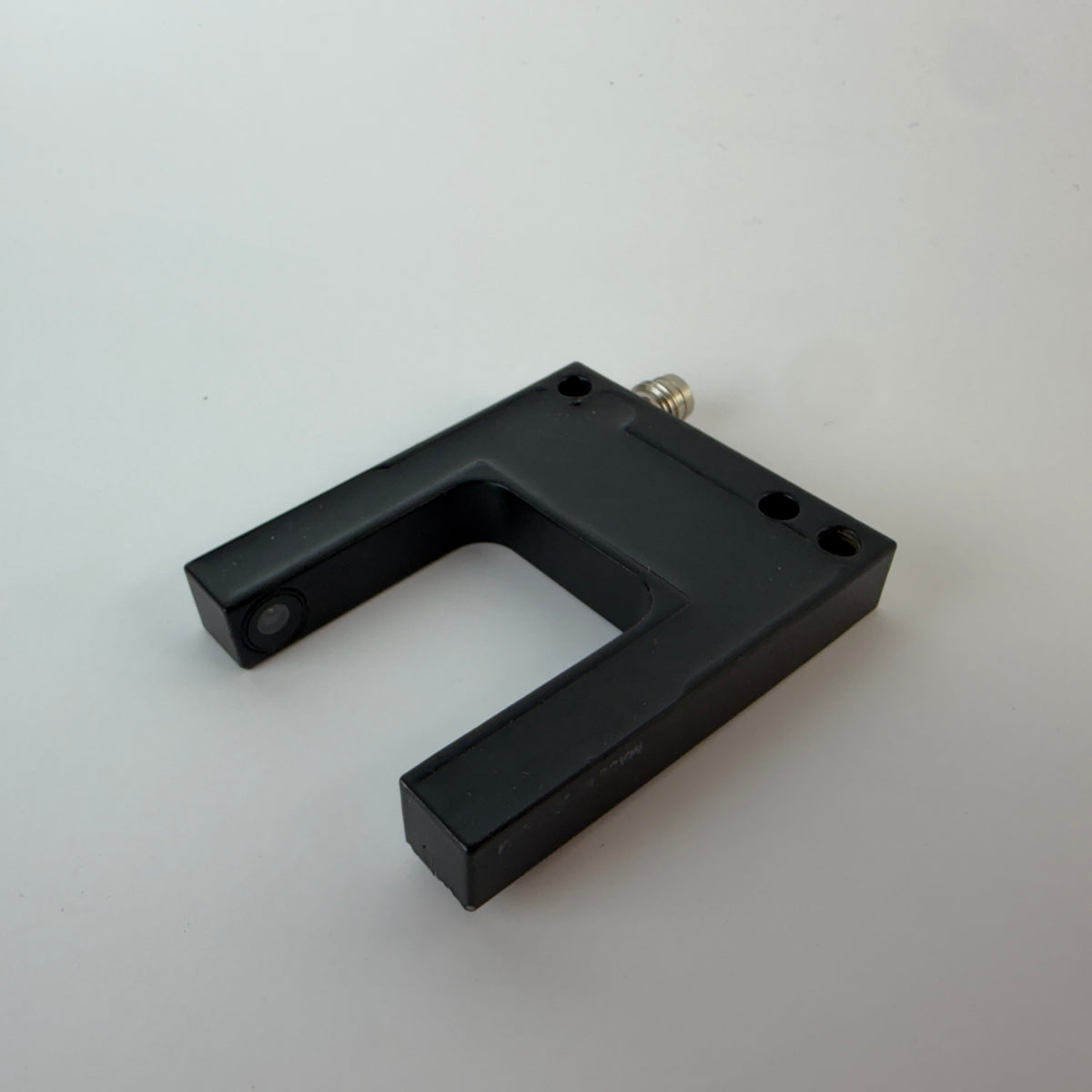

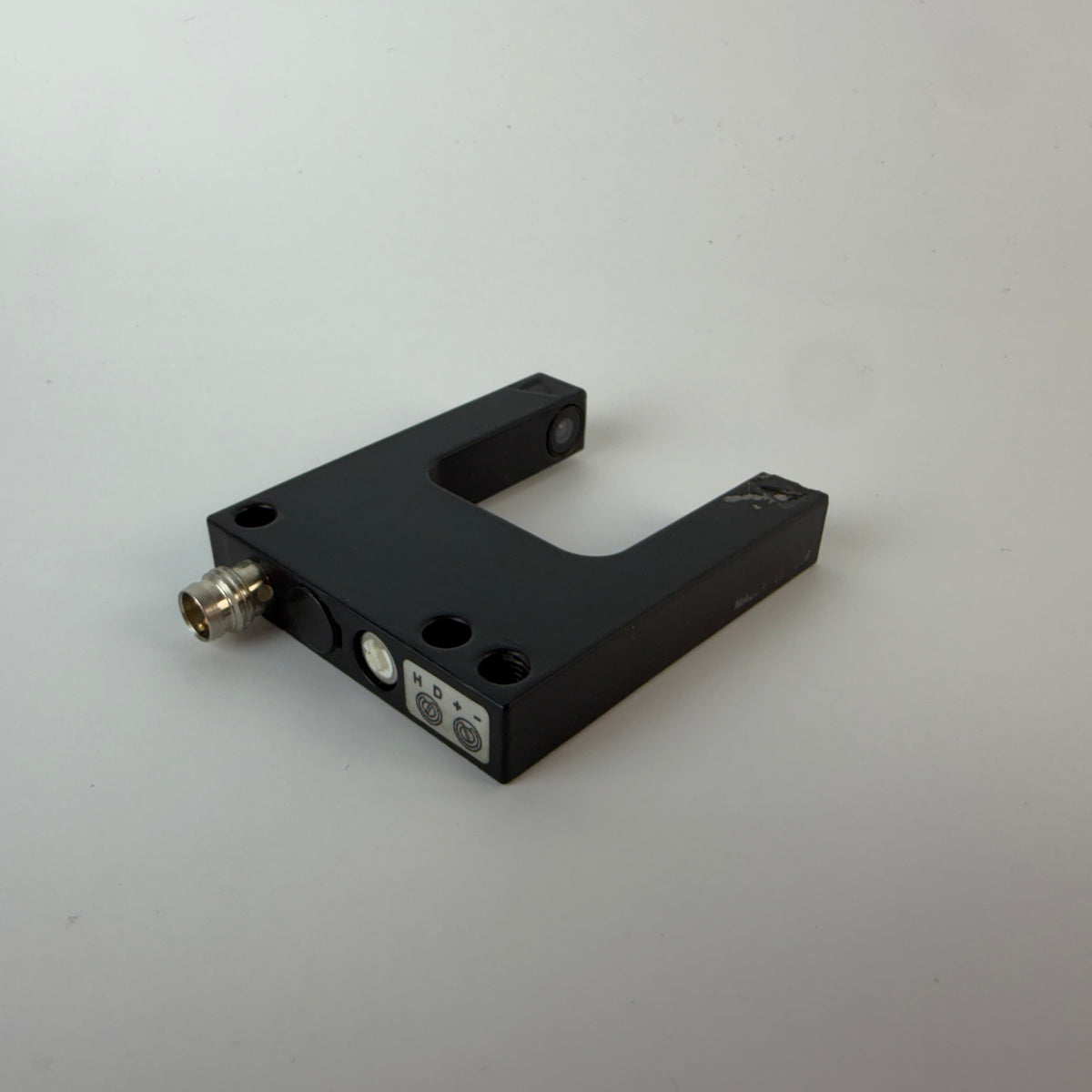

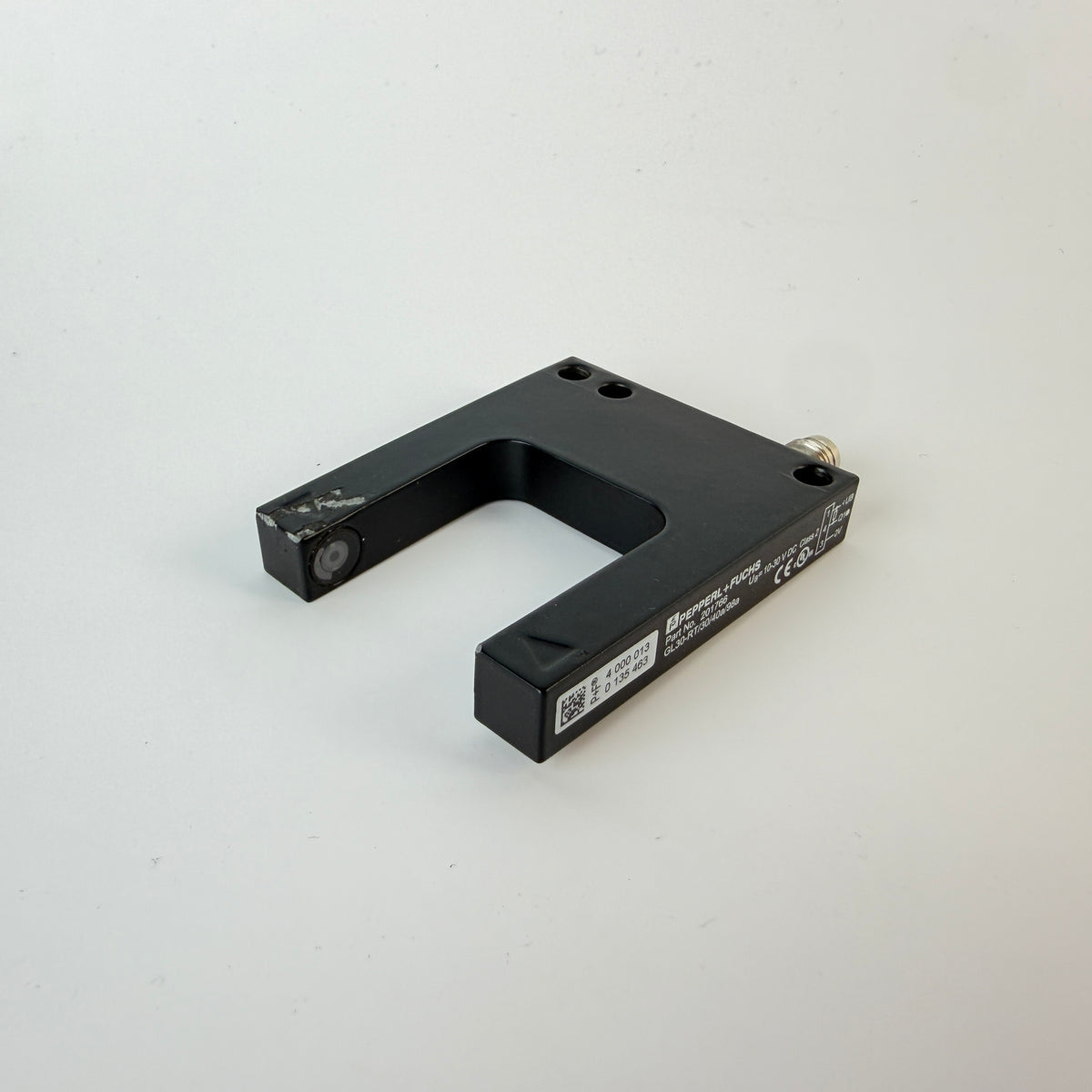

Pepperl+Fuchs GL30-RT/30/40a/98a, Part No. 201766, industrial photoelectric slot sensor designed for precise object detection in automation and machine applications.

The fork-style sensor integrates the transmitter and receiver in a single housing and provides a 30 mm slot width. It uses modulated visible red LED light and features a fast switching response for precise detection of small objects.

Technical Specifications:

• Manufacturer: Pepperl+Fuchs
• Part Number: 201766
• Model: GL30-RT/30/40a/98a
• Type: Photoelectric Slot / Fork Sensor
• Slot Width: 30 mm
• Slot Depth: 35 mm
• Minimum Target Size: 0.3 mm
• Light Source: Modulated visible red LED
• Operating Voltage: 10–30 VDC
• Output: NPN open collector
• Maximum Switching Current: 100 mA
• Switching Mode: Light-on / Dark-on selectable
• Switching Frequency: 3 kHz
• Response Time: ≤160 µs
• Repeat Accuracy: 0.05 mm
• Connection: M8, 3-pin
• Protection Rating: IP67
• Operating Temperature: -20°C to +60°C
• Housing: Powder-coated die-cast zinc
• Optical Face: Glass
• Dimensions: 60 × 10 × 50 mm

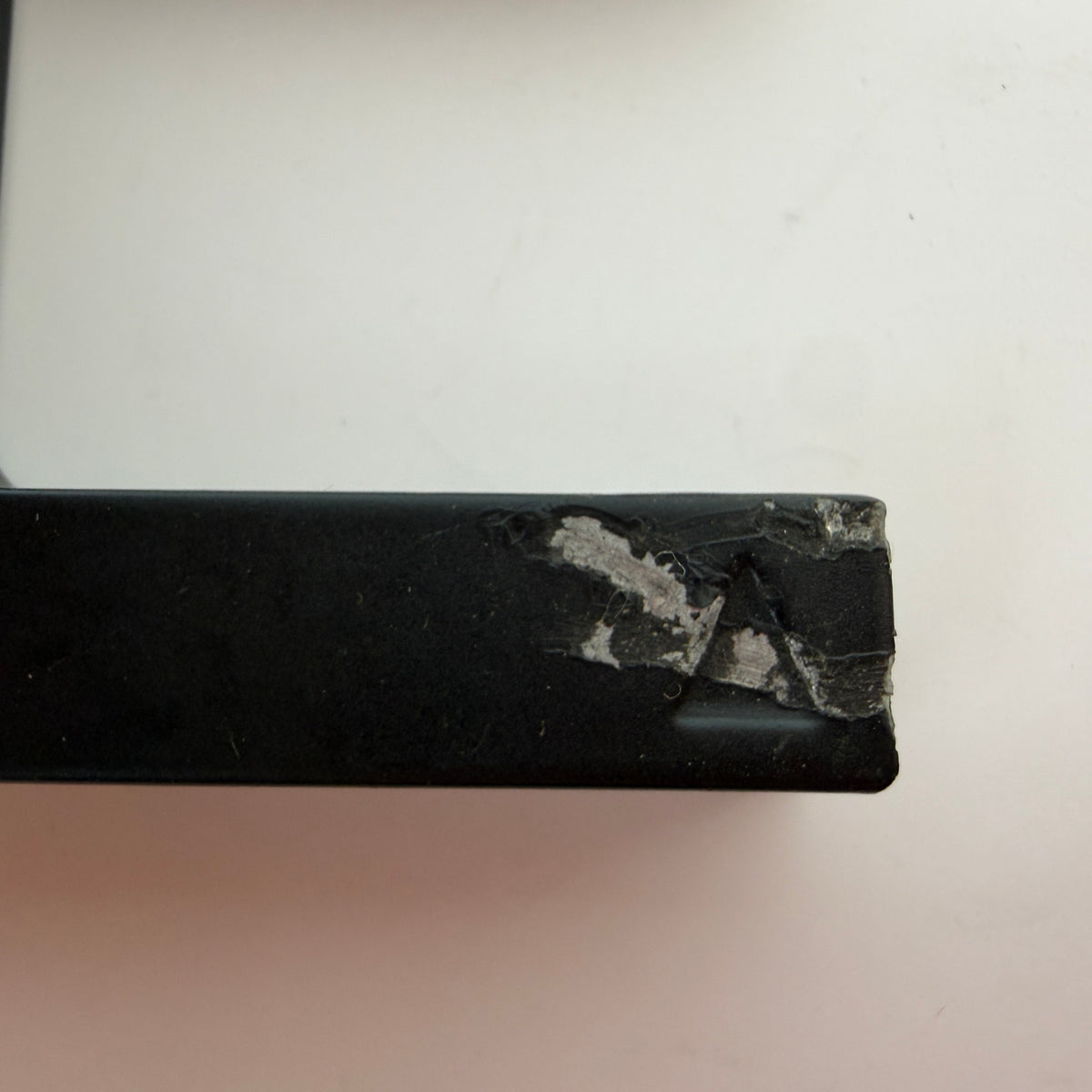

Condition: Used, fully functional. The sensor has visible cosmetic/mechanical impact damage on the end of one fork arm, including chipped/scraped coating and surface damage. Please review the photos carefully. The damage does not affect functionality according to the provided condition information.
