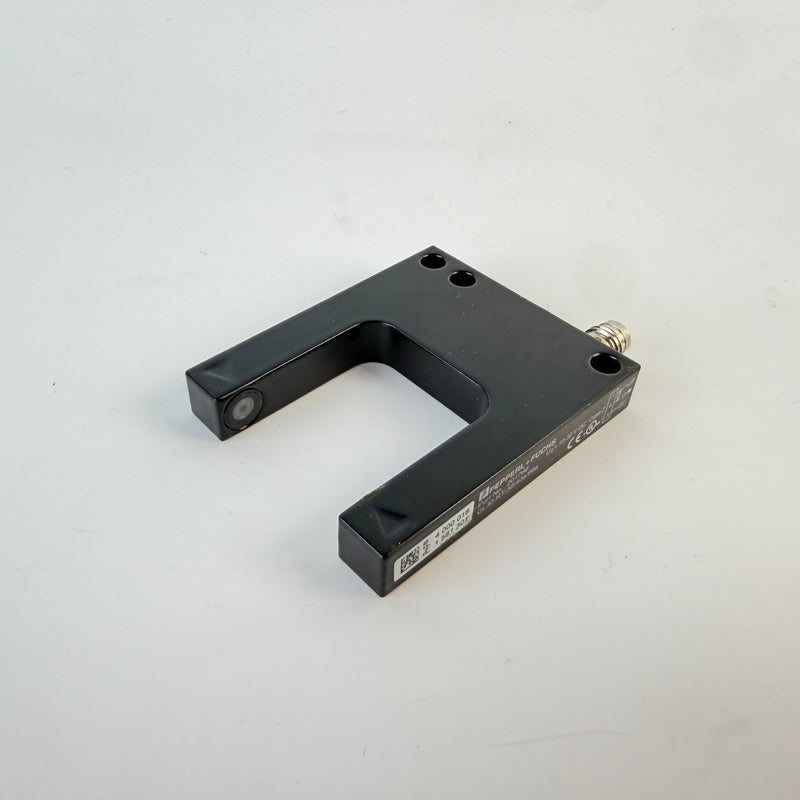

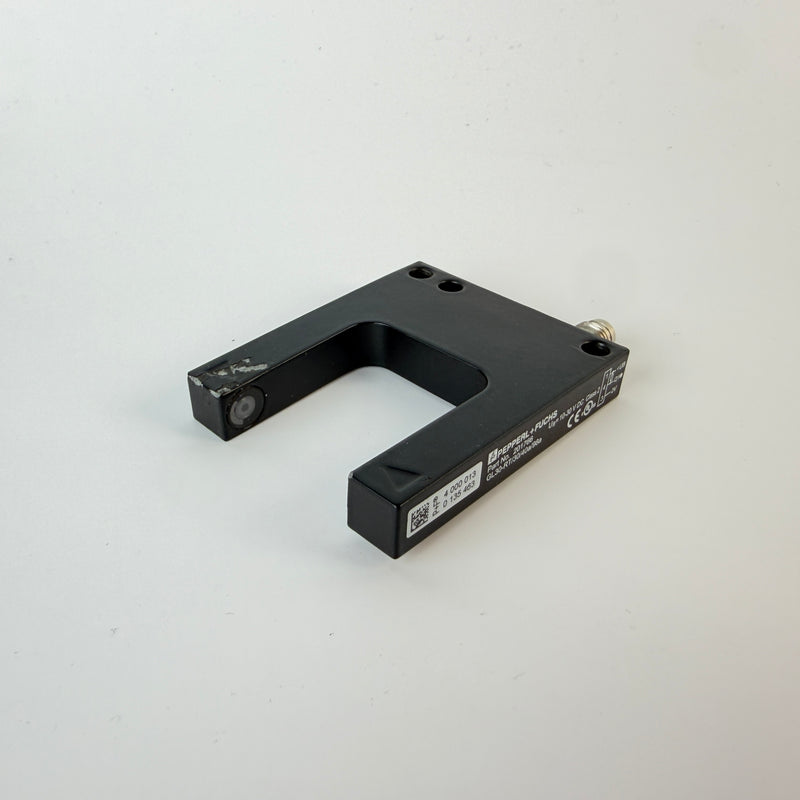

Pepperl+Fuchs GL30-RT/30/40a/98a, Part No. 201766, industrial photoelectric slot sensor supplied in its original Pepperl+Fuchs factory box with documentation.

Designed for precise detection of small objects in industrial automation and machinery, this fork-style photoelectric sensor combines the transmitter and receiver in a single robust housing. It features a 30 mm slot width, visible red LED light, high switching frequency, adjustable sensitivity, and selectable light-on/dark-on operation.

Technical Specifications:

• Manufacturer: Pepperl+Fuchs
• Part Number: 201766
• Model: GL30-RT/30/40a/98a
• Type: Photoelectric Slot / Fork Sensor
• Slot Width: 30 mm
• Slot Depth: 35 mm
• Minimum Target Size: 0.3 mm
• Light Source: LED
• Light Type: Modulated visible red light
• Operating Voltage: 10–30 VDC
• No-Load Supply Current: ≤15 mA
• Output: 1× NPN, short-circuit protected open collector
• Maximum Switching Voltage: 30 VDC
• Maximum Switching Current: 100 mA
• Switching Mode: Light-on / Dark-on selectable
• Switching Frequency: 3 kHz
• Response Time: ≤160 µs
• Repeat Accuracy: 0.05 mm
• Sensitivity Adjustment: Yes
• Connection: M8, 3-pin
• Protection Rating: IP67
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +75°C
• Housing: Powder-coated die-cast zinc
• Optical Face: Glass
• Dimensions: 60 × 10 × 50 mm
• Weight: Approx. 60 g

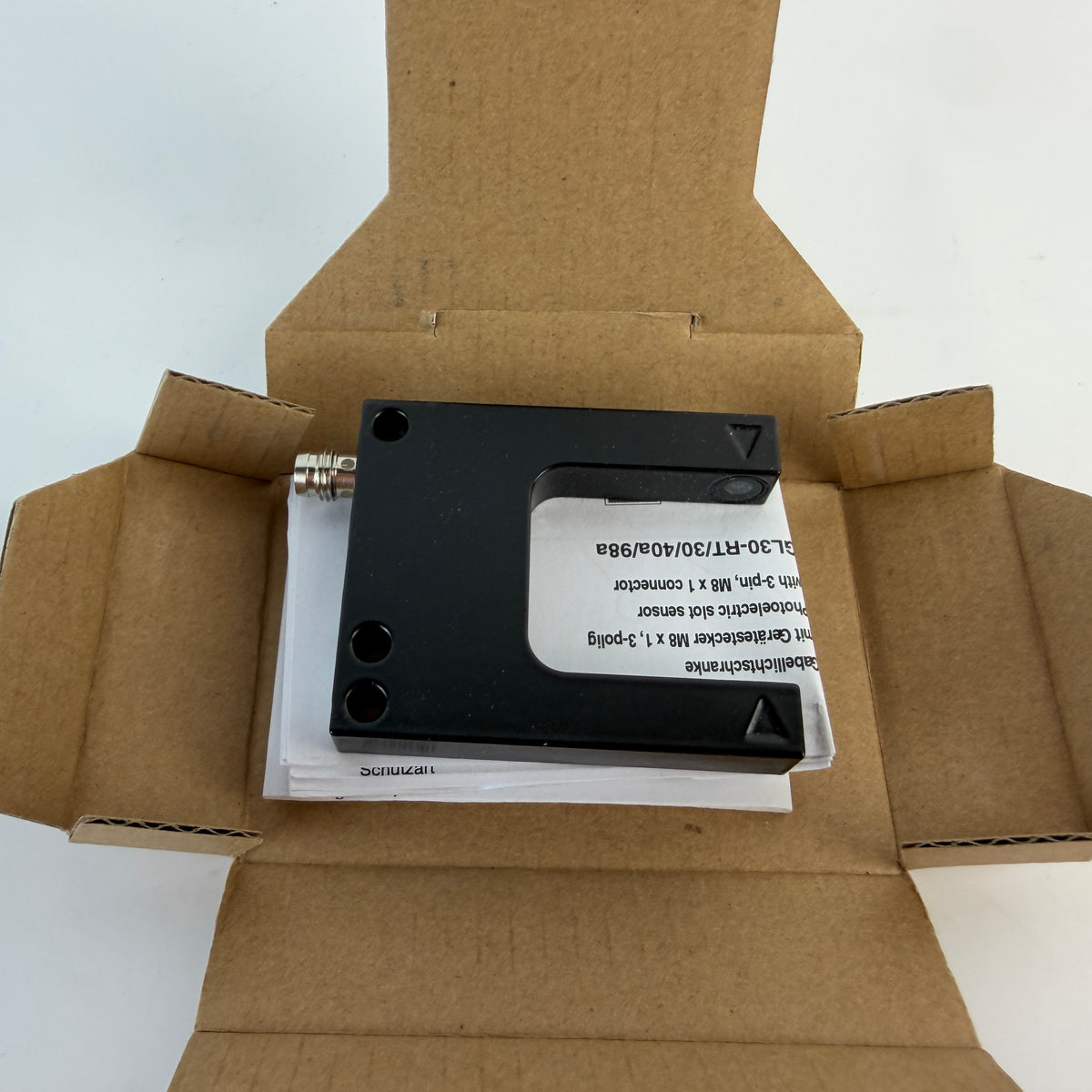

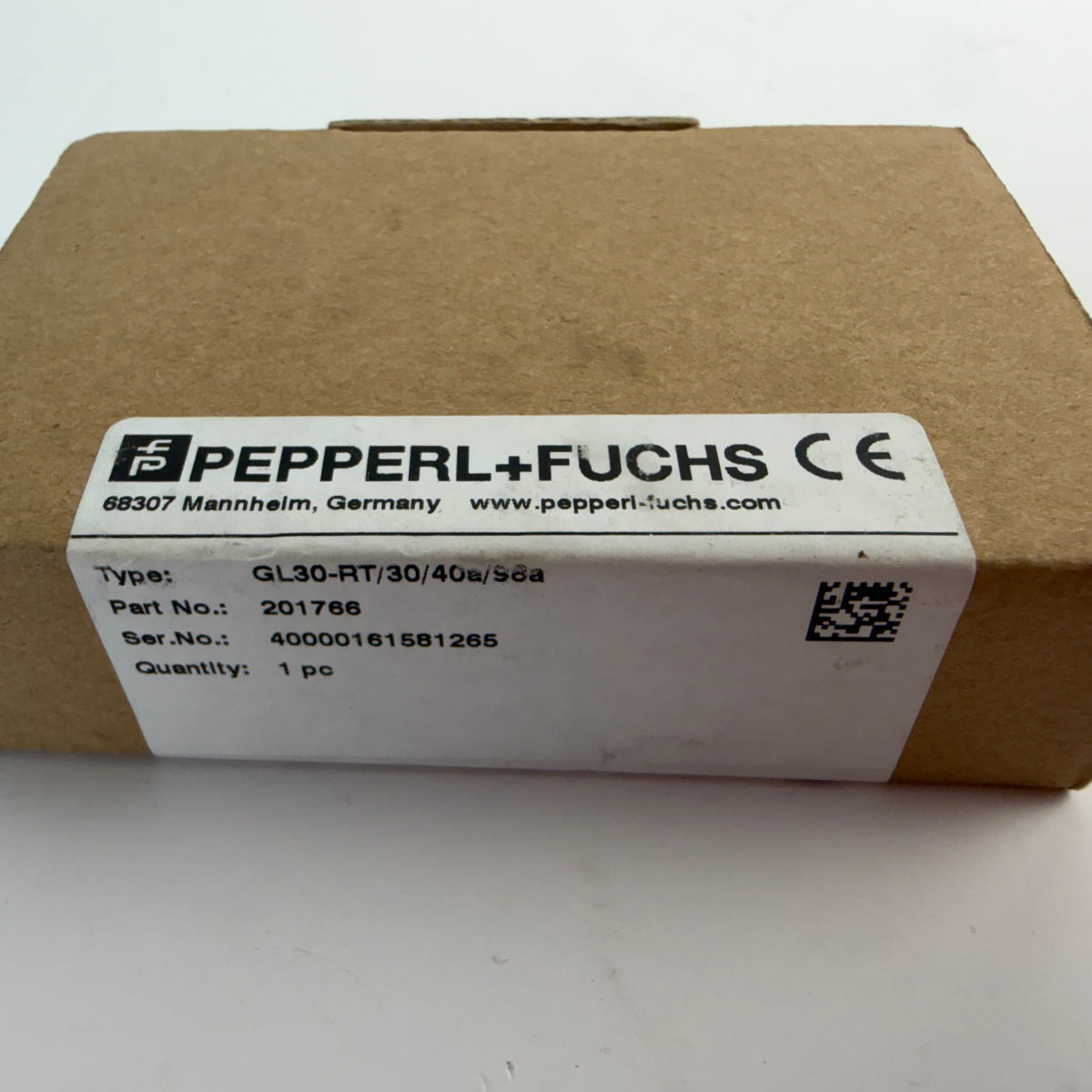

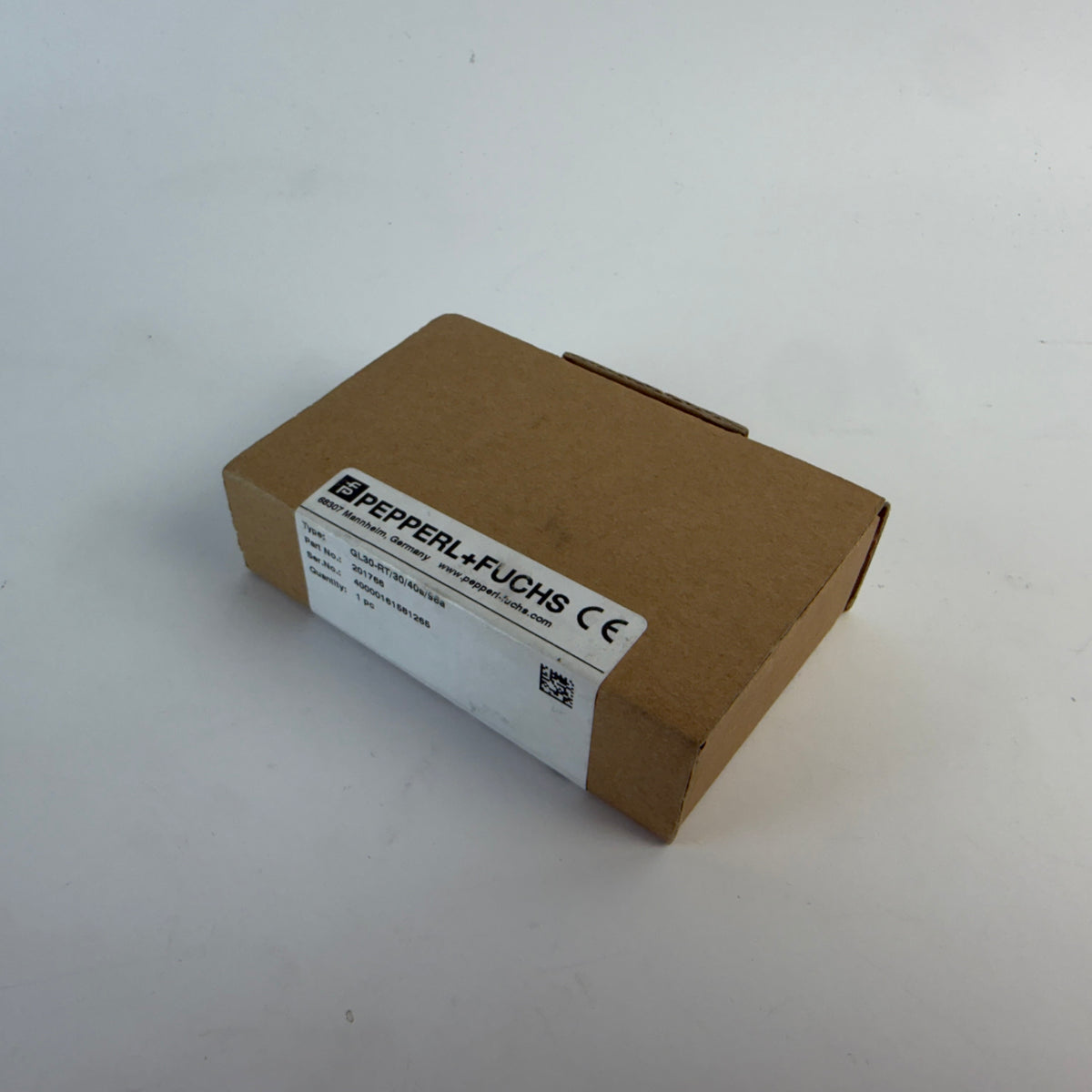

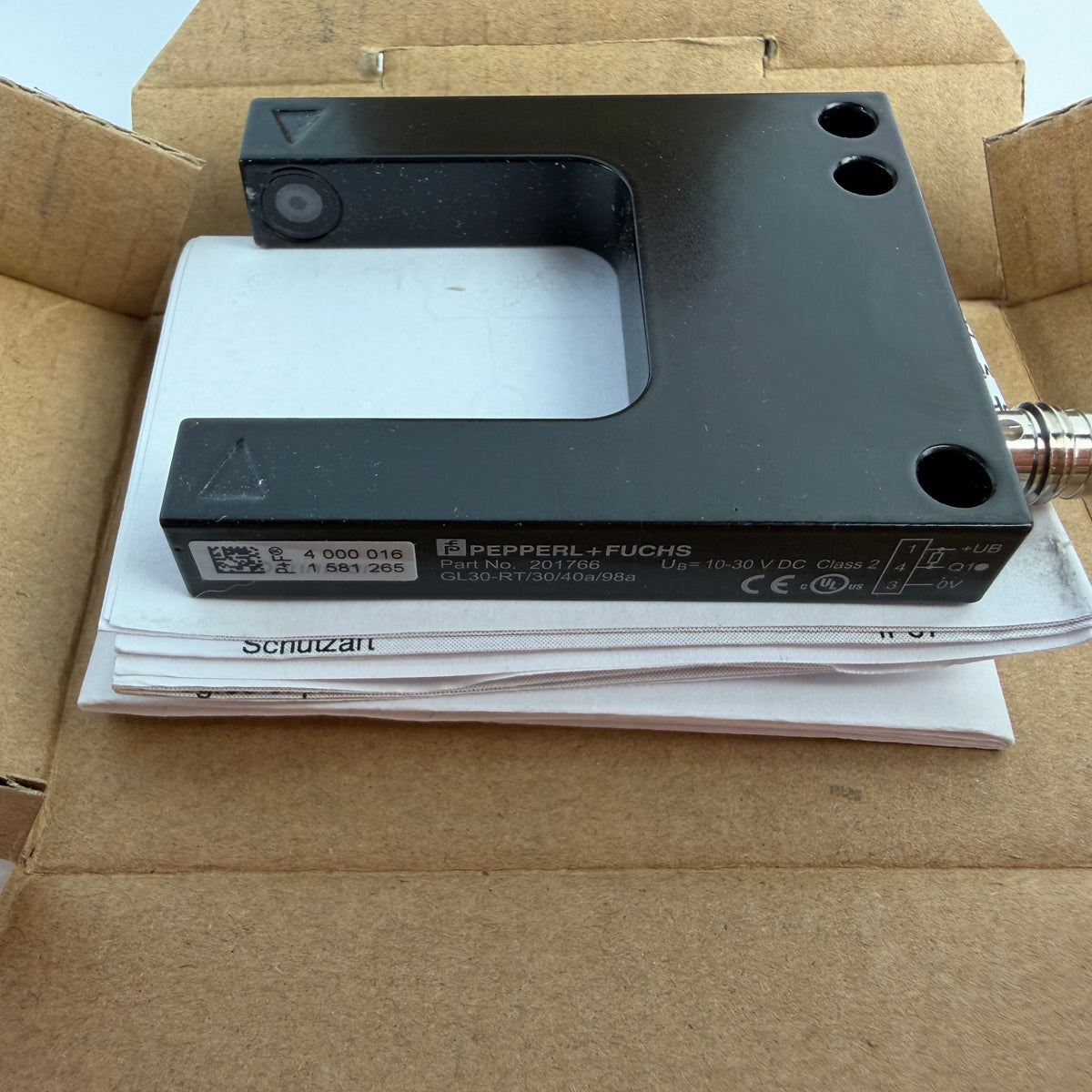

Condition: New, unused. Supplied in the original Pepperl+Fuchs factory box with documentation as pictured.
