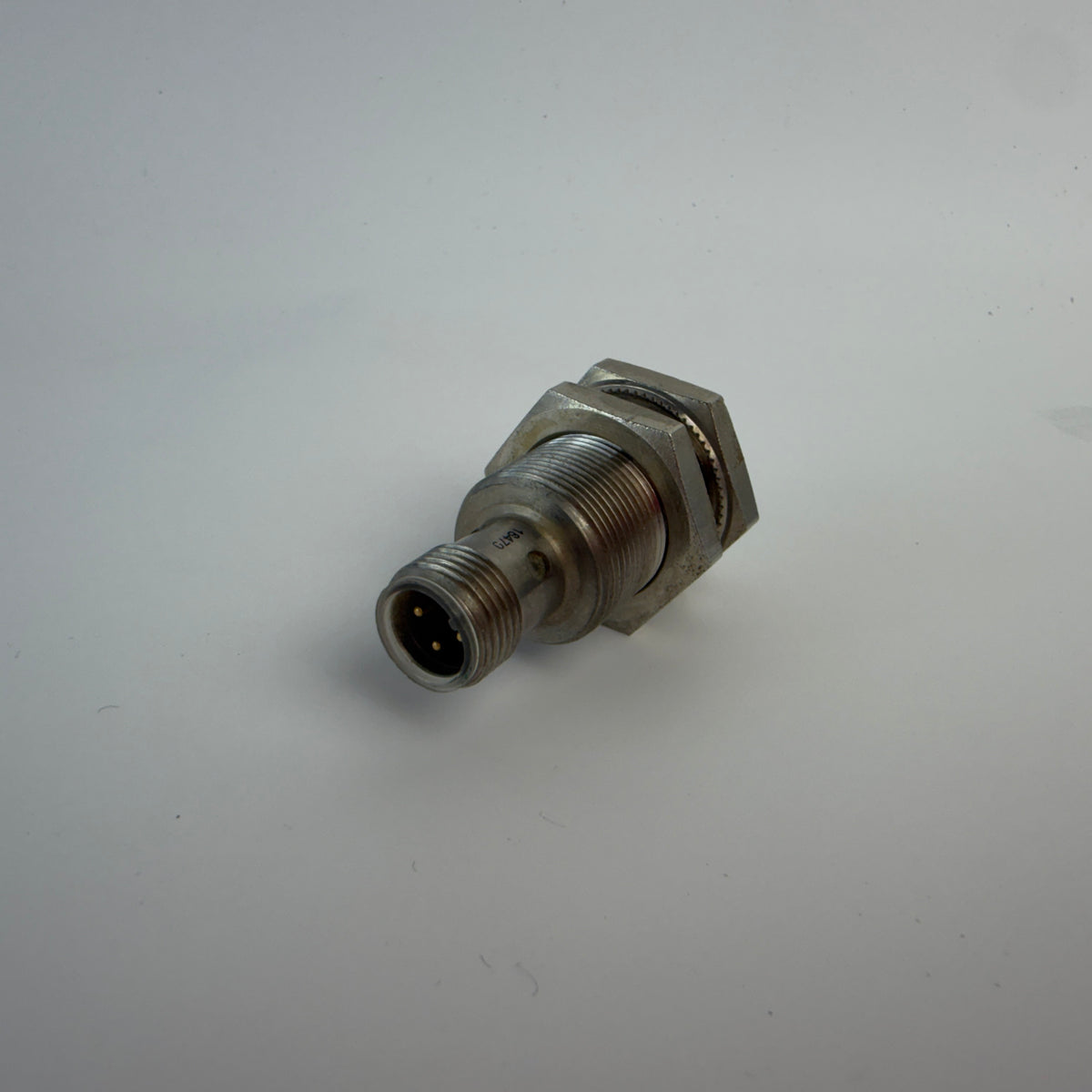

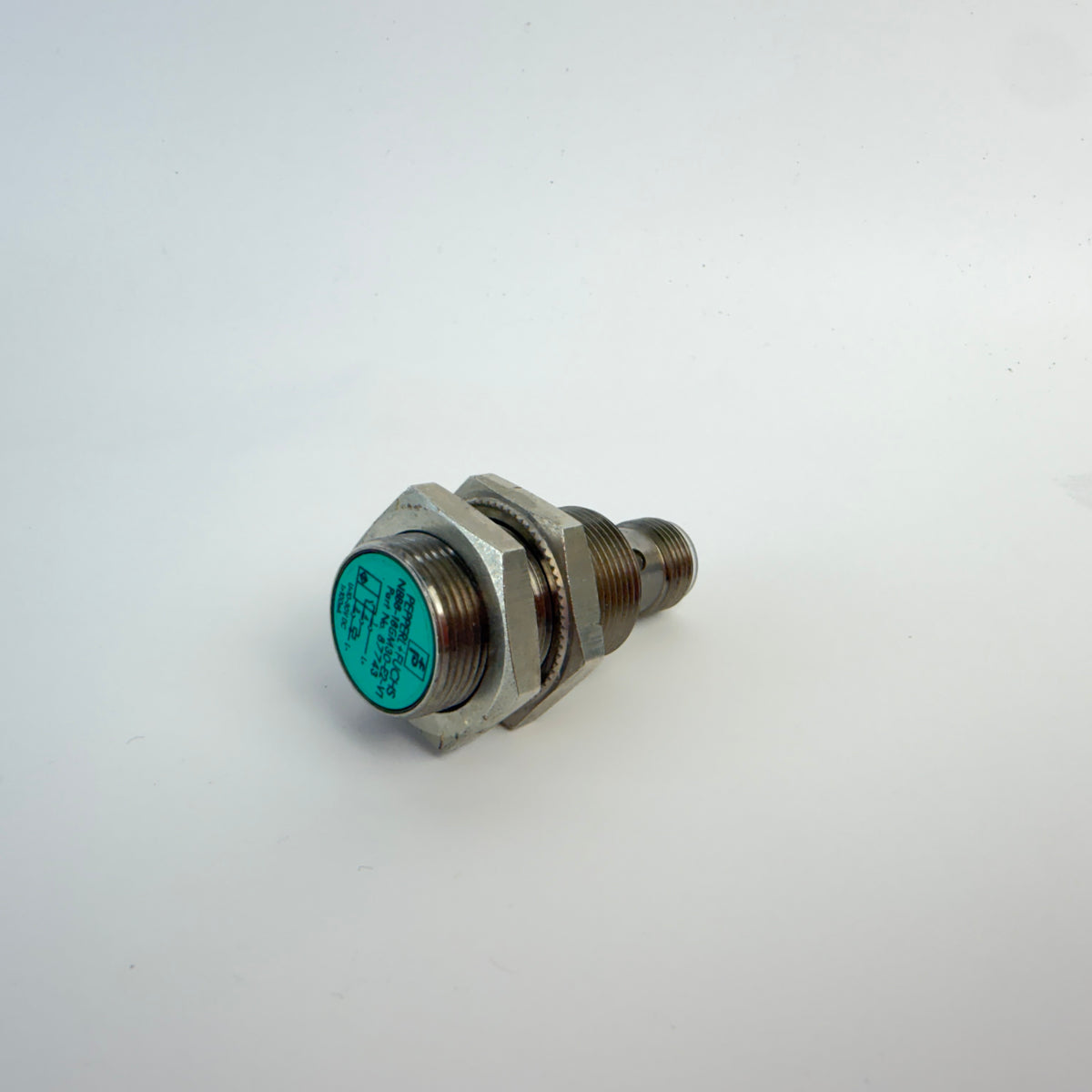

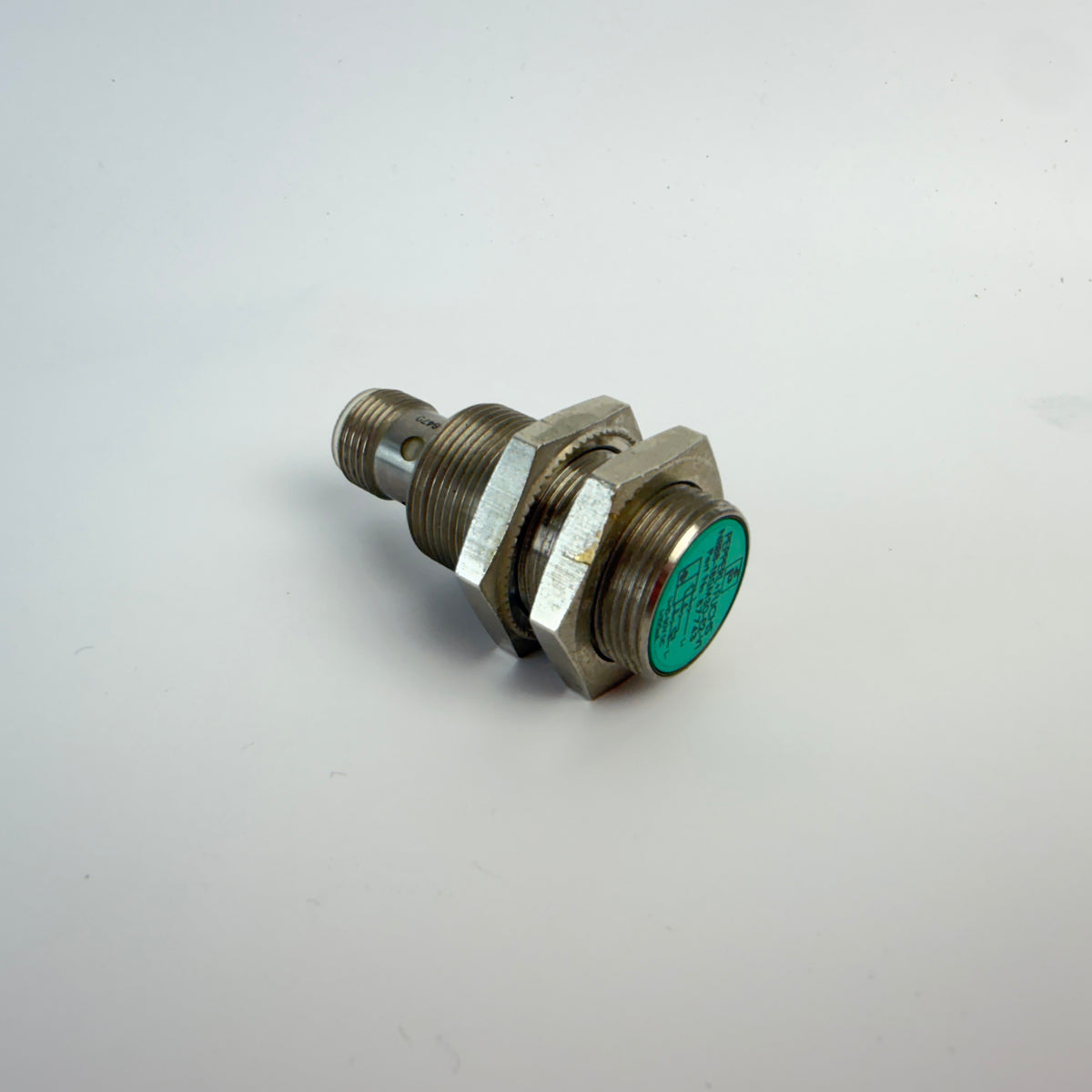

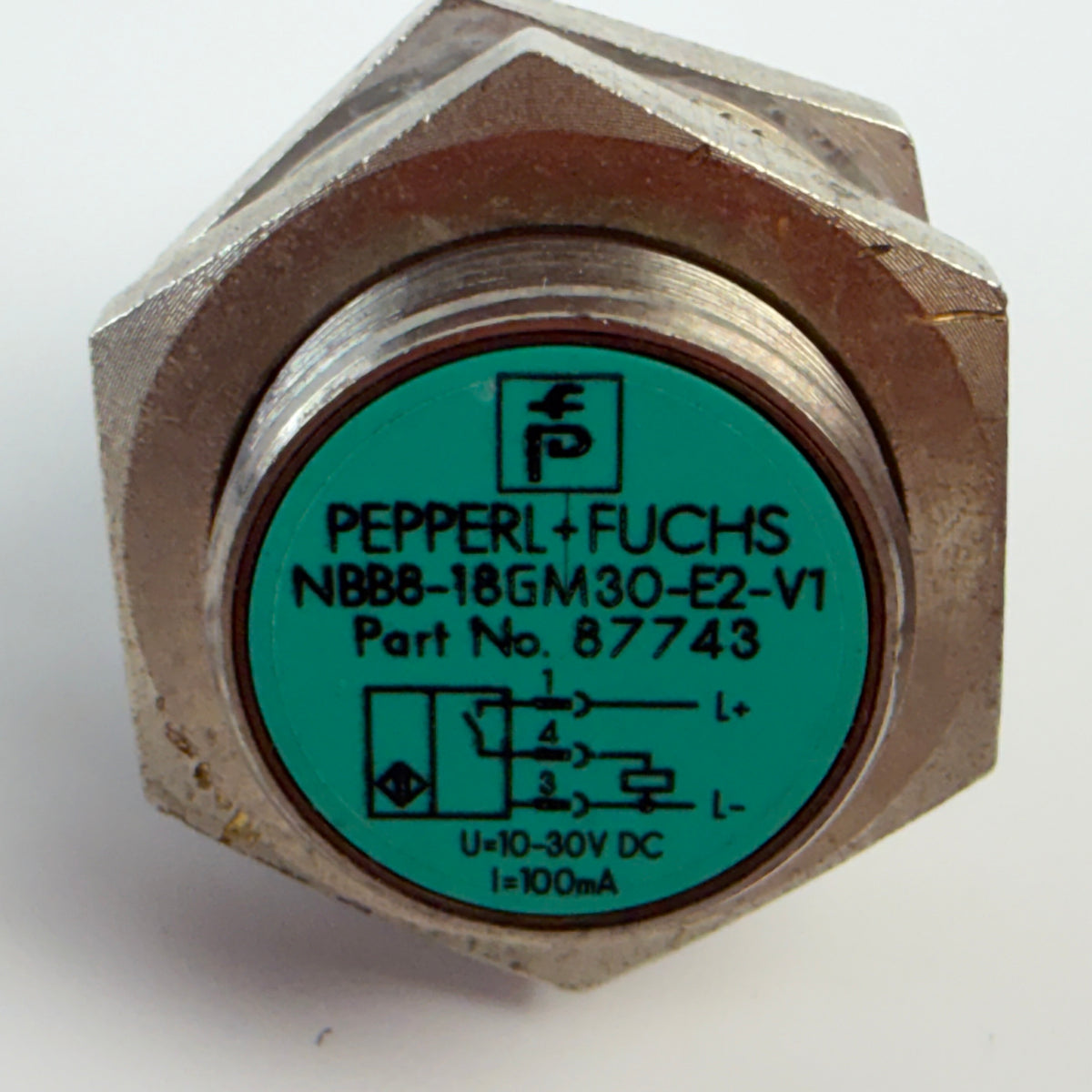

Pepperl+Fuchs NBB8-18GM30-E2-V1 industrial inductive proximity sensor, Part No. 87743, designed for non-contact detection of metallic objects in industrial automation and machinery.
The sensor features an M18 × 1 threaded cylindrical housing, 8 mm nominal sensing distance, flush mounting capability and a PNP Normally Open (NO) 3-wire output.
Electrical connection is provided through a standard M12 × 1, 4-pin connector. The sensor operates from 10–30 V DC and supports an operating current up to 100 mA.
Suitable for industrial automation, position monitoring, machine control and metal object detection.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Pepperl+Fuchs |
| Model / MPN | NBB8-18GM30-E2-V1 |
| Part No. | 87743 |
| Sensor Type | Inductive proximity sensor |
| Housing | Cylindrical threaded |
| Thread | M18 × 1 |
| Rated Sensing Distance | 8 mm |
| Assured Operating Distance | 0–6.48 mm (-25 to +70°C) |
| Installation | Flush |
| Output | PNP |
| Switching Function | Normally Open (NO) |
| Output Configuration | 3-wire |
| Operating Voltage | 10–30 V DC |
| Operating Current | 0–100 mA |
| Switching Frequency | 0–500 Hz |
| Voltage Drop | ≤3 V |
| Indicator | Yellow LED |

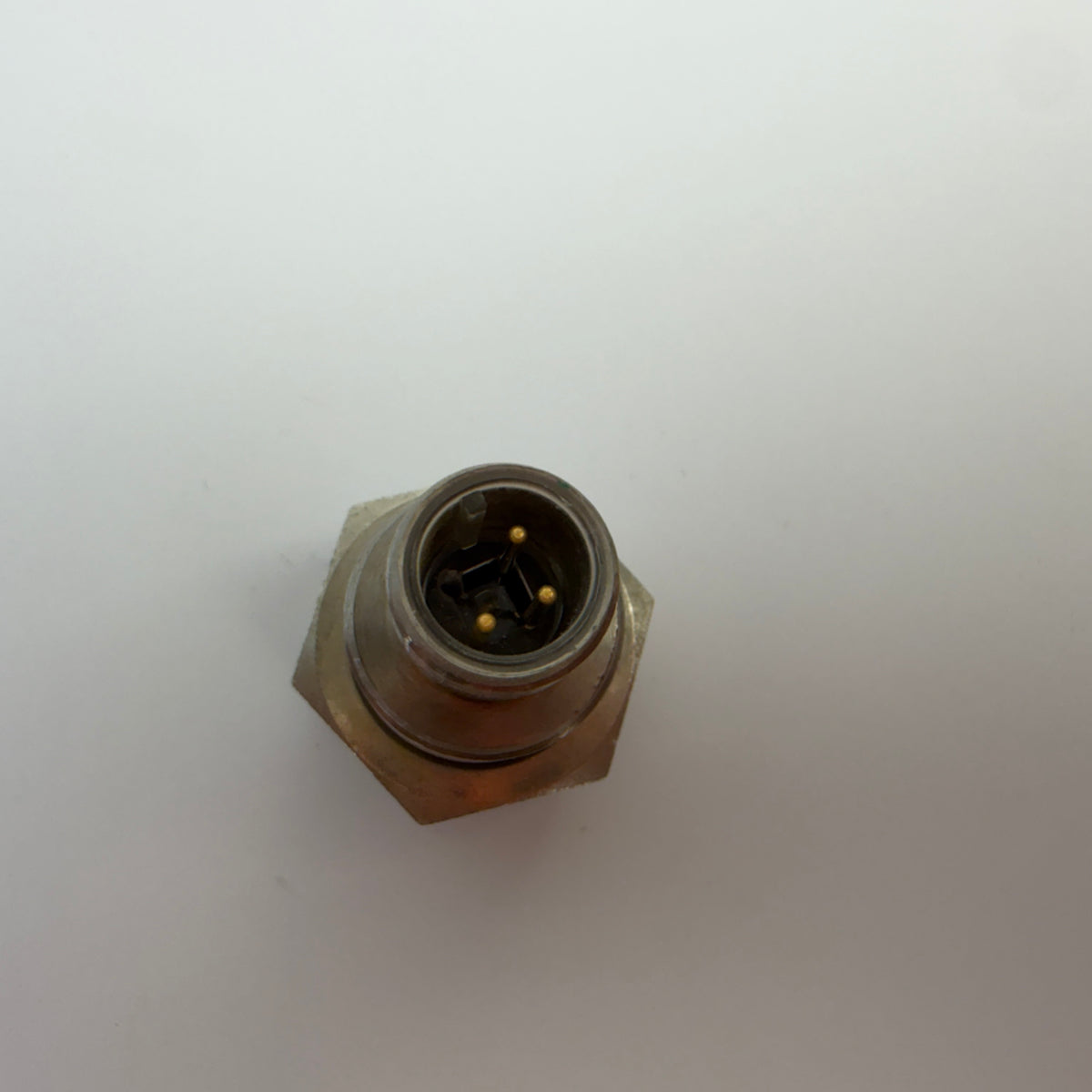

| Connector | M12 × 1, 4-pin |
| Housing Material | Nickel-plated brass |
| Sensing Face | PBT |
| Protection Rating | IP67 |
| Ambient Temperature | -40°C to +70°C |
| Protection | Reverse polarity & short-circuit protection |
Package Contents
1 × Pepperl+Fuchs NBB8-18GM30-E2-V1 sensor, as pictured.
